Follow these steps to configure and install the SIM OPERA Interface.
Figure 54-3 Extension Application Inserting Content
Figure 54-4 Extension Application Configuring Content
Figure 54-5 Extension Application Importing Content
Disk File Name entries must exactly match the name of their associated SIM scripts and DLL file names. These entries are case-sensitive.
The ZoneableKey entry for the Android.htm file must match html, and it is case-sensitive.
The Version column is not required.

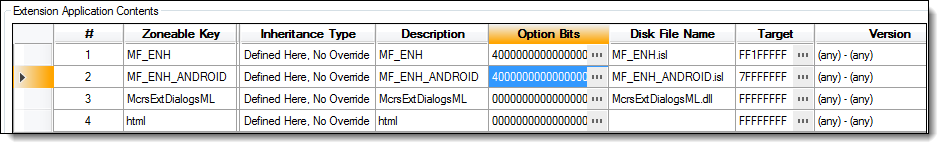

Figure 54-6 Extension Application Content Record Details
MF_ENH.isl target: WIN32
MF_ENH_ANDROID.isl target: Android
McrsExtDialogsML.dll target: WIN32
Android.htm target: Android
For multi-tenant environments using releases earlier than Simphony release 2.9, you are required to configure the content information (outlined in the following section under Content Information) as Extension Application content, as the content feature cannot be used in these environments.
Create new Application Content for the enhanced interface, selecting the Insert Application Content button. The ZoneableKey and Description fields must be set to EnhIFC_Config. These entries are case-sensitive.
Select the Content Type 23 - Text, and insert the content information as outlined in the following section under Content Information. Apply the configuration settings as required.
Content Information
Select the Enterprise, property, revenue center, or zone, click Setup, and then click Content. Insert a record for the Property Management System (PMS) configuration. The name of the new entry must be EnhIFC_Config (which is case-sensitive), and enter STRING. Enter the strings as shown in the following figure (the content text file is delivered with the other files), and change the options as needed.

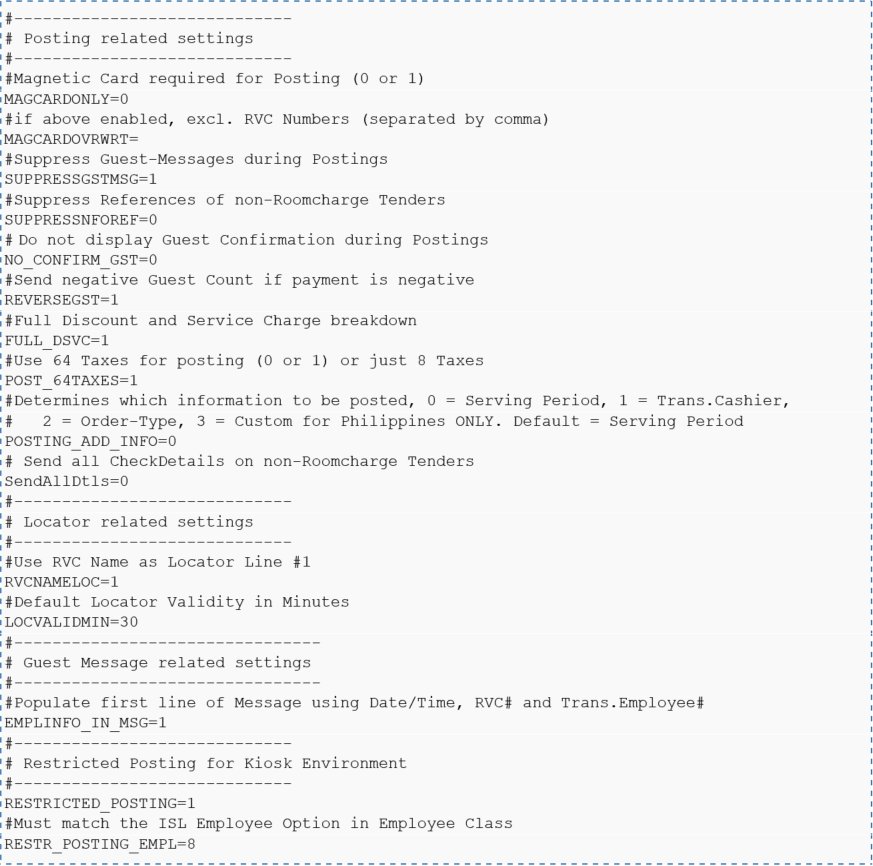

Figure 54-7 Content Text File
Posting Related Configuration Settings
Table 54-1 Posting Related Configurations
Configuration String | Configuration Value |
---|---|
MAGCARDONLY |
Set to 1 (one) if you want to limit the entries in the Room-Charge event to magnetic cards, or set to 0 (zero) to allow both magnetic cards and keyboard as input. |
MAGCARDOVRWRT |
When MAGCARDONLY is enabled, the setting can be overwritten for certain RVC's by entering a list of RVC numbers (separated by a comma). |
SUPPRESSGSTMSG |
When set to 1 (one), this suppresses the message indicator during the posting. For high-volume sites this should be enabled. |
SUPPRESSNFOREF |
For Non-Room-Charge tenders, this shows the Department Code they were posted to. When set to 1 (one), this suppresses this reference. |
REVERSEGST |
Set to 1 (one) if the guest count should be negative in case the payment is negative (i.e., the payment is voided). Note that this feature requires specific setup on the Front-Office interface to work correctly. |
FULL_DSVC |
If set to 1 (one), a full breakdown of discounts are sent. This requires a specific version of the Front-Office interface. An additional full breakdown of service charges requires this to be set to 2 (two), this setting also includes a full breakdown of discounts. |
NO_CONFIRM_GST |
Set to 1 (one) if the guest name should not be confirmed when posting. Unless magnetic cards are used to identify the guest, this option should be disabled and set to 0 (zero). |
POST_64TAXES |
If set to 1 (one), up to 63 Tax Itemizers are sent to the Front-Office interface. Note that this requires IFC8 V.8.7.1.2 or higher, as well as a certain version of the Front-Office itself. If set to 0 (zero), only 8 (eight) Tax Itemizers are sent to the Front-Office interface. |
POSTING_ADD_INFO |
This setting determines which information value is to be used for any posting. Currently, the following values are supported:
|
SendAllDtls |
When set to 0 (zero), only check details of Room-Charges are sent to the Front-Office interface. If set to 1 (one), the check details of non-Room-Charges are also sent. |
RESTRICTED_POSTING |
Select if you want to restrict responses returned from the Front-Office Interface in the Room-Charge event. Note that this only works in combination with, and if the RESTR_POSTING_EMPL option is configured correctly. Currently there are two supported values :
|
RESTR_POSTING_EMPL |
Specify the ISL Option that should be used with the above option (see EMC, Employee Maintenance, Employee Class, ISL Options). As such, the valid value for this configuration is between 1 (one) and 8 (eight). |
Guest-Locator and Guest-Message Related Configurations
Table 54-2 Guest-Locator and Guest-Message Configurations
Configuration String | Configuration Value |
---|---|
RVCNAMELOC |
If set to 1 (one), the first line of the locator contains the RVC name, otherwise it is blank. The operator can overwrite this value when entering the locator information. |
LOCVALIDMIN |
Each new locator is only valid for a certain amount of time. Enter the default time in minutes here. The server can overwrite this value when entering the locator information. |
The Content can be overridden by property, zone, or revenue center. If overridden, ensure that you select the Use Existing Record option.
Figure 54-8 Override Record Controls
Configuring Interfaces
Select the Enterprise, click Setup, click Interfaces, and then insert a record for the OPERA PMS interface.
Figure 54-9 Interface Module
The following is an example. Use a System Name that reflects the property using the interface.
To avoid double posting, the PING Frequency setting must be 0 (zero), and is required to create an interface for each property. Click the Options tab and enable the desired options. Enter the Opera PMS application server's connection information within the TCP Communications section and Save all changes.
Figure 54-10 Interface Module’s Options Tab
Only options 1, 2, 3, and 5 must be enabled. Do NOT enable option 8, as that causes double posting.
Click the Properties tab and enable the Opera PMS interface for each desired property and Save all changes.
Click the Service Host tab and select the desired Service Host for the Opera PMS interface. Click OK and Save all changes.
Figure 54-11 Interface Module’s Properties Tab
Extension Application Interface Configuration
Select the Enterprise, click Setup, and then click Extension Application. Select the PMS interface in the Interface column to associate it with the Opera Extension Application record, and Save.
This configuration typically occurs at the property level (when the PMS Interface is on-premise).
Figure 54-12 Extension Application PMS Interface Assignment
Revenue Center Configuration
Select the revenue center, click Setup, click RVC Parameters, and then click the Interfaces tab. Select the PMS interface to enable the interface for the revenue centers. Perform this step for every desired revenue center (using the same PMS link for each revenue center) and Save all changes throughout the process.

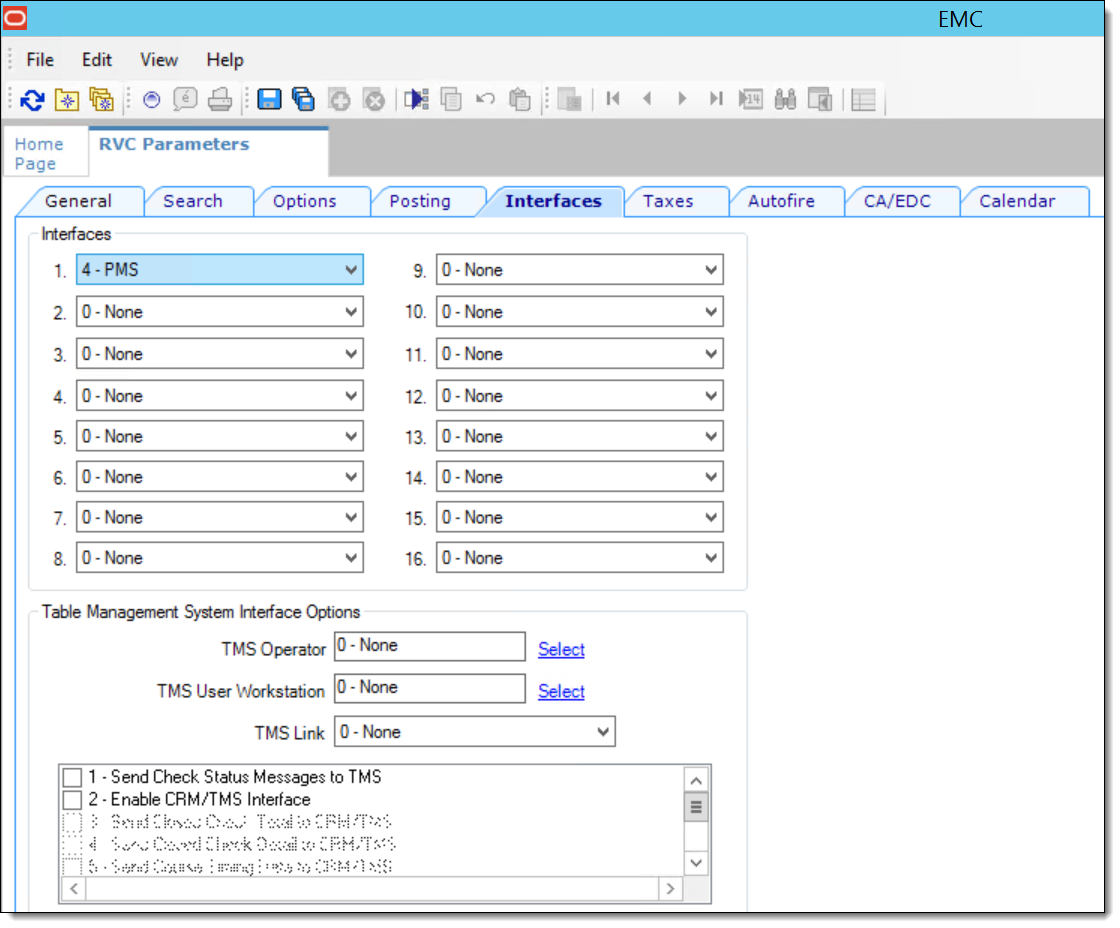

Figure 54-13 Revenue Center Parameters Interfaces Tab
Data Extensions – Add the Tender Media Extra Column
Click the Configuration tab, and then click the Data Extensions module. Select the Insert icon and add a record.
Table: 71 - Tender Media
Extra Column name: RoomCharge
Type: 4 - Boolean
Data Constraints: N/A
Sort Priority: N/A
Display Width: 150
Translatable Name: Enh.IFC – Room Charge (translatable)
Translatable Help: Enable this for Room-Charge Payments (translatable)
Figure 54-14 Data Extensions Module
Enable all three access check-boxes.
Figure 54-15 Data Extensions Translatable Settings
Tender Media Setup
Select the property, click Configuration, and then click Tender/Media. Create a Room Charge tender media record. Configure the generic options as required.

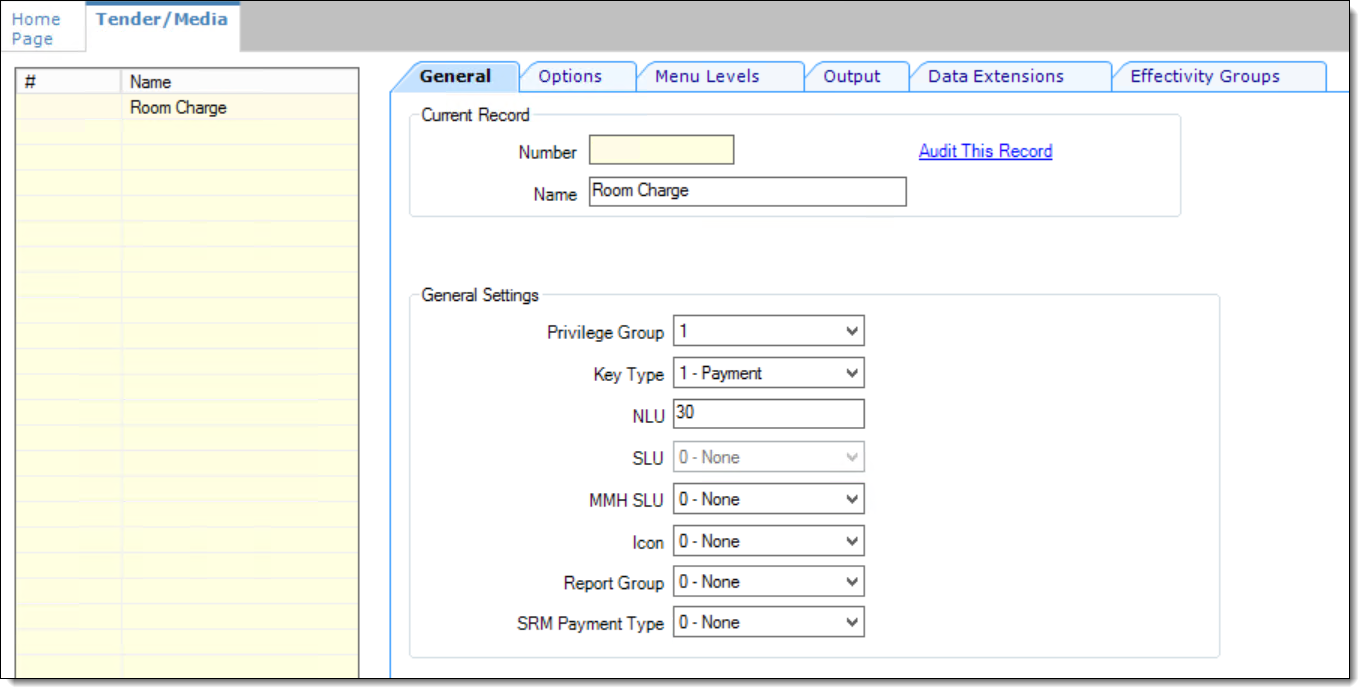

Figure 54-16 Tender/Media Room Charge Configuration
Click the Tender/Media Options tab, click the Interface Options tab, and then select PMS from the Interface Link drop-down list. The name of the interface link and the View Interface Names for RVC option are only available if the Tender/Media configuration has been performed at the Property level.
29 - ON=Post 0.00 Transactions to PMS; OFF=Do Not Post
31 - ON=PMS and Credit Cards Use 19 Digit Acct Number; OFF=16 Digits
38 - Use ISL TMED Procedure Instead of PMS Interface
Click the Ops Behavior tab and under the General Options section, ensure that the 5 - Reference Entry Required option is NOT enabled. Save all changes.
The Interface Link must be set for all payments that need to be auto-balanced (for example, cash, credit cards, and so on).

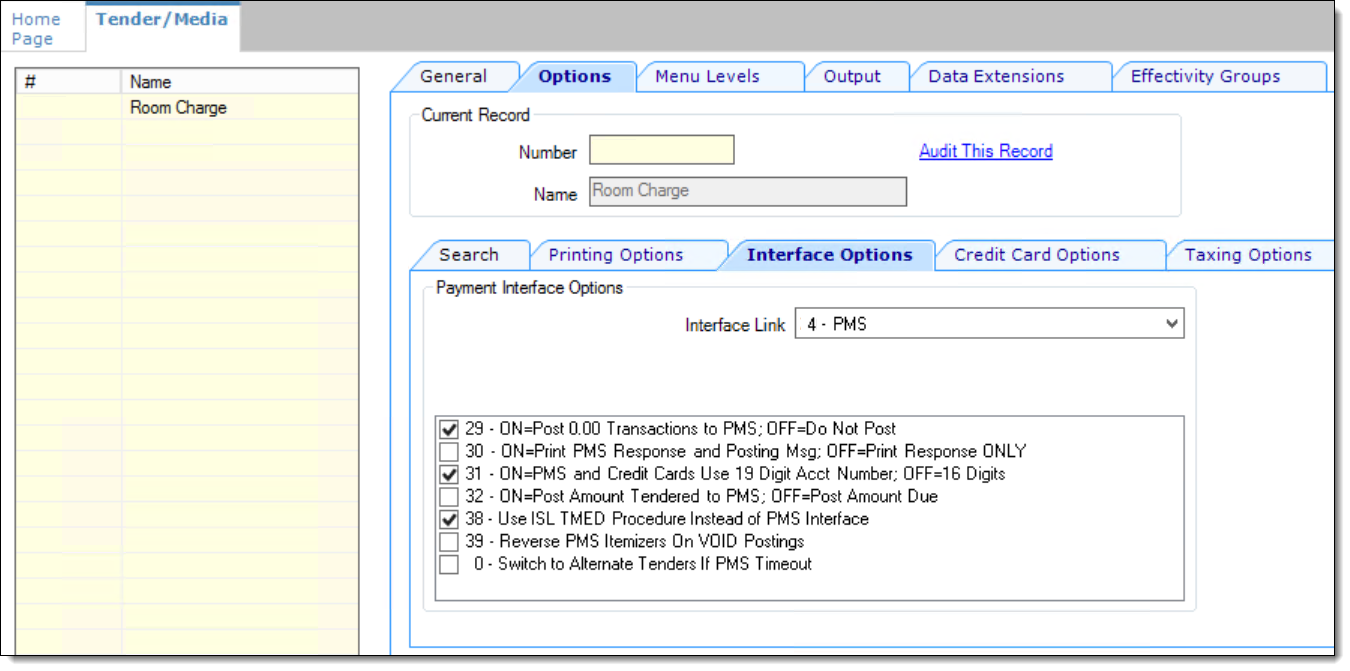

Figure 54-17 Tender/Media Room Charge Options
Enable the Room Charge Data Extensions Option
Click the Data Extensions tab, and then select the check box in the Value column for the Enh.IFC – Room Charge.

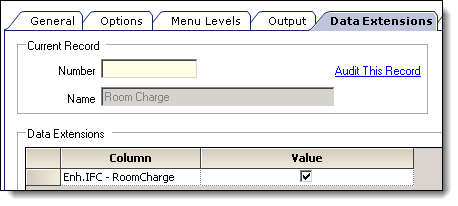

Figure 54-18 Tender/Media Room Charge Data Extensions Tab
The Value check-box must be selected for the room charge tender media(s) (see above). Deselect the check-box for all of the other tender medias, but it should NOT be greyed out, as shown in the following example image.
Figure 54-19 Undesired Tender/Media Data Extensions Example
Page Design
Select the Configuration tab, and then click Page Design. Ensure that the previously reviewed Room Charge tender media is configured correctly on the payment tab/page (see the following example).
Figure 54-20 Page Design Module - Room Charge Payment Button
Add the inquiry buttons on required pages and tabs. Typically, the inquire buttons are created on the payment and/or function page/tab.
Figure 54-21 Page Design Module - Room Charge Inquire Button
Inquiry Button Definitions
Type: Function
Sim Inquire
Argument: <EXTENSION APPLICATION NAME>:<INQUIRY NUMBER>
After the button configurations are complete, perform a full reload of all of the workstations and restart the service hosts.
Table 54-3 Inquire Names and Numbers for Room Inquire Buttons
Inquire | Inquire Number |
---|---|
Room Inquire |
1 |
Info Room Inquire |
2 |
Short Inquire |
5 |
Info Line Inquire |
6 |
View Reservation Inquire |
7 |
Extended Inquire |
8 |
PMS Interface Information Inquire |
911 |
Features and Revisions since the Release of Simphony 2.7 and Later
Itemizer | ||
---|---|---|
1 |
Service-Charge based on SVC Itemizer 1 |
See remark (1) below |
2 |
Service-Charge based on SVC Itemizer 2 |
See remark (1) below |
3 |
Service-Charge based on SVC Itemizer 3 |
See remark (1) below |
4 |
Service-Charge based on SVC Itemizer 4 |
See remark (1) below |
5 |
Service-Charge based on SVC Itemizer 5 |
See remark (1) below |
6 |
Service-Charge based on SVC Itemizer 6 |
See remark (1) below |
7 |
Service-Charge based on SVC Itemizer 7 |
See remark (1) below |
8 |
Service-Charge based on SVC Itemizer 8 |
See remark (1) below |
9 |
OPEN Amount Service-Charge with no SVC Itemizer enabled |
See remark (2) below |
10 |
PRESET Amount Service-Charge with no SVC Itemizer enabled |
See remark (2) below |
11 |
Stored Value Transaction Service Charge |
Enable SVC Option 14 to ON |
12 |
Non-Revenue Service Charge |
Enable SVC Option 7 to ON |
13 |
Charged Tip |
|
14 |
Auto Service-Charge |
Remark 1: Amount of any PERCENTAGE based Service-Charges based on the SVC Itemizer (1-8) and the Menu-Items present on the check. For AMOUNT based Service-Charge based on the FIRST active SVC Itemizer found (if any).
Remark 2: Only used with AMOUNT based Service-Charges with no SVC Itemizer enabled.
Enabling a more detailed breakdown of Service-Charges requires related changes on the PMS/IFC8 side. As such, coordinate any changes with the PMS team.
Parent topic: Interfaces with Simphony
