15Service Requests and Trouble Tickets in Siebel Energy
Service Requests and Trouble Tickets in Siebel Energy
This chapter describes the procedures for initiating and managing service requests and trouble tickets in Siebel Energy. It includes the following topics:
Scenario for Using Service Requests and Trouble Tickets in Siebel Energy
Setting Up Service Requests and Trouble Tickets in Siebel Energy
Creating a Trouble Ticket Record in Siebel Energy (End User)
Associating Parent and Child Trouble Tickets in Siebel Energy (End User)
Using the Customer Satisfaction Survey in Siebel Energy (End User)
Additional End-User Tasks for Trouble Ticket Management in Siebel Energy
About Service Requests and Trouble Tickets in Siebel Energy
Siebel Energy service requests and trouble tickets are primarily used by customer service representatives (CSRs), their managers, and network operations center (NOC) agents.
Service requests and trouble tickets are database records that are used to manage problems with equipment or general requests for service. This chapter is mostly about trouble tickets, but it also explains the differences between trouble tickets and service requests and tells you where you can find more information about service requests. The following information is included in this chapter:
This chapter guides you in setting up features that help to automate trouble ticket management.
This chapter describes procedures typically used by end users to create, monitor, and close trouble tickets.
This chapter describes procedures that you can use for overall management of trouble tickets.
Service requests and trouble tickets perform similar functions. The main differences follow:
Trouble tickets functionality supports parent-child relationships.
Trouble tickets are typically used to record and track problems with the functioning of services and networks, while service requests are typically used to record and track general customer problems and requests. Examples of general problems and requests are billing problems, requests for new equipment, and requests for billing statements.
Service requests and trouble tickets are managed through the Service Requests and Trouble Tickets screens.
Initiation of Service Requests and Trouble Tickets
Service requests and trouble tickets can be initiated in the following ways:
A customer calls the call center to report a problem with the phone line.
A network outage management application that is integrated with Siebel Energy automatically creates a trouble ticket record in the Siebel Energy database.
Agents can reassign service requests and trouble tickets to other groups or individuals for resolution. Alternatively, agents can break a service request or trouble ticket down into different activities, which can be assigned to different owners. In this case, the agent can monitor progress towards completion of the activities and close the service request or trouble ticket.
Creation of Service Requests and Trouble Tickets
Service requests and trouble tickets can be created within Siebel Energy or moved intoSiebel Energy by the following methods:
Customers using Oracle’s Siebel Self Service.
Customers and partners using an Automated Call Distributor (ACD).
Call center agents responding to phone calls or email from customers.
NOC agents responding to network problems.
Automated network outage management applications that are integrated with Siebel Energy.
Trouble Ticket Referral
Trouble tickets can be referred from Siebel Energy to trading partner software through integration with an electronic bonding gateway, using Siebel Enterprise Application Integration (Siebel EAI).
Additional Information About Service Requests
The remainder of this chapter describes trouble ticket management. For more information about service requests, see Siebel Field Service Guide and Siebel Applications Administration Guide.
Scenario for Using Service Requests and Trouble Tickets in Siebel Energy
This topic gives one example of how service requests and trouble tickets might be used. You might use service requests and trouble tickets differently, depending on your business model.
During a typical day in a customer service organization, a group of customer service representatives (CSRs) respond to customer phone calls and assign thirty trouble tickets. Twenty of the trouble tickets are solved using existing solutions, which the CSRs associate with the trouble tickets. Ten of the trouble tickets require new solutions, which the CSRs create after performing the necessary research. Between them, the CSRs make two mistakes when they click the wrong part of the user interface during an operation. They note their mistakes in email messages to the manager and ask the manager to correct them.
At the end of the day, the manager performs routine administrative work on the solutions that were created during the day, starting with correcting the two errors. In one error, a CSR accidently associated a solution with the wrong product defect. The manager corrects this error by dissociating them. A different CSR incorrectly associated a solution with a resolution document. The manager resolves the problem by dissociating them.
Next, the manager reviews each of the new solutions in turn. She performs a query for the solutions that were created during the day and examines the first record. She checks that it is associated with a trouble ticket and then reads the solution. Being familiar with this type of problem, the manager recalls a similar solution that might be useful for a CSR to know about. She locates the similar solution and associates the two records.
The manager also recalls a technical document on the company’s network that might help to explain the problem. She locates the document, creates a new resolution document record, attaches the document to the record, and associates the record with the solution. She is now satisfied with the solution, so she changes its status to Final and makes sure that it is only visible internally.
The manager reviews the second solution and checks that it is associated with a trouble ticket. This solution is incomplete so the manager leaves the status as Draft. She informs the CSR who created the solution that this problem is related to, and can be associated with, a known product defect, and asks the CSR to research it more thoroughly.
The manager checks that the third solution is associated with a trouble ticket and reads the resolution documents associated with it. One of the resolution documents is an internal technical document that was recently revised and must be replaced. The manager dissociates the solution from the document, locates the revised version on the network, adds it to the database, and associates it with the solution. She then changes the status of the solution to Final.
The manager reviews each of the remaining newly created solutions in a similar manner.

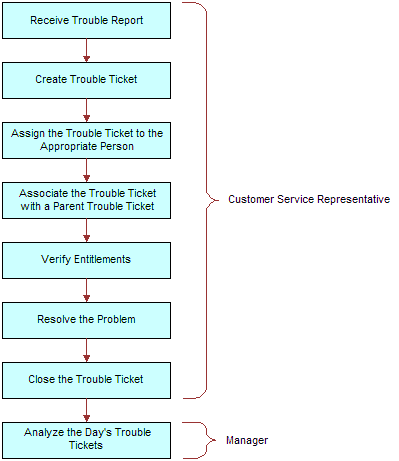

The following image shows the sequence of procedures that end users might follow to manage trouble tickets. The sequence of events are as follows:
Customer Service Representative:
Receives trouble report.
Creates trouble ticket.
Assigns the trouble ticket to the appropriate person.
Associates the trouble ticket with a parent trouble ticket.
Verifies entitlements.
Resolves the problem.
Closes the trouble ticket.
Manager:
Analyzes the day’s trouble tickets.

Setting Up Service Requests and Trouble Tickets in Siebel Energy
Administrators can make the CSRs’ job easier by creating scripts and automating the assignment of trouble tickets as follows:
You can use Oracle’s Siebel SmartScript to provide scripts that guide CSRs as they collect information about trouble tickets. For more information about creating scripts, see Siebel SmartScript Administration Guide.
CSRs or other qualified personnel can manually assign ownership of a trouble ticket to themselves, to another employee, or to a group. With the appropriate setup, Oracle’s Siebel Assignment Manager can be used to give the CSR the option of automating the assignment.
For more information about setting up Siebel Assignment Manager (including rules, criteria, workload, employees, positions, and territories), see Siebel Assignment Manager Administration Guide.
Creating a Trouble Ticket Record in Siebel Energy (End User)
End users can create a trouble ticket record.
To create a trouble ticket
Navigate to the Trouble Tickets screen, then the Trouble Ticket List view.
Add a record, and complete the necessary fields in the record and the More Info form. To access more fields, click the show more button in the form.
Some fields are described in the following table.
Field Comments Ref #
Type the reference number An external application can identify the trouble ticket by using this number.
Last Name
Select the last name of the person reporting the problem.
Owner
Select the user ID of the person or group responsible for resolving the trouble ticket (for example, an end user, another service representative, or a service group).
Assigning a Trouble Ticket in Siebel Energy (End User)
If end users are unable to resolve trouble tickets themselves, then they can assign them to another qualified CSR or to a group. In general, trouble tickets can be assigned in these ways:
Batch assignment. Siebel Assignment Manager can assign many trouble tickets at a scheduled time. For more information, see Siebel Assignment Manager Administration Guide.
Dynamic assignment. Siebel Assignment Manager can automatically assign trouble tickets at preset intervals. For more information, see Siebel Assignment Manager Administration Guide.
Interactive assignment. Siebel Assignment Manager is invoked manually from the menu button in the More Info view, as described in the next procedure.
Manual assignment. Users select the owner in the Trouble Tickets screen, as described in the next procedure.
To assign a trouble ticket manually to a person or group
Navigate to the Trouble Tickets screen, then the Trouble Ticket List view.
Drill down on the ticket ID of the trouble ticket.
In the More Info form, click the show more button, and then perform one of the following steps:
To assign a trouble ticket using Oracle’s Siebel Assignment Manager, click the menu button, select Assign, and then select a person.
To manually assign a trouble ticket to a person, select a person in the Owner field.
To manually assign a trouble ticket to a group, select a group in the Group field.
Associating Parent and Child Trouble Tickets in Siebel Energy (End User)
The general procedure for setting up a parent-child relationship is to create the child trouble ticket and then associate it with an existing trouble ticket for the parent.
End users can group many child trouble tickets under one parent trouble ticket. Grouping several trouble tickets under one parent can be useful for managing a single network problem that results in calls from many customers.
Associating Child Trouble Tickets With Parent Trouble Tickets
To associate a child trouble ticket with existing parent trouble tickets, follow this procedure.
To associate a child trouble ticket with existing parent trouble tickets
Navigate to the Trouble Tickets screen, then the Trouble Ticket List view.
Drill down on the ticket ID of the child trouble ticket.
Click the Parent Trouble Tickets view tab.
The Trouble Ticket Details form appears with the Parent Trouble Tickets list beneath it.
In the Parent Trouble Tickets list, create a new record.
In the Add Trouble Tickets dialog box, select one or more parent trouble tickets.
Verifying Entitlements for Trouble Tickets
To verify an entitlement associated with a trouble ticket, follow this procedure.
To verify the entitlement associated with a trouble ticket
Navigate to the Trouble Tickets screen, then the Trouble Ticket List view.
Drill down on the ticket ID of the trouble ticket.
Click the More Info view tab.
In the More Info form, click the show more button to access more fields.
In the Entitlement Name field, select an entitlement.
Note: For information about determining how this dialog box is populated, see Siebel Field Service Guide.In the More Info form, click Verify.
The Due Date field is automatically populated with the appropriate time period. For instance, if the customer is entitled to have a problem fixed within two hours, then the Due Date field reflects this time period.
About Trouble Ticket Solutions
Customer service organizations estimate that approximately 85 percent of assigned trouble tickets are related to problems that have been previously encountered. Siebel Energyprovides access to descriptions of how previous trouble tickets were resolved. When there is no existing solution to a trouble ticket, a member of the organization can research the problem and create a new description in the form of a solution record.
Solutions Defined
In Siebel Energy, the term solution specifically means a record in the Siebel Energy database that includes a description of how a previous trouble ticket was resolved or how an anticipated future trouble ticket can be resolved. The word solution is also used in general terms to mean an answer to a problem.
Further Information
End users can review and create solutions for trouble tickets using the same methods used to review and create solutions for service requests. For more information about working with solutions, see Siebel Field Service Guide.
Resolving Trouble Tickets in Siebel Energy (End User)
This topic describes the ways of resolving trouble tickets.
Adding an Activity to a Trouble Ticket
Resolving a trouble ticket might require several procedures, performed by multiple people or groups. End users can create an activity for each step and assign the activity to themselves, another qualified person, or a group.
To add an activity to a trouble ticket
Navigate to the Trouble Tickets screen, then the Trouble Ticket List view.
Drill down on the ticket ID of the trouble ticket.
Click the Activities view tab.
In the Activities list, add a record, and complete the necessary fields.
Associating Activity Plans With Trouble Tickets
Activity plans include a list of activities to be completed to resolve a problem. If an appropriate activity template exists, then end users can select the template to populate their activities list with a defined set of activities. Then end users can customize the list, if necessary. For more information about working with activities and activity plans, see Siebel Applications Administration Guide.
To associate an activity plan with a trouble ticket
Navigate to the Trouble Tickets screen, then the Trouble Ticket List view.
Drill down on the ticket ID of the trouble ticket.
Click the Activity Plans view tab.
In the Activity Plans list, add a record.
In the Template field, select an Activity Template.
Closing a Trouble Ticket
When a trouble ticket is resolved, end users can change its status to Closed in any Trouble Ticket list or form. Changes cannot be made to trouble tickets that are closed. To continue working on a closed trouble ticket, first change its status to Open or Pending.
To close a trouble ticket
Navigate to the Trouble Tickets screen, then the Trouble Ticket List view.
Drill down on the ticket ID of the trouble ticket.
Click the More Info view tab.
In the More Info form, select a value of Closed in the Status field.
Using the Customer Satisfaction Survey in Siebel Energy (End User)
Customer satisfaction surveys allow end users to conduct a survey with the person who initiated a trouble ticket. If they have Chart Works Server (a third-party application) installed, then a chart displays a measurement of the customer’s satisfaction as they record the customer’s responses. On a subsequent occasion, they can conduct another survey without overwriting existing survey records.
As part of closing a trouble ticket, end users can conduct a customer survey in person, or they can use the Correspondence screen to send a letter and survey to the originator of a trouble ticket. When they mail a survey, an activity is automatically generated for the mailing. For information about using the Correspondence screen to send out customer satisfaction surveys, see Siebel Applications Administration Guide.
To conduct a customer survey
Navigate to the Trouble Tickets screen, then the Trouble Ticket List view.
Drill down on the ticket ID of the trouble ticket.
Click the Customer Satisfaction Survey view tab.
Scroll down to the Survey Details form, and add a record.
Ask each of the questions on the Survey form and record the customer’s answer for each field.
Analyzing Trouble Tickets Data in Siebel Energy (End User)
You can use charts to perform various types of analyses on your group’s trouble tickets.
To analyze trouble tickets data using charts
Navigate to the Trouble Tickets screen, then the Chart view.
In the Trouble Ticket list, select the trouble ticket.
In the Charts form, select appropriate chart settings.
Additional End-User Tasks for Trouble Ticket Management in Siebel Energy
This topic contains information about other tasks related to trouble tickets.
Customer Verification
When a customer telephones a call or service center, end users must verify whether the person is an existing or new customer. End users navigate to the Accounts or Contacts screen and perform a query of information about the customer, such as the last name, social security number, and so on. If information about the customer is available, then end users can review the requests that have already been entered for the customer. If no information about the customer is available, then end users can enter the customer information. For more information about accounts and contacts, see Accounts in Siebel Energy and Contacts in Siebel Energy.
Entitlement Verification
When creating a trouble ticket, verify the type of service agreement and entitlements connected with it. For more information about service agreements and entitlements see Agreements and Entitlements in Siebel Energy.
Communication with Field Service Agents
End users can contact a field service agent.Siebel Energy allows you to send messages about trouble tickets in several ways, including sending a text message to a pager. For more information, see Siebel CTI Administration Guide.
Trouble Tickets and Attachments
At any time, end users can store additional information relating to a trouble ticket in the database by associating an electronic file with the trouble ticket record. For information about associating an attachment with a record, see Siebel Fundamentals.
