32500 5000000000000001 – Server Disk Space Shortage Warning

Alarm Type: TPD

Description: This alarm indicates that one of the following conditions has occurred:
  • A file system has exceeded a warning threshold, which means that more than 80% (but less than 90%) of the available disk storage has been used on the file system.
  • More than 80% (but less than 90%) of the total number of available files have been allocated on the file system.

Severity: Minor

OID: 1.3.6.1.4.1.323.5.3.18.3.1.3.1

Alarm ID: TKSPLATMI15000000000000001

Recovery

  1. Examine the syscheck output to determine if the file system /var/TKLC/epap/free/var/TKLC/elap/free is low on space. If so, continue to step 2a; otherwise skip to step 3.
  2. Delete unnecessary files, as follows, to free up space on the free partition:
    1. Log in to the EPAP GUI (see Accessing the EPAP GUI)
    2. Select Debug>Manage Logs & Backups.

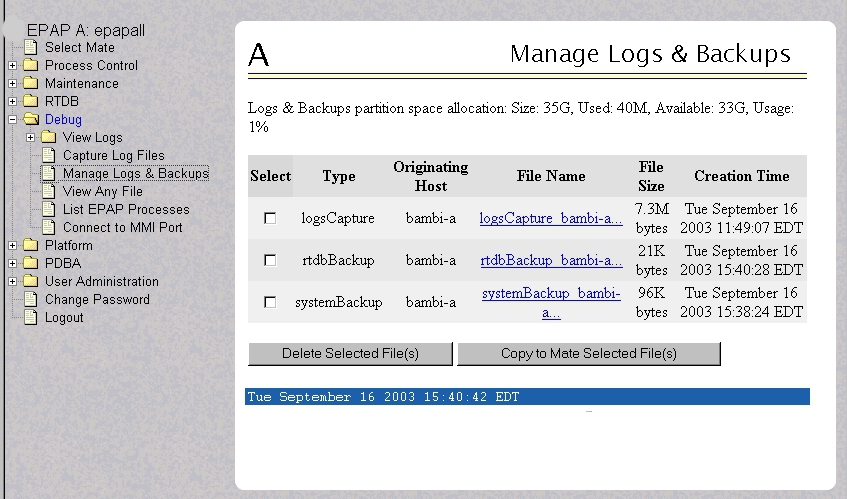

      A screen similar to Figure 4-14 displays. This screen displays the information about the total amount of space allocated for, and the amount of space currently used by logs and backups, and it lists logs and backup files that you might choose to delete, freeing up additional disk space.

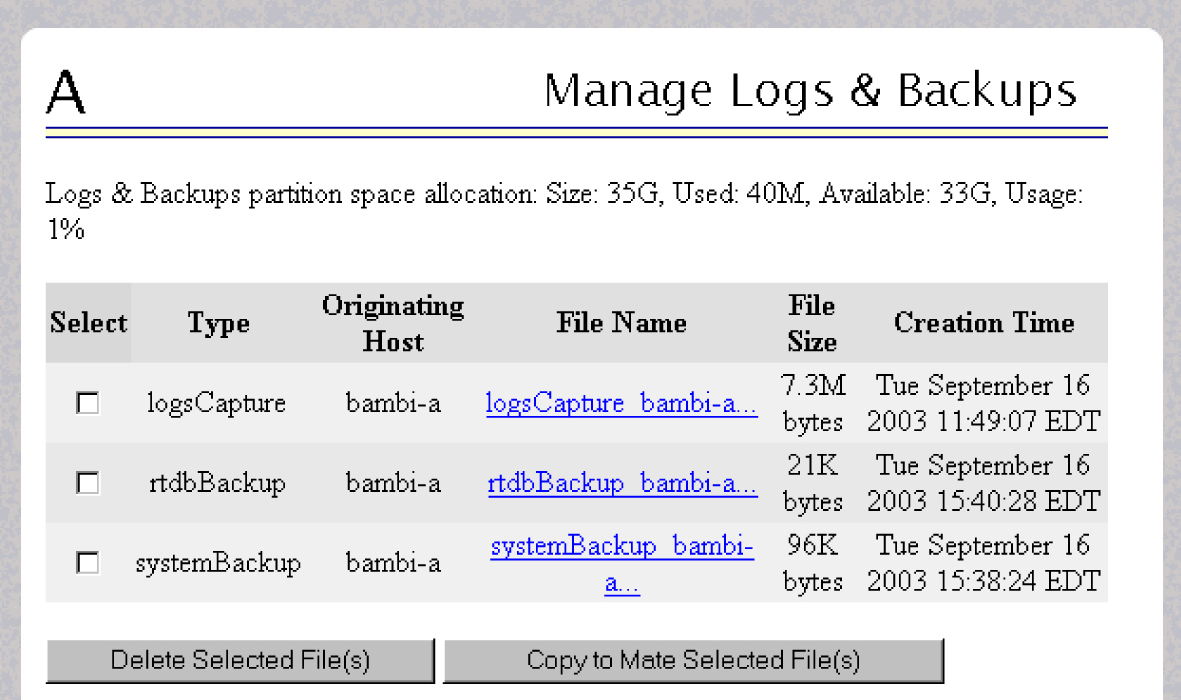

      Figure 4-14 Manage Logs and Backups

    3. Click the checkbox of each file that you want to delete and then click Delete Selected File(s).
  3. Contact My Oracle Support (MOS), and provide the system health check output.
