E5-APP-B Card LEDs

This section describes the LEDs found on the front face of the E5-APP-B card.

Server Panel LEDs

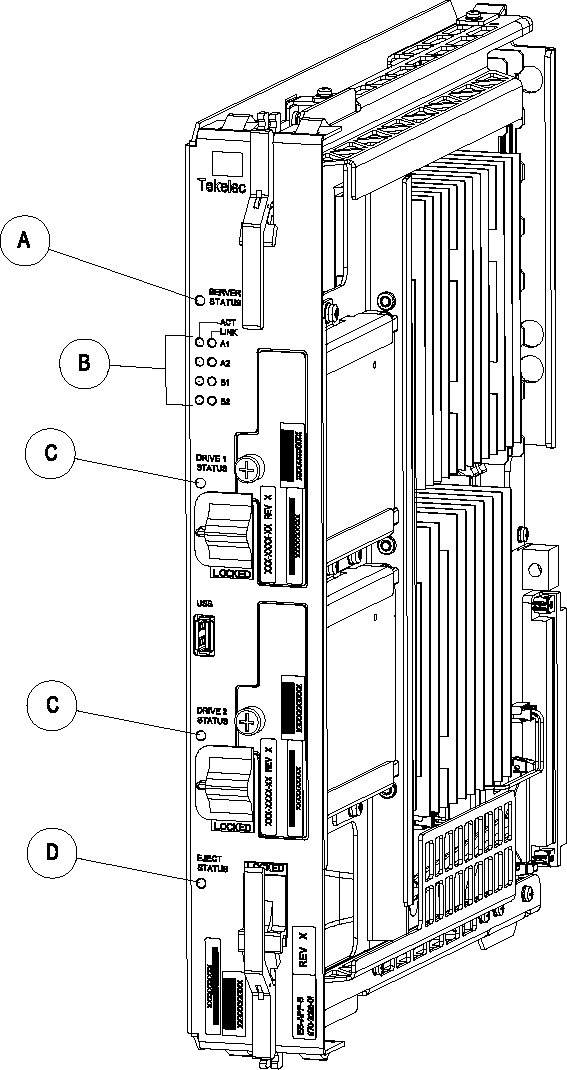

Figure 2-1 shows the E5-APP-B card LEDs on the front panel

Figure 2-1 E5-APP-B Card LEDs

The following light-emitting diode (LED) status indicators can be found on the E5-APP-B card:

  • One Server Status indicator (A)
  • Four E-Net link and Active LED status indicators (B)
  • Two drive module status indicators (C)
  • One Card Eject status indicator (D)

Table 2-1 E5-APP-B LED Table

LED Name HW/SW Controlled Description
Server Status SW

Solid Red - Server is halted

Flashing Red - Server is booting

Solid Amber - TKLC configuration beginning

Solid Green - TPD loaded/operational state

Flashing Green - Server is shutting down

Drive 1 Status SW/HW

HW: Flashing Green - Drive activity

SW: Flashing Red - Impending drive removal

SW: Steady red - Drive ready for removal

Drive 2 Status SW/HW

HW: Flashing Green - Drive activity

SW: Flashing Red - Impending drive removal

SW: Steady red - Drive ready for removal

Eject Status SW

Red - Card ready for extraction

Flashing Red - Card preparing for extraction

Off - Card is not ready for extraction

Act LED A1 HW Flashing Green - Link Activity
Act LED A2 HW Flashing Green - Link Activity
Act LED B1 HW Flashing Green - Link Activity
Act LED B2 HW Flashing Green - Link Activity
Link LED A1 HW

Green - 10/100 Link Speed

Amber - 1000 Link Speed

Link LED A2 HW

Green - 10/100 Link Speed

Amber - 1000 Link Speed

Link LED B1 HW

Green - 10/100 Link Speed

Amber - 1000 Link Speed

Link LED B2 HW

Green - 10/100 Link Speed

Amber - 1000 Link Speed
