Users, Projects, and Organizations Sample Dashboard
Description: The data displayed in the User, Project, Organization dashboard, and in any out-of-the-box or custom dashboard is based on the projects that you have access in Aconex.
Use the User, Project, Organization dashboard to discover information such as, (but not limited to):
- identify owner and partner organizations within projects
- identify the role of each organization in each project
- identify projects and their corresponding owner and partner organizations by geographical locations
- count of organizations (owner and participant orgs) involved in a given project
- count of all projects that a specific organization is involved in (as an owning organization or a participant organization)
- count of all users involved in all those projects that the logged in user is also associated with
Number of Canvases: 2
Default Canvas: Project Status
Canvas/Dashboard Name: Users, Projects, and Organizations Sample Dashboard
Data Source(s): Aconex
Subject Area: Aconex – User Project Organization
Datasets: Not applicable
Dashboard

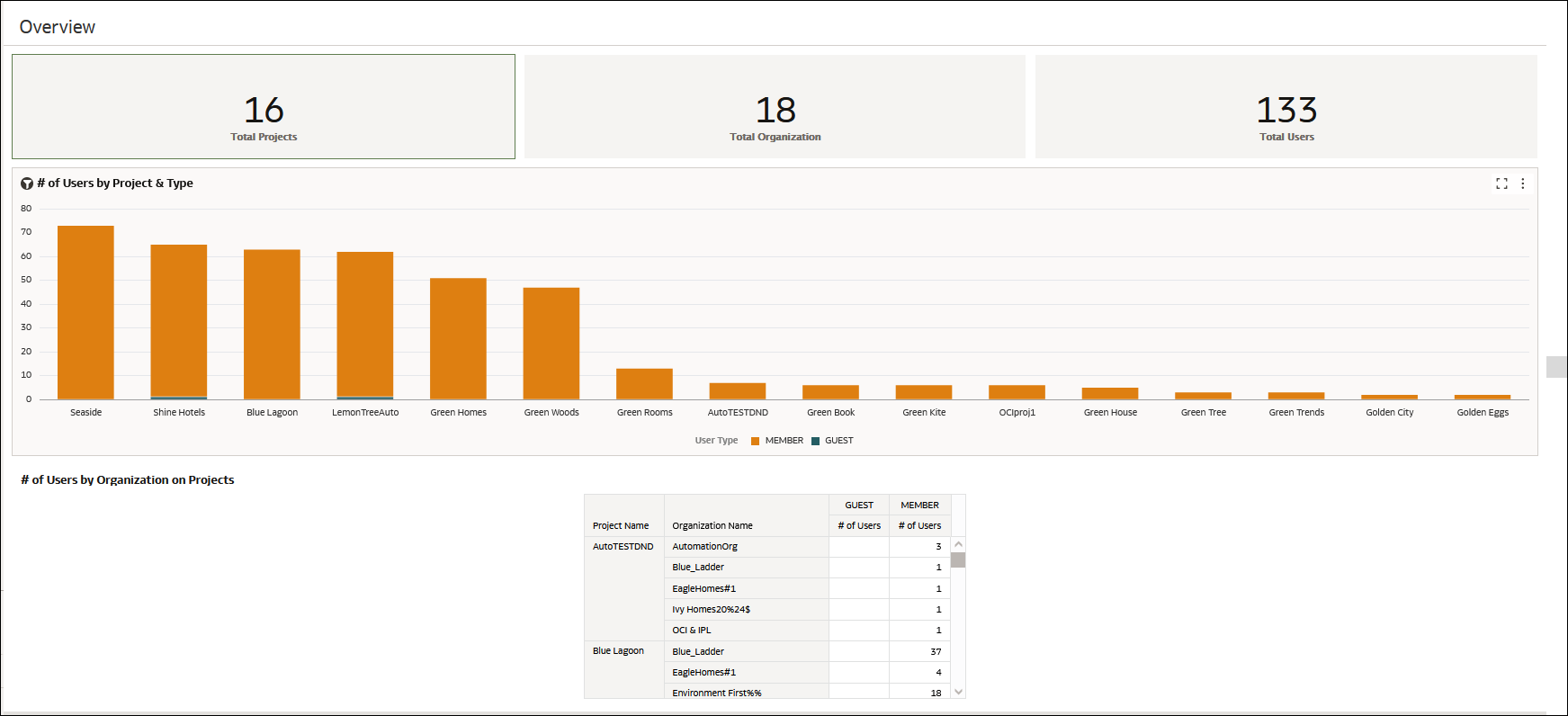

Figure 43: Users, Projects, and Organizations Sample Dashboard - Overview

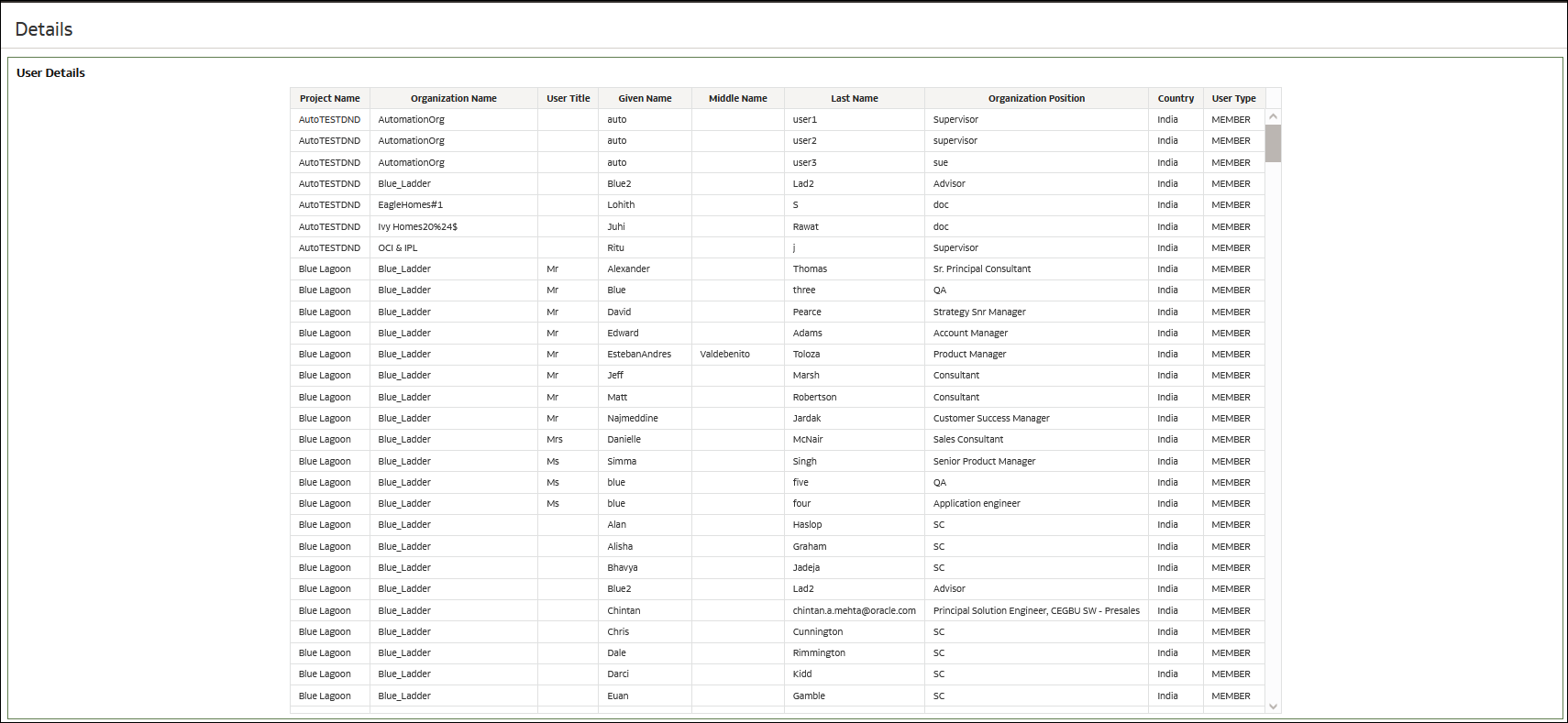

Figure 44: Users, Projects, and Organizations Sample Dashboard - Details
Table 71: Project Status - Dimensions
Canvas | Dimension / Attribute | Subject Area / Dataset |
|---|---|---|
All Canvas | Project Name | Aconex – User Project Organization |
All Canvas | User Type | Aconex – User Project Organization |
All Canvas | Organization Name | Aconex – User Project Organization |
Details | User Title | Aconex – User Project Organization |
Details | Given Name | Aconex – User Project Organization |
Details | Middle Name | Aconex – User Project Organization |
Details | Last Name | Aconex – User Project Organization |
Details | Organization Position | Aconex – User Project Organization |
Details | Country | Aconex – User Project Organization |
Table 72: Project Status – Measures
Canvas | Fact / Measure | Measure Type | Subject Area / Dataset |
|---|---|---|---|
Overview | # of Projects | Fact | Aconex – User Project Organization |
Overview | # of Organization | Fact | Aconex – User Project Organization |
Overview | # of Users | Fact | Aconex – User Project Organization |
Table 73: Budget Insights - Filters
Canvas | Filter Type | Is Expression Filter | Dimension / Attribute | Subject Area / Dataset |
|---|---|---|---|---|
Details | Canvas | No | Organization Name | Aconex – User Project Organization |
Details | Canvas | No | Project Name | Aconex – User Project Organization |
