1つのマスターと1つのサブスクライバがあるクラシック・レプリケーション・スキームの構成

マスター・データベース内の1つの表の内容をサブスクライバ・データベース内の表にレプリケートするクラシック・レプリケーション・スキームを構成できます。

この項では、マスター・データベース(masterds)内の単一表の内容をサブスクライバ・データベース(subscriberds)内の表にレプリケートするクラシック・レプリケーション・スキームの構成方法について説明します。わかりやすくするために、両方のデータベースは同じコンピュータに存在することとします。

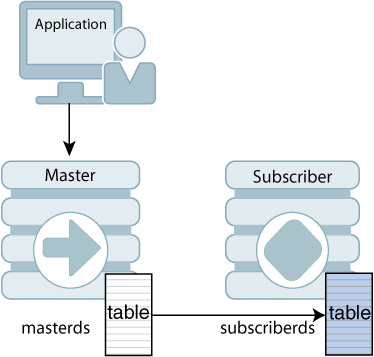

図2-2 単純なクラシック・レプリケーション・スキーム

図2-2の説明が続きます。
「図2-2 単純なクラシック・レプリケーション・スキーム」の説明
  1. マスターおよびサブスクライバのDSNを作成します。

    Oracle TimesTen In-Memory Databaseオペレーション・ガイドTimesTenデータベースの管理に従って、masterdsおよびsubscriberdsというDSNを作成します。

    テキスト・エディタを使用して、次のodbc.iniファイルを作成します:

    [masterds]
    DataStore=/tmp/masterds
    DatabaseCharacterSet=AL32UTF8
    ConnectionCharacterSet=AL32UTF8

    [subscriberds]
    DataStore=/tmp/subscriberds
    DatabaseCharacterSet=AL32UTF8
    ConnectionCharacterSet=AL32UTF8
  2. マスター・データベースに表およびクラシック・レプリケーション・スキームを作成します。

    1. ttIsqlユーティリティを使用して、masterdsに接続します。

      % ttIsql masterds
      Copyright (c) 1996-2011, Oracle.  All rights reserved.
      Type ? or "help" for help, type "exit" to quit ttIsql.

      connect "DSN=masterds";
      Connection successful: DSN=masterds;UID=timesten;
      DataStore=/tmp/masterds;DatabaseCharacterSet=AL32UTF8;
      ConnectionCharacterSet=AL32UTF8;
      (Default setting AutoCommit=1)
      Command>
    2. employees表を作成します。

      Command> CREATE TABLE employees
          ( employee_id   NUMBER(6) PRIMARY KEY,
           first_name     VARCHAR2(20),
           last_name      VARCHAR2(25) NOT NULL,
           email          VARCHAR2(25) NOT NULL UNIQUE,
           phone_number   VARCHAR2(20),
           hire_date      DATE NOT NULL,
           job_id         VARCHAR2(10) NOT NULL,
           salary         NUMBER(8,2),
           commission_pct NUMBER(2,2),
           manager_id     NUMBER(6),
           department_id  NUMBER(4)
        ) ;
    3. employees表をmasterdsからsubscriberdsにレプリケートする、repschemeという名前のクラシック・レプリケーション・スキームを作成します。

      Command> CREATE REPLICATION repscheme
              ELEMENT e TABLE employees
              MASTER masterds
              SUBSCRIBER subscriberds;
  3. サブスクライバ・データベースに表およびレプリケーション・スキームを作成します。

    subscriberdsに接続し、ステップ2と同じ手順に従って、同じ表とレプリケーション・スキームを作成します。

  4. 各データベースでレプリケーション・エージェントを起動します。

    masterdsおよびsubscriberdsでレプリケーション・エージェントを起動します。

    Command> call ttRepStart;

    ttIsqlを終了します。ttStatusユーティリティを使用して、両方のデータベースのレプリケーション・エージェントが稼働していることを確認します。

    % ttStatus
    TimesTen status report as of Thu Aug 11 17:05:23 2011

    Daemon pid 18373 port 4134 instance ttuser
    TimesTen server pid 18381 started on port 4136
    ------------------------------------------------------------------------
    Data store /tmp/masterds
    There are 16 connections to the data store
    Shared Memory KEY 0x0201ab43 ID 5242889
    PL/SQL Memory KEY 0x0301ab43 ID 5275658 Address 0x10000000
    Type            PID     Context     Connection Name              ConnID
    Process         20564   0x081338c0  masterds                          1
    Replication     20676   0x08996738  LOGFORCE                          5
    Replication     20676   0x089b69a0  REPHOLD                           2
    Replication     20676   0x08a11a58  FAILOVER                          3
    Replication     20676   0x08a7cd70  REPLISTENER                       4
    Replication     20676   0x08ad7e28  TRANSMITTER                       6
    Subdaemon       18379   0x080a11f0  Manager                        2032
    Subdaemon       18379   0x080fe258  Rollback                       2033
    Subdaemon       18379   0x081cb818  Checkpoint                     2036
    Subdaemon       18379   0x081e6940  Log Marker                     2035
    Subdaemon       18379   0x08261e70  Deadlock Detector              2038
    Subdaemon       18379   0xae100470  AsyncMV                        2040
    Subdaemon       18379   0xae11b508  HistGC                         2041
    Subdaemon       18379   0xae300470  Aging                          2039
    Subdaemon       18379   0xae500470  Flusher                        2034
    Subdaemon       18379   0xae55b738  Monitor                        2037
    Replication policy  : Manual
    Replication agent is running.
    Cache Agent policy  : Manual
    PL/SQL enabled.
    ------------------------------------------------------------------------
    Data store /tmp/subscriberds
    There are 16 connections to the data store
    Shared Memory KEY 0x0201ab41 ID 5177351
    PL/SQL Memory KEY 0x0301ab41 ID 5210120 Address 0x10000000
    Type            PID     Context     Connection Name              ConnID
    Process         20594   0x081338f8  subscriberds                      1
    Replication     20691   0x0893c550  LOGFORCE                          5
    Replication     20691   0x089b6978  REPHOLD                           2
    Replication     20691   0x08a11a30  FAILOVER                          3
    Replication     20691   0x08a6cae8  REPLISTENER                       4
    Replication     20691   0x08ad7ba8  RECEIVER                          6
    Subdaemon       18376   0x080b1450  Manager                        2032
    Subdaemon       18376   0x0810e4a8  Rollback                       2033
    Subdaemon       18376   0x081cb8b0  Flusher                        2034
    Subdaemon       18376   0x08246de0  Monitor                        2035
    Subdaemon       18376   0x082a20a8  Deadlock Detector              2036
    Subdaemon       18376   0x082fd370  Checkpoint                     2037
    Subdaemon       18376   0x08358638  Aging                          2038
    Subdaemon       18376   0x083b3900  Log Marker                     2040
    Subdaemon       18376   0x083ce998  AsyncMV                        2039
    Subdaemon       18376   0x08469e90  HistGC                         2041
    Replication policy  : Manual
    Replication agent is running.
    Cache Agent policy  : Manual
    PL/SQL enabled.

    「レプリケーション・エージェントの起動および停止」を参照してください。

  5. データをマスター・データベースにある表に挿入します。

    1. ttIsqlを使用して、マスター・データベースに接続し、employees表にいくつかの行を挿入します。

      % ttIsql masterds
      Command> INSERT INTO employees VALUES
            ( 202,
              'Pat',
              'Fay',
              'PFAY',
              '603-123-7777',
              TO_DATE('17-AUG-1997', 'dd-MON-yyyy'),
              'MK_REP',
              6000,
              NULL,
              201,
              20
         );
      1 row inserted.
    2. サブスクライバ用に、2番目のコマンド・プロンプト・ウィンドウを開きます。サブスクライバ・データベースに接続し、employees表の内容を確認します。

      % ttIsql subscriberds
      Command> SELECT * FROM employees;
      < 202, Pat, Fay, PFAY, 603-123-7777, 1997-08-17 00:00:00, MK_REP,
      6000, <NULL>, 201, 20 >
      1 row found.

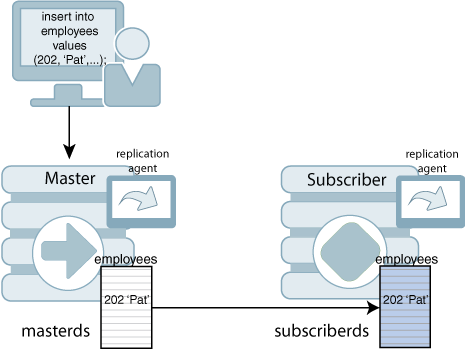

    図2-3は、masterdsに挿入された行がsubscriberdsにレプリケートされたことを示します。

    図2-3 サブスクライバ・データベースへの変更内容のレプリケート

    図2-3の説明が続きます。
    「図2-3 サブスクライバ・データベースへの変更内容のレプリケート」の説明
  6. クラシック・レプリケーション・スキームおよび表を削除します。

    1. レプリケーション・テストを完了した後、masterdsおよびsubscriberdsの両方でレプリケーション・エージェントを停止します。

      Command> CALL ttRepStop;
    2. マスター・データベースおよびサブスクライバ・データベースからemployees表およびrepschemeクラシック・レプリケーション・スキームを削除するには、各データベースで次の文を入力します。

      Command> DROP REPLICATION repscheme;
      Command> DROP TABLE employees;
