Adding Routing Definitions Using the Nodes Component

This section describes adding routing definitions using the Nodes component (IB_NODEROUTINGS).

To add a routing definition using the Nodes component you first add the definition to the system and then configure the routing.

Use the Nodes – Routings page to add the definition to the system. To access the page select PeopleTools, and then Integration Broker, and then Integration Setup, and then Node Definitions and click the Routings tab.

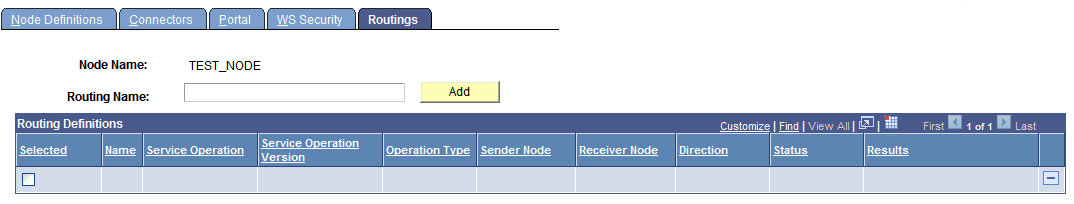

This example illustrates the Nodes – Routings page.

To add a routing definition from the Nodes-Routings page:

1. Access the Nodes-Routings page (PeopleTools, and then Integration Broker, and then Integration Setup, and then Node Definitions and click the Routings tab).

2. In the Routing Name field, enter a name for the routing definition.

3. Click the Add button.

The routing definition is added to the system and the Routing Definitions page appears where you can define the routing details.

See Defining General Routing Information.
