Step 6: Rename Operation Messages

The Consume Web Service Wizard auto-generates message names. Use the Rename Operation Messages page (IB_WSDL_IMP_MSGS) to rename auto-generated message names.:

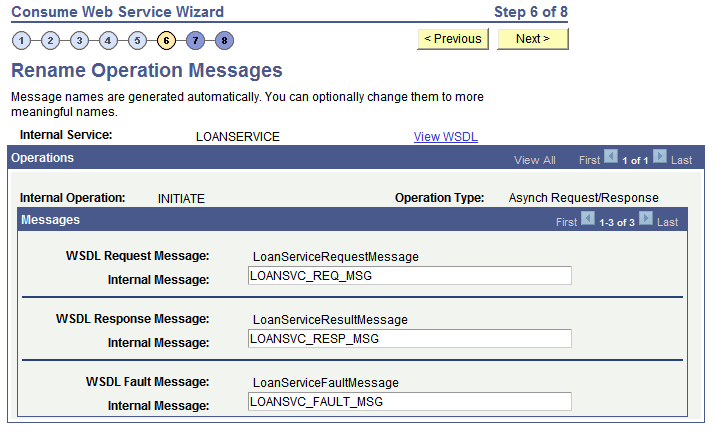

The example illustrates the Rename Operation Messages page.

When the system creates request, response and fault messages from the consumed service, it provides them with system-generated names. The previous example shows system-generated names appearing for all messages.

Use the page to rename the messages to more meaningful names.

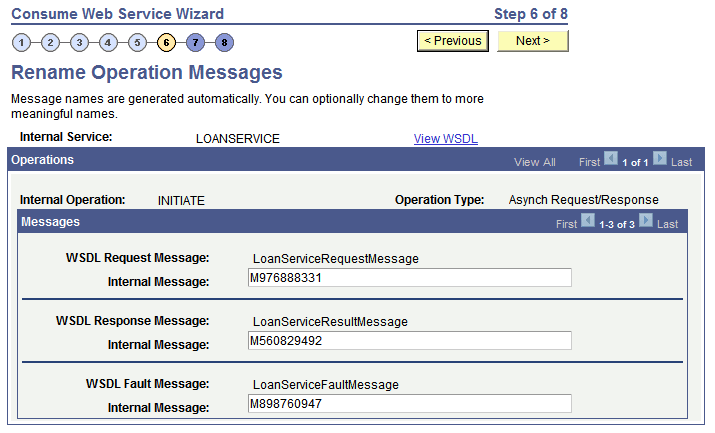

This example illustrates the Rename Operation Messages page. The example shows all messages renamed.

To rename operation messages:

1. Clear the system-generated name from a message name field.

2. Enter a new name in the field.

3. Click the Next button to proceed to the next step in the wizard.

The system checks whether the user-entered message name already exists in the database and displays an error if the name exists.
