Configuring Windows

Access the Window Config page using the following navigation path:

PeopleTools, and then MultiChannel Framework, and then Universal Queue, and then Administration, and then Define MCF Agents, and then Window Config

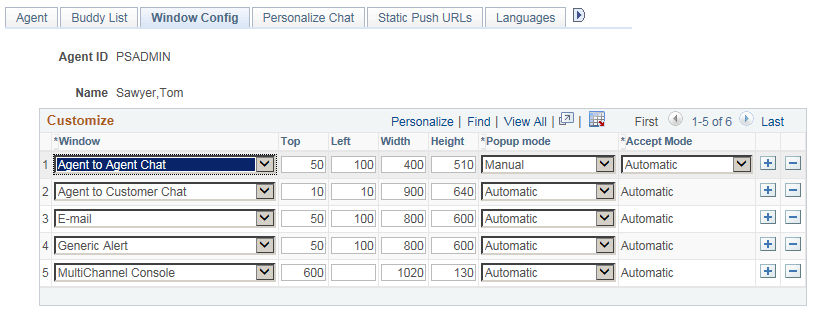

This example illustrates the fields and controls on the Window Config page. You can find definitions for the fields and controls later on this page.

Window Config page where the window sizes are defined for an agent.

Set the initial agent window placement and size by specifying parameters on this page. An agent can resize and move the windows.

Field or Control Description

Window

Select the window to which the specified configuration applies.

Select from:

  • Agent to Agent Chat

  • Agent to Customer Chat

  • Email

  • Generic Alert

  • Grab URL

  • MultiChannel Console

Top and Left

Enter the distance in pixels from the top and left edges of the screen when the window first appears.

Width and Height

Enter the width and height, in pixels, of the window when it first appears.

Popup Mode

Select from:

Automatic: The window appears automatically. For customer-initiated chat or tasks that are initiated from the EnQueue() built-in function, the task is automatically accepted as well. For agent-initiated chat, the agent can elect not to accept the task; in effect, the agent can preview the task. If this is the desired behavior, select Manual from the Accept Mode drop-down list box. If you want agent-to-agent tasks to function like customer-initiated tasks, select Automatic from the Accept Mode drop-down list box.

Manual: The window does not appear until the agent clicks the task on the agent MultiChannel Console. For customer-initiated chat or tasks that are initiated from the EnQueue() built-in function, clicking the task means that the task is automatically accepted as well. For agent-initiated chat, the behavior depends on the setting for the Accept Mode field.

Accept Mode

Select from:

Automatic: Agent-to-agent chats are automatically accepted without requiring the agent to click the icon.

Manual: Agent-to-agent chats require the agent to click the icon.

Accept mode affects only collaborative chat.
