Specifying Custom Display Options

After selecting the Custom option on the Select Display Format page, select the Specify Display Options page. (Select PeopleTools, and then Portal, and then Pagelet Wizard, and then Pagelet Wizard. On the Select Display Format page, click the Next button.)

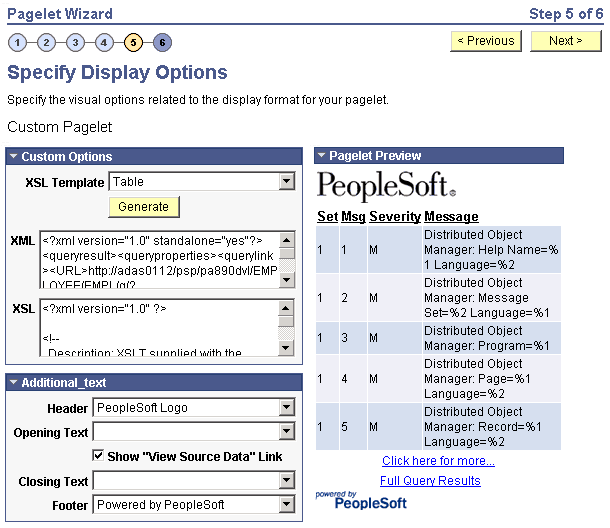

This example illustrates the fields and controls on the Specify Display Options page for the custom display format. You can find definitions for the fields and controls later on this page.

Specify Display Options page - Custom display format

Custom Options

Field or Control	Description
XSL Template	Select the XSL template to use to generate the custom format pagelet. Available XSL templates are defined on the Define XSL page. Only XSL templates defined for the selected data source are displayed. See Defining Pagelet Wizard XSL Prototypes.
Generate	Click to generate custom XSL for the pagelet based on the selected XSL template. This XSL is displayed in the XSL text box and is applied to the XML in the XML text box to generate the pagelet preview.

Field or Control

Description

XSL Template

Select the XSL template to use to generate the custom format pagelet. Available XSL templates are defined on the Define XSL page. Only XSL templates defined for the selected data source are displayed.

See Defining Pagelet Wizard XSL Prototypes.

Generate

Click to generate custom XSL for the pagelet based on the selected XSL template. This XSL is displayed in the XSL text box and is applied to the XML in the XML text box to generate the pagelet preview.

Pagelet Preview

Displays a preview of the pagelet based on most display option settings on this page.
