Defining SFTP Distribution Nodes

Access the SFTP distribution node page. Select SFTP from the Protocol list.

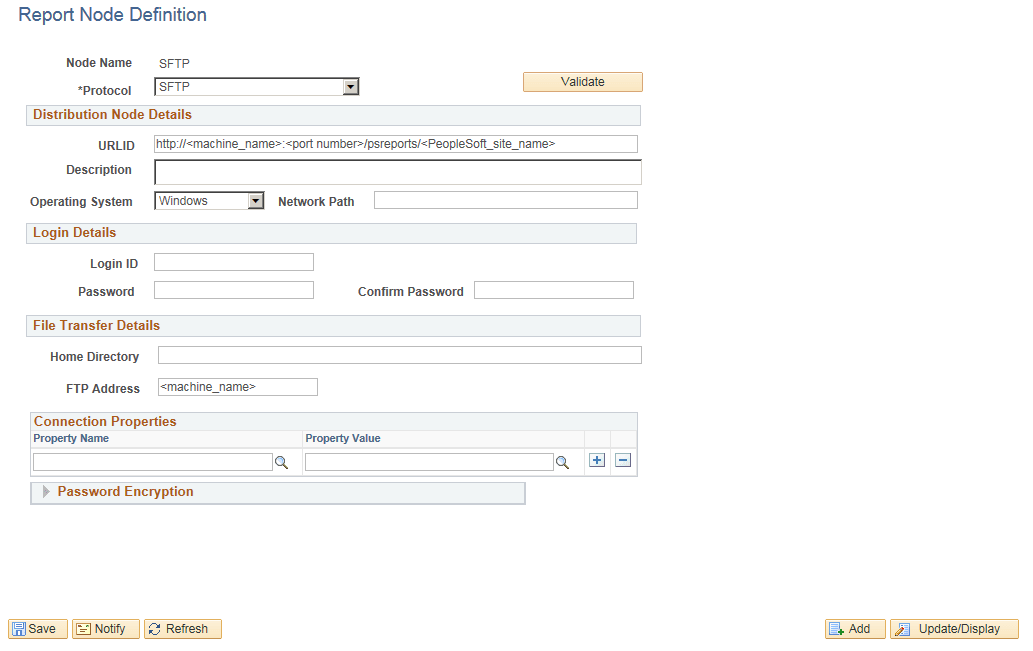

This example illustrates the fields and controls on the Report Node Definition — SFTP page. You can find definitions for the fields and controls later on this page.

Report Node Definition-SFTP page
Field or Control Description

Login ID Password

Enter the SFTP log on credentials.

Home Directory

Enter the directory that is specified during the installation of PeopleSoft Pure Internet Architecture as the Report Repository.

Note: The FTP user ID must have write-access to this directory.

FTP Address

Enter the machine name.

(Optional) Connection Properties

Specify the connection property name and property value for SFTP transfer. You must set the connection properties to configure the security modes such as, Active mode or Extended Passive mode of file transfer.

You can also set the Certificate information,Keystore password, SSL usage level and Keystore path for this mode.
