23 Agent Deployment

Deploying an agent turns your agent into a hosted application.

You can deploy an agent into the same AI compute attached to its playground or to a different AI compute. When you deploy the latest changes to your agent to the attached AI compute, the deployed agent represents a snapshot of the agent at the time of deployment. To update the deployed agent to the latest version, you need to redeploy the agent.

Each agent has a stable deployment URL that depends on the unique agent key. Re-deploying the agent multiple times overwrites the agent behind the deployment URL.

Deploying your agents has the following limitations:
  • An agent can only be deployed to one AI compute cluster at any given time.
  • Deploying the same agent multiple times to the same AI compute cluster overwrites the previously deployed iteration of the agent.

Once you've deployed an agent, you can retrieve the chat URI to programmatically issue queries and retrieve responses from the agent from the Details tab of your agent.


Agent page open with Detail tab open and highlighted. Deployed to AI Compute and Endpoint URL are highlighted

The endpoint URL is stable and it is tied to each agent. The URL includes the unique agentID assigned to each agent. In other words If you undeploy an agent and deploy it again, the URL remains the same. The benefit is that you don’t have to modify the client code calling the endpoint, the drawback is that you can overwrite an agent in production.

The URL has the following structure:
https://gateway.aidp.{oci-region}.oci.oraclecloud.com/agentendpoint/{agentId}/{protocol}
where:
  • oci-region corresponds to the AI Data Platform instance region;
  • agentId is the unique id associated with the agent
  • protocol is the communication protocol: chat which follows the OpenAI Responses API format and a2a which follows the agent-to-agent communication protocol. Both protocols are available for each agent endpoint. For more information, see A2A Agent Deployment.

Note:

Two AI computes are listed in the Details tab. The Attached to AI Compute is used to test the agent in the playground. The Deployed to AI Compute hosts the deployed agent.

The endpoint URL field is populated after you deploy your agent. You can call this endpoint URL from your production application.

Deploy an Agent

You deploy agents you have created and configured so other users are able to see and use it in your AI Data Platform instance.

  1. On the Home page, navigate to the folder that contains the agent you want to deploy.
  2. Next to the agent, click Actions three dot icon Actions and click Deploy. You can also click the agent name and click Deploy in the top right.

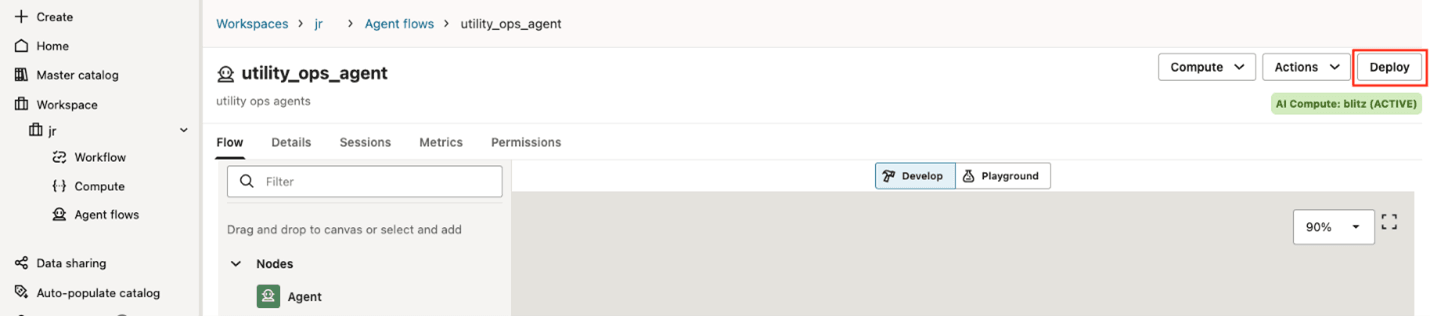

    Agent open with Deploy button in top right of screen highlighted

  3. Select the AI compute to attach to the deployed agent.
  4. Select AIDP Workbench for the authorization type.
  5. Select a session data retention policy.
    • For Retention period, provide the number of days session data is retained for.
    • For Session size limit, provide the maximum size a session can reach.
    • For Thread count limit, provide the maximum number of session threads that are retained.
  6. Click Deploy.

Deploy an Agent with OAuth2

You can deploy agents you have created and configured to use OAuth2 authentication to connect to external identity providers.

  1. On the Home page, navigate to the folder that contains the agent you want to deploy.
  2. Next to the agent, click Actions three dot icon Actions and click Deploy. You can also click the agent name and click Deploy in the top right.

    Agent open with Deploy button in top right of screen highlighted

  3. Select the AI compute to attach to the deployed agent.
  4. Select OAuth2 for the authorization type.
  5. Provide the Audience claim. AI Data Platform Workbench automatically populates this field, but you can replace it with an audience claim from your Identity provider.
  6. Provide the Issuer claim and URI to retrieve JWKS. This information is derived from your Identity provider.
  7. Select a session data retention policy.
  8. Click Deploy.

Undeploy an Agent

You can choose to undeploy agents you have MANAGE permissions for, making them unavailable for use.

  1. On the Home page, navigate to the folder that contains the agent you want to undeploy.
  2. Next to the agent, click Actions three dot icon Actions and click Undeploy.

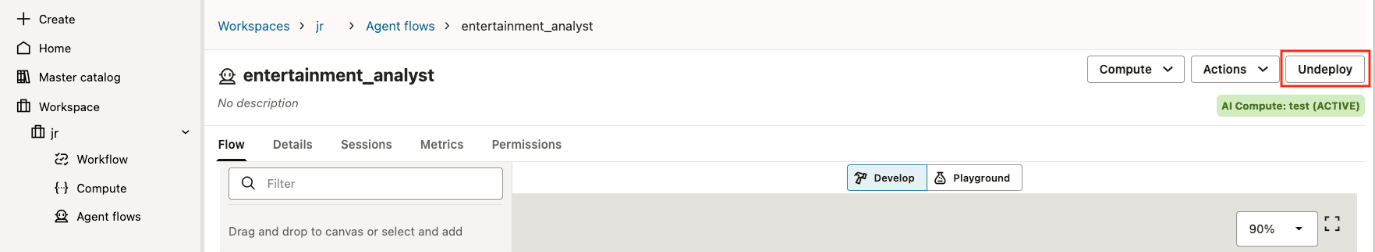

    Cropped image of the top of the agent with Undeploy button highlighted

  3. Click Undeploy.

A2A Agent Deployment

The Agent2Agent (A2A) protocol is an open standard for communication between independent AI agents, including agents built with different frameworks, hosted by different vendors, or running as opaque remote systems.

Its purpose is to give those agents a shared interaction model so they can discover each other’s capabilities, negotiate supported input/output formats, delegate or collaborate on tasks, and exchange information securely without exposing internal memory, tools, or implementation details. For more information, see Agent2Agent (A2A) Protocol.

A2A is meant to solve agent interoperability: instead of every agent integration being custom, a client or another agent can interact with any A2A-compliant remote agent using a common set of concepts and operations. The spec centers on messages, tasks, parts, artifacts, streaming updates, and push notifications; it supports synchronous replies, long-running asynchronous work, streaming, and enterprise-style auth/security patterns.

In Oracle AI Data Platform, all deployed agents are provided with an /a2a invocation path that can be called by A2A client applications.

What is an Agent Card?

An Agent Card is a JSON metadata document published by an A2A server. In AIDP, the A2A server is the AI compute hosting your agent deployment.

The card describes the agent’s identity, service endpoint, supported protocols/transports, capabilities, skills, supported input/output modes, and authentication requirements; clients use it to discover whether the agent is suitable and how to call it. A properly documented agent card is a requirement of the A2A protocol.

Agent cards in AI Data Platform Workbench are either in Draft state, meaning the agent has not been deployed, or Published, meaning the card was deployed alongside the agent.

Agent Card Actions

During the development of an agent, the card is available in the Actions menu of the agent.

Two agent cards are accessible:
  • The draft card reflects the current state of the agent in development.
  • The published card corresponds to a snapshot of the card taken when the agent was deployed. The published card reflects the state of the deployed agent.

Agent Card Fields

AI Data Platform Workbench supports a subset of the current A2A protocol agent card fields, available here: A2A Protocol - Agent Card.

Field Required Description
name Yes A human readable name for the agent. Example: "Recipe Agent"
description Yes A human-readable description of the agent, assisting users and other agents in understanding its purpose. Example: "Agent that helps users with recipes and cooking."
Agent Version Yes The version of the agent. Example: "1.0.0"
Documentation URL No A URL providing additional documentation about the agent.
Provider - Organization No The service provider of the agent.
Provider - URL No The URL of the service provider.
Capabilities Yes A2A Capability set supported by the agent.

Only streaming can be configured (True/False)

Skills Yes Skills represent the abilities of an agent. It is largely a descriptive concept but represents a more focused set of behaviors that the agent is likely to succeed at. Skills represent an array of AgentSkill.

Each AgentSkill is made of several fields documenting the capabilities of the agent. Defining the agent skills in the agent card is the most time consuming operations and is an iterative process. Skills can be edited (along with the rest of the agent card) in the draft agent card prior to deployment.

Note:

inputModes, outputModes, and securityRequirements are provided by AI Data Platform Workbench and cannot be modified.
Field Required Description
Skill ID Yes A unique identifier for the agent's skill.
Skill Name Yes A human-readable name for the skill.
Description Yes A detailed description of the skill.
Tags Yes A set of keywords describing the skill's capabilities.
Examples No Example prompts or scenarios that this skill can handle.

Agent Deployment Endpoint A2A Path

An /a2a path is exposed in the URL of a deployed agent in addition to /chat.

For example, an agent will expose these paths to external clients:

  • https://gateway.aidp.{oci-region}.oci.oraclecloud.com/agentendpoint/{agentId}/chat
  • https://gateway.aidp.{oci-region}.oci.oraclecloud.com/agentendpoint/{agentId}/a2a

Both paths (/chat, /a2a) can be consumed by separate clients.

Session Variables in A2A

Values of session variables can be passed to an A2A agent in the message metadata field. The JSON snippet below shows the payload of a user message issued to the a2a agent with three session variables: userName, geoLocation, and os:

{
  "jsonrpc": "2.0",
  "method": "message/send",
  "params": {
    "contextId": "session_12345",
    "taskId": "task_67890",
    "message": {
      "role": "user",
      "parts": [
        {
          "text": "What is the current status of my order?",
        }
      ],
      "metadata": {
        "sessionvariables.userName": "George",
        "sessionvariables.geoLocation": “Dallas, TX”,
        "sessionvariables.os": "mobile_ios"
      }
    }
  },
  "id": "rpc-99821"
}

Example: Invoking an A2A Agent with OCI CLI (Non-streaming)

oci raw-request \
  --http-method POST \
  --auth security_token \
  --request-body '{
    "id": "<your-request-id>",
    "jsonrpc": "2.0",
    "method": "message/send",
    "params": {
      "configuration": {
        "acceptedOutputModes": [
          "text/plain",
          "text"
        ]
      },
      "message": {
        "contextId": "<your-context-id>",
        "kind": "message",
        "messageId": "<your-message-id>",
        "parts": [
          {
            "kind": "text",
            "text": "What is the capital of India?"
          }
        ],
        "role": "user"
      }
    }
  }' \
  --request-headers '{
    "x-session-id": "<your-session-id>",
    "dh-user-principal": "<your-user-principal>"
  }' \
  --target-uri " <your-a2a-agent-endpoint-url>"

Example: Invoking an A2A Agent with OCI CLI (Streaming)

oci raw-request \
  --http-method POST \
  --auth security_token \
  --request-body '{
    "id": "<your-request-id>",
    "jsonrpc": "2.0",
    "method": "message/stream",
    "params": {
      "configuration": {
        "acceptedOutputModes": [
          "text/plain",
          "text"
        ]
      },
      "message": {
        "contextId": "<your-context-id>",
        "kind": "message",
        "messageId": " <your-message-id>",
        "parts": [
          {
            "kind": "text",
            "text": "What is the capital of India?"
          }
        ],
        "role": "user"
      }
    }
  }' \
  --request-headers '{
    "x-session-id": "<your-session-id>",
    "dh-user-principal": "<user-principal>"
  }' \
  --target-uri "<your-a2a-agent-endpoint-url>"

Example: A2A Client SDK

import asyncio
import json
import logging
import typing
from collections.abc import Iterator
import uuid
import httpx
import oci
from a2a.client import A2AClient, ClientFactory
from a2a.types import (
    AgentCard,
    Message,
    Part,
    Role,
    TextPart,
    SendMessageRequest,
    MessageSendParams,
    MessageSendConfiguration,
    Task, SendMessageSuccessResponse, SendStreamingMessageRequest,
)

class OCIAuth(httpx.Auth):
    """httpx auth implementation using OCI signer via requests auth adapter."""

    def __init__(self, signer: oci.signer.AbstractBaseSigner):
        self._requests_auth = _OCIRequestsAuth(signer)

    def auth_flow(self, request: httpx.Request) -> Iterator[httpx.Request]:
        req = RequestsRequest(
            method=request.method,
            url=str(request.url),
            headers=dict(request.headers),
            data=request.content,
        )
        prepared: RequestsPreparedRequest = req.prepare()
        prepared = self._requests_auth(prepared)
        request.headers.update(dict(prepared.headers))
        yield request



def getOCIAuth():
    conf = oci.config.from_file(profile_name="DEFAULT")
    token_file = conf['security_token_file']
    token = None
    with open(token_file, 'r') as f:
        token = f.read()
    private_key = oci.signer.load_private_key_from_file(conf['key_file'])
    signer = oci.auth.signers.SecurityTokenSigner(token, private_key)
    auth = OCIAuth(signer=signer)
    return auth


async def _call_agent_with_a2a(agent_url: str, query: str, context_id: str,auth:OCIAuth) -> str:
    """Call an agent using the A2A protocol."""
    try:
        # Initialize OCI signer
        #headers = {"dh-user-principal": "dh-user"}
        headers = {"Accept": "*/*",
                   "dh-user-principal": "eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9..."}

        async with httpx.AsyncClient(timeout=60.0, auth=auth,headers=headers) as hc:
            agent_card = await _get_agent_card(agent_url,auth)
            print(f"Agent card is {agent_card}")

            client =  A2AClient(httpx_client=hc, agent_card=agent_card)
            # Create message
            message = Message(
                message_id=str(uuid.uuid4()),
                context_id=context_id,
                role=Role.user,
                parts=[Part(root=TextPart(text=query))],
                metadata={"sessionvariables.cred.mcp.weatherReportMCP.bearer": "valid-123"}
            )
            request = SendMessageRequest(
                id=str(uuid.uuid4()),  # Add the required id field
                params=MessageSendParams(
                    message=message,
                    configuration=MessageSendConfiguration(acceptedOutputModes=["text/plain", "text"]),
                ),
            )
            #json_string = json.dumps(message, indent=4)
            print(f"Send request : {request}")

            response = await client.send_message(request)

            logging.info("Received response from A2A server: %s", response.root.result)
            # Extract response
            result = response.root.result
            # Handle different response types


            if isinstance(result, Task):
                # Task response
                if result.artifacts:
                    # Extract text from artifacts
                    texts = []
                    for artifact in result.artifacts:
                        for part in artifact.parts:
                            if hasattr(part, "root") and hasattr(part.root, "text"):
                                texts.append(part.root.text)
                    return "\n".join(texts) if texts else "Task completed with no text response"
                elif result.status and result.status.message:
                    logging.info(f"Received Task status {result.status.state} from A2A server and status message is {result.status.message}", result.status.message)
                    if  result.status.state== "failed":
                        print("Failure observed in Task invocation")
                        for m_part in result.status.message.parts:
                           print(f"Error message  { m_part.root.text}")

                    return get_message_text(result.status.message)
                else:
                    return f"Task {result.id} status: {result.status.state if result.status else 'unknown'}"

            elif isinstance(result, Message):
                return get_message_text(result)
            else:
                logging.warning(f"Unexpected response type: {type(result)}")
                return "Received response but unable to extract text"
    except Exception as ex:
        logging.error(f"Error calling agent at {agent_url}: {ex}", exc_info=True)
        return f"Error communicating with agent: {str(ex)}"


async def _call_agent_with_a2a_with_stream(agent_url: str, query: str, context_id: str, auth: OCIAuth) -> str:
    """Call an agent using the A2A protocol with streaming (SSE) and return the final artifact text."""
    try:
        async with httpx.AsyncClient(timeout=60.0, auth=auth) as hc:
            agent_card = await _get_agent_card(agent_url)
            if not agent_card:
                return "No Agent Card Found"
            print(f"Agent card is {agent_card}")

            client = A2AClient(httpx_client=hc, agent_card=agent_card)
            message = Message(
                message_id=str(uuid.uuid4()),
                context_id=context_id,
                role=Role.user,
                parts=[Part(root=TextPart(text=query))],
            )
            request = SendStreamingMessageRequest(
                id=str(uuid.uuid4()),
                params=MessageSendParams(
                    message=message,
                    configuration=MessageSendConfiguration(acceptedOutputModes=["text/plain", "text"]),
                ),
            )
            print("Invoking Remote Agent request (beautified JSON):")
            print(json.dumps(request.model_dump(), indent=2, ensure_ascii=False))
            # Expected event types:
            # - TaskStatusUpdateEvent (working/in-progress)
            # - TaskArtifactUpdateEvent (contains Artifact.parts[].root.text) -> final output
            final_artifact_text_parts: list[str] = []

            async for event in client.send_message_streaming(request):
                # Print each SSE event as-is (SDK object)
                print(f"[A2A stream event] {event}")

                try:
                    result = getattr(event.root, "result", None)
                    if not result:
                        continue

                    # TaskArtifactUpdateEvent and TaskStatusUpdateEvent are SDK types; to avoid tight coupling,
                    # extract by attribute presence.
                    artifact = getattr(result, "artifact", None)
                    if artifact and getattr(artifact, "parts", None):
                        for part in artifact.parts:
                            root = getattr(part, "root", None)
                            txt = getattr(root, "text", None)
                            if txt:
                                final_artifact_text_parts.append(txt)
                except Exception:
                    # Keep streaming even if an event can't be parsed
                    continue

            return "\n".join([t for t in final_artifact_text_parts if t]).strip() or "Stream completed (no artifact text)."
    except Exception as ex:
        logging.error(f"Error calling agent at {agent_url}: {ex}", exc_info=True)
        return f"Error communicating with agent: {str(ex)}"

Edit a Draft Agent Card

You can edit the agent card for an agent that is not yet deployed.

  1. Navigate to your agent.
  2. Click on Actions, then click View agent card and Draft agent card.

    Agent flow visual builder is displayed. The Actions menu and View agent card sub-option are selected. Draft agent card is highlighted.

  3. Click Edit.

    Draft agent card dialog is displayed. The Edit button is highlighted.

  4. You can switch the view by clicking Form or JSON in the top-right. The JSON view is more complete, but read-only. You can only edit fields in the Form view.

    Edit agent card dialog is displayed. The JSON and Form view icons are highlighted. JSON view is selected.

  5. Modify fields as needed.
  6. Click Add a skill to add skills you want to expose to A2A clients.

    Edit agent card dialog is displayed. The Add a skill button is highlighted.

  7. Click Save.

Edit a Published Agent Card

You can modify a published agent card without having the undeploy or redeploy an agent.

The published card corresponds to a snapshot of the draft card at the time of deployment.

Note:

Changes you make to a published card are immediately reflected in the agent-card.json file accessible to A2A clients.
  1. Navigate to your agent.
  2. Click on Actions, then click View agent card and Published agent card.

    Visual builder canvas is displayed. The Actions menu and View agent card sub-option are selected. Published agent card is highlighted.

  3. You can switch the view by clicking Form or JSON in the top-right. The JSON view is more complete, but read-only. You can only edit fields in the Form view.
  4. Click Edit.

    Published agent card dialog is displayed. The Edit button is highlighted.

  5. Modify fields as needed.
  6. Click Add a skill to add skills you want to expose to A2A clients.

    Edit agent card dialog. Warning stating "This card is attached to a live agent; updates will impact the deployed agent card." and Publish changes button are highlighted.

  7. Click Publish changes.
Published agent cards are not publicly available. A user needs to be authenticated and have the right permission (READ) to inspect the content of agent-card.json. Other agents can discover your agents capabilities and metadata via an HTTP GET request on the standard path:
https://gateway.aidp.{oci-region}.oci.oraclecloud.com/agentendpoint/{agentId}/a2a/agent-card.json
