Use Advanced Publisher Functions

Publisher provides a set of functions to achieve additional reporting functionality.

You define these functions in the Data Constraints region of the XDO_METADATA sheet.

The functions make use of Columns A, B, and C in the XDO_METADATA sheet as follows:

Use Column A to declare the function or to specify the defined name of the object to which to map the results of a calculation or XSL evaluation.

Use Column B to enter the special XDO-XSL syntax to describe how to control the data constraints for the XDO function, or the XSL syntax that describes the special constraint to apply to the XDO_ named elements.

Use Column C to specify additional instructions for a few functions.

The functions are described in the following sections:

Reporting Functions

You can add functions to a template using the commands shown and a combination of Publisher syntax and XSL.

A summary list of the commands is shown in the following table. See the corresponding section for details on usage.

Function Commands

Split Data from Reports into Multiple Sheets

XDO_SHEET_? with XDO_SHEET_NAME_?

Declare and Pass Parameters

XDO_PARAM_?n?

Define a Link

XDO_LINK_?link object name?

Import and Call a Subtemplate

XDO_SUBTEMPLATE_?n?

Reference Java Extension Libraries

XDO_EXT_?n?

Split Data from Reports into Multiple Sheets

You can define the logic to split the data from a report into multiple sheets.

You can’t span images across multiple sheets. If the template sheet includes images, when the data splits into multiple sheets, the images are displayed only on the first sheet. Use this set of commands to split the report data into multiple sheets:

  • XDO_SHEET_? command to define the logic to split the data onto a new sheet.
  • XDO_SHEET_NAME_? command to specify the naming convention for each sheet.

In the XDO_METADATA sheet, you can specify multiple templates to create multiple sheets. For each template, define a pair of XDO_SHEET_? and XDO_SHEET_NAME_? commands. Make sure you define the same original template sheet name for each pair of XDO_SHEET_? and XDO_SHEET_NAME_? commands.

The following table describes the column entries.

Column A Entry Column B Entry Column C Entry

XDO_SHEET_?

<?xsl_evaluation to split the data?>

Example:

<?.//DEPT?>

<?original sheet name?>

Example:

<?Sheet2?>

XDO_SHEET_NAME_?

<?xsl_expression to name the sheet?>

Example:

<?concat(.//DEPARTMENT_NAME,'-',count(.//EMP_NAME))?>

<?original sheet name?>

Example:

<?Sheet2?>

  1. In column A, enter the XDO_SHEET_? and XDO_SHEET_NAME_? commands.
  2. In column B:
    • The XDO_SHEET_? command must refer to an existing high-level node in the XML data. In the example, <?.//DEPT?> creates a new sheet for each occurrence of <DEPT> in the data. If the data is flat, then you can’t use this command unless you first preprocess the data to create the desired hierarchy. To preprocess the data, define the transformation in an XSLT file, then specify this file in the Preprocess XSLT File field of the header section of the XDO _METADATA sheet.
    • The XDO_SHEET_NAME_? command must define the name to apply to the sheets. Enter the XSL expression to derive the new sheet name. The expression can reference a value for an element or attribute in the XML data, or you can use the string operation on those elements to define the final sheet name. The following example names each sheet using the value of DEPARTMENT_NAME concatenated with "-" and the count of employees in the DEPT group.
      <?concat(.//DEPARTMENT_NAME,'-',count(.//EMP_NAME))?>

  3. In column C, specify the name of the original template sheet. For example, if you have a report that contains summary data in the first three worksheets and the burst data is in Sheet2 and Sheet3, specify <?Sheet2?> as the original template sheet name for the first pair of XDO_SHEET_? and XDO_SHEET_NAME_? commands and specify <?Sheet3?> for the second pair of commands. If you do not specify the template sheet name for either XDO_SHEET_? or XDO_SHEET_NAME_? commands, Publisher doesn't take any action for the definition pair.

Example: Splitting the data into multiple sheets

Using employee data, this example:

  • Lists the employees of each department in separate sheets.
    • Creates a new worksheet for each department.
    • Names each worksheet the name of the department. For example, Marketing.
  • Lists the first 100 employees in separate sheets for the departments of the first 100 employees.
    • Creates a new worksheet for each department to which the first 100 employees belong.
    • Names each worksheet the name of the department with the number of employees with employee ID less than 100 in that department. For example, Human Resources-3 if three employees in the Human Resources department have employee ID less than 100.
To split the data into sheets:
  1. Enter the defined names for each cell of employee data and create the group for the repeating employee data, as shown in the following illustration. Do not create the grouping around the department because the data is split by department.
  2. Enter the values that are described in the following table in the Data Constraints section of the XDO_METADATA sheet.
    Column A Entry Column B Entry Column C Entry

    XDO_SHEET_?

    <?.//DEPT?>

    <?Sheet2?>

    XDO_SHEET_NAME_?

    <?//DEPARTMENT_NAME?>

    <?Sheet2?>

    XDO_?TOTAL_SALARY?

    <?sum(.//SALARY)?>

    <?Sheet2?>

    XDO_SHEET_?

    <?.//EMPID<=100?>

    <?Sheet3?>

    XDO_SHEET_NAME_?

    <?concat(.//DEPARTMENT_NAME,'-',count(.//EMP_NAME))?>

    <?Sheet3?>

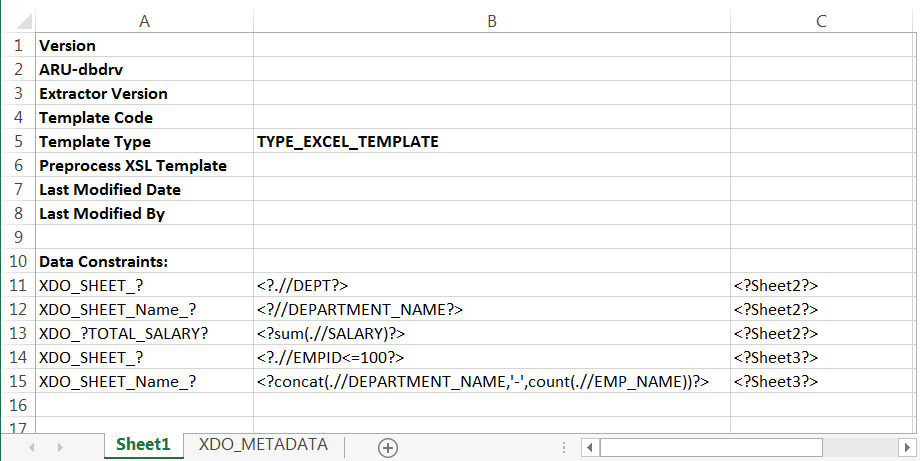

The entries are shown in the following illustration.

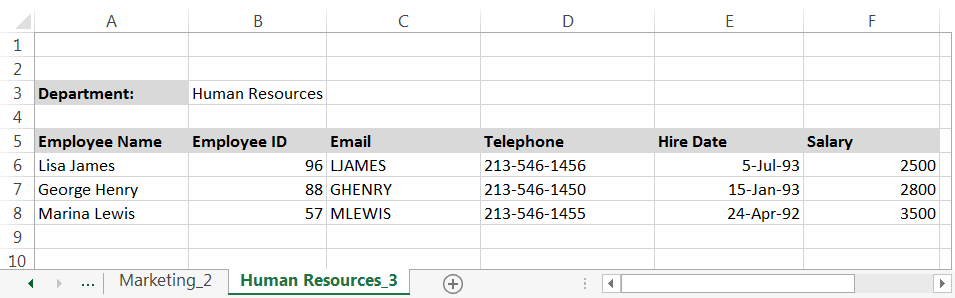

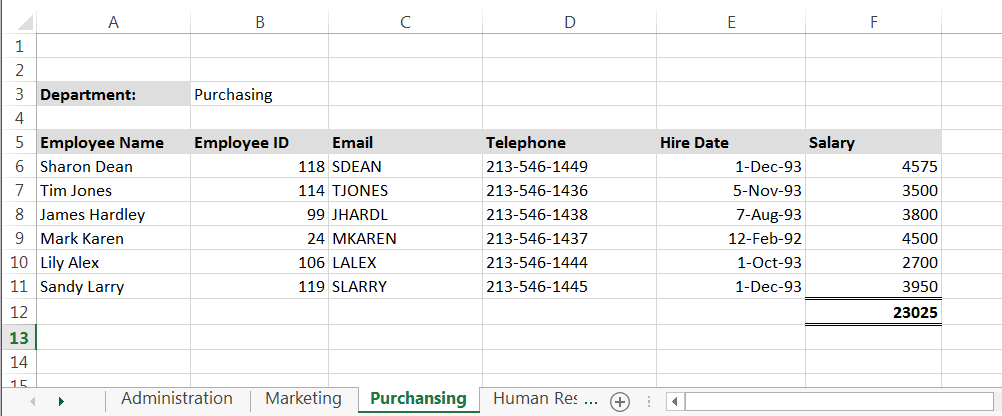

The following illustration shows the generated report. The data for each department is displayed on its own sheet, which is named per the specified convention.

Declare and Pass Parameters

To define a parameter, use the XDO_PARAM_?n? function to declare the parameter, then use the $parameter_name syntax to pass a value to the parameter. A parameter must be defined in the data model.

To declare the parameter, use the command that is described in the following table:

Column A Entry Column B Entry

XDO_PARAM_?n?

where n is the unique identifier for the parameter

<?param@begin:parameter_name;parameter_value?>

where parameter_name is the name of the parameter from the data model and parameter_value is the optional default value.

For example:

<?param@begin:Country;US?>

To use the value of the parameter directly in a cell, refer to the parameter as $parameter_name in the definition for the XDO_ defined name, as described in the following table:

Column A Entry Column B Entry

XDO_PARAM_?parameter_name?

For example:

XDO_PARAM_?Country?

<?$parameter_name?>

For example:

<?$Country?>

You can also refer to the parameter in other logic or calculations in the XDO_METADATA sheet using $parameter_name.

Example 6-1 Example: Define and pass a parameter

To declare and reference a parameter named Country:

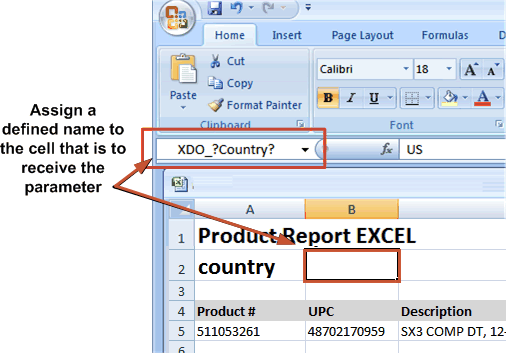

  1. In the template sheet, mark the cell with a defined name. In the following figure, the cell has been marked with the defined name XDO_?Country?

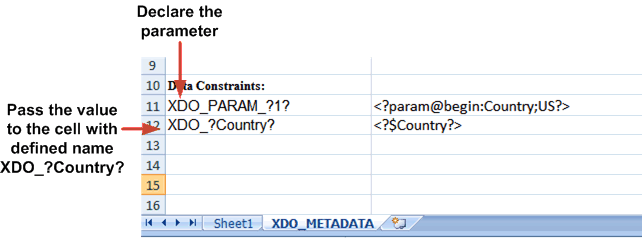

  2. In the hidden sheet assign that cell the parameter value, as shown in the following figure:

Define a Link

Use the XDO_LINK_? command to define a hyperlink for any data cell, as described in this table.

Example: Define a Link

Column A Entry Column B Entry

XDO_LINK_?cell object name?

For example:

XDO_LINK_?INVOICE_NO?

<xsl statement to build the dynamic URL>

For example:

<xsl:value-of select="concat('https://server.company.com/documents/invoice_print.show?c_rptno=',./INVOICE_NO)"/>

Assume your company generates customer invoices. The invoices are stored in a central location accessible by a Web server and can be identified by the invoice number (INVOICE_NO).

To generate a report that creates a dynamic link to each invoice:

  1. In the template sheet, assign the cell that is to display the INVOICE_NO the XDO defined name: XDO_?INVOICE_NO?, as shown in the following figure:

  2. In the XDO_METADATA sheet, enter the appropriate values, as described in the following table:

    Column A Entry Column B Entry

    XDO_LINK_?INVOICE_NO?

    <xsl:value-of select="concat('https://server.company.com/documents/invoice_print.show?c_rptno=',./INVOICE_NO)"/>

    The entries in the Excel are shown in the following figure:

The report output is displayed as shown in the following figure. The logic that is defined in the XDO_METADATA sheet is applied to create a hyperlink for each INVOICE_NO entry.

Import and Call a Subtemplate

Use these commands to declare XSL subtemplates that you can then call and reference in any of the XDO_ commands.

The Template Builder for Excel doesn't support preview for templates that import subtemplates. To import the subtemplate, enter the command shown in the following table:

Column A Entry Column B Entry

XDO_SUBTEMPLATE_?n? where n is a unique identifier. For example: XDO_SUBTEMPLATE_?1?

<xsl:import href="xdoxsl:///path to subtemplate.xsb"/> For example: <xsl:import href="xdoxsl:///Shared Folders/Financial Reports/SubTemplates/MySubTemplate.xsb"/>

To call the subtemplate, declare the cell name for which the results should be returned in Column A, then enter the call-template syntax with any other XSL processing to be performed. The commands are shown in the following table:

Column A Entry Column B Entry

XDO_?cell object name?

<xsl:call-template name="template_name"> </xsl:call-template>

For more information on XSL subtemplates and creating the subtemplate object in the catalog, see Design XSL Subtemplates.

Example: Importing and Calling a Subtemplate

Assume you have the following subtemplate uploaded to the Publisher catalog as PaymentsSummary-SubTemplate.xsb. This subtemplate evaluates the value of a parameter named pPayType and based on the value, return a string that indicates the payment type:

<?xml version="1.0" encoding="utf-8"?>
<xsl:stylesheet version="2.0"
 xmlns:xsl="http://www.w3.org/1999/XSL/Transform">
  <xsl:template match="/">
    </xsl:template>
      <xsl:template name="BRM_PAY_TYPES">
         <xsl:param name="pPayType" select="string('ALL')"/>
         <xsl:choose>
            <xsl:when test="$pPayType = '0'">UNDEFINED</xsl:when>
            <xsl:when test="$pPayType=string('10000')">PREPAID</xsl:when>
            <xsl:when test="$pPayType=string('10001')">INVOICE</xsl:when>
            <xsl:when test="$pPayType=string('10003')">CREDIT CARD</xsl:when>
            <xsl:when test="$pPayType=string('10005')">DIRECT DEBIT</xsl:when>
            <xsl:when test="$pPayType=string('10011')">CASH</xsl:when>
            <xsl:when test="$pPayType=string('10012')">CHECK</xsl:when>
            <xsl:when test="$pPayType=string('ALL')">ALL</xsl:when>
            </xsl:choose>
        </xsl:template>
</xsl:stylesheet>

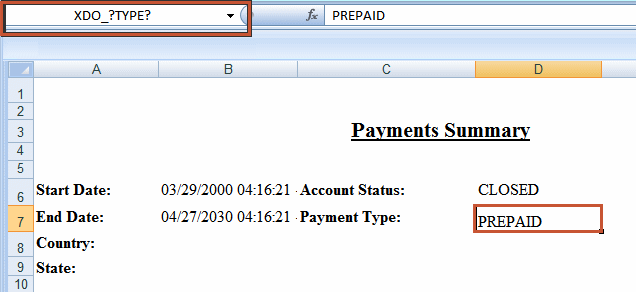

In the Excel template, you've defined a field with the XDO Defined Name XDO_?TYPE?, which is populated based on the string returned from code performed in the subtemplate, as shown in the following figure:

Enter the commands shown in the following table in the Data Constraints region.

Column A Entry Column B Entry

XDO_SUBTEMPLATE_?1?

<xsl:import href="xdoxsl:///Shared Folders/Financial Reports/SubTemplates/PaymentsSummary-SubTemplate.xsb"/>

XDO_?TYPE?

<xsl:call-template name="BRM_PAY_TYPES"> <xsl:with-param name="pPayType" select="string('10000')"/> </xsl:call-template>

The XDO_SUBTEMPLATE_?1? function imports the subtemplate from the Publisher catalog.

The XDO_?TYPE? cell entry maps the results of the subtemplate processing entered in Column B.

Reference Java Extension Libraries

You can include the reference to a Java extension library in the template and then call methods from this library to perform processing in the template.

Use the command shown in the following table to reference the Java extension libraries.

Column A Entry Column B Entry

XDO_EXT_?n? where n is a unique identifier. Example: XDO_EXT?1?

<?namespace:xmlns:bipext="extension library"?> Example: <?namespace:xmlns:bipext="http://www.example.com/XSL/Transform/java/ example.com.xmlpublisher.reports.BIPExtension"?>

You can have multiple extension libraries defined in a single template file.

Example: Calling a Java Extension Library

Assume the extension library includes the following two methods that you want to call in the template:

  • bipext:infTimeToStr()

  • bipext:infStrToTimet()

After you've declared the library as shown above, specify the cell to which you want to apply the method by entering the XDO defined name in Column A and calling the function in Column B. The following table shows example commands.

Column A Entry Column B Entry

XDO_?PARAM_START_DATE?

<xsl:value-of select="bipext:infTimeToStr(bipext:infStrToTimet((.//PARAM_START_DATE)[1],2),3)"

The entries in the XDO_METADATA sheet to declare and call the Java extension libraries are shown in the following illustration.

Format Functions That Rely on Specific Data Attribute Values

The commands in this table require that specific formatting attributes be present in the XML data file.

A summary list of the commands is shown in the following table. See the corresponding section for details on usage.

Function Command

Define Border and Underline Styles

XDO_STYLE_n_?cell object name?

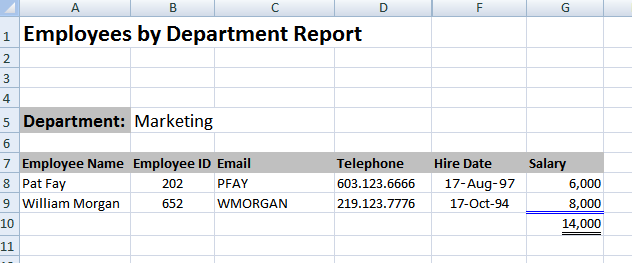

Skip a Row

XDO_SKIPROW_?cell object name?

Define Border and Underline Styles

While you can define a consistent style in the template using Excel formatting, the XDO_STYLE command enables you to define a different style for any data cell dynamically based on the XML data.

With the XDO_STYLE command you specify the cell to which to apply the style, the logic to determine when to apply the style, and the style type to apply. The style value must be present in the XML data. The following table provides examples.

Column A Entry Column B Entry Column C Entry

XDO_STYLE_n_?cell_object_name?

For example:

XDO_STYLE_1_?TOTAL_SALARY?

<xsl evaluation that returns a supported value>

For example:

<xsl:value-of select=".//TOTAL_SALARY/@borderStyle"/>

Style type

For example:

BottomBorderStyle

Publisher supports the normal Excel style types and values as shown in the following table:

Style Type Supported Values (Must be in returned by evaluation in Column B) Supported Types (Enter in Column C)

Normal

BORDER_NONE

BORDER_THIN

BORDER_MEDIUM

BORDER_DASHED

BORDER_DOTTED

BORDER_THICK

BORDER_DOUBLE

BORDER_HAIR

BORDER_MEDIUM_DASHED

BORDER_DASH_DOT

BORDER_MEDIUM_DASH_DOT

BORDER_DASH_DOT_DOT

BORDER_MEDIUM_DASH_DOT_DOT

BORDER_SLANTED_DASH_DOT

BottomBorderStyle

TopBorderStyle

LeftBorderStyle

RightBorderStyle

DiagonalLineStyle

You can also set a color using one of the types shown in the following table:

Style Type Supported Value (Must be in returned by evaluation in Column B) Supported Types (Enter in Column C)

Normal

When you set Color Style, give the value in RRBBGG hex format, for example:

borderColor="0000FF"

BottomBorderColor

TopBorderColor

LeftBorderColor

RightBorderColor

DiagonalLineColor

Publisher also supports the underline type with the values shown in the following table:

Style Type Supported Values (Must be in returned by evaluation in Column B) Supported Type (Enter in Column C)

Underline

UNDERLINE_NONE

UNDERLINE_SINGLE

UNDERLINE_DOUBLE

UNDERLINE_SINGLE_ACCOUNTING

UNDERLINE_DOUBLE_ACCOUNTING

UnderlineStyle

You can have multiple underline styles defined for a single cell.

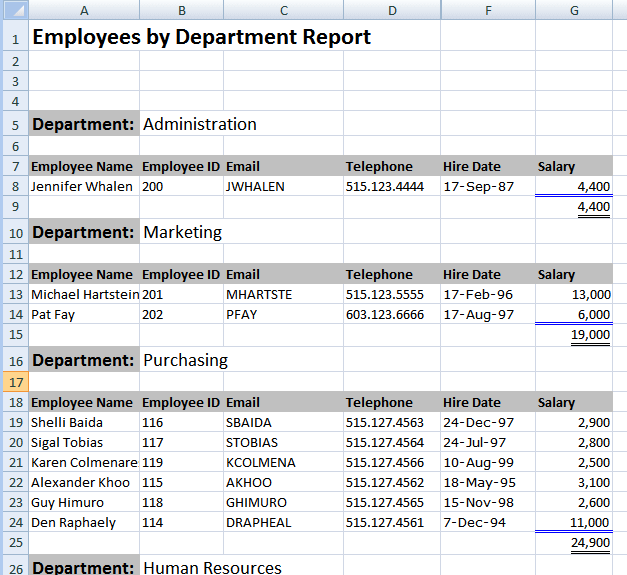

Example: Defining Styles

To apply a style in a template, the style value must be present in the data. In this example, a border style and an underline style are applied to the DEPT_TOTAL_SALARY field shown in the Excel template.

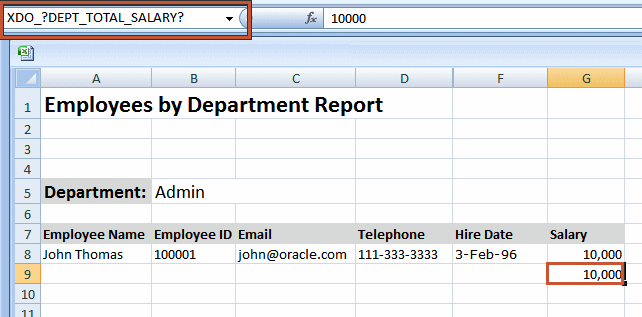

For this example, the following data is used. Note that the DEPT_TOTAL_SALARY element in the data has these attributes defined:

  • borderStyle

  • underLineStyle

  • borderColor

The value of each of these attributes is used to apply the defined style based on logic defined in the template.

<?xml version="1.0" encoding="UTF-8"?>

<EMPLOYEES>
  <G_DEPT>
    <DEPARTMENT_ID>10</DEPARTMENT_ID>
    <DEPARTMENT_NAME>Administration</DEPARTMENT_NAME>
    <LIST_G_EMP>
      <G_EMP>
        <EMPLOYEE_ID>200</EMPLOYEE_ID>
        <EMP_NAME>Jennifer Whalen</EMP_NAME>
        <EMAIL>JWHALEN</EMAIL>
        <PHONE_NUMBER>515.123.4444</PHONE_NUMBER>
        <HIRE_DATE>1987-09-17T00:00:00.000-06:00</HIRE_DATE>
        <SALARY>4400</SALARY>
      </G_EMP>
    </LIST_G_EMP>

    <DEPT_TOTAL_SALARY borderStyle="BORDER_DOUBLE" underLineStyle="UNDERLINE_DOUBLE_ACCOUNTING" borderColor="0000FF">4400</DEPT_TOTAL_SALARY>
  </G_DEPT>
  <G_DEPT>
    <DEPARTMENT_ID>20</DEPARTMENT_ID>
    <DEPARTMENT_NAME>Marketing</DEPARTMENT_NAME>
    <LIST_G_EMP>
      <G_EMP>
        <EMPLOYEE_ID>201</EMPLOYEE_ID>
        <EMP_NAME>Michael Hartstein</EMP_NAME>
        <EMAIL>MHARTSTE</EMAIL>
        <PHONE_NUMBER>515.123.5555</PHONE_NUMBER>
        <HIRE_DATE>1996-02-17T00:00:00.000-07:00</HIRE_DATE>
        <SALARY>13000</SALARY>
      </G_EMP>
      <G_EMP>
        <EMPLOYEE_ID>202</EMPLOYEE_ID>
        <EMP_NAME>Pat Fay</EMP_NAME>
        <EMAIL>PFAY</EMAIL>
        <PHONE_NUMBER>603.123.6666</PHONE_NUMBER>
        <HIRE_DATE>1997-08-17T00:00:00.000-06:00</HIRE_DATE>
        <SALARY>6000</SALARY>
        </G_EMP>
      </LIST_G_EMP>

      <DEPT_TOTAL_SALARY borderStyle="BORDER_DOUBLE" underLineStyle="UNDERLINE_DOUBLE_ACCOUNTING" borderColor="0000FF">19000</DEPT_TOTAL_SALARY>
  </G_DEPT>

...

</EMPLOYEES>

To define a style:

  1. In the Excel template, assign the defined name XDO_?DEPT_TOTAL_SALARY? to the field that is to display the DEPT_TOTAL_SALARY from the data, as shown in the following figure:

  2. In the XDO_METADATA sheet, enter the following:

    • To define the top border style, use the entries shown in the following table:

      Column A Entry Column B Entry Column C Entry

      XDO_STYLE_1_?DEPT_TOTAL_SALARY?

      <xsl:value-of select=".//DEPT_TOTAL_SALARY/@borderStyle"/>

      TopBorderStyle

      The entry in Column A maps this style command to the cell assigned the name XDO_?DEPT_TOTAL_SALARY?

      The entry in Column B retrieves the style value from the attribute borderStyle of the DEPT_TOTAL_SALARY element. Note from the sample data that the value for borderStyle is "BORDER_DOUBLE".

      The entry in Column C tells Publisher to apply a TopBorderStyle to the cell.

    • To define the top border color, use the entries shown in the following table:

      Column A Entry Column B Entry Column C Entry

      XDO_STYLE_2_?DEPT_TOTAL_SALARY?

      <?.//DEPT_TOTAL_SALARY/@borderColor?>

      TopBorderColor

      The entry in Column A maps this style command to the cell assigned the name XDO_?DEPT_TOTAL_SALARY?

      The entry in Column B retrieves the style value from the attribute borderColor of the DEPT_TOTAL_SALARY element. Note from the sample data that the value for borderColor is 0000FF (blue).

      The entry in Column C tells Publisher to apply a TopBorderColor to the cell.

    • To define the underline style, use the entries shown in the following table:

      Column A Entry Column B Entry Column C Entry

      XDO_STYLE_3_?DEPT_TOTAL_SALARY?

      <?.//DEPT_TOTAL_SALARY/@underLineStyle?>

      UnderlineStyle

      The entry in Column A maps this style command to the cell assigned the name XDO_?DEPT_TOTAL_SALARY?

      The entry in Column B retrieves the style value from the attribute underLineStyle of the DEPT_TOTAL_SALARY element. Note from the sample data that the value for underLineStyle is UNDERLINE_DOUBLE_ACCOUNTING.

      The entry in Column C tells Publisher to apply the UnderLineStyle to the cell.

The following figure shows the three entries in the Data Constraints region:

When you run the report, the style commands are applied to the XDO_?DEPT_TOTAL_SALARY? cell, as shown in the following figure:

Skip a Row

Use the XDO_SKIPROW command to suppress the display of a row of data in a table when the results of an evaluation defined in Column B return the case insensitive string "True".

Example entries are shown in the following table.

Column A Entry Column B Entry

XDO_SKIPROW_?cell_object_name?

For example:

XDO_SKIPROW_?EMPLOYEE_ID?

<xsl evaluation that returns the string "True"/>

For example:

<xsl:if test="string-length(./EMPLOYEE_ID/@MANAGER) != 0"> <xsl:value-of select="./EMPLOYEE_ID/@MANAGER"/> </xsl:if>

Example: Skip a Row Based on Data Element Attribute

In this example, the Excel template suppresses the display of the row of employee data when the EMPLOYEE_ID element includes a "MANAGER" attribute with the value "True".

Assume data as shown below. Note that the EMPLOYEE_ID element for employee Michael Hartstein has the MANAGER attribute with the value "True". The other EMPLOYEE_ID elements in this set do not have the attribute.

<?xml version="1.0" encoding="UTF-8"?>

<EMPLOYEES>
  <G_DEPT>
    <DEPARTMENT_ID>20</DEPARTMENT_ID>
    <DEPARTMENT_NAME>Marketing</DEPARTMENT_NAME>
    <LIST_G_EMP>
      <G_EMP>
        <EMPLOYEE_ID MANAGER="TRUE">201</EMPLOYEE_ID>
        <EMP_NAME>Michael Hartstein</EMP_NAME>
        <EMAIL>MHARTSTE</EMAIL>
        <PHONE_NUMBER>515.123.5555</PHONE_NUMBER>
        <HIRE_DATE>1996-02-17T00:00:00.000-07:00</HIRE_DATE>
        <SALARY>13000</SALARY>
       </G_EMP>
       <G_EMP>
        <EMPLOYEE_ID>202</EMPLOYEE_ID>
        <EMP_NAME>Pat Fay</EMP_NAME>
        <EMAIL>PFAY</EMAIL>
        <PHONE_NUMBER>603.123.6666</PHONE_NUMBER>
        <HIRE_DATE>1997-08-17T00:00:00.000-06:00</HIRE_DATE>
        <SALARY>6000</SALARY>
       </G_EMP>
       <G_EMP>
        <EMPLOYEE_ID>652</EMPLOYEE_ID>
        <EMP_NAME>William Morgan</EMP_NAME>
        <EMAIL>WMORGAN</EMAIL>
        <PHONE_NUMBER>219.123.7776</PHONE_NUMBER>
        <HIRE_DATE>1994-10-17T00:00:00.000-06:00</HIRE_DATE>
        <SALARY>8000</SALARY>
       </G_EMP>
      </LIST_G_EMP>
  </G_DEPT>

...

</EMPLOYEES>

To suppress the display of the row of the employee data when the MANAGER attribute is set to "True", enter the entries shown in the following table in the Data Constraints section.

Column A Entry Column B Entry

XDO_SKIPROW_?EMPLOYEE_ID?

<xsl:if test="string-length(./EMPLOYEE_ID/@MANAGER) != 0"> <xsl:value-of select="./EMPLOYEE_ID/@MANAGER"/> </xsl:if>

The output from this template is shown in the following illustration. Note that the employee Michael Hartstein isn't included in the report.

Group Functions

Use the functions shown in this table to create groupings of data in the template.

Function Command

Group Data

XDO_GROUP_?group element?

Regroup the Data

XDO_REGROUP_?

Group Data

Use the XDO_GROUP command to group flat data when the layout requires a specific data grouping, for example, to split the data across multiple sheets.

Example entries are shown in the following table:

Column A Entry Column B Entry Column C Entry

XDO_GROUP_?group element?

For example:

XDO_GROUP_?STATE_GROUP?

<xsl beginning groupng logic/>

For example:

<xsl:for-each-group select="current-group()" group-by="./STATE"> <xsl:for-each-group select="current-group()" group-by="./RESOURCE_NAME"> <xsl:for-each select="current-group()">

<xsl ending groupng tags/>

For example:

</xsl:for-each> <xsl:for-each-group> <xsl:for-each-group>

Define the XSL statements to be placed at the beginning and ending of the section of the group definition marked up by XDO_?cell object name?. You can mark multiple groups nested in the template, giving each the definition appropriate to the corresponding group.

Handle the Generated XDO Define Names in Nested Groups

When XDO_GROUP_? is used in a nested group, the ranges of XDO define names in the final report become meaningless. In this case, don't refer to the define names in formulas in the final report. You can disable the XDO markup activity in the final report using the command XDO_MARKUP_?.

The following table shows the usage of XDO_MARKUP_? in the XDO_METADATA sheet:

Column A Entry Column B Entry

XDO_MARKUP_?

"false" or "FALSE"

(The cell must be formatted as Text in the Excel Format Cells dialog.)

In addition, if your template includes a large number of defined names and these are used in multiple levels of nested groups, Excel may not be able to handle the number of generated defined names. In this case, use the XDO_MARKUP_? command to disable markup for the generated report.

When set to false, Publisher doesn't produce any defined names for any result produced by XDO_GROUP_?

Regroup the Data

The XDO_REGROUP regroups the data by declaring the structure using the defined names.

The XDO_REGROUP logic is a shortened form of the XDO_GROUP logic and doesn't require the XSLTcoding requirements in the XDO_METADATA sheet. The definition must therefore be directly on XDO_REGROUP_? define names, or on any other definition on the XDO_METADATA sheet. Entries are shown in the following table.

Column A Entry Column B Entry

XDO_REGROUP_?

XDO_REGROUP_?UniqueGroupID?levelName?groupByName?sortByName?sortByName?sortByName?

where

  • UniqueGroupID is the ID of the group. It can be the same as the levelName or you can assign it a unique name.

  • levelName is the XML level tag name in the XML data file or XDO_CURRGRP_ that represents the current-group() in the context of nested grouping. XDO_CURRGRP_ should be used for all inner groups when more than one nesting group exists in your template.

  • groupByName is the field name that you want to use for the GroupBy operation for the current group. This name can be empty if the XDO_REGROUP_? command is used for the most inner group.

  • sortByName is the field name that you want to sort the group by. You can have multiple sortBy fields. If no sortByName is declared, then the data from the XML file isn't sorted.

The next three tables show an example of how to create three nested groupings.

Column A Entry Column B Entry

XDO_REGROUP_?

XDO_REGROUP_?PAYMENTSUMMARY_Q1?PAYMENTSUMMARY_Q1?PAY_TYPE_NAME?

In the definition shown in the previous table, the most outer group is defined as PAYMENTSUMMARY_Q1, and it's grouped by PAY_TYPE_NAME

Column A Entry Column B Entry

XDO_REGROUP_?

XDO_REGROUP_?COUNTRYGRP?XDO_CURRGRP_?COUNTRY?

The definition shown in the previous table creates a second outer group. The group is assigned the name COUNTRY_GRP and it's grouped by the element COUNTRY.

Column A Entry Column B Entry

XDO_REGROUP_?

XDO_REGROUP_?STATEGRP?XDO_CURRGRP_?STATE?

The definition shown in the previous table creates the inner group STATEGRP and it includes a sortByName parameter: STATE.
