Configure Notification Emails

You can configure notification emails to contact interested parties about system status on a regular basis and alert them about service failures. Detailed system status reports include metrics on instances and runs processed by the system, including failures. You can select to send an hourly or daily report and specify the list of recipients.

• Contents of Email Notification Reports
• Decide Which Email Delivery Service to Use
• Configure Notification Emails

Contents of Email Notification Reports

The report includes the following information:

• POD name (also included in the subject of the email)

• Time period

• Total messages received, processed, succeeded, aborted, and failed

• Percentage of successful messages

• Errors by integration instance and run including messages received, processed, succeeded, and failed

The email includes a link at the bottom to change the notification settings or completely stop receiving email notifications. Click Oracle Integration to access the Notifications page to adjust your settings.

Decide Which Email Delivery Service to Use

The Notifications page enables you to manage email delivery through either of two options. Review the following table to determine which option is best for your business environment.

Email Delivery Option	Benefits	Limitations
Oracle Cloud Infrastructure Email Delivery service of your customer tenancy (Recommended)	Limit is controlled by the Oracle Cloud Infrastructure Email Delivery service of your customer tenancy. The limit can be increased to more than 10,000 messages per rolling 24-hour period by working directly with the Oracle Cloud Infrastructure Email Delivery service. See Email Delivery Service Capabilities and Limits. Better control over email suppression lists. Better general management of sent emails. Better security because email domain and DKIM setup is done on the customer's tenancy. Ability to register and use senders without an active email inbox.	Requires explicit setup of SMTP credentials, approved senders, and email domains. To use the Oracle Cloud Infrastructure Email Delivery service of your customer tenancy, you must do the following: Create SMTP credentials in the Oracle Cloud Infrastructure Console in order to complete the SMTP configuration section in Step 5. Only Oracle Cloud Infrastructure SMTP credentials are supported. See Creating SMTP Credentials. Register the default sender email address and the sender email address for system notification with Oracle Cloud Infrastructure in your customer tenancy. Manage the approved senders and suppression list in your customer tenancy. Check the service limits. See Overview of Email Delivery. Note: You cannot bypass the Oracle Cloud Infrastructure Email Delivery service to use email services such as Microsoft 365, GMail, and others.
Default option provided with Oracle Integration	Out-of-the-box support for sending emails. Can maintain the approved senders and suppression list from the Notifications page in Oracle Integration.	Limited to a maximum of 100 messages per rolling 24-hour period for trial instances and 10,000 messages per rolling 24-hour period for paid instances. Approved senders registered need an active email inbox. For changes in email domain and Domain Keys Identified Mail (DKIM), you must work with Oracle Support to get the updates reflected.

Configure Notification Emails

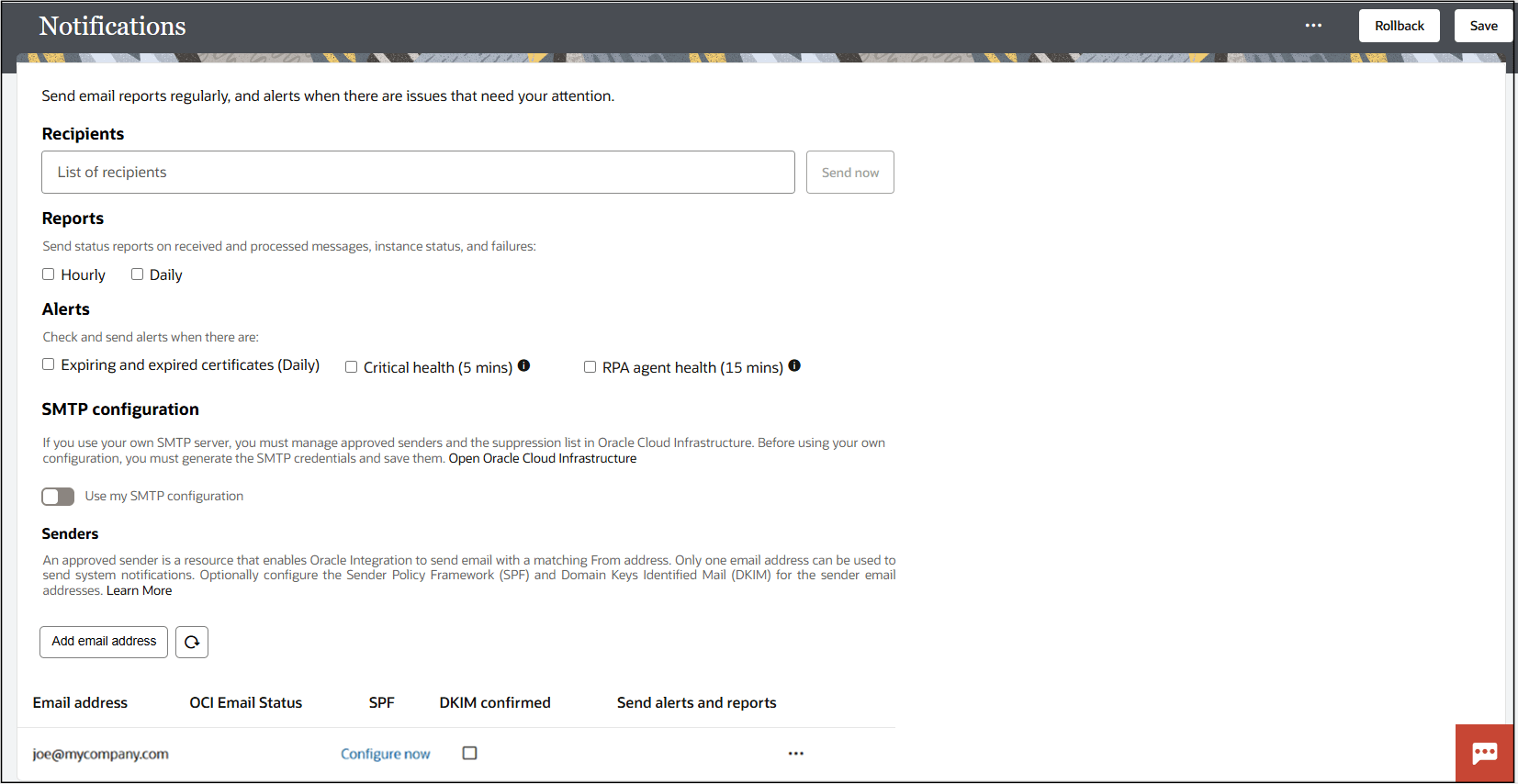

1. In the navigation pane, click Settings, then Notifications.







2. In the Recipients field, enter the email address to which to send the reports. You can specify multiple email addresses, each separated by commas.

3. In the Reports field, select the type of report to send.
   • Hourly: Send a detailed report every hour.
   • Daily: Alerts are sent once a day.

   The report you receive can include the names and versions of a maximum of five integrations that failed in that time period. Any additional integration failures can be viewed by clicking the View Errors button in the email, which opens the Errors page in Oracle Integration.

4. In the Alerts section, select to send alerts when the following occurs:

   Option	Description
   Expiring and expired certificates (Daily)	Select to send alerts when the following occurs: Certificates are set to expire within seven days. Certificates have expired. The check is made for certificates you uploaded on the Certificates page. Certificate expiration status is checked daily. Oracle Integration provided-certificates are not checked.
   Critical health (5 mins)	Select to send alerts when one or more of the following conditions are detected: The email quota exceeded the threshold. One or more connectivity agent instances became unavailable.

5. If you want to use the Oracle Cloud Infrastructure Email Delivery service of your customer tenancy to manage email delivery, click to enable the customer tenancy mode.

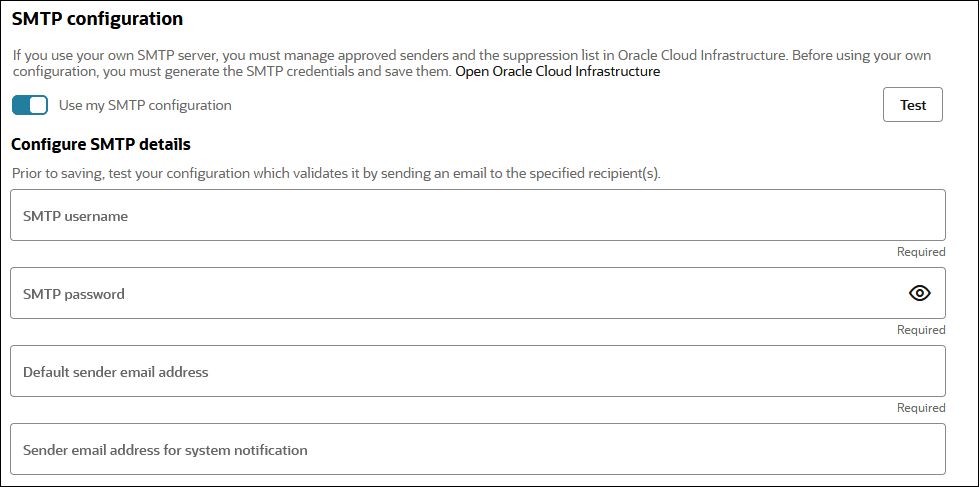

   1. Specify the SMTP user name and password and the default sender email address (that is, the from address). These three fields are required. You can also optionally specify a default address for system notifications.




   2. Click Test to validate the SMTP credentials.
   3. Click Save.

      Note:

      If you want to return to using the default option, click to disable the SMTP credentials, and click Save.
6. If you want to use the default option provided with Oracle Integration to manage email delivery, follow these steps:
   1. In the Senders section, click Add email address to add approved senders.
   2. Specify the following details:

      Element	Description
      Email address	An approved sender enables Oracle Integration to send email with a matching From address. An email is sent to each of the email addresses listed as approved senders. Upon approval, these email addresses can be used as the From address in a notification action of an integration and/or system notification.
      OCI Email Status	Perform the following steps: Enter an approved sender email address and click Save. A verification code is sent to that address and verification status changes to In Progress. Click Enter verification code and enter the code received by that email address. Upon successful verification, status is changed to Verified. Note the following: Existing sender emails that were previously approved, but never formally verified with this process, can continue to be used for now. It is recommended that you delete these entries, re-enter them, and enter the verification code sent to the email address. Don't share approved sender email addresses across service instances (for example, test and production instances). Create different approval emails addresses for each service instance, even if they are in the same tenancy.
      SPF	Optionally configure the Sender Policy Framework (SPF) for the sender email addresses. You configure SPF support outside of Oracle Integration.
      DKIM confirmed	Optionally confirm the DKIM for the sender email addresses. You configure DKIM support outside of Oracle Integration.
      Send alerts and reports	Select to use this email address for the system notifications you selected at the top of the page. However, only a single email address can be selected to send system notifications.

      Recommendations are provided to ensure that you configure notification email correctly. See Troubleshoot Oracle Cloud Infrastructure Notification Email Configuration to Ensure Proper Delivery.

   3. Click Save.

7. Perform other email notification tasks on this page.

   To ...	Description
   Receive an immediate email about system status	Click Actions , then select Send Now.
   Clear the distribution list, selected alert/reports options, and specified sender email addresses.	Click Actions , then select Reset All Notifications.
   Remove email addresses from the suppression list Note: This task is only required if you are using the default option.	Click Actions , then select Email Suppression List. See Remove Email Addresses from the Suppression List.
