Translate Data Between a Native JSON Payload and Flat, Stringified JSON with a Data Translate Action

You can directly translate data between a native JSON payload and flat, stringified JSON with the data translate action. Flat, stringified JSON is data that's translated into a single text string, rather than being represented as a native JSON object or array.

Capabilities

The data translate action provides the following capabilities:
  • Writes native JSON payloads to flat, stringified JSON
  • Reads flat, stringified JSON back to a native JSON payload
  • Processes both simple JSON and complex JSON that contains nested objects, outer arrays, inner arrays, and mixed data types

Note:

The size of the JSON payload supported is based on the adapter you are using. See Service Limits in Provisioning and Administering Oracle Integration 3.
The data translate action simplifies integration design by removing the need for designing the following in your integration:
  • A stage file action to write the input JSON payload.
  • A stage file action to read the written JSON payload.
  • A JavaScript action function to translate the JSON payload into flat, stringified JSON.
  • Use of Base64 encoding of the payload in the JavaScript action function.

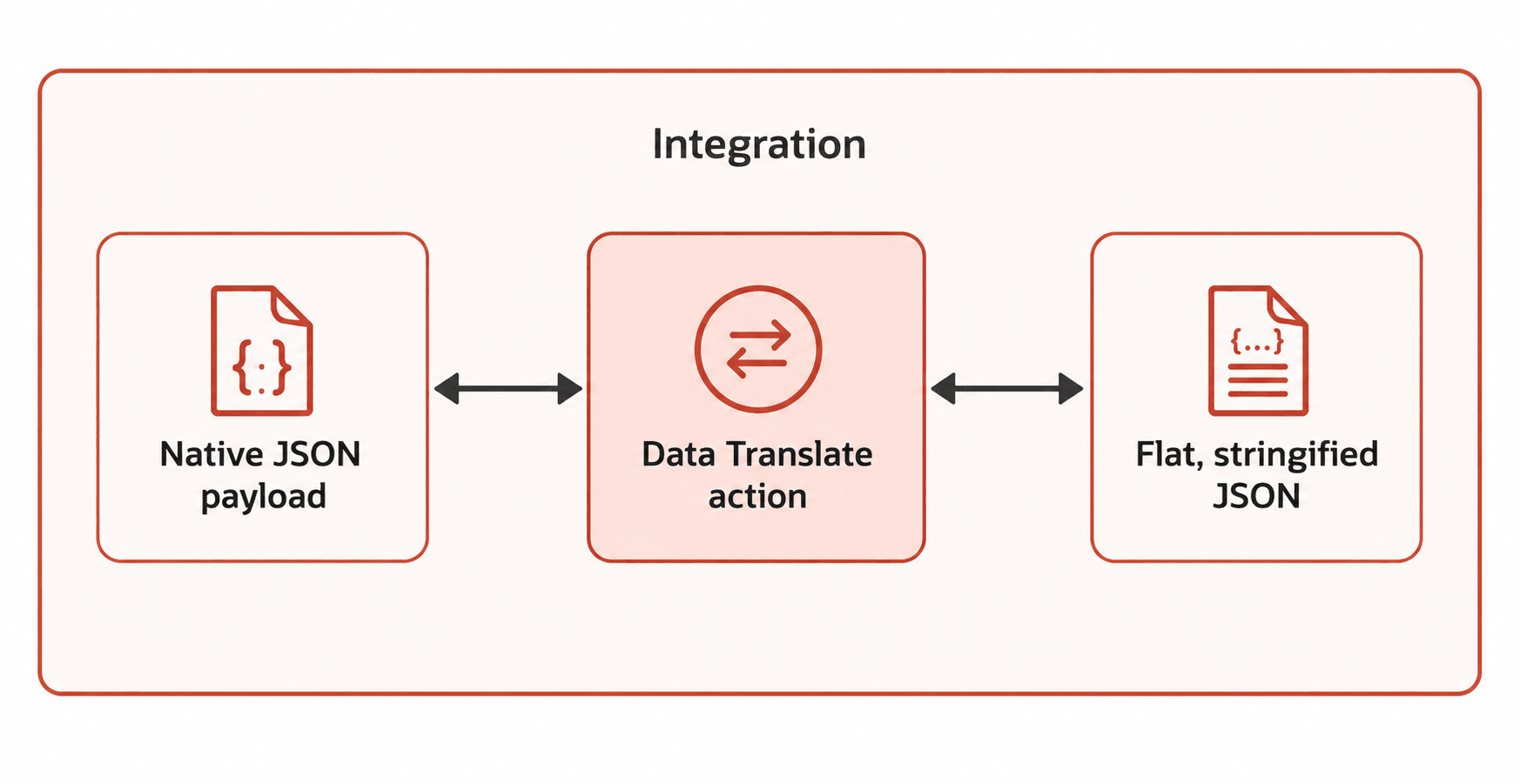

A box labeled Integration includes the following three boxes from left to right: A Native JSON payload box, a Data Translate action box, and a Flat, stringified JSON box.

Configure the Data Translate Action

To create a data translate action:

  1. Add a data translate action to an integration in either of the following ways:
    • On the side of the canvas, click Actions Integration actions icon and drag the Data Translate action from the Actions category to the appropriate location.
    • Click Add icon at the location where you want to add the data translate action, then select Data Translate.

    The Data Translate action panel is displayed.

  2. Enter a name and optional description, then click Continue.
  3. Select the translation direction, then click Continue.
    • Write as Stringified JSON: Translates the native JSON payload to flat, stringified JSON.
    • Read as Stringified JSON: Translates the flat, stringified JSON to native JSON payload.
  4. Select the structure of the file contents, then click Continue. Sample JSON document is the only selection currently available and cannot be deselected.
  5. Drag the sample JSON document to use into the field, select the schema element, and click Continue. This sample defines the structure that Oracle Integration uses for the mapping.
  6. Review your selections, then click Finish.

    An associated map action is also automatically created.

Data Translate Action Use Case

This use case provides an overview of designing the data translate actions and associated map actions in an integration to perform the following:
  • Translate a native JSON payload to flat/stringified JSON with the Write as a Stringified JSON selection in the data translate action.
  • Pass the stringified JSON to a custom JavaScript function.
  • Modify the JSON structure in JavaScript, such as changing the schema.
  • Translate the modified JSON back to stringified JSON.
  • Update the schema using the Read as a Stringified JSON selection in the data translate action so that it matches the modified JSON structure.
  • Pass the modified stringified JSON with the Read as a Stringified JSON selection in the data translate action to generate the final native JSON payload.
  1. Create an application integration and configure and add a REST Adapter connection to trigger the integration.
  2. Add a data translate action to your integration to translate a native JSON payload to flat, stringified JSON.
    1. Add a name (for this example, WriteAsStringJSONFlow) and optional description.
    2. Select Write as Stringified JSON to translate a native JSON payload to flat, stringified JSON.
    3. Upload the native JSON payload. This sample defines the structure that Oracle Integration uses for the mapping. For this example:
      {
  "customer" : {
    "id" : 1001,
    "name" : "Acme & Co",
    "active" : true,
    "balance" : 1250.75,
    "emails" : [ "ops@acme.com", "billing@acme.com" ],
    "address" : {
      "city" : "Bengaluru",
      "postalCode" : "560001"
    }
  }
}
    4. Review your selections, and click Finish.

      An associated map action is automatically created.

  3. Map the source elements to the target structure in the request mapper.

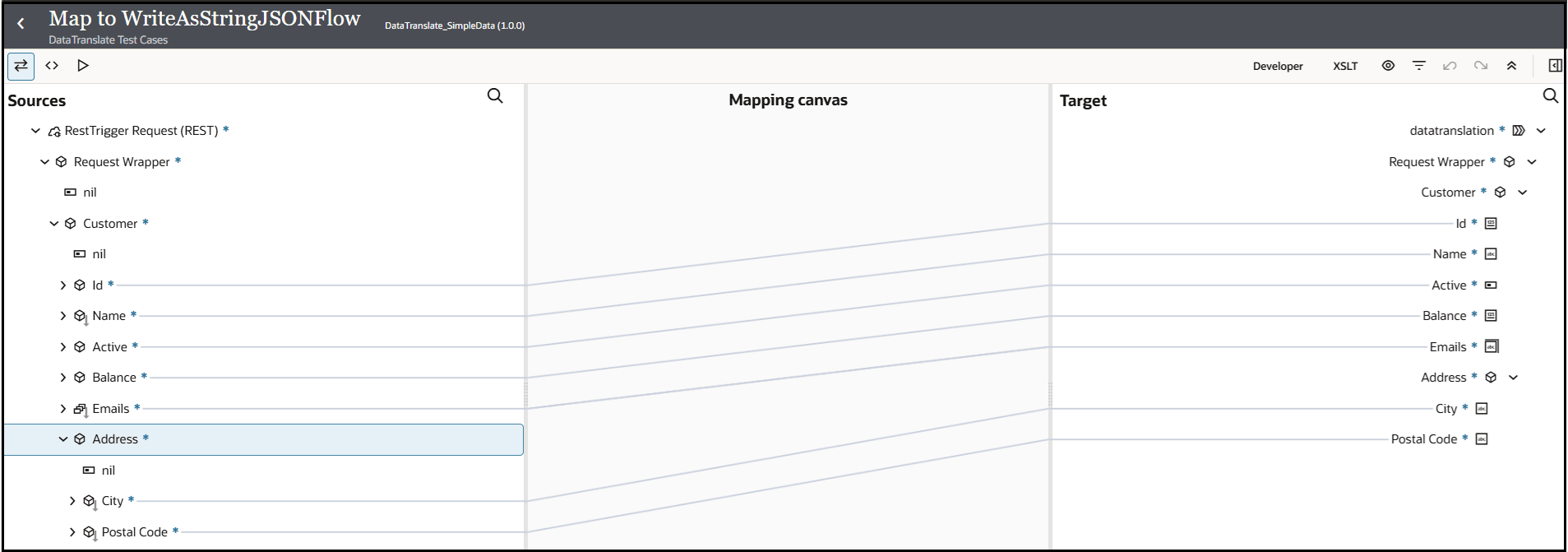

    The mapper shows the Sources, Mapping canvas, and Target sections. Source elements are mapped to the target elements. The elements being mapped match the content of the native JSON payload uploaded in a previous step.

  4. Add a JavaScript function to modify the structure of the flat JSON.
    function transformCustomerJson(inputStringJson) {
  var inputJson = JSON.parse(inputStringJson);
  var customer = inputJson.customer;

  var outputJson = {
    accountId: "CUST-" + customer.id,
    displayName: customer.name,
    status: customer.active ? "ACTIVE" : "INACTIVE",
    amountDue: customer.balance,
    primaryEmail: customer.emails && customer.emails.length > 0 ? customer.emails[0] : null,
    notificationEmails: customer.emails || [],
    location: {
      cityName: customer.address ? customer.address.city : null,
      pinCode: customer.address ? customer.address.postalCode : null
    }
  };

  var result = JSON.stringify(outputJson);
  return result;
}

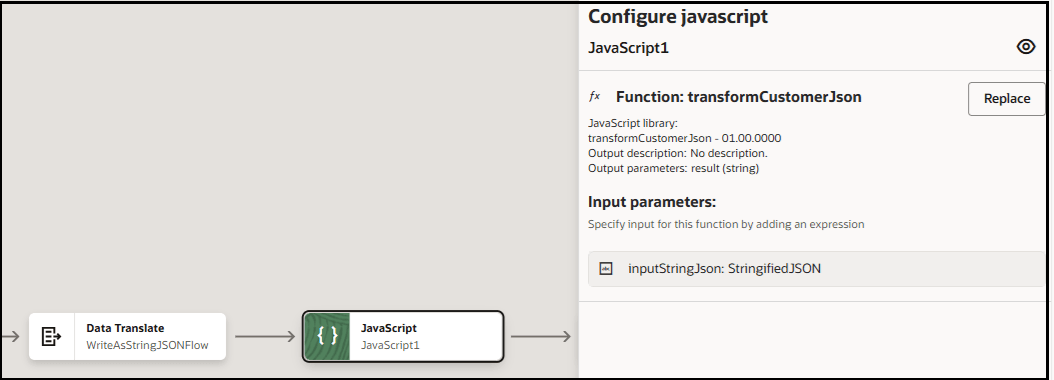

    Data translate and JavaScript actions are shown on the left. On the right is the Configure javascript panel. The transformCustomerJson is shown. Below the function is the Input parameters section. inputStringJson is shown. On the right is the Replace button.

  5. Add a second data translate action to your integration to translate the flat, stringified JSON payload back to a native JSON payload.
    1. Add a name (for this example, ReadAsStringifiedJSONFlow) and optional description.
    2. Select Read as Stringified JSON to translate the flat, stringified JSON payload back to a native JSON payload.
    3. Upload the native JSON payload to return the JSON format to its original state after translation.
      {
  "accountId": "CUST-1001",
  "displayName": "Acme & Co",
  "status": "ACTIVE",
  "amountDue": 1250.75,
  "primaryEmail": "ops@acme.com",
  "notificationEmails": [
    "ops@acme.com",
    "billing@acme.com"
  ],
  "location": {
    "cityName": "Bengaluru",
    "pinCode": "560001"
  }
}
  6. Map the source elements to the target elements in the response mapper:

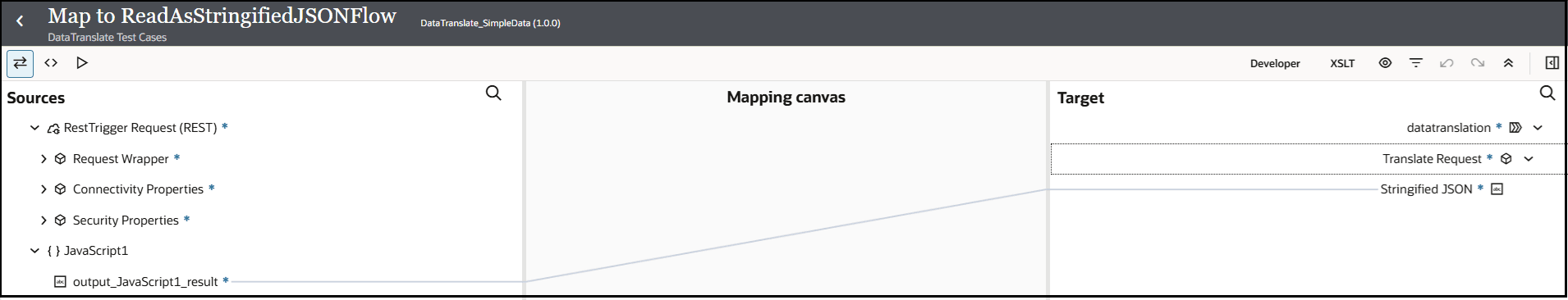

    The mapper shows the Sources, Mapping canvas, and Target sections. Source elements are mapped to the target elements.

    The completed integration looks as follows:

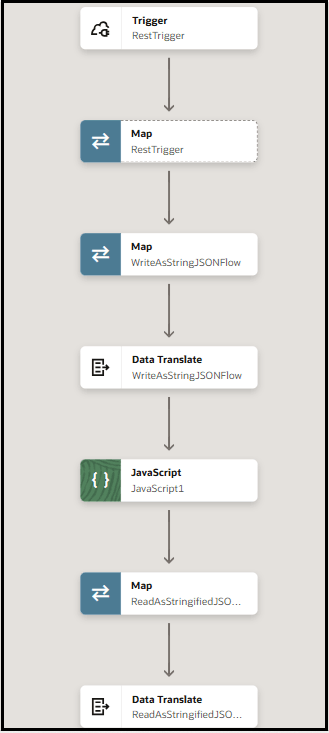

    The integration shows a trigger, map, map, data translate, Javascript, map, and data translate action.

  7. Activate and run the integration. For this example, the tracing level has been set to debug.
    1. From the Actions Actions icon menu, click Run.
    2. Expand Data Translate WriteAsStringJSONFlow in the activity stream.

      The output from the data translate action is shown. The <StringifiedJSON> element indicates that the native JSON payload has been translated to flat, stringified JSON.

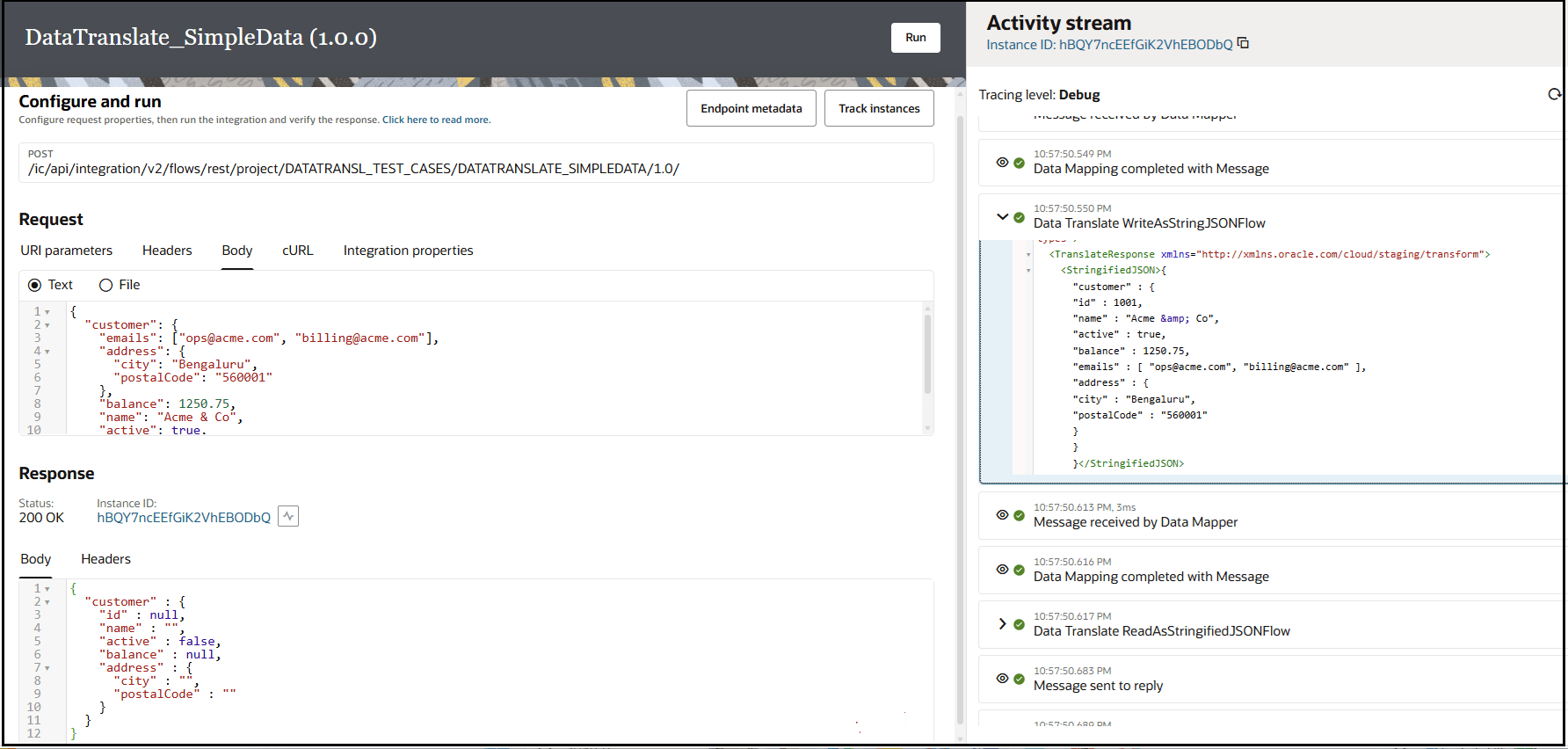

      The Configure and run page shows three sections. The Request section shows the message body of the request. Below this, the Response section shows the message body of the response. On the right, the activity stream is expanded to show the flat, stringified message translated by the data translate action.

    3. Scroll down in the activity stream and expand Data Translate ReadAsStringifiedJSONFlow.

      The flat, stringified JSON payload has been translated back to a native JSON payload.

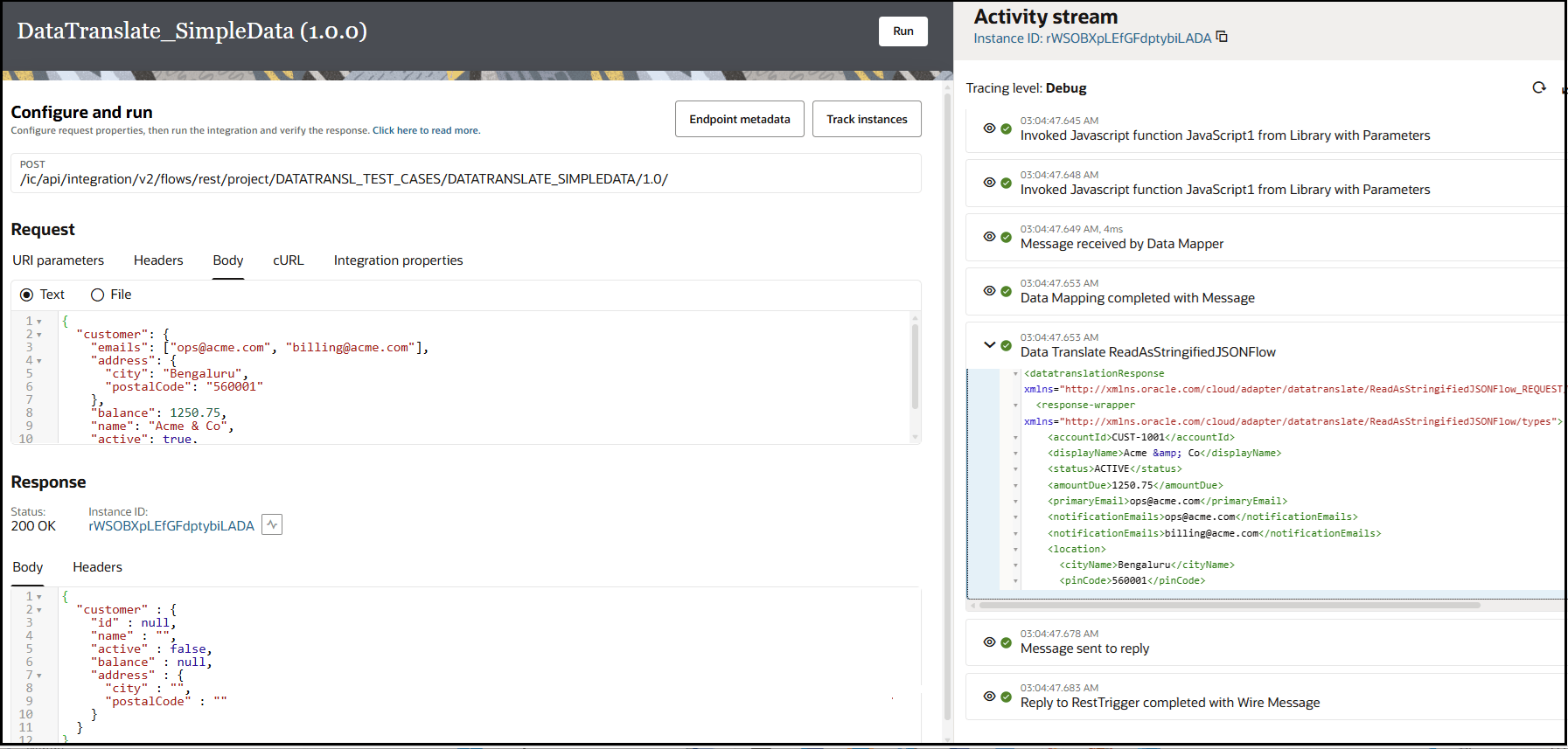

      The Configure and run page shows three sections. The Request section shows the message body of the request. Below this, the Response section shows the message body of the response. On the right, the activity stream is expanded to show the native JSON payload translated by the data translate action.
