Add JavaScript Modules As Global Functions

When different parts of your application routinely use similar JavaScript functions to transform or manipulate data, you can extract those functions as global functions and reuse them.

To make these functions reusable in pages, you can define their implementation as global functions and make them available in all pages (fragments or any other container)—but only within a single web app in a visual application.

Let’s say webappA defines two JavaScript utilities, dateUtils.js and standardUtils.js, shared by containers (page, fragment, and dynamic layout artifacts) in the web application. Rather than copy the code for the utilities into every container that requires the same logic, you can add them as global functions (at the webApps/webAppName/resources/ level) and declare rules for their usage in an associated functions.json metadata file. This way, dependent containers can import the functions as resources and use them with minimal effort.

To add JavaScript modules as global functions to your web application:

Create an archive (for example, a functions.zip file) that contains your JavaScript files and a related functions.json file.

You can structure your files any way you want, meaning they can be a flat list of files or in subfolders of any depth, as long as the functions.json file uses the correct file paths. Here’s an example of the structure you can use:
```
functions
| functions.json
| someFunction.js
| subfolder1/
|   |  myFunction.js
| subfolder2/
|   |  otherFunction.js
```
Make sure your JavaScript files do not have any dependencies. See Example JS Module Defined As a Global Function.

The functions.json file defines the context name, label, description, and other necessary metadata and is required to expose the functions properly. See Example functions.json to Declare Global Functions.
Import the archive at the web app level.

Note: Global functions can only be defined in the resources folder at the web app level. You cannot add them to any other folder, including at the visual application root level.
1. In the Web Apps pane, select the web app you want, right-click its Resources folder, and click Import. If you’re using Source view, go to webApps/yourApp/resources/ and click Import.
2. Drag your archive (for example, functions.zip) from your local file system and drop it onto the target area.
3. Click Import.

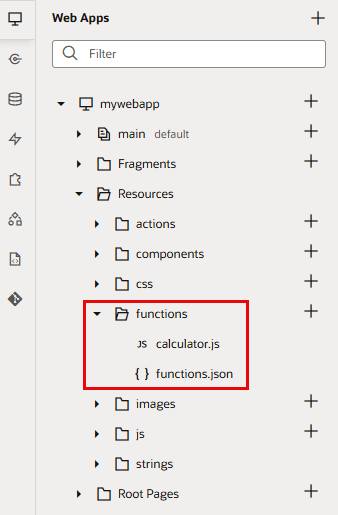

Once the functions folder is created in your web application, you can add or delete files as needed. Here’s an example of the functions.zip imported with the calculator.js and functions.json files:

Description of the illustration globalfunctions-visapp.png

Your functions now become available to you:

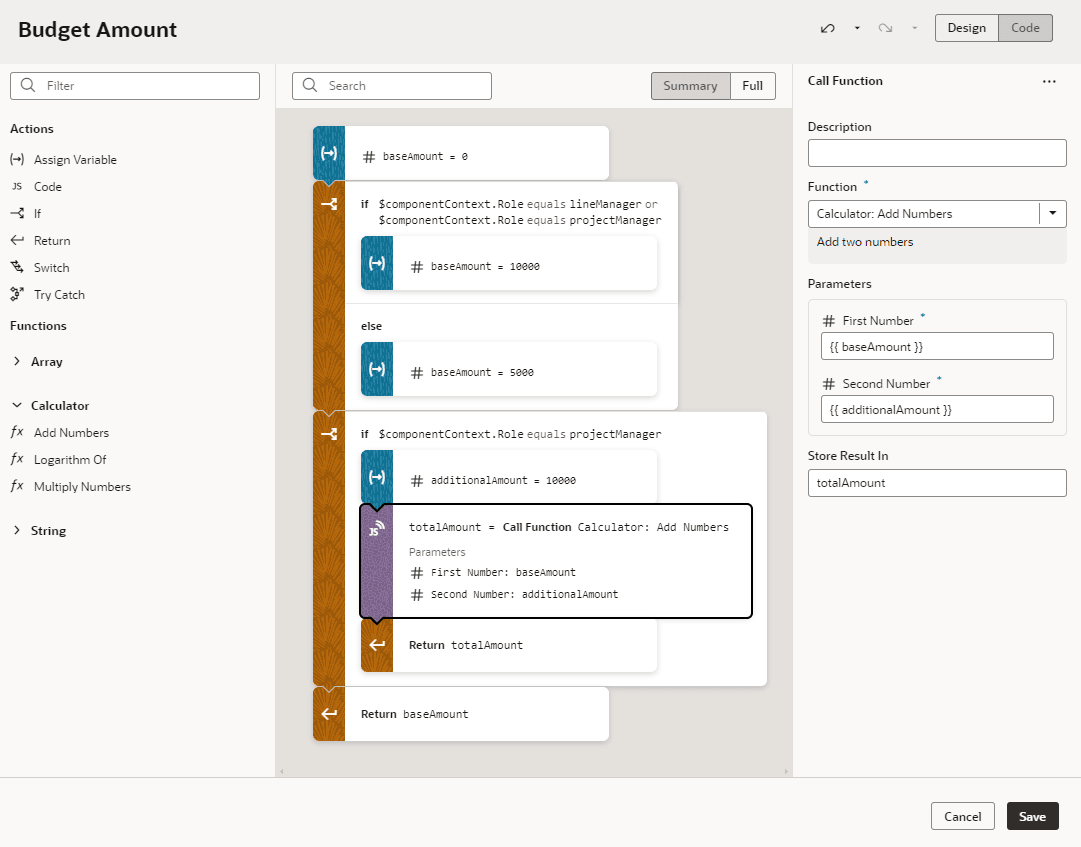

In the Advanced Expressions editor for business rules, validation rules, and default values, where you can drag these functions from the Actions palette:

Description of the illustration globalfunction-bizrule.png

To edit the code directly, use the format $modules.module-id.function-name(...), for example, $modules.calculator.add(baseAmount, additionalAmount). For information on how to build expressions, see Build Advanced Expressions.

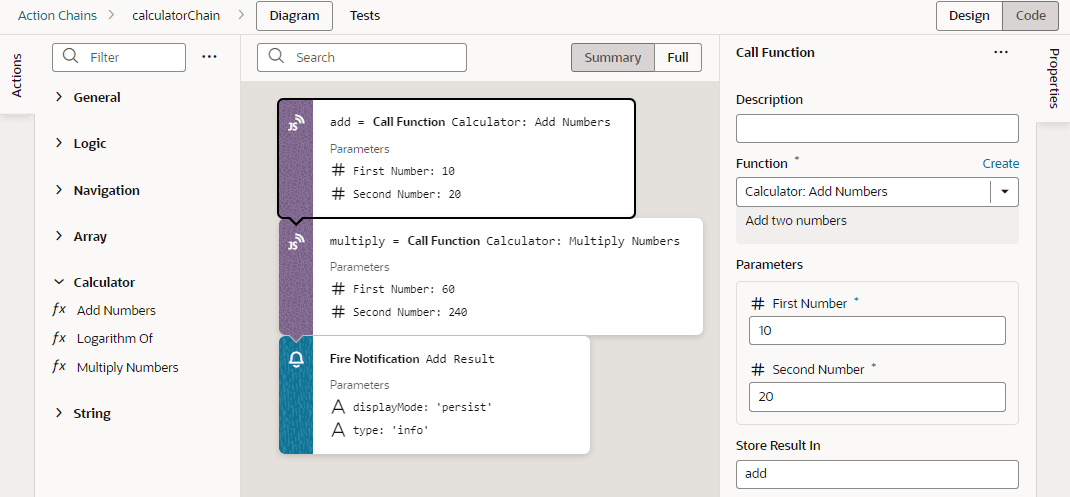

In the JavaScript Action Chains editor, where you can drag these functions from the Actions palette:

Description of the illustration globalfunction-jsactionchains.png

To edit the code directly, use the format $modules.module-id.function-name(...), for example, $modules.calculator.add(10, 20). For information on how to use the Call Function action, see Add a Call Function Action.

If you get errors at runtime, make sure the JavaScript module is correctly imported to your container.

To automatically import the module, drag the function from the palette and build your expression or action chain.
To manually import the module:
1. Open the container’s Imports tab in the Settings editor.
2. Click + Module under Module Imports, enter the module name (for example, calculator), then the path to the module in the format {application}:{resourceType}/{resourceAlias}, where:
  - {application} refers to the current web app that the resource belongs to
  - {resourceType} is a special keyword for /functions resources, for example, $functions
  - {resourceAlias} is the JavaScript alias defined in functions.json.
  For example, the application:$functions/calculator module path resolves to *`visualAppRoot`*/webApps/*`webAppName`*/resources/functions/calculator.js.
3. Click Create.

Manage Global Functions

Use the Functions editor to manage global functions added to your web application, where you can edit the functions.json file as well as create new JavaScript files that contain global functions.

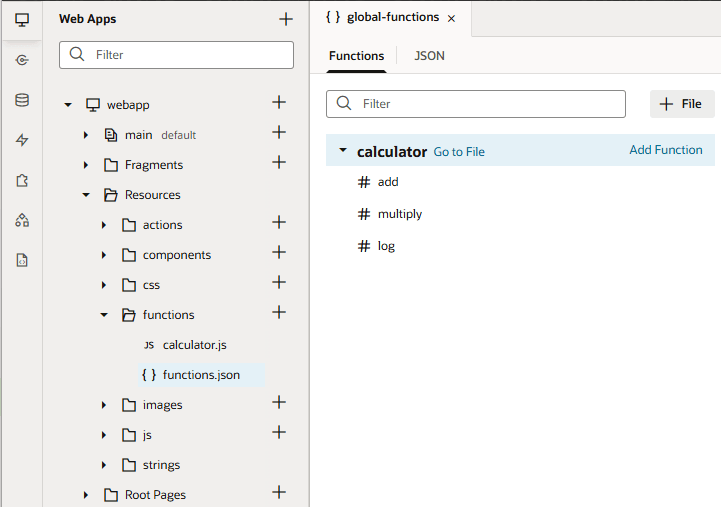

In the Web Apps pane, expand your web app’s Resources: functions folder, then select functions.json to open the file in the Functions tab.

Description of the illustration globalfunctions-editor-visapp.png

The Functions tab provides an intuitive interface where you can manage the JS files added to functions.json as well as the functions within each file. If you prefer to work with JSON, you can always switch to the JSON tab.
Add a new or existing JS file to functions.json:
- To add a new file, click + File, select Create New File, enter a name for your JS file, and click Create. The new file is created in the Resources: functions folder and automatically added to functions.json.
- To add a file that was previously imported to the Resources: functions folder, click + File, select Add Existing File, then select the JS file you want to add in the Path list, and click Add. This option appears only if the JS file has already been imported to the functions folder.
Update the JS files (and functions) associated with functions.json:

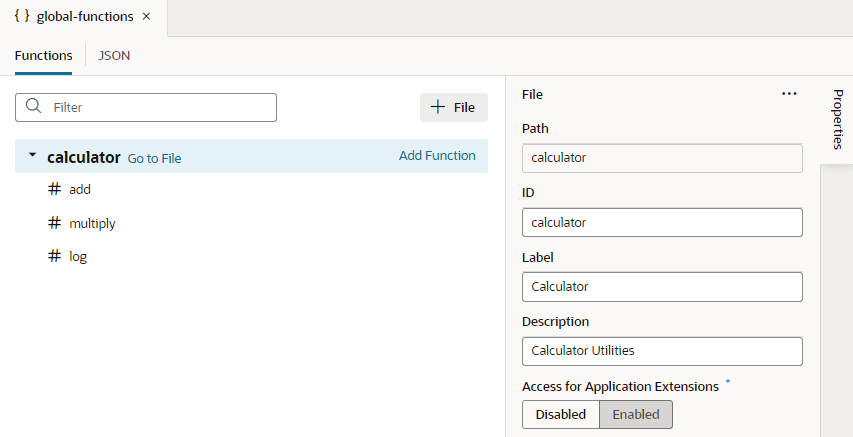

- To update the JS file’s metadata, select the file (for example, calculator) and update its metadata in the Properties pane:

  Description of the illustration global-functions-editmodule1.png

  Except for the file path, you can change anything you want. See File Metadata Object for details.
- To add a function to a JS file, select the file and click Add Function. Enter an ID for the function and click Create. You can now use the Properties pane to define the function’s metadata, which includes adding or editing input parameters. See Function Metadata Object and Param Metadata Object for details.
- To update an existing function in a JS file, select the file and click Go to File. You’ll also find this option in a file’s context menu and its Action menu in the Properties pane.

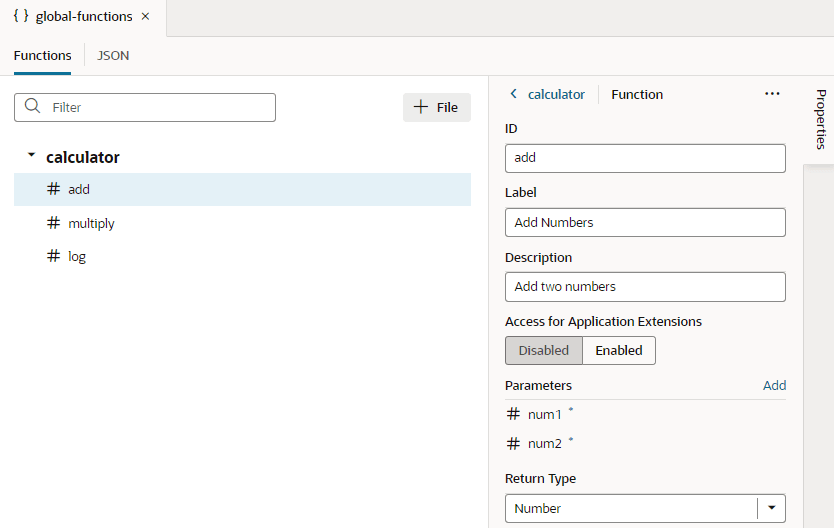

- To update a function’s metadata or input parameters, select the function within the JS file (for example, add under calculator) and update its details in the Properties pane:

  Description of the illustration global-functions-editfunction1.png

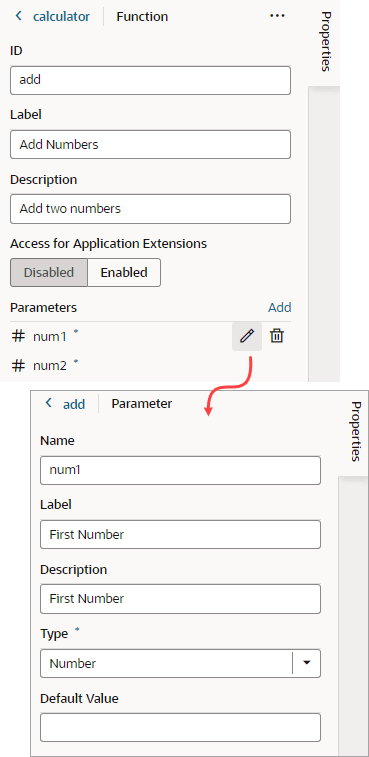

  To manage the function’s input parameters, hover over a parameter under Parameters and click to update the parameter’s metadata:

  Description of the illustration global-functions-editparameter.png

  Required parameters are indicated by an ***** in the Properties pane and are typically those without a default value. To add an optional parameter, set a default value for the parameter. If a default value isn’t defined (using defaultValue in functions.json), you can set it in the parameter’s Properties pane.

  To add a new input parameter, click Add next to Parameters.
- To delete a JS file or a function in a JS file, right-click the file or the function and select Delete. Note that deleting a file only removes it from functions.json, it does not delete the file from the functions folder.

Example JS Module Defined As a Global Function

Here’s an example of a calculator.js module, which defines three global functions:

define([], () => {
  'use strict';

  function add(num1, num2) {
    return num1 + num2;
  }

  function multiply(num1, num2) {
    return num1 * num2;
  }

  function log(number, base=10) {
    // some calculation
    return 0;
  }
  return { add, multiply, log };

});

This calculator.js module defines the add function to return the sum of two numbers, the multiply function to multiply two numbers, and the log function to calculate the logarithm of a number with a specified base.

The functions.json file would include the calculator.js file in its list of JS modules in the files section.

Example functions.json to Declare Global Functions

The functions.json file is used to declare JavaScript modules as global functions and specifies the metadata of functions, such as module name, function name and parameters it takes, as well as the implementation file path. Here’s an example of a functions.json file that references the calculator.js module:

{
  "files": {
    "calculator": {
      "path": "oracle/calculator",
      "label": "Calculator",
      "description": "Calculator Utilities",
      "iconClass": "oj-ux-ico-airport",
      "functions": {
        "add": {
          "label": "Add Numbers",
          "description": "Add two numbers",
          "params": {
            "num1": {
              "label": "First Number",
              "description": "First Number",
              "type": "number"
            },
            "num2": {
              "label": "Second Number",
              "description": "Second Number",
              "type": "number"
            }
          },
          "return": "number"
        },
        "multiply": {
          "label": "Multiply Numbers",
          "description": "Multiply two numbers",
          "params": {
            "num1": {
              "label": "First Number",
              "description": "First Number",
              "type": "number"
            },
            "num2": {
              "label": "Second Number",
              "description": "Second Number",
              "type": "number"
            }
          },
          "return": "number"
        },
        "log": {
          "label": "Logarithm Of",
          "description": "Logarithm of given number",
          "params": {
            "number": {
              "label": "Number",
              "description": "Number",
              "type": "number"
            },
            "base": {
              "label": "Base",
              "description": "Log Base",
              "type": "number",
              "defaultValue": 10
            }
          },
          "return": "number"
         }
      }
    }
  }
}

File Metadata Object

The files section can include one or more JS files. Each file path (relative to dynamicLayouts/self/resources/functions/) maps to a metadata object that describes a group of functions.

Name	Type	Description
`path`	string	Relative path of the implementation file. In the example above, the path to the `.js` file is `oracle/calculator`. When the file is a RequireJS module, the `.js` file extension can be dropped.
`label`	string	A string naming this function group.
`description`	string	A string describing this function group.
`functions`	Object<String,Function>	(Required) An object that maps function name to function metadata. See Function Metadata Object .

Function Metadata Object

The functions section can be used to list functions that are available to callers.

Name	Type	Description
`label`	string	A string naming this function group.
`description`	string	A string describing this function group.
`params`	Object<String,Function>	(Required) An object that maps parameter name to a param object. See Param Metadata Object .
`return`	string	Function's return type. Only primitive types, array, object, and `any` are supported.

Param Metadata Object

Name	Type	Description
`label`	string	A string naming this function group.
`description`	string	A string describing this function group.
`type`	string	Parameter type. Only primitive types, array, object, and `any` are supported. Default is `any`.
`defaultValue`	string	(Optional) Default value for the parameter, used to indicate whether a parameter is required or optional. If a default value isn't specified, the parameter is considered required.
