Add an Icon to a Page

VB Studio provides an extensive gallery of icons that you can add to your pages using the icon component in the Components palette.

To add an icon component to a page:

  1. Open the page in the Page Designer and drag an icon component from the Components palette onto the canvas.

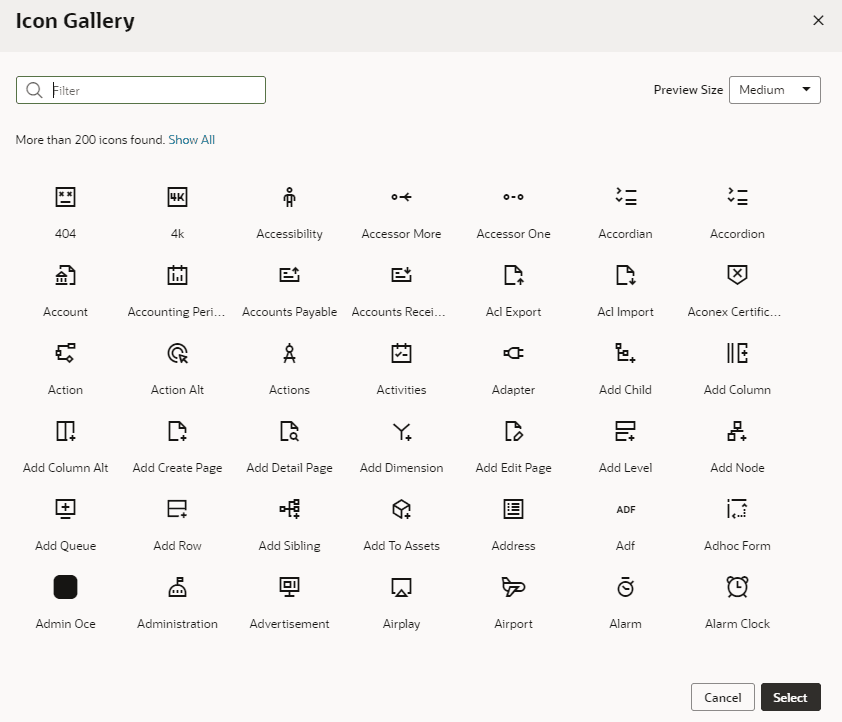

  2. Click the image button ( Image button ) under Icon in the General tab of the component's Properties pane to bring up the Icon Gallery.
  3. Select the icon you want to use, then click Select.
  4. Specify properties as needed in the Properties pane. Or click the Events tab to trigger an action chain from a component event.
