Creating Encryption Keys

Use OCI Vault to create or import encryption keys for BYOK.

Prerequisites

Create a vault as a logical container for encrypting keys. See Creating a vault in Oracle Cloud Infrastructure Documentation.

Creating Or Importing an Encryption Key

After you create a vault, create or import the required encryption keys.

  1. Sign in to the Oracle Cloud Console as an Account Administrator or Identity Domain Administrator.
  2. Open the Navigation menu, search for Identity & Security, and select Vault.
  3. On the Vaults page, select the vault where you want to create the key.
  4. On the vault details page, select Master encryption keys.
  5. Click Create Key.

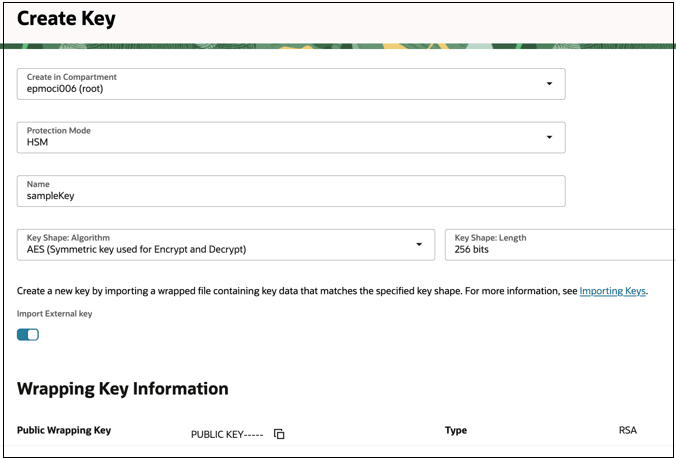

    Create key

  6. Enter the required details:
    • Create in Compartment: Create the key in the same compartment as the vault
    • Protection Mode:
      • HSM - Stores and processes in a hardware security module (HSM).
      • Software - Stores the key in the Vault service software layer.
    • Key Shape: Algorithm: AES
    • Key Shape: Length: 256 bits

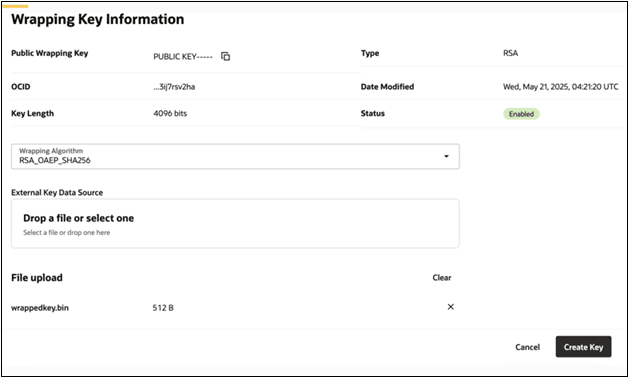

    Import external key
  7. To import an external key (for example, from your HSM), enable Import External Key.
  8. Download the Public Wrapping Key in a file using Save link.
  9. Wrap your key file using the public wrapping key using the wraping algorithm as RSA_OAEP_SHA256. Refer Wrapping the External Key Before Import.
  10. Upload the wrapped key file using External Key Data Source
  11. Click Create Key.

Wrapping the External Key Before Import

Do not upload a raw key. Always wrap the key using the OCI Vault public wrapping key before uploading it.

Wrapping the key:

  • Protects the key during transfer
  • Ensures OCI Vault can securely unwrap the key

Example: Wrap an External Key

The following example shows how to wrap a customer-managed key before importing it into OCI Vault. Assume:

  • The customer key is stored in aes_key.bin.
  • The public wrapping key is stored in publickey.pem.

Run the following command:

openssl pkeyutl -encrypt \
  -in aes_key.bin \
  -inkey publickey.pem \
  -pubin \
  -out wrappedkey.bin \
  -pkeyopt rsa_padding_mode:oaep \
  -pkeyopt rsa_oaep_md:sha256

This command generates a wrapped key file named: wrappedkey.bin.

Upload the wrappedkey.bin file to OCI Vault specifying the wrapping algorithm as RSA_OAEP_SHA256, to complete the key import process.

For more information, see Applying RSA-OAEP to Wrap the Key Material for a Symmetric Key in Oracle Cloud Infrastructure documentation.
