How do I create a Logical Hierarchy in Oracle Fusion Field Service using OFS-Maintenance Accelerator?

This topic shows you how you can set up the Oracle Maintenance accelerator for Oracle Fusion Field Service.

Note: After migration to Fusion all previous integrations are expected to work without need to migrate to new versions (basically Oracle Field Service and Oracle Fusion Field Service will have full compatibility from API standpoint).

Step 1 - Create Applications in Oracle Fusion Field Service

To establish a connection between Oracle Fusion Field Service and OIC, the you must create these applications in Oracle Fusion Field Service:
  • OIC application with details about the OIC endpoint.

    This screenshot describes creating the OIC application with details about the OIC endpoint.

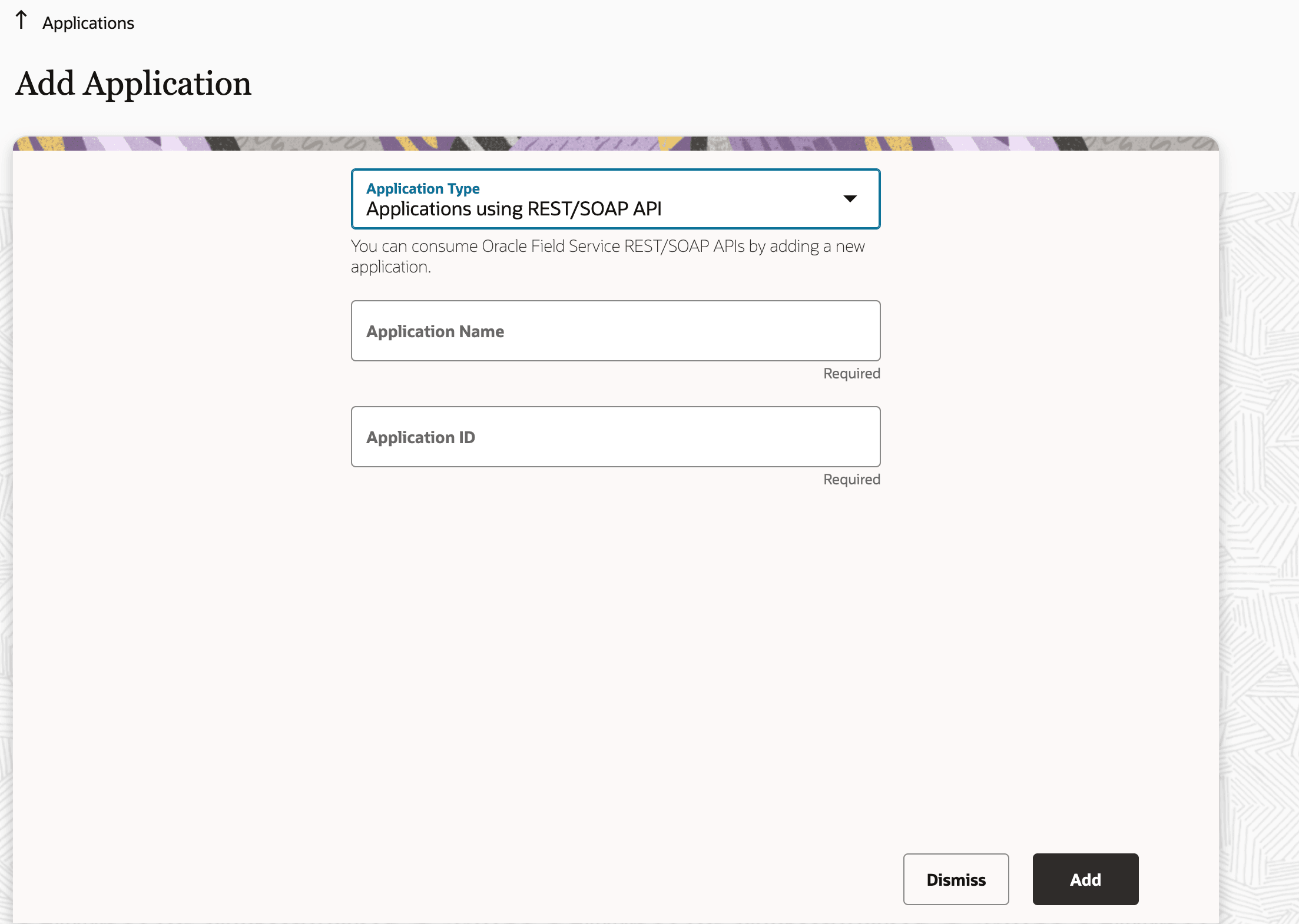

  • REST/SOAP API application which would be used on OIC to send data from OIC to Oracle Fusion Field Service. You've to make sure these Oracle Fusion Field Service APIs are configured with appropriate access privileges.

    The screenshot describes creating REST/SOAP API application.

Configure these methods for the Core REST API for this application:
  • Activity - RW
  • Business Events - RW
  • Inventory - RW
  • Resource - RW
  • User - RW
Configure these methods for the Metadata REST API for this application:
  • Activity Types - RW
  • Properties - RW
  • Work Skills - RW
  • Work Zones - RW,
  • Inventory Types - RO

Step 2 - Configure Connections

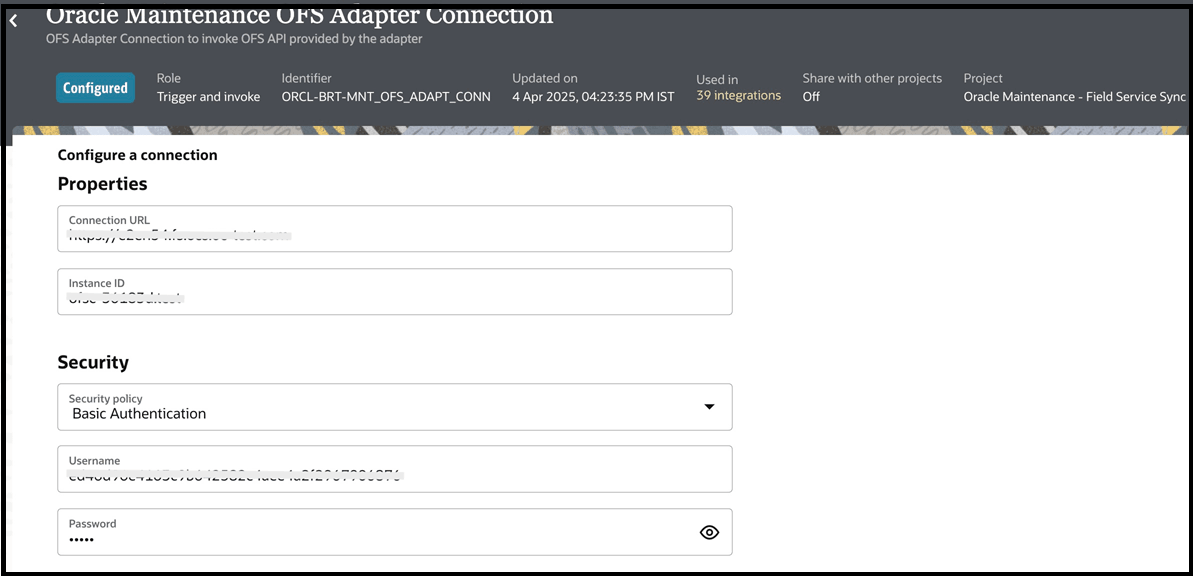

  1. Oracle OFS Adapter Connection - Enter the details from Oracle Fusion Field Service application that you created earlier.

    The screenshot describes creating OFS Adapter connection.

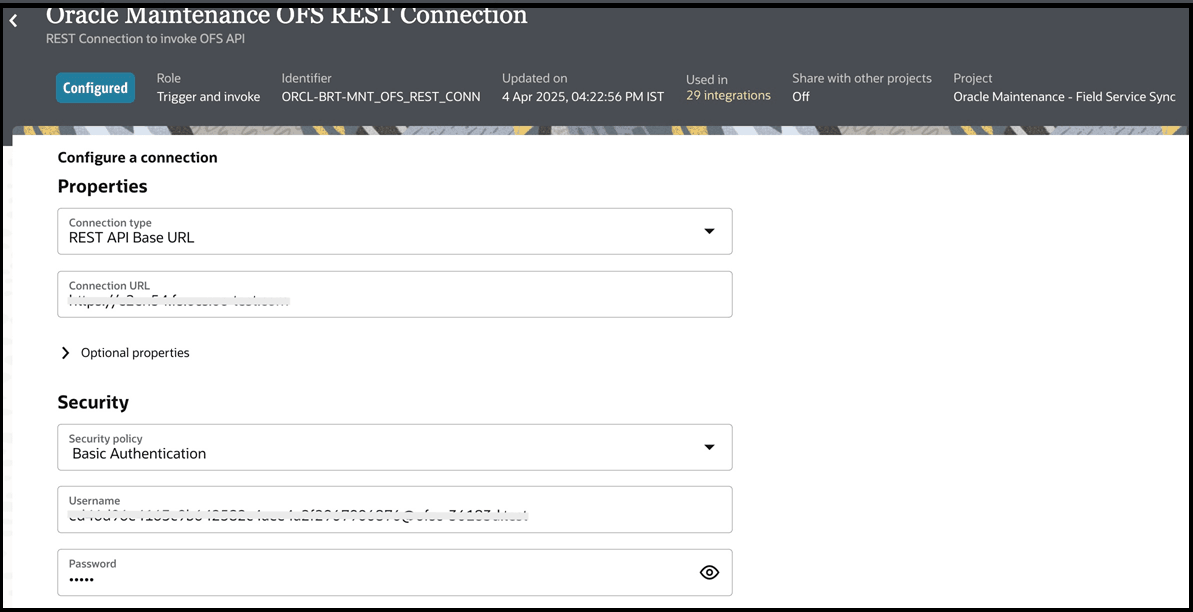

  2. Oracle Maintenance OFS REST Connection - Enter the details from Oracle Fusion Field Service application that you have created.

    The screenshot describes creating OFS Fusion REST connection.

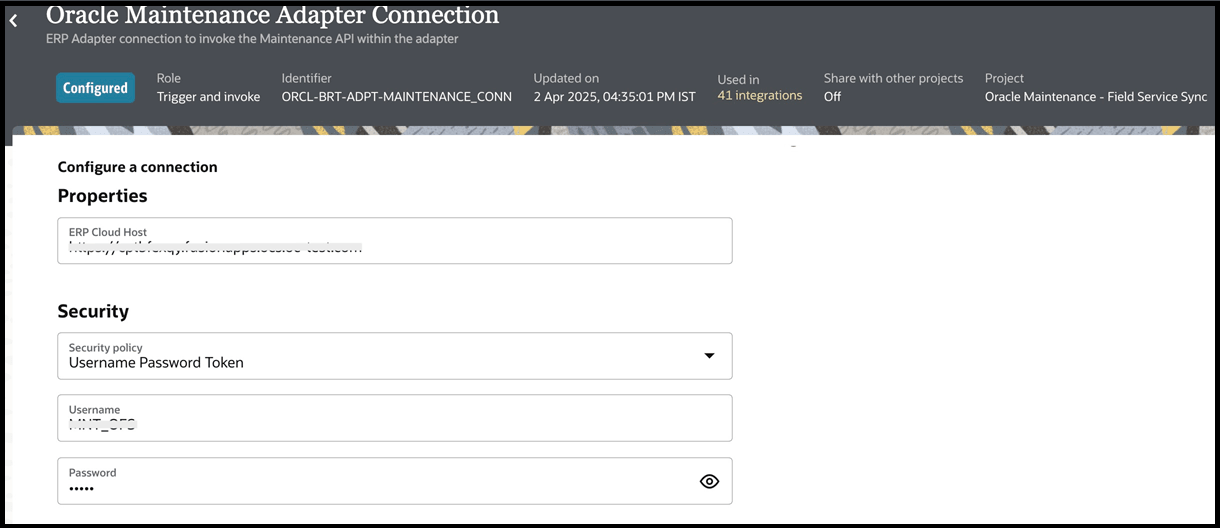

  3. Oracle Maintenance Adapter Connection - Enter the details from Oracle Fusion that were created in Create Fusion user account.

    The screenshot describes creating OFS Fusion Adapter connection.
  4. Oracle Maintenance REST Connection - Enter the details from Oracle Fusion that were created in the Create Fusion user account.

    The screenshot describes creating OFS Fusion Adapter connection.

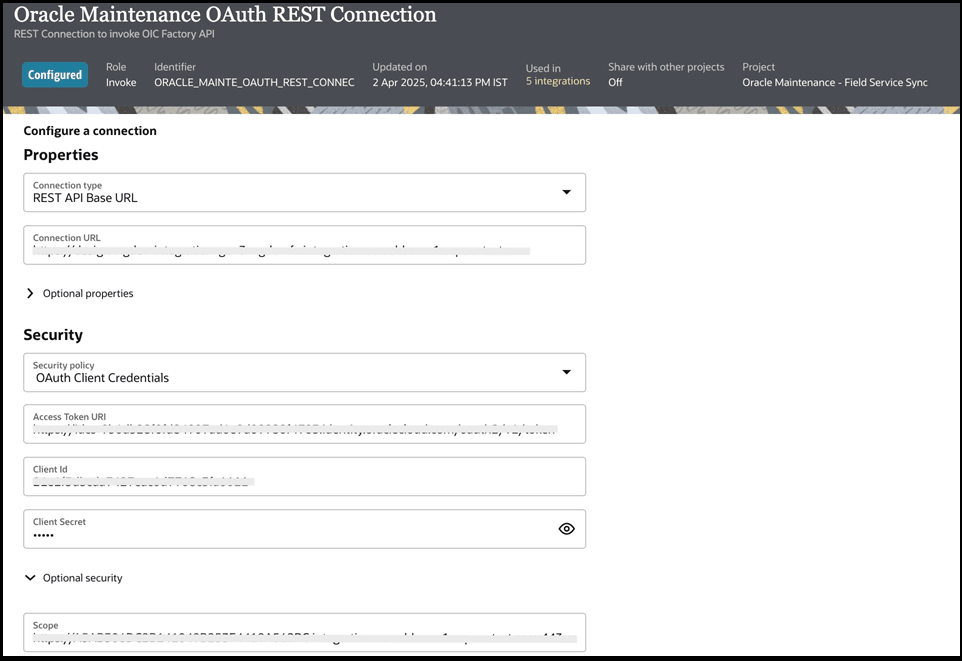

  5. Oracle Maintenance OAuth REST Connection - Enter the IDCS credentials of the OIC instance where this accelerator has been installed.

    The screenshot describes creating OFS Fusion Adapter connection.

    For more information about the steps to configure a trusted application in IDCS, click here.

    Assign this Application Role to get the write access to the OIC Factory API:

    The screenshot describes the Application Roles that must be assigned to get the right access to the OIC Factory API.

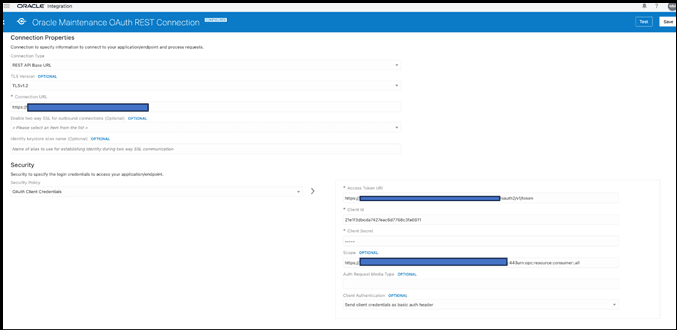

    Oracle Maintenance OAuth REST Connection for Gen 2 version:

    The OIC Factory API supports Basic Authentication in GEN 2 OIC instance.

    The image depicts OAuth Connection in Gen2

Step 3 - Create Resource Types and User Types in Oracle Fusion Field Service

The next step is to create these required resource types and user types within :

  • A resource type with a role of 'bucket'. This is used to map the Maintenance Organization bucket in Oracle Fusion Field Service.
  • A resource type with a role of 'Field resource'. This is used to map the mobile workers (resource instances from Oracle Maintenance) .
    Note: Make sure you have created a user type that can be assigned to the field resources.
  • Inventory types 'part' and 'part_sn' must be created and mapped with the model property 'inventory_identifier'.

Step 4 - Configure Parent Resource in Oracle Fusion Field Service

  1. Create a parent resource in Oracle Fusion Field Service that will encompass all other resources.
    Note: You can skip this step if the parent resource is already available in Oracle Fusion Field Service.
  2. Configure the External ID of the resource in the Oracle Integration lookup ORCL-BRT-MNT-OFS-CONFIG → ParentResourceId. Based on this configuration, the accelerator will sync the values into Oracle Fusion Field Service.

The accelerator will then sync:

  • Maintenance Organization as a bucket under this parent resource.
  • Resource Instances as mobile workers under the created maintenance organization resources.

Step 5 - Create Properties Used by Integration

Activate the Oracle Maintenance OFS Property Create Helper and run the Oracle Maintenance OFS Property Setup integrations. The properties listed in this table are installed in Oracle Fusion Field Service automatically.

Property Label Name Entity GUI Type
mwo_op_seq_number Operation Sequence Number activity text string
mwo_workorder_id Work Order ID activity text string
mwo_workorder_type Work Order Type activity text string
mwo_operation_name Work Order Operation Name activity text string
mwo_workorder_priority Work Order Priority activity text string
mwo_operation_id Work Order Operation ID activity text string
mwo_workorder_subtype Work Order SubType activity text string
mwo_workorder_org_code Maintenance Organization Code activity text string
mwo_work_skill Maintenance Work Skill activity text string
mwo_work_zone Maintenance Work Zone activity text string
mwo_op_resourceid Maintenance Resource ID activity text string
mwo_resource_code Maintenance Resource Code activity text string
mwo_workorder_org_name Maintenance Organization Name activity text string
mwo_asset_number Asset Number activity text string
mwo_op_countpoint Operation Count point activity text string
mwo_subinventory SubInventory inventory text string
mwo_resource_organization Maintenance Organization resource text string
mwo_resource_subInventory SubInventory resource text string
mwo_appt_installed_inventory Activity Installed Inventory activity text string
mwo_inventory_subInv Inventory Source inventory text string
mwo_operation_note WO Operation Note activity text string
mwo_op_resource_note Operation Resource Note activity text string
mwo_locator Locator inventory text string
mwo_status_change_reason Status change Reason activity combobox enumeration
mwo_planned_date Maintenance Planned Date activity text string
mwo_action_type Maintenance WO Action activity combobox

enumeration

Expected values

  • New Operation
  • New Resource
  • New Work Order
mwo_parent_ref_wo_num Parent Reference Work Order activity text string
mwo_workcenter_id Maintenance Work Center Id activity text string
mwo_wo_desc Maintenance Work Order Description activity text string
mwo_resource_requirement Resource Requirement activity text string
mwo_wc_enum Maintenance Work Center activity combobox enumeration
mwo_transaction_status Operation Transaction Status activity text string
mwo_parent_apptnumber Parent Work Order activity text string
mwo_resource_orgid Maintenance Organization ID resource text string
mwo_inventory_org Inventory Organisation inventory text string
mwo_asset_status Asset Status activity combobox enumeration
wo_asset_purchase_date Purchase Date activity text string
wo_asset_status Asset Status activity text string
wo_asset_install_date Install Date activity text string
asset_view_translation_placeholders Asset View Placeholders activity combobox enumeration
wo_asset_id Asset Id activity text string
wo_asset_products Product activity text string
mwo_meter_count Meter Count activity text string
mwo_meter_info Meter Info activity text string
mwo_resource_id Resource ID resource text string
part_item_number Item Number inventory text string
part_item_number_rev Item Number with Revision inventory text string
part_item_revision Revision inventory text string
part_item_rev_serial_num Item Number with Revision and Serial Number inventory text string
mwo_standard_op_code Standard Operation Code activity text string
wo_number Work Order Number activity text string
wo_asset_serial_number Work Order Asset Serial Number activity text string
wo_case_note Work Order Case Note activity text string
wo_asset_name Work Order Asset Name activity text string
mwo_cancel_reason Cancel Reason activity text string
mwo_repair_trans_code Repair transaction code activity combobox enumeration
mwo_work_accomp_code Work to be accomplished code activity combobox enumeration
mwo_inst_resource_code Maintenance Instance Resource Code resource text string
mwo_labour_identifier Maintenance Labour Identifier resource text string
external_id_identified_by External ID Identified By resource text string
mwo_inv_last_sync_time Last Inventory Sync Time resource text string
mwo_resource_instance_id Resource Instance ID resource text string
mwo_work_order_sync_orgs Work Order Organisations resource text string
mwo_resource_sync_orgs Resource Organisations resource text string

Step 6 - Add Properties to be Indexed for Search

For the integration to function, add these properties as indexes for the activity search API in Oracle Fusion Field Service in the Configuration > Business Rules Search > Activity Search Fields section:

  • Work Order Number (appt_number)
  • MWO Operation Id (mwo_operation_id)
  • Asset Id (wo_asset_id)
  • MWO WorkOrder Id (mwo_workorder_id)

Step 7 - Configure Organizations filter properties in Oracle Fusion Field Service

  1. After the Oracle Fusion Field Service properties get created, the below custom properties need to be enabled in the Configuration → User Types → Administrator role → Edit Resource page of the administrator user.
    Property Label Name Description
    mwo_work_order_sync_orgs Work Order Organisations Used to filter in the Maintenance workorder sync
    mwo_resource_sync_orgs Resource Organisations Used to filter in the Resources, Activity Types and WorkCenter syncs

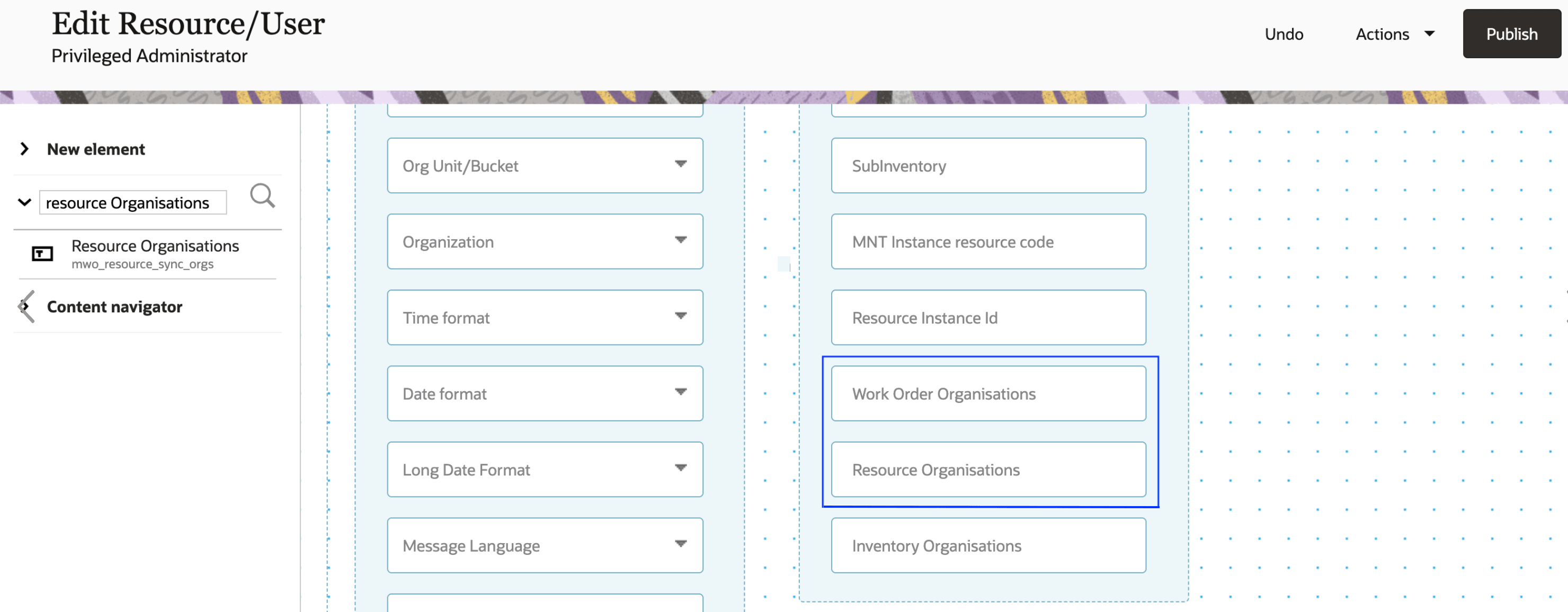

    This screenshot shows the Edit Resource Layout page.

  2. The administrator needs to configure the Fusion maintenance organizations in the property that needs to be filtered for syncing with Oracle Fusion Field Service. Customers can use this property to filter the maintenance organizations by configuring the organization code(s) that must be synced with Oracle Fusion Field Service, e.g., M001, M122.

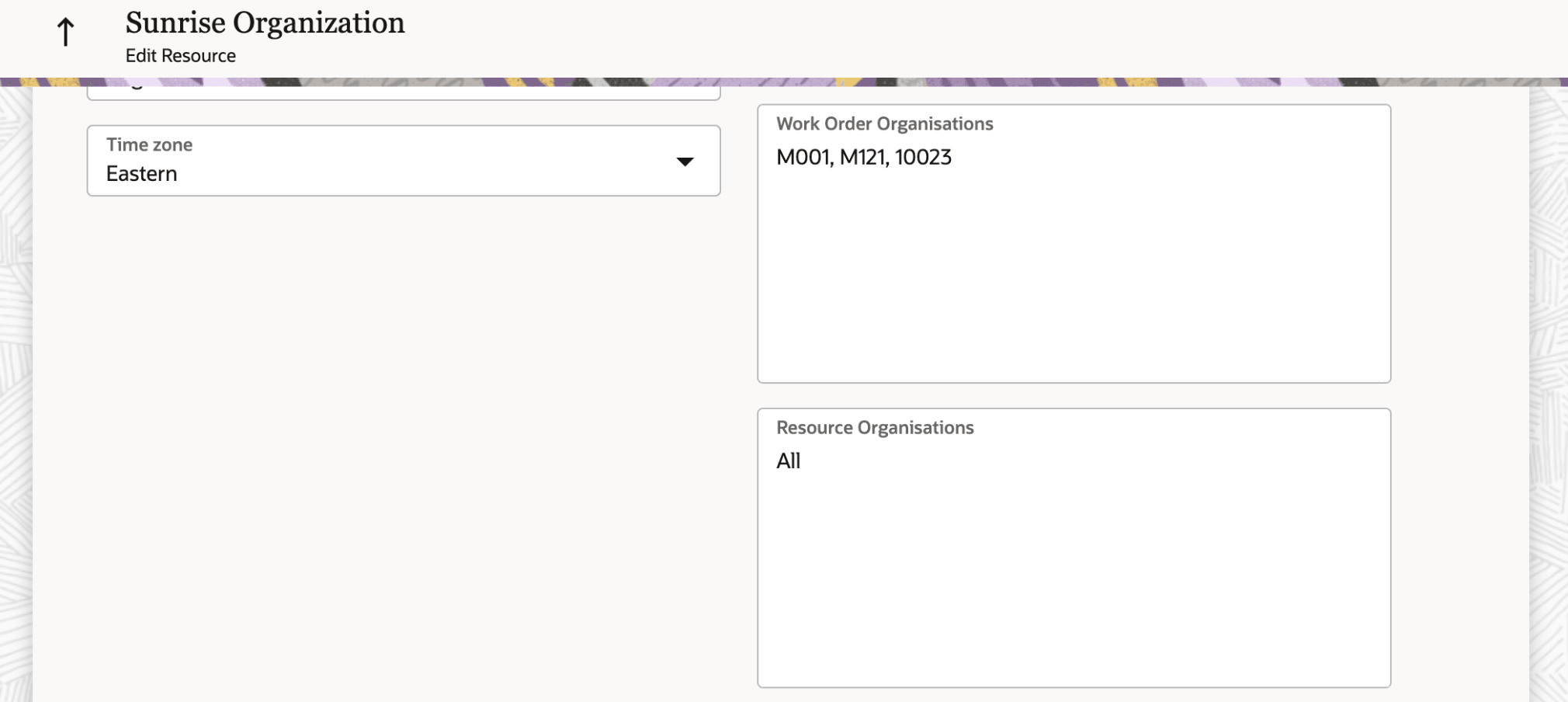

    This screenshot shows the Edit Resource page.

    Note: You can either provide a specific organization code, a comma-separated list of organization codes, or use "All" to synchronize data across all organizations. An empty value in this field will result in no data being synchronized.

Step 8 - Configure the 'ORCL-BRT-MNT-OFS-CONFIG' Lookup

The ORCL-BRT-MNT-OFS-CONFIG lookup contains the metadata used by the integration. You must configure this lookup for the integration to function properly. Because all the lookup configurations have default values, be sure to configure appropriate values per the business requirements for these lookups:

Name Value to be inserted
IntegrationUser The clientId/user used in the Oracle Maintenance OFS Adapter Connection.
LaborResourceType The Oracle Fusion Field Service resource type associated with "Labor" resource instances in Oracle Maintenance (Created in step 4).
EquipmentResourceType The Oracle Fusion Field Service resource type associated with "Equipment" resource instances in Oracle Maintenance (Created in step 4).
UserType The Oracle Fusion Field Service user type which must be associated with "Labor" resource instances in Oracle Fusion Field Service (Created in step 4).
ParentResourceId The external ID of the parent resource in Oracle Fusion Field Service (Created in step 3).
TravelArea The travel area associated with work zones in Oracle Fusion Field Service (This is optional and is used only if you select Work Center → Work Zone sync).
DefaultActivityTypeLabel This configuration is used to map a default activity type in Oracle Fusion Field Service if no match is found in ORCL-BRT-ACT-TYPE-MAPPING lookup. This isn't created in Oracle Maintenance as a standard operation.
WOStatusToSyncOFSActivity This configuration is used in the activity creation flow to filter the work orders by status to sync with Oracle Fusion Field Service.
WO_STATUSES_ACTIVITY_CANCEL This configuration is used to filter the work orders by status for Cancellation of Activities in Oracle Fusion Field Service.
WO_STATUSES_ACTIVITY_DELETE This configuration is used to filter the work orders by status for Deletion of Activities in Oracle Fusion Field Service.
WO_STATUSES_ACTIVITY_COMPLETE This configuration is used to filter the work orders by status for Completion of Activities in Oracle Fusion Field Service.
MNTSourceSystemCode The Source System Code on Fusion. It is required for the transactions. This denotes the source system that started the transactions. This source system must be available in Fusion. Refer to the documentation to create a source system reference.
MNTSourceSystemType The type of the source system, that is, INTERNAL/EXTERNAL value configured in Fusion.
SyncMetersOnlyOnActivityCreation Sync the meters and their readings only while creating activity. If the value is false/not available, it keeps syncing the latest reading to OFS on every update from maintenance to OFS. The default value is true.
UpdateDFFEvents Single or multiple field service activity event(s) separated by Comma(,). The expected values are activitySuspended, activityStarted, activityNotDone, activityCanceled, activityCreated. If empty, DFF fields will be synced only on activityCompleted event.

Step 9 - Activating and Running the Prerequisite Integrations

After the you create prerequisite configurations, you can start running the integrations. Some of these integrations are to be run first so that the required data is added to Oracle Fusion Field Service.

  1. As the first step, you can activate all the integrations given in the package (activating the integrations is NOT the same as running them). This ensures that all the sub-integrations are active when you run the prerequisite integrations.
  2. Run the Oracle Maintenance OFS Resource Sync integration. This integration is responsible for syncing the resource instances and the maintenance organizations from Oracle Maintenance with Oracle Fusion Field Service.
  3. Run the Oracle Maintenance OFS Activity Types Sync integration. This integration is responsible for syncing the Standard Operations to activity types in Oracle Fusion Field Service. Map the Standard Operation to Activity Type in the new lookup ORCL-BRT-ACT-TYPE-MAPPING where you can specify what activity type the standard operation is mapped to. The integration then creates the necessary activity types in Oracle Fusion Field Service
  4. (Optional) Run the Oracle Maintenance OFS WorkCenter Sync integration. This integration syncs the work centers in Oracle Maintenance with the resource instance's work zone. You must set the work zone key as the mwo_work_zone property for this integration to work.
