Working with Application Attachments
Attachments available in the application details provide supporting documentation reviewed by agency staff when processing an application. This topic discusses the Attachments page for permit and planning applications displayed using the Redwood Experience.
The page tabs and elements may vary on the Attachments page depending on the type of application or record. For example, the Attachments page for a permit displays the Permit, Inspection, and All tabs. The Attachments page for a planning application displays the Planning Attachments and Reports tabs.

Here's information about the permit attachments tabs:
-
The Permits tab displays attachments added through the permit's Attachments page and required documents, if set up by your agency.
For more information about required documents, see Working with Required Documents.
-
The Inspection tab displays attachments that building inspectors uploaded in the Inspector Application related to the inspection checklists, inspection checklist items, or overall inspection.
For more information about Inspector Application for permit and business license inspections, see Performing Inspections on the Inspector Application and Working with Inspection Details.
-
The All tab displays attachments added from all sources, including the Attachments page, the Workflow page, the Inspector Application, plan reviews, and web form responses.
For more information about managing attachments for a permit workflow task displayed using the Redwood Experience, see Using Workflow.
Here's information about the planning applications attachments tabs:
-
The Planning Attachments tab displays attachments added through the planning application's Attachments page and required documents, if set up by your agency.
For more information about required documents, see Working with Required Documents.
-
The Reports tab displays reports generated and completed by the agency staff for a planning application. For example, conditions of approval reports and hearing timeline reports are added to the Attachments page so that these can be accessed by the applicant.
For more information about reports, see Working with Reports.
The actions you can perform depend on your permissions.
Security Details for Working with Attachments
This section describes important security roles, requirements, or considerations specific to working with attachments for permits and planning applications.
Primary Role |
Access Description |
Associated Job Roles and Abstract Roles |
---|---|---|
PSC Registered Public User |
Add and update attachments to submitted permits until they are closed. View all attachments on applications for which the user is the applicant. |
PSC Registered Public User |
PSC Agency Permits Inquiry |
View permit attachments. |
PSC Agency Staff – All agency users |
PSC Permits Attachments User |
Add attachments to permits. Update and delete attachments added by themselves. |
PSC Inspections Supervisor PSC Geographical Information System Administrator PSC Finance Administrator PSC Economic Development Officer PSC Chief Building Officer PSC Cashier PSC Building Inspector PSC Apply Permit Duty PSC System Administrator PSC Principal Planner PSC Planning Coordinator PSC Plan Reviewer PSC Permits Supervisor PSC Permit Technician |
PSC Add Permit Attachments |
Add permit attachments. |
PSC Inspections Supervisor PSC Geographical Information System Administrator PSC Finance Administrator PSC Economic Development Officer PSC Chief Building Officer PSC Cashier PSC Building Inspector PSC Apply Permit Duty PSC System Administrator PSC Principal Planner PSC Planning Coordinator PSC Plan Reviewer PSC Permits Supervisor PSC System Administrator PSC Permit Technician |
PSC Update Permit Attachments that were added by others and self |
Update permit attachments that were added by others and by themselves. |
PSC System Administrator |
PSC Update Permit Attachments that were added by self |
Update permit attachments that were added by themselves. |
PSC Inspections Supervisor PSC Geographical Information System Administrator PSC Finance Administrator PSC Economic Development Officer PSC Chief Building Officer PSC Cashier PSC Building Inspector PSC Apply Permit Duty PSC System Administrator PSC Principal Planner PSC Planning Coordinator PSC Plan Reviewer PSC Permits Supervisor PSC Permit Technician |
PSC Delete Permit Attachments that were added by others and self |
Delete permit attachments that were added by others and by themselves. |
PSC System Administrator |
PSC Delete Permit Attachments that were added by self |
Delete permit attachments that were added by themselves. |
PSC Inspections Supervisor PSC Geographical Information System Administrator PSC Finance Administrator PSC Economic Development Officer PSC Chief Building Officer PSC Cashier PSC Building Inspector PSC Apply Permit Duty PSC System Administrator PSC Principal Planner PSC Planning Coordinator PSC Plan Reviewer PSC Permits Supervisor PSC Permit Technician |
Primary Role |
Access Description |
Associated Job Roles and Abstract Roles |
---|---|---|
PSC Registered Public User |
Add and update attachments to submitted planning applications until they are closed. View all attachments on applications for which the user is the applicant. |
PSC Registered Public User |
PSC Agency Planning and Zoning Inquiry |
View planning and zoning attachments. |
PSC Agency Staff – All agency users |
PSC Add Planning and Zoning Attachments |
Add planning and zoning attachments. |
PSC Planning Application Management with Elevated Access PSC Planning Attachments User Duty PSC System Administrator PSC Zoning Administrator PSC Planning Assistant PSC Associate Planner PSC Geographical Information System Administrator PSC Finance Administrator PSC Economic Development Officer PSC Cashier PSC Principal Planner PSC Plan Reviewer |
PSC Update Planning and Zoning Attachments Added by Others and Self |
Update planning and zoning attachments added by others and by themselves. |
PSC System Administrator |
PSC Update Planning and Zoning Attachments Added by Self |
Update planning and zoning attachments added by themselves. |
PSC Planning Attachments User Duty PSC Apply Planning and Zoning Duty PSC Zoning Administrator PSC Planning Assistant PSC Associate Planner PSC Geographical Information System Administrator PSC Finance Administrator PSC Economic Development Officer PSC Cashier PSC Principal Planner PSC Plan Reviewer |
PSC Delete Planning and Zoning Attachments Added by Others and Self |
Delete planning and zoning attachments added by others and by themselves. |
PSC System Administrator |
PSC Delete Planning and Zoning Attachments Added by Self |
Delete planning and zoning attachments added by themselves. |
PSC Planning Attachments User Duty PSC Apply Planning and Zoning Duty PSC Zoning Administrator PSC Planning Assistant PSC Associate Planner PSC Geographical Information System Administrator PSC Finance Administrator PSC Economic Development Officer PSC Cashier PSC Principal Planner PSC Plan Reviewer |
PSC Delete Planning and Zoning Attachments Added by Self |
Delete planning and zoning attachments added by themselves. |
PSC Planning Attachments User Duty PSC Apply Planning and Zoning Duty PSC Zoning Administrator PSC Planning Assistant PSC Associate Planner PSC Geographical Information System Administrator PSC Finance Administrator PSC Economic Development Officer PSC Cashier PSC Principal Planner PSC Plan Reviewer |
Applicants and contacts with application access can view and add attachments to their own applications as well as update and delete the attachments they added themselves. Before contacts can manage attachments, your agency must add the PSC Contact User duty role (ORA_PSC_CONTACT_USER_DUTY) to the PSC Custom Registered Public User role (CUSTOM_PSC_REGISTERED_PUBLIC_USER) and enable application access for the contact type.
For more information on creating roles for Oracle Permitting and Licensing, see Creating Custom Roles for Oracle Permitting and Licensing.
For more information on all the predefined security data such as abstract roles, job roles, privileges and so on, see the Security Reference for Oracle Permitting and Licensing.
Actions for Working with Attachments
Depending on your permissions for working with attachments, you can perform these actions:
Page Element |
Description |
---|---|
Search |
Enter text to the search field to find attachments in the table. |
![]() |
Click to add or upload a file as an attachment to the application on the Permits or Planning Attachments tab. You can also add attachments in the Required documents section. For more information, see Working with Required Documents. |
Download |
Select one or more attachment rows in the table and click to download the files. |
Delete |
Select one or more attachment rows in the table and click to delete. For permits, the Delete action appears only on the Permits tab. For planning applications, the Delete action appears only on the Planning Attachments tab. Furthermore, the security associated with your user ID may limit which actions are available to you. |
Mark as Seen |
Select one or more attachment rows in the table and click to indicate that the attachment was seen or read on the Permits or Planning Attachments tab. |
![]() |
Click the three-dot actions icon in each attachments row to select and perform an action. Actions may include:
For permits, the delete action appears only on the Permits tab. For planning applications, the delete action appears only on the Planning Attachments tab. Furthermore, the security associated with your user ID may limit which actions are available to you. |
Viewing Attachment Details

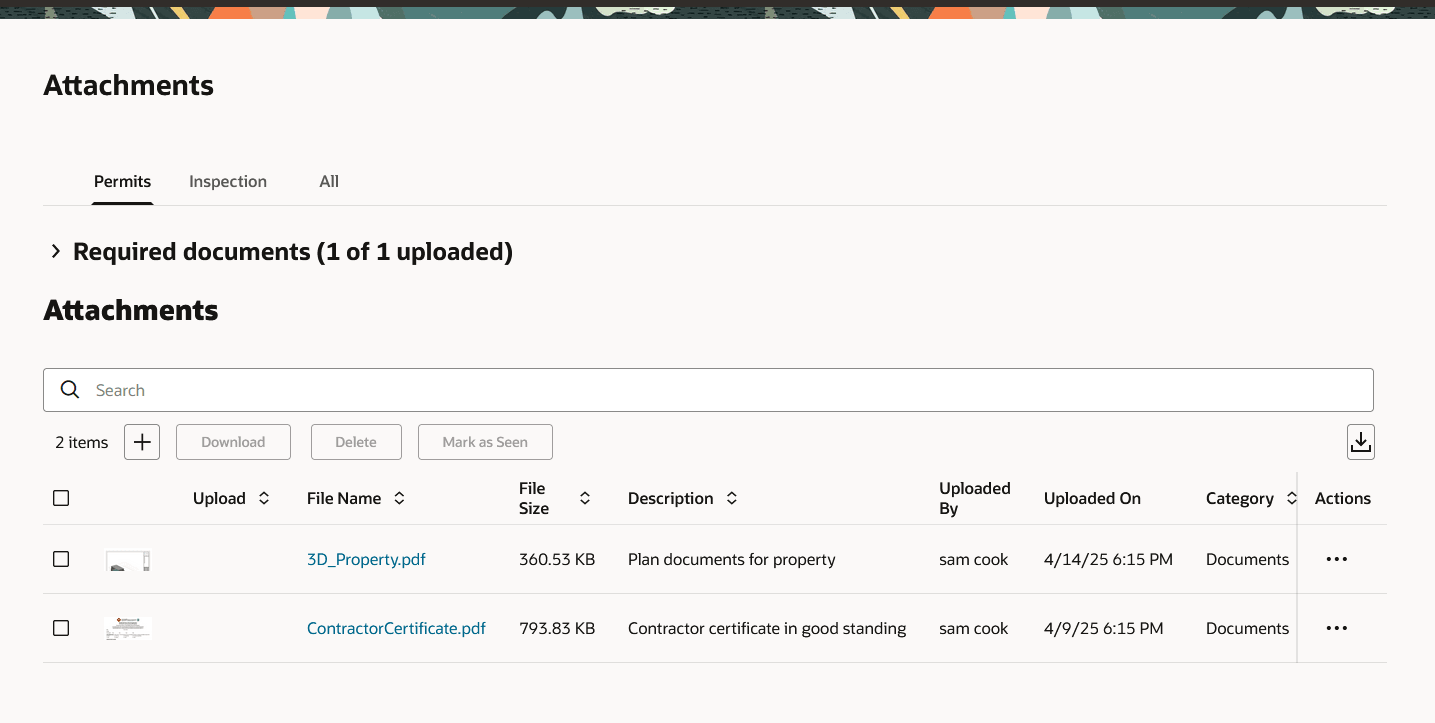

Here's information about the attachments page in the detail pages for a permit application.
Click the Attachments link in the left panel to open the Attachments page. You may need to expand the section that includes the link.
On the Attachment page, you can view the attachments in each of the tabs. Here are the various page elements available when working with attachments.
Page Element |
Attachments Tab |
Description |
---|---|---|
Preview image |
Permits, Inspections, All Planning Attachments, Reports |
Click the small preview image to open the Attachment details drawer. On the drawer, you can see the first page of a PDF document or a larger version of an image file. Attachment preview is available for permits, planning applications, business licenses, code cases, account management, and contractors. |
Upload |
Permits Planning Attachments |
Displays a New badge when an applicant uploads a PDF document to a permit or planning application that's in a plan review status. Only Permits or Planning and Zoning agency staff can see the badge, which is available on the Permits tab only. The badge is displayed until the document is marked as seen in the Plan Review Console or on the Attachments page, or added to a plan review cycle. It isn't available on phones or in the list view on the Permits tab. |
File Name |
Permits, Inspection, All Planning Attachments, Reports |
View the filename with file type extension. Click the link to open the attachment preview. |
File Size |
Permits, Inspection, All Planning Attachments, Reports |
View the file size. For example, 12.95 KB. |
Description |
Permits, Inspection, All Planning Attachments, Reports |
View the description of the attachment as entered by the person who added the attachment. |
Uploaded By |
Permits, Inspection, All Planning Attachments, Reports |
View the name of the person who uploaded the file. Registered public users see Staff instead of a name. |
Uploaded On |
Permits, Inspection, All Planning Attachments, Reports |
View the date and time when the person uploaded the file. |
Category and Subcategory |
Permits, All Planning Attachments |
View the document category for the attachment. The category and subcategory are available when a document group is specified during setup for the transaction type or in the contractor license options. The category and subcategory appear automatically when you upload an attachment from the Required documents section. This field isn't available for code enforcement case attachments. |
Protected |
Permits Planning Attachments |
Displays an icon when a protected PDF document is added to an application in the system. The icon displayed depends on how your agency handles protected documents for permits and planning applications. A protected PDF document has any setting that is controlled by a password or is otherwise secured. Protected document icons can look like this:
Caution:
The system will always prevent you from uploading to an application password-protected documents that require a password to open. |
Source |
All |
View the source of the attached file on the All tab. Valid values can include:
For example, attachments added through the Inspector Application display Inspection in this field. Attachments added to web form questionnaire responses display Permits in this field. This column appears only on the All tab of the Attachments page for permit and business license applications. |
Source |
Inspection |
View the associated permit ID and whether the building inspector uploaded the file to an inspection checklist, inspection checklist item, or the overall inspection in the Inspector Application. This column appears only on the Inspection tab of the Attachments page for permit applications. |
Reference |
Inspection |
View inspection attachment information:
For inspection-level attachments, the field is blank. |
Required |
Permits Planning Attachments |
Indicates whether the attachment satisfies the criteria for a required document. For more information, see Working with Required Documents. |
Final |
Permits Planning Attachments |
Displays Yes when agency staff turn on the Final switch on the Attachment details drawer for application attachments. |
Adding Permit and Planning Attachments
You upload files to the Attachments page in the application details using the New attachment drawer.
The permit attachments on the Inspection tab are uploaded by building inspectors in the Inspector Application. The reports planning application attachments on the Reports tab are generated from the Conditions of Approval and Decision and Hearings pages.
The maximum file size is 150 MB depending on the page that you're uploading to in Oracle Permitting and Licensing. It may take several minutes to upload large files. The maximum file size in the Inspector Application is 25 MB.
Here's how to add application attachments
-
Click the Add icon button.
-
Select the file to upload in the browser dialog box and click Open.
The file name appears on the New attachments drawer.
-
On the drawer, optionally enter a description of the file.
-
If the Category and Subcategory fields appear on the drawer, optionally select a document category and subcategory.
The category fields appear if the transaction type is associated with a document group. The document group defines the available values in these fields.
For more information, see the implementation documentation for Setting Up Document Categories and Subcategories.
Note:The document group for an application is based on the document group that was defined for the application type at the time the application is saved.
-
Click the Upload button.
