Modeling Work Assignment Improvements

This feature provides you with the ability to view the assigned shipments, calculated fields, time and cost information of a Modeling Work Assignment on the Modeling Work assignment screen. This screen is now similar to the operational OTM Work Assignment UI so as to keep the functionality and user experience consistent.

Below is the old Modeling Work Assignment screen (prior to 24A). Notice that it has very minimal information.

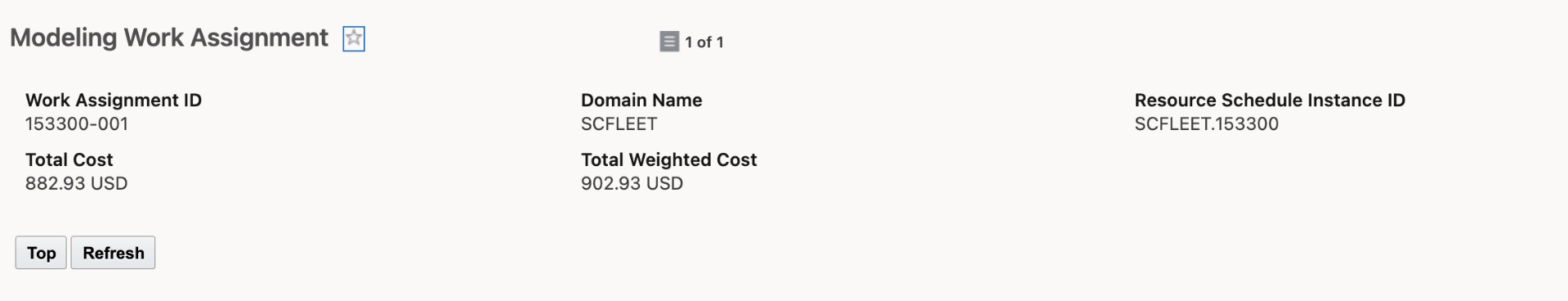

Old Modeling Work Assignment Screen

Below is the new Modeling Work Assignment screen that shows various metrics and assigned shipments of a Modeling Work Assignment. Note that the newly added Calculated and Shipments sections are expandable/collapsible.

• The top section now has new fields like Start and End Time, Duration, Cost and Resource Schedule ID (with hyperlink).

• The Calculated section shows metrics like Slack Duration, Wait Duration, Distance etc.

• The Shipments section shows all the Shipment IDs that are part of this Work Assignment along with their sequence number and Detail button.

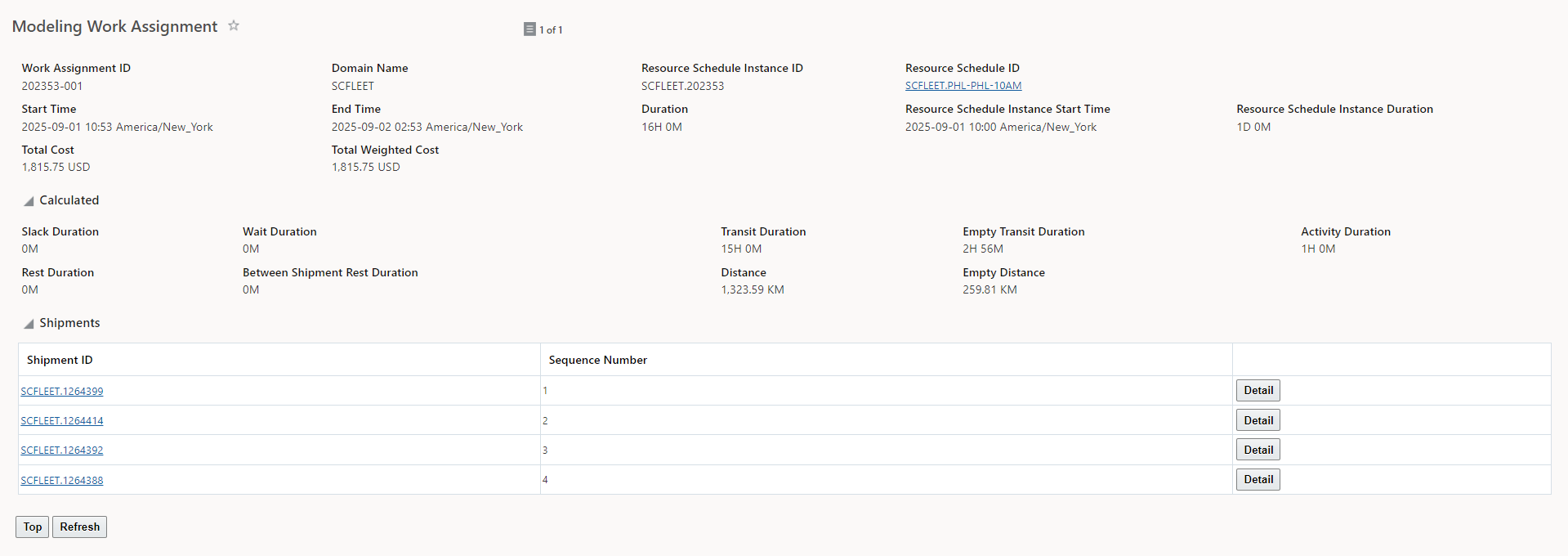

New Modeling Work Assignment Screen

Clicking the Detail button for a shipment shows the Modeling Work Assignment Detail View screen for that particular shipment.

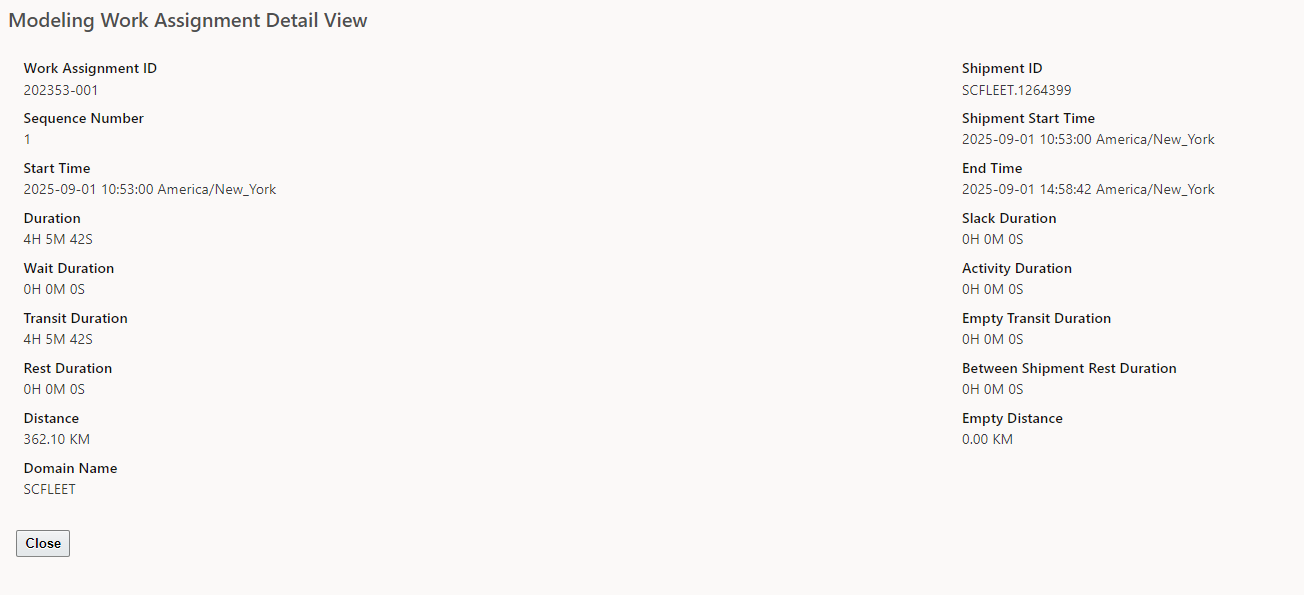

Modeling Work Assignment Detail View Screen

Business Benefit

This feature provides you with additional insight into the Logistics Modeling Scenarios that involve Work Assignments.

Steps to Enable

You don't need to do anything to enable this feature.
