Reference Numbers Added to Order Base Release Instruction Finder Results

This feature provides the option for you to configure your Order Base Release Instructions Finder Results to include column(s) for grid flattened Reference Number Qualifiers.

In the example below, the Reference Number Qualifier  - BUYER_NUMBER has been configured to appear as a grid flattened column on the Order Base Release Instructions Finder Results.

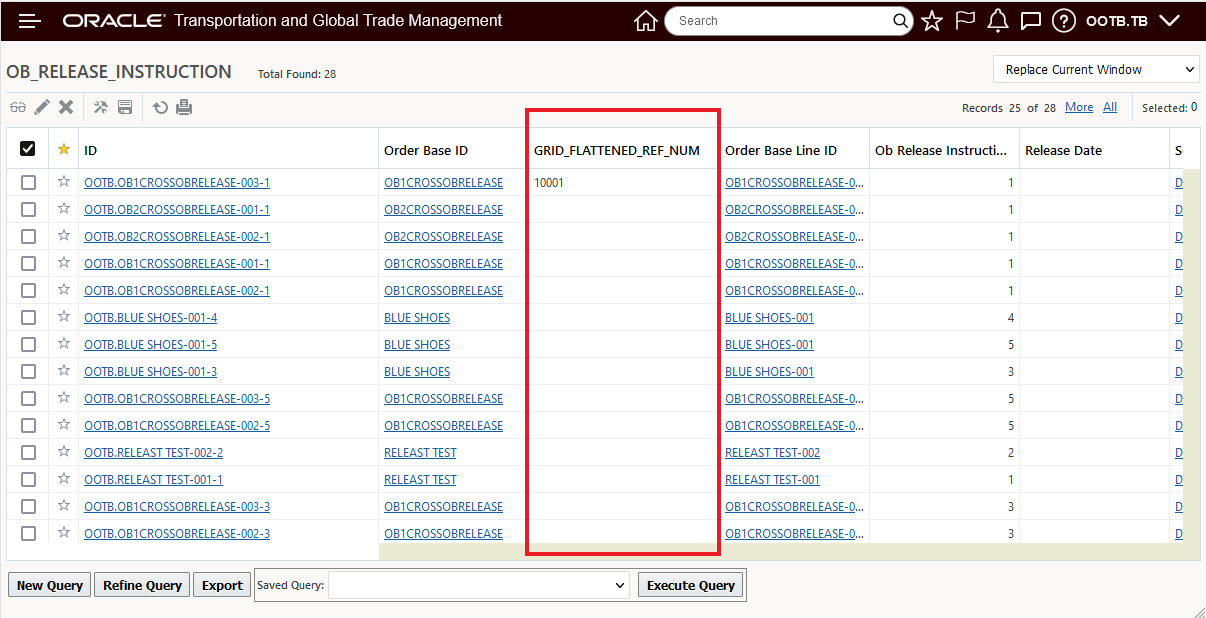

Grid Flattened Reference Number Qualifier Column

Below is the manager view for the first record shown above, note the BUYER_NUMBER Qualifier and Value.

Manger View Qualifier Reference Number Value

Business Benefit

Extends standard Reference Number Qualifier grid flattening functionality to the Order Base Release Instructions screen set Finder Results.

Steps to Enable

As with any configuration changes related to Public Screen Sets or Managers - the first step is to copy the Public Screen Set or Manager.

In your copied Screen Set for the Order Base Release Instructions add the RefNum Value (P) column - and provide a label and width etc.

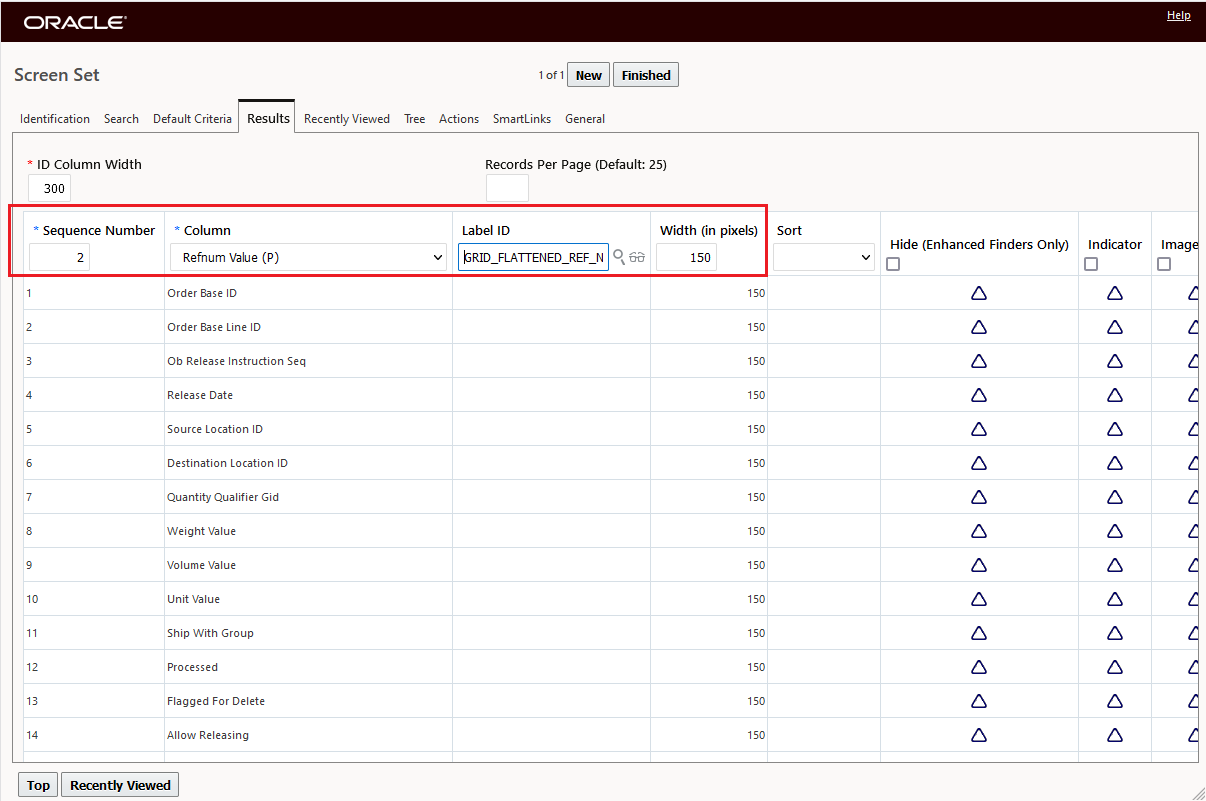

Add Column for RefNum (P)

Once you select and configure the RefNum (P) column you will need to select the Grid Flattened Reference Number Qualifier.  In the example below, BUY_NUMBER was used.

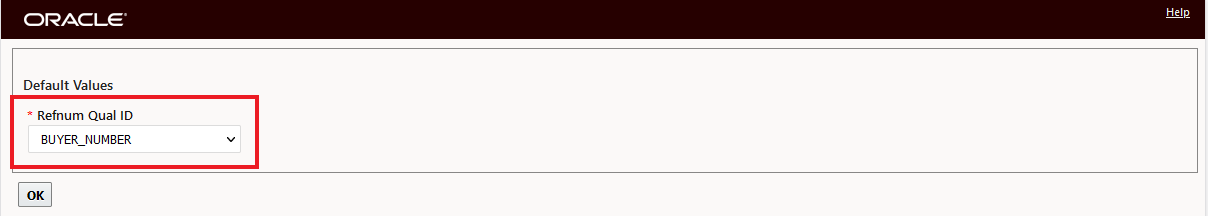

Select Qualifier

Once configured, the screen set provides info about the Reference Number Qualifier used to configure the screen.

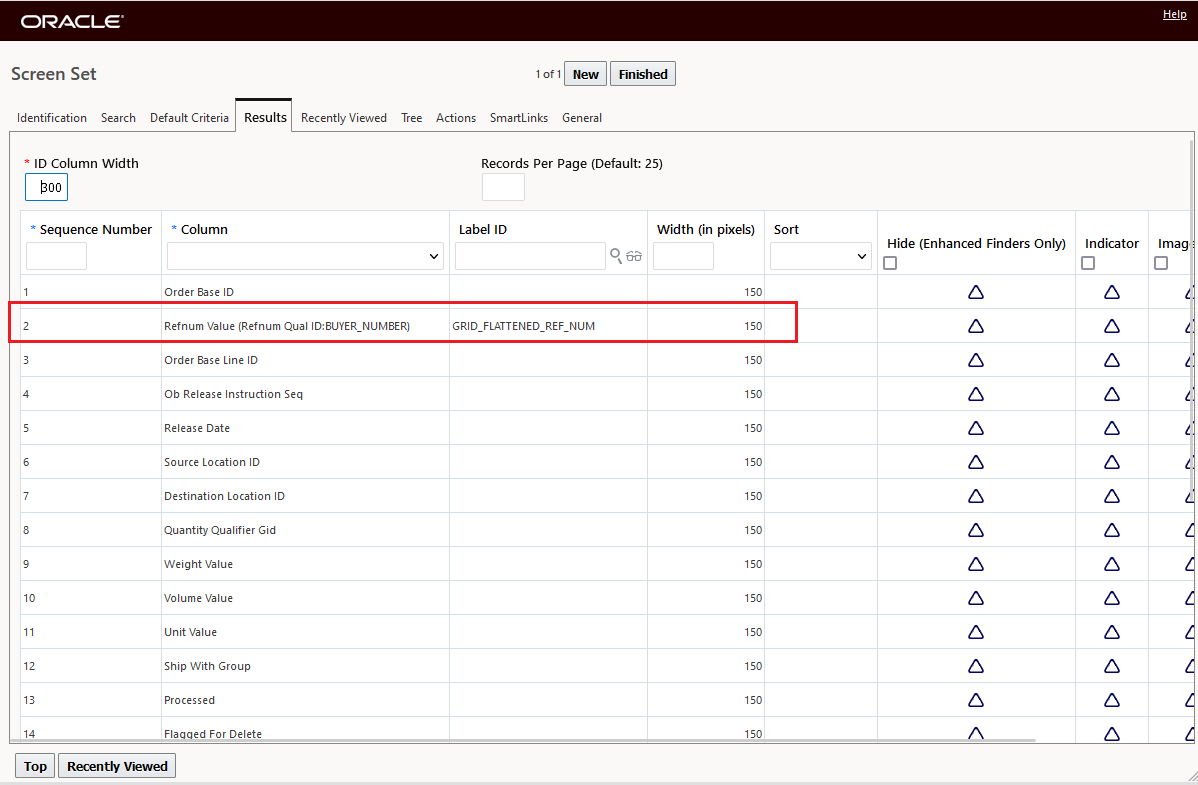

Configured Reference Number Qualifier

Once the screen set is configured you only need to add the configured screen set to your menu.

Add to Menu

Step 1 - Create a Link in the Menu Manager

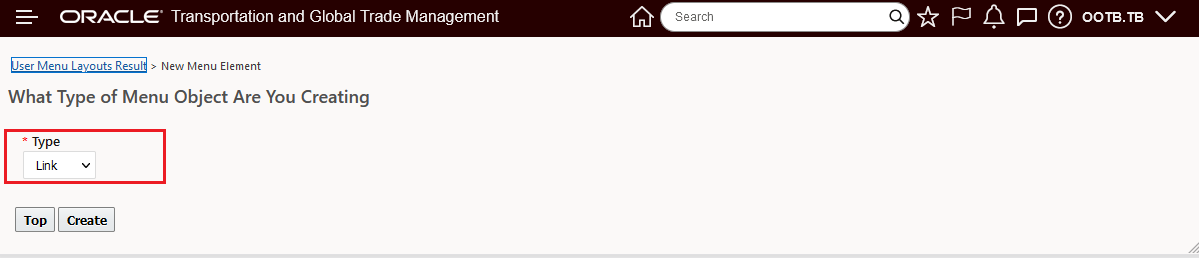

Create a Link

Step 2-  Define your new menu link.

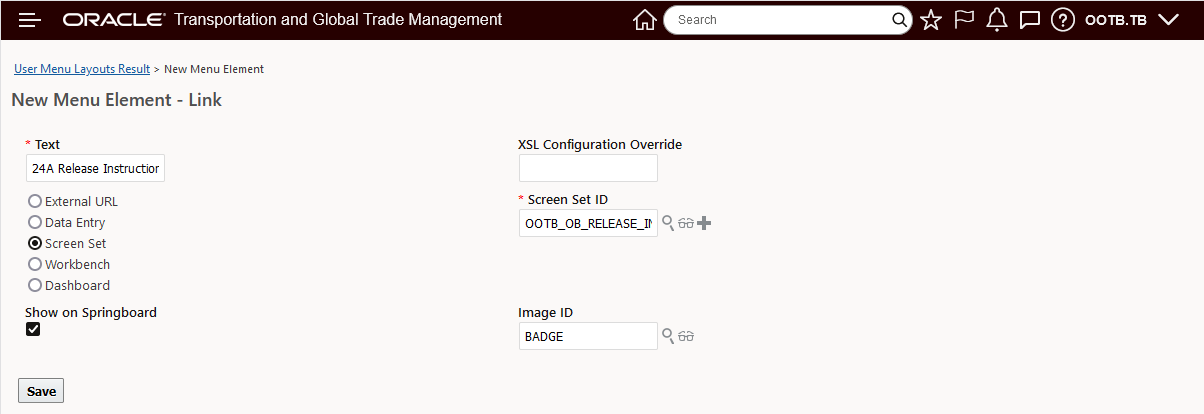

Define Menu Link

Step 3 - Add the link to the menu and position the link where desired.

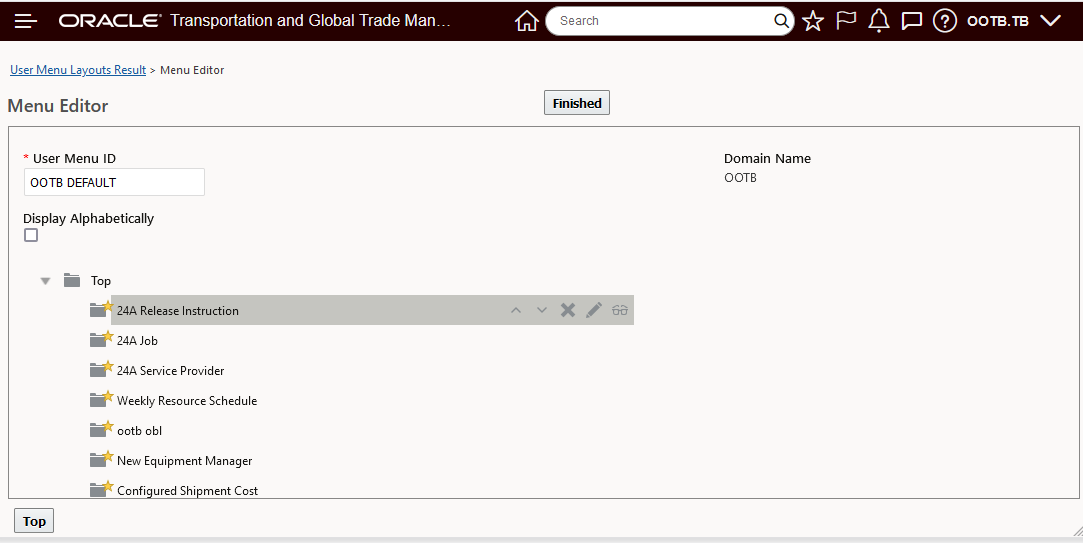

Add to Menu and Position in Menu

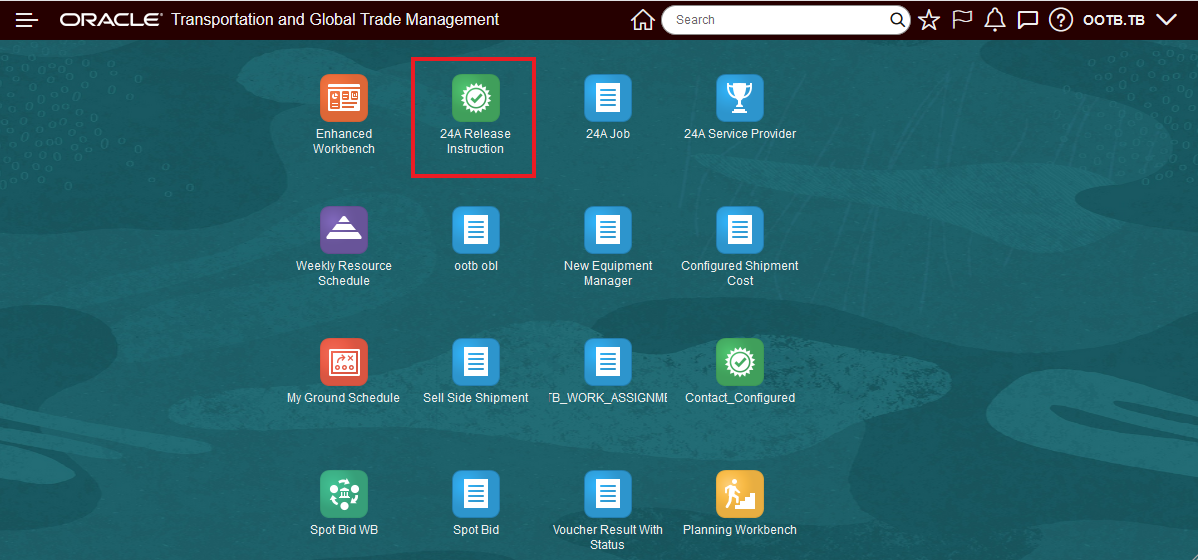

Link Added to Springboard and Menu
