LNM - Modeling Order Movement Table Added to Enhanced Workbench

This feature adds the Modeling Order Movement  as an available Table Object Type that you can add to your Enhanced Workbenches.  This additional capability allows you to easily see the relationships between your Modeling Shipments (or Modeling Scenarios) and the related related Modeling Order Movements.

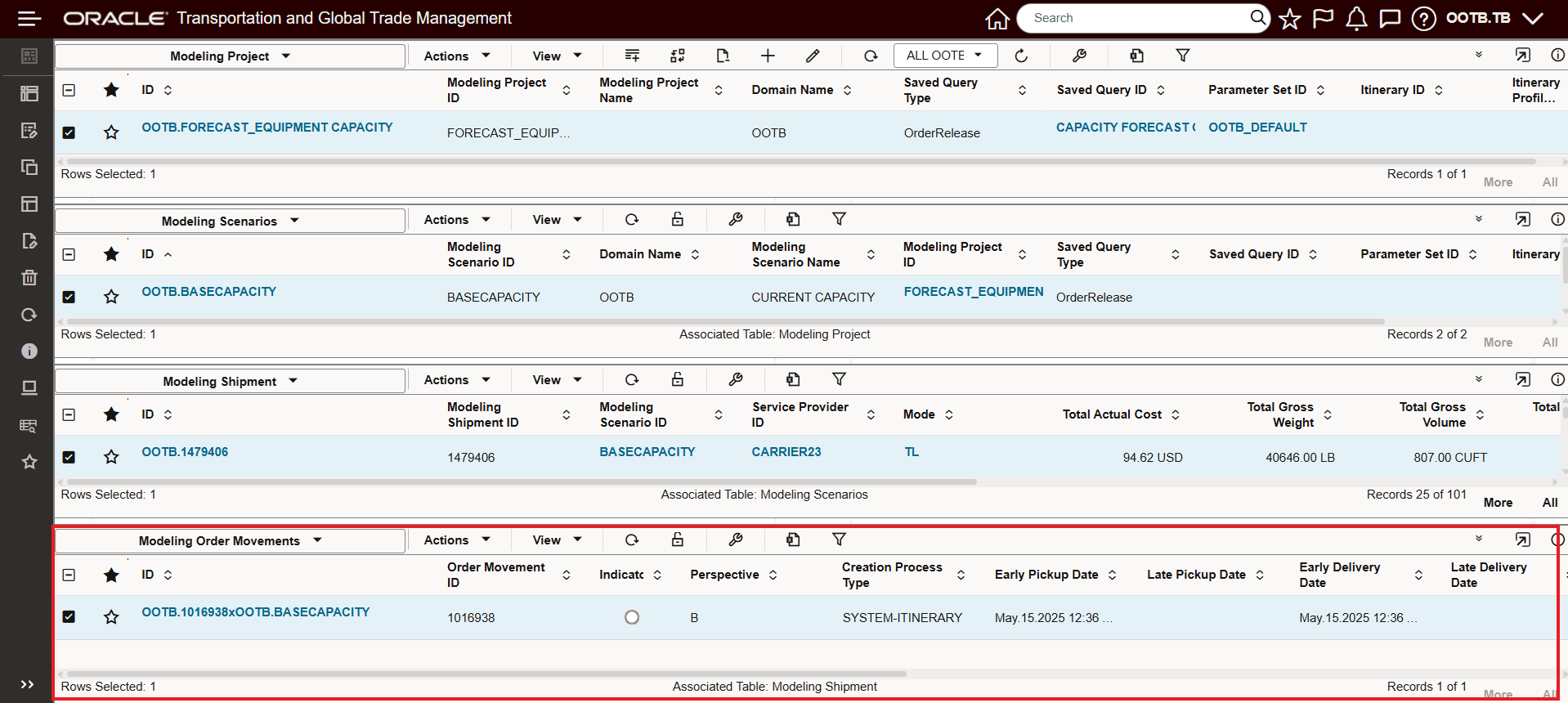

In the example below, an Enhanced Workbench has been configured to show the progression of information from the Modeling Project to Modeling Scenario to Modeling Shipment to Modeling Order Movement.

Enhanced Workbench Example with Model Order Movement

In addition, to simplify the setup, public queries have been provided to associate the Modeling Order Movements to either the Modeling Scenario or Modeling Shipment.

Public Saved Queries

The Content Detail for the Modeling Order Movement in the above Enhanced Workbench is shown below.

Modeling Order Movement Content Details

 The Public Modeling Project Workbench has also been enhanced to include the Modeling Order Movement as an additional tab.  For the Public Modeling Project Enhanced Workbench, the association is Modeling Scenario to Modeling Order Movements as shown below.

Modeling Order Movement Added to Modeling Project Public Enhanced Workbench

This feature enhances the information available for analyzing the relationships between your order releases and the modeling shipments generated by Logistic Network Modeling.

Steps to Enable

The Modeling Order Movement tables is available in the public Modeling Workbench, you can opt to modify and/or create a new Enhanced Workbench and include the new Logistics Network Modeling Order Movement table in your modified or newly created Enhanced Workbench.
