Inspection Sequences and Dependencies for Inspection Visibility
In addition to displaying inspections that have prerequisites, the View Dependencies diagram page now also displays required inspection types for a permit. The diagram includes these updates:
- Any inspection marked as required in the inspection group is displayed with an arrow pointing to the inspection group's final inspection.
- Inspection status information is available in each node to identify whether an inspection has been created yet or not and whether an inspection is a required inspection or a prerequisite inspection.
The nodes may appear in different colors depending on the stage in the process of completing inspections for their application. Some colors indicate inspection status (for example, white is requested or no inspection, yellow is pending, and blue is scheduled), whereas others indicate inspection result (for example, green is passed or corrected and red is failed).

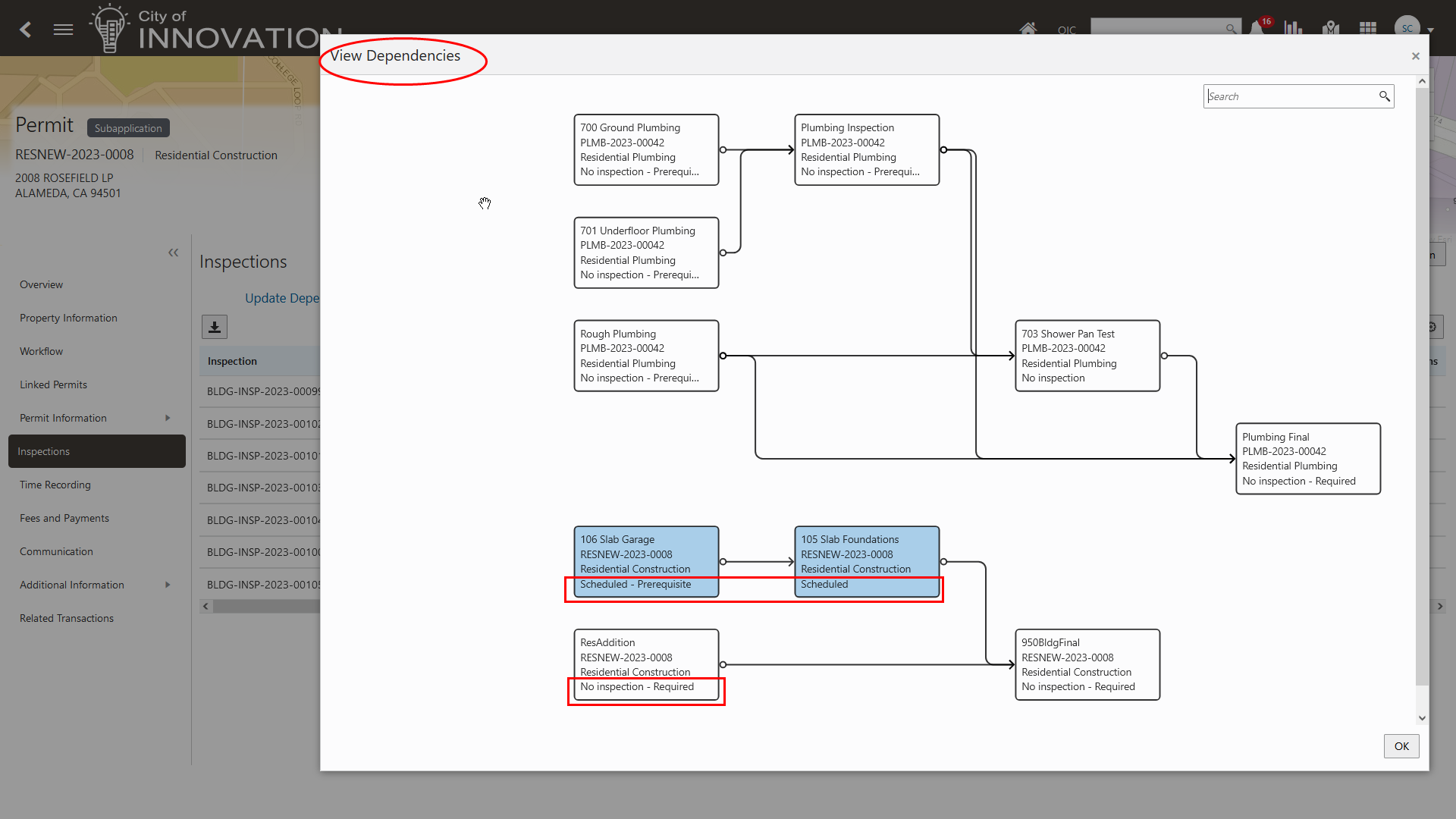

This example illustrates all of the required and prerequisite inspections for a group of linked permits on the View Dependencies page with the inspection status information highlighted. The blue inspections have been scheduled.
View Dependencies Page

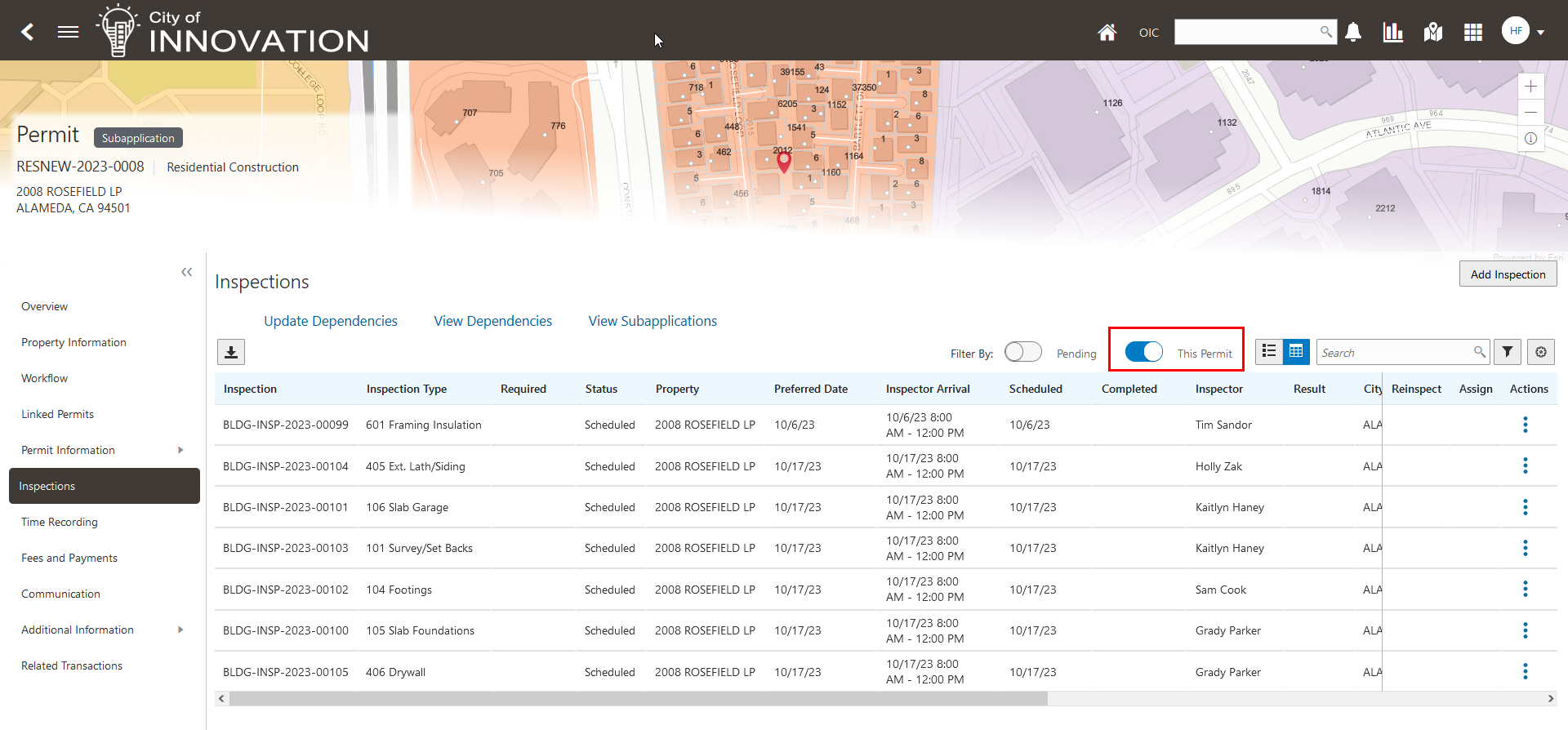

When primary and subapplications are linked together, the Inspections list page in the permit details displays inspections for all linked permits. You can turn on the new This Permit switch to view only the inspections for the current permit in the list and filter out inspections for the other permits.
Inspections Page in a Permit's Details
This further enhances an agency's ability to view and filter the inspection dependencies, including filtering out linked permit inspections, viewing current statuses of required inspections, and colorization of inspection nodes in the View Dependencies diagram to represent statuses or results.
Steps to Enable
You don't need to do anything to enable this feature.
Tips And Considerations
The View Dependencies link on the Inspections list page used to open the diagram view of prerequisite and required inspections is only available when permits are linked together in primary/subapplication relationships.
Key Resources
- See Using Community Development Permits, "Working with Permit Inspections," Working with Inspection Dependencies and Managing Inspections for a Permit on the Oracle Help Center.
