Redwood: Model Plant Setups and Work Definitions Using a New Home Experience

Manufacturing engineers need to understand and perform specific tasks that help design, develop, and optimize manufacturing processes, also known as work definitions for products. Now you can use the new Work Definition landing page for an overview of work definitions and highlighted work that needs attention, so you can take actions on them using an end-to-end Redwood user experience.

  • Tasks with manufacturing plant context - View the work definition landing page for the default organization associated with the user. Take actions in the context of this organization. Select another organization to access its work definitions and actions as enabled by the user's organization access.
  • Key performance indicators on work definition readiness - View a current summary of work definitions created or updated in the past 30 days or pending changes in the next 30 days.
  • Direct search for a work definition - Search for a specific work definition based on keywords to quickly navigate to the work definition page for viewing or editing.
  • Quick navigation to actions related to work definitions and plant setups - Navigate to commonly used actions and all actions available in the work definition work area. Pin additional actions to move them to the top of the list of all actions.

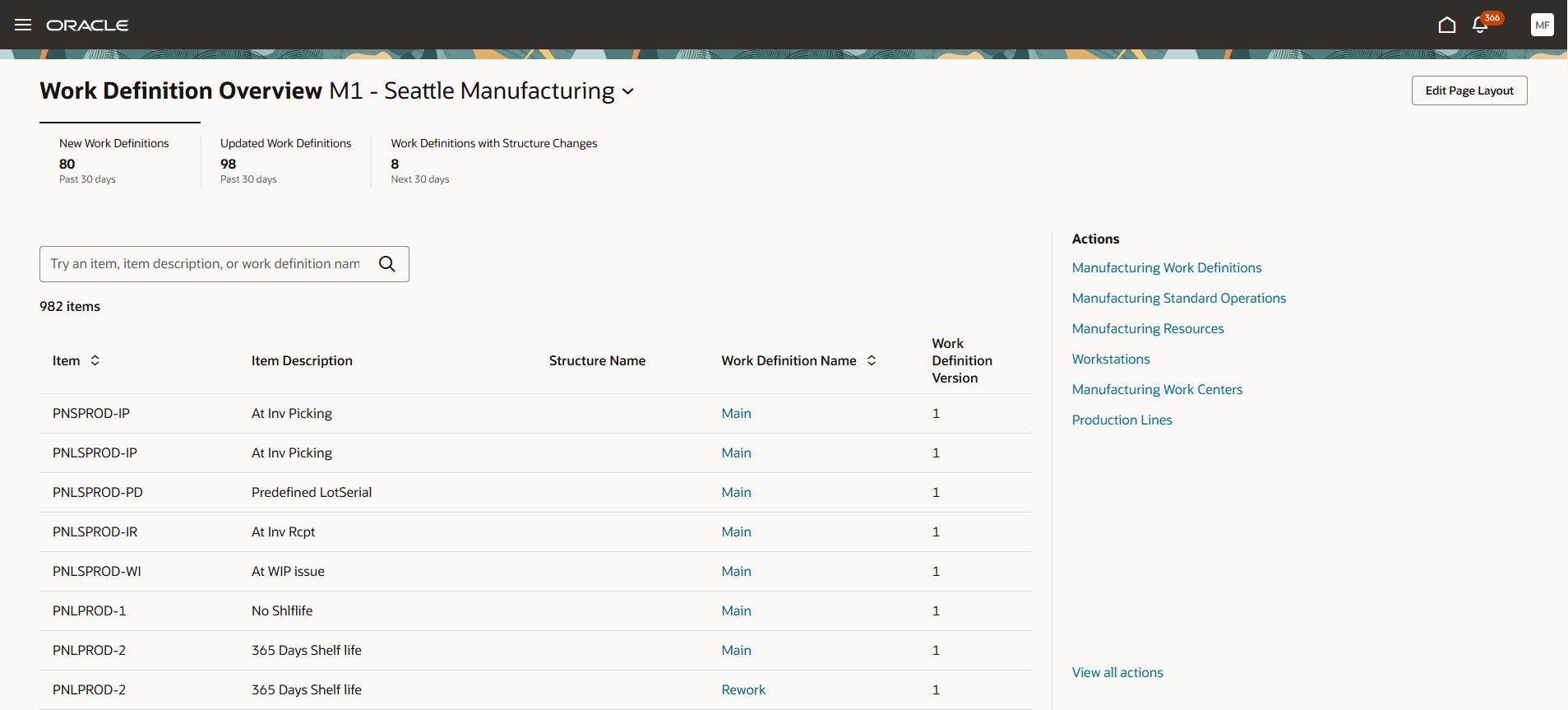

Work Definition Landing Page

Work Definition Landing Page

To add an OTBI-based KPI and visualization, click on Edit Page Layout. Drag the content of type KPI to the scoreboard region. Drag the corresponding visualization to the area below the scoreboard.

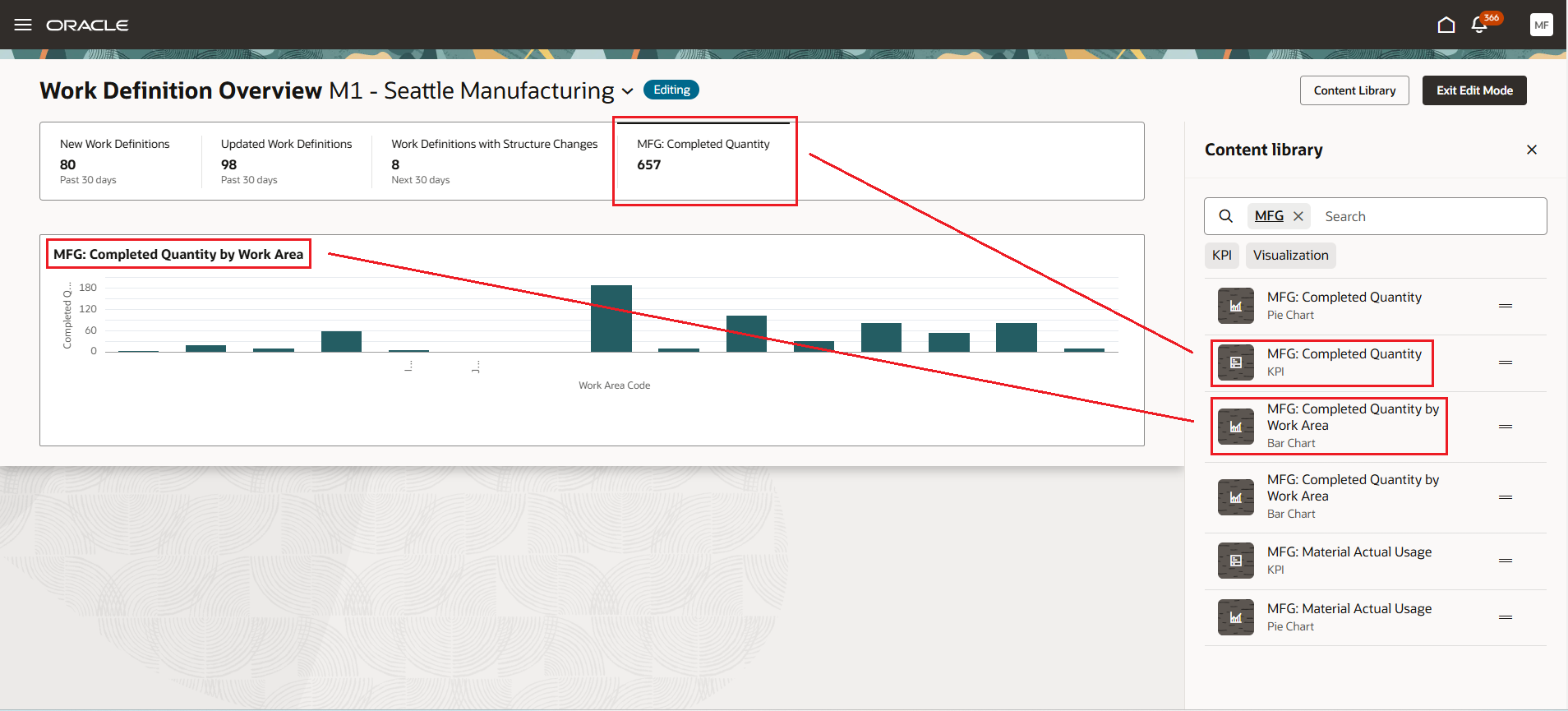

Add OTBI- based KPIs and Visualization to Landing Page

Add an OTBI-Based KPI and Visualization to the Landing Page

Manufacturing engineers can leverage a new work definition landing page experience that's optimized for productivity and faster performance, improving readiness for manufacturing execution.

Here's the demo of these capabilities:

Steps to Enable

Follow these steps to enable or disable this feature:

  1. In the Setup and Maintenance work area, search for and select the Manage Administrator Profile Values task.
  1. On the Manage Administrator Profile Values page, search for and select the ORA_WIS_WORK_DEFINITION_LANDING_PAGE_REDWOOD_ENABLED profile option code.
  1. In the Profile Values section, set the Site level to Y or N. The default value of the profile option is N.
  • Y = enables the feature
  • N = disables the feature
  1. Click Save and Close. Changes in the profile value will affect users the next time they sign in.

You'll have the option to enable or disable this feature from 25A update.

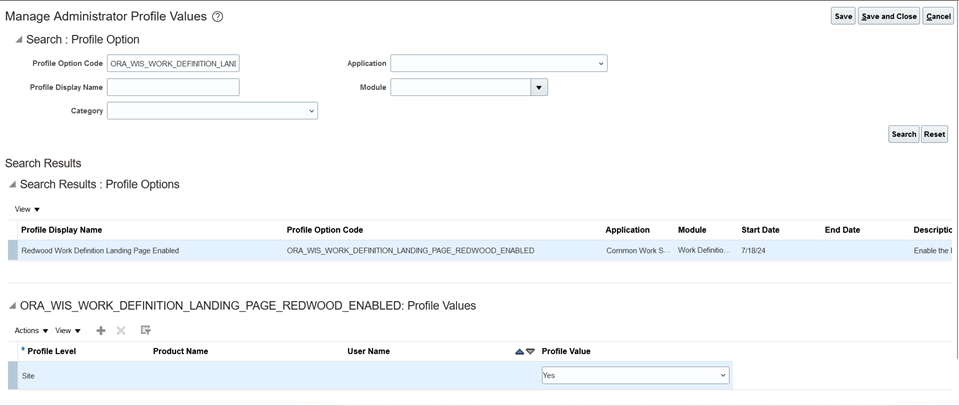

Profile Option to Enable Work Definition Landing Page in Redwood User Experience

Profile Option to Enable the Work Definition Landing Page in Redwood User Experience

Creating a KPI and Visualization to Add to the Landing Page

You can define OTBI-based KPIs and visualizations using the Visualization Configurations tool. You must first create an analysis in OTBI. To create a KPI for the OTBI analysis, specify metric card as the visualization type. To create a visualization, specify bar chart, pie chart, tabular chart, and so on, as the visualization type. The Visualization Configurations tool can be accessed using the following URL:

https://<servername>/fscmUI/redwood/cx-analytics/application/container/dvconfig.

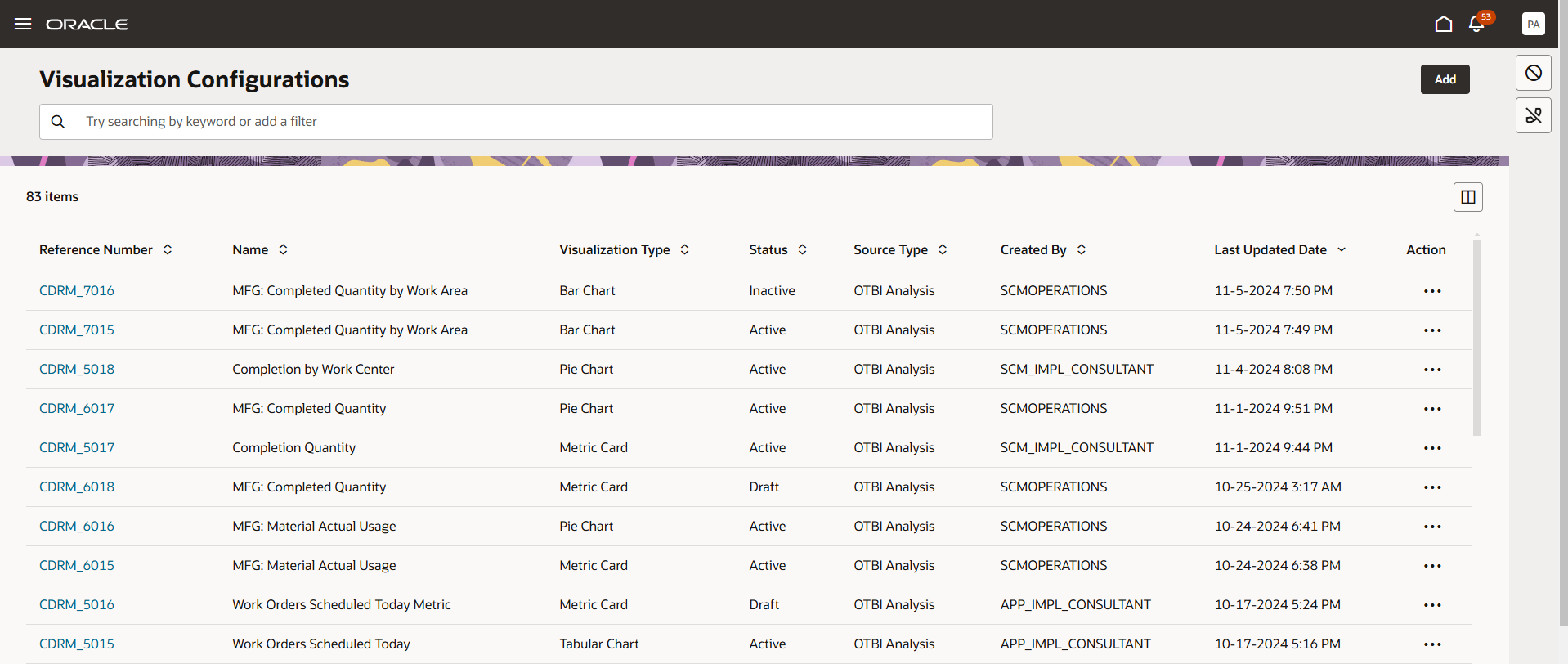

Visualization Configurations Tool

Create an OTBI-based KPI and Visualization in the Visualization Configurations Tool

Tips And Considerations

  • For an improved end-to-end user experience, you can also enable the related Redwood pages for actions accessed through the Work Definition landing page:
    • Work Definitions
    • Work Definition Names
    • Standard Operations
    • Resources
    • Production Lines - Refer to the 25A feature Create a Production Line for Flow Manufacturing for more information.
    • Workstations
    • Work Centers
    • Work Areas
  • You can also click on the Manufacturing Work Definitions action to navigate to the Work Definitions page for more search options using keywords, filters, and saved search, and for further actions like create, copy, delete, deactivate, reactivate, manage versions, and edit priorities.
  • You can't remove seeded KPIs using Edit Page Layout. However, you can configure them (hide, show, reorder) in Visual Builder Studio in Advanced mode.
  • You can add KPI and visualization based on OTBI analysis from the available subject areas. Work Definition subject area isn't available currently.
  • You can enable guided journey on the Work Definition landing page, which can be set up to guide the users to tasks that include AI Agent support.
  • Your default organization is configured using the Default Manufacturing Plant Organization (RCS_DEFAULT_MFG_PLANT_ORG) profile option.
  • If no data is displayed in the table, run the scheduled process 'ESS job to create index definition and perform initial ingest to OSCS'. The input parameter Index name should be set as fa-scm-wis-work-definitions.

Key Resources

  • Watch the Redwood: Model Plant Setups and Work Definitions Using a New Home Experience Demo.
  • Oracle Fusion Cloud SCM: Refer to the Using Manufacturing guide, available on the Oracle Help Center.
  • Oracle Fusion Cloud SCM: Refer to the Implementing Manufacturing and Supply Chain Materials Management guide, available on the Oracle Help Center.

Access Requirements

Users who are assigned a configured job role that contains these privileges can use this feature:

Manufacturing Privileges:

  • Manage Work Definition Work Area (WIS_MANAGE_WORK_DEFINITION_WORK_AREA_PRIV)
  • Configure OTBI Reports on Landing Page (WIS_CONFIGURE_OTBI_REPORTS_LANDING_PAGE_PRIV)

Manage Work Definition Work Area privilege was available prior to this update. Configure OTBI Reports on Landing Page privilege is new in this update.

Guided Journeys:

  • Use REST Service - Guided Journeys Read Only (ORA_PER_REST_SERVICE_ACCESS_GUIDED_JOURNEYS_RO)
  • Use REST Service - Guided Journey Responses (ORA_PER_REST_SERVICE_ACCESS_GUIDED_JOURNEY_RESPONSES)
  • Manage Guided Journeys (ORA_PER_MANAGE_GUIDED_JOURNEYS)

Visualization Configurations:

  • View Service Manager Dashboard (SVC_VIEW_SERVICE_MANAGER_DASHBOARD_PRIV)
  • View Service Representative Dashboard (SVC_VIEW_SERVICE_REPRESENTATIVE_DASHBOARD_PRIV)

These privileges were available prior to this update.
