Analyze Production Supervision Data Using Oracle Transactional Business Intelligence

Production supervisors actively monitor the shift production performance across their assigned work centers and workstations. They assign work order operations and operators to workstations ensuring steady production progress and operational efficiency.

With this feature, you can use the Oracle Transactional Business Intelligence (OTBI) subject area, Manufacturing - Workstation Supervision Real Time, to create analyses for viewing real-time assignments of work order operations and operators to workstations made using the Production Supervision user interface.

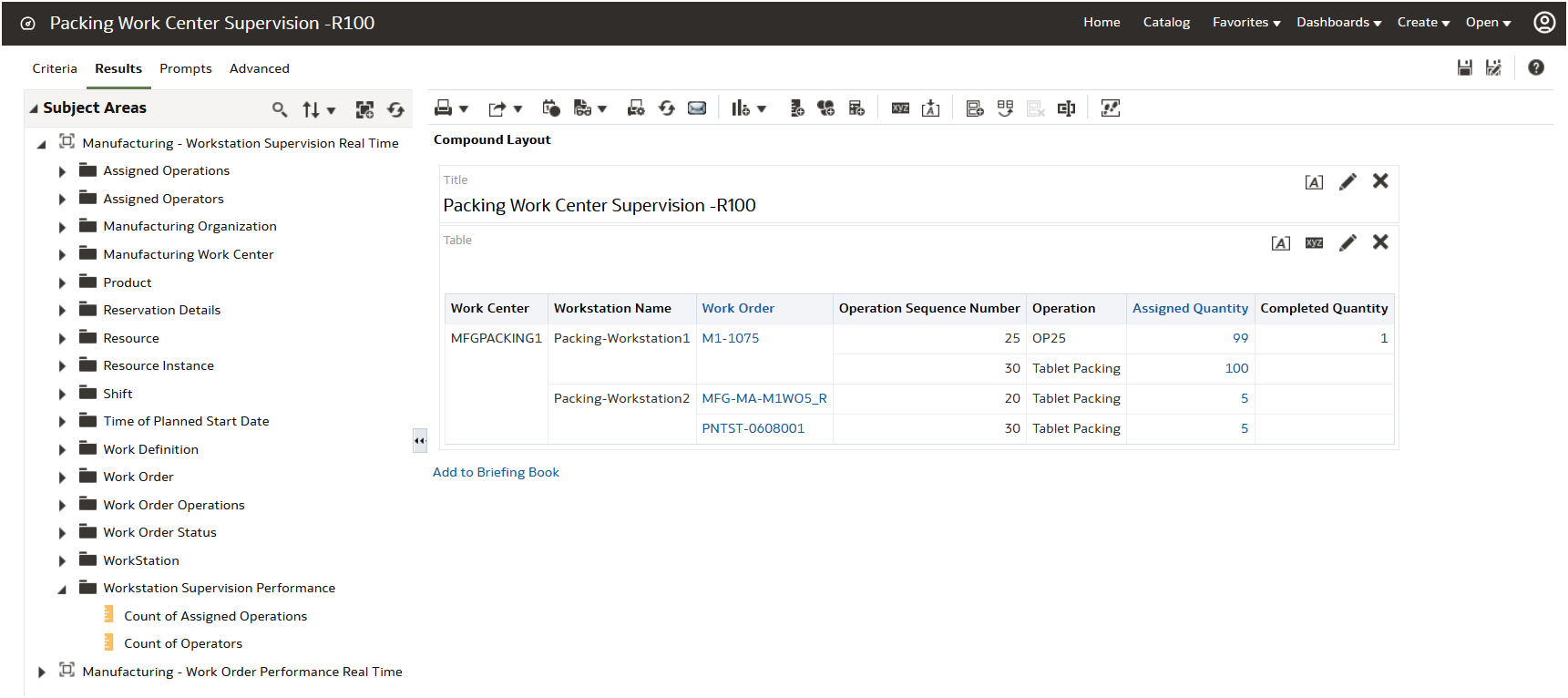

Workstation Supervision Real Time subject area

Workstation Supervision Real-Time Subject Area

Using OTBI to analyze production supervision details provides you with real-time visibility of the assignments made by the production supervisor.

Here's the demo of these capabilities:

Steps to Enable

Leverage new subject area(s) by adding to existing reports or using in new reports. For details about creating and editing reports, see the Creating and Administering Analytics and Reports book (available from the Oracle Help Center > your apps service area of interest > Books > Administration).

Tips And Considerations

  • You can integrate the custom analysis created using this OTBI subject area into your Production Supervision dashboard pages and the Work Execution landing page. To do this, you must first create an analysis in OTBI. You then define OTBI-based KPI and visualization using the Visualization Configurations tool. To create a KPI for the OTBI analysis, specify metric card as the visualization type. To create a visualization, specify bar chart, pie chart, tabular chart, and so on as the visualization type. The Visualization Configurations tool can be accessed using the following URL:

    https://<servername>/fscmUI/redwood/cx-analytics/application/container/dvconfig

  • For more information on Production Supervision capabilities, you can refer to the following 25A features :

    • Monitor Workstation Performance When Supervising Production

    • Manage Work Order Operation Queues for Workstations When Supervising Production

    • Manage Shift Operator Assignments for Workstations When Supervising Production

Key Resources

  • Watch the Analyze Production Supervision Data Using Oracle Transaction Business Intelligence demo.
  • Oracle Fusion Cloud SCM: Refer to the Using Manufacturing guide, available on the Oracle Help Center.
  • Oracle Fusion Cloud SCM: Refer to the Implementing Manufacturing and Supply Chain Materials Management guide, available on the Oracle Help Center.
  • To learn more about creating a report URL in OTBI, refer to the product documentation.

Access Requirements

Users who are assigned a configured job role that contains this duty role can use this feature:

  • FBI_MFG_EXECUTION_ANALYSIS_DUTY

This duty role was available prior to this update.
