Redwood: Report Material Transactions in a Warehouse Management System Enabled Organization and View Reservations

Customers often integrate work order transactions with an external warehouse management system or Oracle Fusion Cloud Warehouse Management (WMS). Release 24D feature 'Integrate Manufacturing and Maintenance Direct Work Order Transactions with Your Warehouse Management System' provides services and core application enhancements to support integrations of direct work order transactions with an external warehouse management system or Oracle Fusion Cloud Warehouse Management (WMS).

With this enhancement, you can now issue materials and provide the packing unit details during product completion transactions in Manufacturing using a Redwood page.

You can also use descriptive flexfields during component issue and product completion transactions in the Redwood pages.

If the work order components are reserved, then you can use the ‘View’ link against a component to see the reservation details for the component when performing material transactions from the Report Material Transaction Redwood page or the operator workbench.

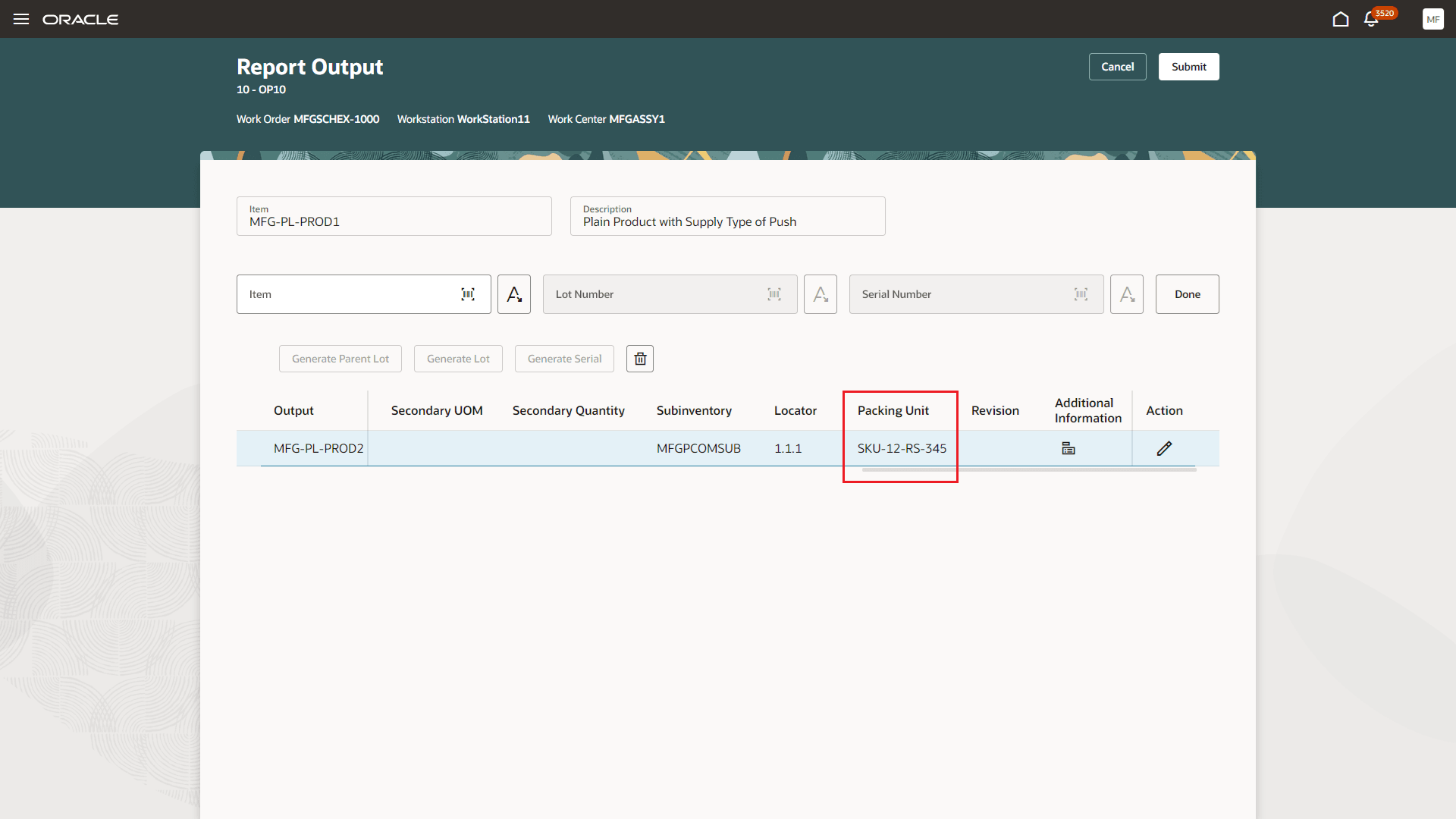

Packing Unit in Product Completion Transactions

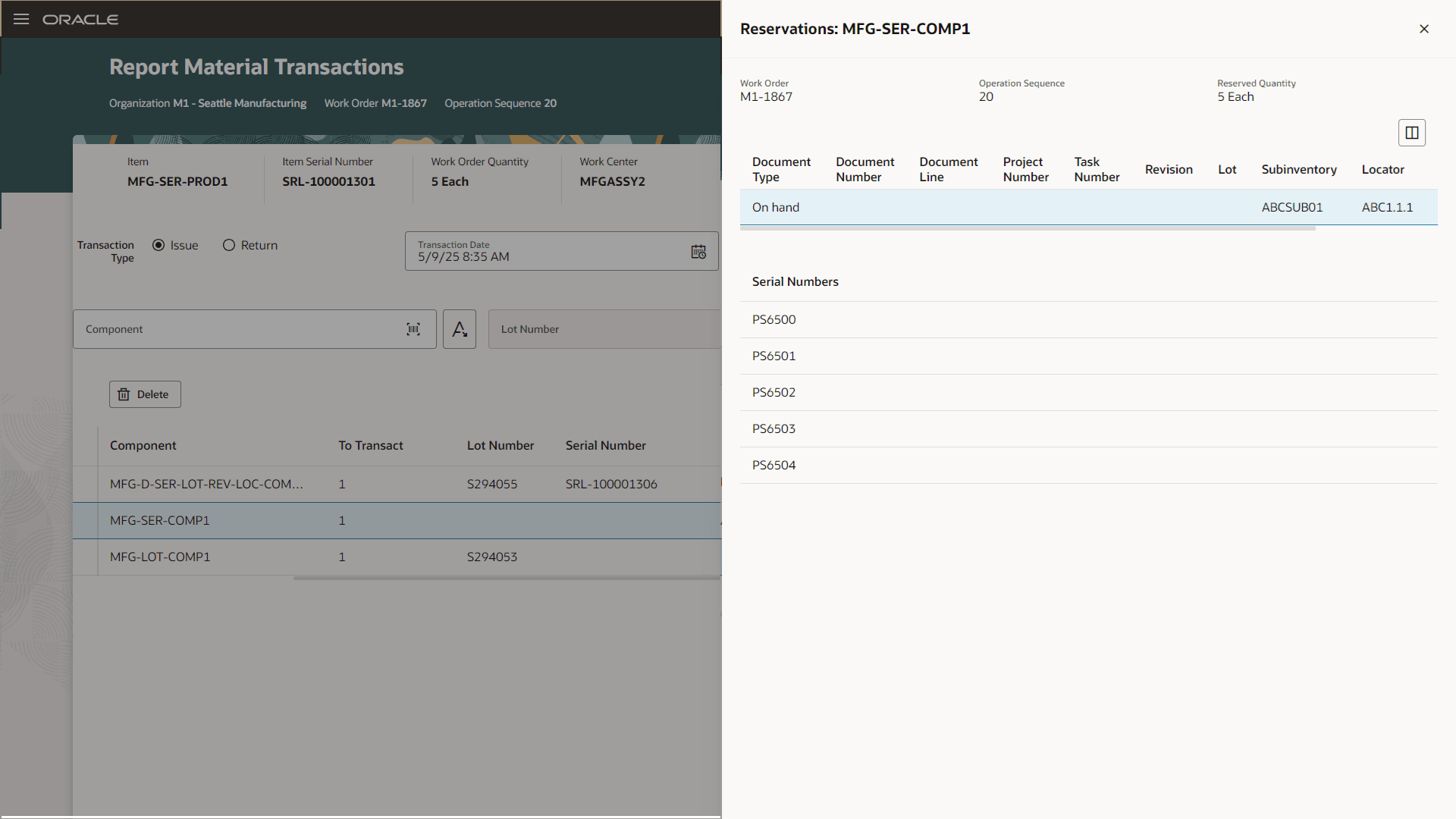

View Reservations from the Report Material Transactions Page

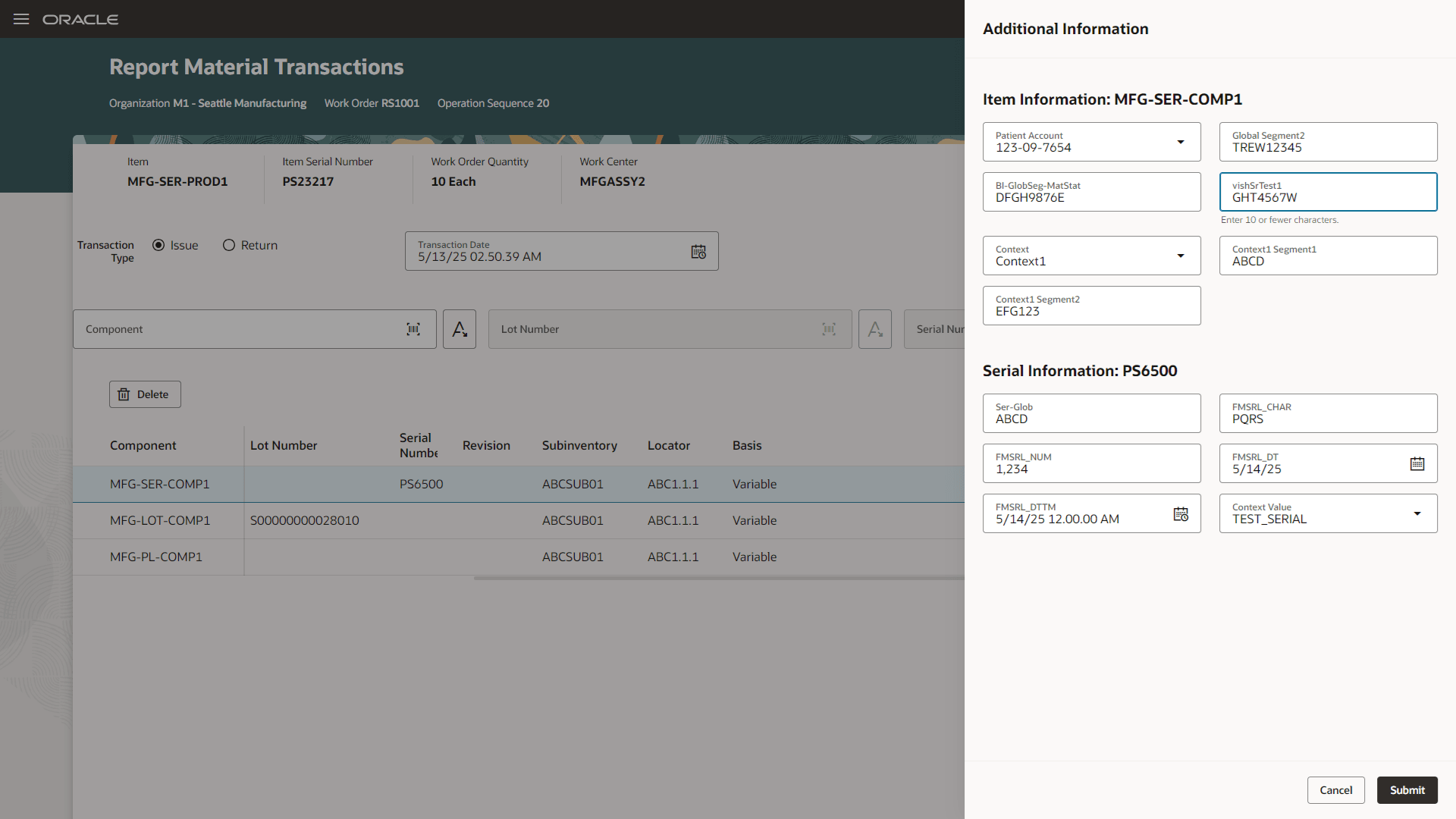

Descriptive Flexfields in the Redwood Report Material Transaction Page

Using Redwood pages for your manufacturing activities in an organization that employs a warehouse management system, you can now issue materials, as well as perform product completions for work orders. You can also use the descriptive flexfields during material issue and product completion to capture more details. Users can view the reservation details during material transactions. These enhancements help users streamline their processes and increase productivity.

Steps to Enable

Follow these steps to enable or disable this feature:

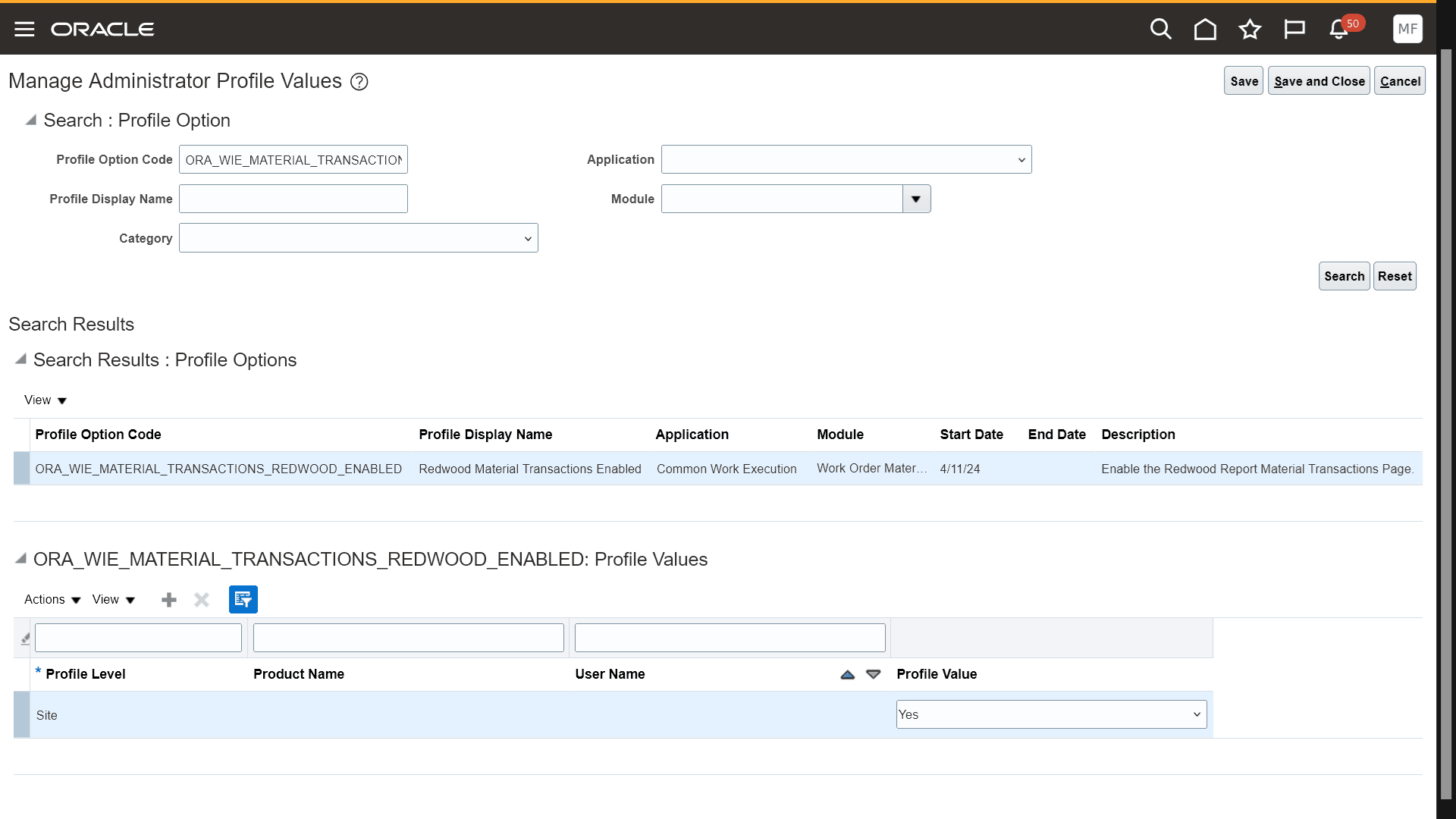

1. In the Setup and Maintenance work area, search for and select the Manage Administrator Profile Values task.

2. On the Manage Administrator Profile Values page, search for and select the ORA_WIE_MATERIAL_TRANSACTIONS_REDWOOD_ENABLED profile option code.

3. In the Profile Values section, set the Site level to Y or N. The default value of the profile option is Y.

• Y = Enables the feature.
• N = Disables the feature.

4. Click Save and Close. Changes in the profile value will affect users the next time they sign in.

You have the option to enable or disable this feature from the 24D update.

Profile Option to Enable Material Transactions with the Redwood User Experience

Tips And Considerations

• The 24D feature 'Integrate Manufacturing and Maintenance Direct Work Order Transactions with Your Warehouse Management System' feature is based on a permanent Opt In: Integrate Manufacturing and Maintenance Direct Work Order Transactions with Your Warehouse Management System.
• Ensure that you've enabled the Integrate manufacturing and maintenance with WMS for the inventory organization parameter before using this feature.
• Ensure that you've enabled the subinventory to capture the packing unit for product completions and returns to track LPNs in WMS.
• Necessary on-hand inventory for performing material issues must be present in the supply subinventory.
• The packing unit provided during the work order completion should be a new License Plate Number (LPN) in WMS or an existing LPN in Located status.
• The packing unit provided during the work order return should be an existing LPN in Received or Located status, and the product being returned must be present in the LPN.
• You can also report material transactions for a work order operation through the operator workbench. Refer to the 24D feature Report Material Transactions for a Work Order Operation Executed at a Workstation for more information.

Key Resources

• Watch the 24D feature 'Integrate Manufacturing and Maintenance Direct Work Order Transactions with Your Warehouse Management System' Demo
• Watch the Report Material Transactions for a Work Order Operation Using a Redwood User Experience Demo.
• Oracle Fusion Cloud SCM: Refer to the Using Manufacturing guide, available on the Oracle Help Center.
• Oracle Fusion Cloud SCM: Refer to the Implementing Manufacturing and Supply Chain Materials Management guide, available on the Oracle Help Center.

Access Requirements

Users who are assigned a configured job role that contains these privileges can use this feature:

• Report Material Transactions (WIP_REPORT_MATERIAL_TRANSACTIONS_PRIV)
• Generate Manufacturing and Maintenance Transaction Data for External Systems (INV_INTERFACE_WO_TRANSACTIONS_TO_EXT_SYS_PRIV)

These privileges were available prior to this update.
