Analyze Work Order Operation Execution Data Using Oracle Transactional Business Intelligence

Analyze work order operation execution data, such as the execution duration and the equipment used during execution, when executing production without the context of workstations.

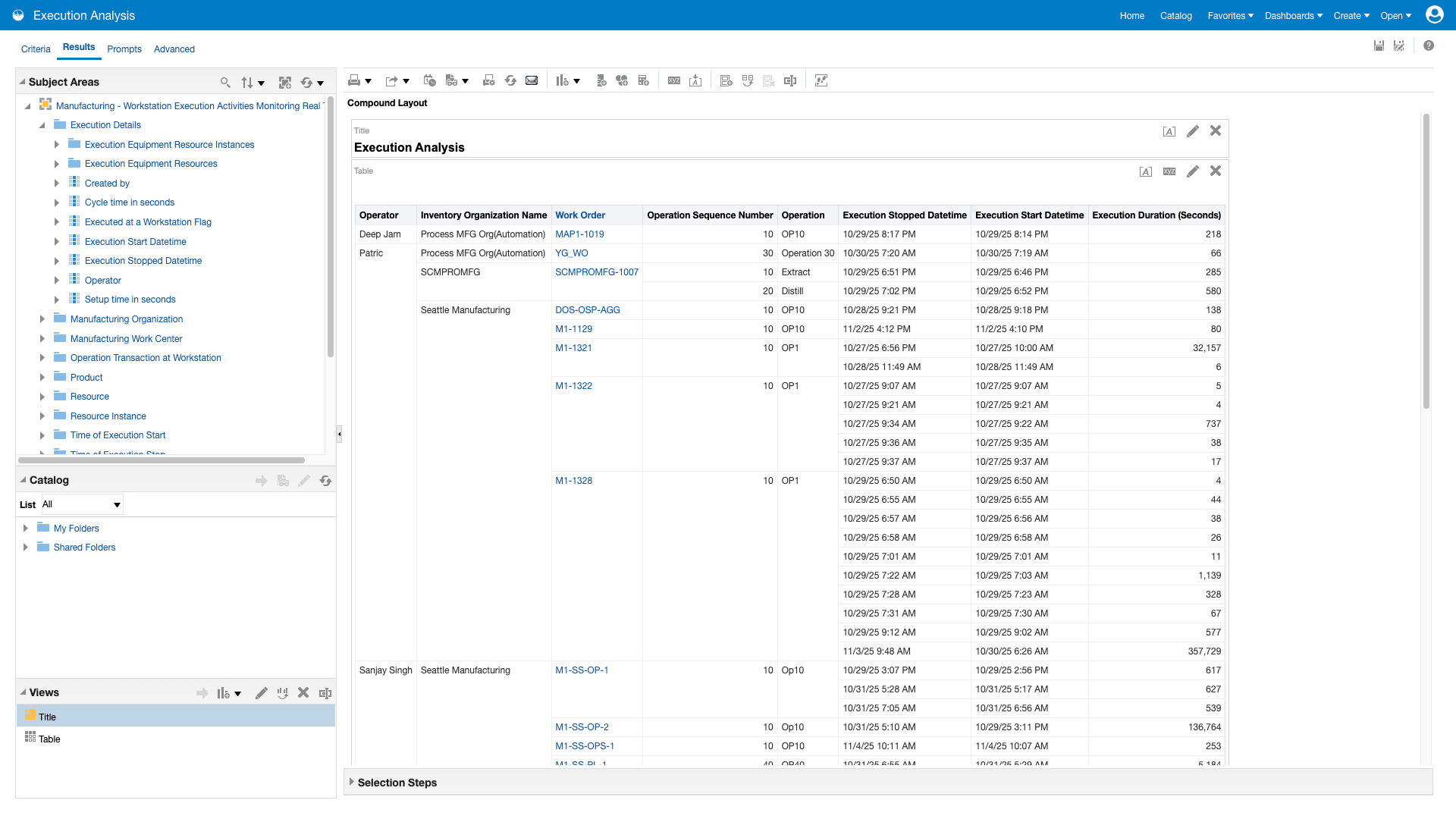

Analyze work order operation execution data for operators

Analyze Work Order Operation Execution Data for Operators

The Manufacturing—Workstation Execution Activities Monitoring Real Time subject area now lets you analyze the work order operation executions performed without workstation definition.

Use Oracle Transactional Business Intelligence (OTBI) to analyze work order operation execution activities performed by operators in real time along with contextual information such as start time and end time.

Steps to Enable and Configure

You don't need to do anything to enable this feature.

Tips And Considerations

You can integrate the analysis created using this OTBI subject area into your Production Supervision dashboard pages and the Work Execution landing page. To do this, you must first create an analysis in OTBI. You can then define OTBI-based KPI and visualization using the Visualization Configurations tool. To create a KPI for the OTBI analysis, specify metric card as the visualization type. To create a visualization, specify bar chart, pie chart, tabular chart, and so on as the visualization type. The Visualization Configurations tool can be accessed using the following URL:

https://<servername>/fscmUI/redwood/cx-analytics/application/container/dvconfig

Key Resources

  • Watch the feature demo for Analyze Work Order Operation Execution Data Using Oracle Transactional Business Intelligence.
  • Oracle Fusion Cloud SCM: Refer to the Using Manufacturing guide, available on the Oracle Help Center.
  • Oracle Fusion Cloud SCM: Refer to the Implementing Manufacturing and Supply Chain Materials Management guide, available on the Oracle Help Center.
  • To learn more about creating a report URL in OTBI, refer to the product documentation.

Access Requirements

Users who are assigned a configured job role that contains this duty role can use this feature:

  • FBI_MFG_EXECUTION_ANALYSIS_DUTY

This duty role was available prior to this update.
