Navigating in Redwood Mobile WMS

The following section provides more details on navigating in Redwood Mobile WMS.

Look and Feel (Images display for items,etc)

The new Redwood Mobile WMS boasts a modern, user-friendly interface designed to enhance your experience. In selective screens, the application will display pictures of the item.

Touchscreen

Redwood Mobile WMS is fully optimized for touchscreen functionality. With simple taps or swipes, you can easily navigate though menus and transactions. You can select transactions and perform actions, allowing easier interaction with the application.

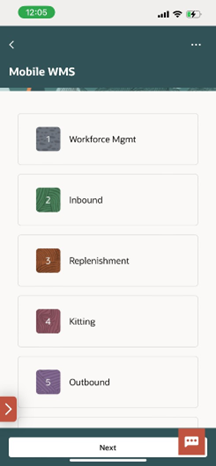

Flexible Navigation

Redwood Mobile WMS menu’s offer two ways to navigate, retaining compatibility with RF behavior while adding touch support:

1. Select a transaction by pressing the touchscreen.
2. Press the bottom red arrow to make an entry field visible, enter a corresponding transaction number and press Next.
   Note: Unlike the RF menu which shows only a limited number of entries at a time and users have to use control keys to page down or page up, Redwood mobile loads all the menu options (at the current level) and users can navigate by swiping.

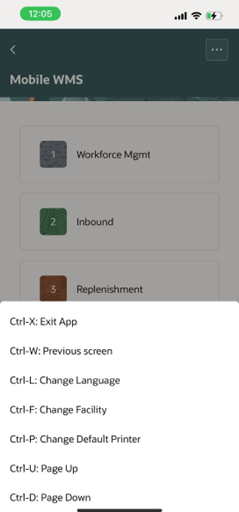

Action and CTRL Keys

Control key actions from RF and grouped under the actions “…”/”Actions” menu that can be accessed using touch. Devices with physical keyboards can keep using Control keys directly. However some keys may need to be re-mapped: – please see “Known Behaviors” section.

Home

When you click the hamburger menu or profile icon will show you information about the current user and company and facility.

Camera Options

The Redwood mobile application will be able to scan barcode using the camera while also maintaining compatibility with integrated laser barcode scanners.

Note:

• Image Capture not currently supported;
• Offline mode not currently supported. However, Redwood mobile is more resilient to wi-fi dead spots or network glitches than traditional RF.
