16.4.3 Displaying BLOB Images in Classic Reports

In a Classic Report region, include the size of the BLOB in your query instead of the BLOB column itself.

Use the GETLENGTH function in the DBMS_LOB package to compute it.

select  id,
        title,
        sys.dbms_lob.getlength(image) image, /* Size of BLOB Image */
        file_name,
        posted,
        posted_by,
        updated
from eba_demo_emp_breakroom_photo_v
order by updated desc

As shown below, set the Type of the IMAGE (size) column to Display Image and provide the additional image-related column names in the BLOB Attributes section. These include the BLOB image, Primary Key, Mime Type, Filename, and Last Updated date.

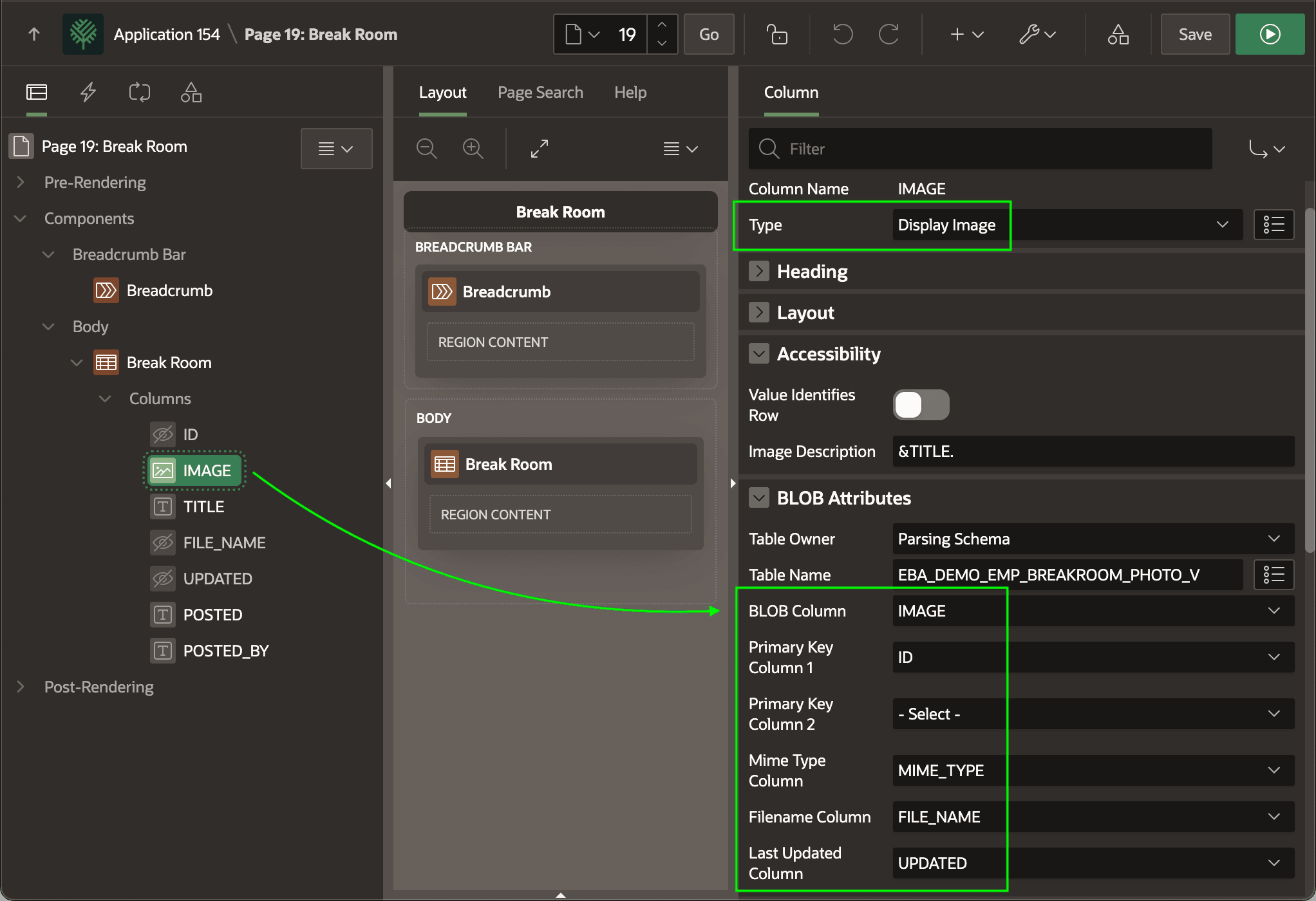

Figure 16-21 Configuring Display Image BLOB Column in Classic Report

Description of "Figure 16-21 Configuring Display Image BLOB Column in Classic Report"

To control the size of the image preview, add the following rule to the CSS > Inline section of your page. It constrains the height and keeps the image's aspect ratio. You can also just constrain the width by specifying that property instead of height.

.t-Report-report img {
    /* constrain width or height + keep aspect ratio
     *
     * width: 130px;
     */
    height: 130px;
    object-fit: contain;
}

This combination produces an image in each row as shown below.

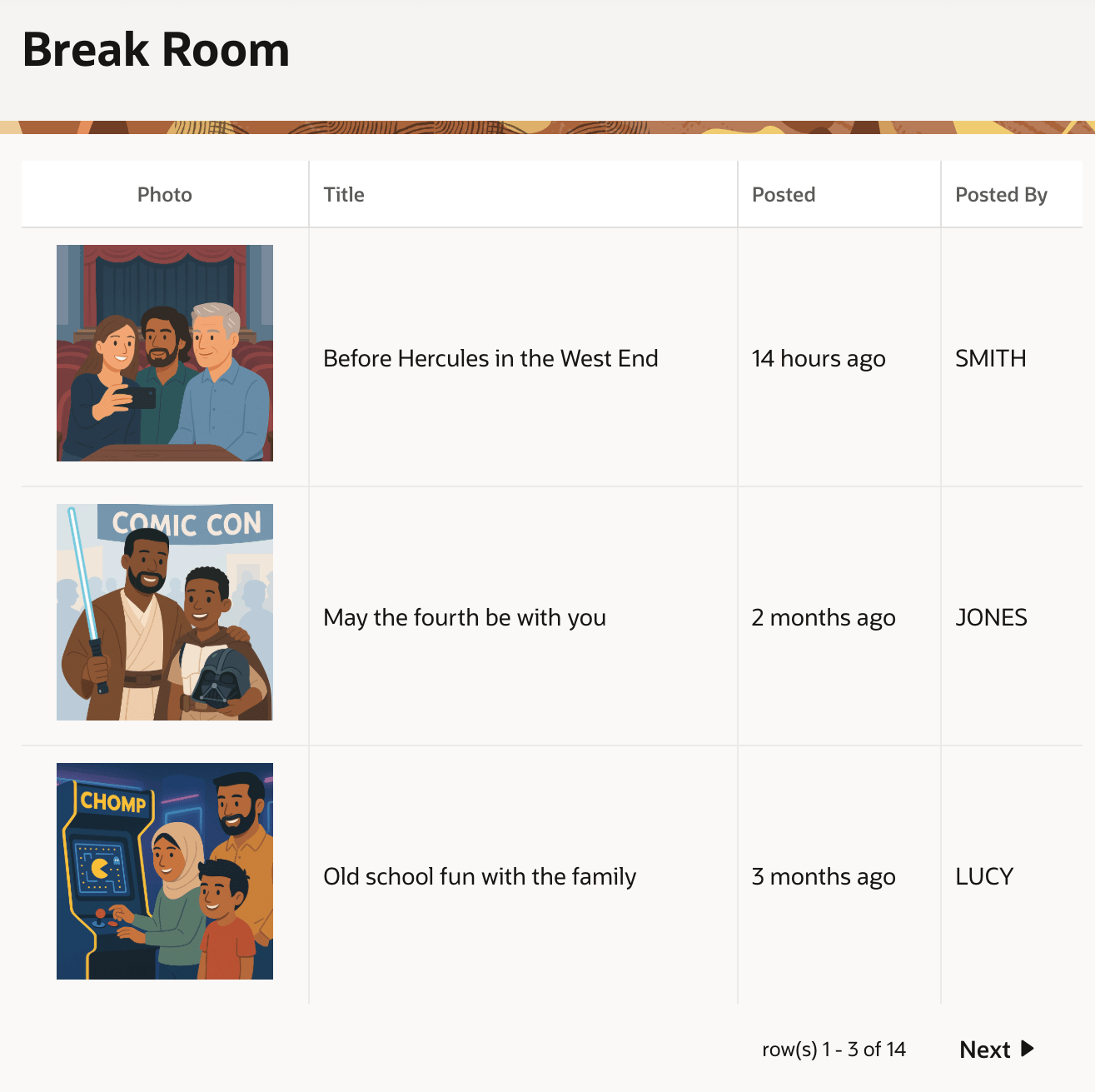

Figure 16-22 Custom-Sized Images in a Classic Report

Description of "Figure 16-22 Custom-Sized Images in a Classic Report"
