25.3.2 Seeing the Medical Procedure Lifecycle
Visualize patient procedures by status to see how work flows through the clinic.
The medical procedure's lifecycle is not only for internal tracking purposes. As
shown below, your Procedure Radar page uses the status value to help all staff
understand how medical procedures are "flowing" through the clinic. The Kanban board
shows:
- Awaiting Schedule
- Bob Bunn (Kidney stone treatment)
- Enya Ensor (Hernia operation)
- Scheduled
- Dora Dodd (Cataract removal with Dr. Marshall Garay)
- Completed
- Freda Foote (Lasik laser vision correction with Dr. Russel Whyte)
- Gregor Green (Cardio stress test with Dr. Javier Alfred)
- Invoiced
- Harry Hu (Mole removal with Dr. Joni Rosales)

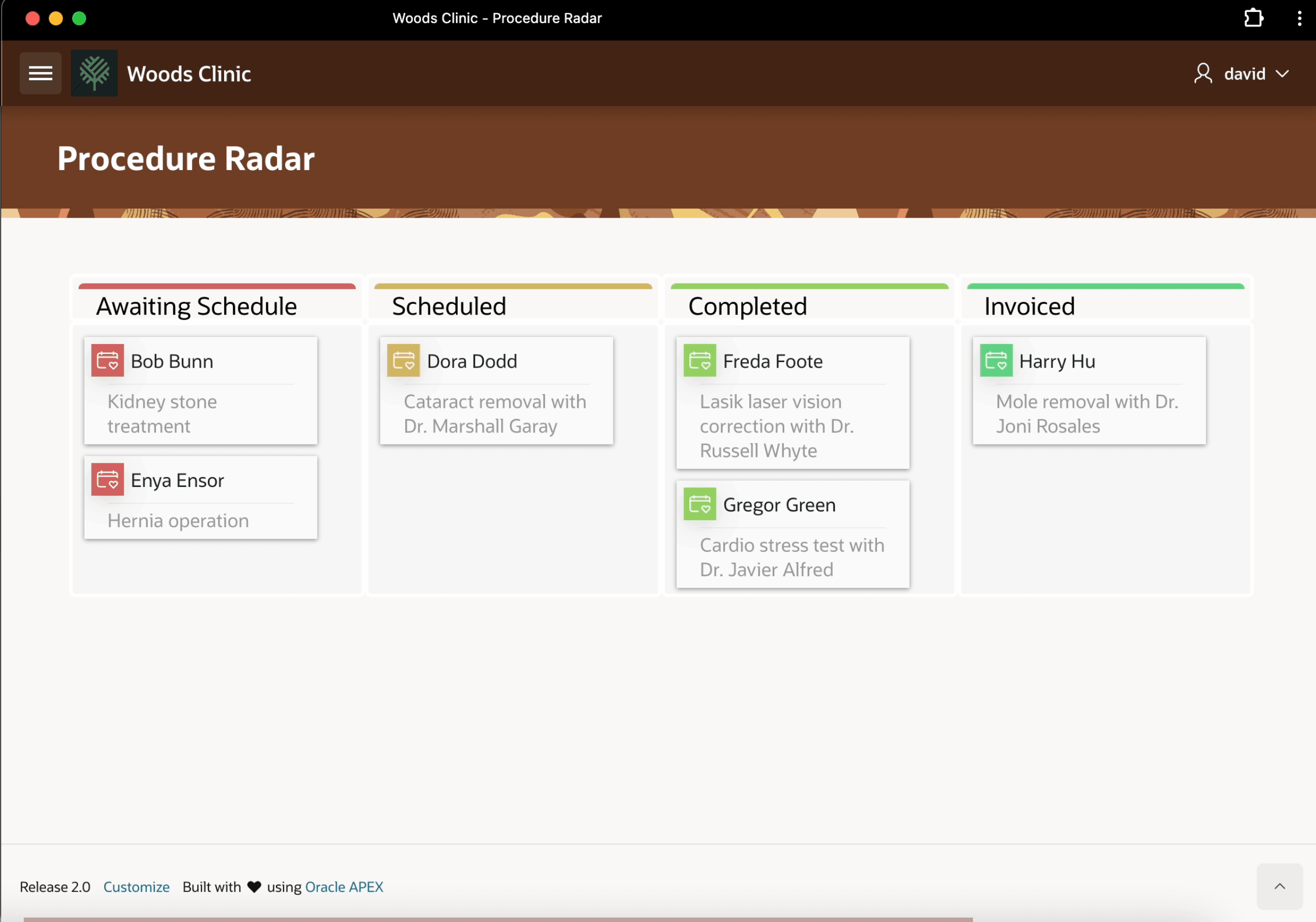

Figure 25-112 Kanban Board Shows Users How Procedures Progress Through Their Lifecycle
