5 Installing and Configuring Oracle Backend for Firebase

This chapter walks through the setup required to open the Oracle Backend for Firebase Console, create a project, and connect the fusabase CLI to your environment.

• What You Will Do

• Prerequisites

• Prepare the Database

• Enable Oracle Backend for Firebase in ORDS

• Prepare and Enable the Project Schema

• Open the Console

• Create Your First Project

• Configure the CLI

• Verify the Installation

• Troubleshooting


5.1 What You Will Do

In this chapter, you will:

• Verify the database prerequisites required by Oracle Backend for Firebase.
• Enable Oracle Backend for Firebase in ORDS.
• Create and enable a schema that can own a project.
• Open the Console and create your first project.
• Configure the fusabase CLI and confirm that it can reach your service.

5.2 Prerequisites

Before you start, make sure you have:

• Oracle AI Database 23.9 or later. If you require a database, see the Install Oracle AI Database documentation.

• ORDS 26.1 or later. If you require ORDS, see the Oracle REST Data Services Installation and Configuration Guide

• Credentials for the ORDS installation account appropriate to your environment:

  • Use SYS AS SYSDBA if you are installing ORDS in CDB$ROOT.

  • Prefer a dedicated ORDS installer user if you are installing for a PDB and have granted that user the required ORDS installer privileges.

• A database account with the DBA role to prepare and enable the project-owning schema

• The ORDS configuration directory

• The ORDS host name, port, and target PDB service name

You should also be able to connect to the database and run show parameter compatible before continuing.

5.3 Prepare the Database

Oracle Backend for Firebase requires a compatible database, extended string support, and Transparent Data Encryption (TDE).

• Check the Database Version and Compatibility Setting

• Enable Extended String Support

• Configure the TDE Wallet and Master Key


5.3.1 Check the Database Version and Compatibility Setting

Connect as SYS AS SYSDBA or another privileged user and run:

show parameter compatible;
SELECT banner_full FROM v$version;

If COMPATIBLE is lower than 23.9.0, connect to CDB$ROOT, update the parameter, and restart the instance according to your environment's restart procedure:

ALTER SYSTEM SET COMPATIBLE='23.9.0' SCOPE=SPFILE;

5.3.2 Enable Extended String Support

Open the target PDB in upgrade mode, enable extended strings, run the Oracle script, and return the PDB to normal service:

ALTER PLUGGABLE DATABASE <YOUR-PDB> CLOSE;
ALTER PLUGGABLE DATABASE <YOUR-PDB> OPEN UPGRADE;
ALTER SESSION SET CONTAINER=<YOUR-PDB>;
ALTER SYSTEM SET max_string_size = extended;
@?/rdbms/admin/utl32k.sql
ALTER PLUGGABLE DATABASE <YOUR-PDB> CLOSE;
ALTER PLUGGABLE DATABASE <YOUR-PDB> OPEN;

After the PDB reopens, confirm that MAX_STRING_SIZE is now EXTENDED.

5.3.3 Configure the TDE Wallet and Master Key

If a wallet is not already configured, choose a secure wallet location that matches your organization's standards for database storage, backup, and access control. Then, create the wallet directory and set the wallet parameters before restarting the database. The following path is only an example:

mkdir -p /opt/oracle/oradata/FREE/tde
chown -R oracle:oinstall /opt/oracle/oradata/FREE
chmod 700 /opt/oracle/oradata/FREE/tde

ALTER SYSTEM SET wallet_root='<wallet_root_path>' SCOPE=SPFILE;

Replace <wallet_root_path> with the directory you selected for your environment. Restart the database, verify wallet_root, and then set tde_configuration before you create and open the keystore.

Replace every placeholder password in this chapter with your own value. Do not reuse example passwords in shared, long-lived, or production environments.

ALTER SYSTEM SET tde_configuration='KEYSTORE_CONFIGURATION=FILE' SCOPE=BOTH;
ADMINISTER KEY MANAGEMENT CREATE KEYSTORE IDENTIFIED BY "<strong_keystore_password>";
ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN IDENTIFIED BY "<strong_keystore_password>" CONTAINER=ALL;
ADMINISTER KEY MANAGEMENT SET KEY IDENTIFIED BY "<strong_keystore_password>" WITH BACKUP CONTAINER=ALL;
SELECT WRL_TYPE, WRL_PARAMETER, STATUS FROM V$ENCRYPTION_WALLET;

Continue only after the wallet status is OPEN.

5.4 Enable Oracle Backend for Firebase in ORDS

The examples in this section use a simple standalone ORDS deployment:

• ORDS software directory: /opt/ords
• ORDS configuration directory: /opt/ords-config
• ORDS URL: http://localhost:8080/ords

This is only a simple example for this chapter. For the full ORDS installation and configuration workflow, use the Oracle REST Data Services Installation and Configuration Guide.

Oracle recommends adding the ORDS bin directory to your PATH, so the examples in this chapter use the ords command directly. If you want to avoid repeating --config, you can also set the ORDS_CONFIG environment variable to your configuration directory.

Replace these example paths and URLs with the values for your environment. Keep the ORDS configuration directory outside the ORDS product directory.

• Verify the ORDS Version

• Run the Oracle Backend for Firebase Installer


5.4.1 Verify the ORDS Version

Run:

ords --version

Continue only if the reported version is 26.1 or later.

5.4.2 Run the Oracle Backend for Firebase Installer

If you have installed ORDS in standalone mode, a basic layout looks like the following after configuration:

/opt/ords
  bin/ords

/opt/ords-config
  global/
    settings.xml
    standalone/
  databases/
    default/
      pool.xml

Run the installer with the ORDS command-line interface and point it to your standalone configuration directory.

ords --config /opt/ords-config fusabase install

During the prompts, provide the values that match your environment. The example in this chapter assumes the Basic connection type with host name, port, and service name:

• If you use the Basic connection type, enter the database host name, listener port, and PDB service name.

• The listener port is usually 1521.

• Enter your PDB service name.

• Set [1] Enable Feature fusabase to Yes.

• Set [2] Encryption passphrase to a value you manage yourself or let ORDS generate one.

• Select [A] Accept and Continue.

• Provide the administrative ORDS installation account required by your topology:

  • Use SYS AS SYSDBA when installing ORDS in CDB$ROOT.

  • Prefer the dedicated installer user if you prepared one with ORDS installer privileges for a PDB installation.

When the installer finishes, ORDS should report that the Oracle Backend for Firebase feature is enabled.

For simplicity, this chapter continues with an HTTP localhost example. For shared or production standalone deployments, configure HTTPS rather than HTTP.

If you want to avoid using SYS AS SYSDBA for a PDB installation, Oracle provides the scripts/installer/ords_installer_privileges.sql script to grant a designated database user the privileges needed to install, upgrade, repair, and uninstall ORDS. Use that same designated user for the ORDS installation.

The ORDS installation account is only for the installation step. Schema enablement is a separate action later in this chapter and is performed with a user that has the DBA role.

5.5 Prepare and Enable the Project Schema

Each Oracle Backend for Firebase project is owned by one schema. That schema becomes the project owner and receives BAAS_ROLE when the enablement procedure succeeds.

• Create the Schema

• Grant the Required Database Privileges

• Enable the Schema for Oracle Backend for Firebase


5.5.1 Create the Schema

The following is an example of creating a dedicated tablespace and schema for your project:

CREATE TABLESPACE fusabase_tbs
  DATAFILE 'fusabase_tbs01.dbf' SIZE 50M AUTOEXTEND ON
  EXTENT MANAGEMENT LOCAL SEGMENT SPACE MANAGEMENT AUTO;

CREATE USER fusabase_user IDENTIFIED BY <your_secure_password>
  DEFAULT TABLESPACE fusabase_tbs
  QUOTA UNLIMITED ON fusabase_tbs;

5.5.2 Grant the Required Database Privileges

Grant the minimum privileges required before schema enablement:

GRANT CREATE SESSION TO fusabase_user;
GRANT RESOURCE TO fusabase_user;

If your project will use DBFS-backed storage, also grant:

GRANT DBFS_ROLE TO fusabase_user;

5.5.3 Enable the Schema for Oracle Backend for Firebase

Connect as a user with the DBA role in the target PDB and run:

BEGIN
  OBAAS_ADMIN.OBAAS_ENABLE_SCHEMA(
    'FUSABASE_USER',
    'BASE_PATH',
    'fusabase_user',
    FALSE
  );
END;
/
COMMIT;

Note:

You must either create a new user with the DBA role, or use a user with the DBA role in the target PDB and enable the schema to be used for Oracle Backend for Firebase.

Upon successful completion of this procedure, the schema is enabled for Oracle Backend for Firebase and assigned the BAAS_ROLE.

5.6 Open the Console

Start ORDS:

ords --config /opt/ords-config serve

Then, open http://localhost:8080/ords/_/landing in your browser. Replace the host and port if ORDS is running elsewhere. On the landing page, open the Oracle Backend for Firebase tile and sign in with the fusabase_user credentials.

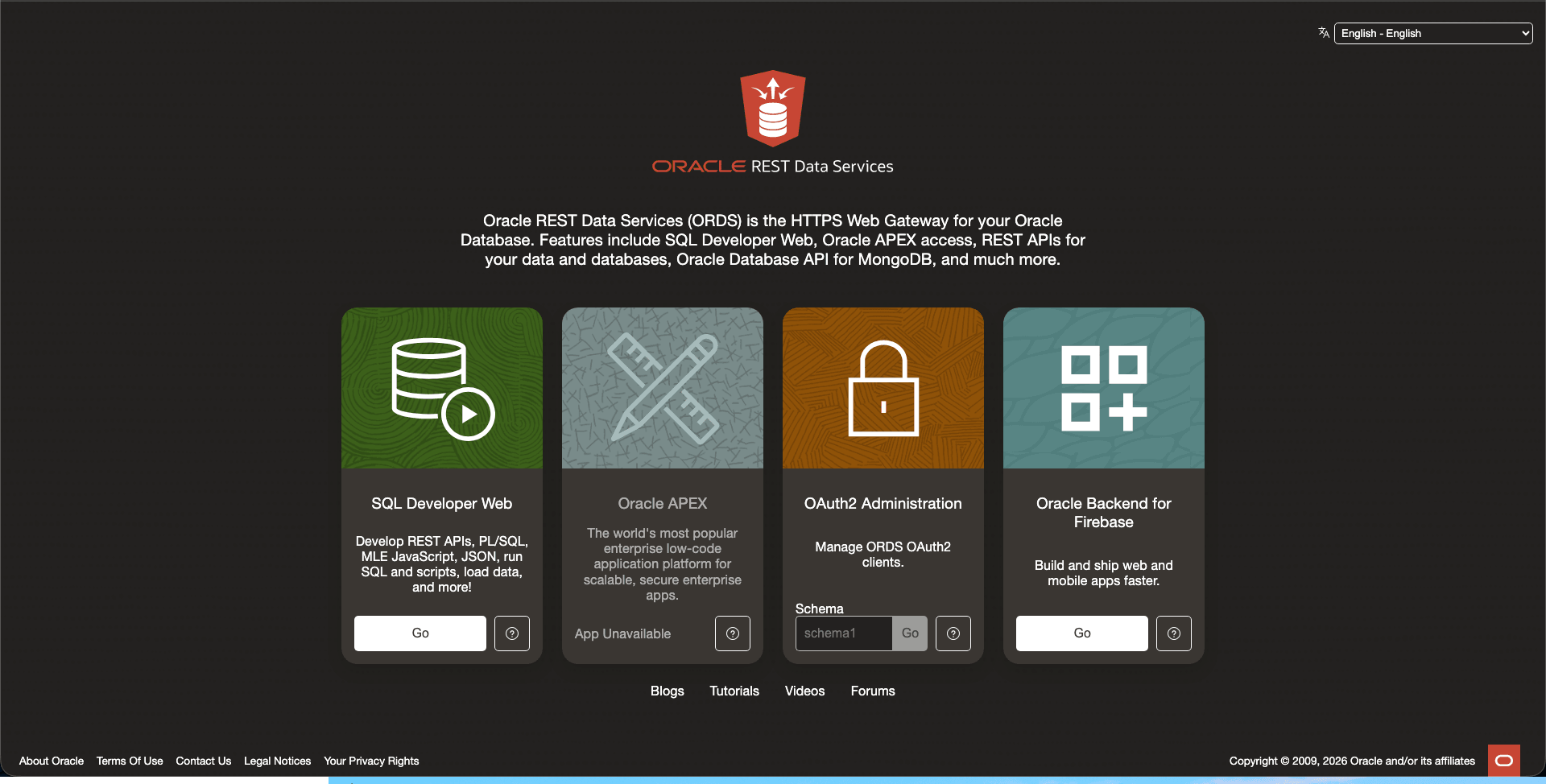

Figure 5-1 ORDS Landing Page

5.7 Create Your First Project

After you sign in, choose Create Project in the Console and follow the prompts. Use the schema you enabled in the previous section as the project owner schema.

To learn more about creating projects, see Creating a Project.

When project creation completes, the Console should show the new project and its project ID.

5.8 Configure the CLI

The CLI needs an ORDS OAuth client before it can sign in. This section shows one way to install the CLI from a local GitHub checkout and configure the OAuth client in Database Actions.

• Install the CLI from GitHub

• Create an OAuth Client for the CLI

• Create the CLI Configuration File

• Sign In to the CLI

• Confirm the CLI Can Reach Your Schema


5.8.1 Install the CLI from GitHub

Before you begin, make sure node and npm are available on your machine.

From npm:

npm i -g fusabase-cli

npm link makes the fusabase command available globally from your local copy of the project so you can test it.

5.8.2 Create an OAuth Client for the CLI

1. Open Database Actions for the schema you enabled for Oracle Backend for Firebase.

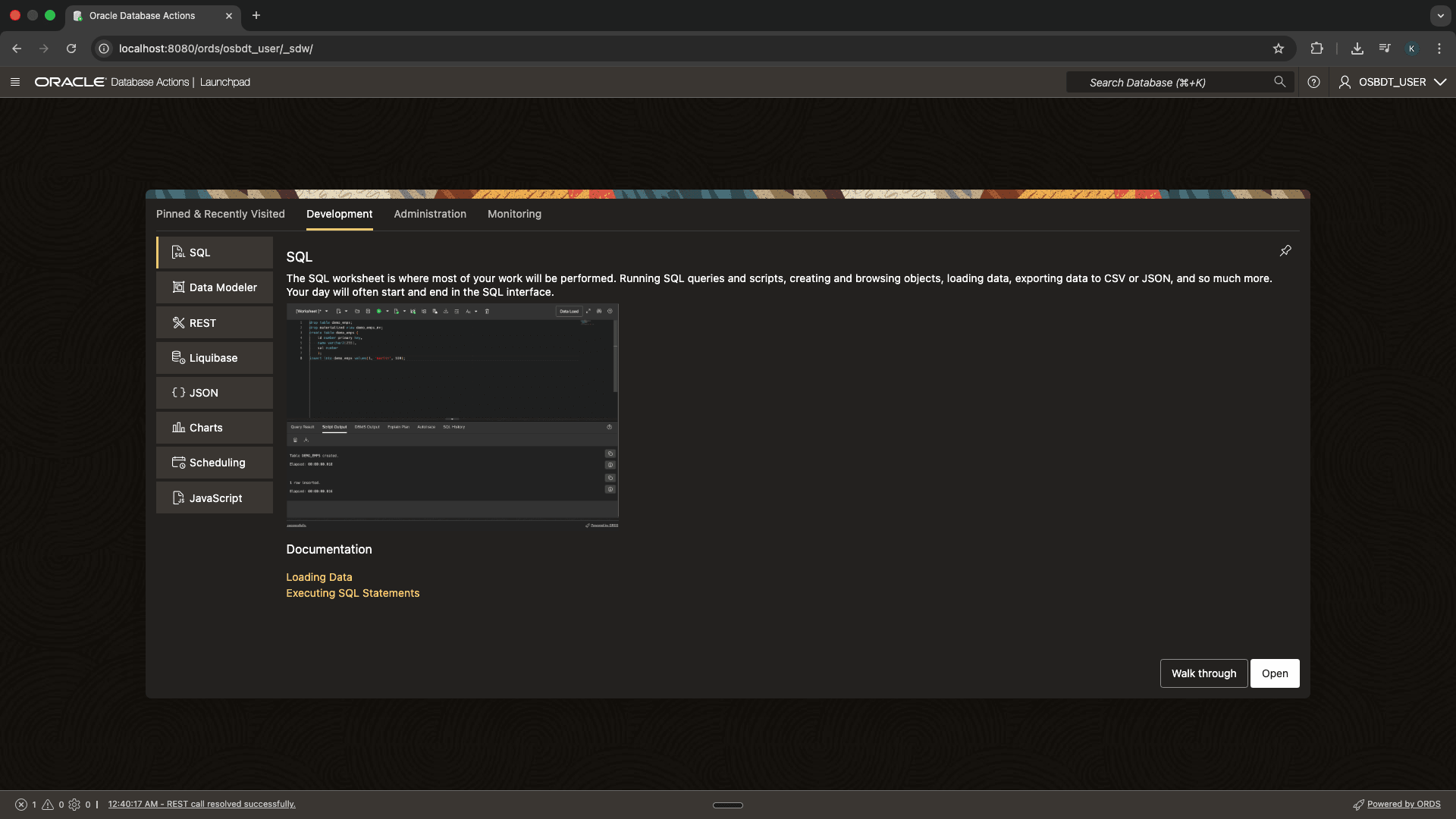

   Figure 5-2 Database Actions Launchpad



2. Open REST, then open Security and select OAuth Clients.

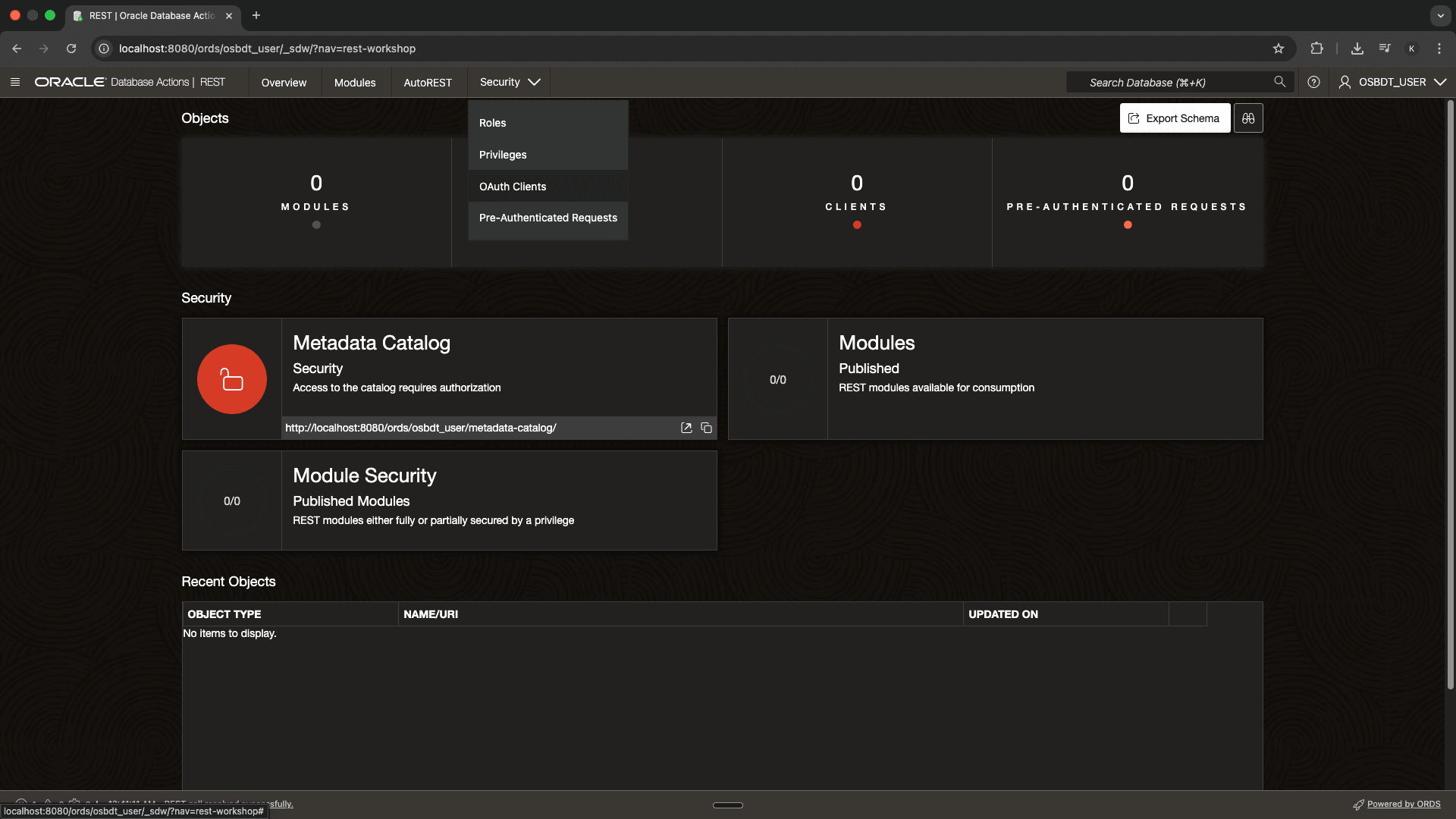

   Figure 5-3 REST Security Options



3. Select Create OAuth Client.

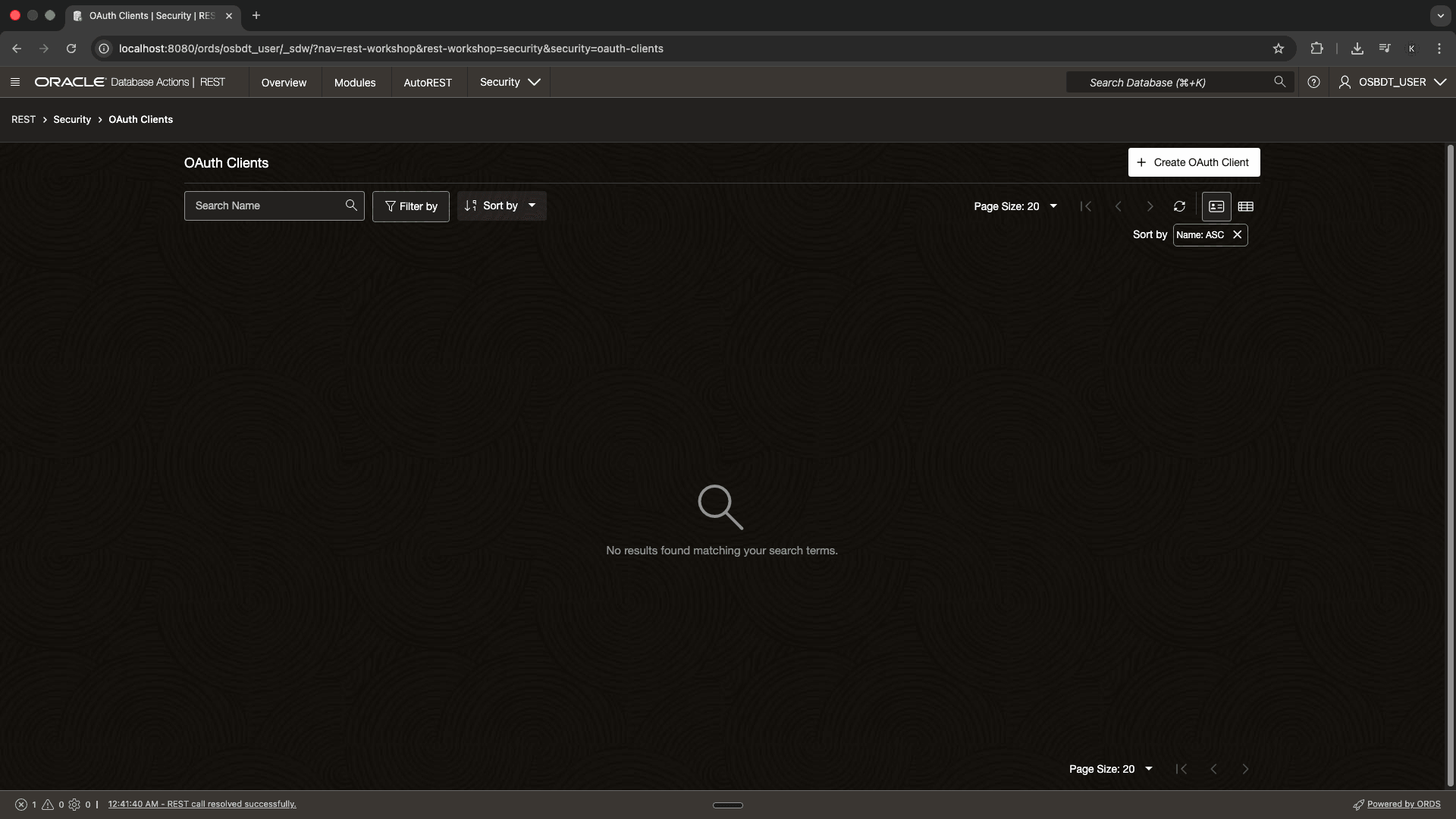

   Figure 5-4 Create OAuth Client



4. Create the OAuth client with values for your environment. The example shown here uses:

   • Grant type: CLIENT\_CRED
   • Name: fusabase-cli
   • Description: a short description such as OAuth client for the fusabase CLI
   • Support Email and Support URI: values appropriate for your environment

5. On the Roles tab, grant the SQL Developer role to the client to enable the required administrative API calls through the CLI.

   Figure 5-5 Grant SQL Developer Role



6. After you create the client, copy and save the Client ID and Client Secret.

   Note:

   The Client Secret is only shown once. Copy the Client Secret when it first shown.

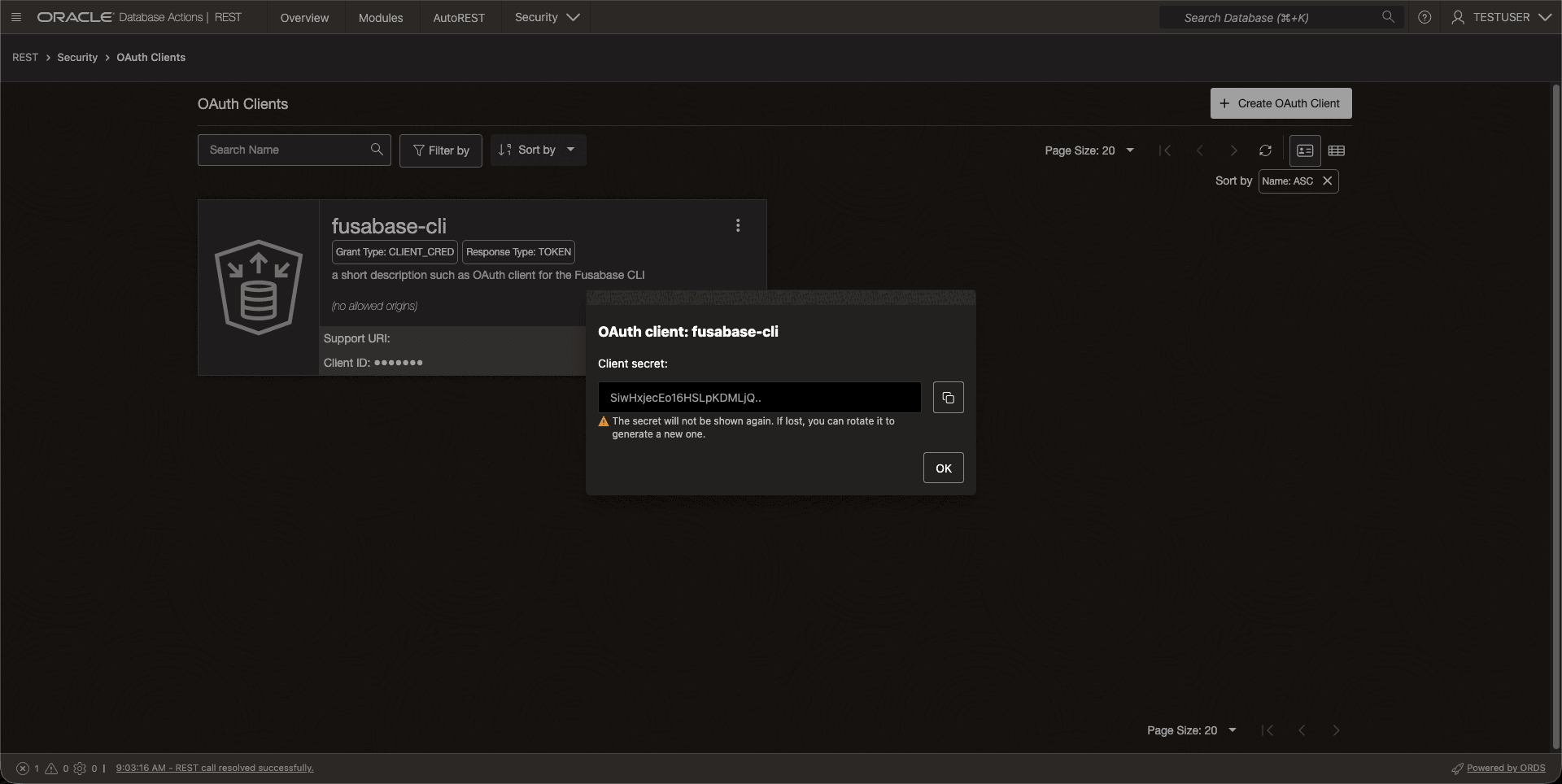

   Figure 5-6 Client Secret



   You can return to the OAuth client card later to copy the Client ID again, if required.

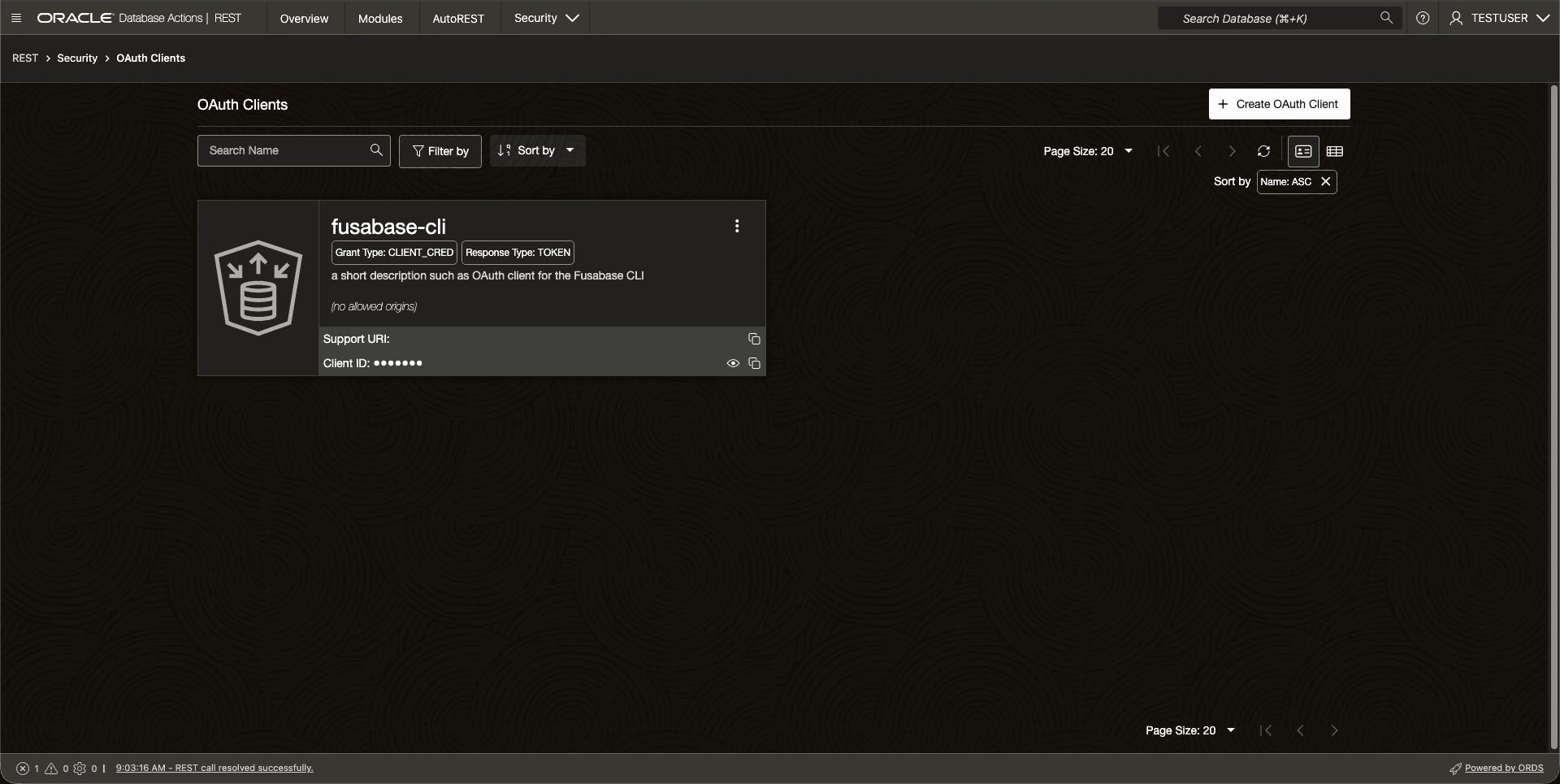

   Figure 5-7 OAuth Client Card



5.8.3 Create the CLI Configuration File

Create a fusabase.config.js file in the same directory where you will run the CLI:

module.exports = {
  host: 'http://your-ords-host:port/ords/your-schema/'
}

Replace the example URL with your actual ORDS host, port, and schema base path. Keep the trailing /.

5.8.4 Sign In to the CLI

From that same directory, run:

fusabase init

When prompted, enter the OAuth Client ID and Client Secret for the ORDS OAuth client you created in Database Actions. The CLI uses these credentials to request an access token and sign in to ORDS. If the host value in fusabase.config.js is correct and the OAuth client credentials are valid, the CLI reports a successful login.

5.8.5 Confirm the CLI Can Reach Your Schema

After you sign in, run:

fusabase list-projects

If the configuration is correct, the command lists the projects available through that schema. If you have not created any projects yet, the command may return an empty result instead.

5.9 Verify the Installation

Your setup is ready when all of the following are true:

• The database reports a compatible version and MAX\_STRING\_SIZE=EXTENDED.
• The TDE wallet is open.
• ORDS has Oracle Backend for Firebase enabled.
• The schema was enabled successfully through OBAAS\_ADMIN.OBAAS\_ENABLE\_SCHEMA.
• The Console opens and lets you sign in as fusabase\_user.
• The Console shows your project.
• fusabase --help runs successfully.
• fusabase init completes successfully with your OAuth client credentials.
• fusabase list-projects connects without configuration or authentication errors.

5.10 Troubleshooting

• Database compatibility warnings: Run show parameter compatible again, update COMPATIBLE in CDB$ROOT, and restart the database.

• MAX\_STRING\_SIZE is still STANDARD: Repeat the PDB upgrade-mode sequence and make sure @?/rdbms/admin/utl32k.sql completes without errors.

• Wallet or TDE errors: Verify wallet\_root and tde\_configuration, reopen the keystore, and confirm V$ENCRYPTION\_WALLET shows OPEN.

• ORDS does not expose Oracle Backend for Firebase: Rerun ords --config /opt/ords-config fusabase install and confirm that \[1] Enable Feature fusabase is set to Yes.

• The Console opens, but the schema cannot create a project: Reconnect as a DBA user, rerun OBAAS\_ADMIN.OBAAS\_ENABLE\_SCHEMA, and confirm that the schema received BAAS\_ROLE.

• ORA-06598 during OBAAS\_ADMIN.OBAAS\_ENABLE\_SCHEMA: If schema enablement fails with insufficient INHERIT PRIVILEGES privilege when you invoke the procedure as SYS, retry with a non-SYS user that has the DBA role.

• fusabase is not found after installation: Return to the CLI project directory, rerun npm link, and then verify with fusabase --help.

• CLI authentication fails: Verify that you copied the correct OAuth Client ID and Client secret, and confirm that the OAuth client has the SQL Developer role.

• fusabase init fails to fetch a token: Check the host value in fusabase.config.js, make sure the URL ends with /, verify that ORDS is reachable from your machine, and confirm that you entered the correct OAuth Client ID and Client secret.

• fusabase list-projects fails after login: Confirm that the schema URL in fusabase.config.js is correct and that you are connecting to the same schema where Oracle Backend for Firebase is enabled.

• ORDS connects to the wrong database service: Re-run the ORDS installer and use the correct PDB service name for your environment.
