14.11 CREATE PLUGGABLE DATABASE

Purpose

Use the CREATE PLUGGABLE DATABASE statement to create a pluggable database (PDB).

This statement enables you to perform the following tasks:

  • Create a PDB by using the seed as a template

    Use the create_pdb_from_seed clause to create a PDB by using the seed in the multitenant container database (CDB) as a template. The files associated with the seed are copied to a new location and the copied files are then associated with the new PDB.

  • Create a PDB by cloning an existing PDB or non-CDB

    Use the create_pdb_clone clause to create a PDB by copying an existing PDB or non-CDB and then plugging the copy into the CDB. The files associated with the existing PDB or non-CDB are copied to a new location and the copied files are associated with the new PDB.

  • Create a PDB by plugging an unplugged PDB or a non-CDB into a CDB

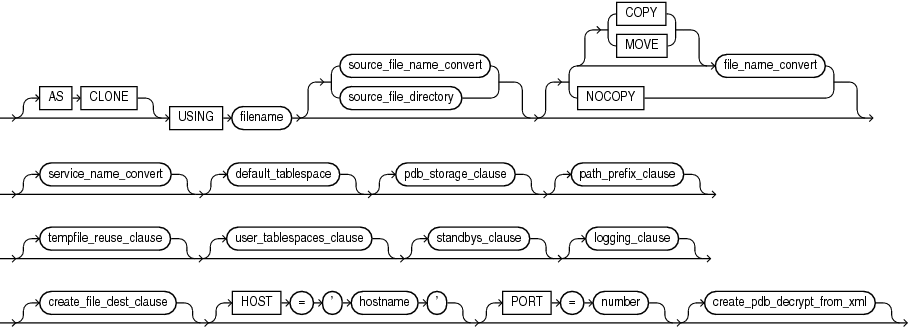

    Use the create_pdb_from_xml clause to plug an unplugged PDB or a non-CDB into a CDB, using an XML metadata file.

  • Create a proxy PDB by referencing another PDB. A proxy PDB provides fully functional access to the referenced PDB.

    Use the create_pdb_clone clause and specify AS PROXY FROM to create a proxy PDB.

  • Create an application container, application seed, or application PDB

    Use the create_pdb_from_seed, create_pdb_clone, or create_pdb_from_xml clause. To create an application container, you must specify the AS APPLICATION CONTAINER clause. To create an application seed, you must specify the AS SEED clause.

Note:

When a new PDB is established in a CDB, it is possible that the name of a service offered by the new PDB will collide with an existing service name. The namespace in which a collision can occur is that of the listener that gives access to the CDB. Within that namespace, collisions are possible among the names of non-CDB's default services, CDB's default services, PDB's default services, and user-defined services. For example, if two or more CDBs on the same computer system use the same listener, and the newly established PDB has the same service name as another PDB in these CDBs, then a collision occurs.

When you create a PDB, you can specify new names for any potential colliding service names. See the clause service_name_convert. If you discover a service name collision after a PDB is created, you must not attempt to operate the PDB that causes a collision with an existing service name. If the colliding name is that of the PDB's default service, then you must rename the PDB. If the colliding name is that of a user-created service within the PDB, then you must drop that service and create one in its place, with a non-colliding name, that has the same purpose and properties.

See Also:

Prerequisites

You must be connected to a CDB. The CDB must be open and in READ WRITE mode.

To create a PDB or an application container, the current container must be the root and you must have the CREATE PLUGGABLE DATABASE system privilege, granted commonly.

To create an application seed or an application PDB, the current container must be an application root, the application container must be open and in READ WRITE mode, and you must have the CREATE PLUGGABLE DATABASE system privilege, either granted commonly or granted locally in that application container.

To specify the create_pdb_clone clause:

  • If src_pdb_name refers to a PDB in the same CDB, then you must have the CREATE PLUGGABLE DATABASE system privilege in the root of the CDB in which the new PDB will be created and in the PDB being cloned.

  • If src_pdb_name refers to a PDB in a remote database or a non-CDB, then you must have the CREATE PLUGGABLE DATABASE system privilege in the root of the CDB in which the new PDB will be created and the remote user must have the CREATE PLUGGABLE DATABASE system privilege in the PDB or non-CDB to which src_pdb_name refers.

See Oracle Multitenant Administrator’s Guide for more information on the prerequisites to PDB creation.

Syntax

Semantics

pdb_name

Specify the name of the PDB to be created. The name must satisfy the requirements listed in "Database Object Naming Rules". The first character of a PDB name must be an alphabet character. The remaining characters can be alphanumeric or the underscore character (_).

The PDB name must be unique in the CDB, and it must be unique within the scope of all the CDBs whose instances are reached through a specific listener.

AS APPLICATION CONTAINER

Specify this clause to create an application container.

See Also:

Oracle Database Administrator’s Guide for the complete steps for creating an application container

using_snapshot_clause

Specify this clause to create a PDB from an existing PDB snapshot that can be identified by its name, SCN, or timestamp.

If you additionally specify SNAPSHOT COPY, then the new PDB will depend on the existence of the specified PDB snapshot. This will affect your ability to drop or purge the new PDB.

AS SEED

Specify this clause to create an application seed. The database assigns the seed a name of the form application_container_name$SEED.

An application container can have at most one application seed. The application seed is optional, but, if it exists, you can use it to create application PDBs quickly that match the requirements of the application container. An application seed enables instant provisioning of application PDBs that are created from it.

See Also:

Oracle Database Administrator’s Guide for the complete steps for creating an application seed

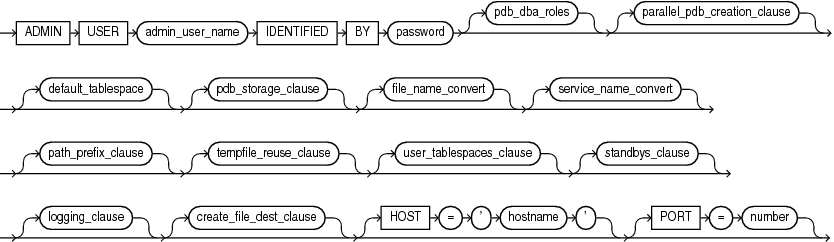

create_pdb_from_seed

This clause enables you to create a PDB by using the seed in the CDB as a template.

See Also:

Oracle Database Administrator's Guide for the complete steps for creating a PDB using the seed

ADMIN USER

Use this clause to create an administrative user who can be granted the privileges required to perform administrative tasks on the PDB. For admin_user_name, specify name of the user to be created. Use the IDENTIFIED BY clause to specify the password for admin_user_name. Oracle Database creates a local user in the PDB and grants the PDB_DBA local role to that user.

pdb_dba_roles

This clause lets you grant one or more roles to the PDB_DBA role. Use this clause to grant roles that have the privileges required by the administrative user of the PDB. For role, specify a predefined role. For a list of predefined roles, refer to Oracle Database Security Guide.

You can also use the GRANT statement to grant roles to the PDB_DBA role after the PDB has been created. Until you have granted the appropriate privileges to the PDB_DBA role, the SYS and SYSTEM users can perform administrative tasks on a PDB.

parallel_pdb_creation_clause

This clause instructs the CDB to use parallel execution servers to copy the new PDB's data files to a new location. This may result in faster creation of the PDB.

PARALLEL

If you specify PARALLEL, then the CDB automatically chooses the number of parallel execution servers to use. This is the default if the COMPATIBLE initialization parameter is set to 12.2 or higher.

PARALLEL integer

Use integer to specify the number of parallel execution servers to use. The CDB can ignore this setting, depending on the current database load and the number of available parallel execution servers. If you specify a value of 0 or 1, then the CDB does not parallelize the creation of the PDB. This can result in a longer PDB creation time.

default_tablespace

If you specify this clause, then Oracle Database creates a smallfile tablespace and sets it as the default permanent tablespace for the PDB. Oracle Database will assign the default tablespace to any non-SYSTEM user for whom a different permanent tablespace is not specified. The default_tablespace clause has the same semantics that it has for the CREATE DATABASE statement. For full information, refer to default_tablespace in the documentation on CREATE DATABASE.

pdb_storage_clause

Use this clause to specify storage limits for the PDB.

  • Use MAXSIZE to limit the amount of storage that can be used by all tablespaces in the PDB to the value specified with size_clause. This limit includes the size of data files and temporary files for tablespaces belonging to the PDB. Specify MAXSIZE UNLIMITED to enforce no limit.

  • Use MAX_AUDIT_SIZE to limit the amount of storage that can be used by unified audit OS spillover (.bin format) files in the PDB to the value specified with size_clause. Specify MAX_AUDIT_SIZE UNLIMITED to enforce no limit.

  • Use MAX_DIAG_SIZE to limit the amount of storage for diagnostics (trace files and incident dumps) in the Automatic Diagnostic Repository (ADR) that can be used by the PDB to the value specified with size_clause. Specify MAX_DIAG_SIZE UNLIMITED to enforce no limit.

If you omit this clause, or specify STORAGE UNLIMITED, then there are no storage limits for the PDB. This is equivalent to specifying STORAGE (MAXSIZE UNLIMITED MAX_AUDIT_SIZE UNLIMITED MAX_DIAG_SIZE UNLIMITED).

file_name_convert

Use this clause to determine how the database generates the names of files (such as data files and wallet files) for the PDB.

  • For filename_pattern, specify a string found in names of files associated with the seed (when creating a PDB by using the seed), associated with the source PDB (when cloning a PDB), or listed in the XML file (when plugging a PDB into a CDB).

  • For replacement_filename_pattern, specify a replacement string.

Oracle Database will replace filename_pattern with replacement_filename_pattern when generating the names of files associated with the new PDB.

File name patterns cannot match files or directories managed by Oracle Managed Files.

You can specify FILE_NAME_CONVERT = NONE, which is the same as omitting this clause. If you omit this clause, then the database first attempts to use Oracle Managed Files to generate file names. If you are not using Oracle Managed Files, then the database uses the PDB_FILE_NAME_CONVERT initialization parameter to generate file names. If this parameter is not set, then an error occurs.

service_name_convert

Use this clause to rename the user-defined services of the new PDB based on the service names of the source PDB. When the service name of a new PDB conflicts with an existing service name in the CDB, plug-in violations can result. This clause enables you to avoid these violations.

  • For service_name, specify the name of a service found in the PDB seed (when creating a PDB in an application container by using the application seed) or in the source PDB (when cloning a PDB or plugging a PDB into a CDB).

  • For replacement_service_name, specify the replacement name for the service.

Oracle Database will use the replacement service name for the service in the PDB being created.

You can specify SERVICE_NAME_CONVERT = NONE, which is the same as omitting this clause.

Restrictions on service_name_convert

The service_name_convert clause is subject to the following restrictions:

  • You cannot change the name of the default service for a PDB. The default service has the same name as the PDB.

  • You cannot specify this clause when you use the create_pdb_from_seed clause to create a PDB from the CDB seed, because the CDB seed does not have user-defined services. You can, however, specify this clause when you use the create_pdb_from_seed clause to create an application PDB from the application seed.

path_prefix_clause

Use this clause to ensure that file paths for directory objects associated with the PDB are restricted to the specified directory or its subdirectories. This clause also ensures that the following files associated with the PDB are restricted to the specified directory: the Oracle XML repository for the PDB, files created with a CREATE PFILE statement, and the export directory for Oracle wallets. You cannot modify the setting of this clause after you create the PDB. This clause does not affect files created by Oracle Managed Files.

  • For path_name, specify the absolute path name of an operating system directory. The single quotation marks are required, with the result that the path name is case sensitive. Oracle Database uses path_name as a prefix for all file paths associated with the PDB.

    Be sure to specify path_name so that the resulting path name will be properly formed when relative paths are appended to it. For example, on UNIX systems, be sure to end path_name with a forward slash (/), such as:

    PATH_PREFIX = '/disk1/oracle/dba/salespdb/'

  • For directory_object_name, specify the name of a directory object that exists in the CDB root (CDB$ROOT). The directory object points to the absolute path to be used for PATH_PREFIX.

  • If you specify PATH_PREFIX = NONE, then the relative paths for directory objects associated with the PDB are treated as absolute paths and are not restricted to a particular directory.

Omitting the path_prefix_clause is equivalent to specifying PATH_PREFIX = NONE.

After the path_prefix_clause is specified for a PDB, existing directory objects might not work as expected, since the PATH_PREFIX string is always added as a prefix to all local directory objects in the PDB. The path_prefix_clause only applies to user-created directory objects. It does not apply to Oracle-supplied directory objects.

tempfile_reuse_clause

When you create a PDB, Oracle Database associates temp files with the new PDB. Depending on how you create the PDB, the temp files may already exist and may have been previously used.

Specify TEMPFILE REUSE to instruct the database to format and reuse a temp file associated with the new PDB if it already exists. If you specify this clause and a temp file does not exist, then the database creates the temp file.

If you do not specify TEMPFILE REUSE and a temp file to be associated with the new PDB already exists, then the database returns an error and does not create the PDB.

user_tablespaces_clause

This clause lets you specify the tablespaces to be made available in the new PDB. The SYSTEM, SYSAUX, and TEMP tablespaces are available in all PDBs and cannot be specified in this clause.

You can use this clause to separate the data for multiple schemas into different PDBs. For example, when you move a non-CDB to a PDB, and the non-CDB had a number of schemas that each supported a different application, you can use this clause to separate the data belonging to each schema into a separate PDB, assuming that each schema used a separate tablespace in the non-CDB.

  • Specify tablespace to make the tablespace available in the new PDB. You can specify more than one tablespace in a comma-separated list.

  • Specify ALL to make all tablespaces available in the new PDB. This is the default.

  • Specify ALL EXCEPT to make all tablespaces available in the new PDB, except the specified tablespaces.

  • Specify NONE to make only the SYSTEM, SYSAUX, and TEMP tablespaces available in the new PDB.

When the compatibility level of the CDB is 12.2 or higher, the tablespaces that are excluded by this clause are created offline in the new PDB, and they have no data files associated with them. When the compatibility level of the CDB is lower than 12.2, the tablespaces that are excluded by this clause are offline in the new PDB, and all data files that belong to these tablespaces are unnamed and offline.

{ SNAPSHOT COPY | NO DATA }

These clauses apply only when cloning a PDB with the create_pdb_clone clause. They do not apply when cloning a non-CDB. By default, the database creates each tablespace to be made available in the new PDB according to the settings specified for cloning the PDB. These clauses allow you to override those settings as follows:

  • SNAPSHOT COPY - Clone the tablespace using storage snapshots.

  • NO DATA - Clone the data model definition of the tablespace, but not the tablespace's data.

{ COPY | MOVE | NOCOPY }

These clauses apply when you plug in a PDB with the create_pdb_from_xml clause. By default, the database creates each tablespace to be made available in the new PDB according to the settings specified for plugging in the PDB. These clauses allow you to override those settings as follows:

  • COPY - Copy the tablespace files to the new location.

  • MOVE - Move the tablespace files to the new location.

  • NOCOPY - Do not copy or move the tablespace files to the new location.

standbys_clause

Use this clause to specify whether the new PDB is included in one or more standby CDBs. If you include a PDB in a standby CDB, then during standby recovery the standby CDB will search for the data files for the PDB. If the data files are not found, then standby recovery will stop and you must copy the data files to the correct location before you can restart recovery.

  • Specify cdb_name to include the new PDB in the specified standby CDB. You can specify more than one standby CDB name in a comma-separated list.

  • Specify ALL to include the new PDB in all standby CDBs. This is the default.

  • Specify ALL EXCEPT to include the new PDB in all standby CDBs, except the specified standby CDBs.

  • Specify NONE to exclude the new PDB from all standby CDBs. When a PDB is excluded from all standby CDBs, the PDB's data files are unnamed and marked offline on all of the standby CDBs. Standby recovery will not stop if the data files for the PDB are not found on the standby. If you instantiate a new standby CDB after the PDB is created, then you must explicitly disable the PDB for recovery on the new standby CDB.

You can enable a PDB on a standby CDB after it was excluded on that standby CDB by copying the data files to the correct location, bringing the PDB online, and marking it as enabled for recovery.

logging_clause

Use this clause to specify the default logging attribute for tablespaces created within the PDB. The logging attribute controls whether certain DML operations are logged in the redo log file (LOGGING) or not (NOLOGGING).The default is LOGGING.

When creating a tablespace, you can override the default logging attribute by specifying the logging_clause of the CREATE TABLESPACE statement.

Refer to logging_clause for a full description of this clause.

create_file_dest_clause

By default, a newly created PDB inherits its Oracle Managed Files settings from the root. If the root uses Oracle Managed Files, then the PDB also uses Oracle Managed Files. The PDB shares the same base file system directory for Oracle Managed Files with the root and has its own subdirectory named with the GUID of the PDB. If the root does not use Oracle Managed Files, then the PDB also does not use Oracle Managed Files.

This clause lets you override the default behavior. You can enable or disable Oracle Managed Files for the PDB and you specify a different base file system directory or Oracle ASM disk group for the PDB's files.

  • Specify NONE to disable Oracle Managed Files for the PDB.

  • Specify either directory_path_name or diskgroup_name to enable Oracle Managed Files for the PDB.

    Specify directory_path_name to designate the base file system directory for the PDB's files. Specify the full path name of the operating system directory. The directory must exist and Oracle processes must have appropriate permissions on the directory. The single quotation marks are required, with the result that the path name is case sensitive.

    Specify diskgroup_name to designate the default Oracle ASM disk group for the PDB's files.

If you specify a value other than NONE, then the database implicitly sets the DB_CREATE_FILE_DEST initialization parameter with SCOPE=SPFILE in the PDB.

HOST and PORT

These clauses are useful only if you are creating a PDB that you plan to reference from a proxy PDB. This type of PDB is called a referenced PDB.

When creating a referenced PDB:

  • If the name of the listener is different from the host name of the PDB, then you must specify the HOST clause. For hostname, specify the fully qualified domain name of the listener. Enclose hostname in single quotation marks. For example: 'myhost.example.com'.

    In an Oracle Real Application Clusters (Oracle RAC) environment, you can specify for hostname any of the hosts for the PDB.

  • If the port number of the listener is not 1521, then you must specify the PORT clause. For number, specify the port number for the listener.

A proxy PDB uses a database link to establish communication with its referenced PDB. After communication is established, the proxy PDB communicates directly with the referenced PDB without using a database link. The host name and port number of the listener for the referenced PDB must be correct for the proxy PDB to function properly.

See Also:

The clause AS PROXY FROM of create_pdb_clone for information on creating a proxy PDB

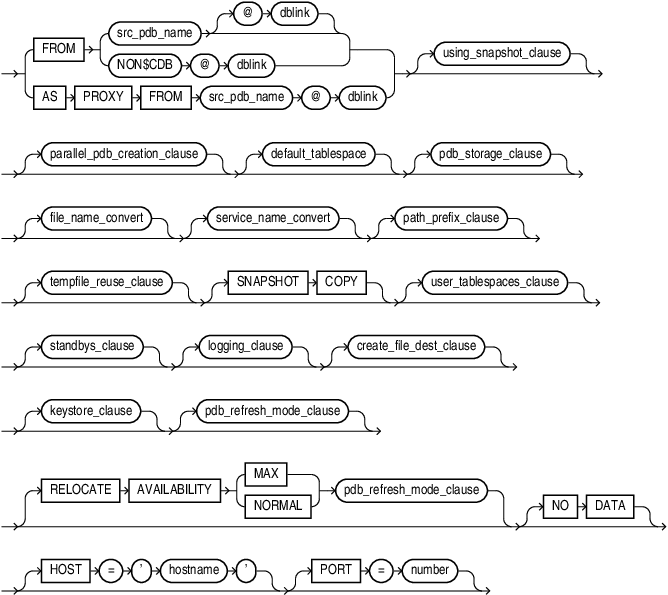

create_pdb_clone

This clause enables you to create a new PDB by cloning a source to a target PDB. The source can be a PDB in the local CDB, a PDB in a remote CDB, or a non-CDB. The target PDB is the clone of the source.

If the source is a PDB in the local CDB, then the source PDB can be plugged in or unplugged. If the source is a PDB in a remote CDB, then the source PDB must be plugged in.

If the source is a non-CDB or a PDB in a remote CDB, then the source and the CDB that contains the target PDB must meet the following requirements:

  • They must have the same endian format.

  • They must have compatible character sets and national character sets, which means:

    • Every character in the source character set is available in the local CDB character set.

    • Every character in the source character set has the same code point value in the local CDB character set.

  • They must have the same set of database options installed.

Users in the PDB who used the default temporary tablespace of the source non-CDB or PDB use the default temporary tablespace of the new PDB. Users who used non-default temporary tablespaces in the non-CDB or PDB continue to use the same local temporary tablespaces in the new PDB.

You can clone a united PDB or an isolated PDB with the same command. The only difference is that the keystore password you must provide are for different keystores.

Hot Clone a PDB: Example

   CREATE PLUGGABLE DATABASE CDB1_PDB2_CLONE FROM CDB1_PDB2
    KEYSTORE IDENTIFIED BY keystore_password

For a united PDB:

  • keystore_password is the ROOT keystore password.

  • The wallet must be open in ROOT.

For an isolated PDB:

  • keystore_password is the new keystore password for the PDB CDB1_PDB2_CLONE.

  • The wallet must be open in CDB1_PDB2_CLONE.

Clone a PDB: Example

United PDB

   CREATE PLUGGABLE DATABASE CDB1_PDB1_C AS CLONE USING '/tmp/cdb1_pdb3.pdb'
    KEYSTORE IDENTIFED BY keystore_password DECRYPT USING transport_secret
  • The wallet must be open in ROOT, if TDE is in use.

  • If there are TDE keys in the .pdb file, you must specify KEYSTORE IDENTIFED BY and provide transport_secret.

  • keystore_password is the ROOT keystore password.

Isolated PDB

CREATE PLUGGABLE DATABASE CDB1_PDB2_C AS CLONE USING '/tmp/cdb1_pdb2.pdb'
  • You need not specify KEYSTORE IDENTIFED BY or transport_secret. If specified, they are ignored.

  • The wallet need not be open in ROOT.

See Also:

Oracle Database Administrator's Guide for the complete steps for creating a PDB by cloning an existing PDB

FROM

Use this clause to specify the source PDB or non-CDB. The files associated with the source are copied to a new location and these copied files are then associated with the new PDB.

The source PDB or non-CDB cannot be closed. It can be open as follows:

  • If the CDB that contains the source PDB (the source CDB) or the source non-CDB is in ARCHIVELOG mode and local undo mode, then the source PDB or the source non-CDB can be open in READ WRITE mode and fully functional during the cloning operation. This is called hot PDB cloning.

  • If the source CDB or source non-CDB is not in ARCHIVELOG mode, then the source PDB or non-CDB must be open READ ONLY.

Specify the source PDB or non-CDB as follows:

  • If the source is a PDB in the local CDB, then use src_pdb_name to specify the name of the source PDB. You cannot specify PDB$SEED for src_pdb_name. Instead, use the create_pdb_from_seed clause to create a PDB by using the seed as a template.

  • If the source is a PDB in a remote CDB, then use src_pdb_name to specify the name of the source PDB and dblink to specify the name of the database link to use to connect to the remote CDB.

  • If the source is a non-CDB, then specify NON$CDB@dblink, where dblink is the name of the database link to use to connect to the non-CDB.

AS PROXY FROM

Use this clause to create a proxy PDB by referencing a different PDB, which is referred to as the referenced PDB. The referenced PDB can be in the same CDB as the proxy PDB or in a different CDB. A local proxy PDB is in the same CDB as its referenced PDB, and a remote proxy PDB is in a different CDB than its referenced PDB.

For src_pdb_name@dblink, specify the referenced PDB.

See Also:

Oracle Database Administrator’s Guide for the complete steps for creating a proxy PDB

default_tablespace

Use this clause to specify a permanent default tablespace for the PDB. Oracle Database will assign the default tablespace to any non-SYSTEM user for whom a different permanent tablespace is not specified. The tablespace must already exist in the source PDB or non-CDB. Because the tablespace already exists, you cannot specify the DATAFILE clause or the extent_management_clause when creating a PDB with the create_pdb_clone clause.

pdb_storage_clause

Use this clause to specify storage limits for the new PDB. Refer to pdb_storage_clause for the full semantics of this clause.

file_name_convert

Use this clause to determine how the database generates the names of files for the new PDB. Refer to file_name_convert for the full semantics of this clause.

service_name_convert

Use this clause to determine how the database renames services for the new PDB. Refer to service_name_convert::= for the full semantics of this clause.

path_prefix_clause

Use this clause to ensure that all directory object paths associated with the PDB are restricted to the specified directory or its subdirectories. Refer to path_prefix_clause for the full semantics of this clause.

tempfile_reuse_clause

Specify TEMPFILE REUSE to instruct the database to format and reuse a temp file associated with the new PDB if it already exists. Refer to tempfile_reuse_clause for the full semantics of this clause.

SNAPSHOT COPY

You can specify SNAPSHOT COPY only when cloning a PDB. This clause is not supported when cloning a non-CDB. The source PDB can be in the local CDB or a remote CDB. The SNAPSHOT COPY clause instructs the database to clone the source PDB using storage snapshots. This reduces the time required to create the clone because the database does not need to make a complete copy of the source data files.

When you use the SNAPSHOT COPY clause to create a clone of a source PDB and the CLONEDB initialization parameter is set to FALSE, the underlying file system for the source PDB's files must support storage snapshots. Such file systems include Oracle Automatic Storage Management Cluster File System (Oracle ACFS) and Direct NFS Client storage.

When you use the SNAPSHOT COPY clause to create a clone of a source PDB and the CLONEDB initialization parameter is set to TRUE, the underlying file system for the source PDB's files can be any local file system, network file system (NFS), or clustered file system that has Direct NFS enabled. However, the source PDB must remain in open read-only mode as long as any clones exist.

Direct NFS Client enables an Oracle database to access network attached storage (NAS) devices directly, rather than using the operating system kernel NFS client. If the PDB files are stored on Direct NFS Client storage, then the following additional requirements must be met:

  • The source PDB files must be located on an NFS volume.

  • Storage credentials must be stored in a Transparent Data Encryption keystore.

  • The storage user must have the privileges required to create and destroy snapshots on the volume that hosts the source PDB files.

  • Credentials must be stored in the keystore using an ADMINISTER KEY MANAGEMENT ADD SECRET SQL statement.

When you use the SNAPSHOT COPY clause to create a clone of a source PDB, the following restrictions apply to the source PDB as long as any clones exist:

  • It cannot be unplugged.

  • It cannot be dropped.

PDB clones created using the SNAPSHOT COPY clause cannot be unplugged. They can only be dropped. Attempting to unplug a clone created using the SNAPSHOT COPY clause results in an error.

For a PDB created using the SNAPSHOT COPY clause in an Oracle Real Application Clusters (Oracle RAC) environment, each node that must access the PDB's files must be mounted. For Oracle RAC databases running on Linux or UNIX platforms, the underlying NFS volumes must be mounted. If the Oracle RAC database is running on a Windows platform and using Direct NFS for shared storage, then you must update the oranfstab file on all nodes with the created volume export and mount entries.

Storage clones are named and tagged using the new PDB GUID. You can query the CLONETAG column of DBA_PDB_HISTORY view to view clone tags for storage clones.

keystore_clause

Specify this clause if the source database has encrypted data or a keystore set. For keystore_password, specify the password for the keystore. You must provide this password even if the source database is using an auto-login software keystore. You can find if the source database has encrypted data by querying the DBA_ENCRYPTED_COLUMNS data dictionary view or the V$ENCRYPTED_TABLESPACES dynamic performance view.

pdb_refresh_mode_clause

The REFRESH MODE clause applies only when cloning a PDB. The source PDB must be in a remote CDB, that is, you must specify the source PDB using the FROM src_pdb_name@dblink clause.

This clause lets you specify the refresh mode of the PDB. You can use this clause to create a refreshable PDB. Changes in the source PDB can be propagated to the refreshable PDB, either manually or automatically. This operation is called a refresh. You can specify the following refresh modes:

  • MANUAL - This mode allows you to refresh the refreshable PDB manually at any time by issuing an ALTER PLUGGABLE DATABASE REFRESH statement.

  • EVERY refresh_interval MINUTES or HOURS – This mode instructs the database to refresh the refreshable PDB every refresh_interval of selected time units, minutes or hours. If you select MINUTES, the refresh_interval must be less than 3000. If you select HOURS, the refresh_interval must be less than 2000. This mode also allows you to refresh the PDB manually at any time by issuing an ALTER PLUGGABLE DATABASE REFRESH statement.

  • NONE - If you specify this mode, then the clone PDB is not a refreshable PDB. The database cannot refresh the PDB automatically and you cannot refresh the PDB manually. If you specify this mode, then you cannot later change the PDB into a refreshable PDB. This is the default.

A refreshable PDB can be opened only in READ ONLY mode. A refreshable PDB must be closed in order for a refresh to occur. If it is not closed when you attempt to perform a manual refresh, then an error will occur. If it is not closed when the database attempts an automatic refresh, then the refresh will be deferred until the next scheduled refresh.

See Also:

RELOCATE

Use this clause to relocate a PDB from one CDB to another. The database first clones the source PDB to the target PDB, and then removes the source PDB. The database also moves the files associated with the PDB to a new location. This operation is the fastest way to relocate a PDB with minimal down time. The down time for the PDB is approximately the time required to copy the PDB's files from their old location to their new location. The source PDB can be open in READ WRITE mode and fully functional during the relocation operation.

You can specify the availability level with the AVAILABILITY keyword. The default availability is NORMAL. If you specify AVAILABILITY MAX, then additional operations are performed to ensure a smooth migration of the workload in a persistent connection between source and target.

In the create_pdb_clone clause, you must use the FROM src_pdb_name@dblink syntax to identify the location of the source PDB. For src_pdb_name, specify the name of the source PDB. For dblink, specify a database link that indicates the location of the source PDB. The database link must have been created in the CDB to which the PDB will be relocated. It can connect either to the root of the remote CDB or to the remote PDB.

See Also:

Oracle Database Administrator’s Guide for the complete steps for relocating a PDB

NO DATA

The NO DATA clause applies only when cloning a PDB. This clause specifies that the source PDB's data model definition is cloned, but not the PDB's data. The dictionary data in the source PDB is cloned, but all user-created table and index data from the source PDB is discarded.

Restrictions on the NO DATA Clause

The following restrictions apply to the NO DATA clause:

  • The source PDB should be open in read only mode when you use the NO DATA clause to clone a PDB.

  • You cannot specify NO DATA when cloning a non-CDB.

  • You cannot specify NO DATA if the source PDB contains clustered tables, Advanced Queuing (AQ) tables, index-organized tables, or tables that contain abstract data type columns.

HOST and PORT

These clauses are useful only if you are creating a PDB that you plan to reference from a proxy PDB. This type of PDB is called a referenced PDB. Refer to HOST and PORT for the full semantics of these clauses.

create_pdb_from_xml

This clause enables you to create a PDB by plugging an unplugged PDB or a non-CDB (the source database) into a CDB (the target CDB). If the source database is an unplugged PDB, then it may have been unplugged from the target CDB or a different CDB.

The source database and the target CDB must meet the following requirements:

  • They must have the same endian format.

  • They must have compatible character sets and national character sets, which means:

    • Every character in the source database character set is available in the target CDB character set.

    • Every character in the source database character set has the same code point value in the target CDB character set.

  • They must have the same set of database options installed.

See Also:

AS CLONE

Specify this clause only if the target CDB already contains a PDB that was created using the same set of data files. The source files remain as an unplugged PDB and can be used again. Specifying AS CLONE also ensures that Oracle Database generates new identifiers, such as DBID and GUID, for the new PDB.

USING

This clause lets you specify a file that contains information about the source database that your are plugging in. For filename, specify the full path name of the file. You can obtain this file in one of the following ways:

  • If the source database is an unplugged PDB, then the file was created by the pdb_unplug_clause of ALTER PLUGGABLE DATABASE as follows:

    • If the filename ends with the extension .xml, then it is an XML file containing metadata about the PDB. In this case, you must ensure that the XML metadata file, as well as the PDB's data files, are in a location that is accessible to the CDB.

    • If the filename ends with the extension .pdb, then it is a PDB archive file. This is a compressed file that includes an XML file containing metadata about the PDB, as well as the PDB's data files. The PDB archive file must exist in a location that is accessible to the CDB. When you use a .pdb archive file, this file is extracted when you plug in the PDB, and the PDB’s files are placed in the same directory as the .pdb archive file. Therefore, the source_file_directory clause is not required.

  • If the source database is a non-CDB, then you must create the XML metadata file using the DBMS_PDB package, and ensure that the XML metadata file, as well as the source non-CDB's data files, are in a location that is accessible to the CDB.

See Also:

source_file_name_convert

Specify this clause only if the contents of the XML file do not accurately describe the locations of the source files. If the files that must be used to plug in the source database are no longer in the location specified in the XML file, then use this clause to map the specified file names to the actual file names.

  • For filename_pattern, specify the string for the location of the files as specified in the XML file.

  • For replacement_filename_pattern, specify the string for the actual location that contains the files that must be used to create the PDB.

Oracle Database will replace filename_pattern with replacement_filename_pattern when searching for the source database files.

File name patterns cannot match files or directories managed by Oracle Managed Files.

If the files that must be used to create the PDB exist in the location specified in the XML file, you can either omit this clause or specify SOURCE_FILE_NAME_CONVERT=NONE.

source_file_directory

Specify this clause only if the contents of the XML file do not accurately describe the locations of the source files and the source files are all present in a single directory. This clause is convenient when you have a large number of data files and specifying a replacement file name pattern for each file using the source_file_name_convert clause is not feasible.

  • For directory_path_name, specify the absolute path of the directory that contains the source files. The directory is scanned to find the appropriate files based on the unplugged PDB's XML file.

You can specify this clause for configurations that use Oracle Managed Files and for configurations that do not use Oracle Managed Files.

If the files that must be used to create the PDB exist in the location specified in the XML file, you can either omit this clause or specify SOURCE_FILE_DIRECTORY=NONE.

COPY

Specify COPY if you want the files listed in the XML file to be copied to the new location and used for the new PDB. This is the default. You can use the optional file_name_convert clause to use pattern replacement in the new file names. Refer to file_name_convert for the full semantics of this clause.

MOVE

Specify MOVE if you want the files listed in the XML file to be moved, rather than copied, to the new location and used for the new PDB. You can use the optional file_name_convert clause to use pattern replacement in the new file names. Refer to file_name_convert for the full semantics of this clause.

NOCOPY

Specify NOCOPY if you want the files for the PDB to remain in their current locations. Use this clause if there is no need to copy or move the files required to plug in the PDB.

service_name_convert

Use this clause to determine how the database renames services for the new PDB. Refer to service_name_convert::= for the full semantics of this clause.

default_tablespace

Use this clause to specify a permanent default tablespace for the PDB. Oracle Database will assign the default tablespace to any non-SYSTEM user for whom a different permanent tablespace is not specified. The tablespace must already exist in the source database. Because the tablespace already exists, you cannot specify the DATAFILE clause or the extent_management_clause when creating a PDB with the create_pdb_from_xml clause.

pdb_storage_clause

Use this clause to specify storage limits for the new PDB. Refer to pdb_storage_clause for the full semantics of this clause.

path_prefix_clause

Use this clause to ensure that all directory object paths associated with the PDB are restricted to the specified directory or its subdirectories. Refer to path_prefix_clause for the full semantics of this clause.

tempfile_reuse_clause

Specify TEMPFILE REUSE to instruct the database to format and reuse a temp file associated with the new PDB if it already exists. Refer to tempfile_reuse_clause for the full semantics of this clause.

HOST and PORT

These clauses are useful only if you are creating a PDB that you plan to reference from a proxy PDB. This type of PDB is called a referenced PDB. Refer to HOST and PORT for the full semantics of these clauses.

create_pdb_from_mirror_copy

Specify this clause to create a pluggable database new_pdb_name using the prepared files of the mirror copy mirror_name. The new PDB will be split from the source database using the prepared files created by the prepare_clause.

  • You must execute this clause from the root container.

  • The meaning of the other optional parameters remains unchanged by this clause.

  • You can only split one database from a prepared mirror copy. If you want to create additional splits, you must prepare a new mirror copy.

using_snapshot_clause

Specify this clause to create a PDB using an existing PDB snapshot that can be identified by its name, SCN, or timestamp.

If you create a PDB specifying SNAPSHOT COPY, then the new PDB will depend on the existence of the PDB snapshot. This will affect your ability to drop or purge the PDB.

container_map_clause

Specify this clause in CDB Root, Application Root or both to dynamically update changes as they happen to the new PDB.

You must note the following points with container maps:

  • The container_map_clause is optional.

  • The add_partition_clause will add a new partition to the container map defined in the Root (CDB Root and/or Application Root) of the new PDB.

  • The split_partition_clause will split an existing partition of the container map defined in the Root (CDB Root and/or Application Root) of the new PDB.

  • In the absence of add_partition_clause and split_partition_clause, container map defined in the Root of the new PDB is not updated.

  • For PDB relocate, container map defined in the Root (CDB Root and/or Application Root) of the source PDB are automatically updated to reflect the “drop” of the source PDB.

  • Dynamic maintenance of container map defined using hash partitioning is not supported

Add a New Partition to a Range-Partitioned Container Map: Example

  CREATE PLUGGABLE DATABASE cdb1_pdb3
    ADMIN USER IDENTIFIED BY manager
    FILE_NAME_CONVERT=('cdb1_pdb0, cdb1_pdb3')
    CONTAINER_MAP UPDATE (ADD PARTITION cdb1_pdb3 VALUES LESS THAN (100));
    ALTER PLUGGABLE DATABASE cdb1_pdb3 OPEN

Split an Existing Partition of a Range-Partitioned Container Map to Create a New Partition: Example

  CREATE PLUGGABLE DATABASE cdb1_pdb4
    ADMIN USER IDENTIFIED BY manager
    FILE_NAME_CONVERT=('cdb1_pdb0, cdb1_pdb4')
    CONTAINER_MAP UPDATE (SPLIT PARTITION cdb1_pdb3
                            AT (50)
                            INTO
                            (PARTITION cdb1_pdb3, PARTITION cdb1_pdb3)
    ALTER PLUGGABLE DATABASE cdb1_pdb4 OPEN

Verify Updated in Range-Partitioned Container Map : Example

  SELECT partition_name, high_value
    FROM dba_tab_partitions
    WHERE table_name='MAP' AND table_owner='SYS'

pdb_snapshot_clause

Specify this clause if you want to be able to create PDB snapshots.

  • NONE is the default. It means that no snapshots of the PDB can be created.

  • MANUAL means that the PDB snapshot can only be created manually.

  • If snapshot interval is specified, PDB snapshots will be created automatically at specified interval. In addition, a user will also be able to create PDB snapshots manually

  • If expressed in minutes, snapshot_interval must be less than 3000.

  • If expressed in hours, snapshot_interval must be less than 2000.

create_pdb_decrypt_from_xml

You must have the SYSKM privilege to execute this command.

For PDBs in united mode, the following restrictions apply:

  • You must specify the clause if you are using a TDE protected database. Otherwise it is optional.

  • You need not specify the clause for an isolated PDB.

  • The wallet must be open in ROOT.

  • The wallet file is copied in all cases: NOCOPY, COPY, and MOVE.

Plugging a PDB from an XML Metadata File: Example

CREATE PLUGGABLE DATABASE CDB1_PDB2 USING '/tmp/cdb1_pdb2.xml' NOCOPY
KEYSTORE IDENTIFIED BY keystore_password DECRYPT USING transport_secret

Plugging a PDB from an Archive File: Example

CREATE PLUGGABLE DATABASE CDB1_PDB1_1_C USING '/tmp/cdb1_pdb3.pdb' DECRYPT USING transport_secret

For PDBs in isolated mode, you need not specify DECRYPT USING transport_secret. This is not required because the wallet file is copied during the creation of an unplugged PDB from an XML file. if you are creating a PDB from an archive file with the .pdb extension, the wallet file of the PDB is available in the zipped archive.

If the ewallet.p12 file already exists at the destination, a backup is automatically initiated. The backup file has the following format: ewallet_PLGDB_2017090517455564.p12.

Examples

Creating a PDB by Using the Seed: Example

The following statement creates a PDB salespdb by using the seed in the CDB as a template. The administrative user salesadm is created and granted the dba role. The default tablespace assigned to any non-SYSTEM users for whom no permanent tablespace is assigned is sales. File names for the new PDB will be constructed by replacing /disk1/oracle/dbs/pdbseed/ in the file names in the seed with /disk1/oracle/dbs/salespdb/. All tablespaces that belong to sales must not exceed 2G. The location of all directory object paths associated with salespdb are restricted to the directory /disk1/oracle/dbs/salespdb/.

CREATE PLUGGABLE DATABASE salespdb
  ADMIN USER salesadm IDENTIFIED BY password
  ROLES = (dba)
  DEFAULT TABLESPACE sales
    DATAFILE '/disk1/oracle/dbs/salespdb/sales01.dbf' SIZE 250M AUTOEXTEND ON
  FILE_NAME_CONVERT = ('/disk1/oracle/dbs/pdbseed/',
                       '/disk1/oracle/dbs/salespdb/')
  STORAGE (MAXSIZE 2G)
  PATH_PREFIX = '/disk1/oracle/dbs/salespdb/';

Cloning a PDB From an Existing PDB: Example

The following statement creates a PDB newpdb by cloning PDB salespdb. PDBs newpdb and salespdb are in the same CDB. Because no storage limits are explicitly specified, there is no limit on the amount of storage for newpdb. The files are copied from /disk1/oracle/dbs/salespdb/ to /disk1/oracle/dbs/newpdb/. The location of all directory object paths associated with newpdb are restricted to the directory /disk1/oracle/dbs/newpdb/.

CREATE PLUGGABLE DATABASE newpdb FROM salespdb
  FILE_NAME_CONVERT = ('/disk1/oracle/dbs/salespdb/', '/disk1/oracle/dbs/newpdb/')
  PATH_PREFIX = '/disk1/oracle/dbs/newpdb';

Plugging a PDB into a CDB: Example

The following statement plugs the PDB salespdb, which was previously unplugged, into the CDB. The details about the metadata describing salespdb are stored in the XML file /disk1/usr/salespdb.xml. The XML file does not accurately describe the current locations of the files. Therefore, the SOURCE_FILE_NAME_CONVERT clause is used to indicate that the files are in /disk2/oracle/dbs/salespdb/, not /disk1/oracle/dbs/salespdb/. The NOCOPY clause indicates that the files are already in the correct location. All tablespaces that belong to sales must not exceed 2G. A file with the same name as the temp file specified in the XML file exists in the target location. Therefore, the TEMPFILE REUSE clause is required.

CREATE PLUGGABLE DATABASE salespdb
  USING '/disk1/usr/salespdb.xml'
  SOURCE_FILE_NAME_CONVERT =
    ('/disk1/oracle/dbs/salespdb/', '/disk2/oracle/dbs/salespdb/')
  NOCOPY
  STORAGE (MAXSIZE 2G)
  TEMPFILE REUSE;
