Query Visualization Settings

You can configure settings for you graph visualization by clicking the Settings gear icon in the Query Visualization tab.

The Visualization Settings slider contains the following three tabs:

• General Tab

• Graph Exploration Tab

• Styles Tab

General Tab

The General tab contains the following configurations:

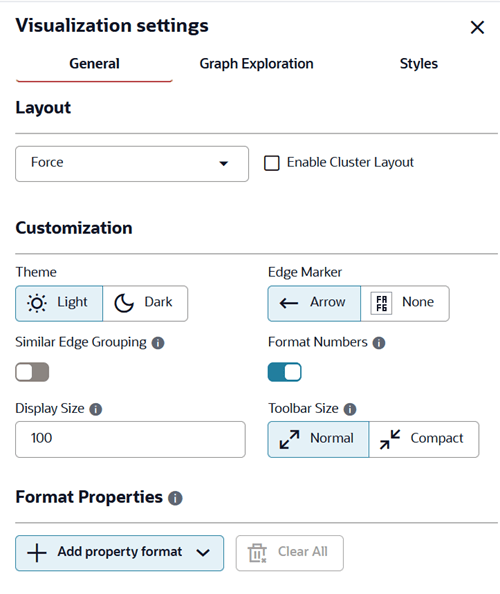

Figure: General Tab

Description of the illustration query_viz_general_tab.png

Table: General Tab Attributes

Attribute	Description
Layout	Supported layouts are: Circle, Concentric, Force (default), Grid, Hierarchical, Preset, Radial, Random, and Geographical. The Force layout also supports a clustering option, which allows you to visualize a graph with clustered vertices. See Layouts in Property Graph Visualization Developer's Guide and Reference for more information.
Theme	Supported themes are: Light (default) Dark
Edge Marker	Supported edge markers are: Arrow (default) None

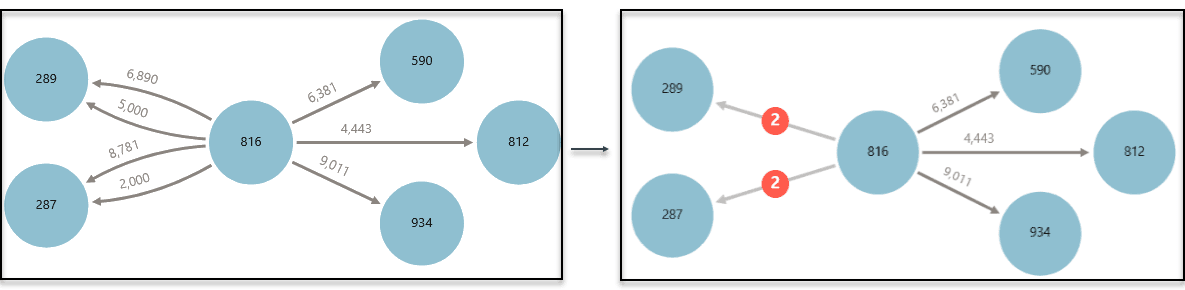

Similar Edge Grouping	When this option is enabled, multiple edges between the same source and target vertices are grouped in the graph. Grouped edges appear as a single edge labeled with a number indicating how many edges were grouped. For example, the following image shows two graph visualizations side by side in Graph Explorer. The visualization on the left displays multiple edges from the source vertex (ID=816) to the destination vertices (ID=287 and ID=289). The visualization on the right shows edges with the same source and target vertex IDs grouped together because Similar Edge Grouping is enabled in the visualization settings. Figure: Grouping Similar Edges
Format Numbers	By default, this option is enabled so that numbers are displayed according to your regional or language settings, such as decimal and grouping separators.
Display Size	Determines the number of graph elements to be visualized on a page from the result set.
Toolbar Size	Determines the size of the buttons and search box placed in the toolbar.
Property Formats	Enables you to configure the format for number and date properties defined in the graph schema. You can specify the locale, prefix, and suffix for number and date values. The configured format is applied consistently in graph captions and property tooltips.

Graph Exploration Tab

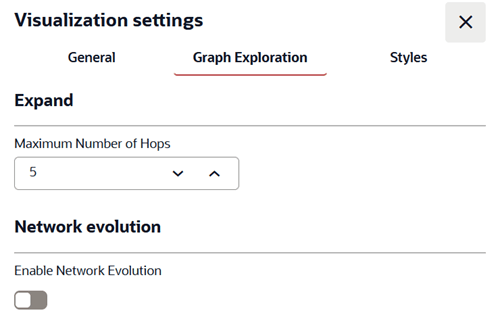

Figure: Graph Exploration

Description of the illustration query_viz_graph_explorer_tab.png

The Graph Exploration tab supports the following configurations:

• You can configure the hop count when expanding one or more selected vertices using the Maximum Number of Hops drop-down in the Expand section.

• You can enable and configure Network Evolution in the Graph Exploration tab in Visualization Settings. See Using Network Evolution in Graph Visualization for more information.

Styles Tab

You can configure and manage vertex and edge styles to customize the appearance of vertices and edges in the graph. The Styles tab in Visualization Settings displays both the default and custom vertex and edge styles.

You can perform the following actions in this tab:

• Add a new custom vertex style.

• Add a new custom edge style.

• Edit the default styling of a vertex or an edge element.

• Edit or delete the custom styling of a vertex or an edge element.

• Restore the default style settings.

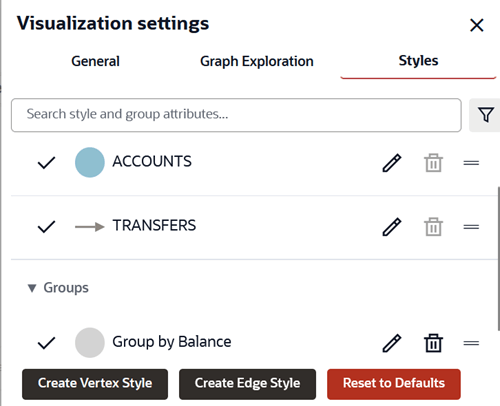

Figure: Styles Tab

Description of the illustration query_viz_styles_tab.png

Adding a new custom style for a vertex or an edge

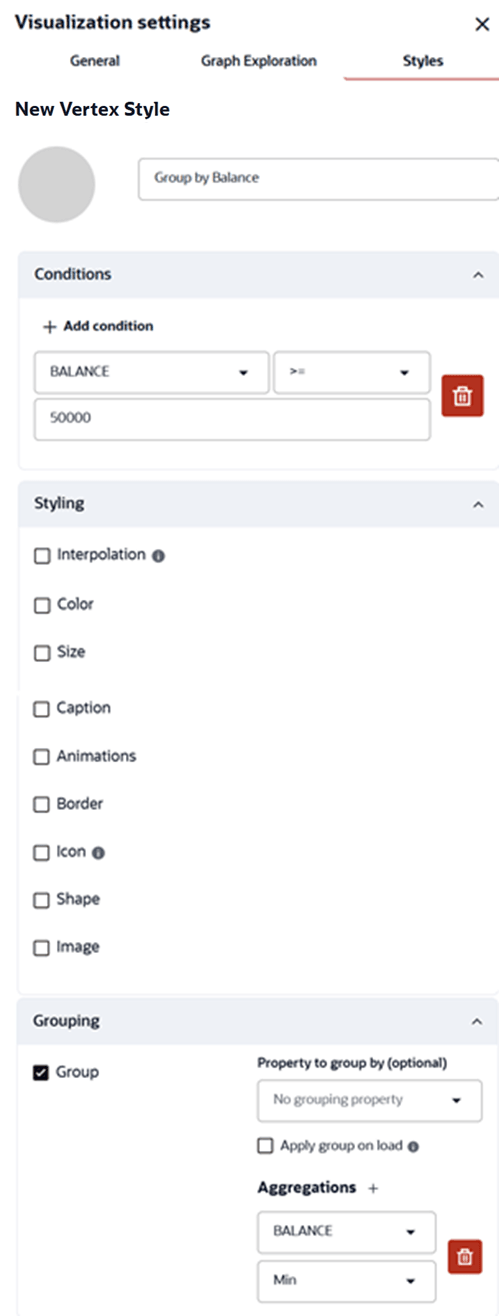

To add a new vertex or an edge style, click Create Vertex Style or Create Edge Style as required. The following shows the screenshot for configuring a new vertex style.

Figure: Adding a new Vertex Style

Description of the illustration custom_vertex_style.png

You can configure the following values as appropriate:

• Name: Name of the style

• Conditions: Click + to add a condition for an element (vertex or edge) and provide the following values:

  • Property of the vertex or edge element.

    Nested JSON scalar properties are displayed using dot notation, for example, hr_data.department.

  • Operator to be applied. The following operators are supported:

    • = (equal to)

    • < (less than)

    • <= (less than or equal to)

    • > (greater than)

    • >= (greater than or equal to)

    • != (not equal to)

    • ~ (filter is a regular expression)

    • CONTAINS (applies for labels only)

    • CONTAINS_REGEX (applies for labels only)

    Also, note the changes in the behavior of the following operator groups:

    • Equality operators (=, !=):

      • When applied on a property that holds a string array value and a condition that holds a simple string, text matching will be performed based on equality instead of contains. CONTAINS operator can be used for checking if the simple string is a substring of the property string value.

      • When applied on a property that holds a number value and a condition that holds a non-numeric string, text matching will yield an empty result.

      • When applied on a property that holds a boolean value and a condition that holds a non-boolean string, text matching will yield an empty result.

    • Comparison operators (>, >=, <, <=): When applied on a property that holds a string array value and a condition that holds a simple string, text comparison will yield an empty result.

    • Regex operator (~):

      • When applied on a property that holds a string array value and a condition that holds a simple string, text matching will yield an empty result. Instead, you can use the CONTAINS_REGEX operator.

      • When applied on a property that holds a number value and a condition that holds a simple string, text matching will yield an empty result.

      • When applied on a property that holds a boolean value and a condition that holds a simple string, text matching will yield an empty result.

  • Value that needs to be fulfilled for the property and the operator

  You can add as many conditions as required. For all elements that meet the conditions, you can configure any of the following styling highlights:

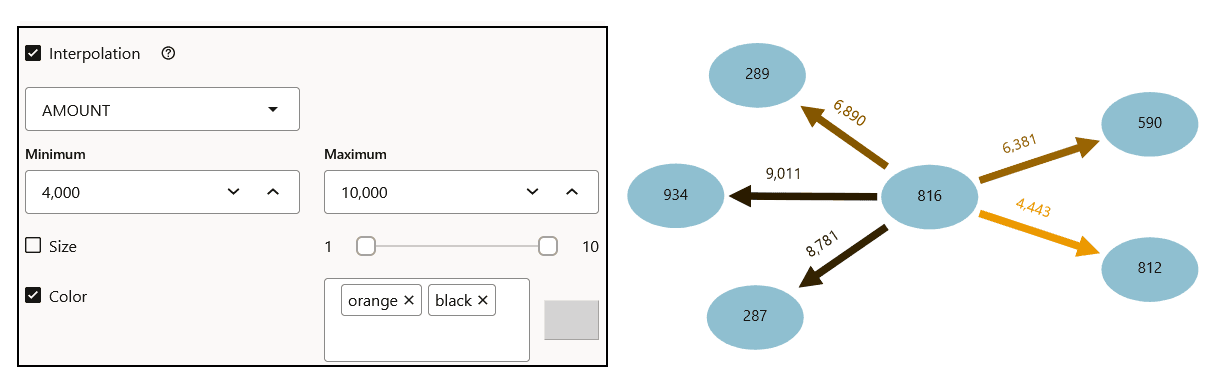

  • Interpolation: Configure interpolation based on the size or color of the vertices or edges. Interpolation will be applied proportionally, between the Minimum and Maximum values. The following figure shows linear color interpolation based on the AMOUNT property between the minimum (4000) and maximum (10000) values.

    Figure: Interpolation in Graph Visualization



    Description of the illustration interpolation.png

  • Opacity: Specify the opacity of the vertex or edge.

  • Color: Specify the color of the vertex or edge.

  • Size: Specify the size of the vertex or edge.

  • Caption: Specify the caption for the vertex or edge. You can also configure the caption font size, color, orientation, and maximum length.

  • Animations: Specify the animation type, such as Pulsating or Flashing, and the duration of the animation cycle.

  • Border: Specify the border color and width of the displayed vertex. This option does not apply for edges.

  • Icon: Specify an image for the vertex. This option does not apply for edges. Click the information icon to get the link to the icon library.

  • Shape: Specify the shape of the vertex. Supported values are Circle, Ellipse Square, Rectangle, Triangle, Diamond, Pentagon, Hexagon, and Octagon. This option does not apply to edges.

  • Image: Specifies an image to use as the background for a vertex. Select Property to use the image URL from a selected property value. Alternatively, select URL and enter an image URL directly. Use Scale to adjust the image size. This option applies only to vertices.

  • Grouping: Groups vertices based on a selected property. Enable Group, select the Group by property, and optionally enable Apply on load to apply grouping automatically when the graph loads. Use Add aggregation to configure aggregated property values for the group.

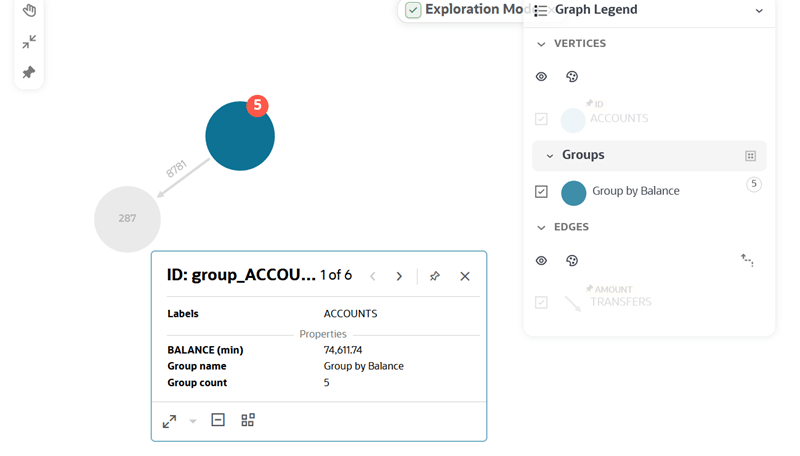

    In the following example, all accounts having BALANCE > 10000 are grouped together. The tooltip shows the group count and the aggregated property value.

    Figure: Rule-based Grouping



    Description of the illustration explorer_rule_based_groups.png
