Configuring Service Communication Proxy using the CNC Console

4.2.1 Configuring SCP Features

This section provides information about enabling the following features of SCP:

Note:

You must log in to the CNC Console while performing the procedures described in the subsequent subsections.

Configuring Enhanced NF Status Processing
Configuring Global Egress Rate Limiting
Configuring Support for 5G SBI Roaming
Configuring Mediation
Configuring Model D Indirect 5G SBI Communication
Configuring SCP User Agent Info
Configuring Message Feed
Configuring Load Control Information (LCI)
Configuring Host Preference for Egress Message Requests
Configuring CCA Header Validation
Configuring Location Header Update for Host Mismatch
Configuring Support for OAuth2.0
Configuring SCP Health Check API

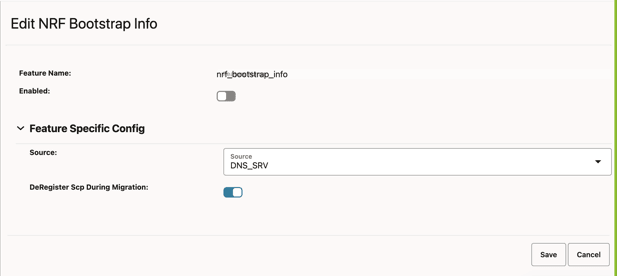

NRF Configuration using DNS SRV Resolution

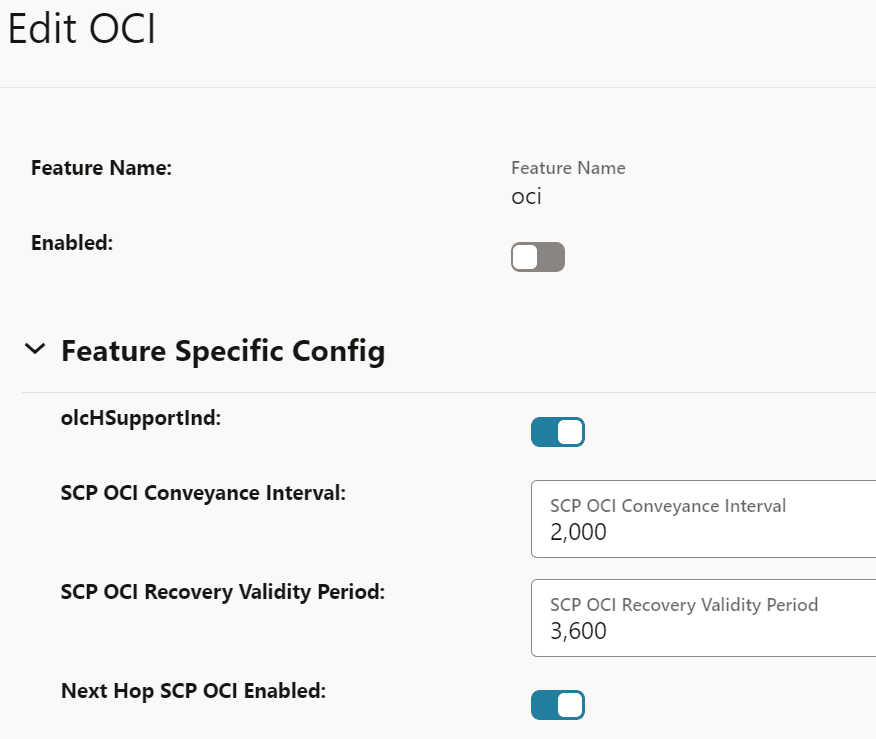

Configuring Overload Control Based on the Overload Control Information Header
Configuring Enhanced NFProfile Processing
Configuring Error Response Enhancement
Enhanced Notifications Handling

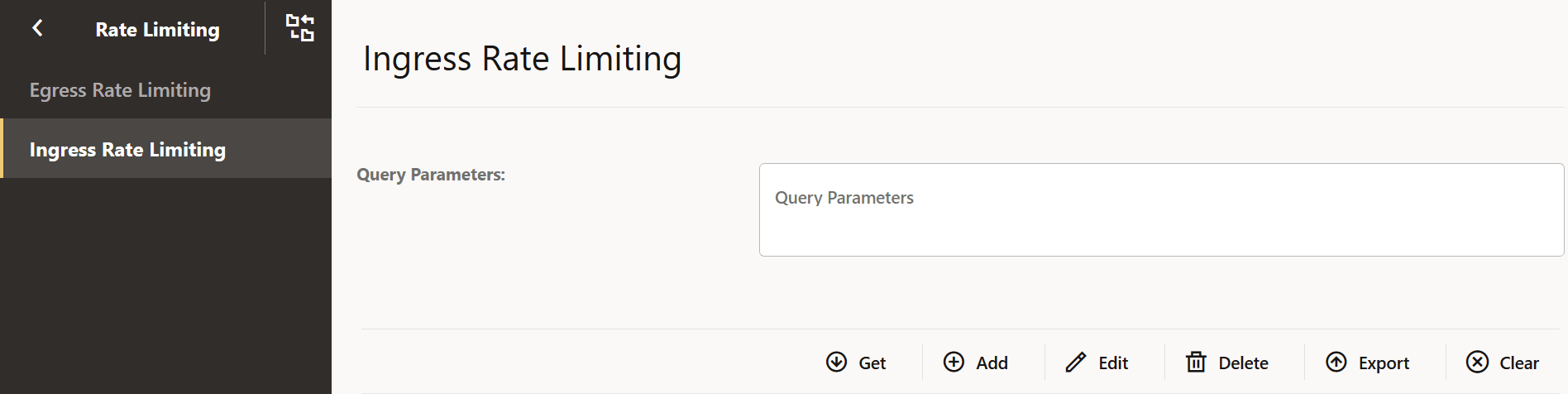

Ingress Rate Limiting
Egress Rate Limiting

4.2.1.1 Configuring the Log Enhancement Feature

Perform the following procedure to enable additional logging and subscriber ID in error logs.

From the left navigation pane, click the SCP tab, and then click the SCP Features tab.
To enable additional logging, from the SCP Features list, click the Additional Logging tab.
1. On the Additional Logging Feature page, click the Edit icon.

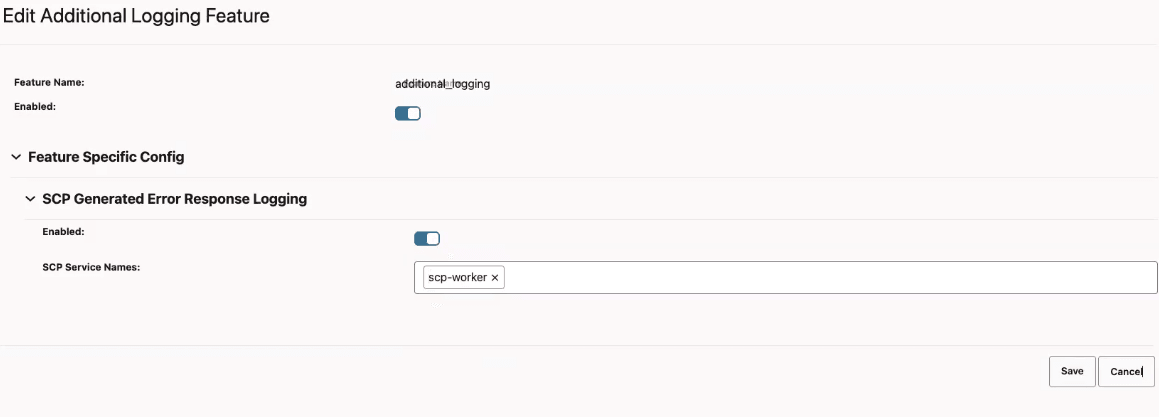

  Figure 4-4 Additional Logging Feature
2. To enable additional logging and add additional log attributes to error logs, set the Enabled option to true for additional_logging.
  By default, the Enabled option is set to false.
3. In the SCP Generated Error Logging section, set the Enabled option to true.

  Note:
  Additional log attributes are appended to error response logs generated by SCP when the Enabled options of additional_logging and SCP Generated Error Logging are set to true.
4. Set the SCP Service Name field to one of the following options:
  - scp-worker: Adds additional logging attributes to SCP-Worker logs.
  - ALL: Adds additional logging attributes to all services logs when SCP enhances this feature to support all microservices. In this release, it supports only SCP-Worker.
  Note:
  - This field value cannot be null.
  - Do not set this field to any other microservice when it is set to ALL.
5. Click Save.
To enable log subscriber information, do the following:
1. From the SCP Features list, click the Log Subscriber Info tab.
2. On the Log Subscriber Info Feature page, click the Edit icon.

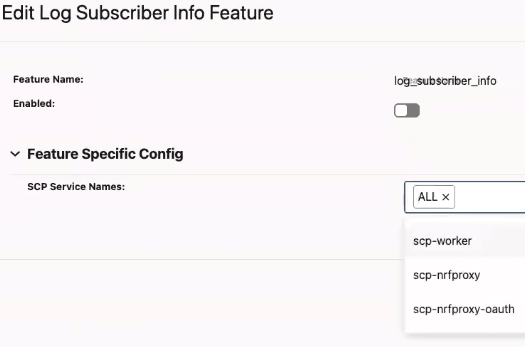

  Figure 4-5 Log Subscriber Info Feature
3. To enable log subscriber info and add subscriber ID to error logs, set the Enabled option to true for log_subscriber_info.
  By default, the Enabled option is set to false.
4. Set the SCP Service Name field to ALL or to any one or combinations of the following options:
  - scp-worker: Adds subscriber ID to SCP-Worker logs.
  - scp-nrfproxy: Adds subscriber ID to SCP-nrfProxy logs.
  - scp-nrfproxy-oauth: Adds subscriber ID to SCP-nrfproxy-oauth logs.
  Note:

  This field value cannot be null.

  Do not set this field to any other microservice when it is set to ALL.
Click Save.

4.2.1.2 Configuring Error Response Enhancement

Perform the following procedure to enable or disable the Error Response Enhancement feature.

From the left navigation pane, click the SCP tab, and then click the SCP Features tab.
From the SCP Features list, click the Enhanced Error Response tab.
On the Enhanced Error Response page, click the Edit icon.

By default, the Enabled option is set to false for enhanced_error_rsp. If this option is set to true, SCP combines all the error responses from both internal and external sources.

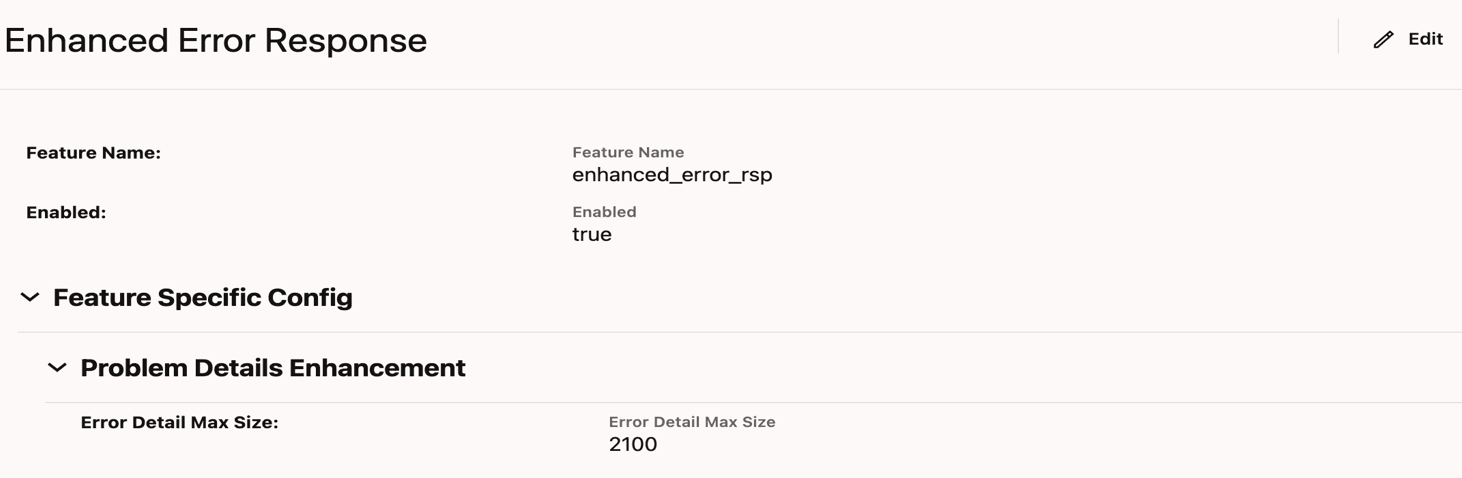

Figure 4-6 Error Response Enhancement
In the Error Detail Max Size, set the limit of the error string.

This field manages the maximum length limit of the compiled error string in the detail parameter of problemDetails as described in "Configuring SCP Features" in Oracle Communications Cloud Native Core, Service Communication Proxy REST Specification Guide. SCP truncates the error string from end if the compiled string is greater than the maximum limit. The default value is 2100.
Click Save.

4.2.1.3 Configuring Enhanced NF Status Processing

Perform the following procedure to enable the support for creating or retaining SCP routing rules for NF Profiles with NF Status as SUSPENDED.

Note:

The Enhanced NF Status Processing feature is applicable only when nnrf-nfm (NRF Management) service is used as an audit service for SCP.

In the left navigation pane, click the SCP tab, and then click the SCP Features tab.
From the SCP Features list, click Enhanced Nf Status Processing.
In the Enhanced NF Status section, click Edit.

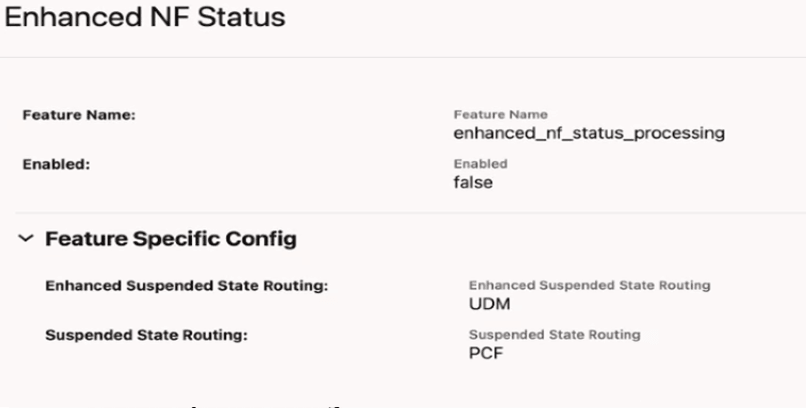

Figure 4-7 Editing Enhanced Nf Status Processing
Set Enabled to true.
By default, this option is set to false.
In the Feature Specific Config section, configure the following fields as required:
- Enhanced Suspended State Routing: Enter the list of valid NF types for Mode 3 routing.
- Suspended State Routing: Enter the list of valid NF types for Mode 2 routing.
Click Save.

4.2.1.4 Configuring Global Egress Rate Limiting

Perform the following procedure to configure global egress rate limiting.

In the left navigation pane, click the Global Egress Rate Limiting tab.
In the Global Egress Rate Limit section, click Edit.
The Edit Global Egress Rate Limit screen appears.

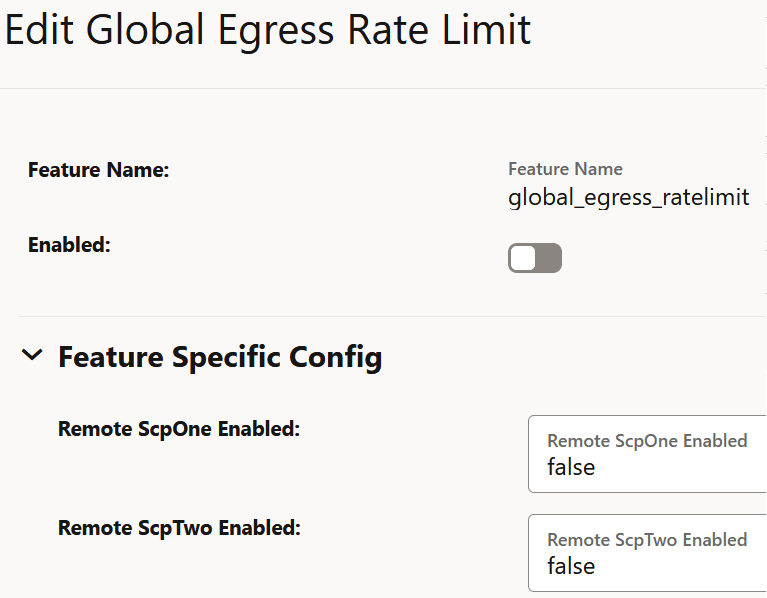

Figure 4-8 Enabling the Global Egress Rate Limiting
Set Enabled to true.
By default, this option is set to false.
In the Feature Specific Config section, configure the following fields:
- Remote ScpOne Enabled: Set this field to true if you want to enable egress rate aggregation with the SCP instance as defined in the coherence.federation.remoteScpOne parameter of the ocscp-custom-values.yaml file. By default, this value is set to false.
- Remote ScpTwo Enabled: Set this field to true if you want to enable egress rate aggregation with the SCP instance as defined in the coherence.federation.remoteScpTwo parameter of the ocscp-custom-values.yaml file. By default, this value is set to false.
Click Save.

4.2.1.5 Configuring Support for 5G SBI Roaming

Perform the following procedure to configure support for 5G SBI roaming.

Note:

Ensure that one local and one remote PLMNs are configured before enabling this feature. To configure a remote PLMN, see Configuring SEPP Inter PLMN Routing. A local PLMN is configured at the time of SCP deployment or by editing the CUSTOM_ORACLE_SCP NF type as described in Configuring NF Rule Profile.

In the left navigation pane, click the Interplmn Routing tab.
In the Interplmn Routing section, click Edit.
The Edit Interplmn Routing screen appears.

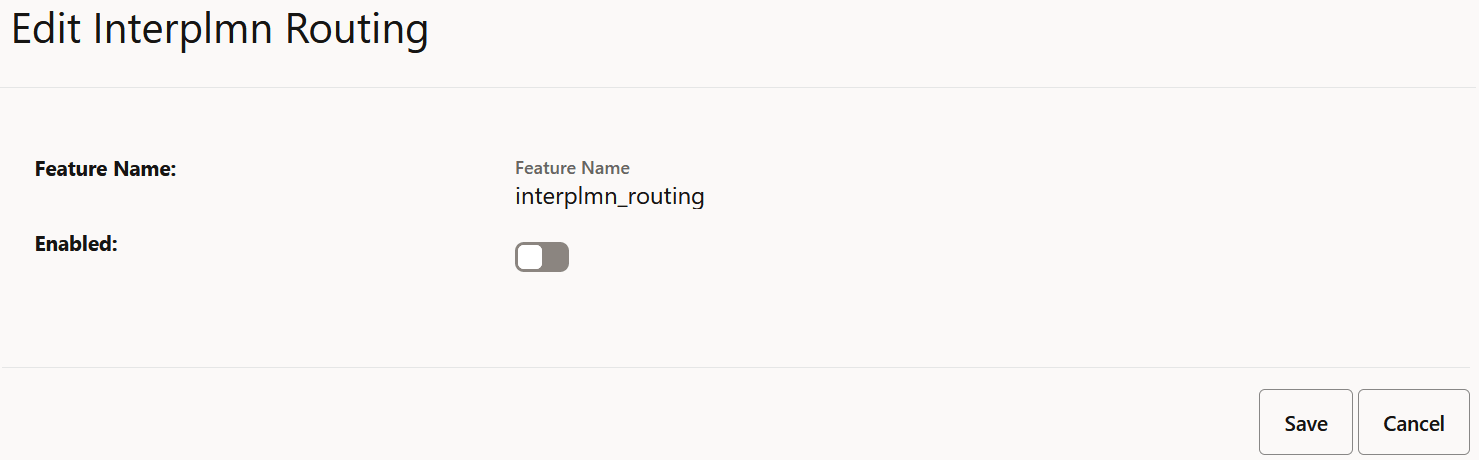

Figure 4-9 Inter PLMN Routing
Set Enabled to true.
By default, this option is set to false.
Click Save.

4.2.1.6 Configuring Mediation

Perform the following to configure mediation.

From the left navigation pane, click the SCP tab, and then click the SCP Features tab.
To enable mediation, from the SCP Features list, click the Mediation tab.
In the Mediation section, click Edit.
The Edit Mediation screen appears.

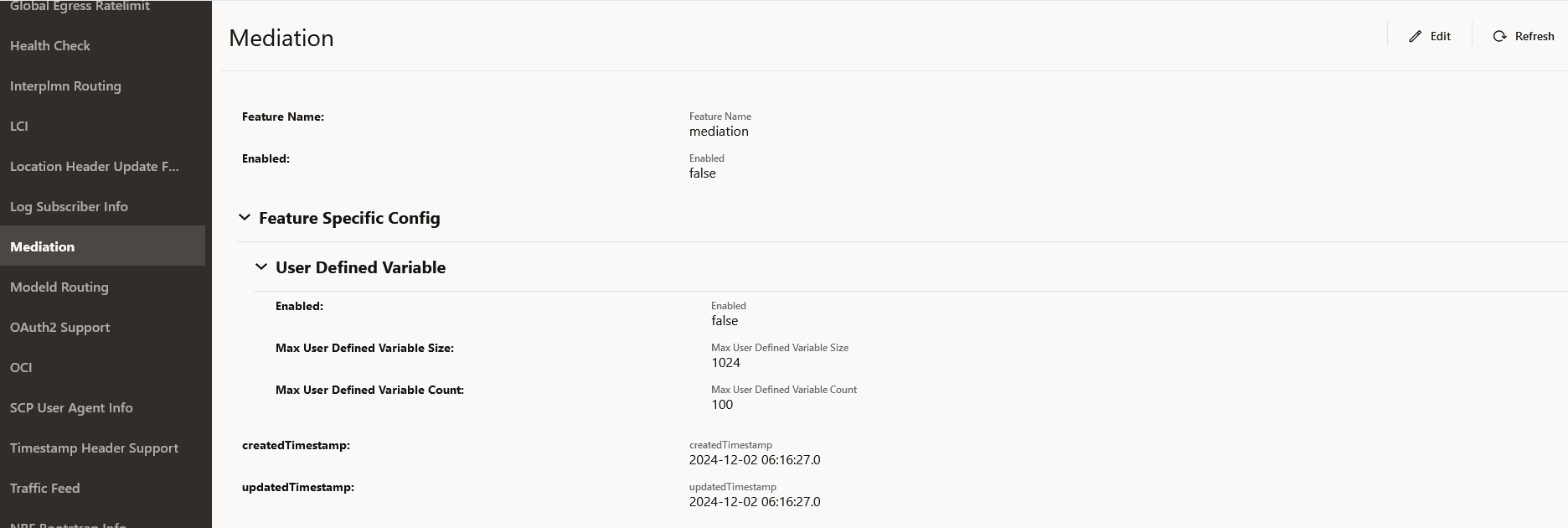

Figure 4-10 Enable Mediation
Set Enabled to true.
By default, this option is set to false.
In the Feature Specific Config section, configure the following fields:
- Set the Enabled true for enabling the User Defined Variable feature.

  Note:
  If the User Defined Variable feature is enabled and any mediation rules are in the Applied state, the enabled field cannot be set back to false until all Applied rules are returned to DRAFT state.
- Set the maxUserDefinedVariableSize field to define the overall max size of all user defined variables included in the request or response body for mediation.
  - Default Value: 1024
  - Range: 512 - 4096
- Set the maxUserDefinedVariableCount field to define the total number of user defined variables that can be configured for usage at User Defined Variables API.
  - Default Value: 100
  - Range: 1-250
  Note:

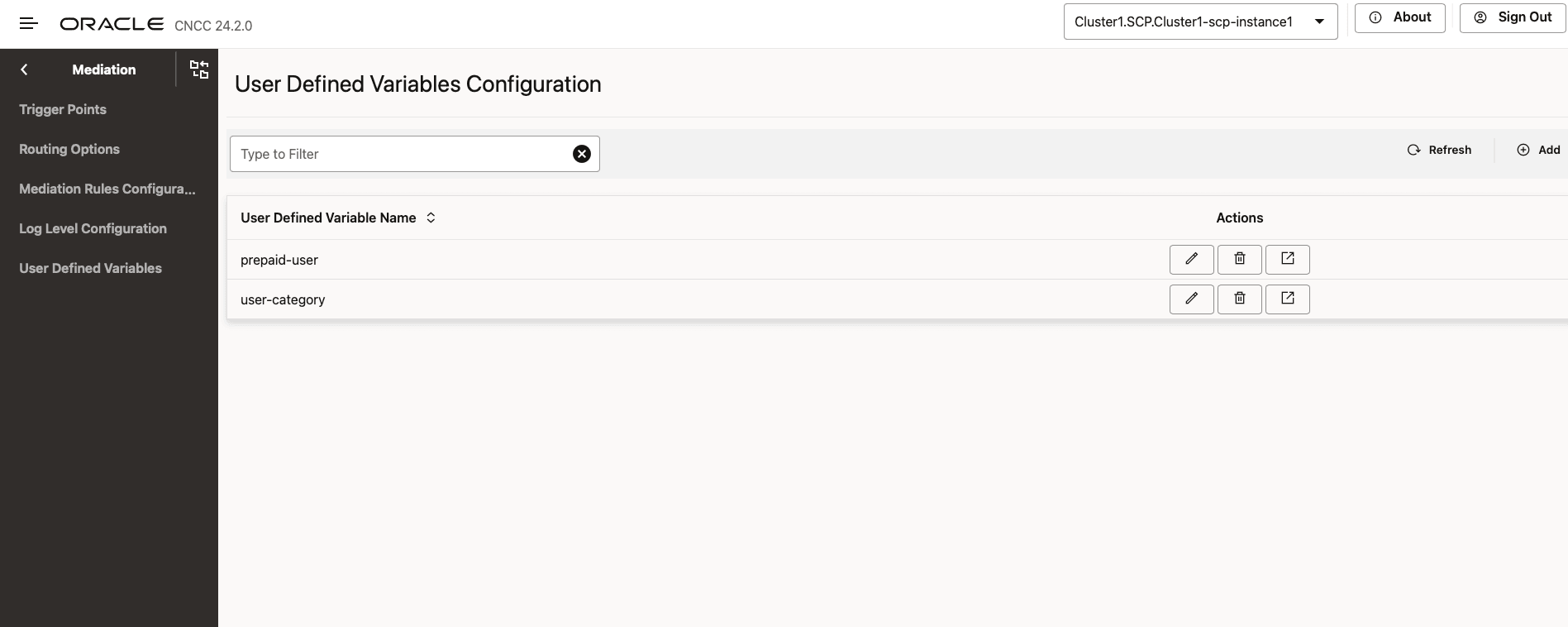

  If userDefinedVariables are added through the User Defined Variables API, the maxUserDefinedVariableCount cannot be set to a value lower than the number of userDefinedVariables currently stored in the database.
Click Save.

4.2.1.7 Configuring Model D Indirect 5G SBI Communication feature

Perform the following to configure Model D indirect 5G SBI communication feature.

In the left navigation pane, click the Modeld Routing tab.
In the Modeld Routing section, click Edit.

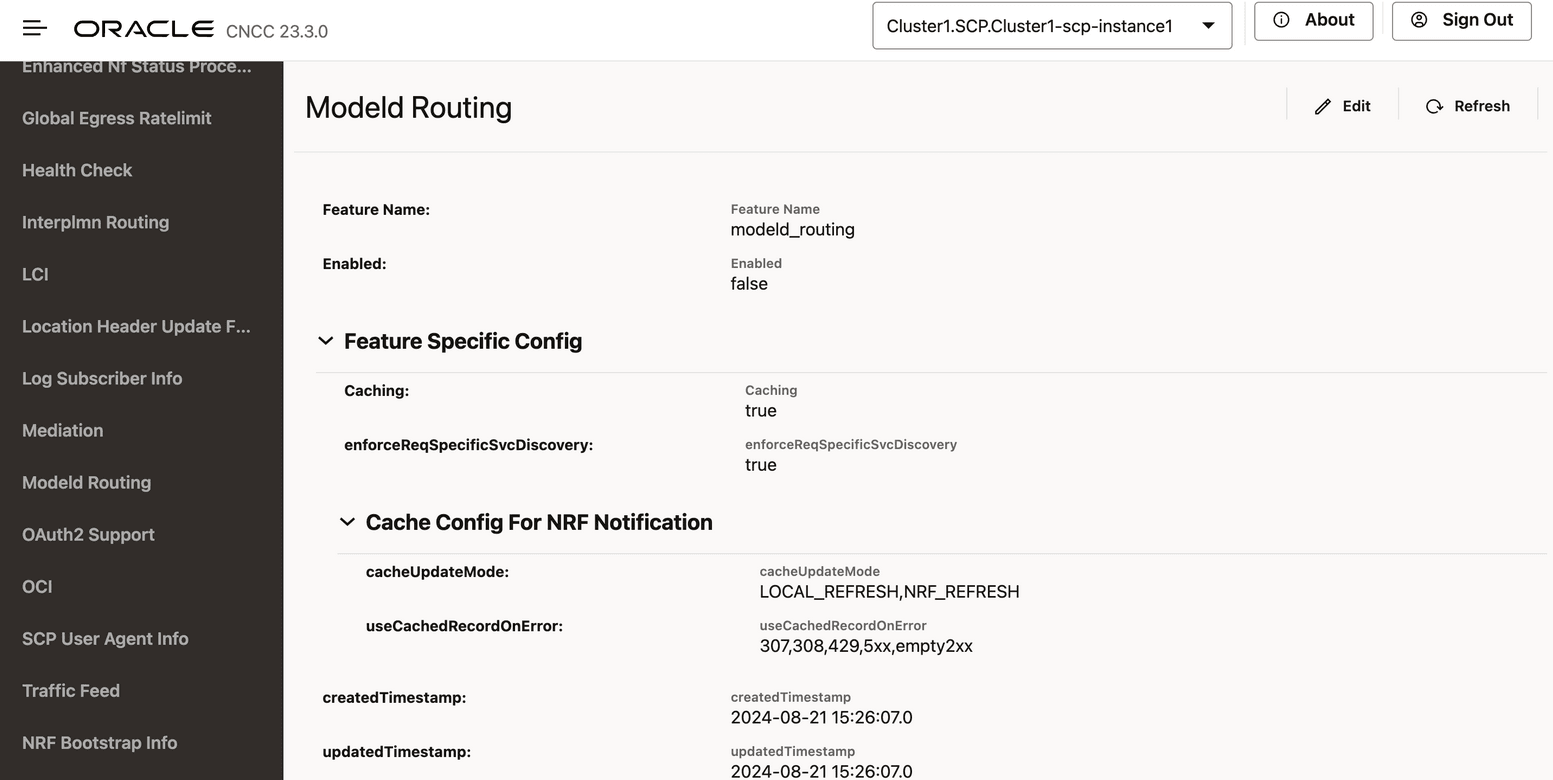

Figure 4-11 Enabling ModelD Routing

The Edit Modeld Routing screen appears.
Set Enabled to true.
By default, this option is set to false.
Set Caching to true or false to enable or disable caching to store discovery responses. By default, this option is set to true.
Set enforceReqSpecificSvcDiscovery to true or false to to enable or disable NF Service specific Discovery Requests when possible. By default, this option is set to true.
In the Cache Config For NRF Notification section, configure the cacheUpdateMode and useCachedRecordOnError fields accordingly:
cacheCfgForNrfNotification: Configuration for model-based D cache updates using NRF information.
It includes two fields: cacheUpdateMode and useCachedRecordOnError.
- cacheUpdateMode field is a list with three possible values:
  - NONE: No cache update will occur, and the notification will be ignored. Setting the value to "NONE" disables this feature.
  - LOCAL_REFRESH: The cache is updated locally if the NF-profile attribute being modified belongs to the local cache update category. If cacheUpdateMode is set to LOCAL_REFRESH only and the modified attribute requires an NRF discovery update, the notification is ignored.
  - NRF_REFRESH: The cache is refreshed through a new discovery request to NRF if the NF-profile attribute being modified requires an NRF discovery update. If cacheUpdateMode is set to NRF_REFRESH only and the modified attribute requires a local update, the notification is ignored.
- useCachedRecordOnError field indicates that SCP uses the existing invalid cached response for the defined error codes if it receives an error response from NRF, if the request times out, or if it receives a 2xx response with no profiles.
  - Allowed values: NONE, 5xx, empty2xx, and any valid reroutable error codes defined in the Routing Options section. These include:301, 302, 303, 304, 307, 308, 400, 401, 403, 404, 405, 406, 407, 408, 409, 410, 411, 412, 413, 414, 415, 416, 417, 421, 422, 425, 426, 428, 429, 431, 451, 500, 501, 502, 503, 504, 505, 506, 507, 508, 510, 511.
  - Default values: "307", "308", "429", "5xx", "empty2xx".
  - NONE: This value indicates that no error codes are configured. No other error codes can be used when "NONE" is set.
  - 5xx: Indicates all supported error codes starting with 5.
  - empty2xx: This custom string is defined to handle cases where the NRF discovery response returns a 200 OK status with an empty list of profiles. If this value is configured, SCP will use the old invalid cached response.
Click Save.

4.2.1.8 Configuring SCP User Agent Info

Perform the following to configure SCP User Agent Info.

In the left navigation pane, click the SCP User Agent Info tab.
In the SCP User Agent Info section, click Edit.
The SCP User Agent Info screen appears.

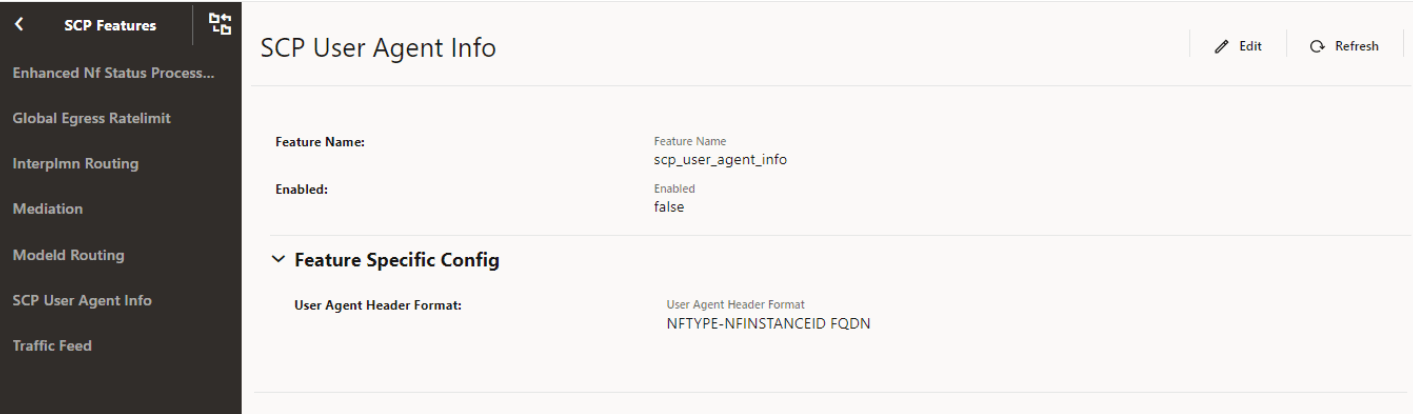

Figure 4-12 SCP User Agent Info
Set Enabled to true.
By default, this option is set to false.
Expand the Feature Specific Config option, in the User Agent Header Format field, select the required format to set the "User-Agent" header format.
For more information about the "User-Agent" header formats, see "Configuring SCP Features" in Oracle Communications Cloud Native Core, Service Communication Proxy REST Specification Guide.
Click Save.

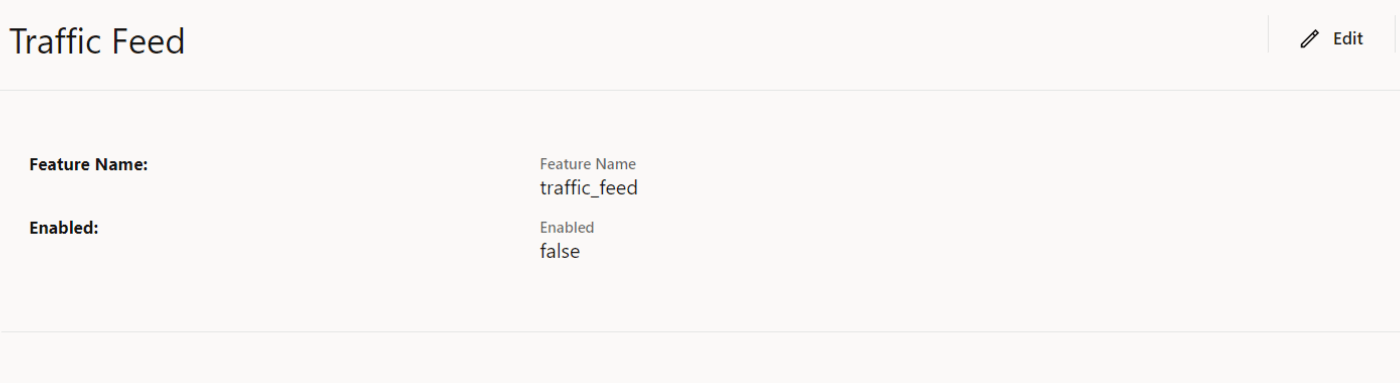

4.2.1.9 Configuring Message Feed

Perform the following to configure message feed.

In the left navigation pane, click the Traffic Feed tab.
In the Traffic Feed section, click Edit.
The Traffic Feed screen appears.

Figure 4-13 Message Feed
Set Enabled to true.
By default, this option is set to false.
Click Save.

4.2.1.10 Configuring Load Control Information (LCI)

Perform the following procedure to enable configuring load control information (LCI).

In the left navigation pane, click the LCI tab.
In the LCI section, click Edit.

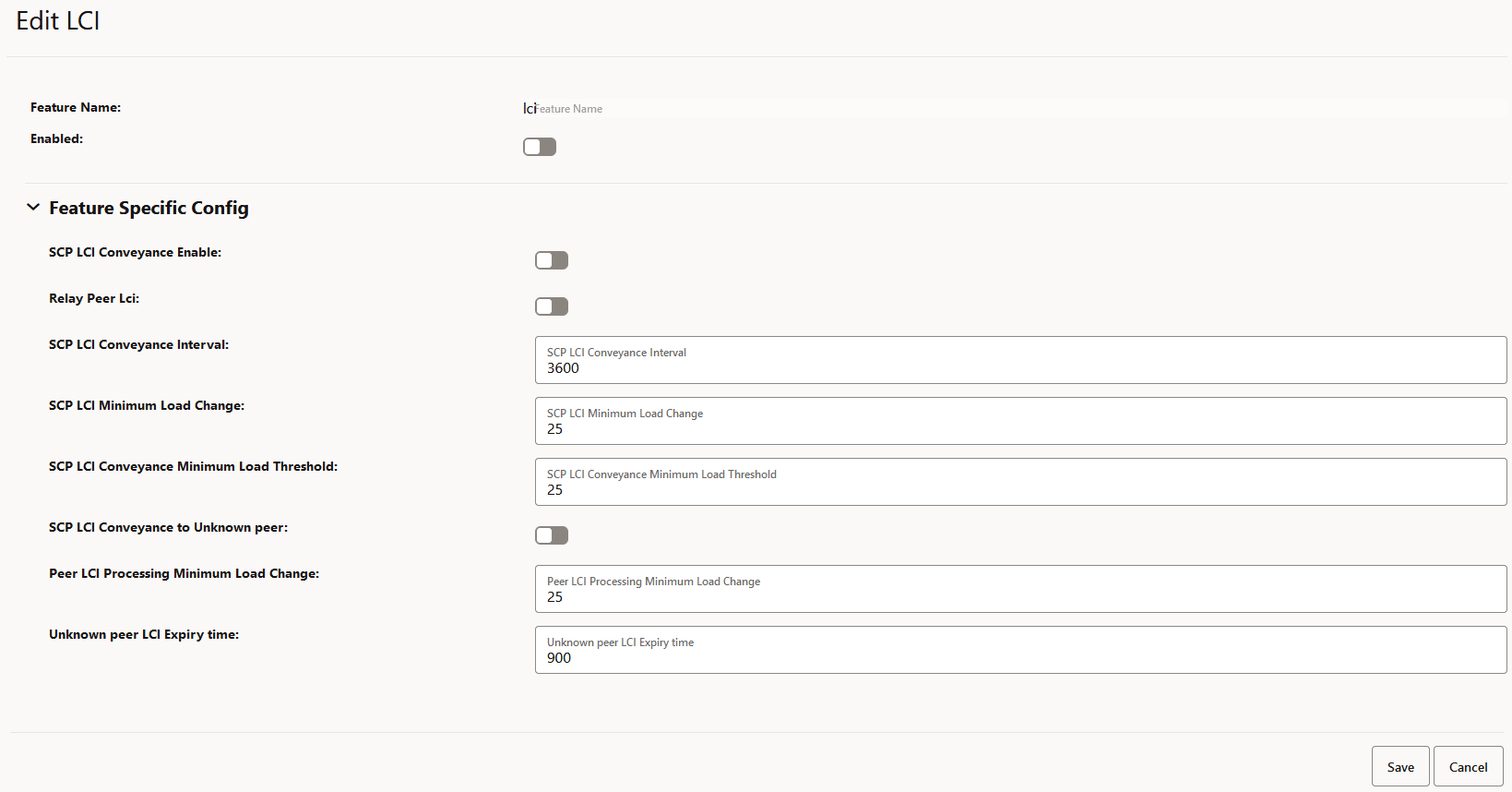

Figure 4-14 Editing LCI
Set Enabled to true.
By default, this option is set to false.
In the Feature Specific Config section, complete the following configurations:

Note:
All the parameters are mandatory to configure the LCI feature.
- SCP LCI Conveyance Enable: Set to true to enable SCP to add its LCI in request and response.
- Relay Peer Lci: Set to true to allow SCP to forward the received LCI header from producer NF.
- SCP LCI Conveyance Interval: Enter a value from 100 milliseconds to 3600000 milliseconds to report the SCP LCI update interval.
- SCP LCI Minimum Load Change: Enter a value from 0 to 25 to report the minimum delta value when reporting LCI based on load change.
- SCP LCI Conveyance Minimum Load Threshold: Enter a value from 0 to 60 to set a minimum load change threshold to trigger the generation of an LCI header and its reporting to peers if allowed.

  Note:
  If the SCP load value is less than the configured SCP LCI Conveyance Minimum Load Threshold value, SCP sends its load value as 0%.
- SCP LCI Conveyance to Unknown peer: Set to true to allow SCP to send its LCI to an unknown peer NF, a peer NF that is not registered with SCP.
  Note:
  - SCP sends its LCI in all the messages that go to peer NFs that are not registered with SCP.
  - If the SCP load value is less than the configured SCP LCI Conveyance Minimum Load Threshold value, SCP sends its load value as 0%.
- Peer LCI Processing Minimum Load Change: Enter a value from 0 to 25 to define a minimum load change threshold in peer NF's load as indicated in LCI, which can trigger a re-evaluation of routing rules.
- Unknown peer LCI Expiry time: Enter a value between 30 seconds to 900 second to set the minimum number of seconds required to remove an unknown peer's LCI from cache.
Click Save.

4.2.1.11 Configuring Host Preference for Egress Message Requests

Perform the following procedure to configure host preference for egress message requests.

In the left navigation pane, click the Egress Host Preference tab.
In the Egress Host Preference section, click Edit.

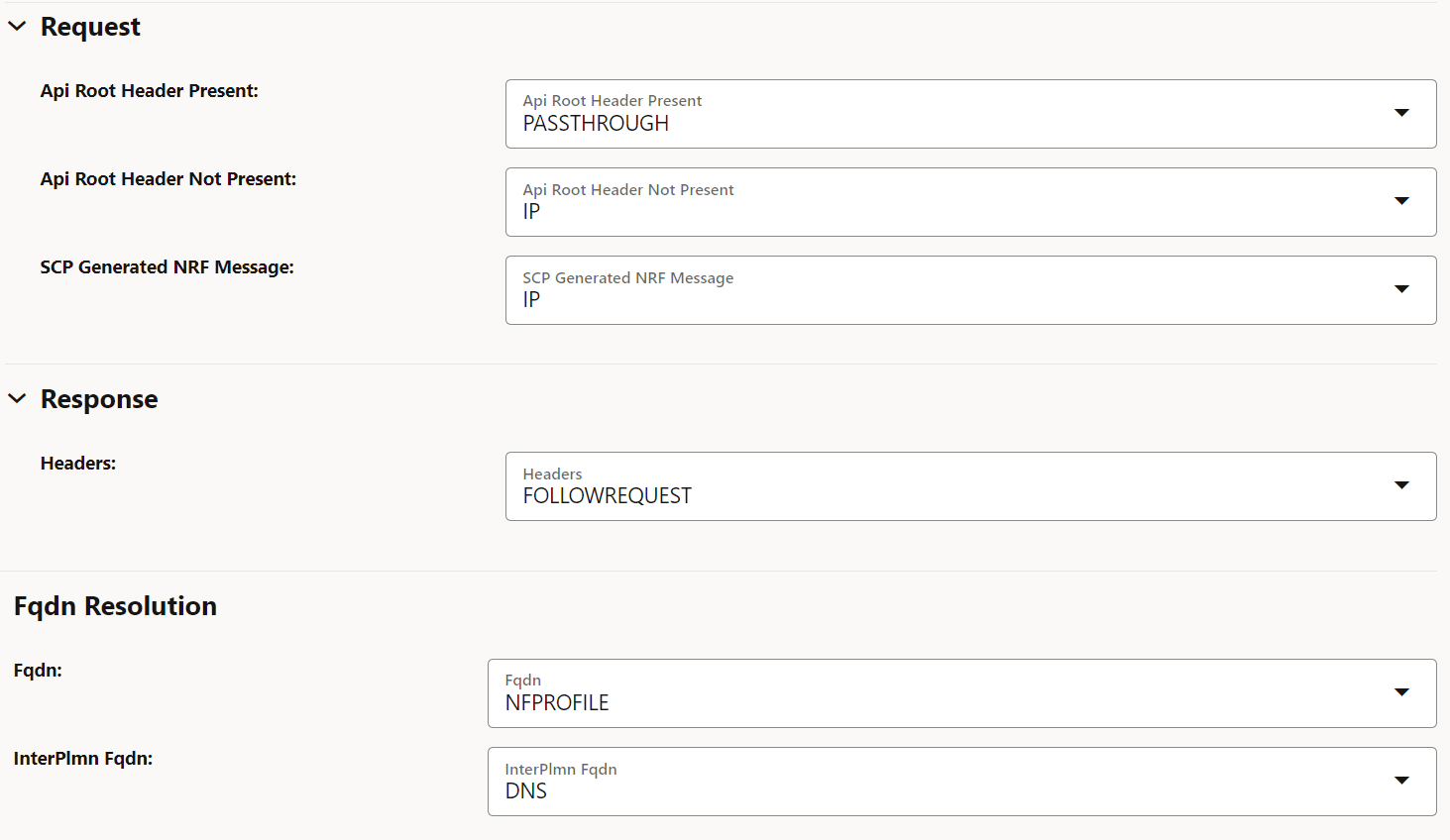

Figure 4-15 Editing Egress Host Preference
Set Enabled to true.
By default, this option is set to false.

In the Feature Specific Config section, to configure the host preference, set the following fields as described in the following table:

Table 4-1 Host Preference

Field Name	Description
Api Root Header Present	This parameter indicates the host preference (":authority" header) for egress message requests if the 3gpp-Sbi-Target-apiRoot header is present in the ingress message request. You can set this field to PASSTHROUGH to use the same type of host in egress message requests as received through ingress message requests. Default value: PASSTHROUGH Range: IP, FQDN, or PASSTHROUGH
Api Root Header Not Present	This parameter indicates the host preference (":authority" header) for egress message requests if the 3gpp-Sbi-Target-apiRoot header is absent in ingress message requests. Default value: IP Range: IP or FQDN
SCP Generated NRF Message	This parameter indicates the host preference (":authority" header) for SCP generated NRF messages. Default value: IP Range: IP or FQDN
Fqdn	This parameter indicates the resolution preference of egress message requests host FQDN if present. Default value: NFPROFILE Range: DNS or NFPROFILE
InterPlmn Fqdn	This parameter indicates the resolution preference of egress message requests inter-plmn FQDN if present. Default value: DNS Range: DNS or NFPROFILE

Click Save.

4.2.1.12 Configuring CCA Header Validation

Perform the following option to configure CCA Header validation.

In the left navigation pane, click the CCA Header Validation tab.
In the CCA Header Validation section, click Edit.

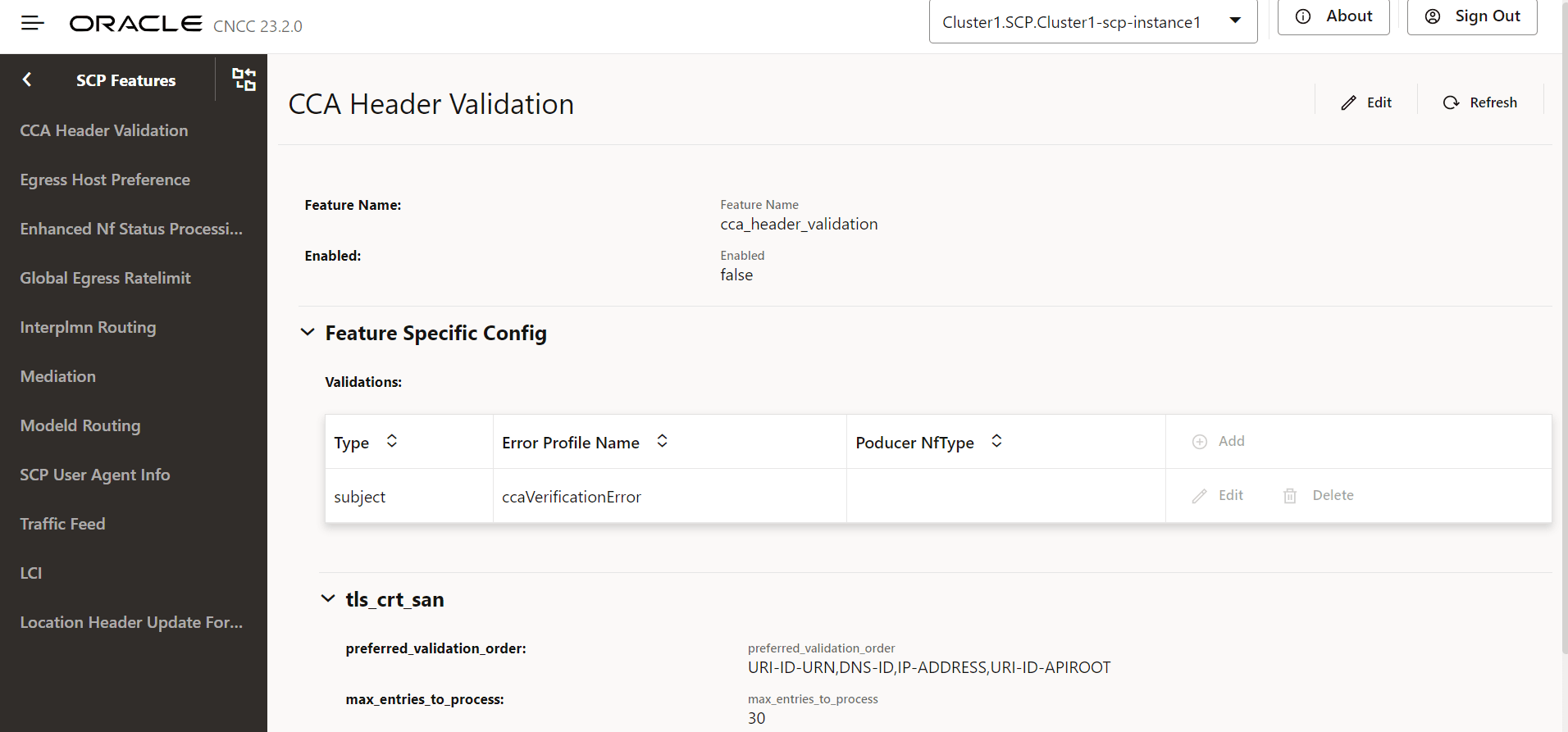

Figure 4-16 Edit CCA Header Validation
Set Enabled to true.
By default, this option is set to false.

Note:
SCP supports the 3gpp-Sbi-Client-Credentials header with x5c - X.509 URL, not x5u - X.509 URL.

In the Feature Specific Config section, to configure the validations, set the following fields as described in the following table:

Table 4-2 Validations

Field Name	Description
Type	Type of validation: headerPresence: SCP checks the presence of the 3gpp-Sbi-Client-Credentials header in the ingress request. Validation will pass if the header is present. Validation will fail if the header is not present. subject: SCP checks the NF instance ID from the "sub" parameter in the 3gpp-Sbi-Client-Credentials header with the NF instance ID from the list of SANs in the client's TLS certificate. SANs directly have the NF Instance Id or the client's other identity, like the FQDN or IP address, which will be used to get the NF Instance Id. If the 3gpp-Sbi-Client-Credentials header is not present, then this validation will not be performed. Validation will pass if the NF instance ID from the "sub" parameter matches the NF instance ID from the SAN. Validation will fail if the NF instance ID from the "sub" parameter doesn't match the NF instance ID from the SAN.
Error Profile Name	The error profile name is used to generate an error response if the corresponding validation fails. Error profiles can be configured using the REST API:`/ocscp/scpc-configuration/{version}/errorProfileConfig`.
Product NF Type	Default Value: Null
preferred_validation_order	An order format-wise from which the SCP picks SAN from the client's TLS certificate for verification of the "subject" type of validation. Note: Applicable only when validation type "subject" is selected.
max_entries_to_process	Maximum number of SANs from the client's TLS certificate that SCP picks for validation. Note: Applicable only when validation type "subject" is selected.

Click Add to add validations:

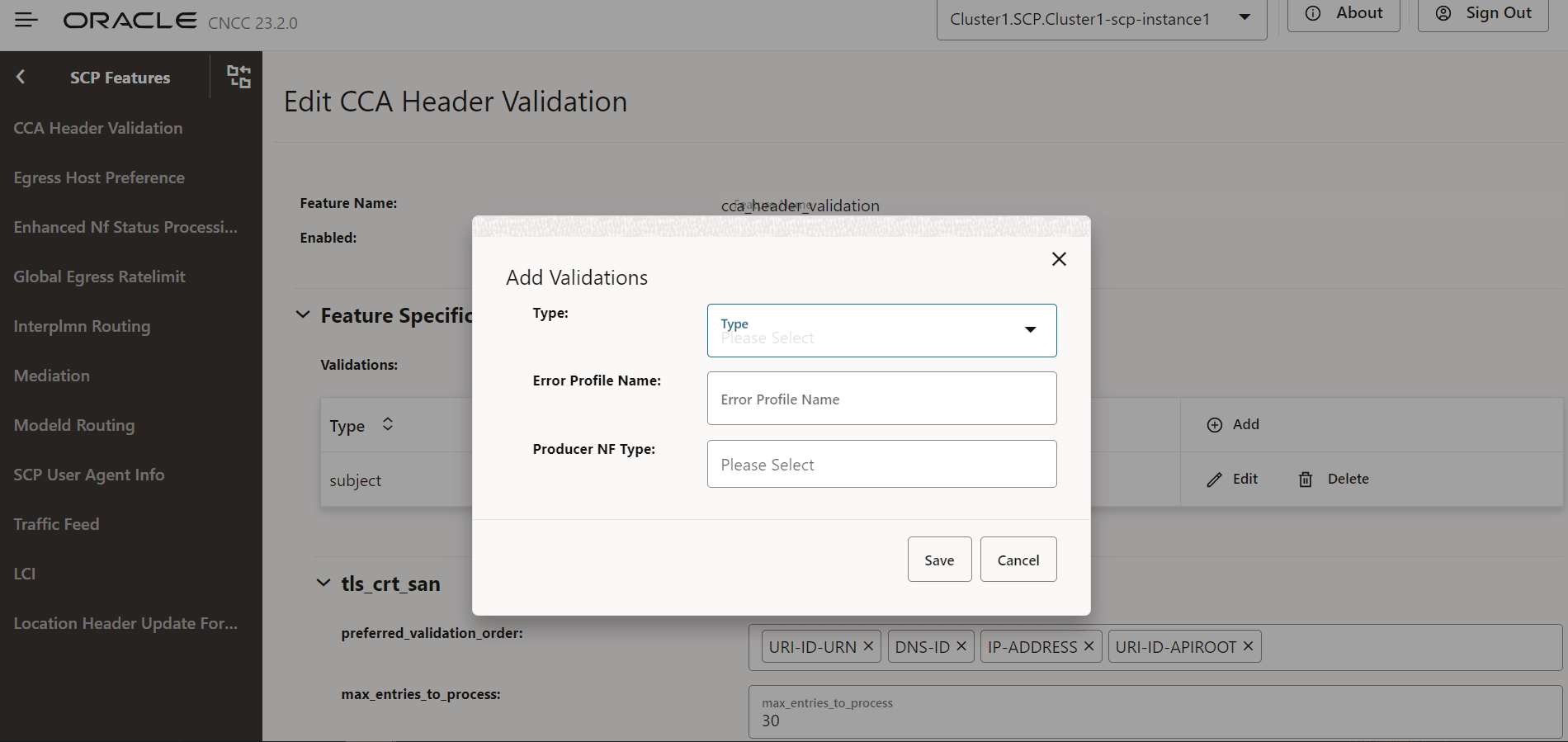

Figure 4-17 Add Validations
Click Save.

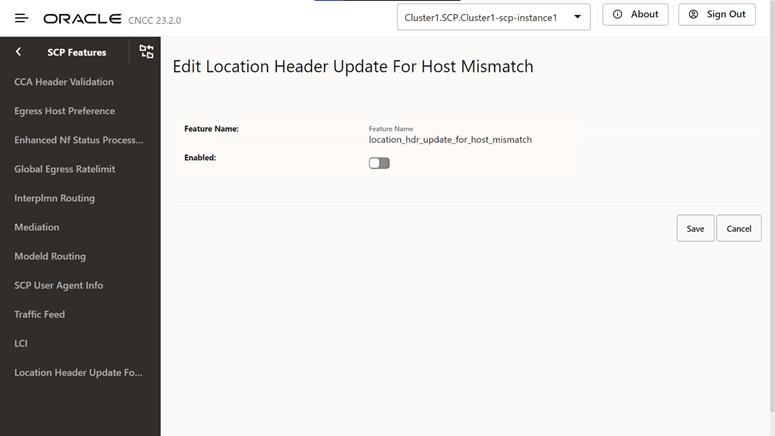

4.2.1.13 Configuring Location Header Update for Host Mismatch

Perform the following the procedure to configure location header update for host mismatch.

In the left navigation pane, click the Location Header Update For Host Mismatch tab.
In the Location Header Update For Host Mismatch section, click Edit.

Figure 4-18 Edit Location Header Update For Host Mismatch
Set Enabled to true.
By default, this option is set to false.
Click Save.

4.2.1.14 Configuring Support for OAuth2.0

Perform the following the procedure to configure support for OAuth2.0.

In the left navigation pane, click the OAuth2 Support tab.
In the OAuth2 Support section, click Edit.

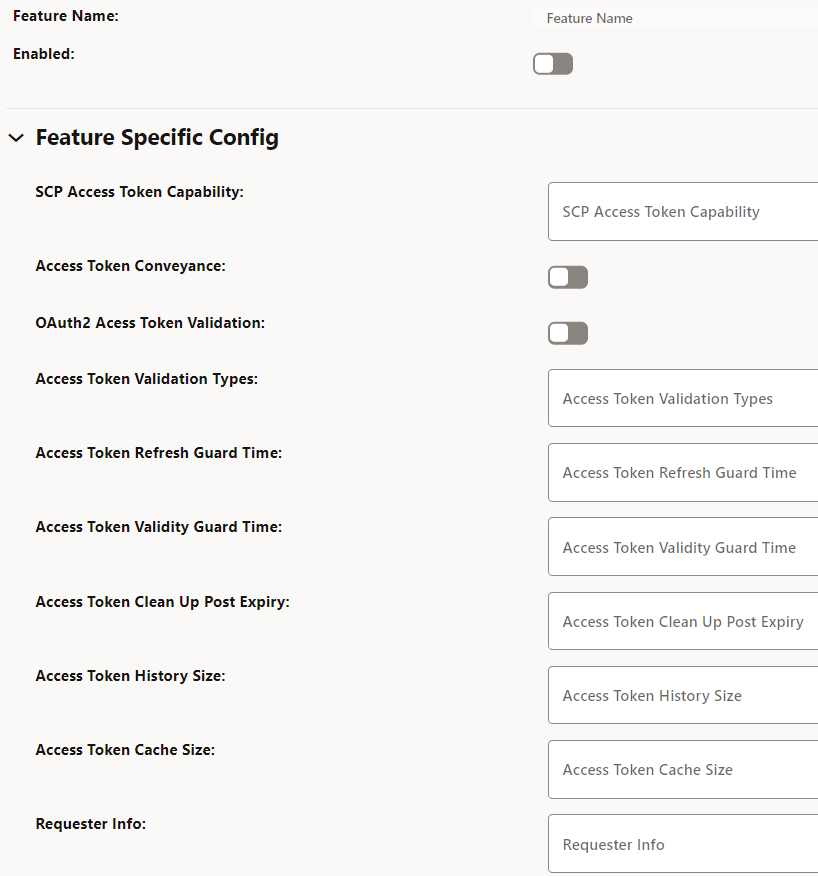

Figure 4-19 OAuth2 Support
Set Enabled to true.
By default, this option is set to false.

In the Feature Specific Config section, complete the following configurations:

Table 4-3 Configure Access Token

Field Name	Description
SCP Access Token Capability	This field indicates Access token support for the listed indirect communication modes at SCP. (ENUM). Possible values: [INDIRECT_COM_WITH_DELEG_DISC, INDIRECT_COM_WITHOUT_DELEG_DISC] INDIRECT_COM_WITH_DELEG_DISC: SCP initiates access token request toward NRF in delegated discovery service request. INDIRECT_COM_WITHOUT_DELEG_DISC: SCP is expected to forward the service request with or without access token as per configuration at SCP. SCP is not expected to initiate access token request toward NRF.
Access Token Conveyance	This field conveys acquired access token in the "3gpp-Sbi-Access-Token" header in service response to consumer NFs. Default value: true Range: true or false
OAuth2 Access Token Validation	This field enables or disables validation of OAuth2 access token from consumer NFs. Default value: Disabled Range: Disabled or Enabled
Access Token Validation Types	This field configures the list of required validation types in the network. Default value: empty as default Range: Disabled or Enabled
Access Token Refresh Guard Time	This field initiates proactive refresh of cached access token when the configured time expires. The proactive refresh occurs if the relevant SBI messages are in exchange. Default value: 60000ms Range: 100ms - 300000ms
Access Token Validity Guard Time	This field indicates the time before the access token expiry when SCP considers not to use the existing access token and obtains new access token in the service request forwarded to producer NFs. Default value: 30000ms Range: 100ms - 300000ms
Access Token Clean Up Post Expiry	This field indicates the duration to purge the token from cache. Default value: 900000ms Range: 0ms - 3600000ms
Access Token History Size	This field indicates the number of access tokens signature history to identify whether the access token initiated by SCP or not. Default value: 10 records Range: 0 - 20 records
Access Token Cache Size	This field indicates the number of access tokens that can be cached in SCP. Default value: 50000 records Range: 5000 - 100000 records
Requester Info	This field indicates access token requester (consumer NF) Info to generate the access token request. Prioritized list of default values: DISCOVERY-HEADERS CCA-HEADER USER-AGENT-HEADER
Cache Enabled	This option enables or disables caching of access tokens. Default value: true Range: true or false

Click Save.

4.2.1.15 Configuring SCP Health Check API

Perform the following the procedure to configure SCP health check API.

In the left navigation pane, click the Health Check tab.
In the Health Check section, click Edit.

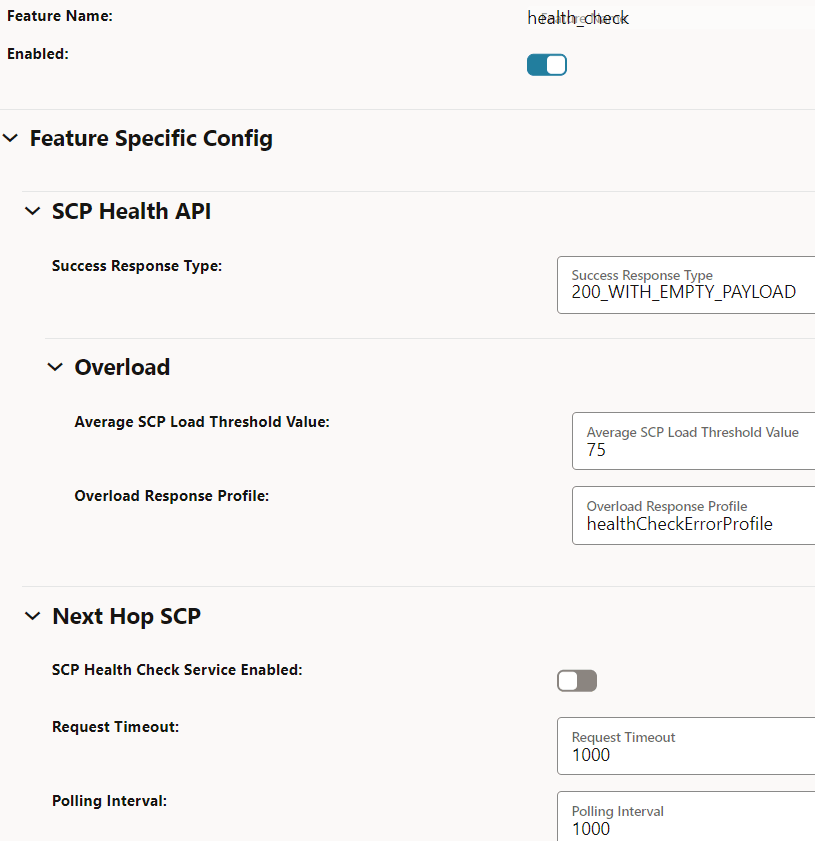

Figure 4-20 Health Check
Ensure that Enabled is set to true.
This is the default configuration.

In the Feature Specific Config section, you can modify the following configurations:

Table 4-4 Configure Health Check API

Field Name	Description
Success Response Type	This field indicates successful responses for a healthy SCP. Default value: 200StatusCodeAndEmptyPayload Range: 200WithPayLoad, 200WithEmptyPayload, and 204WithNoContent
Average SCP Load Threshold Value	This field provides the overall average SCP load threshold value. Default value: 75% Range: 75% - 90%
Overload Response Profile	This field indicates the error profile configuration for the health query response in the exception conditions. Default value: healthCheckErrorProfile. For more information about this option, see "Configuring Error Profiles" in Oracle Communications Cloud Native Core, Service Communication Proxy REST Specification Guide.
SCP Health Check Service Enabled	This option enables or disables the SCP health check API feature in inter-scp scenarios. Default value: false Range: true or false
Request Timeout	This field indicates the timer to monitor the waiting time for health check response in inter-scp scenarios. Default value: 1000ms Range: 300ms -60000ms
Polling Interval	This field indicates the duration to control the periodicity of health check requests in inter-scp scenarios. Default value: 1000ms Range: 300ms -60000ms
Consecutive Error Response	This field indicates the total number of consecutive failure responses that leads to failover in inter-scp scenarios. Default value: 3 Range: 1 - 20
Consecutive Success Response	This field indicates the total number of consecutive successful responses that leads to fallback in inter-scp scenarios. Default value: 3 Range: 1 - 20

Click Save.

4.2.1.16 NRF Configuration using DNS SRV Resolution

Perform the following procedure to NRF configuration using DNS SRV resolution.

In the left navigation pane, click the NRF Bootstrap Info tab.
In the NRF Bootstrap Info section, click Edit.

Figure 4-21 Edit NRF Bootstrap Info
Set Enabled to true.
By default, this option is set to false.

In the Feature Specific Config section, enter the following input for the following configurations:

Table 4-5 Configure NRF Source Configuration

Field Name	Description
Source	This field is used to select whether the NRF Configuration Using DNS SRV Resolution feature should be enabled or disabled. SCP will enable the feature if the source is DNS_SRV. The default value is DNS_SRV.
deRegisterScpDuringMigration	In the migration from static to DNS SRV task, if static and DNS SRV NRF configurations are the same, then this parameter will be used to deregister SCP with the old or static NRFset. Default value: false Range: true or false

Click Save.

4.2.1.17 Configuring Overload Control Based on the Overload Control Information Header

Perform the following procedure to configure overload control based on the overload control information header.

From the SCP Features list, click the OCI tab.
On the OCI page, click the Edit icon.

Figure 4-22 Edit OCI
In the Edit OCI section, set Enabled to true.
By default, this option is set to false.

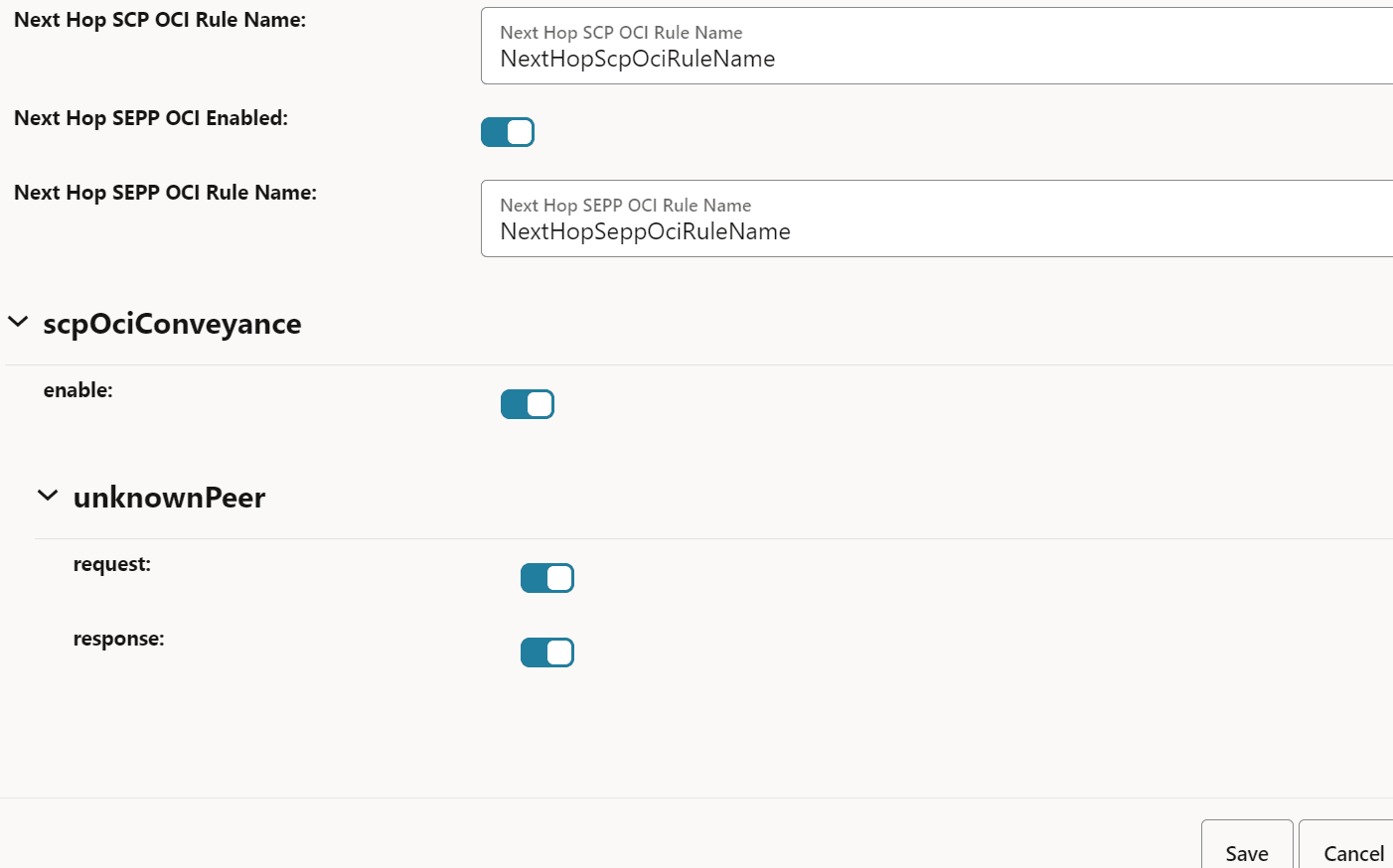

Figure 4-23 Enabling OCI

To configure OCI, in the Feature Specific Config section, set the following fields:

Table 4-6 Configure OCI

Field Name	Description
olcHSupportInd	This option indicates that SCP supports the Overload Control Information (OCI) feature based on the 3gpp-Sbi-Oci header. By default, this option is enabled.
SCP OCI Conveyance Interval	This field indicates the interval for reporting SCP OCI to peer NFs. For every interval until the validity period, the last sent OCI is reported to peer NF irrespective of any change to SCP OCI. Sending SCP OCI periodically ensures that the peer NF has not missed an earlier reported SCP OCI. The same OCI header as sent on the last OCI threshold change or validity period expiry is sent. Default value: 2000 milliseconds Range: 2000 to 3600000 milliseconds Note: OCI is sent to peer NFs only if there is a message for that NF.
SCP OCI Recovery Validity Period	This field indicates the validity period to send OCI headers to peers when SCP recovers from an overloaded state. SCP sends OCI to peers with reduction metric as 0. Default value: 3600 seconds Range: 5 to 3600 seconds
Next Hop SCP OCI Enabled	This option enables or disables the OCI feature between SCP instances and SCP scope OCI. By default, this option is enabled.
Next Hop SCP OCI Rule Name	If the Next Hop SCP OCI Enabled option is enabled, the OCI feature enforcement is done based on the ociConfigRule REST API configuration with the name provided as the value for this option. By default, this value is NextHopScpOciRuleName.
Next Hop SEPP OCI Enabled	This option enables or disables OCI enforcement between SCP and SEPP interfaces and SEPP scope OCI. By default, this option is enabled.
Next Hop SEPP OCI Rule Name	If the Next Hop SEPP OCI Rule Name option is enabled, the OCI feature enforcement is done based on the ociConfigRule REST API configuration with the name provided as the value for this option. By default, this value is NextHopSeppOciRuleName.
scpOciConveyance	If this option is set to true, SCP starts conveying the 3gpp-Sbi-Oci header based on self-overload information. By default, this option is enabled.
unknownPeer request	If this field is set to true, SCP starts conveying the 3gpp-Sbi-Oci header based on self-overload information to requests to unknown peers. For unknown peers, identification of peer NFs is done based on the message request's FQDN. By default, this option is enabled.
unknownPeer response	If this option is set to true, SCP starts conveying the 3gpp-Sbi-Oci header based on self-overload information to responses to unknown peers. If this parameter is set to true, SCP adds self-OCI header in every response message. By default, this option is disabled.

Click Save.

4.2.1.18 Configuring Enhanced NFProfile Processing

Perform the following procedure to enable the NFProfile Processing enhancements supported by SCP using Cloud Native Configuration Console (CNC Console).

In the left navigation pane, click the Ignore Unknown Nf Service tab.
The Ignore Unknown Nf Service page appears.

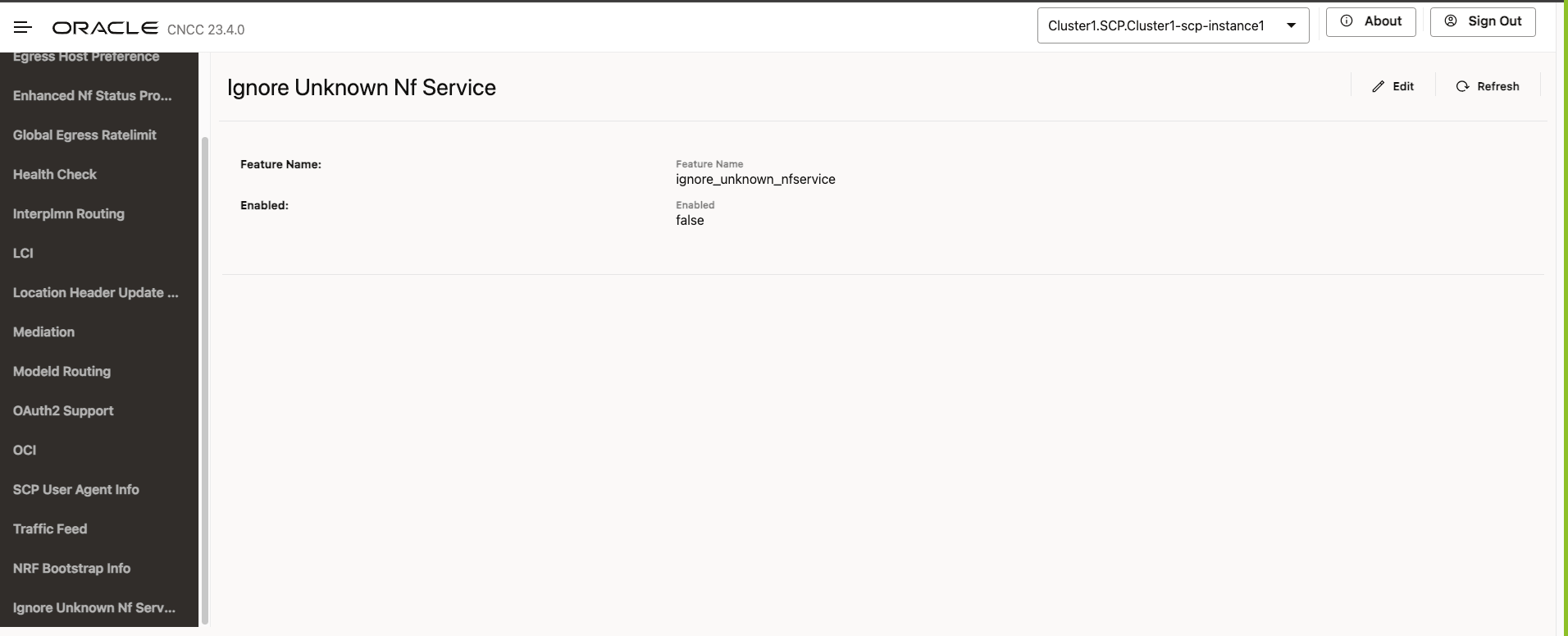

Figure 4-24 Ignore Unknown Nf Service
On the Ignore Unknown Nf Service page, click the Edit icon.
In the Edit Ignore Unknown Nf Service section, set Enabled to true.
By default, this option is set to false.

4.2.1.19 Configuring 3GPP Timestamp Headers Support

Perform the following procedure to enable or disable the 3GPP Timestamp Related Headers Support feature and configure its settings.

In the left navigation pane, click the SCP tab, and then click the SCP Features tab.
From the SCP Features list, click Timestamp Header Support.
In the Timestamp Header Support section, click Edit.

Figure 4-25 Edit Timestamp Headers Support
Set Enabled to true.
By default, this option is set to false.
In the Feature Specific Config section, configure the following fields as required:
- Dynamic Response Timeout: This field, when set to true, enables SCP to perform dynamic response time calculations based on the received timestamp headers. It updates or adds the 3gpp-Sbi-Sender-Timestamp and 3gpp-Sbi-Max-Rsp-Time headers in the egress SBI request.
  - Date Type: Boolean
  - Default Value: true
  - Range: true or false
- Update Timestamp Headers: This field, when set to true and dynamicResponseTimeout is false, allows SCP to add or update the 3gpp-Sbi-Sender-Timestamp and 3gpp-Sbi-Max-Rsp-Time headers in the egress SBI request. The 3gpp-Sbi-Sender-Timestamp is set to reflect the current timestamp at scp-worker, while the 3gpp-Sbi-Max-Rsp-Time will be set to the configured responseTimeout value for the specific service.
  - Date Type: Boolean
  - Default Value: true
  - Range: true or false
  Note:
  When dynamicResponseTimeout is true, the value of updateTimestampHeaders will not have any impact and should be set to true. In this case, SCP will always add or update the 3gpp-Sbi-Sender-Timestamp and 3gpp-Sbi-Max-Rsp-Time headers in the egress SBI request.
- Response Transit Time: This field specifies the minimum estimated transit time required (in milliseconds) for the response to reach back from SCP to the original sender, whether it's the Consumer NF, SCP, or SEPP.
  - Default Value:
```
"responseTransitTime": {
    "downstreamNF": 50,
    "downstreamSCP": 100,
    "downstreamSEPP": 300
}
```
  - Range: NA
- Downstream NF: This field specifies the minimum estimated transit time required (in milliseconds) for the response to return to the original requester NF.
  - Date Type: Integer
  - Default Value: 50
  - Range: 0 - 10000
- Downstream SCP: This field specifies the minimum estimated transit time required (in milliseconds) for the response to return to the original requester SCP.
  - Date Type: Integer
  - Default Value: 100
  - Range: 0 - 10000
- Downstream SEPP: This field specifies the minimum estimated transit time required (in milliseconds) for the response to return to the original requester SEPP.
  - Date Type: Integer
  - Default Value: 300
  - Range: 0 - 10000
Click Save.

Note:
For optimal functionality, this feature requires NTP (Network Time Protocol) synchronization across all nodes communicating with the SCP, including the SCP itself.

4.2.1.20 Configuring Enhanced Notifications Handling

Perform the following procedure to enable or disable the Enhanced Notifications Handling feature.

From the left navigation pane, click the SCP tab, and then click the SCP Features tab.
From the SCP features' list, click the Enhanced Notifications Handling tab.
In the Enhanced Notifications Handling section, click Edit.
Set Enabled to true.
By default, this option is set to false.
In the Feature Specific Config section, set Alternate Routing Without Servname to true.
By default, this option is set to false.
Ensure that the following fields display the time of occurrence of the records:
- Created Timestamp: Indicates the timestamp of the created record. This is not required in the request, but it is present in the response.
- Updated Timestamp: Indicates the timestamp of the updated record. This is not required in the request, but it is present in the response.

4.2.1.21 Configuring Ingress Rate Limiting

Perform the following procedure to enable or disable the Ingress Rate Limiting feature.

From the left navigation pane, click the SCP tab, and then click the SCP Features tab.
From the SCP features' list, click the Ingress Rate Limiting tab.
In the Ingress Rate Limiting section, click Edit.
Ensure that Enabled is set to true.
By default, this option is set to true.
Ensure that the following fields display the time of occurrence of the records:
- createdTimestamp: Indicates the timestamp of the created record. This is not required in the request, but it is present in the response.
- updatedTimestamp: Indicates the timestamp of the updated record. This is not required in the request, but it is present in the response.

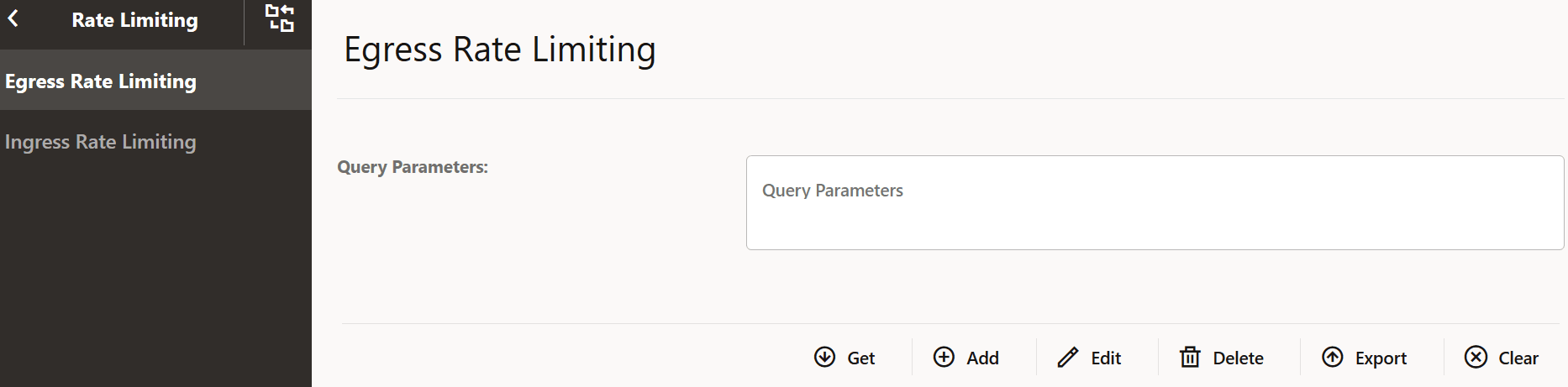

4.2.1.22 Configuring Egress Rate Limiting

Perform the following procedure to enable or disable the Egress Rate Limiting feature.

From the left navigation pane, click the SCP tab, and then click the SCP Features tab.
From the SCP features' list, click the Egress Rate Limiting tab.
In the Egress Rate Limiting section, click Edit.
Ensure that Enabled is set to true.
By default, this option is set to true.
Ensure that the following fields display the time of occurrence of the records:
- createdTimestamp: Indicates the timestamp of the created record. This is not required in the request, but it is present in the response.
- updatedTimestamp: Indicates the timestamp of the updated record. This is not required in the request, but it is present in the response.

4.2.2 Configuring OCI

Perform the following procedure to retrieve, modify, and remove OCI configuration data.

From the left navigation pane, click the SCP tab, and then click the OCI tab.
From the left navigation pane, click the OCI Config tab.
In the OCI Config section, click Get to retrieve OCI configuration data based on the query parameters.

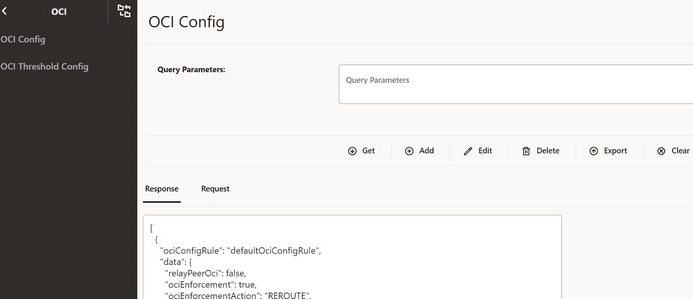

Figure 4-26 OCI Config
To add a new request, click Add and enter the request body information in the Request field.

Click Submit.

The request body message appears in the Response field.

To edit, export, delete, or clear the data, click the required buttons as described in the following table:

Table 4-7 Button and Field Descriptions of OCI

Button and Field Names	Description
Query Parameters	Allows to enter parameters to retrieve, add, and update OCI configuration data based on the query parameters.
Get	Retrieves OCI configuration data. You can modify this data using the Edit button.
Add	Adds new message requests in the Request field.
Edit	Modifies any existing data by updating mandatory query parameters in the Query Parameters field.
Delete	Removes any message request.
Export	Exports existing records in the JSON format.
Clear	Refreshes the existing screen by removing the data.

4.2.3 Configuring OCI Threshold Levels

Perform the following procedure to retrieve, modify, and remove OCI threshold configuration data.

From the left navigation pane, click the SCP tab, and then click the OCI tab.
From the left navigation pane, click the OCI Threshold Config tab.
In the OCI Threshold Config section, click Get to retrieve OCI threshold configuration data based on the query parameters.

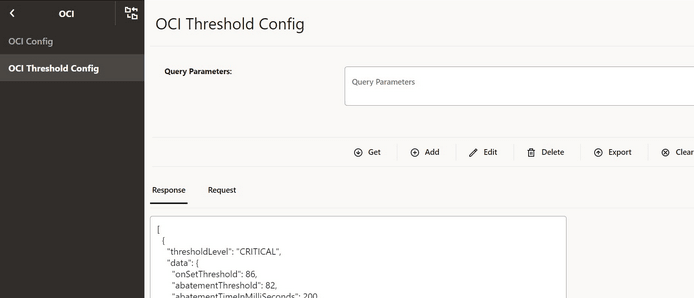

Figure 4-27 OCI Threshold Config
To add a new request, click Add and enter the request body information in the Request field.

Click Submit.

The request body message appears in the Response field.

To edit, export, delete, or clear the data, click the required buttons as described in the following table:

Table 4-8 Button and Field Descriptions of OCI Threshold Configuration

Button and Field Names	Description
Query Parameters	Allows to enter parameters to retrieve, add, and update OCI threshold configuration data based on the query parameters.
Get	Retrieves OCI threshold configuration data. You can modify this data using the Edit button.
Add	Adds new message requests in the Request field.
Edit	Modifies any existing data by updating mandatory query parameters in the Query Parameters field.
Delete	Removes any message request.
Export	Exports existing records in the JSON format.
Clear	Refreshes the existing screen by removing the data.

4.2.4 Viewing cnDBTier APIs on the CNC Console

Perform the following procedure to view the cnDBTier version, the status of cnDBTier clusters, georeplication status, and georeplication recovery status on the CNC Console.

Note:

The following cnDBTier APIs are read only.

4.2.4.1 Backup List

Perform the following procedure to view the list of completed backups:

From the left navigation pane, click the SCP tab, and then click the cnDBTier tab.

Click the Backup List to view the list of completed backups along with Backup ID, Backup size, and Creation Timestamp.

The Backup List screen is displayed.

Table 4-9 Backup List

Fields	Description
Backup Details	This field displays information such as backup Id, backup size, and backup creation timestamp.
Site Name	This field displays the name of the current site to which SCP is connected.
Backup Id	This field displays the ID of the stored backup.
Backup Size (bytes)	This field displays the size of the stored backup.
Creation TimeStamp	This field displays the time recorded when the backup was stored.

4.2.4.2 cnDBTier Backup Status

Perform the following procedure to check the cnDBTier backup status:

From the left navigation pane, click the SCP tab, and then click the cnDBTier Backup Status tab.

On the cnDBTier Backup Status page, click Refresh to view the latest cnDBTier backup status as described in the following table:

Table 4-10 cnDBTier Backup Status

Fields	Description
Current Timestamp	This field displays the current system time.
Is Backup In Progress	This field displays whether any backup is in progress or not.
Next Backup Scheduled Timestamp	This field displays the time for the next scheduled backup.

4.2.4.3 cnDBTier Version

Perform the following procedure to view the version:

From the left navigation pane, click the SCP tab, and then click the cnDBTier tab.

Click the cnDBTier Version to view the version.

Table 4-11 cnDBTier Version Attributes

Fields	Description
cnDBTier Version	This field displays the cnDBTier version.
NDB Version	This field displays the network database (NDB) version.

4.2.4.4 Database Statistics Report

Perform the following procedure to view the available database.

From the left navigation pane, click the SCP tab, and then click the cnDBTier tab.

Click the Database Statistics Report to view the available database.

Table 4-12 Database Statistics Report

Fields	Description
Database Count	This field displays the number of available database.
Database Tables Count	This field displays the available database names and their table count.
Database Name	This field displays the database name.
Table Count	This field displays the table count for each database.
Database Table Rows Count	This field displays the table rows present in each table.

Click on View icon available next to the database name to view the View Database Table Rows Count screen.

Table 4-13 View Database Table Rows Count

Fields	Description
Database Name	This field displays the database name.
Tables	This field displays the table names and the corresponding rows in each table.
Table Name	This field displays the table name.
Row Count	This field displays the table rows present in each table.

4.2.4.5 Georeplication Recovery

Perform the following procedure to mark cnDBTier cluster as failed, execute georeplication recovery, and monitor their status:

From the left navigation menu, navigate to SCP and then click cnDBTier tab.

Click Georeplication Recovery to access the Georeplication Recovery Status of the cnDBTier cluster. This includes options such as Update Cluster As Failed, Start Georeplication Recovery, and Georeplication Recovery Status.

Click the Update Cluster As Failed to mark the cluster as FAILED.

The Update Cluster As Failed page is displayed.

Table 4-14 Update Cluster As Failed

Fields	Description
Cluster Names	This field displays a list of cnDBTier clusters that can be marked as failed.
Failed Cluster Names	This field displays a cnDBTier cluster that is marked as failed.

Click Update Cluster. The selected cluster name is updated in the Failed Cluster Names field.

Click the Start Georeplication Recovery to start the georeplication recovery process for a failed site.

The Start Georeplication Recovery page is displayed.

Table 4-15 Start Georeplication Recovery

Attribute	Description
Failed Cluster Name	This field displays a list of all the clusters that have been marked as failed.
Backup Cluster Name (Optional)	This field displays a list of all the healthy clusters. If no cluster is selected, the system uses the first available healthy cluster for the backup.

Click Start Georeplication Recovery to initiate georeplication recovery.

Click the Georeplication Recovery Status to view the status of georeplication recovery for cnDBTier clusters.

The Georeplication Recovery Status page is displayed.

Table 4-16 Georeplication Recovery Status

Attribute	Description
Local Cluster Name	This field displays the name of the local cluster.
Georeplication Recover Status Details	This field displays the details of the georeplication recovery status of cnDBTier clusters.
Cluster Name	This field displays the clusters by name.
Georeplication Recovery Status	This field displays the current georeplication recovery status of the corresponding cluster.

The following are the statuses of Georeplication Recovery:

Table 4-17 Georeplication Recovery Status

Georeplication Recovery Status	Description
ACTIVE	The cluster is in a healthy state, and replication is up and running with its respective mate cluster.
REINSTALLED	The cluster enters this state during fatal error recovery when the end user reinstalls the cluster.
STARTDRRESTORE	When Georeplication recovery is started, the cluster will transition into this state.
INITIATEBACKUP	When Georeplication recovery is started, the cluster will identify a healthy cluster for backup initiation and transition into this state.
CHECKBACKUP	When the backup is initiated, the georeplication recovery cluster will monitor the progress of the backup until its completion. If the backup fails, the cluster will restart the backup.
COPY_BACKUP	Upon completion of the backup, the georeplication recovery cluster will request the transfer of the backup from the healthy cluster to the georeplication recovery cluster.
CHECK_BACKUP_COPY	When backup copy is started georeplication recovery cluster will monitor for the backup transfer progress till it's completion and if it's fails the cluster will re-initiates the backup transfer.
BACKUPCOPIED	When the backup copy is started, the georeplication recovery cluster will monitor the progress of the backup transfer until its completion. If the transfer fails, the cluster will restart the backup transfer.
BACKUPEXTRACTED	This state indicates that the backup has been successfully extracted at the georeplication recovery cluster, allowing the restoration of the backup to start.
FAILED	This state is used by end user to mark specific cluster as failed and hence georeplication recovery is essential to recover the cluster.This state can also indicates that georeplication recovery started and the database is restored using the healthy cluster backup.
UNKNOWN	This state is used by the end user to mark a specific cluster as failed, necessitating georeplication recovery for cluster recovery. Additionally, this state can indicate that georeplication recovery has started and the database has been restored using the backup from the healthy cluster.
RECONNECTSQLNODES	This state is used to instruct SQL nodes to be offline during backup restoration to prevent any records from entering the binlog of the georeplication recovery cluster.
BACKUPRESTORE	This state indicates that the backup, successfully copied from the healthy cluster, is currently being used to restore the georeplication recovery cluster.
RESTORED	When the backup is successfully restored in the georeplication recovery cluster, the cluster will enter this state to start the reestablishment of replication channels.
BINLOGINITIALIZED	This state indicates the start of binlogs for the restoration of replication channels, necessary to start the restore process
RECONFIGURE	When the binlog is restarted, the georeplication recovery cluster will reestablish the replication channels with respect to all its mate clusters.

4.2.4.6 Georeplication Status

Perform the following procedure to view the local site and remote site name to which SCP is connected.

From the left navigation pane, click the SCP tab, and then click the cnDBTier tab.

Click the Georeplication Status to view the local site and remote site name to which SCP is connected.

Table 4-18 Georeplication Status

Fields	Description
Local Site Name	This field displays the local site name to which SCP is connected.
Remote Site Name	This field displays the remote site name.
Replication Status	This field displays the replication status with corresponding sites.
Seconds Behind Remote Site	This field displays the number of seconds that the last record read by the local site is behind the latest record written by the remote site for all the replication groups.

Click the View icon in the Actions menu to view the View Georeplication Status screen.

Table 4-19 Georeplication Status

Fields	Description
Replication Group Delay	This field displays the number of seconds that the last record read by the local site is behind the latest record written by the remote site for individual replication groups.
Replication Channel Group Id	This field displays the ID of the replication channel group.

Click the View icon to view the Replication Group Delay attributes.

Table 4-20 View Replication Group Delay

Fields	Description
Channel Details	This field displays the channel details such as Remote Replication IP and Role.
Remote Replication IP	This field displays the IP of the remote replication channel.
Role	This field displays the role of the replication channel IP.

4.2.4.7 Replication HeartBeat Status

Perform the following procedure to view the connectivity between local site and remote site name to which SCP is connected.

From the left navigation pane, click the SCP tab, and then click the cnDBTier tab.

Click the Replication HeartBeat Status to view the connectivity between local site and remote site name to which SCP is connected.

Table 4-21 Replication HeartBeat Status Details

Fields	Description
Site Name	This field displays the name of the current site to which SCP is connected.
HeartBeat Details	This field displays information such as the remote site name, heartbeat status, heartbeat lag, and replication channel group id.
Remote Site Name	This field displays the remote site name.
Heartbeat Status	This field displays the connectivity status with corresponding sites.
Heartbeat Lag	This field displays the delay or latency in seconds it took to synchronize between sites.
Replication Channel Group Id	This field displays the ID of the replication channel group.

4.2.4.8 Local Cluster Status

Perform the following procedure to view the local cluster status for the current site.

From the left navigation pane, click the SCP tab, and then click the cnDBTier tab.

Click the Local Cluster Status to view the local cluster status for the current site:

Table 4-22 Local Cluster Status

Fields	Description
Cluster Name	This field displays the name of the current cluster to which SCP is connected.
Cluster Status	This field displays the local cluster status for the current site.

4.2.4.9 On Demand Backup

Perform the following procedure to view the available database.

From the left navigation pane, click the SCP tab, and then click the cnDBTier tab.

Click the On Demand Backup to create a new backup and view the status of initiated on-demand backups.

Table 4-23 On Demand Backup Details

Fields	Description
Site Name	This field displays the name of the current site in which the cnDBTier cluster is deployed.
DR Status	This field displays the disaster recovery status.
Backup Id	This field displays the ID of the stored backup.
Backup Status	This field displays the status of backup.
Transfer Status	The field displays the status of the local transfer.
Remote Transfer Status	The field displays the status of remote transfer.
Initiate Backup	The field displays whether the backup is initiated or not.

Click the Edit icon.
The Edit On Demand Backup screen appears.

Note:
The Edit mode is available only for Initiate Backup.
Enable the Initiate Backup option click Save.
A confirmation message "Save successfully" appears.
Click theCancel to navigate back to the On Demand Backup screen.
Click the Refresh to reload the On Demand Backup screen.

4.2.4.10 cnDBTier Health

Perform the following procedure to view the health status of the microservices:

From the left navigation menu, navigate to SCP and then click cnDBTier tab.
The cnDBTier page is displayed.

Click cnDBTier Health to view the health status of the microservices like replication, backup manager, monitor services, and NDB services.

The cnDBTier Health page is displayed.

Click the Backup Manager Health Status to view the health status of the backup manager.

The Backup Manager Health Status page is displayed.

Note:

The following APIs are read-only.

Table 4-24 Backup Manager Health Status

Fields	Description
Service Name	This attribute displays the service name of the backup manager microservice.
Service Status	This attribute displays the service status of the backup manager microservice. Possible values are UP and DOWN.
DB Connection Status	This attribute displays the database connection status of the backup manager microservice. Possible values are UP and DOWN.
Overall Backup Manager Service Health	This attribute displays the overall health status of the backup manager microservice. Possible values are UP and DOWN.
Backup Executor Health Status	This attribute displays the following information like node id and DB connection status of the backup executor.
Node Id	This attribute displays the id of the node.
DB Connection Status	This attribute displays the backup executor database connection status with the nodes. Possible values are UP and DOWN.

Click the Monitor Health Status to view the health status of the services.

The Monitor Health Status page is displayed.

Note:

The following APIs are read-only.

Table 4-25 Monitor Health Status details

Attribute	Description
Service Name	This attribute displays the service name of the monitor microservice.
DB Connection Status	This attribute displays the database connection status of the monitor microservice. Possible values are UP and DOWN.
Metric Scrape Status	This attribute displays the status of the metric scrape, that is if the metrics are fetched or not. If the metrics are fetched then the service is up and vice versa. Possible values are UP and DOWN.
Overall Monitor Service Health	This attribute displays the overall health status of the monitor microservice. Possible values are UP and DOWN.

Click the NDB Health Status to view the health status of the network database.

The NDB Health Status page is displayed.

Note:

The following APIs are read-only.

Table 4-26 NDB Health Status details

Attribute	Description
Local Site Name	This attribute displays the name of the current site. For example, site 1, site 2.
NDB Health Status Details	This attribute displays the health status of the network database like name of the NDB service, status of the service, health status of PVC.
Service Name	This attribute displays the service name. For example, ndbmgmd-0, ndbmtd-0, ndbmyappsqld-1, ndbmysqld-2.
Service Status	This attribute displays the status of the service. Possible values are UP and DOWN.
PVC Health Status	This attribute displays the health status of the PVC. Possible values are UP, DOWN, and NA. Note: This attribute is set to NA when some of the database pods are not connected to the PVC.

Click the Replication Health Status to view the health status of the replication sites.

The Replication Health Status page is displayed.

Note:

The following APIs are read-only.

Table 4-27 Replication Health Status details

Attribute	Description
Local Site Name	This attribute displays the name of the current site (site 1, site 2 ).
Health Status Details	This attribute displays the health status details of the local site like replication service name, replication service status, database connection status of the replication service, and the overall health status of the replication micorservices. The number of rows in this table varies depending on the type of deployment (for example, two-site, three-site deployments).
Service Name	This attribute displays the name of the available replication service.
Service Status	This attribute displays the status of the available replication service. Possible values are UP and DOWN.
DB Connection Status	This attribute displays the database connection status of the replication microservice. Possible values are UP and DOWN.
Overall Replication Service Health	This attribute displays the overall health status of the replication microservice. Possible values are UP and DOWN.

4.2.5 Configuring NRF SRV

Perform the following procedure to configure NRF using DNS SRV Resolution.

From the left navigation pane, navigate to SCP and click the NRF SRV Configuration tab.
In the NRF SRV FQDN section, click the Add button to create the new NRF SRV configuration for the given NRF SRV FQDN.
You can configure the NRF configurations at run time, and this NRF SRV FQDN shall be mapped to target NRF FQDNs. SCP uses this NRF SRV FQDN to query the DNS SRV server to get the actual target NRF FQDNs. NRF SRV FQDN

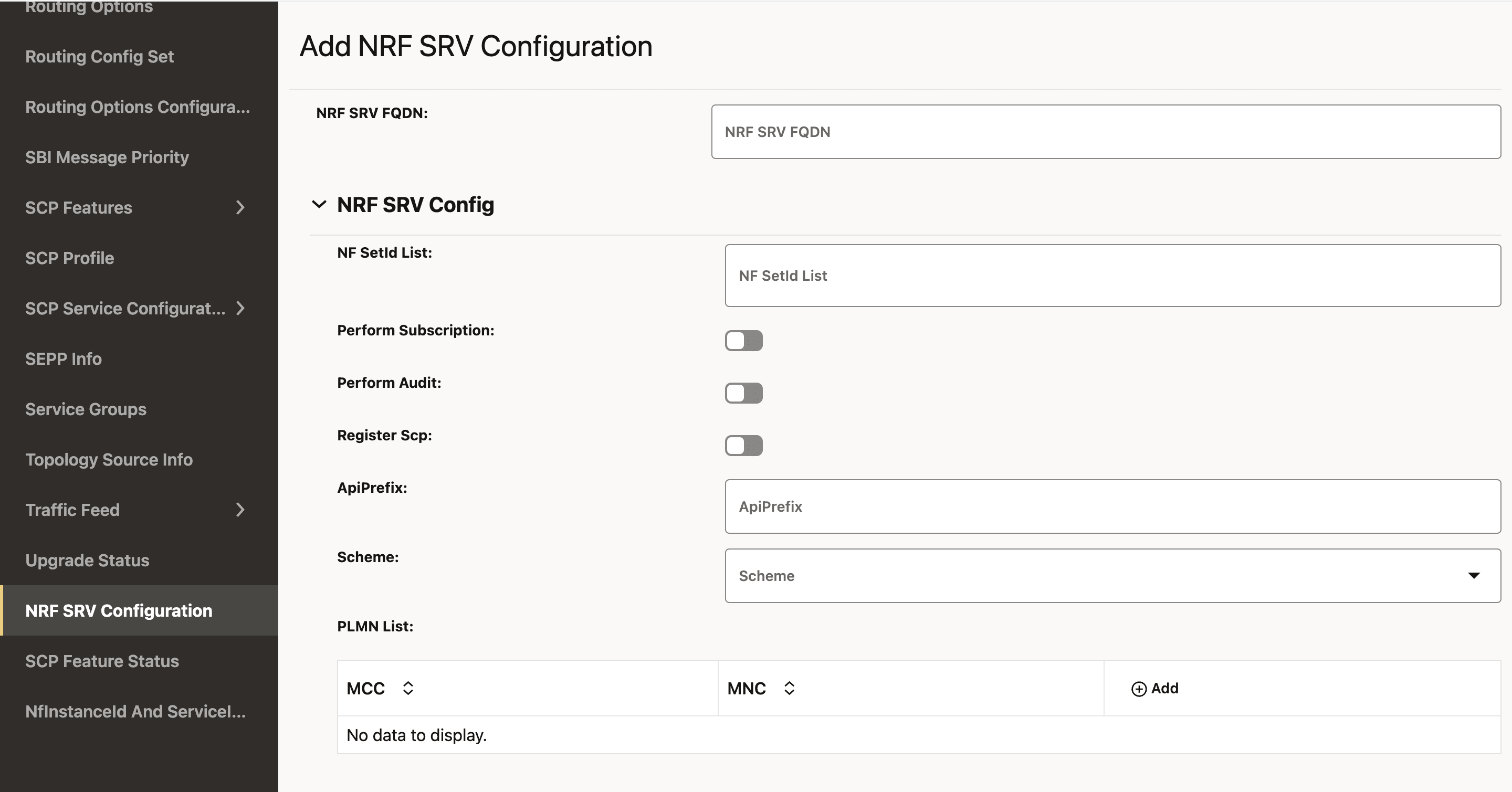

Figure 4-28 Add NRF SRV Configuration

To configure the NRF SRV, enter the input for the following fields:

Table 4-28 NRF SRV Configuration

Field Name	Description
NF SetId List	This is the SetId list for this NRF SRV configuration. You can configure multiple nfSetIds, but the NRF profile and rule creation will only take into account the nfSetId from the 0th index. This setId must be unique for each NRF SRV configuration; that is, this setId must not be present in any other NRF SRV configuration.
Perform Subscription	This field allows to decide whether NRF from this NRF SRV should be used for a subscription or not. The possible values are true or false.
Perform Audit	This field allows to decide whether NRF from this NRF SRV should be used for a audit or not. The possible values are true or false.
Register SCP	This field allows to decide whether to register SCP with the NRF from the NRF Set. The possible values are true or false.
Scheme	This field is used for the URI Scheme. The supported value is http/https.
PLMN List	This field indicates the list of NRFs serving Public Land Mobile Network (PLMN). A PLMN has a unique PLMN code, which consists of a MCC (Mobile Country Code) and an MNC (Mobile Network Code). Click the Add button to add MCC and MNC, respectively.
Versions	This field lists the NFServiceVersion. Configuring multiple API versions is permissible, but at least one entry in the version list must have its apiVersionInUri set to "v1." This is because SCP currently utilizes "v1" for its self-generated requests towards NRF. Click the Add button to add NFServiceVersion. The supported value of apiVersionInUri is v1/v2. The apiFullVersion should be in format x.y.z., for example, 1.0.0.
apiPrefix	This field is used in the URI while communicating with NRF.
serviceNames	Indicates the service name of the NRF SRV configuration. The nnrf-nfm and nnrf-disc are mandatory for NRF SRV configurations. The supported value is nnrf-nfm/nnrf-disc/nnrf-oauth2.
isInterPlmnFqdn	When isInterPLMNfqdn is true, it enables InterPLMN request routing. This means requests coming from foreign PLMNs to the SCP can be routed. SCP will perform intra-PLMN routing to local NRFs based on the interplmnFQDN.

In the NRF SRV FQDN section, click the Edit icon to update the existing NRF SRV configuration.
Click Save.

4.2.5.1 Mapping NFInstanceId and ServiceInstanceId

Perform the following procedure to map the NRF FQDN InstanceId.

In the left navigation pane, click the SCP tab, and then click the SCP Features tab.
From the SCP Features list, click NFInstanceId And ServiceInstanceId Mapping.
In the NFInstanceId And ServiceInstanceId Mapping section, click Get to retrieve the NRF FQDN and corresponding instanceId mapping details.

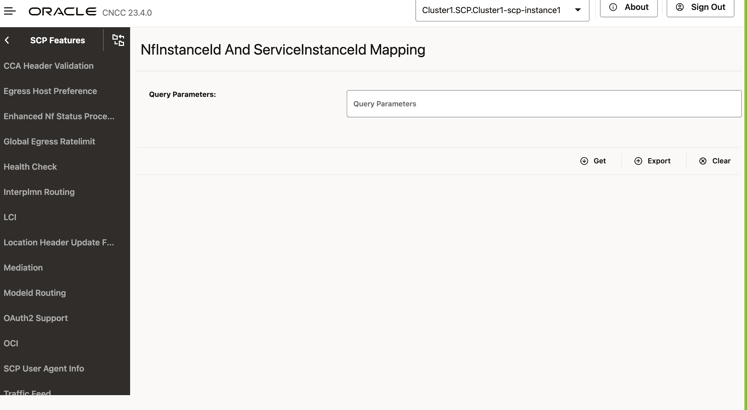

Figure 4-29 NFInstanceId And ServiceInstanceId Mapping

To retrieve, export, or clear the data, click the required buttons as described in the following table:

Table 4-29 Buttons and Descriptions of Mapping NRF FQDN InstanceId

Button and Field Names	Description
Query Parameters	Allows to enter parameters to retrieve and update data required for mapping NRF FQDN InstanceId.
Get	Retrieves the NRF FQDN and corresponding instanceId mapping details. You can modify this data using the Edit button.
Export	Exports existing records in the JSON format.
Clear	Refreshes the existing screen by removing the data.

4.2.6 Configuring NRF

Perform the following procedure to configure NRF preferred by SCP for access token requests.

From the left navigation pane, click the SCP tab, and then click the NRF Configuration tab.
In the NRF CONFIGURATION section, click Get to retrieve NRF configuration information.

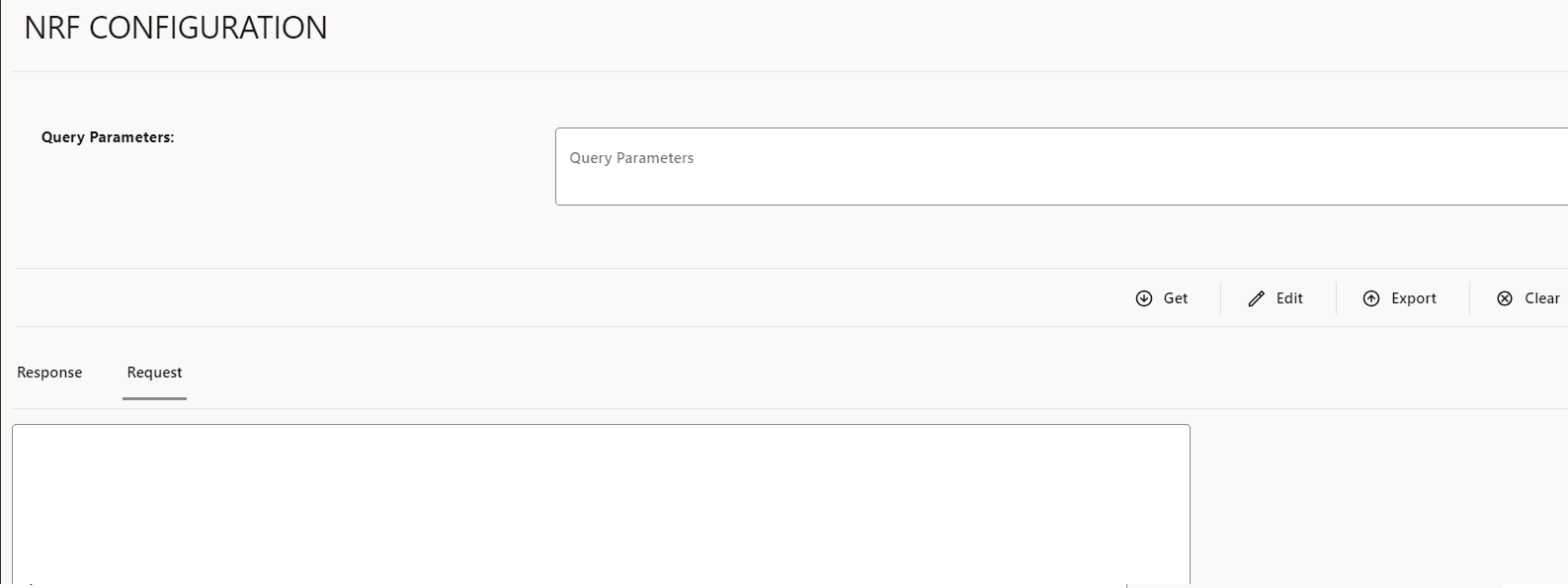

Figure 4-30 NRF Configuration

To edit, export, or clear the data, click the required buttons as described in the following table:

Table 4-30 Button and Field Descriptions of NRF Configuration

Button and Field Names	Description
Query Parameters	Allows to enter parameters to retrieve, add, and update NRF configuration data.
Get	Retrieves NRF configurations. You can modify this data using the Edit button.
Edit	Modifies any existing data by updating mandatory query parameters in the Query Parameters field.
Export	Exports existing records in the JSON format.
Clear	Refreshes the existing screen by removing the data.

Note:

This configuration is only applicable to the OAuth service.

4.2.7 Configuring Upgrade and Rollback Event

Perform the following procedure to fetch upgrade and rollback event information.

From the left navigation pane, click the SCP tab, and then click the Upgrade Status tab.

On the Upgrade Status page, the following columns display upgrade and rollback events:

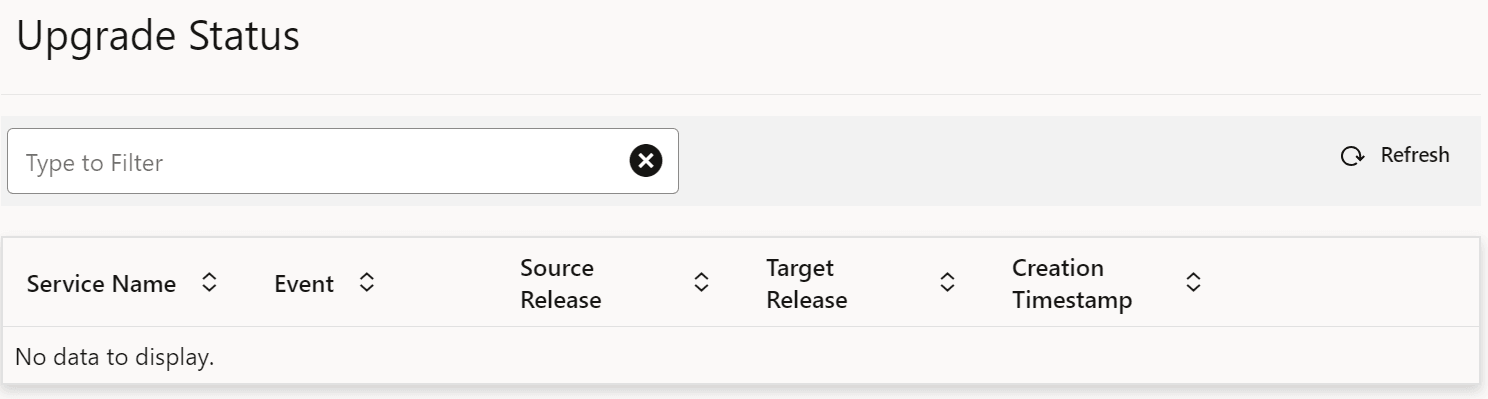

Figure 4-31 Upgrade and Rollback Events

Table 4-31 Upgrade and Rollback Events

Column Name	Description
Service Name	Displays the names of the services, such as SCPC-Audit, SCPC-Configuration, SCPC-Notification, and so on.
Event	Displays the names of the upgrade and rollback events, such as Pre_Upgrade_Started, Pre_Upgrade_Completed, Pre_Upgrade_Failed, and so on.
Source Release	Displays the source release version for performing upgrade and rollback. The convention to identify a release is as follows: 1.12.0 is identified as 101200 1.14.0 is identified as 101400
Target Release	Displays the target release version for performing upgrade and rollback. The convention to identify a release is as follows: 1.15.0 is identified as 101500 22.1.0 is identified as 221000
Creation Timestamp	Displays the time of creation of the event, for example, creationTimestamp": "2021-05-26T01:17:15.000+00:00

4.2.8 OAuth2.0 Configurations

This section provides information about configuring access token granularity and requests for NF types or NF service instances.

You must log in to the CNC Console while performing the procedures described in the subsequent subsections. Using these procedures, you can perform the followings tasks:

Configure access token granularity
Configure OAuth2.0 Local PLMN

4.2.8.1 Configuring Access Token Granularity

Perform the following procedure to configure access token granularity and access token requests for NFType, specific NF, or NF instance ID.

From the left navigation pane, click the SCP tab, and then click the OAuth Services tab.
From the left navigation pane, click the Access Token Granularity Configurationtab.
In the Access Token Granularity Configuration section, click Get to retrieve access token granularity configurations data based on the query parameters.

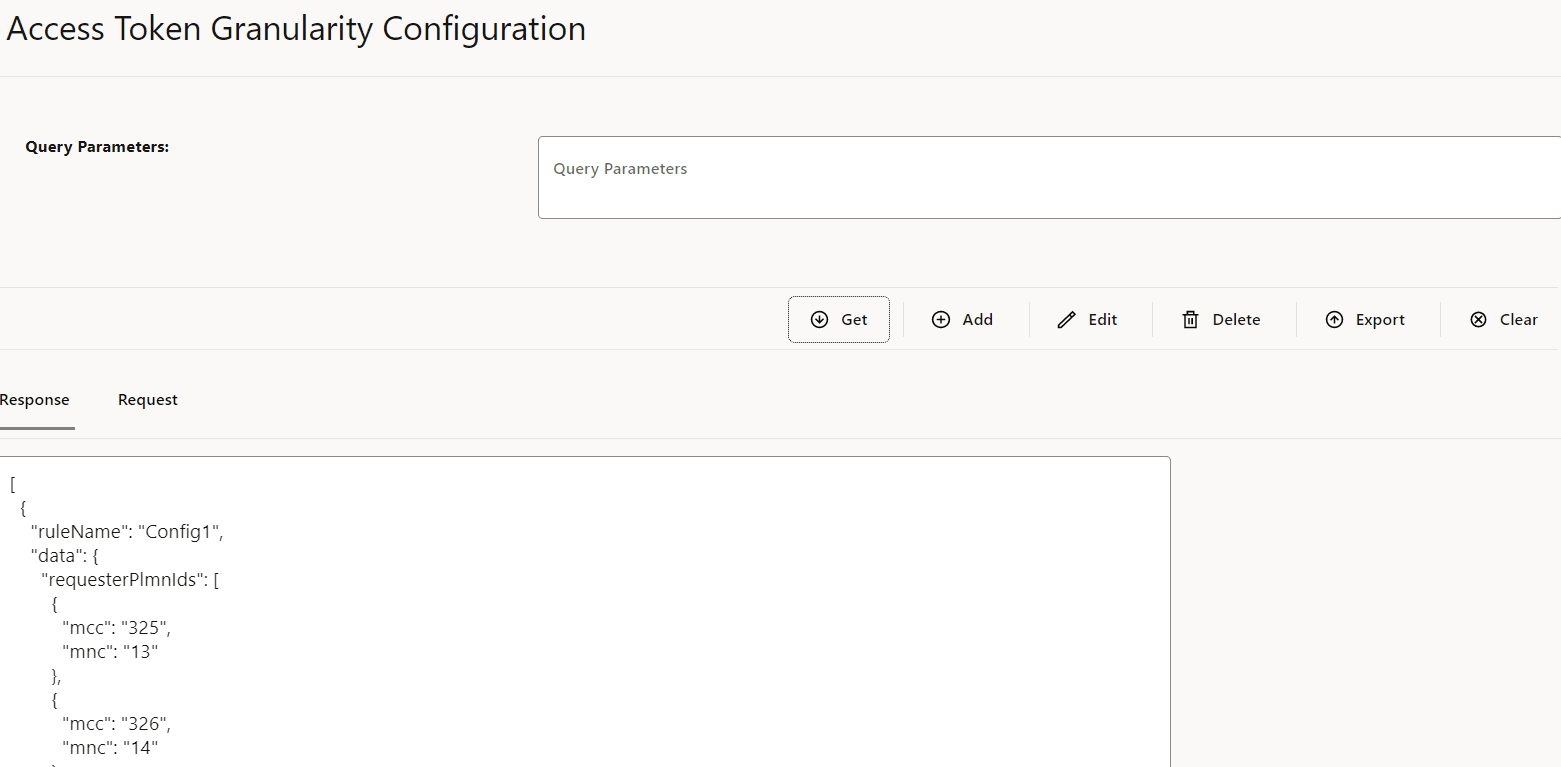

Figure 4-32 Access Token Granularity
To add a new request, click Add and enter the request body information in the Request field.
Click Submit.
The request body message appears in the Response field.

To edit, export, delete, or clear the data, click the required buttons as described in the following table:

Table 4-32 Button and Field Descriptions of Access Token Granularity

Button and Field Names	Description
Query Parameters	Allows to enter parameters to retrieve, add, and update access token granularity configuration data based on the query parameters.
Get	Retrieves access token granularity configuration data. You can modify this data using the Edit button.
Add	Adds new message requests in the Request field.
Edit	Modifies any existing data by updating mandatory query parameters in the Query Parameters field.
Delete	Removes any message request.
Export	Exports existing records in the JSON format.
Clear	Refreshes the existing screen by removing the data.

4.2.8.2 Configuring OAuth2.0 Local PLMN Required

Perform the following procedure to configure local PLMN OAuth2.0.

From the left navigation pane, click the SCP tab, and then click the OAuth Services tab.
From the left navigation pane, click the OAuth2Required Configuration tab.
In the OAuth2Required Configuration section, click Get to retrieve OAuth2Required configurations data based on the query parameters.

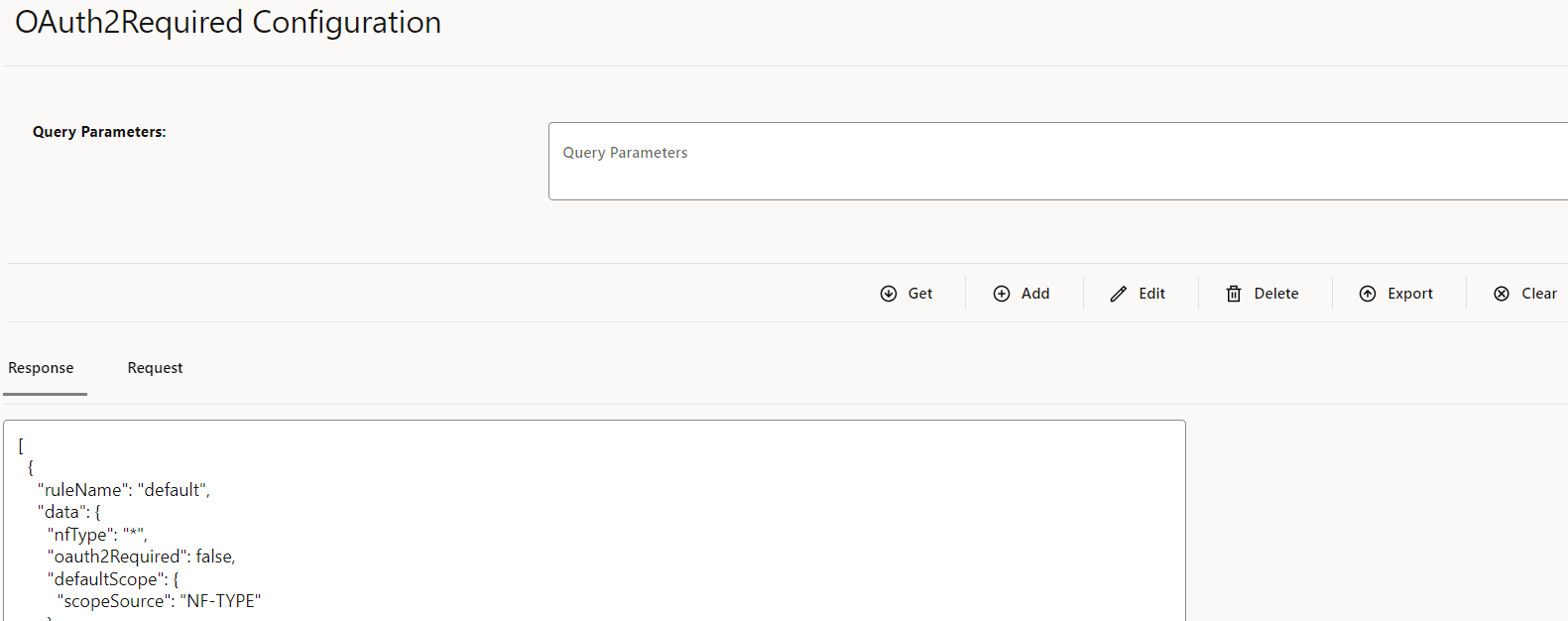

Figure 4-33 OAuth2Required Configuration
To add a new request, click Add and enter the request body information in the Request field.
Click Submit.
The request body message appears in the Response field.

To edit, export, delete, or clear the data, click the required buttons as described in the following table:

Table 4-33 Button and Field Descriptions of OAuth2Required Configuration

Button and Field Names	Description
Query Parameters	Allows to enter parameters to retrieve, add, and update OAuth2Required configuration data based on the query parameters.
Get	Retrieves OAuth2Required configuration data. You can modify this data using the Edit button.
Add	Adds new message requests in the Request field.
Edit	Modifies any existing data by updating mandatory query parameters in the Query Parameters field.
Delete	Removes any message request.
Export	Exports existing records in the JSON format.
Clear	Refreshes the existing screen by removing the data.

4.2.9 Configuring Error Profile

Perform the following procedure to configure different error profiles, which can be used to build "ProblemDetails" sent in the response body to the consumer.

From the left navigation pane, click the SCP tab, and then click the Error Profile tab.

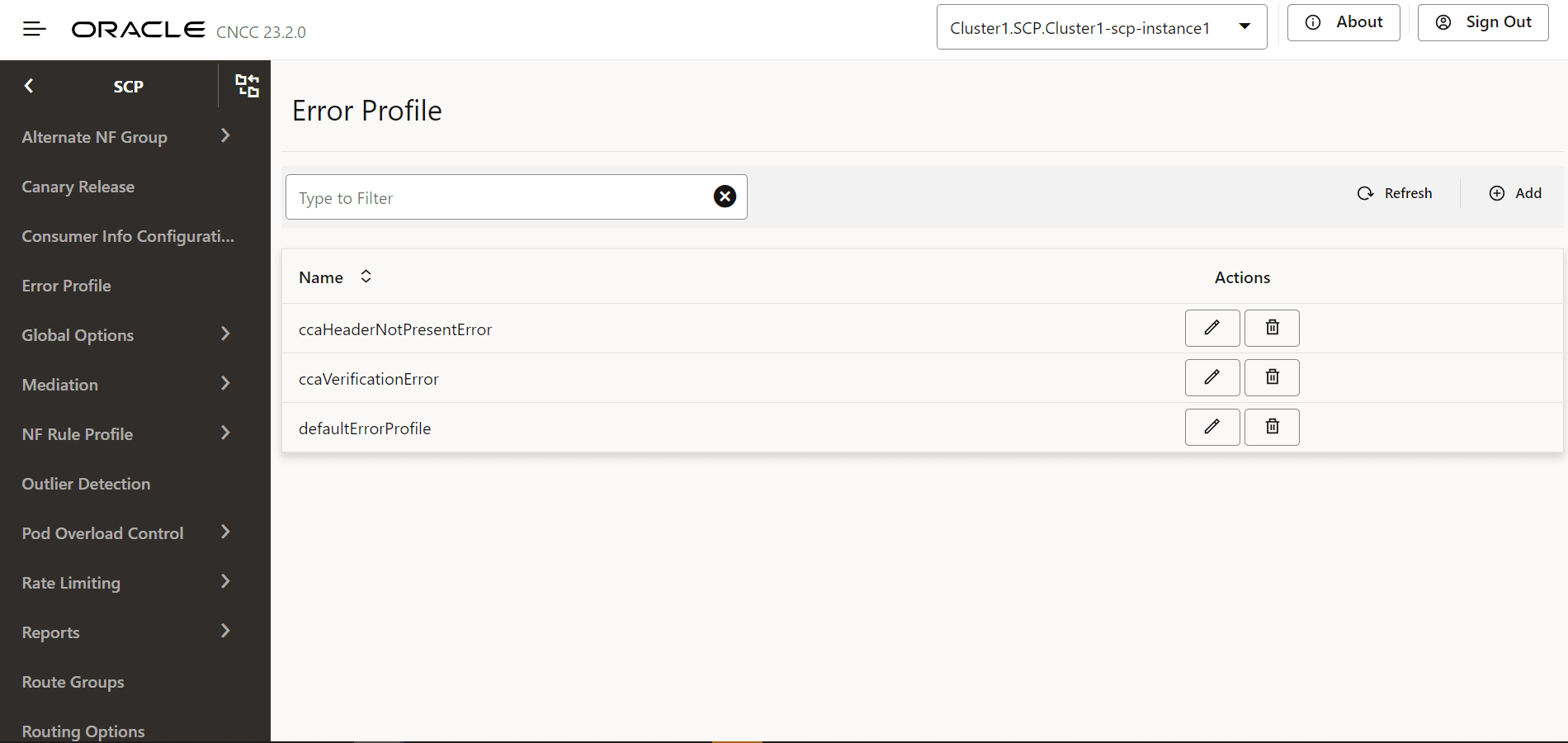

Figure 4-34 Error Profile
Click Edit icon from the Actions column for the error profiles that must be modified. The Edit Error Profile screen appears.

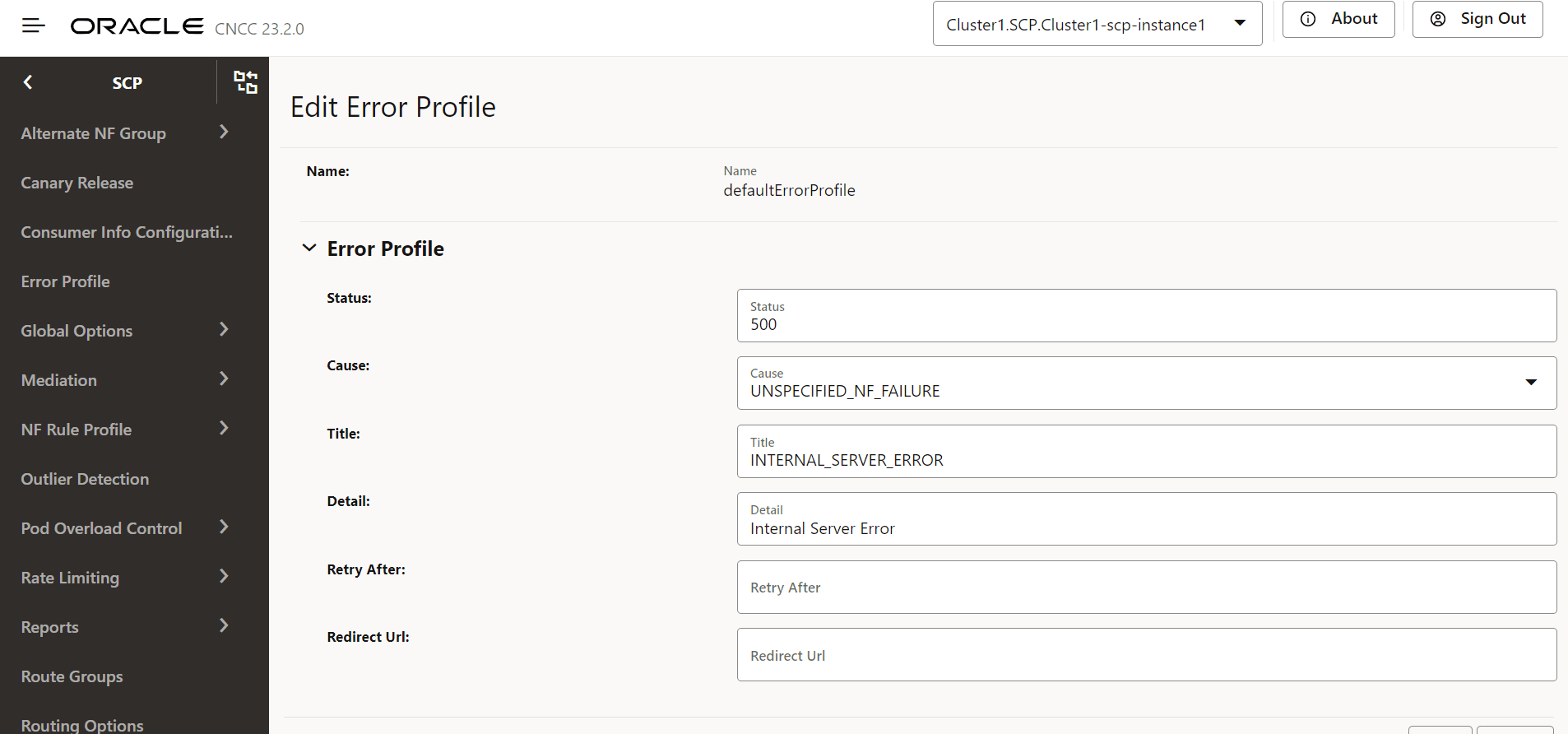

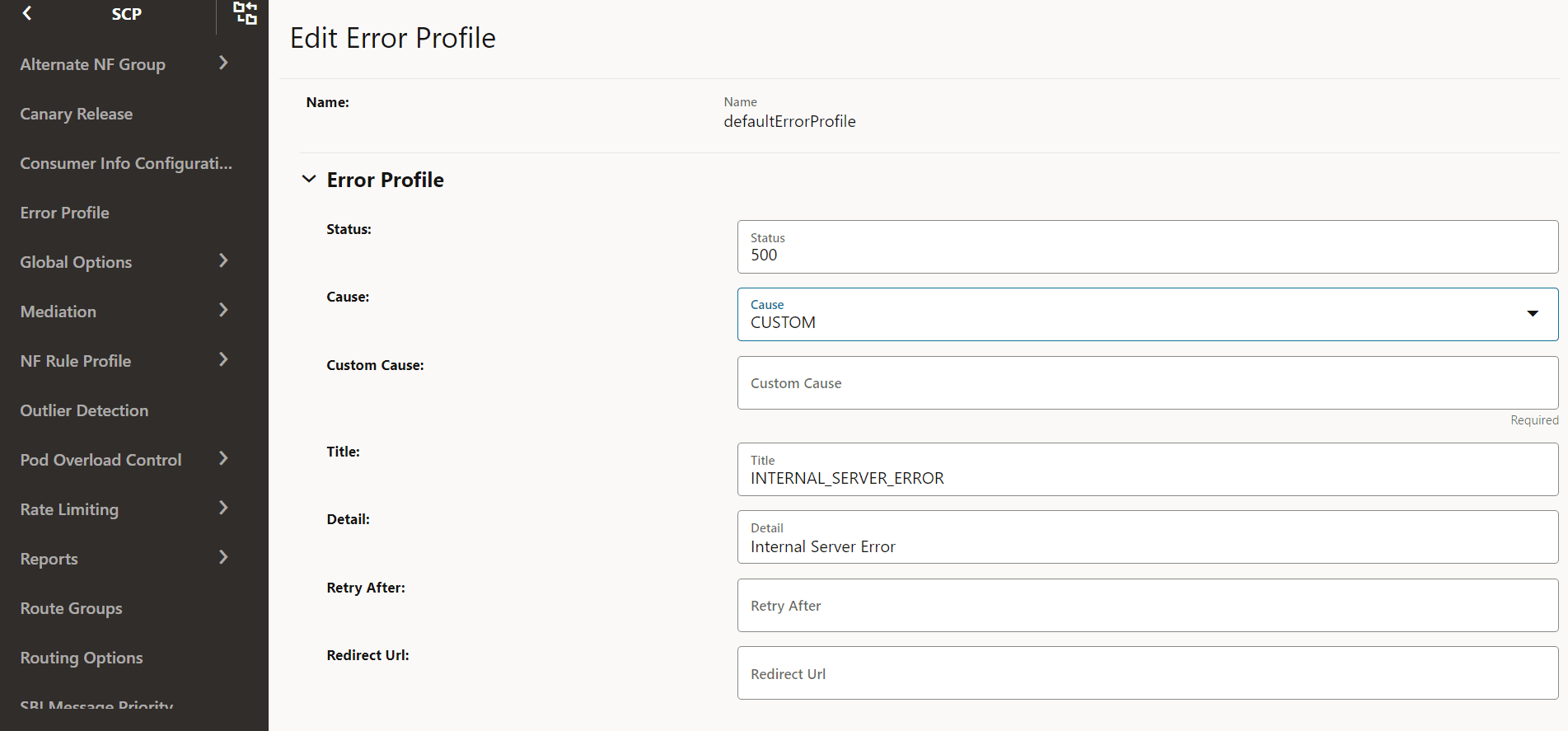

Figure 4-35 Edit Error Profile
If the required cause is not available in the Cause drop-down list, select CUSTOM to customize the cause:

Figure 4-36 Customize the Cause

Make the required modifications for the following parameters:

Table 4-34 Edit Error Profile

Field	Description
Status	HTTP Status Code
Cause	The list of error causes that are specific to the occurrence of the problem.
Custom Cause	User defined custom cause. This field will be used only if cause field value is set to "CUSTOM".
Title	If this field is null, a standard HTTP status code description is added.
Detail	If present, the same data is used; otherwise, the application can add it optionally.
Retry After	Indicates the number of seconds after client should retry.
Redirect URL	Indicates the AbsoluteURL of the resource to which the message is redirected to.

For information about configuring error profiles, see "Configuring Error Profile" in Oracle Communications Cloud Native Core, Service Communication Proxy REST Specification Guide.

Click Save.

4.2.10 Configuring Canary Release

Following is the procedure to configure Canary Release parameters:

From the left navigation menu, navigate to SCP and then select Canary Release.
Click Edit from the Actions column for the required service that must be modified. The Edit Canary Release Screen appears.

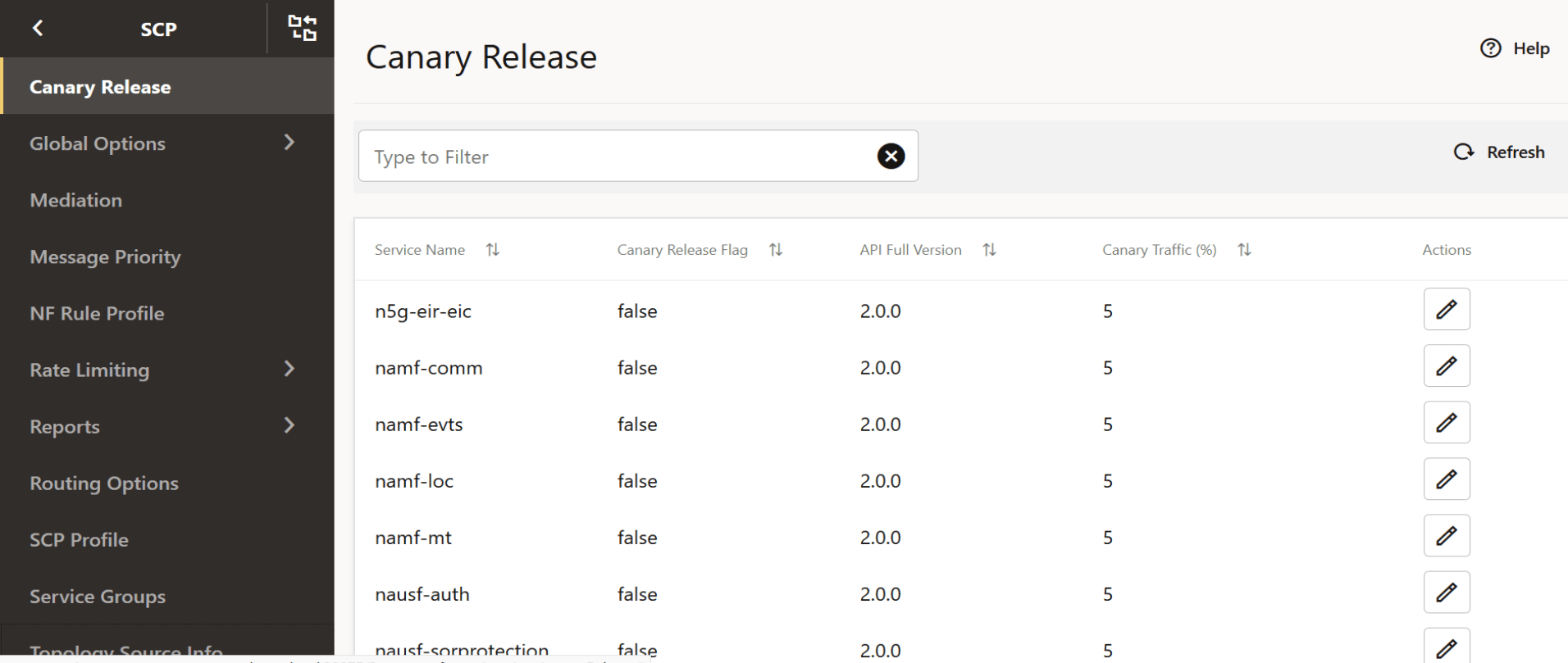

Figure 4-37 Canary Release
Make the required modifications for the following parameters:
1. Canary Release Flag: Enable/Disable the flag using toggle.
2. API Release Version: Provide the release version of the API.
3. Canary Traffic: Set the value for the traffic that should be distributed to Canary Release.
Figure 4-38 Edit Canary Release

For more information about the configuration parameters, see Oracle Communications Cloud Native Core, Service Communication Proxy REST Specification Guide.
Click Save.
Click Refresh to view the updated values on the screen.

4.2.11 Configuring Global Options

Perform the following procedure to configure global options.

Logging Config

From the left navigation menu, navigate to SCP and select Global Options.
Select Logging Config.
Click Edit from the top right side to edit or update Logging Config parameters.

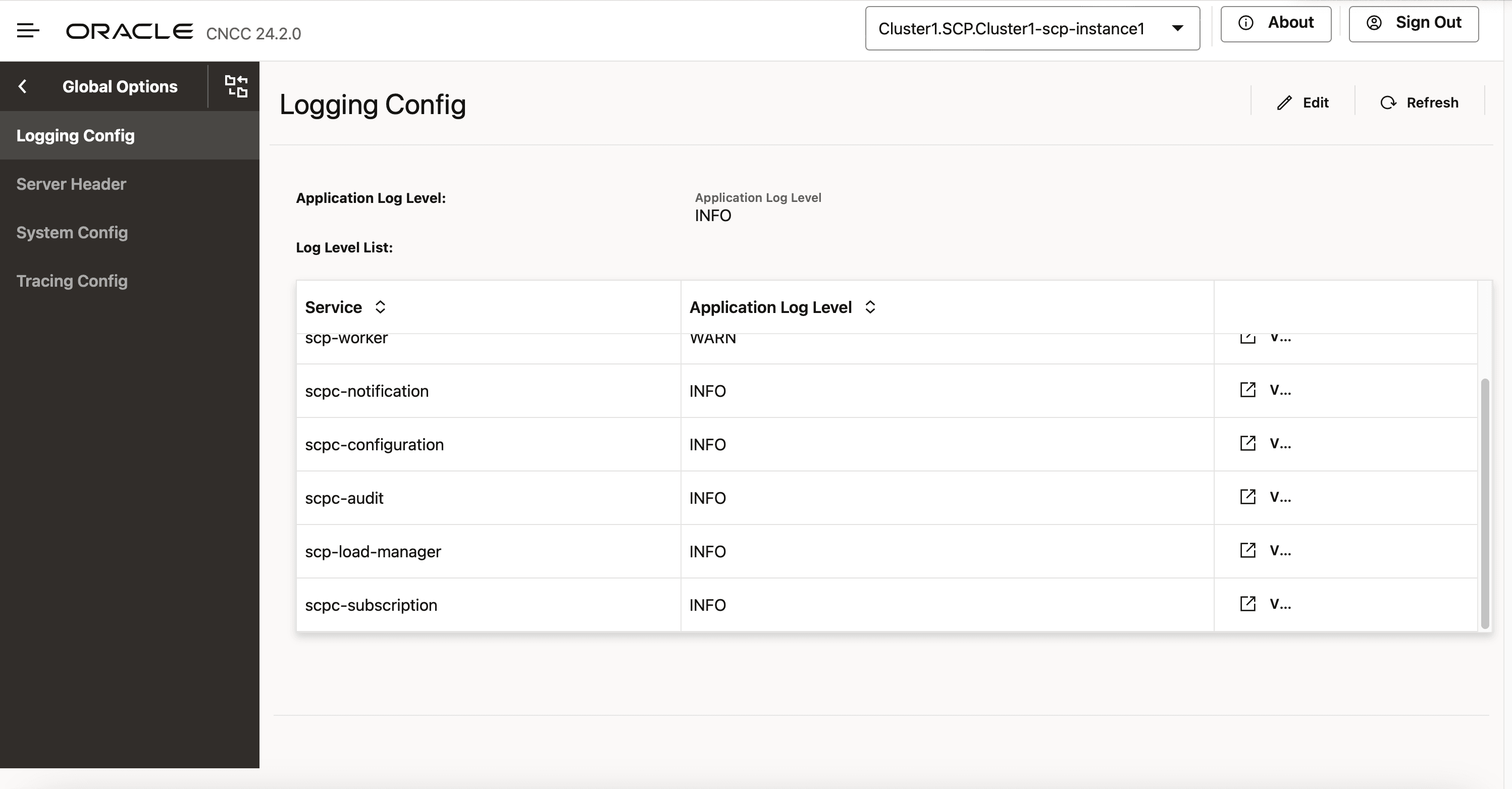

Figure 4-39 Logging Config
Select Service Type from the drop-down list to select any one of the following service type:
- scpc-audit
- scpc-alternate-resolution
- scpc-subscription
- scpc-configuration
- scpc-notification
- scp-worker
- scp-cache
- scp-nrfproxy
- scp-loadmanager

Select the Application Log Level from the drop-down list to set the constraints of the log.

The description of each logging level is as follows:

Table 4-35 Logging Level

Logging Level	Description
DEBUG	A log level used for events considered to be useful during software debugging when more granular information is required.
INFO	The standard log level indicating that something happened, the application entered a certain state, and so on.
WARN	Indicates that something unexpected happened in the application, a problem, or a situation that might disturb one of the processes. But that doesn’t mean that the application has failed. The WARN level should be used in situations that are unexpected, but the code can continue the work.
ERROR	The log level that should be used when the application reaches an issue preventing one or more functionalities from properly functioning.
TRACE	The TRACE log level captures all the details about the behavior of the application. It is mostly diagnostic and is more granular and finer than DEBUG log level. Note: The scpc-notification, scpc-audit, and scpc-loadmanager microservices supports the TRACE log level.

For instance, when you select "scpc-notification" as the service type from the Service drop-down list, the Application Log Level drop-down list will display the "TRACE" log level.

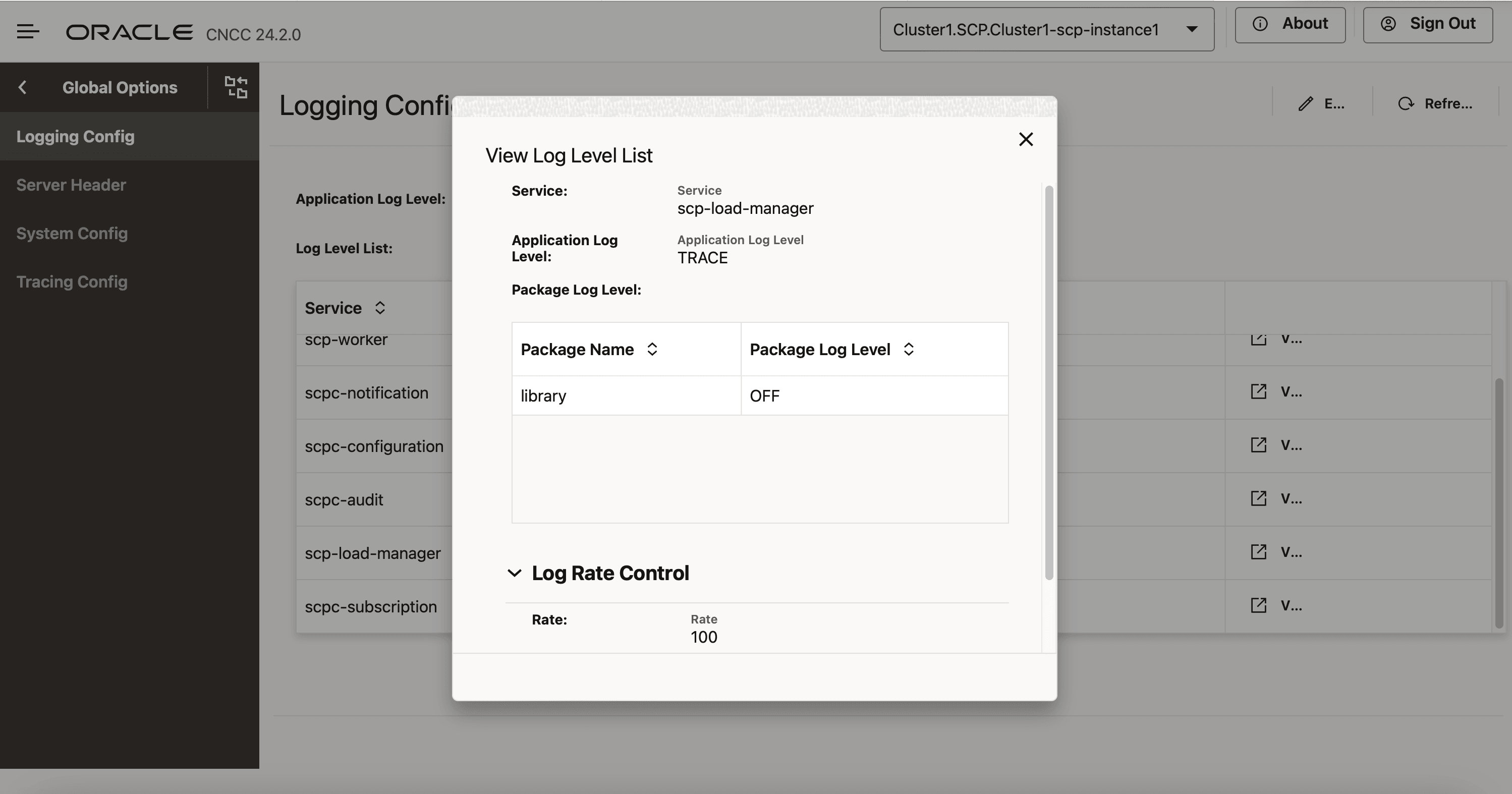

Figure 4-40 TRACE Log Level

This screen displays the application log level for scp-load-manager microservice.

Click Add provided under Package Log Level section to specify the name of the package and its log level.
Click Save.

Note:
You can also Edit and Delete the packages under Package Log Level.

System Config

Perform the following procedure to edit the system config parameters.

From the left navigation menu, navigate to SCP and select Global Options.
Select System Config.
Click Edit from the top right side to edit or update System Config parameters.

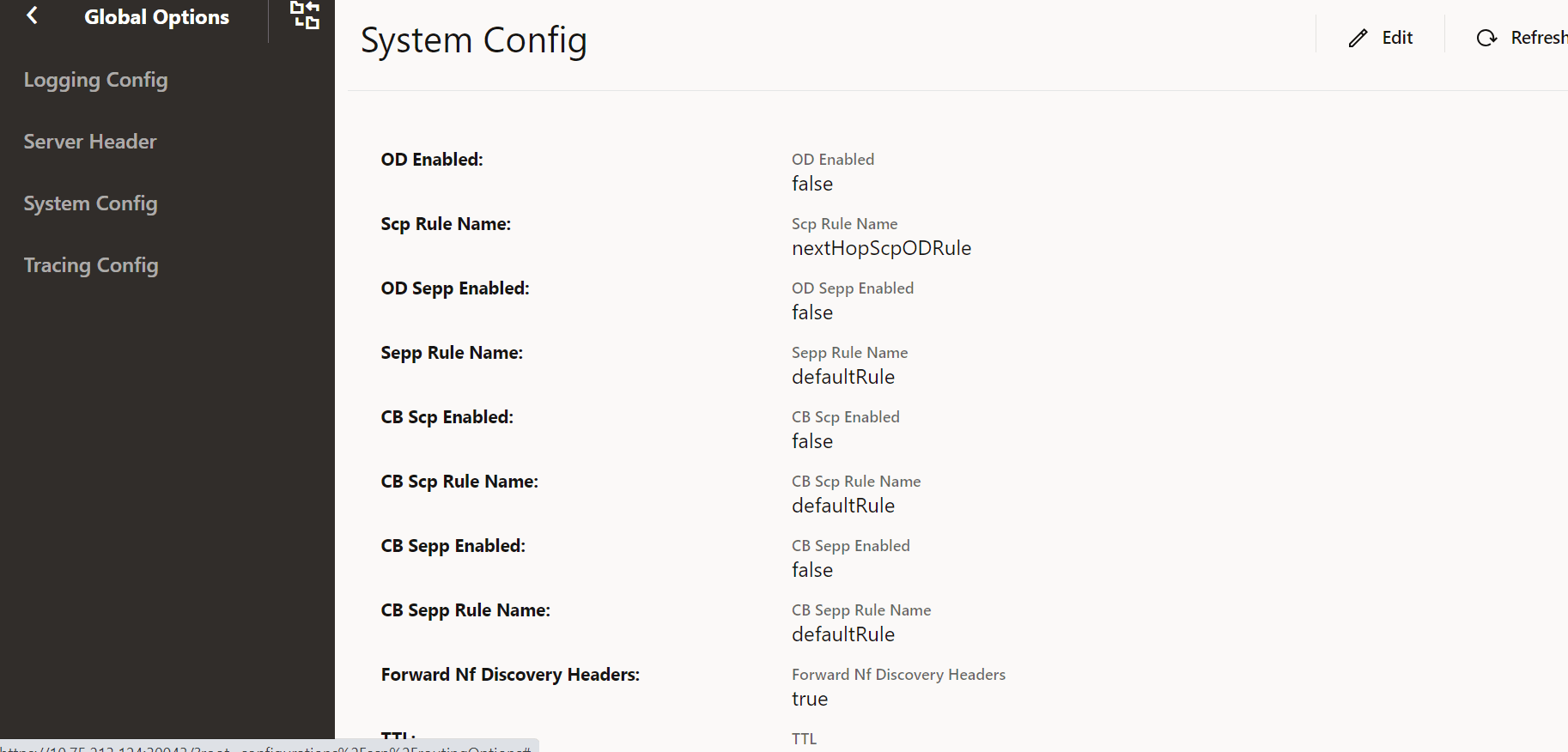

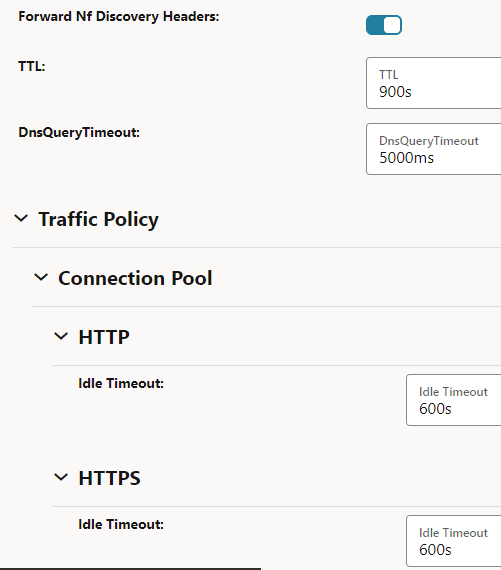

Figure 4-41 System Config
Update the attributes as described in "Configuring System Options" in Oracle Communications Cloud Native Core, Service Communication Proxy REST Specification Guide.

Note:
Ensure that Forward Nf Discovery Headers is set to true to forward discovery headers to Nexthop SCP as part of the Model D Indirect 5G SBI Communication feature.
The default value is true.
Click Save after performing the modifications.

Tracing Config

Perform the following procedure to edit tracing config options.

From the left navigation menu, navigate to SCP and select Global Options.
Select Tracing Config.
Click Edit from the top right side to edit or update Tracing Config options.

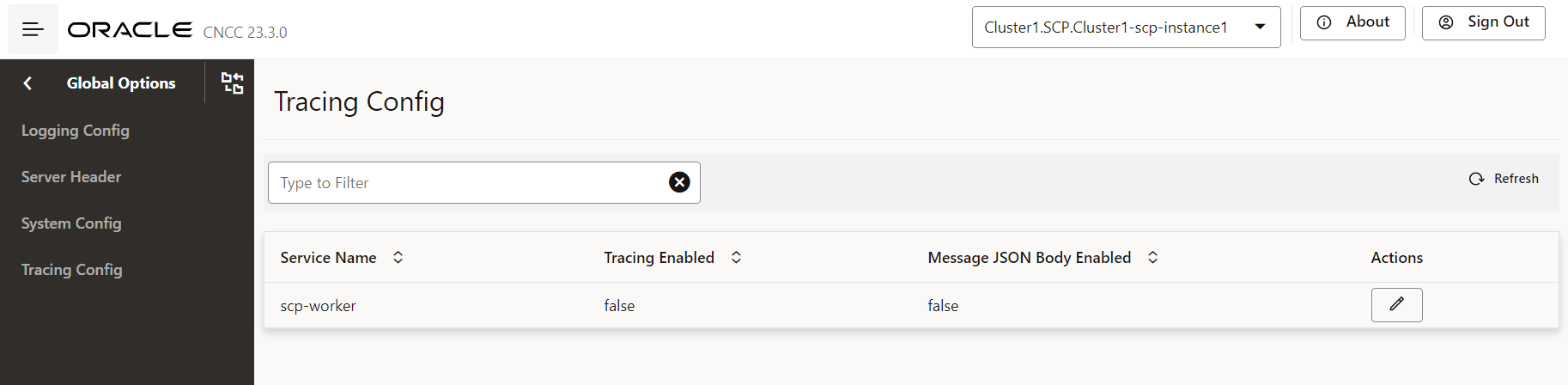

Figure 4-42 Tracing Config
Set the following switches as required:
- Tracing Enabled
- Message JSON Body Enabled
For information about tracing parameters, see "Updating HELM Configurable Parameters with REST APIs" in Oracle Communications Cloud Native Core, Service Communication Proxy REST Specification Guide.
Click Save after performing the modifications.

4.2.12 Mediation Configuration

This section outlines procedures for setting up trigger points to define filter criteria, configuring routing options, creating mediation rules, adjusting log levels, and defining user variables.

4.2.12.1 Configuring Mediation Trigger Point

Perform the following procedure to configure trigger points for defining the filter criteria for a message to decide whether to invoke mediation or not.

Note:

For each trigger point configuration, the combination of NfType, serviceName, httpMethods, messageType and triggerPoints methods must be unique. No new records can be added with the same combination.

From the left navigation pane, click the SCP tab, and then click the Mediation tab.
To configure trigger points for defining the filter criteria for a message, in the left navigation pane, click the Trigger Points tab.
In the Trigger Points section, click Add.

In the Add Trigger Points section and add the fields as described in the following table:

Table 4-36 Trigger Points Field Description

Field	Description
Group Id	Enter the group ID for which the mediation configuration is required. The Mediation configuration for a specific group is applicable to the mediation requests or responses received only from the same group. The HTTP Mediation service consumer NFs, which requires the same mediation rules, can be grouped together using this group ID.
Rule Name	Enter a unique rule name for each mediation configuration, which will serve as the primary key.
Message Type	Select whether the message is a notification or a service request. The allowed message types are svc-request-message, notification-message, or both notification-message, svc-request-message.
Service Name	Select the service of NFType for which mediation configuration is required.
NF Type	Select the NFType for which mediation configuration is required.
Http Methods	Select the HTTP methods, such as GET, POST, PUT, PATCH, DELETE, and OPTIONS.
Mediation Trigger Points	Select trigger points to be enabled based on matches with one or more of the following: requestIngress, requestEgress, responseIngress, and responseEgress.
Match	Indicates the list of match blocks to be satisfied for the rule to be activated. Minimum number of blocks = 1 Maximum number of blocks = 20
Add	Option to add HTTP headers, JSON body, and User Defined Variables criteria.

Match Parameter Semantics

Match Blocks using OR Semantics:
The match wrapper consists of multiple match blocks, which are evaluated using OR semantics. This means that for the overall match wrapper to evaluate to true, it is sufficient for any one match block to satisfy the conditions.

For example, if the match wrapper contains three match blocks, the entire wrapper will be considered a match as long as at least one of the blocks matches the conditions.
Internal Components of a Match Block (AND Semantics)
Each match block contains three components:
- Body: A list of match conditions for body fields.
- Headers: A list of match conditions for headers.
- userDefinedVariables (UDVs): A list of match conditions for user-defined variables.
These components are evaluated using AND semantics:
- All conditions within each component (for example, all body conditions, all header conditions, and all UDV conditions) must be satisfied.
- Furthermore, all three components (body, headers, and userDefinedVariables) must match in order for the block to be considered a match.

In the Match section, click Add.
The Add Match dialog box appears.
In the Header section, click Add to set the header details as follows:
- Name: Enter a name for the header.
- Value: Enter a value of the header.
- Match Type: Select a range type from the Match Type drop-down.
In the Body section, click Add to set the JSON body details as follows:
- Name: Enter a name for the body.
- Value: Enter a value for the header.
- Match Type: Select a range type from the Match Type drop-down.
In the User Defined Variables section, click Add to set the user defined variable details as follows:
- Name: Select the user-defined variable names from the Name drop-down.
- Value: Enter a value for the header.
- Match Type: Select a range type from the Match Type drop-down.
- In the Range section, if the header type has a numeric value, enter the range of that value in Start and End fields.
- Click Remove to discard the changes made to the Range section.
In the Action section, select the action type from the Action Type drop-down.
This field allows you to select the action for the trigger point rules that match the configured trigger point rules setup. The allowed values are forwardToMediationService and setTriggerPointsInvocation.

The significance of setTriggerPointInvocation is to avoid extra SCP-Worker to mediation service hop at requestIngress or requestEgress trigger points for the scenarios where response message mediation is required based on request message content.

For more information, see the "Configuring Mediation Trigger Point" in Oracle Communications Cloud Native Core, Service Communication Proxy REST Specification Guide.
In the Trigger Point List, select the list of trigger points to be invoked for matching the configured trigger point rule.
For more information about the order of invocation, see the "Configuring Mediation Trigger Point" in Oracle Communications Cloud Native Core, Service Communication Proxy REST Specification Guide.

Note:
This is only applicable for Action Type =setTriggerPointsInvocation. Additionally, the first value in the triggerPointList should not precede the first value in the parent triggerPoints.
Example (not allowed)triggerPoints: ["requestEgress"], "action": { "actionType": "setTriggerPointsInvocation", "triggerPointList": [ "requestIngress" ] }

In this example, "requestIngress" is listed after "requestEgress", which violates the rule that the first trigger point in the triggerPointList should not occur before the first trigger point in the parent triggerPoints.
In the Trigger Points section, click Edit and configure the fields as required.

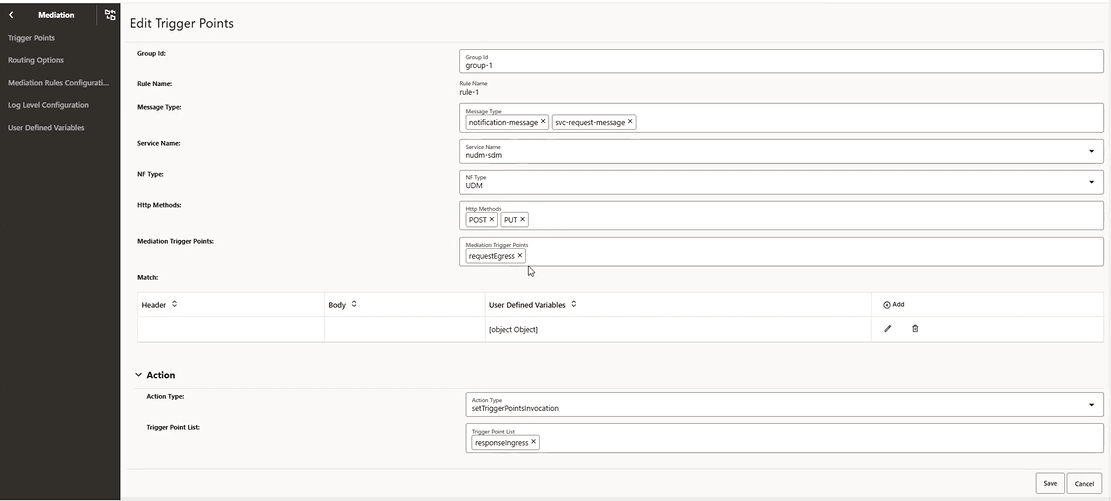

Figure 4-43 Edit Mediation Trigger Points
Click Save to save the changes.
Click Cancel to reset all the fields.

4.2.12.2 Configuring Routing Options for Mediation

Perform this procedure to configure routing options with Mediation.

From the left navigation pane, click the SCP tab, and then click the Mediation tab.
On Mediation tab, click the Routing Options subtab.
In the Routing Options section, click Edit.
The Edit Routing Options screen appears.

Figure 4-44 Editing Routing Options
In the Edit Routing Options section, set Retry to true to enable retry attempt.
In the Max Retry Attempts field, enter a value to set the number of retry attempts. Minimum value is 1, Maximum value is 10.
In the Response Timeout field, enter a time interval to respond to a message request. This value must be in seconds.
In the Exception Error Responses section, click Add to add exception error responses.
This option enables you to send an error message to the consumer NF or process the message request to the producer NF when the Mediation service is unavailable.
This option specifies how exceptions should be handled. In the Exception Error Responses of Routing Options, three exception configurations will be created by default during deployment. These configurations will include the status codes DEFAULT, MSGDECODEFAILURE, and MAXHDRSIZEEXCEEDED, with the action set to continue_processing. This means that if an exception occurs during mediation invocation, the process will continue. To change this behavior, the user must create their own exception configuration by specifying actions for specific status codes.

In the Add Exception Error Responses dialog box, configure the fields as described in the following table:

Table 4-37 Add Exception Error Responses

Field	Description
Status Code	Indicates the list of status codes that matches with the status code received from the application, the required action specified by action field is taken. This value can be any HTTP Status Codes, HTTP Status with other defined custom status (RESPONSE_TIMEOUT and CONNECTION_FAILURE)
Action	Indicates the action to be taken when the above mentioned status code is received. It can have the following values: send_error_response: Sends the error code to the consumer NF. continue_processing: Continues processing the message in case of errors.
Error Code	Indicates configurable error codes to be sent by SCP to consumer NFs. It is a valid HTTP status code or allowed custom code.
Error Cause	Indicates the error cause that is specific to the occurrence of the problem.
Error Title	Indicates the title of the error.
Error Description	Indicates an explanation specific to the occurrence of the problem.
Retry After	Indicates the retry interval.
Redirect Url	Indicates the AbsoluteURL of the resource to which the message is redirected to.

Click Save.

4.2.12.3 Configuring Mediation Rules

Perform this procedure to configure mediation rules.

From the left navigation pane, click the SCP tab, and then click the Mediation tab.
On Mediation tab, click the Mediation Rules Configuration subtab.
The Mediation Rules Configuration screen with a list of rules saved in database appears.

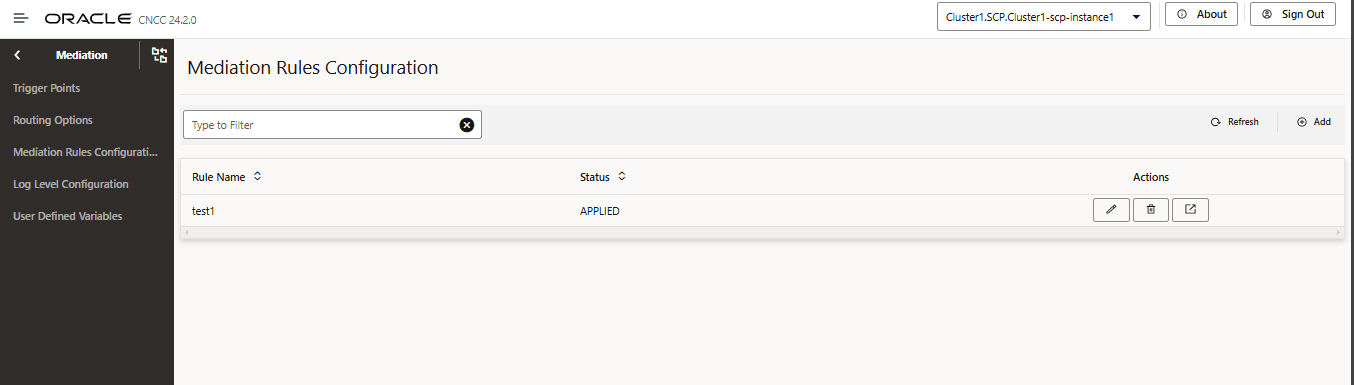

Figure 4-45 Mediation Rules Configuration
Click the View icon to view the mediation rules.

Click the Add to create a mediation rule.

The Add Mediation Rule screen allows you to configure the fields to create new rules as described in the following table:

Table 4-38 Add Mediation Rules

Field	Description
Rule Name	Indicates the name of the rule. This value should be unique.
Format	Indicates the Format in which the rules are defined, such as DRL.
Status	Indicates the status of the rule. It can have the following values: DRAFT APPLIED The status must always be in DRAFT to create a new rule.
Mediation Mode	Indicated whether the rule applies to mediation active or mediation test. Mediation Active allows actual messages to be manipulated according to configured mediation rules. Mediation Test executes the mediation rule on message copy instead of the actual message and verifies the behavior of the mediation rule.
Code	Indicates the configurable drool expression that matches the request/response headers and body sent by SCP. For example, `package com.oracle.cgbu.ocmediation.nfmediation; import com.oracle.cgbu.ocmediation.factdetails.Request; dialect "mvel" rule "newRuleTest" when req : Request(headers.has("header") == true) then req.headers.add("NewHeader","132465") end`
State	Indicates the state. The value of State must be SAVE to create a new rule. For more information, see Table 3-29

Note:

Special characters are not supported and can lead to an compilation error.

Click the Edit icon to edit the existing rule.

Add a Mediation Rule with user-defined variables that have not been configured.

Note:

User-defined variables must be configured before they can be used in a mediation rule.

The Edit Mediation Rule screen allows you to configure the fields as described in the following table:

Table 4-39 Edit Mediation Rules

Field	Description
Rule Name	Indicates the name of the rule. This value should be unique.
Format	Indicates the Format in which the rules are defined, such as DRL.
Status	Indicates the status of the rule. It can have the following values: DRAFT APPLIED The following fields are allowed to be modified in DRAFT status: Mediation Mode, Code, and State. The valid values for state are SAVE, CLONE, COMPILE, and APPLY. The Mediation Mode can only be modified in APPLIED status. The valid values for state are SAVE, CLONE, or DRAFT.
Mediation Mode	Indicated whether the rule applies to mediation active or mediation test. Mediation Active allows actual messages to be manipulated according to configured mediation rules. Mediation Test executes the mediation rule on message copy instead of the actual message and verifies the behavior of the mediation rule.
Code	Indicates the configurable drool expression that matches the request/response headers and body sent by SCP.
State	Indicates the action to be applied to the rule. The default value is SAVE Note: The DRAFT state is an invalid transition that could lead to an error.
New Rule Name	Indicates the new name of the rule. This field appears when a CLONE state is selected.

Note:

If the User Defined Variables field is not enabled, rules using userDefinedVariables can only be saved in a DRAFT state and cannot be moved to the COMPILE or APPLY state.

Click the Delete icon to delete the existing rule.
The status of the rule must always be in DRAFT to delete an existing rule.
Click Save.

4.2.12.4 Configuring Mediation Log Levels

Perform this procedure to configure the log levels of mediation.

From the left navigation pane, click the SCP tab, and then click the Mediation tab.
On Mediation tab, click the Log Level Configuration subtab.
The Log Level Configuration screen with a list of default log level type of mediation and mediation-test service assigned during deployment appears.
Click the View icon to view the log level of mediation or mediation test service.

Click the Edit icon to edit or update the log level of mediation or mediation test service.

The Edit Log Level Configuration screen allows you to configure the fields as described in the following table:

Table 4-40 Edit Log Level Configuration

Field	Description
Service Type	Indicates the name of the type of service. For examples, mediation and mediation-test
Application Log Level	Indicates the type of log level. The following are the supported log levels: WARN: Designates potentially harmful situations. INFO: Designates informational messages that highlight the progress of the application at coarse-grained level. ERROR: Designates error events that might still allow the application to continue running. DEBUG: Designates fine-grained informational events that are most useful to debug an application. The default value is WARN.
Package Log Level	Indicates the package level log information.
Log Rate Control	Indicates the log rate control information.

Select the application log level from the Application Log Level drop-down list to collect the logs as per the requirement.
Click Save to update the log level of service.

Package Log level Configuration

To update the package level information, perform the following:

On the Package Log level section, click the EDIT icon next to the package name.

The Edit Package Log Level screen allows you to configure the fields as described in the following table:

Table 4-41 Edit Package Log Level

Field	Description
Package Name	Indicates the name of the package. It should be a valid library name. The valid package names are org, io, springfox, com.zaxxer, reactor, validator, and library. The default package name is library.
Package Log Level	Indicates the type of package log level. The following are the supported log levels: WARN: Designates potentially harmful situations. INFO: Designates informational messages that highlight the progress of the application at a coarse-grained level. ERROR: Designates error events that might still allow the application to continue running. DEBUG: Designates fine-grained informational events that are most useful to debug an application OFF: Disables the log rate. The default value is OFF

Field

Description

Package Name

Indicates the name of the package. It should be a valid library name.

The valid package names are org, io, springfox, com.zaxxer, reactor, validator, and library.
The default package name is library.

Package Log Level

Indicates the type of package log level.

The following are the supported log levels:

WARN: Designates potentially harmful situations.
INFO: Designates informational messages that highlight the progress of the application at a coarse-grained level.
ERROR: Designates error events that might still allow the application to continue running.
DEBUG: Designates fine-grained informational events that are most useful to debug an application
OFF: Disables the log rate.
The default value is OFF

Edit the package name and Package Log Level from the drop-down menu and click Save.

Log Rate Control Configuration

To configure the average number of logs allowed per second, perform the following:

The Log Rate Control section allows you to configure the fields as described in the following table:

Table 4-42 Log Rate Control

Field	Description
Rate	Indicates the average number of logs allowed per second. The default rate is 1. The range is in between 1 and 10000
Log Level	Indicates the type of log level where rate control is applied. The following are the supported log levels: WARN: Designates potentially harmful situations. INFO: Designates informational messages that highlight the progress of the application at a coarse-grained level. ERROR: Designates error events that might still allow the application to continue running. DEBUG: Designates fine-grained informational events that are most useful to debug an application OFF: Designates to turn off logging. The default value is OFF

Field

Description

Rate

Indicates the average number of logs allowed per second.

The default rate is 1.
The range is in between 1 and 10000

Log Level

Indicates the type of log level where rate control is applied.

The following are the supported log levels:

WARN: Designates potentially harmful situations.
INFO: Designates informational messages that highlight the progress of the application at a coarse-grained level.
ERROR: Designates error events that might still allow the application to continue running.
DEBUG: Designates fine-grained informational events that are most useful to debug an application
OFF: Designates to turn off logging.
The default value is OFF

Select the log level from the Log Level drop-down to change the log level type, and click Save.

4.2.12.5 Configuring Mediation Support for User Defined Variables

Perform this procedure to configure the user defined variables of mediation.

From the left navigation pane, click the SCP tab, and then click the Mediation tab.
On Mediation tab, click the User Defined Variables subtab.
The User Defined Variables screen displays a list of user-defined variables saved in the database. A user-defined variable can be edited, deleted, or viewed.

Figure 4-46 User Defined Variables Configuration
Click the View icon to view the configured user-defined variable.

Click the Add to create a user-defined variable.

The Add User Defined Variable screen allows you to configure the fields to create user defined variables to configure rules as described in the following table:

Table 4-43 Add User Defined Variable

Field	Description
User Defined Variable Name	This field is used to specify the name of the user-defined variable. Ensure the name is unique.
Data	This section allows to define and configure user-defined variable data-related settings.
Type	This field is used to specify the data type (for example, STRING, LONG, JSON, BOOLEAN).
Size	This field is used to define the size limit for the user-defined variable data. This field is conditional and required only when the type is STRING or JSON. The allowed size range is between 1 and 1024 bytes only.
Description	This field is used to provide a brief explanation for the data being defined.

Note:

Ensure that no special characters are used.

Click the Edit icon to edit the configured user-defined variable.

The Edit User Defined Variable screen allows you to configure the fields as described in the following table:

Table 4-44 Edit User Defined Variable

Field	Description
User Defined Variable Name	This field specifies the name of the user-defined variable. Note: The name of the user-defined variable cannot be edited.
Data	This section allows users to define and configure user-defined variable data-related settings.
Type	This field specifies the data type (for example, STRING, LONG, JSON, BOOLEAN).
Size	This field is used to define the size limit for the data. This field is conditional and required only when the type is STRING or JSON. The allowed size range is between 1 and 1024 bytes only.
Description	This field provides a brief explanation for the data being defined.

Note:

If a user-defined variable is APPLIED in any rules or configured at trigger points, it cannot be deleted. In this case, the only editable field is the size, which can only be incremented.

Click Save to update changes.
Users can use these user-defined variables in SCP trigger points and mediation rules.

4.2.13 Configuring NF Rule Profile

Perform the following procedure to configure NF Rule Profile parameters.

Note:

When the learning source is set to "Local", users can modify the 5G NF profile regardless of whether it was learned from NRF (source='NRF') or configured statically (source='Local'). By setting the source to Local, the system does not delete already determined profiles.

From the left navigation, navigate to SCP, and then click NF Rule Profile.
To add or configure an NF rule profile, click the NF Rule Profile Configuration tab in the left navigation pane.

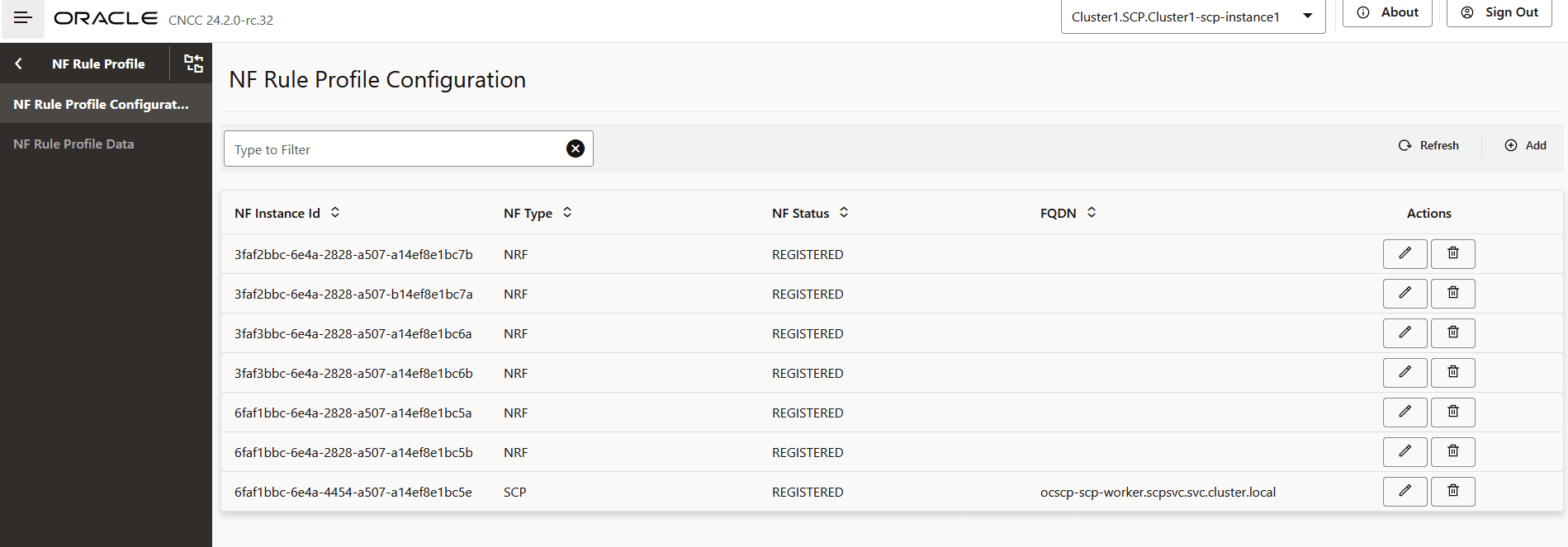

Figure 4-47 NF Rule Profile Configuration
Click Add to add NF rule profile.

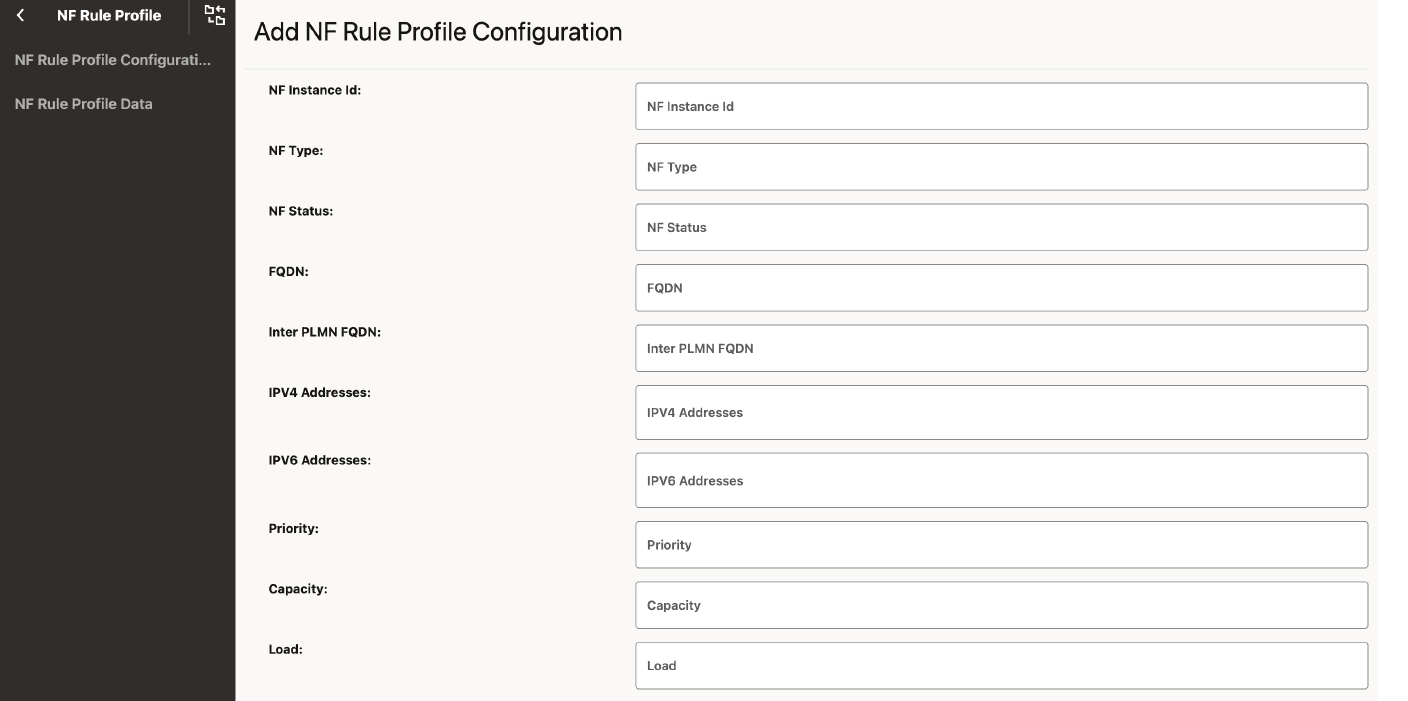

Figure 4-48 Add NF Rule Profile
Add the following parameters for all the NF Info:
- Group Id: Identity of the NF info.
- Routing Indicators: List of Routing Indicator information.
- Click Add to add the SUPI Ranges.
- Click Save to save the SUPI Ranges.
- Click Remove if you want to remove the NF Info.
- Click Add to add the NF info details.
Click Save to save the NF Rule Info.
Click Refresh to view the updated values on the screen.
To configure a local PLMN, in the PLMN List section, click Add and enter the required Mobile Country Code (MCC) and Mobile Network Code (MNC) values in the displayed fields.

Modifying IP Addresses

Perform the following procedure to edit the IP addresses which are present under NF service level:

In the NF Service section, to modify any NF service, click the corresponding Edit icon.
In the IP End Points section, click Add to add IP end points.

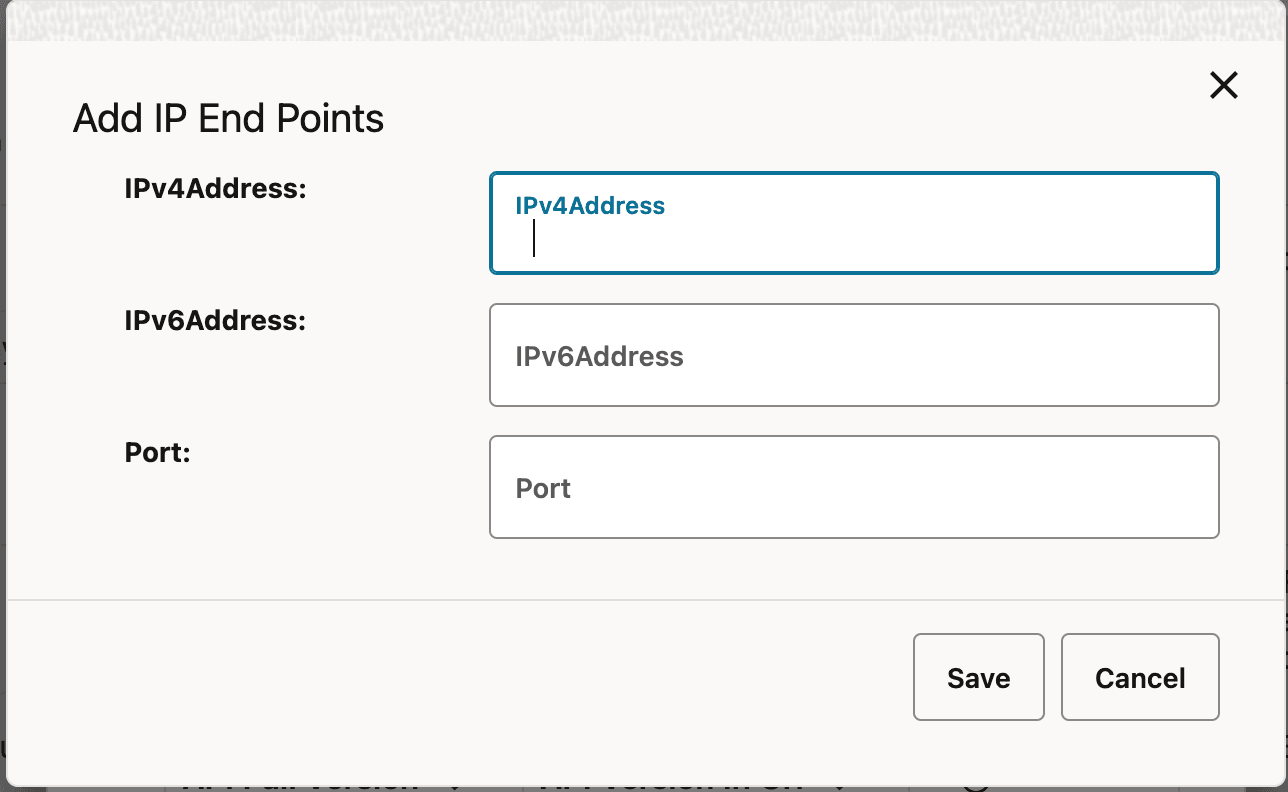

Figure 4-49 Adding IP End Points
Enter IP address in one of the following fields:
- IPv4Address
- IPv6Address

  Note:
  The system displays an error message if you enter IP address in both the above mentioned fields.

  For more information about IPv4Address and IPv6Address configurations, see "Configuring Route Groups" in Oracle Communications Cloud Native Core, Service Communication Proxy REST Specification Guide.
In the Port field, enter the port number.
Click the Edit icon to edit or add the API full versions.

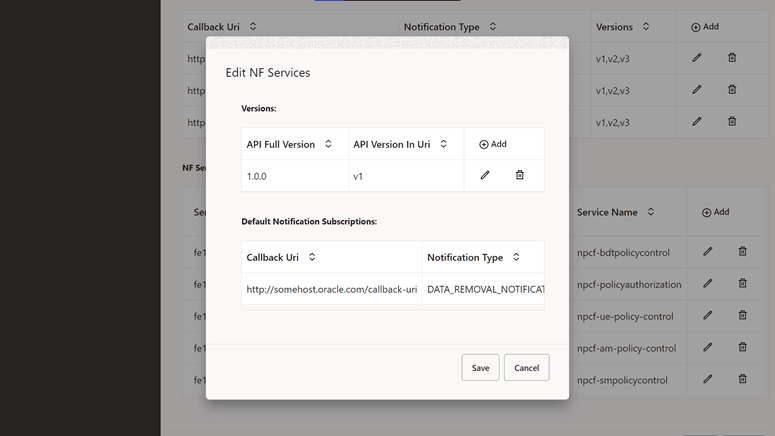

Figure 4-50 Edit NF Services
Click Save to save the NF Rule Info.

Viewing or Editing the Default Notification Subscriptions

Perform the following procedure to view or edit the default notification subscription which are present under NF service level or NF profile level:

Note:

Users cannot modify values for profiles in Default Notification Subscription if the learning source is set to NRF. They can only view it. Editing is only possible when the learning source is set to "Local".

In the NF Rule Profile Configuration section, click Edit from Actions. The Edit NF Rule Profile Configuration screen appears.

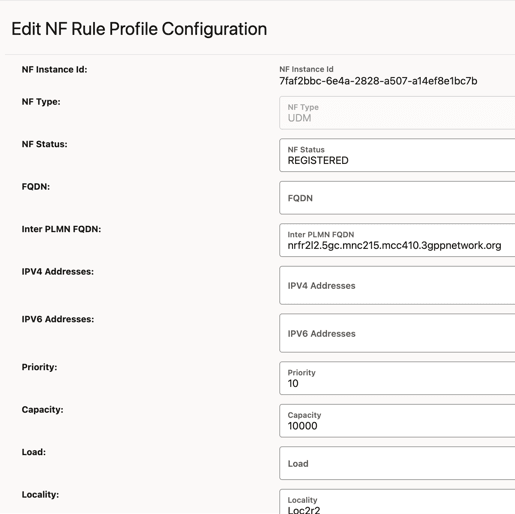

Figure 4-51 Edit NF Rule Profile Configuration
In the Default Notification Subscription section, click the Edit icon for the required callback URI that must be modified. The Edit Default Notification Subscription screen appears.

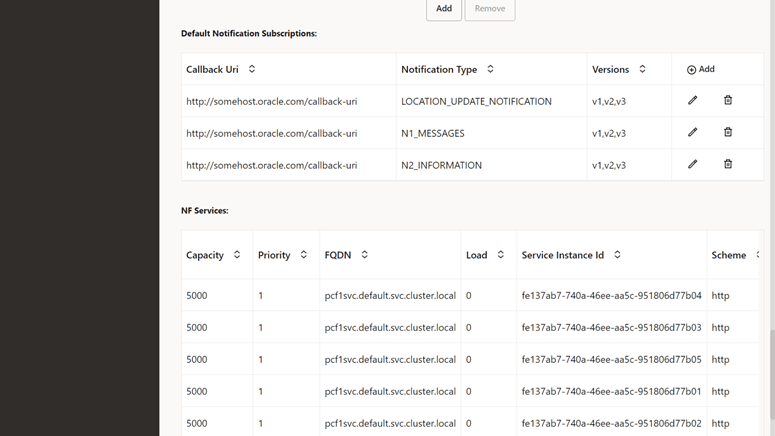

Figure 4-52 Default Notification Subscription

Make the required modifications for the following fields:

Table 4-45 Default Notification Subscriptions

Attribute name	Description
Callback Uri	This attribute contains a default notification endpoint to be used by a NF service producer towards an NF service consumer that has not explicitly registered a callback URI with the NF service producer, for example, as a result of an implicit subscription.
Notification Type	Type of notification for which the corresponding callback URI is provided.
Versions	API versions, for example, v1, are supported for the default notification type.
N1 Message Class	If the notification type is N1_MESSAGES, this IE must be present to identify the class of N1 messages to be notified.

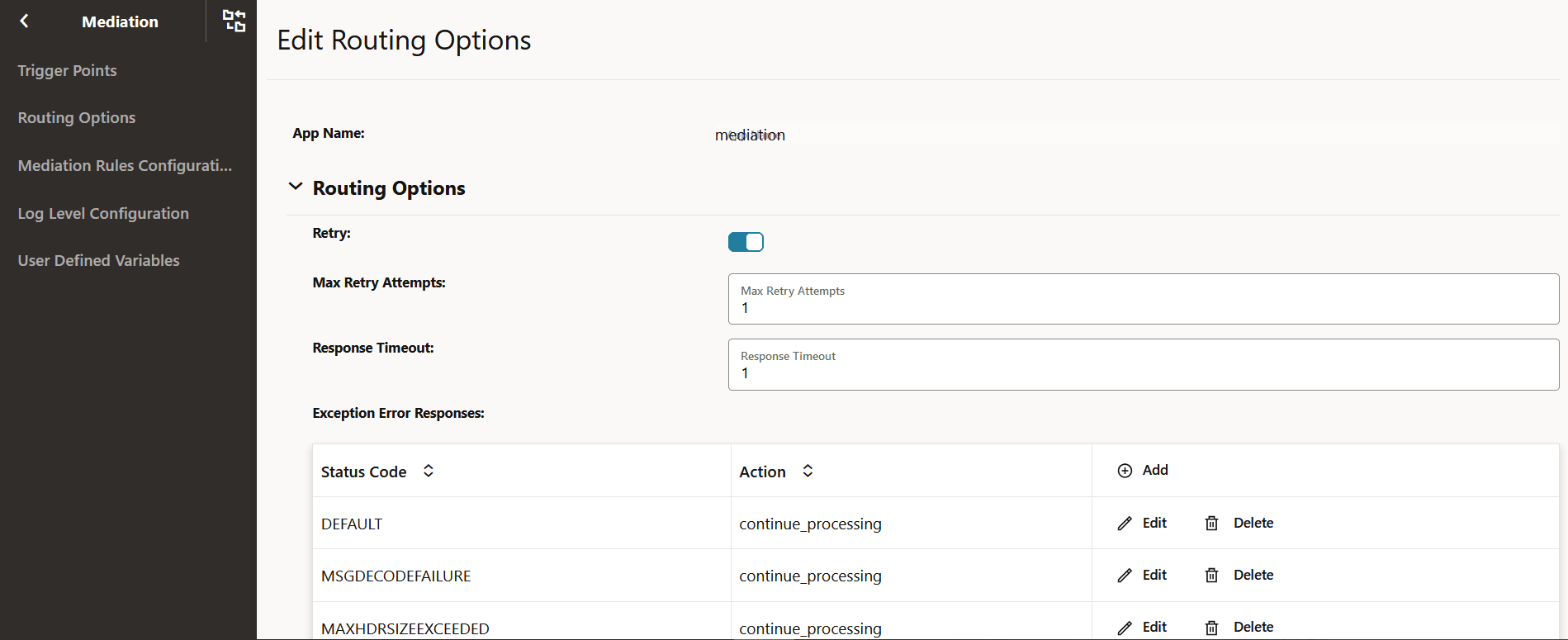

N2 Information Class	If the notification type is N2_INFORMATION, this IE must be present to identify the class of N2 information to be notified.
Binding	When present, this IE contains the value of the binding indication for the default subscription notification, which is the value part of the 3gpp-Sbi-Binding header. See the note for details.

Note:

When delivering a notification for a default subscription to a specific NF consumer but the latter is not reachable, a NF service producer uses the binding indication for default subscription to reselect an alternative NF service consumer instance. For example, an AMF notifies corresponding uplink LPP or NRPPa messages through a default subscription to the LMF instance that previously sent downlink LPP or NRPPa messages during a location procedure. If the original LMF instance is not reachable, the AMF selects an alternative LMF instance using the binding indication and delivers the notification to the selected LMF instance.

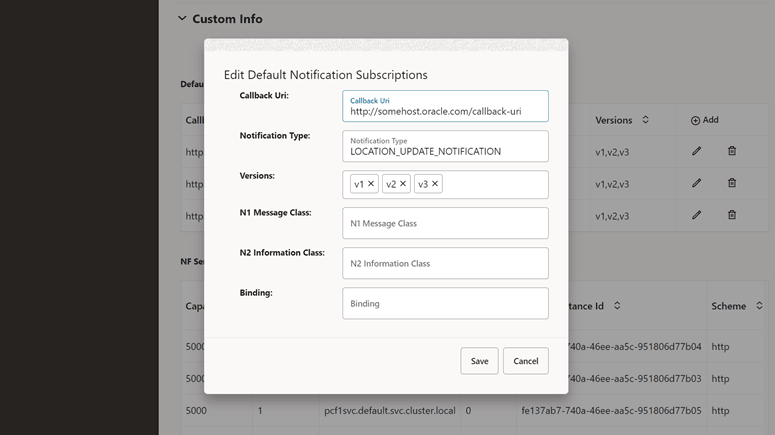

Figure 4-53 Edit Default Notification Subscriptions

Click Save to save the NF Rule Info.
Click Refresh to view the updated values on the screen.

4.2.13.1 Fetching NF Rule Profile Data

Following is the procedure to retrieve a collection of NF rule profile data configured at SCP:

From the left navigation menu, navigate to SCP and then click NF Rule Profile.
To retrieve the default notification subscription data for a specific NF rule profile, click on the NF Rule Profile Data tab in the left navigation pane.
The NF Rule Profile Data screen is displayed as follows:

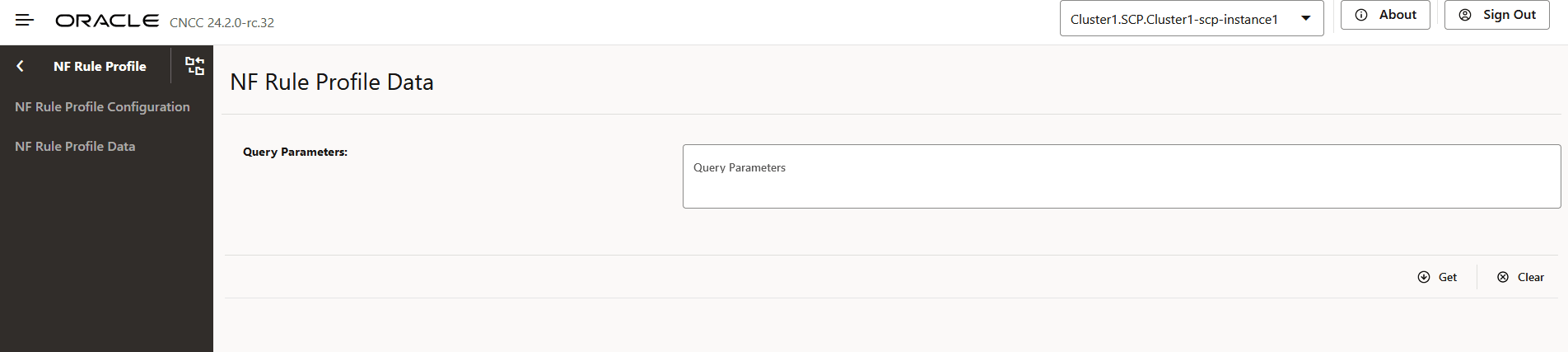

Figure 4-54 NF Rule Profile Data
Enter the Query Parameters in the field. These parameters may include NFType, ServiceName, NF instance ID, Maximum number of NF profiles (limit), or max-payload-size. For more information, see the "Configuring NF Topology Groups" section in Oracle Communications Cloud Native Core, Service Communication Proxy REST Specification Guide.
Click Get to fetch the response data. The data is displayed in the Response pane.

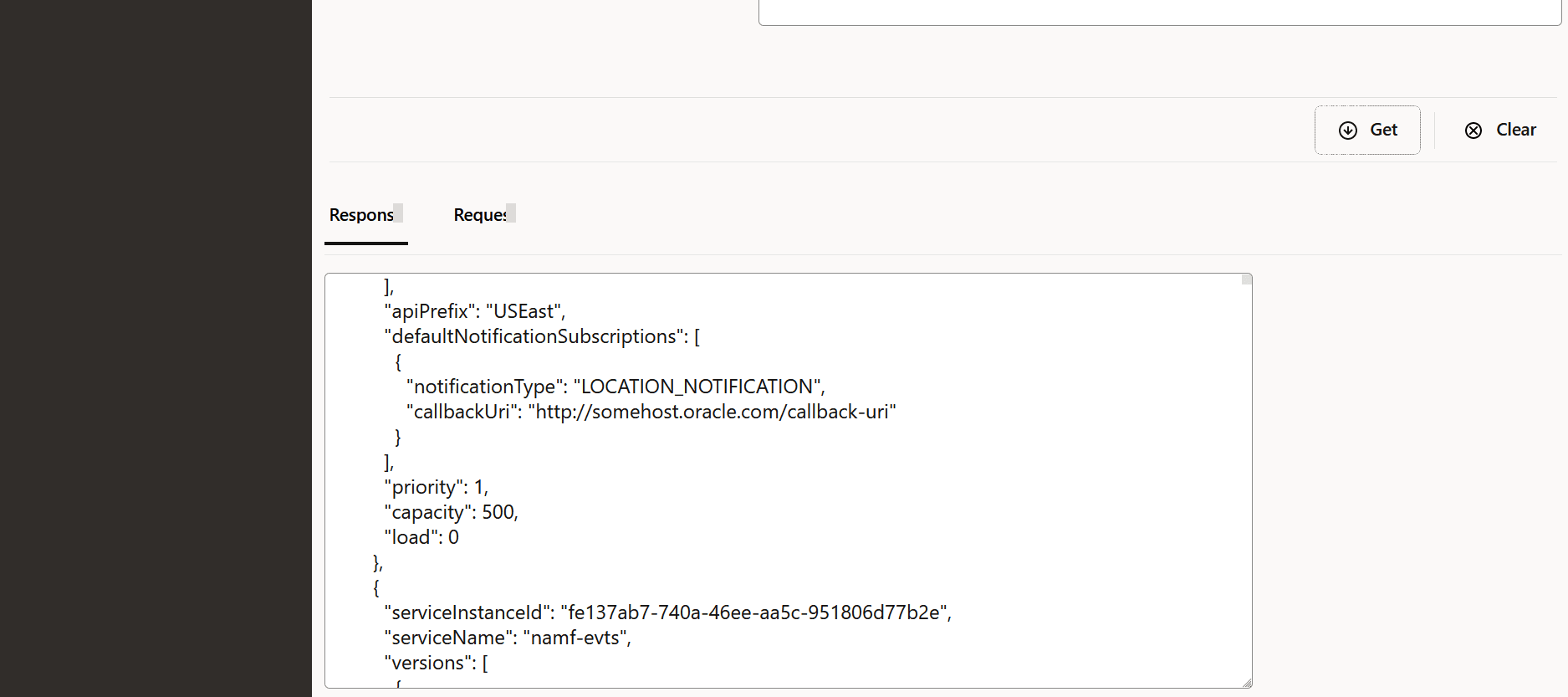

Figure 4-55 Response data
Click Clear to clear the response data.

4.2.14 Configuring SCP Profile

Following is the procedure to configure SCP Profile parameters:

Editing SCP Profile

From the left navigation menu, navigate to SCP and then select SCP Profile.

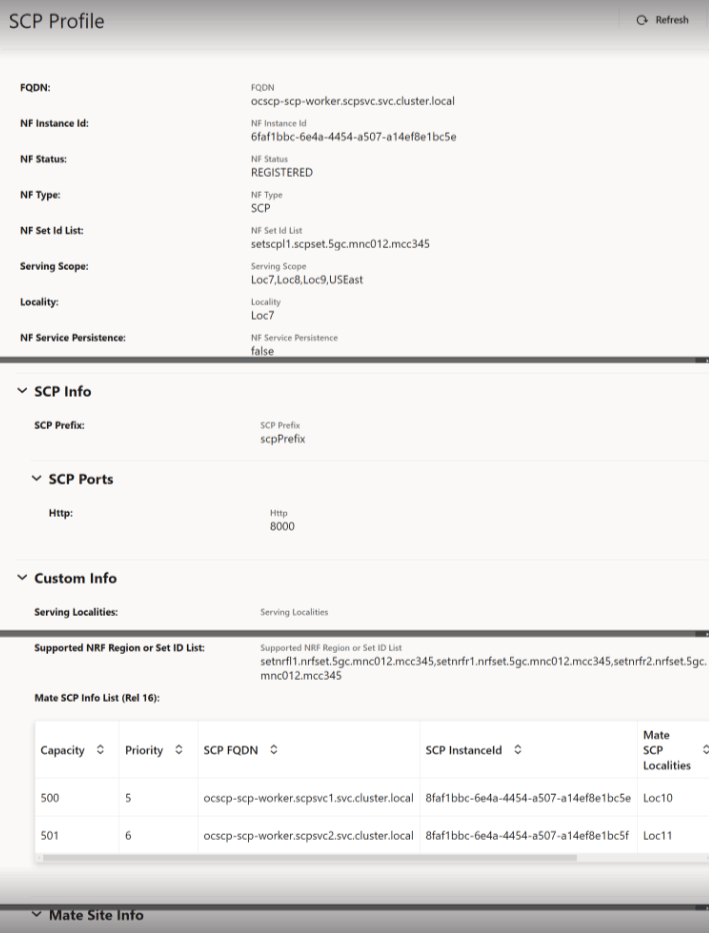

Figure 4-56 SCP Profile
Click Edit under NF Services section. The Edit SCP Profile Screen appears. For more information about configuration parameters, see Oracle Communications Cloud Native Core, Service Communication Proxy REST Specification Guide.
Note:
- To add a new location to Remaining Localities and Serving Localities, type the new location name, and then click Enter.
- Use Edit or Delete buttons available in the next column to update or delete the NF services.

4.2.15 Configuring Topology Source Info

Following is the procedure to configure Topology Group Info parameters:

From the left navigation menu, navigate to SCP and then select Topology Source Info.

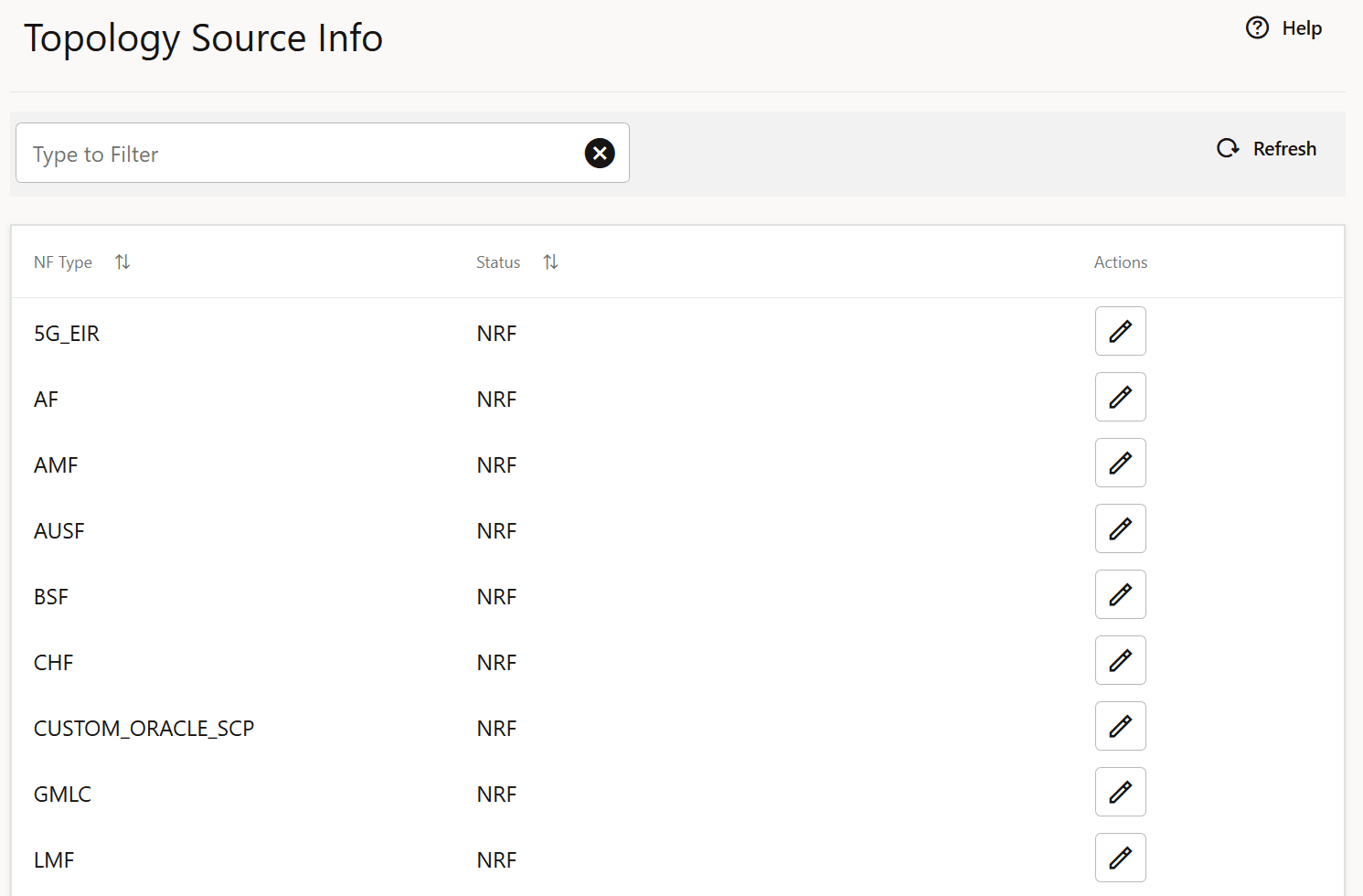

Figure 4-57 Topology Source Info
Click Edit from the Actions column for the required service that must be modified. The Edit Topology Source Info Screen appears.
Update the Status of the specific NF Type in the Edit Topology Source Info as per your requirement.

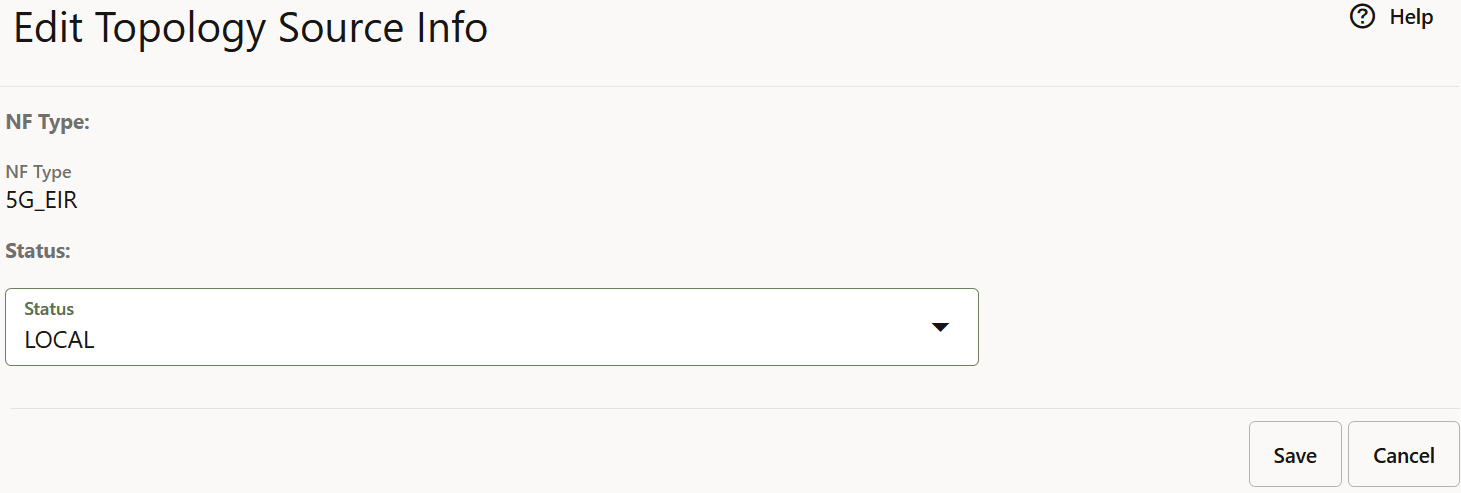

Figure 4-58 Edit Topology Source Info
Click Save to save the Topology Source Info.
Click Refresh to view the updated values on the screen.

4.2.16 Fetching Routing Rules

Following is the procedure to retrieve a collection of routing rules configured at SCP:

From the left navigation menu, navigate to SCP and then select Reports.
Select Routing Rules R16. The Routing Rules R16 screen is displayed as follows:

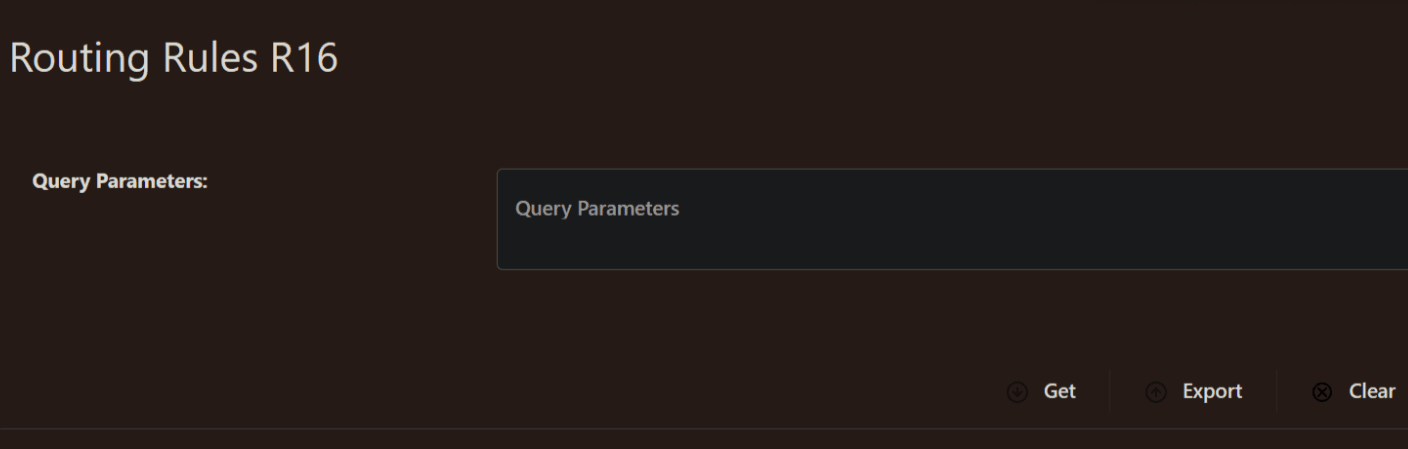

Figure 4-59 Routing Rules R16
Enter the Query Parameters in the field.
Click Get to fetch the response data. The data is displayed in the Response pane.

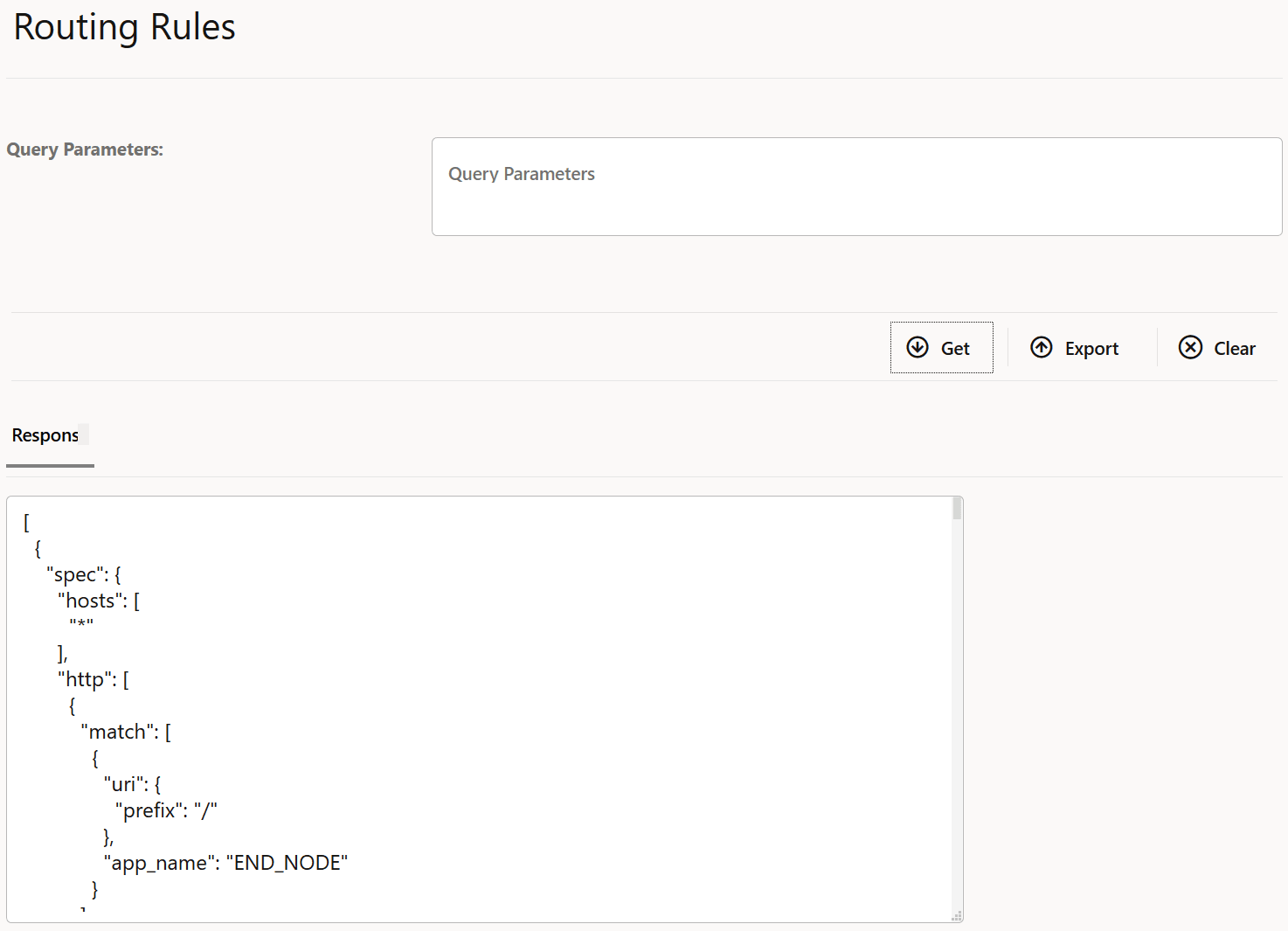

Figure 4-60 Response data

Note:
In case the response data is above the configured display limit, a message is displayed stating "Response data has crossed the configured display limit (5 MB), please click on Export to download it as a file.". Currently, the display limit cannot be modified, it is set to 5 MB.
Click Export to download of the response data file.
Click Clear to clear the response data.

4.2.17 Configuring Ingress Rate Limiting

Following is the procedure to configure ingress rate limiting parameters:

From the left navigation menu, navigate to SCP and then select Rate Limiting.
Select Ingress Rate Limiting. The screen is displayed.

Figure 4-61 Ingress Rate Limiting
Enter the Query Parameters in the field.
Click Get to fetch the response data. The data is displayed in the Response pane.

Note:
In case the response data is above the configured display limit, a message is displayed stating "Response data has crossed the configured display limit (5 MB), please click on Export to download it as a file.". Currently, the display limit cannot be modified, it is set to 5 MB.
Click Add to add the ingress rate limiting configuration using the Request Body.
Click Edit to edit the Request Body of the ingress rate limiting configuration.
Click Delete to delete the ingress rate limiting configuration based on the query parameters.

4.2.18 Configuring Egress Rate Limiting

Following is the procedure to configure egress rate limiting parameters:

From the left navigation menu, navigate to SCP and then select Rate Limiting.
Select Egress Rate Limiting. The screen is displayed.

Figure 4-62 Egress Rate Limiting
Enter the Query Parameters in the field.
Click Get to fetch the response data. The data is displayed in the Response pane.

Note:
In case the response data is above the configured display limit, a message is displayed stating "Response data has crossed the configured display limit (5 MB), please click on Export to download it as a file.". Currently, the display limit cannot be modified, it is set to 5 MB.
Click Add to add the egress rate limiting configuration using the Request Body.
Click Edit to edit the Request Body of the egress rate limiting configuration.
Click Delete to delete the egress rate limiting configuration based on the query parameters.

4.2.19 Configuring Server Header

Perform the following procedure to configure server header parameters to include server header in the producer NF error responses.

From the left navigation pane, click the SCP tab, and then click the Global Options tab.
Click the Server Header tab.
In the Server Header section, click Edit.
The Edit Server Header screen appears.

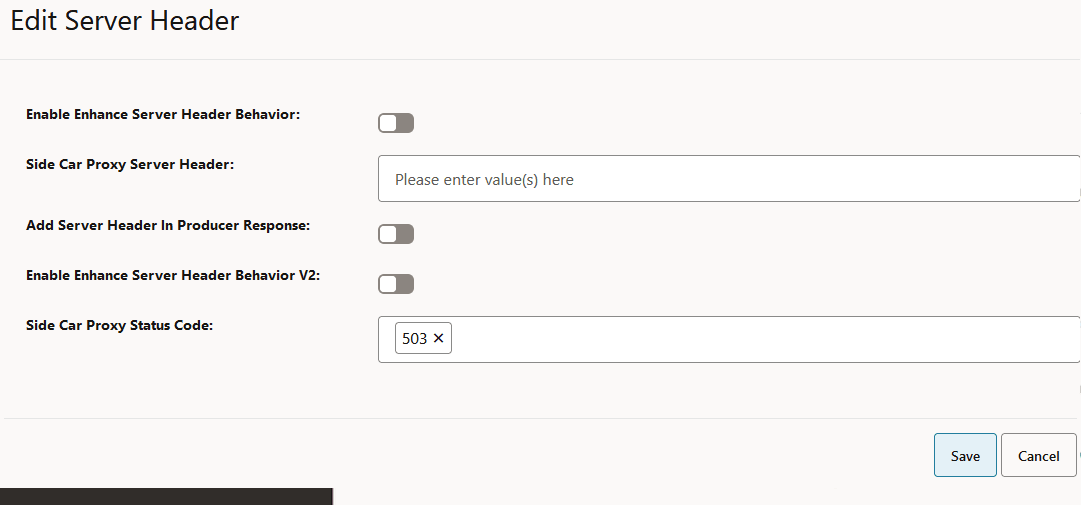

Figure 4-63 Edit Server Header
To enable the enhanced server header behavior introduced in SCP 1.15.0, set Enable Enhance Server Header Behavior to true.
By default, this option is disabled. For information about server header configurations, see "Configuring Server Header" in Oracle Communications Cloud Native Core, Service Communication Proxy REST Specification Guide.
In the Side Car Proxy Server Header field, enter the strings to identify server header values if error response is generated by side car proxy.
A sample value is envoy.
To enable addition of server header in producer NF generated error responses, set Enable Enhance Server Header Behavior to true.
By default, this option is disabled.
To enable the enhanced server header behavior introduced in SCP 23.1.0, set Enable Enhance Server Header Behavior V2 to true.
Enter status codes in the Side Car Proxy Server Header Status Code field.
Click Save.

4.2.20 Configuring Pod Overload Control Policies

Perform the following procedure to configure pod overload policies to control and discard request messages sent to scp-worker.

For more information about pod overload policies, see Oracle Communications Cloud Native Core, Service Communication Proxy REST Specification Guide.

From the left navigation pane, navigate to SCP and click Pod Overload Control, and then click Worker.

To configure Pod Overload Control Policy, in the left navigation pane, click the Overload Control Policy tab.

In the Overload Control Policy section, click Get to retrieve the scp-worker Pod Overload Control Policy data configured based on the threshold level.

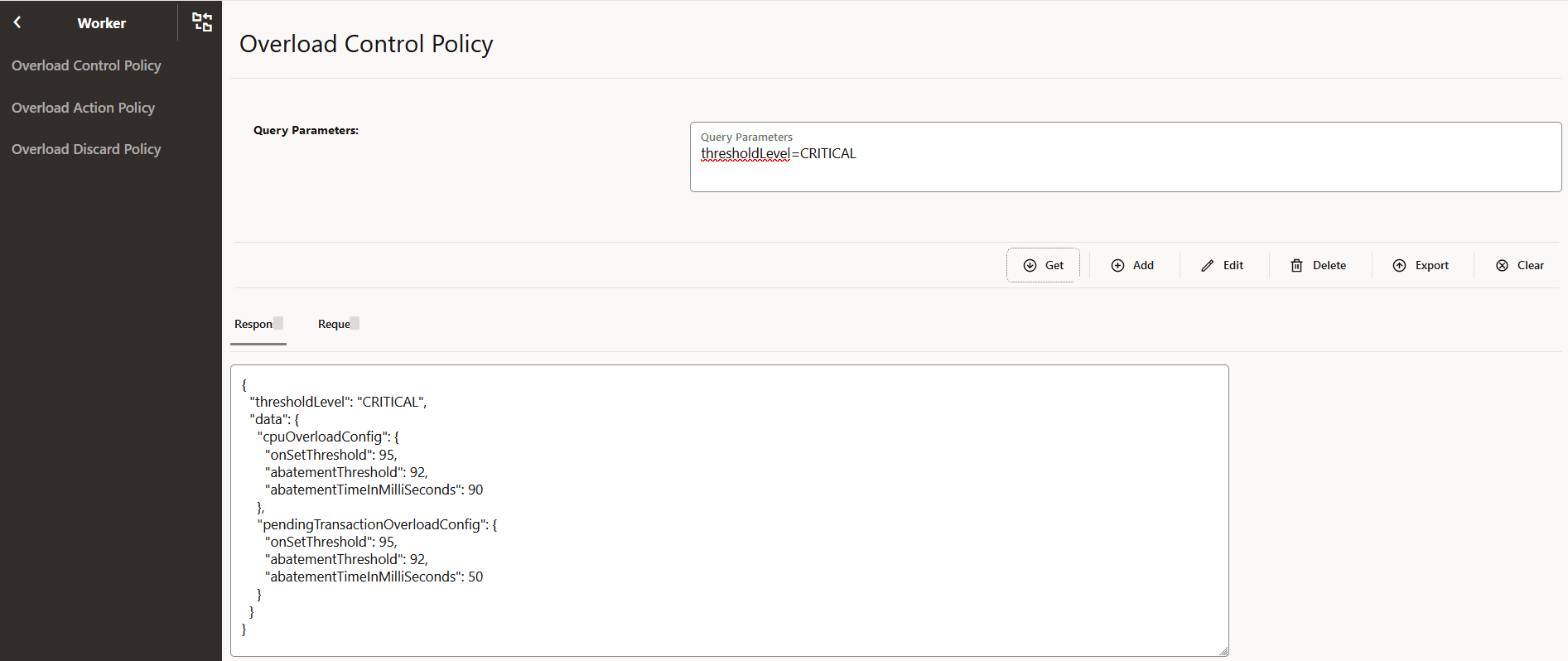

Figure 4-64 Overload Control Policy
To add a new request, click Add and enter the request body information in the Request field.
Click Submit.
The request body message appears in the Response field.

To edit, export, delete, or clear the data, click the required buttons as described in the following table:

Table 4-46 Buttons and Field Descriptions on Overload Control Policy page

Button and Field Names	Description
Query Parameters	Allows to enter parameters to retrieve, add, and update different pod overload policies data.
Get	Retrieve the scp-worker Pod Overload Policy data configured based on the threshold level. You can modify this data using the Edit button.
Add	Adds new message requests in the Request field.
Edit	Modifies any existing data by updating mandatory query parameters in the Query Parameters field.
Delete	Removes any message request.
Export	Exports existing records in the JSON format.
Clear	Refreshes the existing screen by removing the data.

To configure Pod Overload Action Policy, in the left navigation pane, click the Overload Action Policy tab.
1. In the Overload Action Policy section, click Get to retrieve the scp-worker Pod Overload Action Policy data configured based on the threshold level.
2. To add a new request, click Add and enter the request body information in the Request field.
3. Click Submit.
  The request body message appears in the Response field.
4. To edit, export, delete, or clear the data, click the required buttons as described in Table 4-46.
To configure Pod Overload Discard Policy, in the left navigation pane, click the Overload Discard Policy tab.
1. In the Overload Discard Policy section, click Get to retrieve the scp-worker Pod Overload Discard Policy data configured based on the threshold level.
2. To add a new request, click Add and enter the request body information in the Request field.
3. Click Submit.
  The request body message appears in the Response field.
4. To edit, export, delete, or clear the data, click the required buttons as described in Table 4-46.

4.2.21 Configuring SBI Message Priority

Perform the following procedure to configure Service Based Interface (SBI) Message Priority parameters supported by the Pod Overload Control feature. You can retrieve SCP_SBI Message Priority configured in SCP and modify the data. Also, add a new SBI message request.

For more information about SBI Message Priority parameters, see Oracle Communications Cloud Native Core, Service Communication Proxy REST Specification Guide.

From the left navigation pane, navigate to SCP and click the SBI Message Priority tab.
In the SBI Message Priority section, click Get to retrieve the SCP_SBI Message Priority configured in SCP.

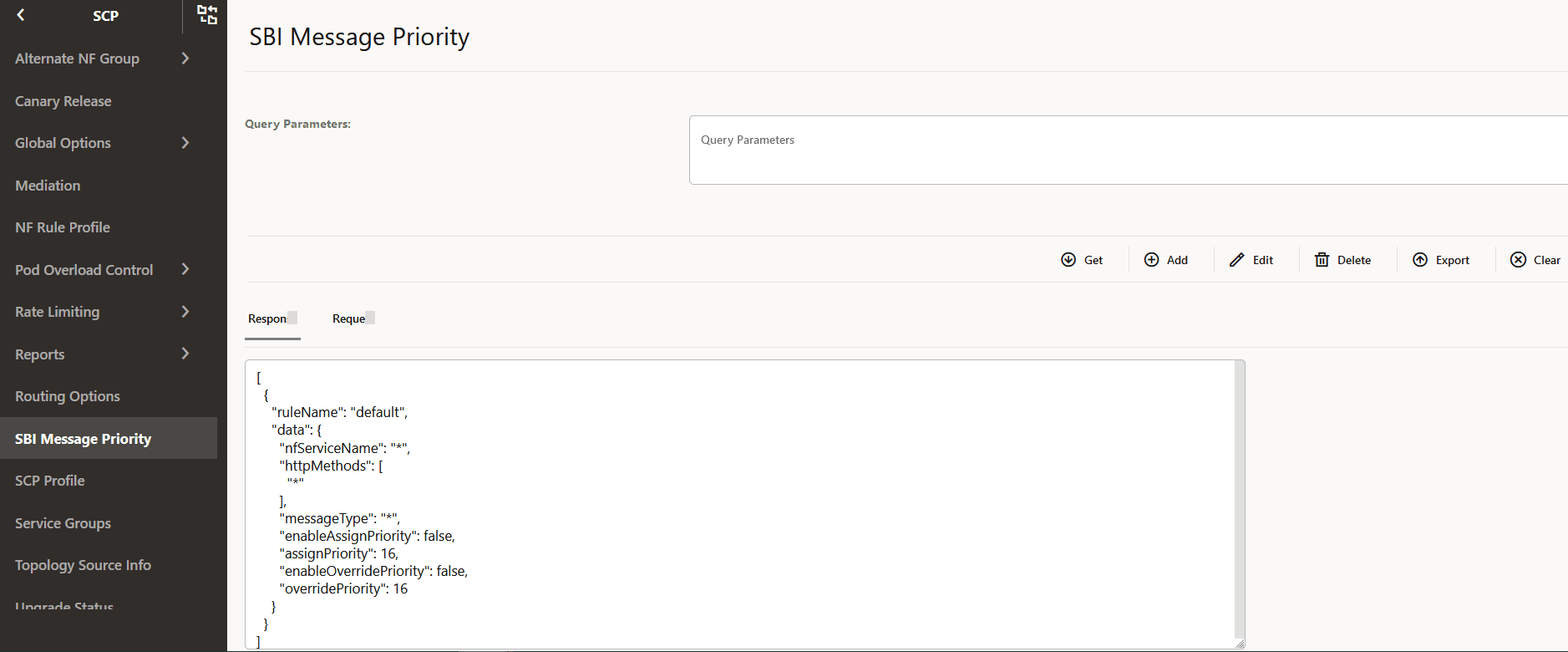

Figure 4-65 SBI Message Priority
To add a new SBI message request, click Add and enter the request body information in the Request field.
Click Submit.
The request body message appears in the Response field.

To edit, export, delete, or clear the data, click the required buttons as described in the following table:

Table 4-47 Buttons and Field Descriptions of SBI Message Priority

Button and Field Names	Description
Query Parameters	Allows to enter parameters to retrieve, add, and update SBI message priority information.
Get	Retrieves the SCP_SBI Message Priority configured in SCP. You can modify this data using the Edit button.
Add	Adds new message requests in the Request field.
Edit	Modifies any existing data by updating mandatory query parameters in the Query Parameters field.
Delete	Removes any message request.
Export	Exports existing records in the JSON format.
Clear	Refreshes the existing screen by removing the data.

4.2.22 Configuring DNS SRV based Alternate Routing

This section provides information to enable different options to use the Alternate Routing based on the DNS SRV Records feature.

You must log in to the CNC Console while performing the procedures described in the subsequent subsections. Using these procedures, you can perform the followings tasks:

Set the routing mode.
Configure the default Time To Live (TTL) value.
Refresh the DNS SRV records in DB.
Add and fetch DNS SRV records from DB.

4.2.22.1 Configuring Routing Modes

Perform the following procedure to enable alternate routing and set the routing mode to NF Set, DNS SRV, or both when the forward routing fails.

From the left navigation pane, navigate to SCP and click the Routing Options tab.
The Routing Options screen appears with the list of services.
To set alternate route modes, in the Actions column, click the Edit icon for the corresponding service name.

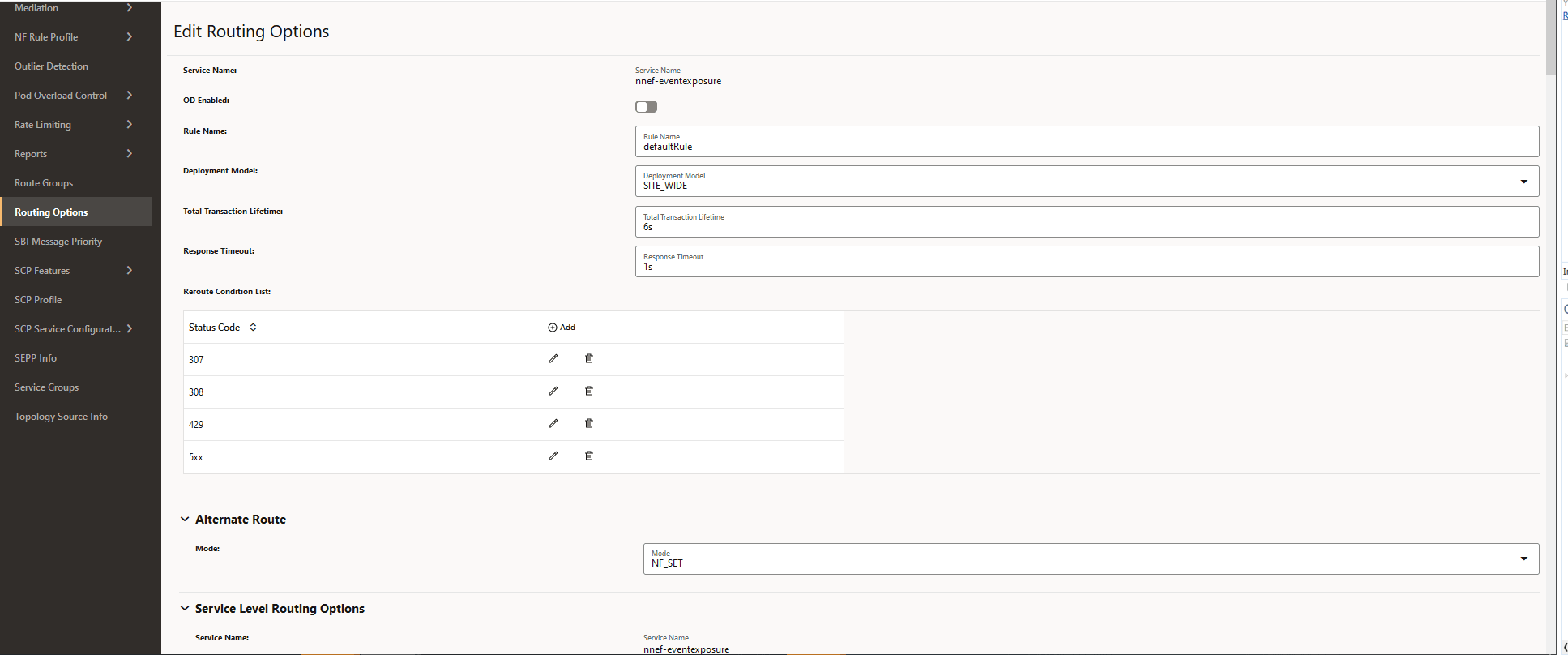

Figure 4-66 Setting Alternate Routing Mode
In the DNS SRV Based Alternate Route section, set the Mode of the selected specific services as required:
- NF_SET: SCP performs alternate routing based on the Model C Indirect 5G SBI Communication format. This is the default mode.
- DNS_SRV: SCP performs alternate routing based on the DNS SRV query.
- NF_SET_FOLLOWED_BY_DNSSRV: SCP performs alternate routing based on NF Set and then with DNS SRV.
Click Save.

4.2.22.2 Configuring the Default TTL Value

Perform the following procedure to configure the default Time To Live (TTL) value.

From the left navigation pane, navigate to SCP and click the Global Options tab.
To configure the TTL value, click the System Config tab.
In the System Config section, click the Edit icon and set the TTL value as required.
By default, this value is set to 900s. The range is from 30s to 86400s.

Figure 4-67 Setting TTL Value
Click Submit.

4.2.22.3 Configuring Alternate NF Group

Perform the following procedure to add and fetch DNS SRV records from DB.

From the left navigation pane, navigate to SCP and click the Alternate NF Group tab.
To configure DNS records using query parameters, click the Configuration tab.
In the Configuration section, click Add to add query parameters in the Request field.

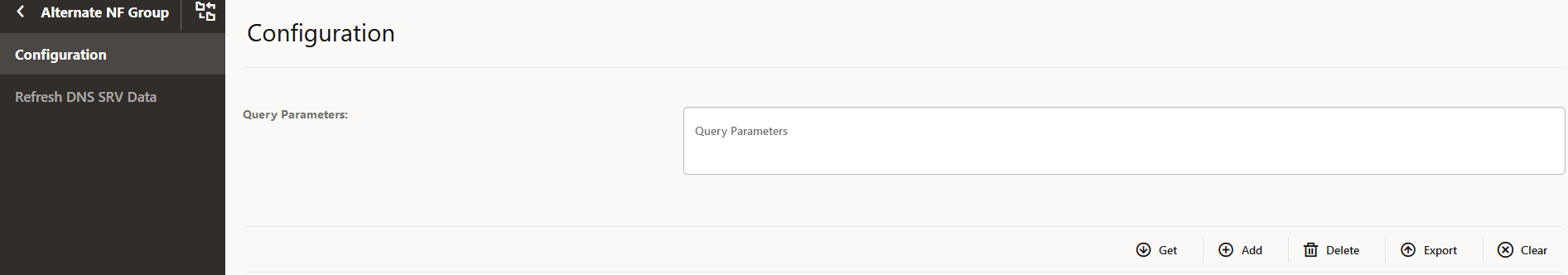

Figure 4-68 Alternate NF Group Options
Click Submit.
Query parameters automatically appear in the Response field.
Click Get to view all the records of the query parameter in the Response field.

To export, delete, or clear the data, click the required buttons as described in the following table:

Table 4-48 Configuration Query Parameters

Button and Field Names	Description
Query Parameters	FQDN of an NF profile. Example: `serviceProtoName=_http._tcp.pcf4svc.scpsvc.svc.cluster.local&apiPrefix=USEast`
Get	Fetches DNS SRV records from DB.
Add	Adds DNS SRV records to DB by querying the DNS server with the combination of apiPrefix and Service Proto Name. Example: `{ "apiPrefix": "USEast", "serviceProtoName": "_http._tcp.pcf2svc.scpsvc.svc.cluster.local" }`
Delete	Removes a particular record from DB based on Service Proto Name (SPN). Example: `serviceProtoName=_http._tcp.udm1svc.scpsvc.svc.cluster.local`
Export	Exports DNS SRV records in the JSON format.
Clear	Resets all the fields in the Configuration section.
Response	Displays the required DNS SRV records.
Request	Allows you to add a query parameter when you click the Add button.

Click Submit.

4.2.22.4 Configuring Refresh DNS SRV Data

Perform the following procedure to refresh the DNS SRV records in DB.

From the left navigation pane, navigate to SCP and click the Alternate NF Group tab.
To refresh DB records, click the Refresh DNS SRV Data tab in the left navigation pane.
Click Refresh.

In the Request field, enter one of the following parameters:

Table 4-49 Request Parameters

Parameter	Description
`{ "spnlist": [ ] }`	This parameter refreshes only specific records that are provided within []. For example: `{ "spnlist": [ "_http._tcp.pcf4svc.scpsvc.svc.cluster.local", "_http._tcp.nf1stub.scpsvc.svc" ] }`
`{ "refreshAll": "true" }`	This parameter refreshes all the records.

Click Submit.

4.2.23 Configuring SBI Message Priority and Error Profiles for Egress Congestion Control

Perform the following procedure to configure values for determining the priority of ingress messages and create error profiles.

From the left navigation pane, navigate to SCP and click the Routing Options tab.
In the Routing Options section, select a service name from the Service Name column and click the corresponding edit icon.
In the NFService Load Based Congestion Control section, in the SBI Message Priority Discard From field, enter a value to determine the priority of the ingress message.
Note:
- The value of the SBI Message Priority Discard From field is compared with the "3gpp-Sbi-Message-Priority" header to categorize an ingress message request as high or low priority. By default, SCP considers 24 as the priority for the ingress message request if the message does not have the "3gpp-Sbi-Message-Priority" header. If the priority of the ingress message request is less than the value of SBI Message Priority Discard From, then the message is considered as high priority message.
- SCP discards all the 5G SBI messages whose "3gpp-Sbi-Message-Priority" header value is equal to or greater than this configuration.

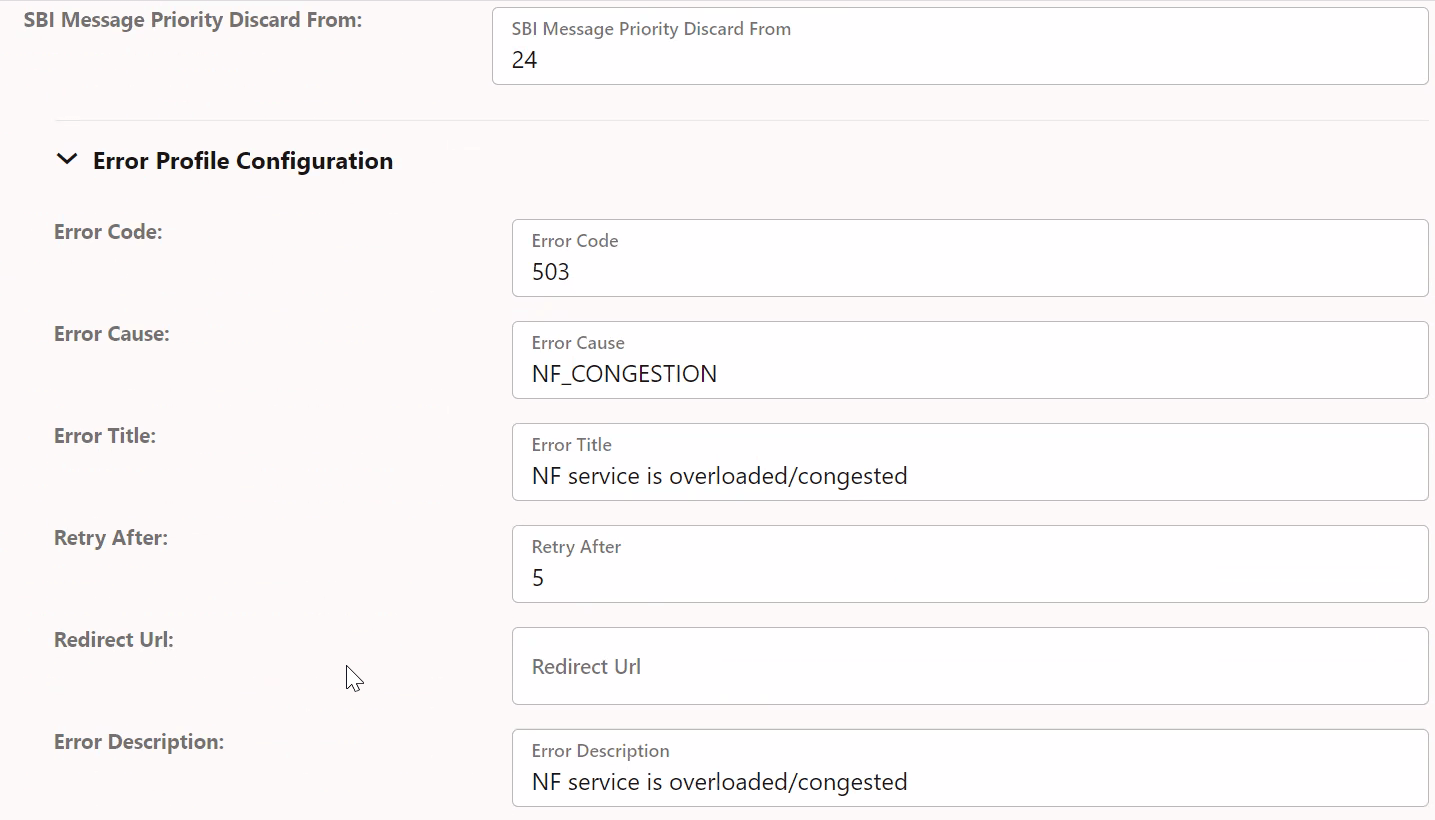

Figure 4-69 Configuring SBI Message Priority and Error Profiles for Egress Congestion Control
To configuring nextHopSCP and SEPP, see Configuring the nextHopSCP Routing Option section.

To configure the error profiles, complete the following fields:

Table 4-50 Error Profile Configuration

Field Name	Description
Error Code	Indicates configurable error codes to be sent by SCP to consumer NFs when the producer NF is congested or throttled in case of a low priority message. The default value is 500, which indicates: Service Unavailable.
Error Cause	Indicates the error cause that is specific to the occurrence of the problem. The default value is NF_CONGESTION.
Error Title	Indicates the title of the error type. The default value is NF service is overloaded or congested.
Retry After	Indicates the time during which the service is unavailable. It is applicable when the error code is 503. When the error code is 3xx, where x indicates any numeric value, it specifies the minimum time that the user must wait before issuing the redirected request. The default value is 5. The unit of this value can be HTTP-date or delta-seconds. For example: Fri, 31 Dec 2001 23:59:59 GMT 120 In the latter example, the delay is 2 minutes.
Redirect Url	Retries the request towards the directed resource referred in the Location header using the same request method. Example: `https://udm1.udmsvc.domain/USEast/nudm-sdm/v1/path2`
Error Description	Indicates an explanation specific to the occurrence of the problem. The default value is NF service is overloaded or congested.

Click Save.

4.2.24 Configuring the nextHopSCP Routing Option

Perform the following procedure to configure the nextHopSCP routing options.

From the left navigation pane, navigate to SCP and click the Routing Options tab.
The Routing Options screen appears with the list of services.
To edit the Next Hop SCP section, click the Edit icon for the corresponding service name.
Expand the Next Hop SCP Routing Options option.

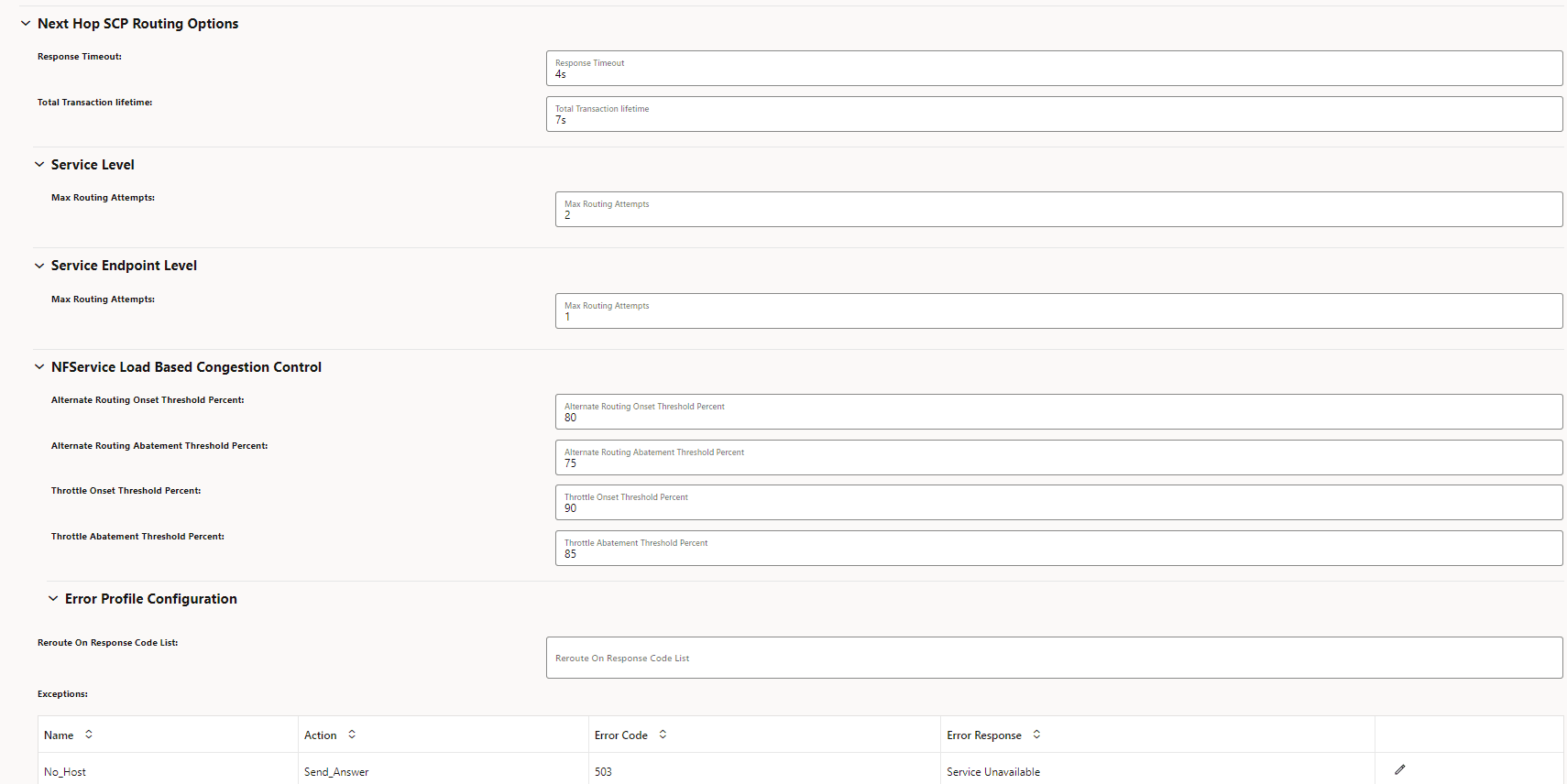

Figure 4-70 NextHopSCP

Configure the following fields as required:

Table 4-51 Configuring Next Hop SCP Routing Options

Field Name	Description
Response Timeout	Indicates the allotted time to respond to a message request. When the response timeout expires, SCP performs alternate rerouting to the available alternate NF or pod. If no alternate NFs or pods are available, SCP sends an error message. The default value is 4 seconds.
Total Transaction lifetime	Indicates the total time allowed to forward a request, including initial and all subsequent routing attempts. Note: The total time consumed in processing all retries must not exceed the total transaction lifetime. The default value is 7 seconds.
Max Routing Attempts (Service Level)	Indicates the maximum number of forward routing attempts made at a service level. Maximum number of times SCP is allowed to forward a request message. If the Max Routing attempts value is set to 1 for both service and pod level, the total transaction lifetime field value is not required. If the Max Routing attempts value is set to greater than 1 for both service and pod level, then the total transaction lifetime field value is considered for rerouting processing. Rerouting of request messages is always considered as Max Routing attempts value minus one (-1), that is, Rerouting of request messages = (Max Routing attempts value) -1 The default routing attempt is 2.
Max Routing Attempts (Service Endpoint Level)	Indicates the maximum number of forward routing attempts at NF or pod level. Maximum number of times SCP is allowed to forward a request message. If the Max Routing attempts value is set to 1 for both service and pod level, the total transaction lifetime field value is not required. If the Max Routing attempts value is set to greater than 1 for both service and pod level, then the total transaction lifetime field value is considered for rerouting processing. Rerouting of request messages is always considered as Max Routing attempts value minus one (-1), that is, Rerouting of request messages = (Max Routing attempts value) -1 The default routing attempt is 1.
Alternate Routing Onset Threshold Percent (NFService Load Based Congestion Control Level)	Indicates the percentage of Alternate Routing Onset Threshold Percent. The default value is 80%.
Alternate Routing Abatement Threshold Percent (NFService Load Based Congestion Control Level)	Indicates the percentage of Alternate Routing Abatement Threshold Percent. The default value is 75%.
Throttle Onset Threshold Percent (NFService Load Based Congestion Control Level)	Indicates the percentage of Throttle Onset Threshold Percent. The default value is 90%.
Throttle Abatement Threshold Percent (NFService Load Based Congestion Control Level)	Indicates the percentage of Throttle Abatement Threshold Percent. The default value is 85%.

Click Save.

4.2.25 Configuring SEPP Inter PLMN Routing

Perform the following procedure to add an NF instance ID and configure Public Land Mobile Network (PLMN) IDs supported by Security Edge Protection Proxy (SEPP).

From the left navigation pane, navigate to SCP and click the SEPP Info tab.

To filter or add an NF instance ID in the SEPP Info section, click the required buttons as described in the following table:

Table 4-52 Filtering and Adding NF Instance IDs

Button, Column, and Field Names	Description
Type to Filter	This field allows you to search for an NF instance ID and displays it in the NF Instance ID column.
Refresh	This button refreshes information in the SEPP Info section.
Add	This button allows you to add a new NF instance ID.
NF Instance ID	This column displays the available NF instance IDs.
Actions	This column allows you to edit an existing NF instance ID using the edit option.

To add a new NF instance ID, click Add.

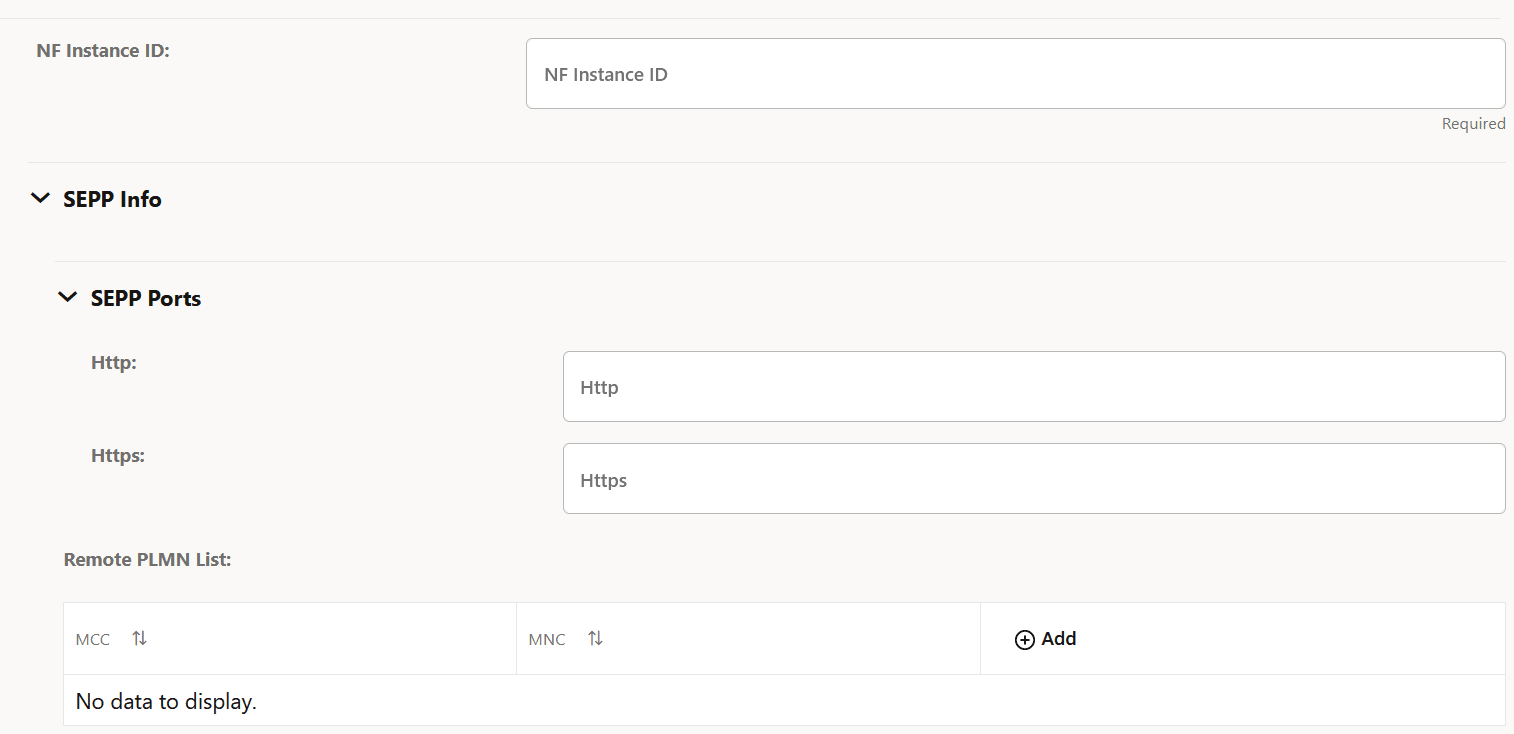

Figure 4-71 Adding a New NF Instance ID
In the NF Instance ID field, enter an instance ID, for example, 8faf1bbc-6e4a-4454-a507-aef01a101a06.
Expand the SEPP Info option to configure SEPP ports as follows:
1. In the Http field, enter a value between 0 and 65535.
  This field is applicable for the HTTP connection.
2. In the Https field, enter a value between 0 and 65535.
  This field is applicable for the HTTPS connection.

  Note:
  If both the fields are configured, then the HTTPS connection is preferred.
To configure PLMN IDs supported by SEPP, in the Remote PLMN List section, click Add.

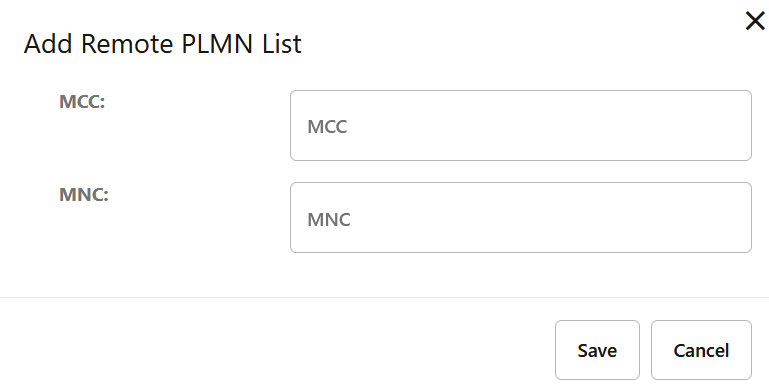

Figure 4-72 Supported PLMN by SEPP
1. In the MCC field, enter the required mobile country code.
  Mobile Country Code (MCC) is a three digit number ranging from 0 to 9.
2. In the MNC field, enter the required mobile network code.
  Mobile Network Code (MNC) can be of two or three digits ranging from 0 to 9.
3. Click Save.
Click Save.

4.2.26 Configuring Route Groups

Perform the following procedure to configure Route Groups parameters.

From the left navigation pane, click the SCP tab, and then click the Route Groups tab.
The Route Groups screen appears.

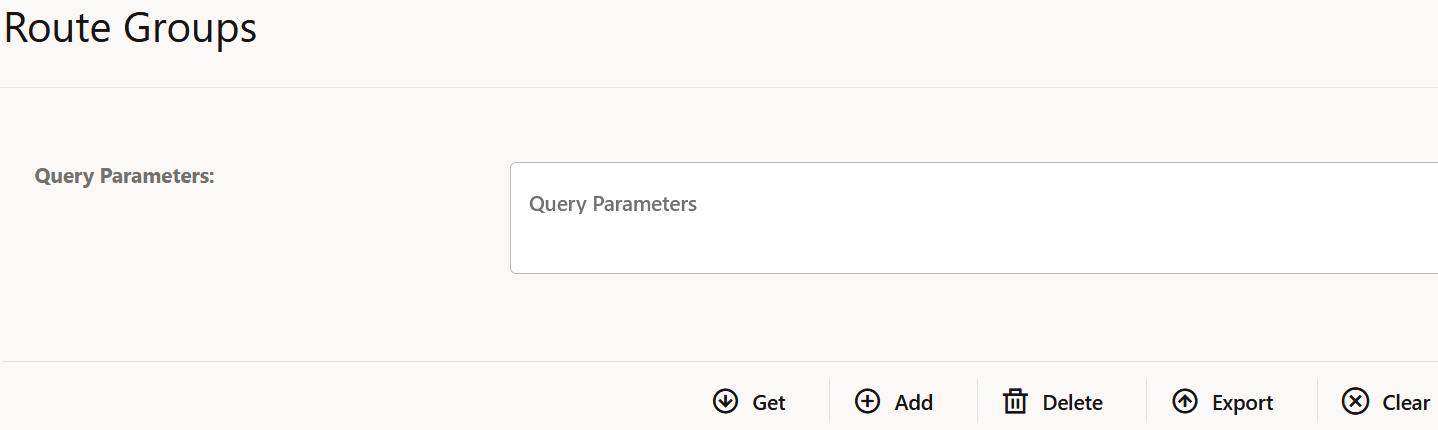

Figure 4-73 Route Groups
In the Route Groups section, click Add to add request body in the Request field.
Query parameters are applicable only for DELETE and GET resource types.
Click Submit.
Response body automatically appears in the Response field.
Click Get to view all the records of the response body in the Response field.

To export, delete, or clear the data, click the required buttons as described in the following table, and then click Submit.

Table 4-53 Route Groups Buttons and Field Descriptions

Button and Field Name	Description
Response	Displays the required Route Groups records.
Request	Allows you to add a query parameter when you click the Add button.
Query Parameters	Processes routeGroupId, routeGroupType, or primaryRoute parameters.
Get	Retrieves configured route groups based on the supplied query parameters as filtering criteria.
Export	Exports Route Groups records in the JSON format.
Delete	Removes the configuration of an existing route group.
Clear	Resets all the fields in this screen.
Add	Configures a new route group or replaces an existing route group by providing a route group configuration in the request body.

4.2.27 Configuring Ingress Rate Limiter Consumer Info

Perform the following procedure to configure consumer information for ingress rate limiting.

From the left navigation pane, click the SCP tab, and then click the Ingress Rate Limiter Consumer Info tab.
The Ingress Rate Limiter Consumer Info screen appears:

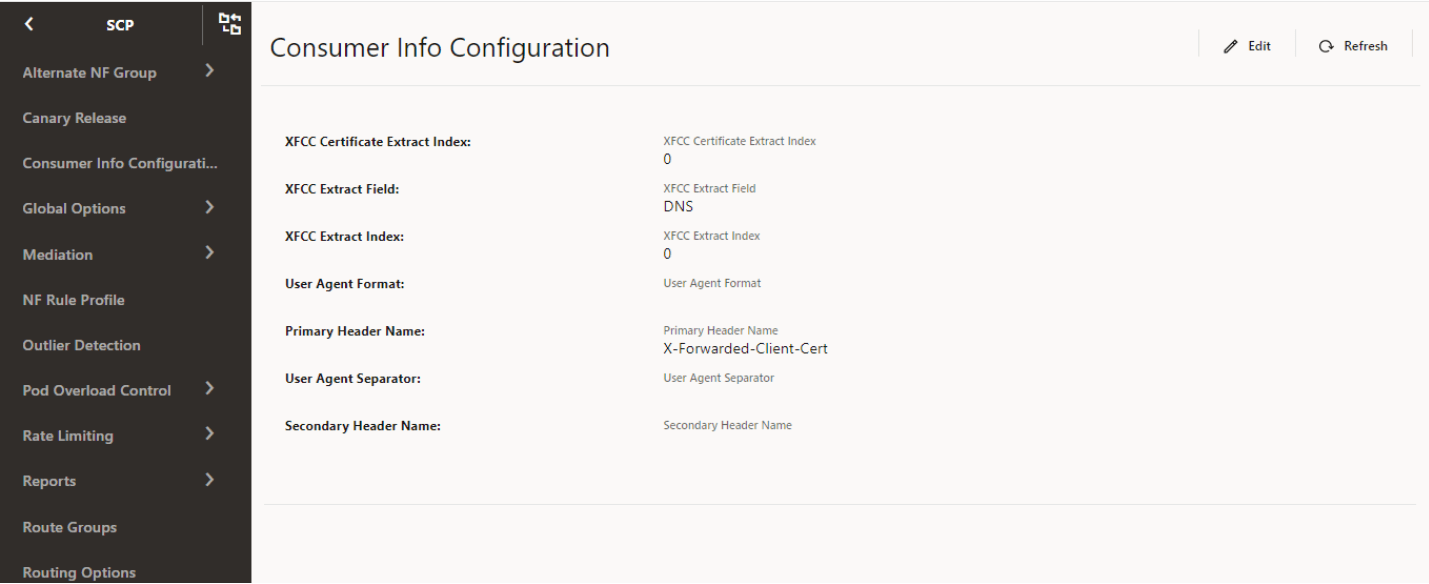

Figure 4-74 Ingress Rate Limiter Consumer Info

In the Ingress Rate Limiter Consumer Info section, click Edit, and then configure the fields as described in the following table:

Table 4-54 Configuring Consumer Information

Field Name	Description
XFCC Certificate Extract Index	The certificate extract index contains certificate information in the XFCC header. This parameter is used to decode "X-Forwarded-Client-Cert" for the FQDN. The default value is 0.
XFCC Extract Field	This is the name of the field that has to be retrieved from the XFCC header. The default value is DNS.
XFCC Extract Index	Index where the field configured in 'extractField' is present in the XFCC header for extraction. The default value is 0.
User Agent Format	The header format to identify the consumer NF according to the ingress rate limiting configurations. It supports the following formats: Format1: NFTYPE-NFINSTANCEID FQDN or NFTYPE-NFINSTANCEID-FQDN Format2: NFTYPE-FQDN NFINSTANCEID or NFTYPE-FQDN-NFINSTANCEID Format3: NFTYPE-NFINSTANCEID Format4: NFTYPE-FQDN Where, NFTYPE indicates the type of consumer NF. NFINSTANCEID indicates the instance ID of the consumer NF. FQDN indicates the FQDN of the consumer NF. In the aforementioned example, "-" is a separator and NFInstanceID, FQDN, and Hostname are supported IDs.
Primary Header Name	The header name to identify the consumer NF according to the ingress rate limiting configurations. This is a mandatory parameter. This parameter is given priority over the secondaryHeaderName parameter. The default value is "X-Forwarded-Client-Cert". It can use the following values: "User-Agent" "X-Forwarded-Client-Cert"
User Agent Separator	This is the separator that the User-Agent header uses to separate NFINSTANCEID and FQDN. The default value is "SPACE". It can use the following values: "SPACE" "HYPHEN"
Secondary Header Name	The header name to identify the consumer NF according to the ingress rate limiting configurations. This is an optional parameter. The default value is "". It can use the following values: "User-Agent" "X-Forwarded-Client-Cert"

Click Save.

4.2.28 Configuring SCP Services

Perform the following procedure to view thread watchdog and queue alerts threshold configurations required for SCP microservices.

From the left navigation pane, click the SCP tab, and then click the SCP Service Configuration tab.
In the left navigation pane, click the SCPC-AlternateResolution tab and do the following:
1. In the SCPC-AlternateResolution Service Configuration section, expand the SCP Service Configuration option.
2. To view the Thread Watchdog configuration values, expand the Thread Watchdog Configuration option.
3. To view the Connectivity Watchdog configuration values, expand the Connectivity Watchdog Configuration option.
In the left navigation pane, click the SCPC-Audit tab and do the following:
1. In the SCPC-Audit Service Configuration section, expand the SCP Service Configuration option.
2. To view the Thread Watchdog configuration values, expand the Thread Watchdog Configuration option.
3. To view the Connectivity Watchdog configuration values, expand the Connectivity Watchdog Configuration option.
In the left navigation pane, click the SCPC-Configuration tab and do the following:
1. In the SCPC-Configuration Service Configuration section, expand the SCP Service Configuration option.
2. To view the Thread Watchdog configuration values, expand the Thread Watchdog Configuration option.
3. To view the Connectivity Watchdog configuration values, expand the Connectivity Watchdog Configuration option.
In the left navigation pane, click the SCPC-Configuration tab and do the following:
1. In the SCPC-Configuration Service Configuration section, expand the SCP Service Configuration option.
2. To view the Thread Watchdog configuration values, expand the Thread Watchdog Configuration option.
3. To view the Connectivity Watchdog configuration values, expand the Connectivity Watchdog Configuration option.

In the left navigation pane, click the SCPC-Notification tab and do the following:

In the SCPC-Notification Service Configuration section, expand the SCP Service Configuration option.

To view the threshold values of different queues, expand the Queue Utilization Alert Thresholds option.

The SCPC-Notification Service Configuration screen displays the queue values for critical, major, and minor threshold.

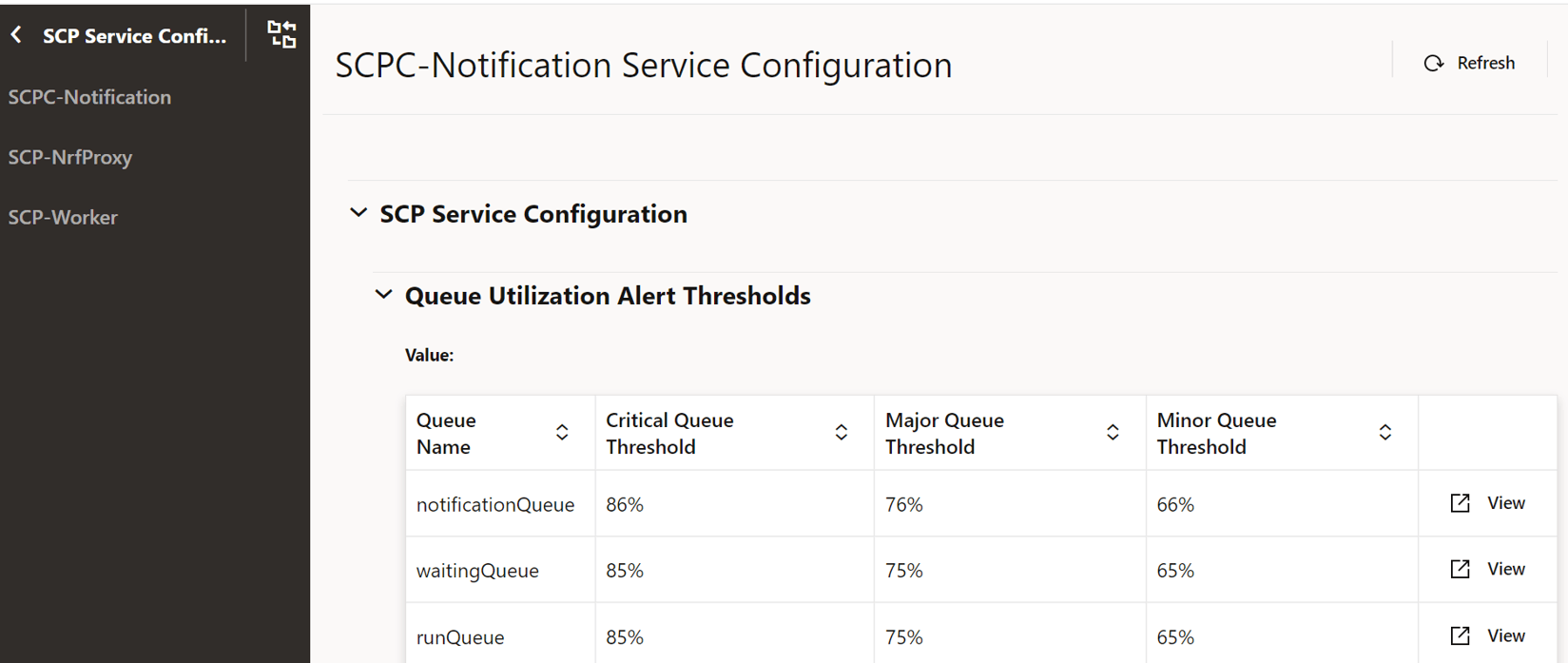

Figure 4-75 SCPC-Notification Service Configuration

The following table describes the significance of each column to determine the values of critical, major, and minor threshold.

Note:

The critical, major, and minor threshold values are automatically populated in the CNC Console and cannot be modified. These values are configured using REST APIs as described in "Configuring SCP Services" in Oracle Communications Cloud Native Core, Service Communication Proxy REST Specification Guide.

Table 4-55 Queue Utilization Alert Thresholds

Column Name	Description
Queue Name	Indicates the name of the queue for which these configurations are applicable.
Critical Queue Threshold	Indicates the percentage (%) value for queue usage threshold upon reaching which a "critical" alert is raised.
Major Queue Threshold	Indicates the percentage (%) value for queue usage threshold upon reaching which a "major" alert is raised.
Minor Queue Threshold	Indicates the percentage (%) value for queue usage threshold upon reaching which a "minor" alert is raised.

In the left navigation pane, click the SCPC-Subscription tab and do the following:
1. In the SCPC-Subscription Service Configuration section, expand the SCP Service Configuration option.
2. To view the Thread Watchdog configuration values, expand the Thread Watchdog Configuration option.
3. To view the Connectivity Watchdog configuration values, expand the Connectivity Watchdog Configuration option.

In the left navigation pane, click the SCP-NrfProxy tab and do the following:

In the SCP-NrfProxy Service Configuration section, expand the SCP Service Configuration option.
To view the threshold values of different queues, expand the Queue Utilization Alert Thresholds option.
The SCP-NrfProxy Service Configuration screen displays the queue values for critical, major, and minor threshold.

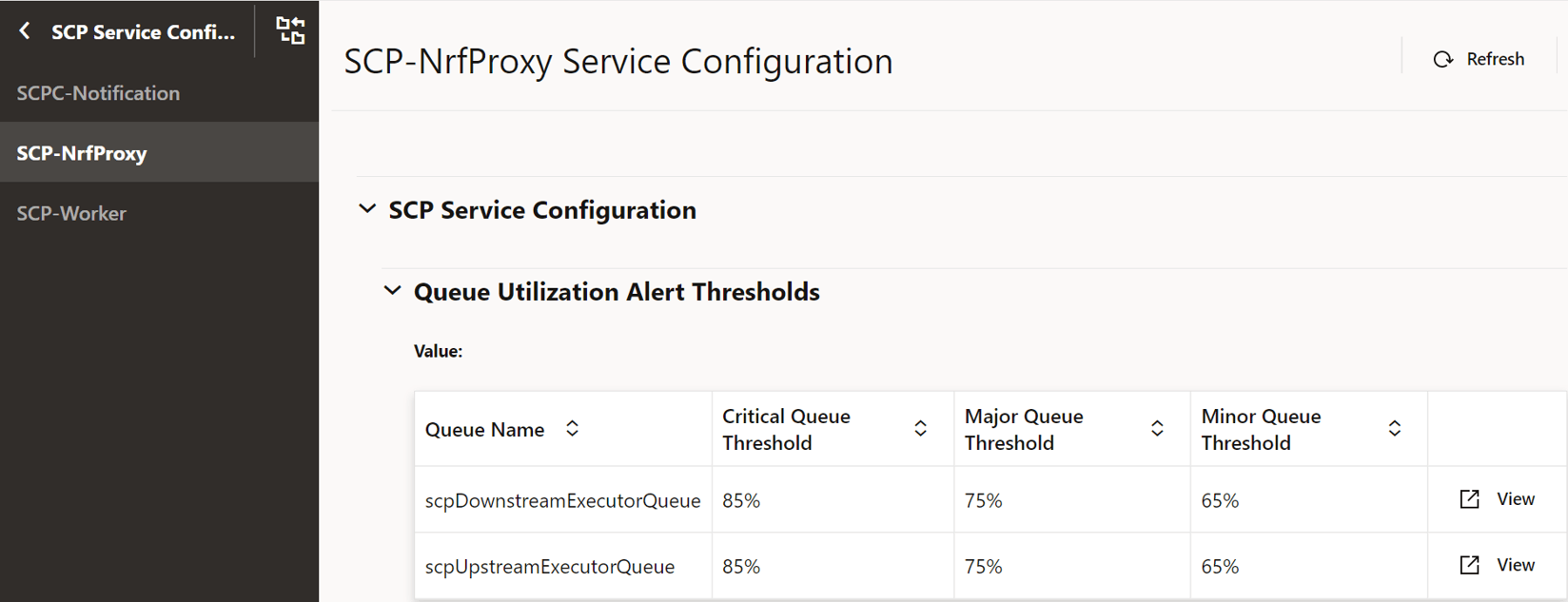

Figure 4-76 SCP-NrfProxy Service Configuration

The queue utilization alerts threshold values are automatically populated in the CNC Console as described in Table 4-55.

Expand the Thread Watchdog Configuration option to view the values of thread watchdog configurations:

The following table describes the fields required to configure the Thread Watchdog feature:

Note:

Thread watchdog field values are automatically populated in the CNC Console and cannot be modified. These values are configured using REST APIs as described in "Configuring SCP Services" in Oracle Communications Cloud Native Core, Service Communication Proxy REST Specification Guide.

Table 4-56 Thread Watchdog Configuration

Field Name	Description
Enable Thread Watchdog	Specifies whether to enable or disable liveliness failures. If this parameter is set to `true`, liveliness fails whenever the watchdog reports a stuck or deadlocked thread.
Watchdog Monitoring Interval	Indicates the time interval used by the watchdog to monitor if any threads are stuck.
Watchdog Interval	Indicates the maximum time allowed for threads to be nonresponsive. Watchdog uses this time to determine if a thread is stuck. For example, if this value is set to 10 seconds and a thread does not respond for 10 seconds, then the watchdog marks that thread as stuck or nonresponsive.
Watchdog Failure Count	Indicates the maximum number of times thread watchdog attempts to check if a thread is stuck before marking the thread as hung or stuck. For example, if this value is set to `3`, then the watchdog checks if a thread is stuck 3 times continuously before marking it as stuck or hung.

In the left navigation pane, click the SCP-Worker tab and do the following:
1. In the SCP-Worker Service Configuration section, expand the SCP Service Configuration option.
2. To view the threshold values of different queues, expand the Queue Utilization Alert Thresholds option.
  The SCP-Worker Service Configuration screen displays the queue values for critical, major, and minor threshold.

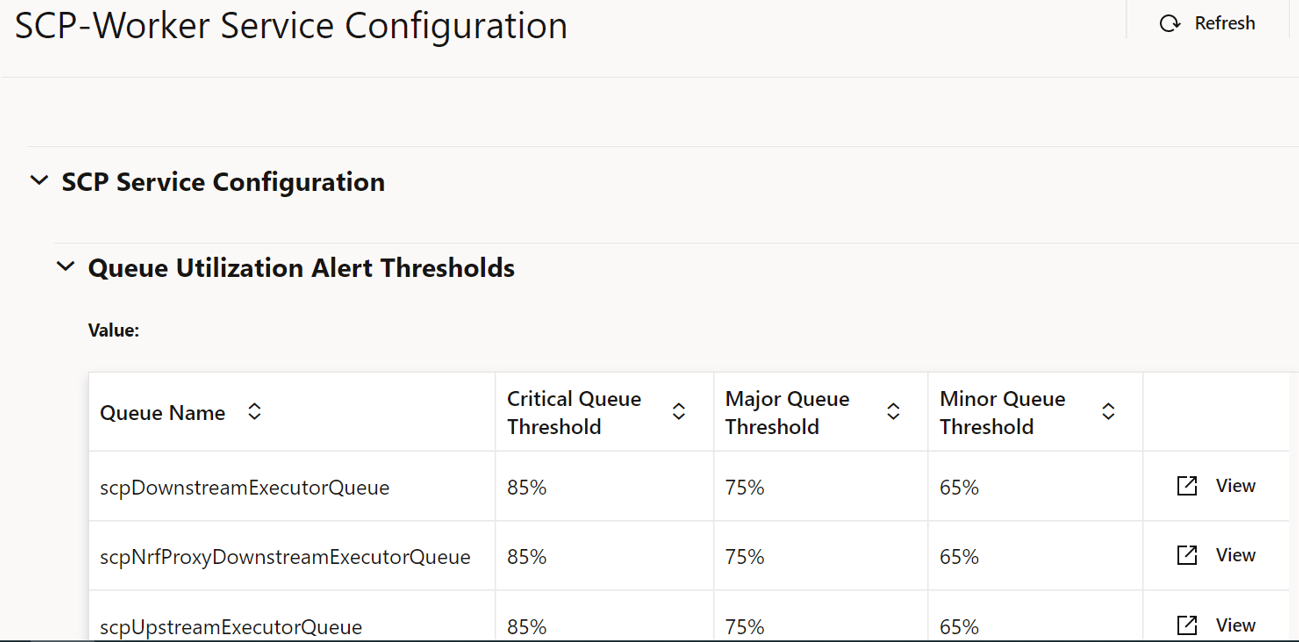

  Figure 4-77 SCP-Worker Service Configuration

  The queue utilization alerts threshold values are automatically populated in the CNC Console as described in Table 4-55.
3. Expand the Thread Watchdog Configuration option to view the values of thread watchdog configurations that are automatically populated in the CNC Console as described in Table 4-56.

4.2.29 Configuring Outlier Detection

Perform the following procedure to add, edit, or remove any existing rule name for outlier detection.

From the left navigation pane, click the SCP tab, and then click the Outlier Detection tab.
The Outlier Detection screen appears.

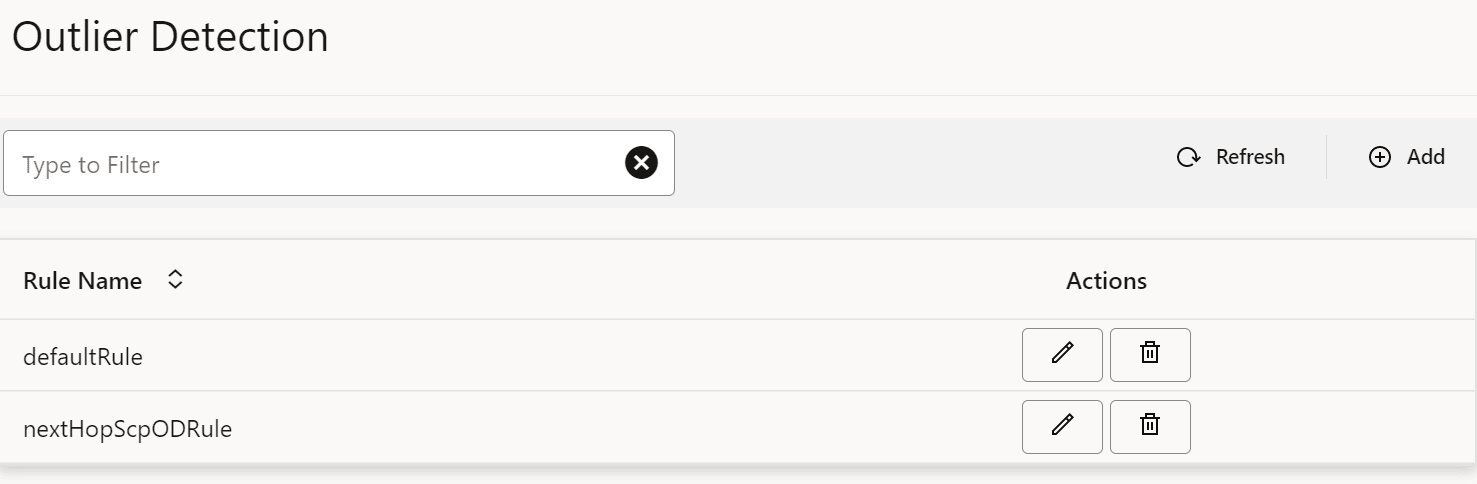

Figure 4-78 Outlier Detection
If you want to edit or remove any existing rule name from the Rule Name column, click Edit or Delete icon in the Actions column.
To add new rule names, click Add.
In the Add Outlier Detection section, configure the following fields:
- Rule Name: Enter a unique rule name that is available in the outlier detection table.
- Consecutive Errors: Enter a value between from 5 to 500 to define the number of consecutive errors after which an endpoint is considered unhealthy.
- Interval: Enter a value from 30 seconds to 86400 seconds to set the interval after which stale records are removed from the outlier data cache.
- Base Ejection Time: Enter a value between 1 second and 500 seconds to set the of duration endpoint ejection.
- Error List: Select the required error name from the available error list to be considered for outlier detection.
Click Save.

4.2.30 Configuring Traffic Feed

Perform the following procedure to configure OCNADD and Trigger Points.

From the left navigation pane, click the SCP tab, and then click the Traffic Feed tab.
To configure OCNADD fields, in the left navigation pane, click the Data Director tab.
In the Traffic Feed Data Director Configuration section, click Edit and configure the fields as described in the "Configuring Traffic Feed Data Director" section of the Oracle Communications Cloud Native Core, Service Communication Proxy REST Specification Guide.
To configure Trigger Points, in the left navigation pane, click the Trigger Points tab.
In the Trigger Points section, click Add and configure the fields as described in the "Configuring Traffic Feed Trigger Point Config" section of the Oracle Communications Cloud Native Core, Service Communication Proxy REST Specification Guide.
Click Save.

4.2.31 Congestion Control Configurations

Perform the following steps to configure congestion control parameters:

From the left navigation menu, navigate to SCP and then select Congestion Control.
Click Edit icon from the Actions column for the required service that must be modified.

Note:
The default rule name cannot be deleted. The new rule name can be added, modified, or deleted.
The Edit Congestion Control screen appears.

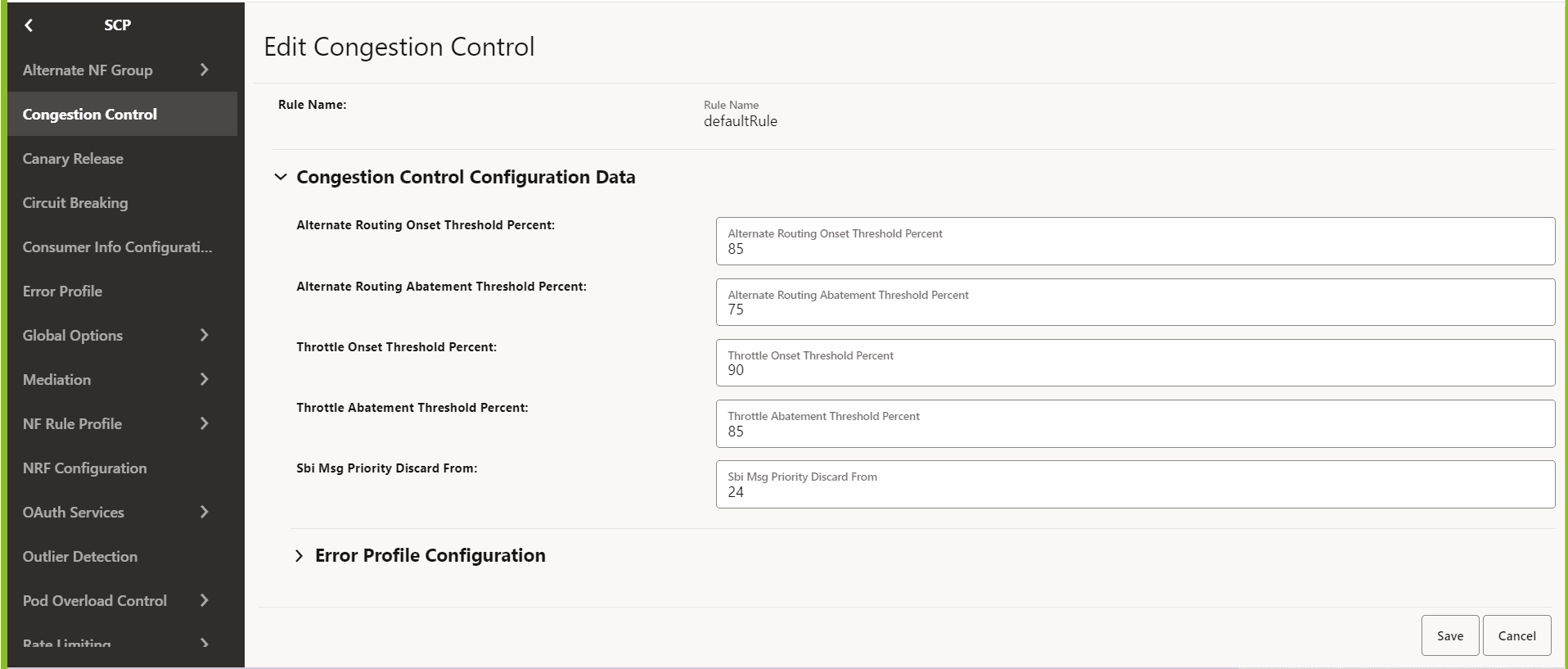

Figure 4-79 Congestion Control
Make the required modifications for the following parameters:
1. Alternate Routing Onset Threshold Percent: Set the threshold percentage for onset alternate routing.
2. Alternate Routing Abatement Threshold Percent: Set the threshold percentage for alternate routing abatement.
3. Throttle Onset Threshold Percent: Set the threshold percentage for onset throttling.
4. Throttle Abatement Threshold Percent: Set the threshold percentage for throttle abatement.
5. SBI Msg Priority Discard From: Set the priority for message, after which the messages can be discarded. For example, if the value is 30, then messages with priority 0-29 are high priority, and other low-priority messages will be throttled.

  Note:
  All the parameters are mandatory.
For more information about the configuration parameters, see Oracle Communications Cloud Native Core, Service Communication Proxy REST Specification Guide.
Click Save.
Click Cancel to reset all the fields.
Click Delete from the Actions column to delete the record.

4.2.32 Configuring Routing Options

Perform the following procedure to configure routing options.

From the left navigation menu, navigate to SCP, and then click the Routing Options tab.
From the left navigation menu, click the Routing Options Config tab.

In the Routing Options Config section, perform one of the following steps:

To configure a new routing option, click Add and configure the following fields:

Table 4-57 Field Name

Field Name	Description
Config Name	Unique configuration name to identify the records. Number of characters is 256. Allowed character combinations should be alpha-numeric, hyphen, and underscore.
Message Type	List of types of messages, such as notifications and SBI-messages, for which the routing configurations will apply.
Notification Type	Indicates the notification type.
NF Type	The NF type of the producer NF or server for which routing options are configured. This is either 3GPP defined NFType as per TS 29.510 or custom NFType.
NF Service Name	The NF service name of producer NF or server for which routing options are configured. This is either 3GPP defined serviceName as per TS29.510 or any custom service name.
Method	Indicates the method type. If no value is provided, '*' is configured in this field. This indicates that SCP-Worker will match any method type from following list: GET PUT POST PATCH OPTIONS TRACE HEAD CONNECT DELETE Note: Both Method and API Specific Resource Uri should be configured for service operation specific configurations.
API Specific Resource Uri	REGEX expression which is used to validate resource URI in the RX request. Note: Both Method and API Specific Resource Uri should be configured for service operation specific configurations.
Consumer NFType	Configures consumer NFType, for example, client or sender. It decides routing options based on the consumer NFType that sends the message to SCP for routing. In the current implementation, this field supports "*" as value, which means match all.
Routing Config Set Name	Name of the Routing Config set record. For more information, see "Configuring Routing Options Config" in Oracle Communications Cloud Native Core, Service Communication Proxy REST Specification Guide.
Created Timestamp	Indicates the timestamp of the created record. This is not required in the request, but it is present in the response.
Updated Timestamp	Indicates the timestamp of the updated record. This is not required in the request, but it is present in the response.

For more information about the above mentioned fields, see "Configuring Routing Options Config" in Oracle Communications Cloud Native Core, Service Communication Proxy REST Specification Guide.

To edit or remove any existing routing option configurations, select an existing routing options instance from the Config Name column, and click the corresponding Edit or Delete icon.

Click Save.
To retrieve the query parameters, from the left navigation pane, click the Routing Options Config Query tab.
In the Query Parameters field, enter the query parameter, such as nftype=UDM, and click Get.
Response and request configuration information appears in Response and Request fields.

4.2.33 Configuring Routing Config Set

Perform the following procedure to define routing options fields. These fields are mapped with service operation related fields as described in Configuring Routing Options. These routing options fields are applied to a certain message routing when matched with service operation fields.

From the left navigation menu, navigate to SCP, and then click the Routing Options tab.
From the left navigation menu, click the Routing Config Set tab.
In the Routing Config Set section, click Edit from the Actions column for the required service that must be modified.
Enter or modify the required values as described in "Configuring Routing Config Set" and "Configuring Routing Options Config" in Oracle Communications Cloud Native Core, Service Communication Proxy REST Specification Guide.
In the Reroute Condition List, configure the list of error codes for rerouting:
- Click Add to add new status code.
- Click Edit or Delete icon to edit or remove any existing error code from the reroute condition list.
Click Save.
Click Cancel to reset all the fields.

4.2.34 Configuring NFTypes-NFServices

Perform the following procedure to configure any new 3GPP defined NFs, custom NF types, and custom NF services in SCP.

From the left navigation pane, click the SCP tab, and then click the NFTypes-NFServices tab.
From the left navigation pane, click the NFTypes-NFServices Config tab.

In the NF Service Data section, do one of the following:

To add any new NF type or NF service, click Add and configure the following fields:

Table 4-58 Field Name

Field Name	Description
Config Name	Indicates the name of the new configuration that fetches configuration information for the newly added NF service.
NF Type	Indicates the name of the new NF type for which routing options are configured. This is either 3GPP defined NF type as per TS 29.510 or custom NF type.
NF Service Name	Indicates the name of the new NF service for which routing options are configured. This is either 3GPP defined serviceName as per TS29.510 or any custom service name.
API Name	Indicates the unique API name across all records. In the absence of API Name, its value is automatically configured as NF Service Name. This must be configured if API Name and NF Service Name values are different.
Service Type	Indicates the service type. When this field is blank, service type is automatically configured for both NOTIFICATION-MESSAGE-SERVICE and REQUEST-MESSAGE-SERVICE.
Created Timestamp	Indicates the timestamp of the created record. This is not required in the request, but it is present in the response.
Updated Timestamp	Indicates the timestamp of the updated record. This is not required in the request, but it is present in the response.

For more information about the above mentioned fields, see "Configuring NFTypes-NFServices" in Oracle Communications Cloud Native Core, Service Communication Proxy REST Specification Guide.

To edit or remove any existing NF service data, select an NF type or NF service from the Config Name column, and click the corresponding Edit or Delete icon.

Click Save.
To retrieve the query parameters, from the left navigation pane, click the NFTypes-NFServices Config Query tab.
In the Query Parameters field, enter the query parameter, such as nftype=UDM, and click Get.
Response and request configuration information appears in Response and Request fields.

4.2.35 Configuring NF Service Feature Config

Perform the following procedure to configure NF service level features.

From the left navigation pane, click the SCP tab, and then click the NF Service Features tab.
From the left navigation pane, click the NF Service Config tab.

In the NF Service Config section, do one of the following:

To add any new NF service, click Add and configure the following fields:

Table 4-59 Field Name

Field Name	Description
Config Name	Unique configName key to identify the record. Number of characters is 256. Allowed character combinations should be alpha-numeric, hyphen, and underscore.
NF Type	The NF type for which routing options are configured. This is either 3GPP defined NFType as per TS 29.510 or custom NFType. The '*' value is accepted to indicate any match.
NF Service Name	The NF service name for which routing options are configured. This is either 3GPP defined serviceName as per TS29.510 or any custom service name. If a particular NFType does not have NF Service, the '' keyword should be provided for this feild. The '' value is accepted to indicate any match.
NF Service Config Set Name	Indicates available config name records. For more information, see the `nfServiceConfigSetName` parameter in "Configuring NF Service Feature Config" in Oracle Communications Cloud Native Core, Service Communication Proxy REST Specification Guide.
Created Timestamp	Indicates the timestamp of the created record. This is not required in the request, but it is present in the response.
Updated Timestamp	Indicates the timestamp of the updated record. This is not required in the request, but it is present in the response.

For more information about the above mentioned fields, see "Configuring NF Service Feature Config" in Oracle Communications Cloud Native Core, Service Communication Proxy REST Specification Guide.

To edit or remove any existing NF service, select an NF service from the Config Name column, and click the corresponding Edit or Delete icon.

Click Save.
To retrieve the query parameters, from the left navigation pane, click the NF Service Config Query tab.
In the Query Parameters field, enter the query parameter, such as nftype=UDM, and click Get.
Response and request configuration information appears in Response and Request fields.

4.2.36 Configuring NF Service Feature Config Set

Perform the following procedure to configure service level features. This configuration is mapped with NF Type and NF Service Name combination as described in Configuring NF Service Feature Config.

From the left navigation menu, navigate to SCP, and then click the NF Service Features tab.
From the left navigation menu, click the NF Service Config Set tab.
In the NF Service Config Set section, do one of the following:
- Click Add to configure a new service level feature.
- Select a service type from the Config Name column and click the corresponding Edit icon to modified the existing configuration.
Enter or modify the required values for the fields as described in "Configuring NF Service Feature Config Set" and "Configuring NF Service Feature Config" in Oracle Communications Cloud Native Core, Service Communication Proxy REST Specification Guide.
Click Save.

4.2.37 Circuit Breaking Configurations

Perform the following procedure to configure circuit breaking data.

From the left navigation menu, navigate to SCP, and then click the Circuit Breaking tab.
In the Circuit Breaking section, click Edit icon from the Actions column for the required service that must be modified.
The Edit Circuit Breaking screen appears.

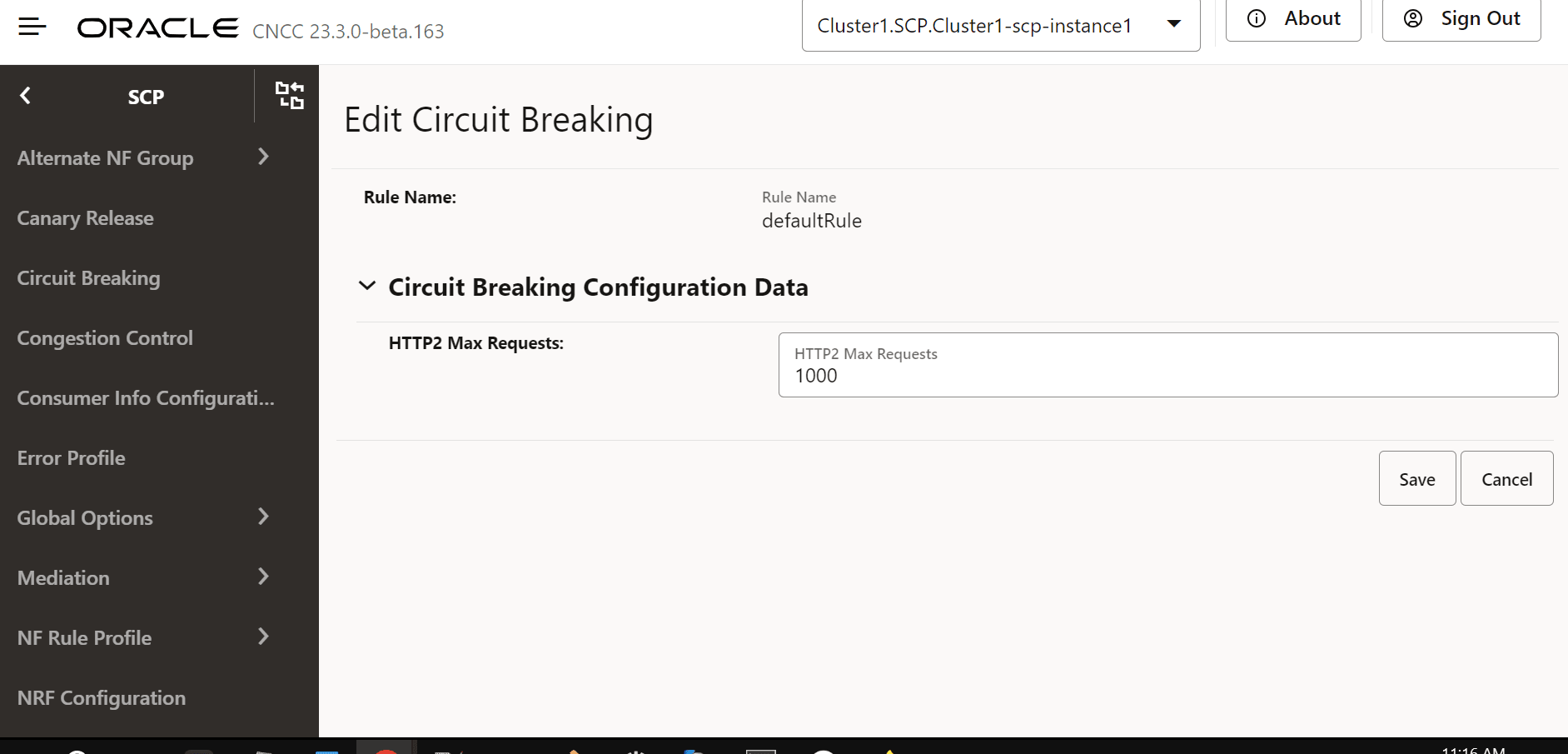

Figure 4-80 Edit Circuit Breaking
In the HTTP2 Max Requests field, set the maximum number of requests SCP routes to an NF service instance (peer destination) and waiting for their responses before stopping further routing requests to it. The maximum allowed value is 1000.
Enter or modify the required values as described in "Circuit Breaking Configurations" in Oracle Communications Cloud Native Core, Service Communication Proxy REST Specification Guide.
Click Save.
Click Cancel to reset the field.

4.2.38 Viewing SCP Feature Status

Perform the following procedure to fetch the runtime status of NRF migration task.

From the left navigation pane, click the SCP tab, and then click the SCP Feature Status tab.

On the SCP Feature Status page, the following columns display the SCP feature status.

Table 4-60 SCP Feature Status

Column Name	Description
Feature Name	Displays the names of the features, such as nrf_bootstrap_info.
Admin State	Displays the admin state of the feature. Possible statuses are mentioned below: ENABLED: This indicates that the user has enabled the feature. DISABLED: This indicates that the user has disabled the feature.
Runtime Status	Displays the current runtime status of the feature. Possible statuses are mentioned below: DISABLED: This indicates that the feature is disabled. For example, in the nrf_bootstrap_info feature, this state means SCP is running with a statically configured NRF. If the user has changed the 'Admin State' from ENABLED to DISABLED, this state means the feature is successfully disabled. IN_PROGRESS: This indicates the enabling or disabling of the feature is currently is in progress when the 'Admin State' is set to ENABLED or DISABLED. For example, in the nrf_bootstrap_info feature, when the 'Admin State' is ENABLED, the migration from static to DNS SRV based NRF topology is in progress. In the nrf_bootstrap_info feature, when the 'Admin State' is DISABLED, the migration from a DNS SRV based NRF topology to static NRF topology is in progress. FAILED_RETRY: This indicates that the process of enabling or disabling the feature (as indicated by the 'Admin State') has encountered failure and is undergoing retries. For example, in the nrf_bootstrap_info feature, this state means either of the migration tasks has failed and going through retries. ENABLED: This indicates the feature is successfully enabled. For example, in the nrf_bootstrap_info feature, this state means the migration from static to a DNS SRV based NRF topology is successful.
Creation Timestamp	Displays the time of creation of the event, for example, creationTimestamp": "2021-05-26T01:17:15.000+00:00
Update Timestamp	Displays the time of updation of the event, for example, creationTimestamp": "2021-05-26T06:24:15.000+00:00

4.2.39 Get NF Discovery Response Cache Configuration Data

Perform the following procedure to get the delegated discovery response caching configuration data using Cloud Native Configuration Console (CNC Console).

Log in to the CNC Console using your login credentials as described in Oracle Communications Cloud Native Core, Service Communication Proxy User Guide.

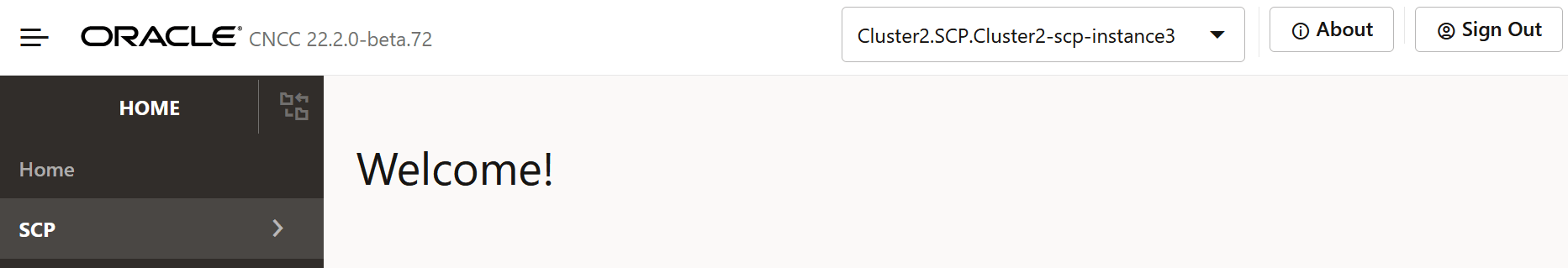

On the CNC Console Home page, in the upper pane, select the required SCP instance from the Please Select Instance drop-down list.
From the left navigation pane, click the SCP tab, and then click the NF Discovery Response Cache Configuration tab. The SCP Features section displays the list of two subtabs to be configured using the CNC Console:
1. NF Discovery Response Cache Configuration
2. NF Discovery Response Cache Configuration Data

In the NF Discovery Response Cache Configuration Data subtab, click Get to retrieve NF discovery cache configuration data based on the query parameters.

Figure 4-81 NF Discovery Response Cache Configuration Data

Table 4-61 Button and Field Description

Button and Field Names	Description
Get	Retrieves NF discovery response cache configuration data. You can modify this data using the Edit button.
Clear	Refreshes the existing screen by removing the data.

4.2.40 Configuring NF Profile Level Attribute

Perform the following procedure to configure NF profile level attributes for a specific NfType. These configuration are used in notification alternative requests.

From the left navigation pane, click the SCP tab, and then click the NF Profile Level Attribute tab.
From the left navigation pane, click the NF Profile Level Attribute Configuration tab.
To modify an existing configuration, select the configuration name from the Config Name column and click one of the following options for the corresponding configuration name:
- Edit: Opens the Edit NF Profile Level Attribute Configuration Data dialog box to make modifications to the existing values of the fields. If you want to save your changes, click Save.
- Delete: Removes the existing configuration from the Config Name list.
In the NF Profile Level Attribute Configuration section, click Add to add new DNS SRV and notification attributes.

In the Add NF Profile Level Attribute Configuration section, configure the following fields:

Table 4-62 Field Name

Field Name	Description
Config Name	Indicates unique configuration name to configure the NF profile level attribute configuration. The allowed values must be alphanumeric with hyphen and underscore special characters. Example: defaultNfProfileLevelAttrConfig
NF Type	Describes NfType to which this configuration is applicable. Default value: * * indicates all valid NF types.
Nf Instance Ids List	Indicates configuration list of nfInstance IDs separated by comma. When nfInstaceId is provided, it is used with nfType to extract the missing profile level data to be used while processing NF profiles for creating rules. When nfInstanceId is not provided, it is automatically set to ''. Then, this configuration is applicable for any NF instance of a given NfType. The allowed values must be alphanumeric with hyphen and underscore special characters. Default value: * indicates all valid NF instance IDs.
NF Profile Level Attr Config Data Name	Indicates an NF profile level attribute configuration data item that is already configured. When SCP processes NF profiles, relevant NF profile level attribute configuration data items are selected based on nfType or nfInstanceID combinations, and they are used for creating default rules. Then, those default rules will be used for routing and alternate routing of notification requests when the service name is unknown. Default value: defaultNfProfileLevelAttrConfigData
Save	Saves the configured values of all the fields.
Cancel	Exits from the current configuration page.

4.2.41 Configuring NF Profile Level Attribute Configuration Data

Perform the following procedure to configure NF profile level attribute configurations data. These configurations are used in notification alternative requests when NF profile data is unavailable.

From the left navigation pane, click the SCP tab, and then click the NF Profile Level Attribute tab.
From the left navigation pane, click the NF Profile Level Attribute Configuration Data tab.
To modify an existing configuration, select the configuration name from the Config Name column and click one of the following options for the corresponding configuration name:
- Edit: Opens the Edit NF Profile Level Attribute Configuration Data dialog box to make modifications to the existing values of the fields. If you want to save your changes, click Save.
- Delete: Removes the existing configuration from the Config Name list.
In the NF Profile Level Attribute Configuration Data section, click Add to add new DNS SRV and notification attributes.

In the Add NF Profile Level Attribute Configuration Data section, configure the following fields:

Table 4-63 Field Name

Field Name	Description
Config Name	Indicates unique configuration name to configure the NF profile level attribute configuration data. The default value cannot be deleted, but it can be modified. The allowed values must be alphanumeric with hyphen and underscore special characters. Example: defaultNfProfileLevelAttrConfigData
Dns Srv	This subsection provides information about DNS SRV scheme and port.
Scheme	Defines the default scheme to form the query for DNS SRV profile level FQDN. Default value: https Range: http or https
Port Preference	Defines the path to retrieve the port values either from the DNS SRV record or from the configured notification attributes. Default value: SRV_RECORD Range: SRV_RECORD or STATIC_CONFIG STATIC_CONFIG: Uses static configuration defined in notificationAttributes.port SRV_RECORD: Uses port from the DNS SRV record.
Notification Attributes	This subsection provides information about notification attributes such as scheme, port, capacity, and priority, to create profile level default service objects.
Scheme	Defines the scheme to be used while creating default routing rules for notification requests when the scheme is not provided in the NF profile at profile level. Default value: http Range: http or https
Port	Defines the port to be used while creating default routing rules for notification request when the port is not provided in the NF profile at profile level. Default value: 80 Range: 1-65535
Capacity	Defines the capacity to be used while creating default routing rules for notification requests when the capacity is not provided in the NF profile at profile level. Default value: 65535 Range: 0-65535
Priority	Defines the priority to be used while creating default routing rules for notification requests when the priority is not provided in the NF profile at profile level. Default value: 1 Range: 0-65535
Save	Saves the configured values of all the fields.
Cancel	Exits from the current configuration page.

4.2.42 Configuring NF Delegated Discovery Response Cache

Perform the following procedure to create, edit, and delete the rules for delegated discovery response caching configuration using the Cloud Native Configuration Console (CNC Console).

Log in to the CNC Console using your login credentials as described in Oracle Communications Cloud Native Core, Service Communication Proxy User Guide.
On the CNC Console Home page, in the upper pane, select the required SCP instance from the Please Select Instance drop-down list.
From the left navigation pane, click the SCP tab, and then click the NF Discovery Response Cache Configuration tab. The SCP Features section displays the list of two subtabs to be configured using the CNC Console:
1. NF Discovery Response Cache Configuration
2. NF Discovery Response Cache Configuration Data
From the left navigation pane, click the NF Discovery Response Cache Configuration subtab.
The NF Discovery Response Cache Configuration screen displays a list of rules saved in database.

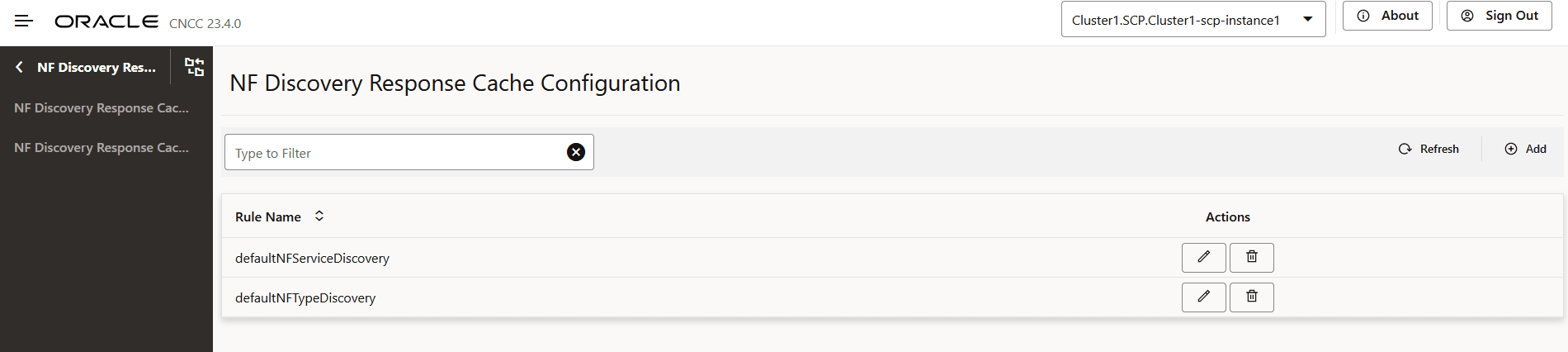

Figure 4-82 NF Discovery Response Cache Configuration

Click Add to create NF discovery response cache configuration rule.

The Add NF Discovery Response Cache Configuration Rule screen allows you to configure the fields to create new rule as described in the following table:

Table 4-64 Field Description

Field Names	Description
Rule Name	Indicates the name of the rule. This value should be unique.
Target NF Type	Indicates the NF type of producer for which delegated discovery is being made. The allowed values for this field are: * : This value denotes all the valid NF types. or a valid NF type that SCP supports.
Service Names	Indicates the list of service names supported by producer NF for which delegated discovery is being made. The allowed values for this field are: * : This value denotes all the service names for that target NF type. or a valid NF service that a NF type supports.
Exclude Discovery Query Parameters	Indicates the list of Exclude Query Info objects. Maximum size of this list is 20.

Note:

For more information about valid NF type and services supported by SCP, see Supported NF Types and Services chapter in the Oracle Communications Cloud Native Core, Service Communication Proxy User Guide.

In the Exclude Discovery Query Parameters section, click Add to define the query header to exclude as described in the following table:

Table 4-65 Field Description

Field

Description

Exclude Query Info

Exclude Query Info has one field called query Header. The value of this query header is one of the query parameters that is forwarded along with the discovery request to NRF.

Query Header

Indicates the query parameters that is forwarded along with the discovery request to NRF.

The allowed values for this field are:

None: This value denotes that caching is done for all the discovery responses.
*: This value denotes that caching will not be done for all the discovery responses.
SubscriberIds: An UE ID-related NF discovery query parameters.
Supported Query Parameters: The query parameters that is forwarded along with the discovery request to NRF. For more information, see 'Supported Query Parameters' chapter.

The following table lists the eight subscriber IDs covered by the keyword "SubscriberIds":

Table 4-66 SubscriberIds

SubscriberIds	Description
supi	If included, this Information Element (IE) shall contain the SUPI of the requester UE to search for an appropriate NF. SUPI may be included if the target NF type is "PCF," "CHF," "AUSF," "UDM," or "UDR.".
ue-ipv4-address	The IPv4 address of the UE for which a BSF or P-CSCF needs to be discovered.
ip-domain	The IPv4 address domain of the UE for which a BSF needs to be discovered.
ue-ipv6-prefix	The IPv6 prefix of the UE for which a BSF or P-CSCF needs to be discovered.
gpsi	If included, this IE shall contain the GPSI of the requester UE to search for an appropriate NF. GPSI may be included if the target NF type is "CHF," "PCF," "UDM," or "UDR.".
external-group-identity	If included, this IE shall contain the external group identifier of the requester UE to search for an appropriate NF. This may be included if the target NF type is "UDM" or "UDR".
routing-indicator	Routing indicator information that allows to route network signaling with SUCI (see 3GPP 23.003 [12]) to an AUSF and UDM instance capable of serving the subscriber. May be included if the target NF type is "AUSF" or "UDM.". Pattern: "^[0-9]{1,4}$"
msisdn	If included, this IE shall contain the external group identifier of the requester UE to search for an appropriate NF. This may be included if the target NF type is "UDM" or "UDR".

Click Add to add the created rules.
Click Remove to remove the created or existing rules.
Click Save to save the updates.
Click Cancel to reset all the fields.

Click the Edit icon to edit the existing rule.

The Edit NF Discovery Response Cache Configuration Rule screen allows you to configure the fields as described in the following table:

Table 4-67 Field Description

Field	Description
Rule Name	Indicates the name of the rule. This value should be unique.
Target NF Type	Indicates the NF type of producer for which delegated discovery is being made. The default value for this field is *, which denotes that caching will not be done for all the discovery responses.
Service Names	Indicates the list of service names supported by producer NF for which delegated discovery is being made. The default value for this field is *, which denotes that caching will not be done for all the discovery responses.
Exclude Discovery Query Parameters	Indicates the list of ExcludeQueryInfo objects. Maximum size of this list is 20.

Note:

defaultNFTypeDiscovery rule is applicable to any Model D request where discovery is happening without service names (in these requests, the 3gpp-sbi-discovery-service-names header is not present) and no other custom rule match is found. For this rule, caching will not happen for the list of query headers mentioned in the ExcludeQueryInfo.
defaultNFServiceDiscovery rule is applicable to a Model D request where the request 3gpp-sbi-discovery-service-names header is also present in the incoming request and no other custom rule match is found. For this rule, caching will not happen for the list of query headers mentioned in the ExcludeQueryInfo.
You cannot delete the default rules, but the exclude query info for these rules can be edited.

Click Save.

Note:
By default, users can configure up to 100 rules using this API.

4 Configuring Service Communication Proxy using the CNC Console

4.1 Support for Multicluster Deployment

4.2 CNC Console Interface

4.2.1 Configuring SCP Features

4.2.1.1 Configuring the Log Enhancement Feature

4.2.1.2 Configuring Error Response Enhancement

4.2.1.3 Configuring Enhanced NF Status Processing

4.2.1.4 Configuring Global Egress Rate Limiting

4.2.1.5 Configuring Support for 5G SBI Roaming

4.2.1.6 Configuring Mediation

4.2.1.7 Configuring Model D Indirect 5G SBI Communication feature

4.2.1.8 Configuring SCP User Agent Info

4.2.1.9 Configuring Message Feed

4.2.1.10 Configuring Load Control Information (LCI)

4.2.1.11 Configuring Host Preference for Egress Message Requests

4.2.1.12 Configuring CCA Header Validation

4.2.1.13 Configuring Location Header Update for Host Mismatch

4.2.1.14 Configuring Support for OAuth2.0

4.2.1.15 Configuring SCP Health Check API

4.2.1.16 NRF Configuration using DNS SRV Resolution

4.2.1.17 Configuring Overload Control Based on the Overload Control Information Header

4.2.1.18 Configuring Enhanced NFProfile Processing

4.2.1.19 Configuring 3GPP Timestamp Headers Support

4.2.1.20 Configuring Enhanced Notifications Handling

4.2.1.21 Configuring Ingress Rate Limiting

4.2.1.22 Configuring Egress Rate Limiting

4.2.2 Configuring OCI

4.2.3 Configuring OCI Threshold Levels

4.2.4 Viewing cnDBTier APIs on the CNC Console

4.2.4.1 Backup List

4.2.4.2 cnDBTier Backup Status

4.2.4.3 cnDBTier Version

4.2.4.4 Database Statistics Report

4.2.4.5 Georeplication Recovery

4.2.4.6 Georeplication Status

4.2.4.7 Replication HeartBeat Status

4.2.4.8 Local Cluster Status

4.2.4.9 On Demand Backup

4.2.4.10 cnDBTier Health

4.2.5 Configuring NRF SRV

4.2.5.1 Mapping NFInstanceId and ServiceInstanceId

4.2.6 Configuring NRF

4.2.7 Configuring Upgrade and Rollback Event

4.2.8 OAuth2.0 Configurations

4.2.8.1 Configuring Access Token Granularity

4.2.8.2 Configuring OAuth2.0 Local PLMN Required

4.2.9 Configuring Error Profile

4.2.10 Configuring Canary Release

4.2.11 Configuring Global Options

4.2.12 Mediation Configuration

4.2.12.1 Configuring Mediation Trigger Point

4.2.12.2 Configuring Routing Options for Mediation

4.2.12.3 Configuring Mediation Rules

4.2.12.4 Configuring Mediation Log Levels

4.2.12.5 Configuring Mediation Support for User Defined Variables

4.2.13 Configuring NF Rule Profile

4.2.13.1 Fetching NF Rule Profile Data

4.2.14 Configuring SCP Profile

4.2.15 Configuring Topology Source Info

4.2.16 Fetching Routing Rules

4.2.17 Configuring Ingress Rate Limiting

4.2.18 Configuring Egress Rate Limiting

4.2.19 Configuring Server Header

4.2.20 Configuring Pod Overload Control Policies

4.2.21 Configuring SBI Message Priority

4.2.22 Configuring DNS SRV based Alternate Routing

4.2.22.1 Configuring Routing Modes

4.2.22.2 Configuring the Default TTL Value

4.2.22.3 Configuring Alternate NF Group

4.2.22.4 Configuring Refresh DNS SRV Data

4.2.23 Configuring SBI Message Priority and Error Profiles for Egress Congestion Control

4.2.24 Configuring the nextHopSCP Routing Option

4.2.25 Configuring SEPP Inter PLMN Routing

4.2.26 Configuring Route Groups

4.2.27 Configuring Ingress Rate Limiter Consumer Info

4.2.28 Configuring SCP Services

4.2.29 Configuring Outlier Detection

4.2.30 Configuring Traffic Feed

4.2.31 Congestion Control Configurations

4.2.32 Configuring Routing Options
