3 Installing ATS for Different Network Functions

This section describes how to install ATS for different network functions. It includes:

• Installing ATS for BSF
• Installing ATS for NSSF

3.1 Installing ATS for BSF

The BSF ATS installation procedure covers two steps:

1. Locating and downloading the ATS package for BSF.
2. Deploying ATS and stub pods in Kubernetes cluster.

This includes installation of three stubs (nf1stub, nf11stub, and nf12stub), ocdns-bind stub, and BSF ATS in BSF namespace.

3.1.1 Resource Requirements

This section describes the ATS resource requirements for Binding Support Function.

Overview - Total Number of Resources

The following table describes the overall resource usage in terms of CPUs, memory, and storage:

Table 3-1 BSF - Total Number of Resources

Resource Name	Non-ASM CPU	Non-ASM Memory (GB)	ASM CPU	ASM Memory (GB)
BSF Total	41	36	73	52
ATS Total	11	11	23	17
cnDBTier Total	107.1	175.2	137.1	190.2
Grand Total BSF ATS	159.1	222.2	233.1	259.2

BSF Pods Resource Requirements Details

This section describes the resource requirements, which are needed to deploy BSF ATS successfully.

Table 3-2 BSF Pods Resource Requirements Details

BSF Microservices	Max CPU	Memory (GB)	Max Replica	Isito ASM CPU	Isito ASM Memory (GB)	Non-ASM Total CPU	Non-ASM Memory (GB)	ASM Total CPU	ASM Total Memory (GB)
oc-app-info	1	1	1	2	1	1	1	3	2
oc-diam-gateway	4	2	1	2	1	4	2	6	3
alternate-route	2	4	1	2	1	2	4	4	5
oc-config-server	4	2	1	2	1	4	2	6	3
ocegress_gateway	4	6	1	2	1	4	6	6	7
ocingress_gateway	4	6	1	2	1	4	6	6	7
nrf-client-mngt	1	1	2	2	1	2	2	6	4
oc-audit	2	1	1	2	1	2	1	4	2
oc-config-mgmt	4	2	2	2	1	8	4	12	6
oc-query	2	1	2	2	1	4	2	8	4
oc-perf-info	1	1	2	2	1	2	2	6	4
bsf-management-service	4	4	1	2	1	4	4	6	5
BSF Totals						41	36	73	52

ATS Resource Requirements details for BSF

This section describes the ATS resource requirements, which are needed to deploy BSF ATS successfully.

Table 3-3 ATS Resource Requirements Details

ATS Microservices	Max CPU	Max Memory (GB)	Max Replica	Isito ASM CPU	Isito ASM Memory (GB)	Non- ASM Total CPU	Non-ASM Total Memory (GB)	ASM Total CPU	ASM Total Memory (GB)
ocstub1-py	2	2	1	2	1	2	2	4	3
ocstub2-py	2	2	1	2	1	2	2	4	3
ocstub3-py	2	2	1	2	1	2	2	4	3
ocats-bsf	3	3	1	2	1	3	3	5	4
ocdns-bind	1	1	1	2	1	1	1	3	2
ocdiam-sim	1	1	1	2	1	1	1	3	2
ATS Totals						11	11	23	17

cnDBTier Resource Requirements Details for BSF ATS

This section describes the cnDBTier resource requirements, which are needed to deploy BSF ATS successfully.

Note:

For cnDBTier pods, a minimum of 4 worker nodes are required.

Table 3-4 cnDBTier Resource Requirements Details

cnDBTier Microservices	Min CPU	Min Memory (GB)	Min Replica	Isito ASM CPU	Isito ASM Memory (GB)	Total CPU	Total Memory (GB)	ASM Total CPU	ASM Total Memory (GB)
db_monitor_svc	1	1	1	2	1	1	1	3	2
db_replication_svc	2	12	1	2	1	2	12	4	13
db_backup_manager_svc	0.1	0.2	1	2	1	0.1	0.2	2.1	1.2
ndbappmysqld	8	10	4	2	1	32	40	40	44
ndbmgmd	4	10	2	2	1	8	20	12	22
ndbmtd	10	18	4	2	1	40	72	48	76
ndbmysqld	8	10	2	2	1	16	20	20	22
db_infra_moditor_svc	8	10	1	2	1	8	10	8	10
cnDBTier Total						107.1	175.2	137.1	190.2

3.1.2 Downloading the ATS Package

This section provides information on how to locate and download BSF ATS package file from My Oracle Support (MOS).

Locating and Downloading BSF ATS Package

To locate and download the ATS Image from MOS, perform the following steps:

1. Log in to My Oracle Support using the appropriate credentials.
2. Select the Patches and Updates tab.
3. In the Patch Search window, click Product or Family (Advanced).
4. Enter Oracle Communications Cloud Native Core - 5G in the Product field.
5. Select Oracle Communications Cloud Native Binding Support Function <release_number> from Release drop-down.
6. Click Search. The Patch Advanced Search Results list appears.
7. Select the required patch from the search results. The Patch Details window appears.
8. Click Download. The File Download window appears.
9. Click the <p********_<release_number>_Tekelec>.zip file to downlaod the BSF ATS package file.
10. Untar the gzip file ocats-bsf-tools-25.2.200.0.0.tgz to access the following files:

    ocats-bsf-pkg-25.2.200.0.0.tgz
    ocdns-pkg-25.2.204.tgz
    ocstub-pkg-25.2.202.tgz
    ocdiam-sim-25.2.204.tgz

    The contents included in each of these files are as follow:

    ocats-bsf-tools-25.2.200.0.0.tgz
    |
    |_ _ _ocats-bsf-pkg-25.2.200.tgz
    | |_ _ _ _ _ _ ocats-bsf-25.2.200.tgz (Helm Charts)
    | |_ _ _ _ _ _ ocats-bsf-images-25.2.200.tar (Docker Images)
    | |_ _ _ _ _ _ ocats-bsf-data-25.2.200.tgz (BSF ATS and Jenkins job Data)
    |
    |_ _ _ocstub-pkg-25.2.202.0.0.tgz
    | |_ _ _ _ _ _ ocstub-py-25.2.202.tgz(Helm Charts)
    | |_ _ _ _ _ _ ocstub-py-image-25.2.202.tar (Docker Images)
    |
    |_ _ _ocdns-pkg-25.2.204.0.0.tgz
    | |_ _ _ _ _ _ ocdns-bind-25.2.204.tgz(Helm Charts)
    | |_ _ _ _ _ _ ocdns-bind-image-25.2.204.tar (Docker Images)
    |
    |_ _ _ocdiam-pkg-25.2.204.0.0.tgz
    |      |_ _ _ _ _ _ ocdiam-sim-25.2.204.tgz(Helm Charts)
    |      |_ _ _ _ _ _ ocdiam-sim-image-25.2.204.tar (Docker Images)

11. Copy the tar file from the downloaded package to CNE, OCI, or Kubernetes cluster where you want to deploy ATS.

3.1.3 Deploy ATS with TLS Enabled

Note:

• OCATS and Python stubs support both TLS 1.2. and TLS 1.3.
• DiamSim pod do not support secure calls.

Follow the steps in this section to create a Java KeyStore (JKS) file and enable the BSF ATS GUI with HTTPS during installation.

3.1.3.1 Generate JKS File for Jenkins Server

To access Jenkins ATS GUI access through HTTPS, a JKS file should be created.

Perform the following steps to generate the JKS file:

Generate the Root Certificate

1. If the user has a Certificate Authority (CA) signed root certificate such as caroot.cert and key, then the user can use those files.
2. If the root certificate is not already available, the user can generate one self signed root certificate. This root certificate created needs to be added to the truststore such as a Browser like Firefox or Chrome. User can follow the Browser specific documentation to upload the root certificate. The root certificate is used to sign the application, or ATS certificate.
3. Generate a root key with the following command:

   openssl genrsa 2048 > caroot.key

   This will generate a key called caroot.key

4. Generate a caroot certificate with the following command:

   openssl req -new -x509 -nodes -days 1000 -key <root_key> > <root_certificate>

   For example,


   [cloud-user@platform-bastion-1]$ openssl req -new -x509 -nodes -days 1000 -key caroot.key > caroot.cer
   You are about to be asked to enter information that will be incorporated
   into your certificate request.
   What you are about to enter is what is called a Distinguished Name or a DN.
   There are quite a few fields but you can leave some blank
   For some fields there will be a default value,
   If you enter '.', the field will be left blank.
   -----
   Country Name (2 letter code) [XX]:IN
   State or Province Name (full name) []:KA
   Locality Name (eg, city) [Default City]:BLR
   Organization Name (eg, company) [Default Company Ltd]:ORACLE
   Organizational Unit Name (eg, section) []:CGBU
   Common Name (eg, your name or your server's hostname) []:ocats
   Email Address []:
   [cloud-user@platform-bastion-1]$

Generate Application or Client Certificate

1. Create a ssl.conf file.
2. Edit the ssl.conf file. In the "[alt_names]" section, list the IPs that are used to access ATS GUI as shown in the following sample ssl.conf file:


   [ req ]
   default_bits       = 4096
   distinguished_name = req_distinguished_name
   req_extensions     = req_ext

   [ req_distinguished_name ]
   countryName                 = Country Name (2 letter code)
   countryName_default         = IN
   stateOrProvinceName         = State or Province Name (full name)
   stateOrProvinceName_default = KN
   localityName                = Locality Name (eg, city)
   localityName_default        = BLR
   organizationName            = Organization Name (eg, company)
   organizationName_default    = ORACLE
   commonName                  = Common Name (e.g. server FQDN or YOUR name)
   commonName_max              = 64
   commonName_default          = ocats.ocbsf.svc.cluster.local

   [ req_ext ]
   keyUsage = critical, digitalSignature, keyEncipherment
   extendedKeyUsage = serverAuth, clientAuth
   basicConstraints = critical, CA:FALSE
   subjectAltName = critical, @alt_names

   [alt_names]
   IP.1 = 127.0.0.1
   IP.2 = 10.75.217.5
   IP.3 = 10.75.217.76
   DNS.1 = localhost
   DNS.2 = ocats.ocbsf.svc.cluster.local

   Note:

   • To access the GUI with DNS, make sure that the commonName_default is the same as the DNS name being used.

     • Ensure the DNS is in this format:<service_name>.<namespace>.svc.cluster.local

       Multiple DNSs, such as DNS.1, DNS.2, and so on, can be added.

   • To support the ATS API, it is necessary to add the IP 127.0.0.1 to the list of IPs.
3. Create a Certificate Signing Request (CSR) with the following command:

   openssl req -config ssl.conf -newkey rsa:2048 -days 1000 -nodes -keyout rsa_private_key_pkcs1.key > ssl_rsa_certificate.csr

   Output:


   [cloud-user@platform-bastion-1 ocbsf]$ openssl req -config ssl.conf -newkey rsa:2048 -days 1000 -nodes -keyout rsa_private_key_pkcs1.key > ssl_rsa_certificate.csr
   Ignoring -days; not generating a certificate
   Generating a RSA private key
   ...+++++
   ........+++++
   writing new private key to 'rsa_private_key_pkcs1.key'
   -----
   You are about to be asked to enter information that will be incorporated
   into your certificate request.
   What you are about to enter is what is called a Distinguished Name or a DN.
   There are quite a few fields but you can leave some blank
   For some fields there will be a default value,
   If you enter '.', the field will be left blank.
   -----
   Country Name (2 letter code) [IN]:
   State or Province Name (full name) [KA]:
   Locality Name (eg, city) [BLR]:
   Organization Name (eg, company) [ORACLE]:
   Common Name (e.g. server FQDN or YOUR name) [ocbsf]:
   [cloud-user@platform-bastion-1 ocbsf]$

4. To display all the components of the CSR file and to verify the configurations run the following command:

   openssl req -text -noout -verify -in ssl_rsa_certificate.csr

5. Sign the CSR file with root certificate by running the following command:

   openssl x509 -extfile ssl.conf -extensions req_ext -req -inssl_rsa_certificate.csr -days 1000 -CA ../caroot.cer -CAkey ../caroot.key -set_serial 04 > ssl_rsa_certificate.crt

   Output:


   [cloud-user@platform-bastion-1 ocbsf]$ openssl x509 -extfile ssl.conf -extensions req_ext -req -in ssl_rsa_certificate.csr -days 1000 -CA ../caroot.cer -CAkey ../caroot.key -set_serial 04 > ssl_rsa_certificate.crt
   Signature ok
   subject=C = IN, ST = KA, L = BLR, O = ORACLE, CN = ocbsf
   Getting CA Private Key
   [cloud-user@platform-bastion-1 ocbsf]$

6. Verify if the certificate is signed by the root certificate by running the following command:

   [cloud-user@platform-bastion-1 ocbsf]$ openssl verify -CAfile caroot.cer ssl_rsa_certificate.crt

   Output:


   [cloud-user@platform-bastion-1 ocbsf]$ openssl verify -CAfile caroot.cer ssl_rsa_certificate.crt
   ssl_rsa_certificate.crt: OK

7. Save the generated application certificate and root certificate.
8. Add the caroot.cer to the browser as a trusted author.
9. The generated application/client certificates cannot be directly given to the Jenkins server. Hence generate the .p12 keystore file for the client certificate with the following command:


   [cloud-user@platform-bastion-1 ocbsf]$ openssl pkcs12 -inkey rsa_private_key_pkcs1.key -inssl_rsa_certificate.crt -export-out certificate.p12
   Enter Export Password:
   Verifying - Enter Export Password:

10. In the prompt, create a password and save it for future use.
11. Convert the .p12 keystore file into a JKS format file using the following command:


    [cloud-user@platform-bastion-1 ocbsf]$ keytool -importkeystore -srckeystore ./certificate.p12 -srcstoretype pkcs12 -destkeystore jenkinsserver.jks -deststoretype JKS

    Output:


    [cloud-user@platform-bastion-1 ocbsf]$ keytool -importkeystore -srckeystore ./certificate.p12 -srcstoretype pkcs12 -destkeystore jenkinsserver.jks -deststoretype JKS
    Importing keystore ./certificate.p12 to jenkinsserver.jks...
    Enter destination keystore password:
    Re-enter new password:
    Enter source keystore password:
    Entry for alias 1 successfully imported.
    Import command completed:  1 entries successfully imported, 0 entries failed or cancelled

12. In the prompt, use the same password used while creating .p12 keystore file.

    Note:

    Ensure that the .p12 keystore and JKS files has the same passwords.
13. The generated JKS file, jenkinserver.jks is added to the Jenkins path, where Jenkins server can access it.
14. Update following values in ATS values.yaml file


    certificates:
      cert_secret_name: "ocats-bsf-tls-secret"
      ca_cert: "caroot.cer"
      client_cert: "ssl_rsa_certificate.crt"
      private_key: "rsa_private_key_pkcs1.key"
      jks_file: "jenkinsserver.jks"  # This parameter is needed when atsGuiTLSEnabled is set to true. This file is necessary for ATS GUI to be opend with secured TLS protocol. The file caroot.pem, used during creation of jks file needs to be passed for Jenkins/ATS API communication.

For more details about the ATS TLS feature, refer to Deploy ATS with TLS Enabled section.

3.1.3.2 Enable TLS on Python Stubs

Before starting the creation of certificate, user should have the path details of caroot.cer file.

1. Create a ssl.conf file.
2. Edit ssl.conf file. Ensure that the DNS is in the format of *.<namespace>.svc
   A sample stub_ssl.conf file:


   [ req ]
   default_bits       = 4096
   distinguished_name = req_distinguished_name
   req_extensions     = req_ext

   [ req_distinguished_name ]
   countryName                 = Country Name (2 letter code)
   countryName_default         = IN
   stateOrProvinceName         = State or Province Name (full name)
   stateOrProvinceName_default = KN
   localityName                = Locality Name (eg, city)
   localityName_default        = BLR
   organizationName            = Organization Name (eg, company)
   organizationName_default    = ORACLE
   commonName                  = svc.cluster.local

   [ req_ext ]
   keyUsage = critical, digitalSignature, keyEncipherment
   extendedKeyUsage = serverAuth, clientAuth
   basicConstraints = critical, CA:FALSE
   subjectAltName = critical, @alt_names

   [alt_names]
   IP.1 = 127.0.0.1
   DNS.1 = *.ocats.svc

3. Create a Certificate Signing Request (CSR) for the stubs using the following command:

   openssl req -config stub_ssl.conf -newkey  rsa:2048 -days 1000 -nodes -keyout rsa_private_key_stub_pkcs2.key > stub_ssl_rsa_certificate1.csr

   Output:


   [cloud-user@platform-bastion-1 stub_certs]$ openssl req -config stub_ssl.conf -newkey rsa:2048 -days 1000 -nodes -keyout rsa_private_key_stub_pkcs2.key > stub_ssl_rsa_certificate1.csr
   Ignoring -days; not generating a certificate
   Generating a RSA private key
   ....................+++++
   ...+++++
   writing new private key to 'rsa_private_key_stub_pkcs2.key'
   -----
   You are about to be asked to enter information that will be incorporated
   into your certificate request.
   What you are about to enter is what is called a Distinguished Name or a DN.
   There are quite a few fields but you can leave some blank
   For some fields there will be a default value,
   If you enter '.', the field will be left blank.
   -----
   Country Name (2 letter code) [IN]:
   State or Province Name (full name) [KN]:
   Locality Name (eg, city) [BLR]:
   Organization Name (eg, company) [ORACLE]:
   svc.cluster.local []:*.ocbsf.svc

4. Sign the certificate with the CA root using the following command:

   openssl x509 -extfile stub_ssl.conf -extensions req_ext -req -in stub_ssl_rsa_certificate1.csr -days 1000 -CA  ../ocbsf-caroot.cer -CAkey ../ocbsf-caroot.key -set_serial 05 >  stub_ssl_rsa_certificate1.crt

   Output:


   [cloud-user@platform-bastion-1 stub_certs]$ openssl x509 -extfile stub_ssl.conf -extensions req_ext -req -in stub_ssl_rsa_certificate1.csr -days 1000 -CA ../ocbsf-caroot.cer -CAkey ../ocbsf-caroot.key -set_serial 05 > stub_ssl_rsa_certificate1.crt
   Signature ok
   subject=C = IN, ST = KN, L = BLR, O = ORACLE, CN = *.ocbsf.svc
   Getting CA Private Key

5. Create a secret for the stub and associate it with the namespace using the following command:

   kubectl create secret generic ocats-stub-secret1 --from-file=stub_ssl_rsa_certificate1.crt --from-file=rsa_private_key_stub_pkcs2.key --from-file=../ocbsf-caroot.cer -n ocbsf

   Output:


   [cloud-user@platform-bastion-1 ocbsf]$ kubectl create secret generic ocbsf-stub-secret1 --from-file=stub_ssl_rsa_certificate1.crt --from-file=rsa_private_key_stub_pkcs2.key --from-file=../ocbsf-caroot.cer -n ocbsf
   secret/ocats-stub-secret1 created

6. Update values.yaml file of each Python stub in specific NF namespace with following details:


   NF: "<NF-Name>"
   cert_secret_name: "ocats-stub-secret"
   ca_cert: "ocbsf-caroot.cer"
   client_cert: "ocbsf-stub_ssl_rsa_certificate.crt"
   private_key: "ocbsf-rsa_private_key_stub_pkcs1.key"
   expose_tls_service: true
   CLIENT_CERT_REQ: true

   Note:

   If the Helm, cert_secret_name parameter, is null, then ca_cert, client_cert, and private_key values are not considered by the TLS.
7. Ensure to update the deployment of all the Python stubs installed on the setup.

For more details about the ATS TLS feature, refer to Support for Transport Layer Security section.

3.1.3.3 Enable TLS on Diam Sim

Before creating the certificate, user should have path details of the caroot.cer and caroot.key files.

Note:

• Use the caroot.cer and caroot.key files that are created in the Enable TLS on Python Stubs section.
• Replace all occurrences of NAMESPACE with your actual namespace value.

1. For diam-sim, the following parameters are exposed in values.yaml to configure TLS:


   tls:
     enabled: false
     secretName: 'dcli-tls-secret'
     rsaPrivateKeyFileName: 'dcli-key.pem'
     ecdsaPrivateKeyFileName: 'dcli-ecdsa-private-key.pem'
     rsaCertificateFileName: 'dcli-cert.crt'
     ecdsaCertifacateFileName: 'dcli-ecdsa-certificate.crt'
     caBundleFileName: 'ca-cert.cer'

2. By default, tls.enabled is false. Set this to true to enable TLS on diam-sim.
3. Default secretName is dcli-tls-secret. . You can change this name as per your requirement. Make sure that name of the secret that is created should match with the name provided for secretName.

   Example Output:


   tls:
     enabled: true
     secretName: '${NAMESPACE}-dcli-tls-secret'
     rsaPrivateKeyFileName: '${NAMESPACE}-dcli-key.pem'
     ecdsaPrivateKeyFileName: 'dcli-ecdsa-private-key.pem'
     rsaCertificateFileName: '${NAMESPACE}-dcli-cert.crt'
     ecdsaCertifacateFileName: 'dcli-ecdsa-certificate.crt'
     caBundleFileName: 'caroot.cer'

4. Certificate and private key generation:


   openssl genrsa -out ${NAMESPACE}-dcli-key.pem 4096

   openssl req -new -sha256 -key ${NAMESPACE}-dcli-key.pem -out ${NAMESPACE}-dcli-csr.csr -subj "/CN=ocbsf-occnp-diam-gateway.${NAMESPACE}.svc"

   openssl x509 -req -sha256 -days 1000 \
       -in ${NAMESPACE}-dcli-csr.csr \
       -CA caroot.cer \
       -CAkey caroot.key \
       -out ${NAMESPACE}-dcli-cert.pem \
       -CAcreateserial

   mv ${NAMESPACE}-dcli-cert.pem ${NAMESPACE}-dcli-cert.crt

5. Creating kubernetes secrets and helm install:
   Keep these files in the defined Kubernetes secrets variable defined in secretName parameter of the values.yaml file.

   kubectl create secret generic ${NAMESPACE}-dcli-tls-secret --from-file=${NAMESPACE}-dcli-key.pem --from-file=caroot.cer --from-file=${NAMESPACE}-dcli-cert.crt -n ${NAMESPACE}

[cloud-user@platform-bastion-1 Certificates]$ kubectl get secrets -n ocbsf
NAME                                       TYPE                 DATA   AGE
ocbsf-db-pass                              Opaque               2      36h
ocbsf-li-iteration                         Opaque               1      36h
ocbsf-li-iv                                Opaque               1      36h
ocbsf-li-pass                              Opaque               1      36h
ocbsf-li-salt                              Opaque               1      36h
ocbsf-privileged-db-pass                   Opaque               2      36h
sh.helm.release.v1.nf11stub.v1             helm.sh/release.v1   1      33h
sh.helm.release.v1.nf12stub.v1             helm.sh/release.v1   1      33h
sh.helm.release.v1.nf1stub.v1              helm.sh/release.v1   1      33h
sh.helm.release.v1.ocats-bsf.v1         helm.sh/release.v1   1      33h
sh.helm.release.v1.ocdiam-sim.v1           helm.sh/release.v1   1      33h
sh.helm.release.v1.ocdns-stub.v1           helm.sh/release.v1   1      33h
sh.helm.release.v1.bsf.v1                  helm.sh/release.v1   1      34h
[cloud-user@platform-bastion-1 Certificates]$ kubectl create secret generic ocbsf-dcli-tls-secret --from-file=ocbsf-dcli-key.pem --from-file=caroot.cer --from-file=ocbsf-dcli-cert.crt -n ocbsf
secret/dcli-tls-secret created

[cloud-user@platform-bastion-1 Certificates]$ kubectl get secrets -n ocbsf
NAME                                       TYPE                 DATA   AGE
ocbsf-dcli-tls-secret                      Opaque               3      42s
ocbsf-db-pass                              Opaque               2      36h
ocbsf-li-iteration                         Opaque               1      36h
ocbsf-li-iv                                Opaque               1      36h
ocbsf-li-pass                              Opaque               1      36h
ocbsf-li-salt                              Opaque               1      36h
ocbsf-privileged-db-pass                   Opaque               2      36h
sh.helm.release.v1.nf11stub.v1             helm.sh/release.v1   1      33h
sh.helm.release.v1.nf12stub.v1             helm.sh/release.v1   1      33h
sh.helm.release.v1.nf1stub.v1              helm.sh/release.v1   1      33h
sh.helm.release.v1.ocats-bsf.v1         helm.sh/release.v1   1      33h
sh.helm.release.v1.ocdiam-sim.v1           helm.sh/release.v1   1      33h
sh.helm.release.v1.ocdns-stub.v1           helm.sh/release.v1   1      33h
sh.helm.release.v1.bsf.v1                  helm.sh/release.v1   1      34h

3.1.3.4 Enable ATS GUI with HTTPS

Follow the steps to secure or enable TLS on the server.

1. Create a Kubernetes secret by adding the above created files:

   kubectl create secret generic ocats-tls-secret --from-file=jenkinsserver.jks --from-file=ssl_rsa_certificate.crt --from-file=rsa_private_key_pkcs1.key --from-file=caroot.cer -n ocbsf

   Where,

   jenkinsserver.jks: This file is needed when atsGuiTLSEnabled is set to true. This is necessary to open ATS GUI with secured TLS protocol.

   ssl_rsa_certificate.crt: This is client application certificate.

   rsa_private_key_pkcs1.key: This is RSA private key.

   caroot.cer: This file used during creation of jks file needs to be passed for Jenkins/ATS API communication.

   The sample of created secret:


   [cloud-user@platform-bastion-1 ~]$ kubectl describe secret ocats-tls-secret -n ocbsf
   Name:         ocats-tls-secret
   Namespace:    ocats
   Labels:       <none>
   Annotations:  <none>

   Type:  Opaque

   Data
   ====
   caroot.cer:                        1147 bytes
   ssl_rsa_certificate.crt:           1424 bytes
   jenkinsserver.jks:                 2357 bytes
   rsa_private_key_pkcs1.key:         1675 bytes

2. Apply the following changes in values.yaml file.


   certificates:
     cert_secret_name: "ocats-tls-secret"
     ca_cert: "caroot.cer"
     client_cert: "ssl_rsa_certificate.crt"
     private_key: "rsa_private_key_pkcs1.pem"
     jks_file: "jenkinsserver.jks" # This parameter is needed when  atsGuiTLSEnabled
         is set to true. This file is necessary for ATS GUI to  be opend with secured TLS protocol.
     jks_password: "123456"  #This is the password given to the jks file while creation.

   The user can install the ATS, using the helm install command. Change the atsGuiTLSEnabled Helm parameter value to true for ATS to get the certificates and support HTTPS for GUI.
3. Upload the caroot.cer file to the browser, before accessing it using https protocol.

   For more details about the uploading the file to the browser, refer Adding a Certificate in Browser section in Enable ATS GUI with HTTPS.

4. A user can now start ATS with HTTPS the protocol. The link to open the ATS GUI format is https://<IP>:<port>, for example, https://10.75.217.25:30301.

   The lock symbol in the browser indicates that the server is secured or TLS enabled.

3.1.4 Deploy BSF ATS with Authenticated Prometheus communication

Using the Authentication Prometheus communication feature, ATS can communicate with Prometheus, whether or not authentication is enabled, supporting both secure and non-secure setups. Following values can be configured to support authenticated Prometheus communication in the values.yaml file:

#The below section is related to the deployments where prometheus needs authenticated token to request for metrics/alerts
PrometheusAuthEnabled: false  #Set this to true only when prometheus requests require a token in the header for authentication
PrometheusTLSEnabled: false   #Set this to true only when prometheus is a https deployment.
#PrometheusScrapeInterval: "60" #Uncomment this line only when scrapeInterval is any other value than 60 seconds.(ATS will assume 60s as default if no response comes from prometheus config.)

For more information about the above Helm parameters, see Table 2-5.

When PrometheusAuthEnabled is set to true:

• Ensure that ClusterRole and ClusterRoleBinding are created with the required permissions.
• Ensure that Prometheus Server IP and Prometheus Server Port are set accordingly. For more information about setting the Prometheus Server IP and Prometheus Server Port, see the Running BSF_NewFeatures Pipeline section.

Note:

• While communicating with Prometheus, ATS currently does not support TLS (certificate-based authentication).
• If Prometheus is deployed over HTTPS, the PrometheusTLSEnabled parameter needs to be set to true which allows ATS to connect to Prometheus using either HTTP or HTTPS as needed. Even when connecting through HTTPS, the connection remains insecure because ATS does not manage any certificates for this communication.

3.1.5 Pushing the Images to Customer Docker Registry

This section describes the pre-deployment steps for deploying ATS and stub pods.

Preparing to deploy ATS and Stub Pods in Kubernetes Cluster

To deploy ATS and Stub pods in a Kubernetes Cluster, perform the following steps:

1. Run the following command to extract the tar file content:

   tar -zxvf ocats-bsf-tools-25.2.200.0.0.tgz

   The output of this command is:


   ocats-bsf-pkg-25.2.200.tgz
   ocstub-pkg-25.2.202.tgz
   ocdns-pkg-25.2.204.tgz
   ocdiam-pkg-25.2.204.0.0tgz

2. Go to the ocats-bsf-tools-25.2.200.0.0 folder and run the following command to extract the helm charts and docker images of ATS:

   tar -zxvf ocats-bsf-pkg-25.2.200.0.0.tgz

   The output of this command is:


   ocats-bsf-25.2.200.tgz
   ocats-bsf-images-25.2.200.tar
   ocats-bsf-data-25.2.200.tgz

3. Run the following command in your cluster to load the ATS docker image:

   docker load --input ocats-bsf-images-25.2.200.tar

4. Run the following commands to tag and push the ATS images

   docker tag ocats-bsf:25.2.200 <registry>/ocats-bsf:25.2.200
   docker push <registry>/ocats-bsf:25.2.200

   Example:

   docker tag ocats-bsf:25.2.200 localhost:5000/ocats-bsf:25.2.200
   docker push localhost:5000/ocats-bsf:25.2.200

5. Run the following command to untar the helm charts, in ocats-bsf-25.2.200.tgz

   tar -zxvf ocats-bsf-25.2.200.tgz

6. Update the registry name, image name and tag in the ocats-bsf/values.yaml file as required. For this, you need to update the image.repository and image.tag parameters in the ocats-bsf/values.yaml file.
7. In the ocats-bsf/values.yaml file, the atsFeatures parameter is configured to control ATS feature deliveries.


   atsFeatures:  ## DO NOT UPDATE this section without My Oracle Support team's support
     testCaseMapping: true               # To display Test cases on GUI along with Features
     logging: true                       # To enable feature to collect applogs in case of failure
     lightWeightPerformance: false       # The Feature is not implemented yet
     executionWithTagging: true          # To enable Feature/Scenario execution with Tag
     scenarioSelection: false            # The Feature is not implemented yet
     parallelTestCaseExecution: true     # To run ATS features parallel
     parallelFrameworkChangesIntegrated: true # To run ATS features parallel
     mergedExecution: false              # To execute ATS Regression and NewFeatures pipelines together in merged manner
     individualStageGroupSelection: false  # The Feature is not implemented yet
     parameterization: true              # When set to false, the Configuration_Type parameter on the GUI will not be available.
     atsApi: true                        # To trigger ATS using ATS API
     healthcheck: true                   # TO enable/disable ATS Health Check.
     atsGuiTLSEnabled: false             # To run ATS GUI in https mode.
     atsCommunicationTLSEnabled: false  #If set to true, ATS will get necessary variables to communicate with SUT, Stub or other NFs with TLS enabled. It is not required in ASM environment.

   Note:

   It is recommended to avoid altering atsFeatures flags.

3.1.6 Configuring ATS

3.1.6.1 Enabling Static Port

To enable static port, in the ocats-bsf/values.yaml file under the service section, set the value of staticNodePortEnabled parameter to true and enter a valid nodePort value for staticNodePort parameter.

service:
  customExtension:
    labels: {}
    annotations: {}
  type: LoadBalancer
  ports:
    http:
      port: "8080"
      staticNodePortEnabled: false
      staticNodePort: ""

3.1.6.2 Enable Static API Node Port

To enable static API node port, in the ocats-bsf/values.yaml file under the service section, set the value of staticNodePortEnabled parameter to true and enter a valid nodePort value for staticNodePort parameter. The following is a snippet of the service section in the yaml file:

service:
  customExtension:
    labels: {}
    annotations: {}
  type: LoadBalancer
  ports:
    api:
      port: "5001"
      staticNodePortEnabled: false
      staticNodePort: ""

3.1.6.3 Service Account Requirements

To run BSF-ATS, use the following rules to create a service account:

rules:
- apiGroups: ["extensions"]
  resources: ["deployments", "replicasets"]
  verbs: ["watch", "get", "list", "update"]
- apiGroups: ["apps"]
  resources: ["deployments", "replicasets"]
  verbs: ["watch", "get", "list", "update"]
- apiGroups: [""]
  resources: ["pods", "services", "secrets", "configmaps"]
  verbs: ["watch", "get", "list", "delete", "update", "create"]
- apiGroups: [""]
  resources: ["pods/log"]
  verbs: ["get", "list"]

3.1.6.4 Enabling Aspen Service Mesh

This section provides information on how to enable Aspen service mesh while deploying ATS for Binding Support Function. The configurations mentioned in this section are optional and should be performed only if ASM is required.

To enable service mesh for BSF ATS, perform the following steps:

1. In the service section of the values.yaml file, the serviceMeshCheck parameter is set to false by default. To enable service mesh, set the value for serviceMeshCheck to true. The following is a snippet of the service section in the yaml file:

   service:
     customExtension:
       labels: {}
       annotations: {}
     type: LoadBalancer
     ports:
       https:
         port: "8443"
         staticNodePortEnabled: false
         staticNodePort: ""
       http:
         port: "8080"
         staticNodePortEnabled: false
         staticNodePort: ""
       api:
         port: "5001"
         staticNodePortEnabled: false
         staticNodePort: ""
     serviceMeshCheck: true

2. If the ASM is not enabled on the global level for the namespace, run the following command to enable it before deploying the ATS:

   kubectl label --overwrite namespace <namespace_name> istio-injection=enabled

   For example:

   kubectl label --overwrite namespace ocbsf istio-injection=enabled

3. Uncomment and add the following annotation under the lbDeployments and nonlbDeployments section of the global section in values.yaml file as follows:

   traffic.sidecar.istio.io/excludeInboundPorts: "9000"

   traffic.sidecar.istio.io/excludeOutboundPorts: "9000"

   The following is a snippet from the values.yaml of BSF:

   /home/cloud-user/ocats-bsf/ocats-bsf-tools-25.2.200.0.0/ocats-bsf-pkg-25.2.200.0.0/ocats-bsf/
   vim values.yaml

    customExtension:
       allResources:
         labels: {}
         annotations: {
         #Enable this section for service-mesh based installation
            traffic.sidecar.istio.io/excludeInboundPorts: "9000",
            traffic.sidecar.istio.io/excludeOutboundPorts: "9000"
           }

   lbDeployments:
         labels: {}
         annotations: {
           traffic.sidecar.istio.io/excludeInboundPorts: "9000",
           traffic.sidecar.istio.io/excludeOutboundPorts: "9000"}

4. If service mesh is enabled, then create a destination rule for fetching the metrics from the Prometheus. In most of the deployments, Prometheus is kept outside the service mesh so you need a destination rule to communicate between TLS enabled entity (ATS) and non-TLS entity (Prometheus). You can create a destination rule using the following sample yaml file:

   kubectl apply -f - <<EOF

   apiVersion: networking.istio.io/v1alpha3
   kind: DestinationRule
   metadata:
     name: prometheus-dr
     namespace: ocats
   spec:
     host: oso-prometheus-server.pcf.svc.cluster.local
     trafficPolicy:
       tls:
         mode: DISABLE
   EOF

   In the destination rule:

   • name indicates the name of destination rule.
   • namespace indicates where the ATS is deployed.
   • host indicates the hostname of the prometheus server.
5. Update the ocbsf_custom_values_servicemesh_config_25.2.200.yaml with the below additional configuration under virtualService section for Egress Gateway:

   virtualService:
     - name: nrfvirtual1
       host: ocbsf-ocbsf-egress-gateway
       destinationhost: ocbsf-ocbsf-egress-gateway
       port: 8000
       exportTo: |-
         [ "." ]
       attempts: "0"

   Where,

   host or destination name uses the format - <release_name>-<egress_svc_name>.

   You must update the host or destination name as per the deployment.

6. For ServerHeader and SessionRetry features, the user needs to perform the following configurations under the envoyFilters for nf1stub, nf11stub, and nf12stub in the ocbsf-servicemesh-config-custom-values-25.2.200.yaml:

   Note:

   occnp_custom_values_servicemesh_config yaml file and helm charts version names would differ based on the deployed BSF NF version. For example, "occnp_custom_values_servicemesh_config_24.3.0.yaml" or "occnp_custom_values_servicemesh_config_24.3.1.yaml".

   envoyFilters:
     - name: serverheaderfilter-nf1stub
       labelselector: "app: nf1stub-ocstub-py"
       configpatch:
         - applyTo: NETWORK_FILTER
           filtername: envoy.filters.network.http_connection_manager
           operation: MERGE
           typeconfig: type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
           configkey: server_header_transformation
           configvalue: PASS_THROUGH
     - name: serverheaderfilter-nf11stub
       labelselector: "app: nf11stub-ocstub-py"
       configpatch:
         - applyTo: NETWORK_FILTER
           filtername: envoy.filters.network.http_connection_manager
           operation: MERGE
           typeconfig: type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
           configkey: server_header_transformation
           configvalue: PASS_THROUGH
     - name: serverheaderfilter-nf12stub
       labelselector: "app: nf12stub-ocstub-py"
       configpatch:
         - applyTo: NETWORK_FILTER
           filtername: envoy.filters.network.http_connection_manager
           operation: MERGE
           typeconfig: type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
           configkey: server_header_transformation
           configvalue: PASS_THROUGH

7. Perform helm upgrade on the ocbsf-servicemesh-config release using the modified ocbsf_custom_values_servicemesh_config_25.2.200.yaml file.

   helm upgrade <helm_release_name_for_servicemesh> -n <namespace> <servicemesh_charts> -f <servicemesh-custom.yaml>

   For example,

   helm upgrade ocbsf-servicemesh-config ocbsf-servicemesh-config-25.2.200.tgz -n ocbsf -f ocbsf_custom_values_servicemesh_25.2.200.yaml

8. Configure DNS for Alternate Route service. For more information, see Post-Installation Steps.

3.1.6.5 Enabling Health Check

This section describes how to enable Health Check for ATS.

To enable Health Check, in the ocats-bsf/values.yaml file, set the value of healthcheck parameter to true and enter a valid value to select either Webscale or OCCNE environment.

To select OCCNE environment, set the envtype to OCCNE and update the values of the following parameters:

• Webscale - Update the value as false
• envtype - T0NDTkU= (i.e envtype=$(echo -n 'OCCNE' | base64))
• occnehostip - OCCNE Host IP address
• occnehostusername - OCCNE Host Username
• occnehostpassword - OCCNE Host Password

To select OCCNE environment, update the values of the following two parameters:

• Webscale - Update the value as true
• envtype - T0NDTkU= (i.e envtype=$(echo -n 'OCCNE' | base64))

After the configurations are done, encrypt the parameters and provide the values as shown in the following snippet:

atsFeatures:  ## DO NOT UPDATE this section without Engineering team's permission
  healthcheck: true                   # TO enable/disable ATS Health Check.

sshDetails:
  secretname: "healthchecksecret"
  envtype: "T0NDTkU="
  occnehostip: "MTAuMTcuMjE5LjY1"
  occnehostusername: "dXNlcm5hbWU"
  occnehostpassword: "KioqKg=="

To select WEBSCALE environment, update the values of the following two parameters:

• Webscale - Update the value as true
• envtype - V0VCU0NBTEU= (i.e envtype=$(echo -n 'WEBSCALE' | base64))

After the configurations are done, encrypt the parameters and provide the values as shown in the following snippet:

atsFeatures:  ## DO NOT UPDATE this section without Engineering team's permission
  healthcheck: true                   # TO enable/disable ATS Health Check.

sshDetails:
  secretname: "healthchecksecret"
  envtype: "V0VCU0NBTEU="
  webscalejumpip: "MTAuNzAuMTE3LjQy"
  webscalejumpusername: "dXNlcm5hbWU="
  webscalejumppassword: "KioqKg=="
  webscaleprojectname: "KioqKg=="
  webscalelabserverFQDN: "KioqKg=="
  webscalelabserverport: "KioqKg=="
  webscalelabserverusername: "KioqKg=="
  webscalelabserverpassword: "KioqKg=="

Note:

Once the ATS is deployed with HealthCheck feature enabled or disabled, then it cannot be changed. To change the configuration, you are required to re-install.

3.1.6.6 Enabling Persistent Volume

Note:

The steps provided in this section are optional and required only if Persistent Volume needs be to enabled.

ATS supports Persistent storage to retain ATS historical build execution data, test cases and one-time environment variable configurations. With this enhancement, the user can decide whether to use persistent volume based on their resource requirements. By default, the persistent volume feature is not enabled.

To enable persistent storage, perform the following steps:

1. Create a PVC using PersistentVolumeClaim.yaml file and associate the same to the ATS pod.
   Sample PersistentVolumeClaim.yaml file:

   apiVersion: v1
   kind: PersistentVolumeClaim
   metadata:
     name: <Enter the PVC Name>
     annotations:
   spec:
     storageClassName: <Provide the Storage Class Name>
     accessModes:
       - ReadWriteOnce
     resources:
       requests:
         storage: <Provide the size of the PV>

   1. Set PersistentVolumeClaim to the PVC file name.
   2. Enter the storageClassName to the Storage Class Name.
   3. Set storage to and size of the persistent volume.
      Sample PVC configuration:

      apiVersion: v1
      kind: PersistentVolumeClaim
      metadata:
        name: bsf-pvc-25.2.200
      annotations:
      spec:
        storageClassName: standard
        accessModes:
          - ReadWriteOnce
        resources:
          requests:
            storage: 1Gi

2. Run the following command to create PVC:

   kubectl apply -f <filename> -n <namespace>

   For example:

   kubectl apply -f PersistentVolumeClaim.yaml -n ocbsf

   Output:

   persistentvolumeclaim/bsf-pvc-25.2.200 created

3. Once the PVC is created, run the following command to verify that it is bound to the namespace and is available.

   kubectl get pvc -n <namespace used for pvc creation>

   For example:

   kubectl get pvc -n ocbsf

   Sample output:

   NAME              STATUS        VOLUME                                   CAPACITY  ACCESS MODES   STORAGECLASS   AGE
   bsf-pvc-25.2.200   Bound    pvc-65484045-3805-4064-9fc3-f9eeeaccc8b8      1Gi        RWO            standard      11s

   Verify that the STATUS is Bound and rest of the parameters like NAME, CAPACITY, ACCESS MODES, and STORAGECLASS are as mentioned in the PersistentVolumeClaim.yaml file.

   Note:

   Do not proceed further with the next step if there is an issue with the PV creation and contact your administrator to get the PV Created.

4. Enable PVC:
   1. Set the PVEnabled flag to true.
   2. Set PVClaimName to the PVC created in Step 1.


        PVEnabled: true
        PVClaimName: "ocbsf-pvc-25.2.200"


   Note:

   Make sure that ATS is deployed before proceeding to the further steps.
5. Copy the <nf_main_folder> and <jenkins jobs> folders from the tar file to their ATS pod and restart the pod.
   1. Extract the tar file.

      tar -xvf ocats-bsf-data-25.2.200.tgz

   2. Run the following commands to copy the desired folder.

      kubectl cp ocats-bsf-data-25.2.200/ocbsf_tests <namespace>/<pod-name>:/var/lib/jenkins/

      kubectl cp ocats-bsf-data-25.2.200/jobs <namespace>/<pod-name>:/var/lib/jenkins/.jenkins/

   3. Restart the pod.

      kubectl delete po <pod-name> -n <namespace>

6. Once the Pod is up and running, log in to the Jenkins console and configure the Discard old Builds option to configure the number of Jenkins builds, which must be retained in the persistent volume.

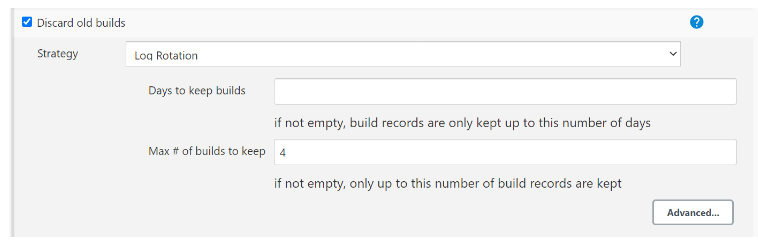

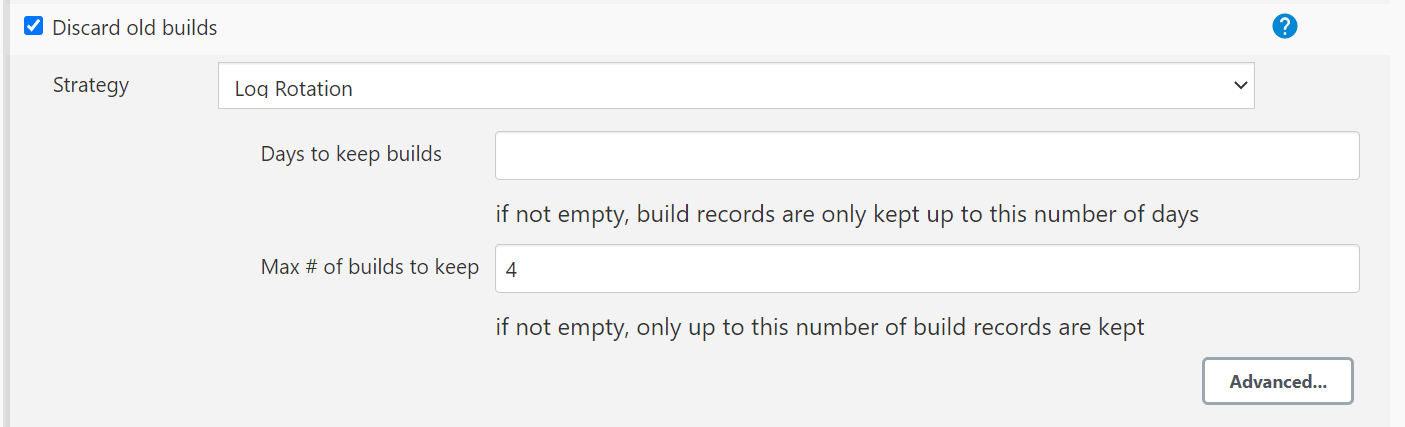

   Figure 3-1 Discarding Old Builds









   Note:

   If Discard old Builds is not configured, Persistent Volume can get filled when there are huge number of builds.

For more details on Persistent Volume Storage, see Persistent Volume for 5G ATS.

3.1.6.7 ATS-BSF API Extended Support

The ATS application programming interface (API) feature provides APIs, to perform routine ATS tasks such as starting the ATS suite, monitoring and stopping the ATS suite etc.

By default, this feature is enabled in values.yaml file.

  atsFeatures:
    atsApi: true

For more details about the ATS API feature, refer to ATS API section.

This ATS feature is extended to provide the ability of running single features, or scenarios, or stages, or groups, or based on tags execution using the API. This also allows running of test cases by providing the features, or scenarios, or stages, or groups, or tags in the curl request to the server.

For more details about the API interfaces, refer to Use the RESTful Interfaces section.

3.1.6.8 Configuration for Dual Stack Support

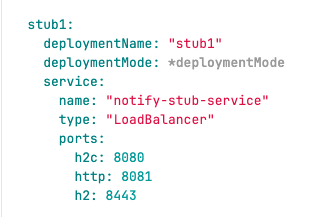

Use the below configuration to support Dual Stack deployments of ocats-bsf:

# Possible values : IPv4, IPv6, IPv4_IPv6,IPv6_IPv4,ClusterPreferred
deploymentMode: ClusterPreferred

Note:

For release 25.2.200, do not change the value of deploymentMode. Set it as ClusterPreferred only.

To enable IPv6 or Dual Stack configurations for ATS and stubs, see Post-Installation Steps.

3.1.7 Deploying ATS and Pods

3.1.7.1 Deploying ATS in Kubernetes Cluster

Important:

This Procedure is for Backwards porting purpose only and should not be considered as the Subsequent Release POD Deployment Procedure.

Prerequisite: Make sure that the old PVC, which contains the old release POD data is available.

To deploy ATS, perform the following steps:

1. Run the following command to deploy ATS using the updated helm charts:

   Note:

   Ensure that all the the components, that is, ATS, stub pods and CNC BSF are deployed in the same namespace.

   Using Helm

   helm install -name <release_name> ocats-bsf-25.2.200.tgz --namespace <namespace_name> -f <values-yaml-file>

   For example:

   helm install -name ocats ocats-bsf-25.2.200.tgz --namespace ocbsf -f ocats-bsf/values.yaml

2. Run the following command to verify ATS deployment:

   helm ls -n ocbsf

   The output of the command is as follows:


   NAME                    REVISION        UPDATED                         STATUS          CHART                   APP VERSION     NAMESPACE
   ocats                   1               Mon Nov 14 14:56:11 2020        DEPLOYED        ocats-bsf-25.2.200      25.2.200.0.0       ocbsf

   If the deployment is successful, the status is Deployed.

Troubleshooting Issues with Logging in to ATS GUI

In case of any issue with logging in to ATS GUI using valid credentials, perform the following steps:

1. Log in to the ATS pod.
2. Create a shell script with following commands inside ATS pod:

   USERS_DIR="/var/lib/jenkins/.jenkins/jobs/users"

   for f in "$USERS_DIR"/*; do
     base=$(basename "$f")
     new="${base%%_*}"
     [ "$base" != "$new" ] && mv "$f" "$USERS_DIR/$new"
   done

   ps -ef | grep 8080 | grep jenkins | awk '{ print $2 }' | head -1 | xargs -I {} kill "{}"

   java -Djava.awt.headless=true -Dhudson.remoting.ClassFilter=org.jenkinsci.plugins.testresultsanalyzer.TestResultsAnalyzerExtension\$DescriptorImpl -Djenkins.install.runSetupWizard=false -Dorg.jenkinsci.plugins.pipeline.modeldefinition.parser.RuntimeASTTransformer.SCRIPT_SPLITTING_TRANSFORMATION=true -Dorg.jenkinsci.plugins.workflow.cps.LoggingInvoker.fieldSetWarning=false -Dorg.jenkinsci.plugins.pipeline.modeldefinition.parser.RuntimeASTTransformer.SCRIPT_SPLITTING_ALLOW_LOCAL_VARIABLES=true -jar /usr/share/java/jenkins.war --httpPort=8080 > /var/lib/jenkins/.jenkins/jenkins.log 2>&1 &

3. Run the following command to grant execute permission:

   chmod 777 <script>.sh

4. Run the following command to execute the shell script:

   ./<script>.sh

   After the execution is complete, ATS restarts automatically.

5. Try logging in to the ATS GUI with the given credentials.

3.1.7.2 Deploying ocstub-py Stubs in Kubernetes Cluster

Note:

Enabling pre-defined priming configuration is mandatory for nf1stub and nf11stub only. (Please do not enable it in nf12stub stub.)

To deploy ocstub-py stubs with pre-defined priming configurations, perform the following steps:

1. Navigate to ocats-bsf-tools-25.2.200.0.0 folder and run the following command:

   tar -zxvf ocstub-pkg-25.2.202.0.0.tgz

   The output of the command shows:

   • ocstub-py-25.2.202.tgz
   • ocstub-py-image-25.2.202.tar
2. Deploy the additional stubs required to validate the session retry feature.

   You can use nf11stub or nf12stub as alternte FQDN for nf1stub.

   1. Run the following command to load the stub image.

      docker load --input ocstub-py-image-25.2.202.tar

   2. Tag and push the image to your docker registry using below commands.


      docker tag ocstub-py:25.2.202 localhost:5000/ocstub-py:25.2.202
      docker push localhost:5000/ocstub-py:25.2.202

   3. Untar the helm charts ocstub-py-25.2.202.tgz and update the registry name, image name and tag (if required) in ocstub-py/values.yaml file.

      tar -zxvf ocstub-py-25.2.202.0.0.tgz

      Note:

      From 24.2.0 onwards, service port names are configurable in ocstub-py. But as per Istio standard, it's advisable to keep the default values as it as.

      Example:


      names:
        http: "http"
        h2c: "http2-h2c"
        h2: "http2-h2"

   4. Configuration for Dual Stack Support:
      Use the below configuration to support Dual Stack deployments of ocstub-py:

        # The below section is to support Dual Stack Deployments of ocstub
        # ipFamilies : IPv4, IPv6, IPv4_IPv6, IPv6_IPv4, ClusterPreferred
        deploymentMode: &deploymentMode ClusterPreferred

      Note:

      For release 25.2.200, do not change the value of deploymentMode. Set it as ClusterPreferredonly.

      To enable IPv6 or Dual Stack configurations for ATS and stubs, see Post-Installation Steps.
   5. If required, change apiVersion to apps/v1 in ocstub-py/templates/deployment.yaml file.

      apiVersion: apps/v1

      Note:

      If the support for pre-defined priming feature is required, perform the following steps to configure pre-defined priming.

   6. Copy ocstub-py/values.yaml file to a new file with name pre_priming_values.yaml.

   7. Edit the ocstub-py/pre_priming_values.yaml file.
   8. Set the value of preConfig flag to true and replace the default configuration with below configurations under predefined_prime_configuration section.

      Pre-defined Priming Configuration:

      preConfig:
        enabled: true
        predefined_prime_configuration: |+
          [
            {
              "method": "GET",
              "statuscode": "200",
              "url": "/nnrf-nfm/v1/nf-instances/fe7d992b-0541-4c7d-ab84-c6d70b1b0666",
              "data": "{\"nfInstanceId\": \"fe7d992b-0541-4c7d-ab84-c6d70b1b0666\", \"nfType\": \"BSF\", \"nfStatus\": \"REGISTERED\", \"heartBeatTimer\": 2, \"fqdn\": \"ocbsf1-2-api-gateway.bsf1-2.svc.atlantic.morrisville.us.lab.oracle.com\", \"priority\": 1, \"capacity\": 1, \"load\": 2, \"bsfInfo\": {\"ipv4AddressRanges\": [{\"start\": \"10.0.0.1\", \"end\": \"10.113.255.255\"}], \"ipv6PrefixRanges\": [{\"start\": \"2800:a00:cc03::/64\", \"end\": \"2800:a00:cc04::/64\"}]}, \"nfServices\": [{\"serviceInstanceId\": \"03063893-cf9e-4f7a-9827-111111111111\", \"serviceName\": \"nbsf-management\", \"versions\": [{\"apiVersionInUri\": \"v1\", \"apiFullVersion\": \"1.0.0\"}], \"scheme\": \"http\", \"nfServiceStatus\": \"REGISTERED\", \"fqdn\": \"ocbsf1-2-api-gateway.bsf1-2.svc.atlantic.morrisville.us.lab.oracle.com\", \"interPlmnFqdn\": null, \"ipEndPoints\": [{\"ipv4Address\": \"10.233.22.149\", \"transport\": \"TCP\", \"port\": 80}], \"apiPrefix\": null, \"allowedNfTypes\": [\"PCF\", \"AF\", \"NEF\"], \"priority\": 1, \"capacity\": 1, \"load\": 2}]}",
              "headers": "{\"Content-Type\": \"application/json\"}"
            },
            {
              "method": "PUT",
              "statuscode": "201",
              "url": "/nnrf-nfm/v1/nf-instances/fe7d992b-0541-4c7d-ab84-c6d70b1b0666",
              "data": "{\"nfInstanceId\": \"fe7d992b-0541-4c7d-ab84-c6d70b1b0666\", \"nfType\": \"BSF\", \"nfStatus\": \"REGISTERED\", \"heartBeatTimer\": 30, \"fqdn\": \"ocbsf1-2-api-gateway.bsf1-2.svc.atlantic.morrisville.us.lab.oracle.com\", \"priority\": 1, \"capacity\": 1, \"load\": 2, \"bsfInfo\": {\"ipv4AddressRanges\": [{\"start\": \"10.0.0.1\", \"end\": \"10.113.255.255\"}], \"ipv6PrefixRanges\": [{\"start\": \"2800:a00:cc03::/64\", \"end\": \"2800:a00:cc04::/64\"}]}, \"nfServices\": [{\"serviceInstanceId\": \"03063893-cf9e-4f7a-9827-111111111111\", \"serviceName\": \"nbsf-management\", \"versions\": [{\"apiVersionInUri\": \"v1\", \"apiFullVersion\": \"1.0.0\"}], \"scheme\": \"http\", \"nfServiceStatus\": \"REGISTERED\", \"fqdn\": \"ocbsf1-2-api-gateway.bsf1-2.svc.atlantic.morrisville.us.lab.oracle.com\", \"interPlmnFqdn\": null, \"ipEndPoints\": [{\"ipv4Address\": \"10.233.22.149\", \"transport\": \"TCP\", \"port\": 80}], \"apiPrefix\": null, \"allowedNfTypes\": [\"PCF\", \"AF\", \"NEF\"], \"priority\": 1, \"capacity\": 1, \"load\": 2}]}",
              "headers": "{\"Content-Type\": \"application/json\"}"
            },
            {
              "method": "PATCH",
              "statuscode": "204",
              "url": "/nnrf-nfm/v1/nf-instances/fe7d992b-0541-4c7d-ab84-c6d70b1b0666",
              "data": "{}",
              "headers": "{\"Content-Type\": \"application/json\"}"
            },
            {
              "method": "POST",
              "statuscode": "201",
              "url": "/nnrf-nfm/v1/subscriptions",
              "data": "{\"nfStatusNotificationUri\": \"http://ocbsf-ocbsf-ingress-gateway.ocpcf.svc/nnrf-client/v1/notify\", \"reqNfType\": \"BSF\", \"subscriptionId\": \"2d77e0de-15a9-11ea-8c5b-b2ca002e6839\", \"validityTime\": \"2050-12-26T09:34:30.816Z\"}",
              "headers": "{\"Content-Type\": \"application/json\"}"
           }
          ]

      Note:

      • The predefined_prime_configuration contains variables such as nfInstanceId, nfType, and fqdn in the data's content. Make sure to verify and update the variables based on the payload message that must be included in the response from the NRF on a request.
      • The default value of nfInstanceId variable is fe7d992b-0541-4c7d-ab84-c6d70b1b0666.
   9. Run the following command to deploy the stub:

      helm install -name <release_name> ocstub-py --set env.NF=<NF> --set env.LOG_LEVEL=<DEBUG/INFO> --set service.name=<service_name>--set service.appendReleaseName=false --set preConfig.enabled=false --namespace=<namespace_name> -f <values.yaml-file>

      Install nf1stub and nf11stub with updated ocstub-py/pre_priming_values.yaml file.

      helm install -name nf1stub ocstub-py --set env.NF=BSF --set env.LOG_LEVEL=DEBUG --set service.name=nf1stub --set service.appendReleaseName=false --set preConfig.enabled=true --namespace=ocbsf -f ocstub-py/values.yaml

      helm install -name nf11stub ocstub-py --set env.NF=BSF --set env.LOG_LEVEL=DEBUG --set service.name=nf11stub --set service.appendReleaseName=false --set preConfig.enabled=true --namespace=ocbsf -f ocstub-py/values.yaml

      Install nf12stub with the default ocstub-py/pre_priming_values.yaml file

      helm install -name nf12stub ocstub-py --set env.NF=BSF --set env.LOG_LEVEL=DEBUG --set service.name=nf12stub --set service.appendReleaseName=false --set preConfig.enabled=false --namespace=ocbsf -f ocstub-py/values.yaml

   10. Run the following command to verify the stub deployment:

       helm ls -n ocbsf

       Sample output:

       NAME                    REVISION             UPDATED                  STATUS          CHART                   APP VERSION              NAMESPACE
       nf11stub             1               Thu Jul  29 05:55:48 2024        DEPLOYED        ocstub-py-25.2.202      25.2.202.0.0             ocbsf
       nf12stub             1               Thu Jul  29 05:55:50 2024        DEPLOYED        ocstub-py-25.2.202      25.2.202.0.0             ocbsf
       nf1stub              1               Thu Jul  29 05:55:47 2024        DEPLOYED        ocstub-py-25.2.202      25.2.202.0.0             ocbsf

   11. Run the following command to verify the ATS and Stubs deployment status:

       helm status -n ocbsf

   12. Run the following command to verify if all the services are installed.

       kubectl get po -n ocbsf

       Sample output:

       NAME                                                   READY   STATUS    RESTARTS   AGE
       nf11stub-ocstub-py-7bffd6dcd7-ftm5f                   1/1     Running   0          3d23h
       nf12stub-ocstub-py-547f7cb99f-7mpll                   1/1     Running   0          3d23h
       nf1stub-ocstub-py-bdd97cb9-xjrkx                      1/1     Running   0          3d23h

3. Verify the changes related to stub pre-defined prime configuration.
   1. Run the following command to verify the status of all the config-map.

      kubectl get cm -n ocbsf

      Notice the change in the number of config-map counts. There will be one extra config-maps of nf1stub and nf11stub.

      A sample of config-map with pre-defined priming is as follows:

      NAME                 DATA   AGE
      cm-pystub-nf1stub               1      3h35m
      cm-pystub-nf11stub               1      3h35m

Updating the Predefined priming configurations

Note:

This procedure is applicable only when Predefined priming configuration is enabled.

Post the deployment, there might be the chance to modify some values inside the stub pre-priming configurations, for example, nfInstanceID in the url.

1. Run the following command to edit the config-map of nf1stub:

   kubectl get cm -n ocbsf

   kubectl edit cm cm-pystub-nf1stub -n ocbsf

2. Edit the configurations as required and save it.
3. Restart the nf1stub pod.
4. Verify the log to confirm the changes.
5. Follow the same procedure for nf11stub pod.

3.1.7.3 Deploying DNS Stub in Kubernetes Cluster

Note:

Ensure there are sufficient resources and limit for DNS Stub. Set the resource request and limit values in the resources section of the values.yaml file as follows:

resources: {}
  # We usually recommend not to specify default resources and to leave this as a conscious
  # choice for the user. This also increases chances charts run on environments with little
  # resources, such as Minikube. If you do want to specify resources, uncomment the following
  # lines, adjust them as necessary, and remove the curly braces after 'resources:'.  # limits:
  #  cpu: 1000m
  #  memory: 1024Mi
  # requests:
  #  cpu: 500m
  #  memory: 500Mi

To deploy DNS Stub in Kubernetes cluster, perform the following steps:

1. Go to the ocats-bsf-tools-25.2.200.0.0 folder and run the following command to extract the ocstub tar file content:

   tar -zxvf ocdns-pkg-25.2.204.0.0.tgz

   Sample output:


   [cloud-user@platform-bastion-1 ocdns-pkg-25.2.204.0.0]$ ls -ltrh
   total 211M
   -rw-------. 1 cloud-user cloud-user 211M Mar 14 14:49 ocdns-bind-image-25.2.204.tar
   -rw-r--r--. 1 cloud-user cloud-user 2.9K Mar 14 14:49 ocdns-bind-25.2.204.tgz


2. Run the following command in your cluster to load the DNS STUB image:

   docker load --input ocdns-bind-image-25.2.204.tar

3. Run the following commands to tag and push the DNS STUB image:

   docker tag ocdns-bind:25.2.204 localhost:5000/ocdns-bind:25.2.204
   docker push localhost:5000/ocdns-bind:25.2.204

4. Run the following command to untar the helm charts, ocdns-bind-25.2.204.tgz.

   tar -zxvf ocdns-bind-25.2.204.tgz

5. Update the registry name, image name and tag (if required) in the ocdns-bind/values.yaml file as required. For this, open the values.yaml file and update the image.repository and image.tag parameters.
6. Run the following command to deploy the DNS Stub.
   Using Helm:

   helm install -name ocdns ocdns-bind-25.2.204.tgz --namespace ocbsf -f ocdns-bind/values.yaml

7. Capture the cluster name of the deployment, namespace where nfstubs are deployed, and the cluster IP of DNS Stub.

   To capture the DNS Stub cluster IP:

   kubectl get svc -n ocbsf | grep dns

   Sample output:


   [cloud-user@platform-bastion-1 ocdns-pkg-25.2.204.0.0]$ kubectl get svc -n ocbsf | grep dns
   NAME      TYPE           CLUSTER-IP      EXTERNAL-IP     PORT(S)                AGE
   ocdns     ClusterIP      10.233.11.45    <none>          53/UDP,6236/TCP        19h

   To capture the cluster name:

   kubectl -n kube-system get configmap kubeadm-config -o yaml | grep clusterName

   Sample output:

   clusterName: platform

3.1.7.4 Deploying ocdiam Simulator in Kubernetes Cluster

To deploy ocdiam Simulator in Kubernetes cluster, perform the following steps:

1. Go to the ocats-bsf-tools-25.2.200.0.0 folder and run the following command to extract the ocstub tar file content:

   tar -zxvf ocdiam-pkg-25.2.204.0.0.tgz

   Sample output:

   [cloud-user@platform-bastion-1 ocdiam-pkg-25.2.204.0.0]$ ls -ltrh
   total 908M
   -rw-------. 1 cloud-user cloud-user 908M Mar 14 14:49 ocdiam-sim-image-25.2.204.tar
   -rw-r--r--. 1 cloud-user cloud-user 3.8K Mar 14 14:49 ocdiam-sim-25.2.204.tgz

2. Run the following command in your cluster to load the Diameter Simulator image:

   docker load --input ocdiam-sim-image-25.2.204.tar

3. Run the following commands to tag and push the Diameter Simulator image:

   docker tag ocdiam-sim:25.2.204 localhost:5000/ocdiam-sim:25.2.204
   docker push localhost:5000/ocdiam-sim:25.2.204

4. Run the following command to untar the helm charts, ocdiam-sim-25.2.204.tgz.

   tar -zxvf ocdiam-sim-25.2.204.tgz

5. Update the registry name, image name and tag (if required) in the ocdiam-sim/values.yaml file as required. For this, open the values.yaml file and update the image.repository and image.tag parameters.
6. Run the following command to deploy the Diameter Simulator.
   Using Helm:

   helm install -name ocdiam-sim ocdiam-sim --namespace ocbcf -f ocdiam-sim/values.yaml

   Output:

   ocdiam-sim-69968444b6-fg6ks                1/1     Running   0          5h47m

Sample of BSF namespace with BSF and ATS after installation:

[cloud-user@platform-bastion-1 ocstub-pkg-25.2.202.0.0]$ kubectl get po -n ocbsf
NAME                                                      READY   STATUS    RESTARTS   AGE
ocbsf-appinfo-6fc99ffb85-f96j2                        1/1     Running   1          3d23h
ocbsf-bsf-management-service-df6b68d75-m77dv          1/1     Running   0          3d23h
ocbsf-oc-config-79b5444f49-7pwzx                      1/1     Running   0          3d23h
ocbsf-oc-diam-connector-77f7b855f4-z2p88              1/1     Running   0          3d23h
ocbsf-oc-diam-gateway-0                               1/1     Running   0          3d23h
ocbsf-ocats-bsf-5d8689bc77-cxdvx                      1/1     Running   0          3d23h
ocbsf-ocbsf-egress-gateway-644555b965-pkxsb           1/1     Running   0          3d23h
ocbsf-ocbsf-ingress-gateway-7558b7d5d4-lfs5s          1/1     Running   4          3d23h
ocbsf-ocbsf-nrf-client-nfmanagement-d6b955b48-4pptk   1/1     Running   0          3d23h
ocbsf-ocdns-ocdns-bind-75c964648-j5fsd                1/1     Running   0          3d23h
ocbsf-ocpm-cm-service-7775c76c45-xgztj                1/1     Running   0          3d23h
ocbsf-ocpm-queryservice-646cb48c8c-d72x4              1/1     Running   0          3d23h
ocbsf-performance-69fc459ff6-frrvs                    1/1     Running   4          3d23h
ocbsfnf11stub-7bffd6dcd7-ftm5f                        1/1     Running   0          3d23h
ocbsfnf12stub-547f7cb99f-7mpll                        1/1     Running   0          3d23h
ocbsfnf1stub-bdd97cb9-xjrkx                           1/1     Running   0          3d23h
ocdiam-sim-69968444b6                                 1/1     Running   0          3d23h

3.1.8 Post-Installation Steps

The section describes post-installation steps that users should perform after deploying ATS and stub pods.

Enabling IPv6 for ATS

Perform this procedure after ATS for BSF is installed. This procedure creates services with the required IP family configuration.

Below are the prerequisites for this procedure:

• Ensure that the Kubernetes cluster supports IPv6 or dual stack networking.
• Do not edit an existing service to change its IP family from IPv4 to IPv6.
• Create a temporary directory to store the service YAML file exported in Step 1.

1. Run the following command to export the existing service YAML file:

   kubectl get svc <SERVICE_NAME> -n <NAMESPACE> -o yaml > /tmp/<directory>/<my-svc.yaml>

   The current service definition is retrieved and written to /tmp/<directory>/<my-svc.yaml>.

   Sample output:


   kubectl get svc nf11stub -n ocbsf -o yaml > /tmp/ocbsf/svcs/nf11stub.yaml
   kubectl get svc nf12stub -n ocbsf -o yaml > /tmp/ocbsf/svcs/nf12stub.yaml
   kubectl get svc nf1stub -n ocbsf -o yaml > /tmp/ocbsf/svcs/nf1stub.yaml
   kubectl get svc ocats-bsf -n ocbsf -o yaml > /tmp/ocbsf/svcs/ocats-bsf.yaml
   kubectl get svc ocdiam-sim-1 -n ocbsf -o yaml > /tmp/ocbsf/svcs/ocdiam-sim-1.yaml
   kubectl get svc ocdiam-sim-2 -n ocbsf -o yaml > /tmp/ocbsf/svcs/ocdiam-sim-2.yaml
   kubectl get svc ocdiam-sim-3 -n ocbsf -o yaml > /tmp/ocbsf/svcs/ocdiam-sim-3.yaml
   kubectl get svc ocdiam-sim-4 -n ocbsf -o yaml > /tmp/ocbsf/svcs/ocdiam-sim-4.yaml
   kubectl get svc ocdns-stub -n ocbsf -o yaml > /tmp/ocbsf/svcs/ocdns-stub.yaml

2. Run the following command to remove the existing service:

   kubectl delete svc <SERVICE_NAME> -n <NAMESPACE>

   Sample output:


   kubectl delete svc nf11stub -n ocbsf
   kubectl delete svc nf12stub -n ocbsf
   kubectl delete svc nf1stub -n  ocbsf
   kubectl delete svc ocats-bsf -n ocbsf
   kubectl delete svc ocdiam-sim-1 -n ocbsf
   kubectl delete svc ocdiam-sim-2 -n ocbsf
   kubectl delete svc ocdiam-sim-3 -n ocbsf
   kubectl delete svc ocdiam-sim-4 -n ocbsf
   kubectl delete svc ocdns-stub -n ocbsf

3. Edit the exported YAML file and remove the value of the following fields if they exist:

   clusterIP:
   clusterIPs:

   Unedited YAML file:

   spec:
     clusterIP: 10.233.13.190
     clusterIPs:
     - 10.233.13.190
     internalTrafficPolicy: Cluster
     ipFamilies:
     - IPv4
     ipFamilyPolicy: SingleStack

   Edited YAML file:

   spec:
     clusterIP:
     clusterIPs:
     internalTrafficPolicy: Cluster
     ipFamilies:
     - IPv6
     ipFamilyPolicy: SingleStack

   Note:

   Do not specify the value of clusterIP or clusterIPs. These values are automatically assigned by Kubernetes.
4. Run the following command to recreate the service with the updated YAML file:

   kubectl apply -f my-svc.yaml

   The service is created with the required IP family configuration.

   Sample output:

   [cnpolicy@bastion-1 svcs]$ pwd
   /tmp/ocbsf/svcs

   [cnpolicy@bastion-1 svcs]$ ls
    nf12stub.yaml         ocdiam-sim-1.yaml  ocdiam-sim-3.yaml  ocdns-stub.yaml
   nf11stub.yaml                      nf1stub.yaml      ocats-bsf.yaml  ocdiam-sim-2.yaml  ocdiam-sim-4.yaml

   kubectl apply -f nf11stub.yaml -n ocbsf
   kubectl apply -f nf12stub.yaml -n ocbsf
   kubectl apply -f nf1stub.yaml -n  ocbsf
   kubectl apply -f ocats-bsf.yaml -n ocbsf
   kubectl apply -f ocdiam-sim-1.yaml -n ocbsf
   kubectl apply -f ocdiam-sim-2.yaml -n ocbsf
   kubectl apply -f ocdiam-sim-3.yaml -n ocbsf
   kubectl apply -f ocdiam-sim-4.yaml -n ocbsf
   kubectl apply -f ocdns-stub.yaml -n ocbsf

5. To verify if the service has an IPv6 address, run the following command:

   kubectl get svc -n <NAMESPACE>

   Sample output:

   NAME                                 TYPE         CLUSTER-IP           EXTERNAL-IP                        PORT(S)                                         AGE
   ------------------------------------------------------------------------------------------------------------------------------
   nf11stub                                     ClusterIP      fd00:0:0:2::74aa     <none>                             8080/TCP,8081/TCP                               8h
   nf12stub                                     ClusterIP      fd00:0:0:2::10cf     <none>                             8080/TCP,8081/TCP                               8h
   nf1stub                                      ClusterIP      fd00:0:0:2::cea4     <none>                             8080/TCP,8081/TCP                               8h
   ocbsf-altsvc-cache                           ClusterIP      None                 <none>                             8000/TCP                                        9h
   ocbsf-egw-cache                              ClusterIP      None                 <none>                             8000/TCP                                        9h
   ocbsf-igw-cache                              ClusterIP      None                 <none>                             8000/TCP                                        9h
   ocbsf-ocbsf-alternate-route                  ClusterIP      fd00:0:0:2::4735     <none>                             8000/TCP                                        9h
   ocbsf-ocbsf-app-info                         ClusterIP      fd00:0:0:2::7a03     <none>                             8000/TCP                                        9h
   ocbsf-ocbsf-audit                            ClusterIP      fd00:0:0:2::3be2     <none>                             8000/TCP                                        9h
   ocbsf-ocbsf-bsf-management                   ClusterIP      fd00:0:0:2::9f7f     <none>                             5903/TCP,8443/TCP                               9h
   ocbsf-ocbsf-config-mgmt                      LoadBalancer   fd00:0:0:2::bc02     2606:b400:605:b82e::7              8000:31125/TCP                                  9h
   ocbsf-ocbsf-config-server                    ClusterIP      fd00:0:0:2::8746     <none>                             8000/TCP                                        9h
   ocbsf-ocbsf-egress-gateway                   ClusterIP      fd00:0:0:2::c15f     <none>                             8000/TCP                                        9h
   ocbsf-ocbsf-ingress-gateway                  LoadBalancer   fd00:0:0:2::a5a6     2606:b400:605:b82e::8              80:32507/TCP                                    9h
   ocbsf-ocbsf-ingress-gateway-intra-nf         ClusterIP      fd00:0:0:2::1237     <none>                             8008/TCP                                        9h
   ocbsf-ocbsf-nrf-client-cache                 ClusterIP      None                 <none>                             5907/TCP                                        9h
   ocbsf-ocbsf-nrf-client-nfdiscovery           ClusterIP      fd00:0:0:2::d883     <none>                             8000/TCP,9443/TCP                               9h
   ocbsf-ocbsf-nrf-client-nfmanagement          ClusterIP      fd00:0:0:2::2963     <none>                             8000/TCP,9443/TCP                               9h
   ocbsf-ocbsf-oc-diam-gateway                  LoadBalancer   fd00:0:0:2::bf45     2606:b400:605:b82e::12             3868:31695/TCP                                  9h
   ocbsf-ocbsf-oc-diam-gateway-coherence-headless ClusterIP    None                 <none>                             5801/TCP                                        9h
   ocbsf-ocbsf-oc-diam-gateway-headless         ClusterIP      None                 <none>                             3868/TCP,8000/TCP                               9h
   ocbsf-ocbsf-oc-diam-gateway-internal         ClusterIP      fd00:0:0:2::26df     <none>                             8000/TCP                                        9h
   ocbsf-ocbsf-perf-info                        ClusterIP      fd00:0:0:2::8e23     <none>                             8000/TCP                                        9h
   ocbsf-ocbsf-query                            ClusterIP      fd00:0:0:2::5075     <none>                             8000/TCP                                        9h
   ocats-bsf                                    LoadBalancer   fd00:0:0:2::62dc     2606:b400:605:b82e::17             8080:30942/TCP,5001:31901/TCP,3868:32662/TCP    8h
   ocdiam-sim-1                                 ClusterIP      fd00:0:0:2::a25b     <none>                             8089/TCP,3868/TCP                               8h
   ocdiam-sim-2                                 ClusterIP      fd00:0:0:2::d3db     <none>                             8089/TCP,3868/TCP                               8h
   ocdiam-sim-3                                 ClusterIP      fd00:0:0:2::b656     <none>                             8089/TCP,3868/TCP                               8h
   ocdiam-sim-4                                 ClusterIP      fd00:0:0:2::d30f     <none>                             8089/TCP,3868/TCP                               8h
   ocdns-stub                                   ClusterIP      fd00:0:0:2::2341     <none>                             53/UDP,6236/TCP                                 8h

   Note:

   Ensure that only IPv6 addresses are observed.
6. To access the ATS GUI with an IPv6, the IP in IPv6 of ocats and the port 8080 are entered in the browser URL of ATS (Jenkins).

   Figure 3-2 Accessing ATS GUI using IPv6









Enabling Dual Stack for ATS

Perform the following procedure to enable dual stack support for ATS.

Modify the IP address type to IPv6 dual stack or IPv4 dual stack by following these steps:

Below are the prerequisites for this procedure:

• Ensure that the Kubernetes cluster supports IPv6 or dual stack networking.
• Do not edit an existing service to change its IP family from IPv4 to IPv6.
• Create a temporary directory to store the service YAML file exported in Step 1.

1. Run the following command to export the existing service YAML file:

   kubectl get svc <SERVICE_NAME> -n <NAMESPACE> -o yaml > /tmp/<directory>/<my-svc.yaml>

   The current service definition is retrieved and written to /tmp/<directory>/<my-svc.yaml>.

   Sample output:


   kubectl get svc nf11stub -n ocbsf -o yaml > /tmp/ocbsf/svcs/nf11stub.yaml
   kubectl get svc nf12stub -n ocbsf -o yaml > /tmp/ocbsf/svcs/nf12stub.yaml
   kubectl get svc nf1stub -n ocbsf -o yaml > /tmp/ocbsf/svcs/nf1stub.yaml
   kubectl get svc ocats-bsf -n ocbsf -o yaml > /tmp/ocbsf/svcs/ocats-bsf.yaml
   kubectl get svc ocdiam-sim-1 -n ocbsf -o yaml > /tmp/ocbsf/svcs/ocdiam-sim-1.yaml
   kubectl get svc ocdiam-sim-2 -n ocbsf -o yaml > /tmp/ocbsf/svcs/ocdiam-sim-2.yaml
   kubectl get svc ocdiam-sim-3 -n ocbsf -o yaml > /tmp/ocbsf/svcs/ocdiam-sim-3.yaml
   kubectl get svc ocdiam-sim-4 -n ocbsf -o yaml > /tmp/ocbsf/svcs/ocdiam-sim-4.yaml
   kubectl get svc ocdns-stub -n ocbsf -o yaml > /tmp/ocbsf/svcs/ocdns-stub.yaml

2. Run the following command to remove the existing service:

   kubectl delete svc <SERVICE_NAME> -n <NAMESPACE>

   Sample output:


   kubectl delete svc nf11stub -n ocbsf
   kubectl delete svc nf12stub -n ocbsf
   kubectl delete svc nf1stub -n  ocbsf
   kubectl delete svc ocats-bsf -n ocbsf
   kubectl delete svc ocdiam-sim-1 -n ocbsf
   kubectl delete svc ocdiam-sim-2 -n ocbsf
   kubectl delete svc ocdiam-sim-3 -n ocbsf
   kubectl delete svc ocdiam-sim-4 -n ocbsf
   kubectl delete svc ocdns-stub -n ocbsf

3. Edit the exported YAML file and remove the value of the following fields if they exist:

   clusterIP:
   clusterIPs:

   Unedited YAML file:

   spec:
     clusterIP: 10.233.13.190
     clusterIPs:
     - 10.233.13.190
     internalTrafficPolicy: Cluster
     ipFamilies:
     - IPv4
     ipFamilyPolicy: SingleStack

   Add or modify the spec section for IPv6 or IPv4 dual stack:

   spec:
     ipFamilies:
       - IPv6
       - IPv4
     ipFamilyPolicy: RequireDualStack


   or

   spec:
     ipFamilies:
       - IPv4
       - IPv6
     ipFamilyPolicy: RequireDualStack

   Edited YAML file:

   spec:
     clusterIP:
     clusterIPs:
     internalTrafficPolicy: Cluster
     ipFamilies:
       - IPv6
       - IPv4
     ipFamilyPolicy: RequireDualStack

    or

   spec:
     clusterIP:
     clusterIPs:
     internalTrafficPolicy: Cluster
     ipFamilies:
       - IPv4
       - IPv6
     ipFamilyPolicy: RequireDualStack

   Note:

   Do not specify the value of clusterIP or clusterIPs. These values are automatically assigned by Kubernetes.
4. Run the following command to recreate the service with the updated YAML file:

   kubectl apply -f my-svc.yaml

   The service is created with the required IP family configuration.

   Sample output:

   [cnpolicy@bastion-1 svcs]$ pwd
   /tmp/ocbsf/svcs

   [cnpolicy@bastion-1 svcs]$ ls
    nf12stub.yaml         ocdiam-sim-1.yaml  ocdiam-sim-3.yaml  ocdns-stub.yaml
   nf11stub.yaml                      nf1stub.yaml      ocats-bsf.yaml  ocdiam-sim-2.yaml  ocdiam-sim-4.yaml

   kubectl apply -f nf11stub.yaml -n ocbsf
   kubectl apply -f nf12stub.yaml -n ocbsf
   kubectl apply -f nf1stub.yaml -n  ocbsf
   kubectl apply -f ocats-bsf.yaml -n ocbsf
   kubectl apply -f ocdiam-sim-1.yaml -n ocbsf
   kubectl apply -f ocdiam-sim-2.yaml -n ocbsf
   kubectl apply -f ocdiam-sim-3.yaml -n ocbsf
   kubectl apply -f ocdiam-sim-4.yaml -n ocbsf
   kubectl apply -f ocdns-stub.yaml -n ocbsf

5. To verify if the service has a dual stack address with the preference IPv4 or IPv6, run the following command:

   kubectl get svc -n <NAMESPACE>

   Sample output:


   NAME                                            TYPE           CLUSTER-IP           EXTERNAL-IP                                  PORT(S)                                        AGE
   -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
   nf11stub                                        ClusterIP      fd00:0:0:2::74aa     <none>                                       8080/TCP,8081/TCP                              8h
   nf12stub                                        ClusterIP      fd00:0:0:2::10cf     <none>                                       8080/TCP,8081/TCP                              8h
   nf1stub                                         ClusterIP      fd00:0:0:2::cea4     <none>                                       8080/TCP,8081/TCP                              8h
   ocbsf-altsvc-cache                              ClusterIP      None                 <none>                                       8000/TCP                                       9h
   ocbsf-egw-cache                                 ClusterIP      None                 <none>                                       8000/TCP                                       9h
   ocbsf-igw-cache                                 ClusterIP      None                 <none>                                       8000/TCP                                       9h
   ocbsf-ocbsf-alternate-route                     ClusterIP      fd00:0:0:2::4735     <none>                                       8000/TCP                                       9h
   ocbsf-ocbsf-app-info                            ClusterIP      fd00:0:0:2::7a03     <none>                                       8000/TCP                                       9h
   ocbsf-ocbsf-audit                               ClusterIP      fd00:0:0:2::3be2     <none>                                       8000/TCP                                       9h
   ocbsf-ocbsf-bsf-management                      ClusterIP      fd00:0:0:2::9f7f     <none>                                       5903/TCP,8443/TCP                              9h
   ocbsf-ocbsf-config-mgmt                         LoadBalancer   fd00:0:0:2::bc02     2606:b400:605:b82e::7                        8000:31125/TCP                                 9h
   ocbsf-ocbsf-config-server                       ClusterIP      fd00:0:0:2::8746     <none>                                       8000/TCP                                       9h
   ocbsf-ocbsf-egress-gateway                      ClusterIP      fd00:0:0:2::c15f     <none>                                       8000/TCP                                       9h
   ocbsf-ocbsf-ingress-gateway                     LoadBalancer   fd00:0:0:2::a5a6     10.75.206.211,2606:b400:605:b82e::8          80:32507/TCP                                   9h
   ocbsf-ocbsf-ingress-gateway-intra-nf            ClusterIP      fd00:0:0:2::1237     <none>                                       8008/TCP                                       9h
   ocbsf-ocbsf-nrf-client-cache                    ClusterIP      None                 <none>                                       5907/TCP                                       9h
   ocbsf-ocbsf-nrf-client-nfdiscovery              ClusterIP      fd00:0:0:2::d883     <none>                                       8000/TCP,9443/TCP                              9h
   ocbsf-ocbsf-nrf-client-nfmanagement             ClusterIP      fd00:0:0:2::2963     <none>                                       8000/TCP,9443/TCP                              9h
   ocbsf-ocbsf-oc-diam-gateway                     LoadBalancer   fd00:0:0:2::bf45     10.75.206.210,2606:b400:605:b82e::12         3868:31695/TCP                                 9h
   ocbsf-ocbsf-oc-diam-gateway-coherence-headless  ClusterIP      None                 <none>                                       5801/TCP                                       9h
   ocbsf-ocbsf-oc-diam-gateway-headless            ClusterIP      None                 <none>                                       3868/TCP,8000/TCP                              9h
   ocbsf-ocbsf-oc-diam-gateway-internal            ClusterIP      fd00:0:0:2::26df     <none>                                       8000/TCP                                       9h
   ocbsf-ocbsf-perf-info                           ClusterIP      fd00:0:0:2::8e23     <none>                                       8000/TCP                                       9h
   ocbsf-ocbsf-query                               ClusterIP      fd00:0:0:2::5075     <none>                                       8000/TCP                                       9h
   ocats-bsf                                       LoadBalancer   fd00:0:0:2::62dc     10.75.206.199,2606:b400:605:b82e::13         8080:30942/TCP,5001:31901/TCP,3868:32662/TCP   8h
   ocdiam-sim-1                                    ClusterIP      fd00:0:0:2::a25b     <none>                                       8089/TCP,3868/TCP                              8h
   ocdiam-sim-2                                    ClusterIP      fd00:0:0:2::d3db     <none>                                       8089/TCP,3868/TCP                              8h
   ocdiam-sim-3                                    ClusterIP      fd00:0:0:2::b656     <none>                                       8089/TCP,3868/TCP                              8h
   ocdiam-sim-4                                    ClusterIP      fd00:0:0:2::d30f     <none>                                       8089/TCP,3868/TCP                              8h
   ocdns-stub                                      ClusterIP      fd00:0:0:2::2341     <none>                                       53/UDP,6236/TCP                                8h

6. To access the ATS GUI with an IPv6, the IP in IPv6 of ocats and the port 8080 are entered in the browser URL of ATS (Jenkins).

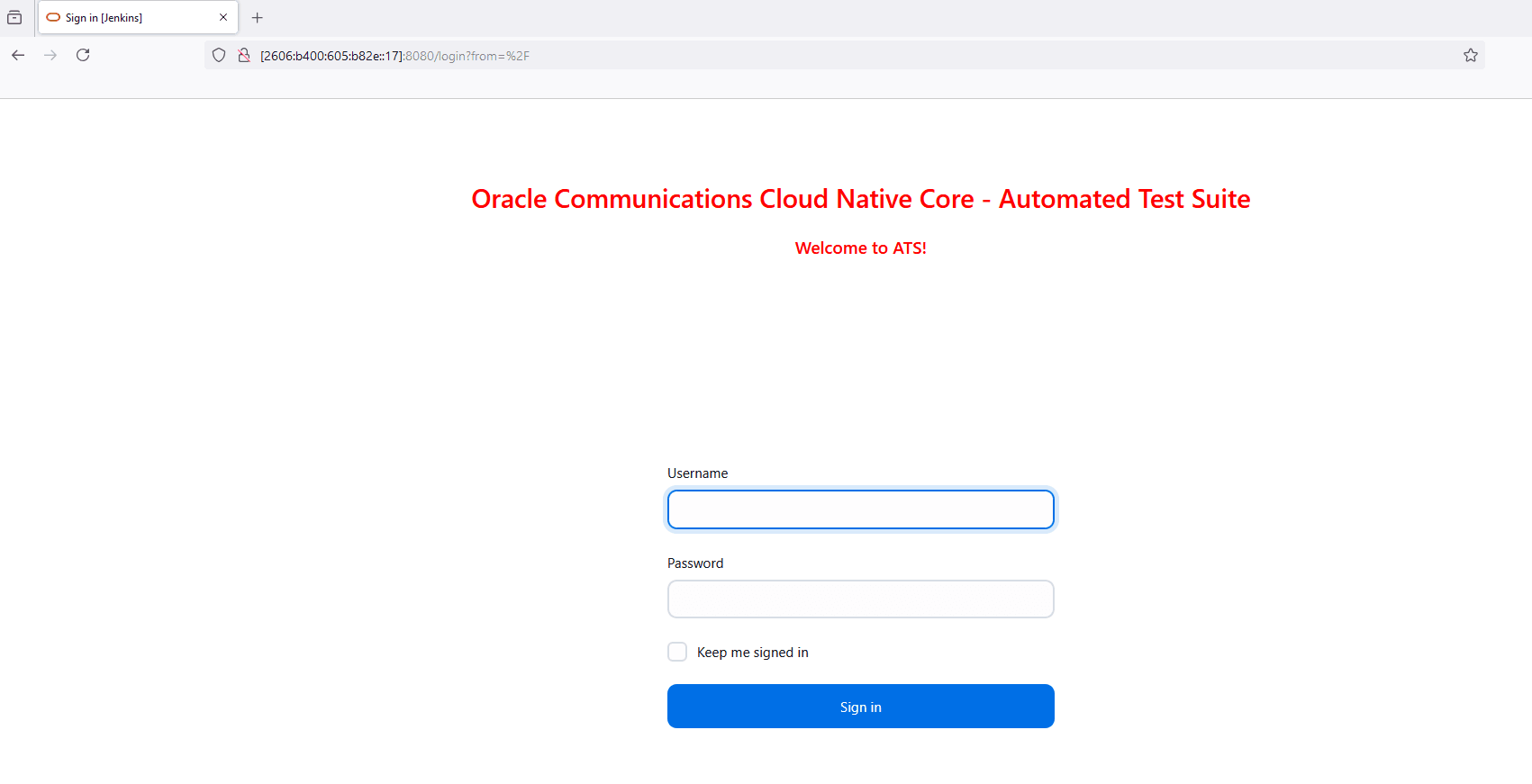

   Figure 3-3 Accessing ATS GUI using IPv6 in Dual Stack









Alternate Route Service Configurations

To edit the Alternate Route Service deployment file (ocbcf-ocbsf-alternate-route) that points to DNS Stub, perform the following steps:

1. Run the following command to get searches information from dns-bind pod to enable communication between Alternate Route and dns-bind service:

   kubectl exec -it <dns-bind pod> -n <NAMESPACE> -- /bin/bash -c 'cat /etc/resolv.conf' | grep search | tr ' ' '\n' | grep -v 'search'

   The following output is displayed after running the command:

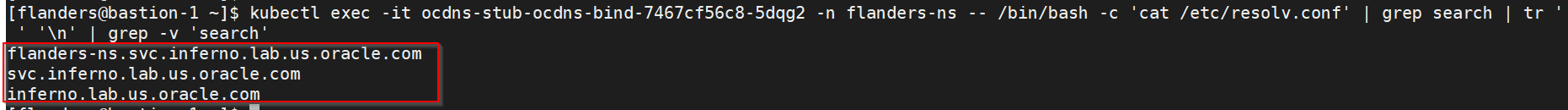

   Figure 3-4 Sample Output


   By default alternate service will point to CoreDNS and you will see following settings in deployment file:

   Figure 3-5 Alternate Route Service Deployment File


2. Run the following command to edit the deployment file and add the following content in alternate service to query DNS stub:

   $kubectl edit deployment ocpcf-occnp-alternate-route -n ocpcf

   1. Add the IP Address of the nameserver that you have recorded after installing the DNS stub (cluster IP Address of DNS Stub).
   2. Add the search information one by one which you recorded earlier.
   3. Set dnsPolicy to "None".

      dnsConfig:
        nameservers:
        - 10.233.33.169      // cluster IP of DNS Stub
        searches:
        - ocpcf.svc.occne15-ocpcf-ats
        - svc.occne15-ocpcf-ats
        - occne15-ocpcf-ats
      dnsPolicy: None

   For example:

   Figure 3-6 Example



NRF client configmap

1. In the application-config configmap, configure the following parameters with the respective values:
   • primaryNrfApiRoot=nf1stub.<namespace_gostubs_are_deployed_in>.svc:8080

     Example: primaryNrfApiRoot=nf1stub.ocats.svc:8080

   • secondaryNrfApiRoot=nf11stub.<namespace_gostubs_are_deployed_in>.svc:8080

     Example:secondaryNrfApiRoot=nf11stub.ocats.svc:8080

   • virtualNrfFqdn = nf1stub.<namespace_gostubs_are_deployed_in>.svc

     Example:virtualNrfFqdn=nf1stub.ocats.svc

   Note:

   To get all configmaps in your namespace, run the following command:

   kubectl get configmaps -n <BSF_namespace>

2. (Optional) If persistent volume is used, follow the post-installation steps provided in the Persistent Volume for 5G ATS section.

3.2 Installing ATS for NSSF

This section describes Automated Testing Suite (ATS) installation procedures for Network Slice Selection Function (NSSF) in a cloud native environment. You must perform ATS installation procedures for NSSF in the same sequence as outlined in the following sections.

3.2.1 Resource Requirements

Total Number of Resources

The total number of resource requirements are as follows:

Table 3-5 Total Number of Resources

Resource	CPUs	Memory(GB)	Storage(GB)
NSSF SUT Total	30.2	22	4
cnDBTier Total	40	40	20
ATS Total	14	14	0
Grand Total NSSF ATS	79.2	72	24

Resource Details

The details of resources required to install NSSF-ATS are as follows:

Table 3-6 Resource Details

Microservice	CPUs Required per Pod	Memory Required per Pod (GB)	Storage PVC Required per Pod (GB)	Replicas (regular deployment)	Replicas (ATS deployment)	CPUs Required - Total	Memory Required - Total (GB)	Storage PVC Required - Total (GB)
NSSF Pods
ingressgateway	4	4	0	2	1	4	4	0
egressgateway	4	4	0	2	1	4	4	0
nsselection	4	2	0	2	1	4	2	0
nsavailability	4	2	0	2	1	4	2	0
nsconfig	2	2	0	1	1	2	2	0
nssubscription	2	2	0	1	1	2	2	0
nrf-client-discovery	1	1	0	2	1	1	1	0
nrf-client-management	1	1	0	1	1	1	1	0
appinfo	0.2	1	0	2	1	0.2	1	0
perfinfo	0.2	0.5	0	1	1	0.2	0.5	0
config-server	0.2	0.5	0	1	1	0.2	0.5	0
NSSF SUT Totals						22.6 CPU	20 GB	0
ATS
ATS Behave	4	4	0	0	1	4	4	0
ATS AMF Stub (Python)	3	3	0	0	1	3	3	0
ATS NRF Stub (Python)	2	2	0	0	1	2	2	0
ATS NRF Stub1 (Python)	2	2	0	0	1	2	2	0
ATS NRF Stub2 (Python)	2	2	0	0	1	2	2	0
OCDNS-BIND	1	1	0	0	1	1	1	0
ATS Totals						14	14	0
cnDBTier Pods (minimum of 4 worker nodes required)
vrt-launcher-dt-1.cluster.local	4	4	2	2	1	4	4	2
vrt-launcher-dt-2.cluster.local	4	4	2	2	1	4	4	2
vrt-launcher-dt-3.cluster.local	4	4	2	2	1	4	4	2
vrt-launcher-dt-4.cluster.local	4	4	2	2	1	4	4	2
vrt-launcher-mt-1.cluster.local	4	4	2	2	1	4	4	2
vrt-launcher-mt-2.cluster.local	4	4	2	2	1	4	4	2
vrt-launcher-mt-3.cluster.local	4	4	2	2	1	4	4	2
vrt-launcher-sq-1.cluster.local	4	4	2	2	1	4	4	2
vrt-launcher-sq-2.cluster.local	4	4	2	2	1	4	4	2
vrt-launcher-db-installer.cluster.local	4	4	2	2	1	4	4	2
cnDBTier Totals						40	40	20

3.2.2 Locating and Downloading ATS and Simulator Images

To locate and download the ATS Image from MOS:

1. Log in to My Oracle Support using the appropriate credentials.
2. Select the Patches and Updates tab.
3. In the Patch Search window, click Product or Family (Advanced).
4. Enter Oracle Communications Cloud Native Core - 5G in the Product field.
5. Select Oracle Communications Cloud Native Core Network Slice Selection Function <release_number> from Release drop-down.
6. Click Search. The Patch Advanced Search Results list appears.
7. Select the required ATS patch from the search results. The Patch Details window appears.
8. Click Download. The File Download window appears.
9. Click the <p********_<release_number>_Tekelec>.zip file to download the NSSF ATS package file.
10. Untar the zip file to get ocats-nssf directory, which consists of all the ATS Images. The ocats-nssf directory has the following files:

    Note:

    Prerequisites:

    • To run oauth test cases for NSSF, oauth secrets needs to be generated. For more information, see "Configuring Secrets to Enable Access Token " section in Oracle communications Cloud Native Core, Network Slice Selection Function Installation, Upgrade, Fault Recovery Guide.
    1. To ensure the functionality of the Virtual_Host_NRF_Resolution_By_NSSF_Using_DNSSRV ATS feature, the following configuration must be enabled as per the engineering team's guidance:

       nrf-client:

         # This config map is for providing inputs to NRF-Client

         configmapApplicationConfig:

             enableVirtualNrfResolution=true

             virtualNrfFqdn=nrfstub.changeme-ocats.svc

             virtualNrfScheme=https

    2. The necessary changes to the NSSF custom-values.yaml file are outlined below.
       For instance, if the NSSF ATS is deployed in the "ocnssfats" namespace, the virtualNrfFqdn configuration must be updated as follows:

       nrf-client:
         # This config map is for providing inputs to NRF-Client
         configmapApplicationConfig:
             enableVirtualNrfResolution=true
             virtualNrfFqdn=nrfstub.ocnssfats.svc
             virtualNrfScheme=https

    3. If the NSSF is installed with a HELM release name different from "ocnssf" (for example, the HELM release name is "ocnssfats"), the following parameter must be updated accordingly.
       If the HELM release name is "ocnssf", no changes are required.

       # Alternate Route Service Host Value
       # Replace ocnssf with Release Name
       alternateRouteServiceHost: ocnssf-alternate-route

    4. If the HELM release name for NSSF is "ocnssfats", the following parameter must be updated accordingly.

       # Alternate Route Service Host Value
       # Replace ocnssf with Release Name
       alternateRouteServiceHost: ocnssfats-alternate-route

       ocats-nssf
       ├── ocats-nssf-custom-configtemplates-25.2.200-README.txt   - file contains all the information required for the package.
       ├── ocats-nssf-custom-configtemplates-25.2.200.zip   - contains serviceaccount,PVC File and Custom values file
       ├── ocats-nssf-tools-pkg-25.2.200-README.txt   - file contains all the information required for the package.
       └── ocats-nssf-tools-pkg-25.2.200.tgz   - file has the following images and charts packaged as tar files

11. Untar the ocats-nssf-tools-pkg-25.2.200.tgz tar file
    The structure of the file looks as given below:


    ocats-nssf-tools-pkg-25.2.200
    ├── amfstub-25.2.200.tar      - AMF Stub Server Docker image
    ├── amfstub-25.2.200.tar.sha256
    ├── ats_data-25.2.200.tar     - ATS data, After untar "ocnssf_tests" folder will gets created in which ATS feature files present
    ├── ats_data-25.2.200.tar.sha256
    ├── ocats-nssf-25.2.200.tar   - NSSF ATS Docker Image
    ├── ocats-nssf-25.2.200.tar.sha256
    ├── ocats-nssf-25.2.200.tgz   - ATS Helm Charts, after untar "ocats-nssf" ats charts folder gets created.
    ├── ocats-nssf-25.2.200.tgz.sha256
    ├── ocdns-bind-25.2.200.tar.  - NSSF DNS Stub Server Docker Image
    ├── ocdns-bind-25.2.200.tar.sha256
    └── README.md

12. Copy the ocats-nssf-tools-pkg-25.2.200.tgz tar file to the CNE or Kubernetes cluster where you want to deploy ATS.
13. Along with the above packages, there is ocats-nssf-custom-configtemplates-25.2.200.zip at the same location.

    The readme file ocats-nssf-custom-configtemplates-25.2.200-README.txt contains information about the content of this zip file.

    Content of ocats-nssf-custom-configtemplates-25.2.200.zip is as below:


     Archive:  ocats-nssf-custom-configtemplates-25.2.200.zip
      inflating: nssf_ats_pvc_25.2.200.yaml
      inflating: ocats_nssf_custom_values_25.2.200.yaml
      inflating: ocats_ocnssf_custom_serviceaccount_25.2.200.yaml

    Copy these files to CNE or Kubernetes cluster where you want to deploy ATS.


    ocats-nssf-tools-pkg-25.2.200
    ├── amfstub-25.2.200.tar       - AMF Stub Server Docker image
    ├── ats_data-25.2.200.tar      - ATS data, After untar "ocnssf_tests" folder will gets created in which ATS feature files present
    ├── ocats-nssf-25.2.200.tar    - NSSF ATS Docker Image
    ├── ocats-nssf-25.2.200.tgz    - ATS Helm Charts, after untar "ocats-nssf" ats charts folder gets created.
    ├── ocdns-bind-25.2.200.tar.   - NSSF DNS Stub Server Docker Image


3.2.3 Deploying ATS in Kubernetes Cluster

To deploy ATS in Kubernetes Cluster:

1. Verify checksums of the tarballs mentioned in the file Readme.txt.
2. Run the following commands to extract tar file content, Helm charts, and Docker images of ATS:

   tar -xvzf ocats-nssf-tools-pkg-25.2.200.tgz

   The output of this command will return the following files:


   ocats-nssf-tools-pkg-25.2.200
   ├── amfstub-25.2.200.tar      - AMF Stub Server Docker image
   ├── amfstub-25.2.200.tar.sha256
   ├── ats_data-25.2.200.tar     - ATS data, After untar "ocnssf_tests" folder will gets created in which ATS feature files present
   ├── ats_data-25.2.200.tar.sha256
   ├── ocats-nssf-25.2.200.tar   - NSSF ATS Docker Image
   ├── ocats-nssf-25.2.200.tar.sha256
   ├── ocats-nssf-25.2.200.tgz   - ATS Helm Charts, after untar "ocats-nssf" ats charts folder gets created.
   ├── ocats-nssf-25.2.200.tgz.sha256
   ├── ocdns-bind-25.2.200.tar.  - NSSF DNS Stub Server Docker Image
   ├── ocdns-bind-25.2.200.tar.sha256
   └── README.md


3. NSSF-ATS and Stub Images Load and Push: Run the following commands in your cluster to load the ocats image and amf stubserver image:

   Docker Commands:

   docker load -i ocats-nssf-<version>.tar

   docker load -i amfstub-<version>.tar

   docker load -i ocdns-bind-<version>.tar

   Examples:

   docker load -i ocats-nssf-25.2.200.tar

   docker load -i amfstub-25.2.200.tar

   docker load -i ocdns-bind-25.2.200.tar

   Podman Commands:

   podman load -i ocats-nssf-<version>.tar

   podman load -i amfstub-<version>.tar

   podman load -i ocdns-bind-<version>.tar

   Examples:

   podman load -i ocats-nssf-25.2.200.tar

   podman load -i amfstub-25.2.200.tar

   podman load -i ocdns-bind-25.2.200.tar

4. Run the following commands to tag and push the ATS image registry.
   1. Run the following commands to grep the image:

      docker images | grep ocats-nssf

      docker images | grep amfstub

      docker images | grep ocdns

   2. Copy the Image ID from the output of the grep command and change the tag (version number) to your registry.

      Docker Commands:

      docker tag <Image_ID> <your-registry-name/ocats-nssf:<tag>>

      docker push <your-registry-name/ocats-nssf:<tag>>

      docker tag <Image_ID> <your-registry-name/amfstub:<tag>>

      docker push <your-registry-name/amfstub:<tag>>

      docker tag <Image_ID> <your-registry-name/ocdns-bind:<tag>>

      docker push <your-registry-name/ocdns-bind:<tag>>

      Podman Commands:

      podman tag <Image_ID> <your-registry-name/ats/ocats-nssf:<tag>>

      podman push <your-registry-name/ocats-nssf:<tag>>

      podman tag <Image_ID> <your-registry-name/amfstub:<tag>>

      podman push <your-registry-name/amfstub:<tag>>

      docker tag <Image_ID> <your-registry-name/ocdns-bind:<tag>>

      docker push <your-registry-name/ocdns-bind:<tag>>

5. ATS Helm Charts : Run the following command to get "ATS" Helm charts as shown below:

   tar -xvzf ocats-nssf-25.2.200.tgz

   The above command creates "ocats-nssf" helm charts of ATS.

6. ATS Data: Run the following command to get ATS data, which contains feature files and data:

   tar -xvf ats_data-25.2.200.tar

   The above command creates "ocnssf_tests" and "jobs" folders, which are copied inside after the ATS installation is complete.

   1. Copy the ocnssf_tests folder under NSSF ATS pod as shown below:


      kubectl cp ocnssf_tests <namespace>/<nssf ats podname>:/var/lib/jenkins/

      Example:

      kubectl cp ocnssf_tests cicdnssf-241204053638/ocats-nssf-8566d64cfb-cgmvc:/var/lib/jenkins/

   2. Copy the jobs folder under NSSF ATS pod as shown below:

      kubectl cp jobs <namespace>/<nssf ats podname>:/var/lib/jenkins/.jenkins/

      Example:

      kubectl cp jobs cicdnssf-241204053638/ocats-nssf-8566d64cfb-cgmvc:/var/lib/jenkins/.jenkins/

7. <Optional> Go to certificate folder inside ocats-nssf and run the following command:

   kubectl create secret generic ocnssf-secret --from-file=certificates/rsa_private_key_pkcs1.pem --from-file=certificates/trust.txt --from-file=certificates/key.txt --from-file=certificates/ocnssf.cer --from-file=certificates/caroot.cer -n ocnssf

8. ATS Custom Values File Changes: Update the image name and tag in the ocats_nssf_custom_values_25.2.200.yaml file as required.
   1. For this, open the ocats_nssf_custom_values_25.2.200.yaml file.
   2. Update the image.repository and image.tag parameters for ocats-nssf, ocats-amf-stubserver, ocats-nrf-stubserver, ocats-nrf-stubserver1, ocats-nrf-stubserver2, and ocdns-bind.
   3. Save and close the file after making the updates.
9. <Optional>To enable static port: ATS supports static port. By default, this feature is not available.

   In the ocats-nssf/values.yaml file under service section, set the value of staticNodePortEnabled parameter as 'true' and provide a valid nodePort value for staticNodePort.

10. ATS Service Account Creation: In ocats-nssf-custom-serviceaccount_.yaml, change namespace as below:

    sed -i "s/changeme-ocats/${namespace}/g" ocats_ocnssf_custom_serviceaccount_.yaml

11. Run the following command to apply ocats-nssf-custom-serviceaccount_.yaml file:

    kubectl apply -f <serviceaccount.yaml file> -n <namespace_name>

    For example:

    kubectl apply -f ocats-nssf-custom-serviceaccount_.yaml -n ocnssf

12. NSSF ATS PVC Creation — Ordered List
    You can create the NSSF ATS PVC using either of the two available methods:

    1. Apply the NSSF ATS PVC YAML file manually after updating the namespace.
    2. Enable PVC creation directly from the NSSF ATS CV file.
    1. To create the PVC manually:
       1. Update the namespace in the nssf_ats_pvc_25.2.200.yaml file using:

          sed -i "s/ocnssf/${namespace}/g" nssf_ats_pvc_25.2.200.yaml


       2. Apply the updated PVC YAML using:

          kubectl apply -f <nssfatspvc.yaml file> -n <namespace_name>


          Example:

          kubectl apply -f nssf_ats_pvc_25.2.200.yaml


    2. To enable PVC creation in the NSSF ATS CV file:
       1. Update the following parameters in the CV file:

            #The below section is related to the deployment of ATS with persistant volume
            #To enable PV set PVEnabled to true
            #To use an already existing pvc in the namespace, set the flag useExistingPVC to true, the name of it will be PVClaimName value.
            #retainPVC is to not delete the pvc even after un-installation of ATS. Make this true for this behavior, or leave it false for default behavior
            PVEnabled: false
            PVClaimName: "ocats-nssf-pvc"
            PVStorageClassName: "standard"
            PVStorage: "1Gi"
            RetainPVC: false

          When PVEnabled is set to true, a PVC is automatically created in the namespace using the name specified in PVClaimName (for example, ocats-nssf-pvc).

          • PVC behavior after ATS uninstallation depends on the value of RetainPVC:
            • If RetainPVC is false, the PVC will be deleted when ATS is uninstalled.
            • If RetainPVC is true, the PVC will be retained even after ATS is uninstalled.

          For example: PVEnabled: true and RetainPVC: false

          • Example 1:

            PVEnabled: true
            PVClaimName: "<pvc_name>"
            PVStorageClassName: "<storage_class>"
            PVStorage: "<storage_size>"
            RetainPVC: false


            Before installation, no PVC exists:

            kubectl get pvc -n <namespace>
            NAME   STATUS   VOLUME   CAPACITY   ACCESS MODES   STORAGECLASS   AGE


            Install ATS:

            helm install <release_name> <chart_name> -n <namespace> -f <ats_cv_file>


            Check PVC after installation:

            kubectl get pvc -n <namespace>
            NAME             STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   AGE
            <pvc_name>       Bound    <pvc_volume_id>                            1Gi        RWO            <storage_class>   <age>


            Since RetainPVC is set to false, the PVC will be deleted after the uninstallation of ATS.

            helm uninstall <release_name> -n <namespace>
            release "<release_name>" uninstalled


            After uninstallation, check the PVC status (PVC is deleted because RetainPVC: false):

            kubectl get pvc -n <namespace>
            NAME              STATUS        VOLUME              CAPACITY   ACCESS MODES   STORAGECLASS   AGE
            <pvc_name>        Terminating   <pvc_volume_id>     1Gi        RWO            <storage_class>   <age>


          • Example 2: PVEnabled: true and RetainPVC: true

            PVEnabled: true
            PVClaimName: "ocats-nssf-pvc"
            PVStorageClassName: "standard"
            PVStorage: "1Gi"
            RetainPVC: true


            Before installation, no PVC exists:

            kubectl get pvc -n <namespace>
            NAME   STATUS   VOLUME   CAPACITY   ACCESS MODES   STORAGECLASS   AGE


            Install ATS:

            helm install <release_name> <chart_name> -n <namespace> -f <ats_cv_file>


            After installation, the PVC is created (because PVEnabled: true):

            kubectl get pvc -n <namespace>
            NAME                STATUS   VOLUME              CAPACITY   ACCESS MODES   STORAGECLASS   AGE
            <pvc_name>          Bound    <pvc_volume_id>     1Gi        RWO            <storage_class>   <age>


            Since RetainPVC is set to true, the PVC will be retained after the uninstallation of ATS.

            helm uninstall <release_name> -n <namespace>


            If RetainPVC: true, the PVC is not deleted and will be retained. The CLI output will indicate that the PVC is kept due to the resource policy. Check the PVC status after uninstallation:

            kubectl get pvc -n <namespace>
            NAME                STATUS   VOLUME              CAPACITY   ACCESS MODES   STORAGECLASS   AGE
            <pvc_name>          Bound    <pvc_volume_id>     1Gi        RWO            <storage_class>   <age>


13. Pointing NSSF to Stub Servers: Follow this step to point out NSSF to NRF-Stubserver and AMF-Stubserver in NSSF custom values file:

    sed -i "s/changeme-ocats/${namespace}/g" $NSSF_CUSTOM_DEPLOY_FILE

    For example:

    sed -i "s/changeme-ocats/${namespace}/g" ocnssf_custom_values_25.2.200.yaml

    The NSSF custom values snippet is as follows:



    nrf-client:
      # This config map is for providing inputs to NRF-Client
      configmapApplicationConfig:
        &configRef
        profile: |-
          [appcfg]
          primaryNrfApiRoot=nrf-stubserver.changeme-ocats:8080
          secondaryNrfApiRoot=nrf-stubserver.changeme-ocats:8080
    # ARS Helm Configuration
    staticVirtualFqdns:
        - name: https://abc.test.com
          alternateFqdns:
            - target: amf-stubserver.changeme-ocats
              port: 8080
              priority: 10
            - target: nrf-stubserver.changeme-ocats
              port: 8080
              priority: 20
        - name: http://xyz.test.com
          alternateFqdns:
            - target: amf-stubserver.changeme-ocats
              port: 8080
              priority: 10
            - target: nrf-stubserver.changeme-ocats
              port: 8080
              priority: 20

14. Deploy ATS as shown below. NSSF ATS Helm release name should be "ocats".

    helm install <release_name> <charts> -n <namespace_name> -f <custom_values file> –-version <helm-chart-version>

    For example:

    helm install ocats ocats-nssf -n ocnssf -f ocats_nssf_custom_values_25.2.200.yaml --version 25.2.200

    Running the above command creates the following pods:

    ocats-nssf

    ocats-amf-stubserver

    ocats-nrf-stubserver

    ocats-nrf-stubserver1

    ocats-nrf-stubserver2

    ocats-ocdns-bind

    For example:


    $ kubectl get pods -n cicdnssf-241204053638
    NAME                                                     READY   STATUS      RESTARTS       AGE
    ocats-amf-stubserver-5c5775dcb5-n9hlw                    2/2     Running     0              3h22m
    ocats-nrf-stubserver-6bc6ff5ccc-6wkv7                    2/2     Running     0              3h22m
    ocats-nrf-stubserver1-567f55488c-7bdxk                   2/2     Running     0              3h22m
    ocats-nrf-stubserver2-697d4cffd9-c7dvr                   2/2     Running     0              3h22m
    ocats-nssf-8566d64cfb-cgmvc                              2/2     Running     0              3h22m
    ocats-ocdns-bind-967bd4bc8-hpcjn                         2/2     Running     0              3h22m


    $ kubectl get svc -n cicdnssf-241204053638
    NAME                                    TYPE           CLUSTER-IP      EXTERNAL-IP   PORT(S)             AGE
    amf-stubserver                          LoadBalancer   10.96.27.125    <pending>     8080:31064/TCP      5h34m
    dnssim                                  ClusterIP      10.96.99.119    <none>        53/UDP,6236/TCP     5h34m
    nrf-stubserver                          LoadBalancer   10.96.192.123   <pending>     8080:30409/TCP      5h34m
    nrf-stubserver1                         LoadBalancer   10.96.235.187   <pending>     8080:31157/TCP      5h34m
    nrf-stubserver2                         LoadBalancer   10.96.77.69     <pending>     8080:31056/TCP      5h34m
    ocats-nssf                              LoadBalancer   10.96.14.30     <pending>     8080:31995/TCP      5h34m

15. Run the following command to verify the ATS deployment:

    helm status <release_name>

    The following screenshot is an example of a successful ATS deployment, where STATUS:DEPLOYED is an indicator of the same.


    $ helm status ocats -n cicdnssf-241204053638
    NAME: ocats
    LAST DEPLOYED: Wed Dec 4 05:37:54 2024
    NAMESPACE: <namespace>
    STATUS: deployed
    REVISION: 1
    TEST SUITE: None

Virtual_Host_NRF_Resolution_By_NSSF_Using_DNSSRV ATS Feature

To ensure the functionality of the Virtual_Host_NRF_Resolution_By_NSSF_Using_DNSSRV ATS feature, the following configuration must be enabled:

nrf-client:
  # Configuration map for providing inputs to the NRF-Client
  configmapApplicationConfig:
    enableVirtualNrfResolution: true
    virtualNrfFqdn: nrfstub.changeme-ocats.svc
    virtualNrfScheme: http

The necessary changes to the NSSF custom-values.yaml file are outlined below:

Example Configuration for Namespace "ocnssfats"

If the NSSF ATS is deployed in the ocnssfats namespace, update the virtualNrfFqdn configuration as follows:

nrf-client:
  # Configuration map for providing inputs to the NRF-Client
  configmapApplicationConfig:
    enableVirtualNrfResolution: true
    virtualNrfFqdn: nrfstub.ocnssfats.svc
    virtualNrfScheme: http

Configuration for Different HELM Release Names

• Default Release Name (ocnssf): No changes are required.
• Alternate Release Name: If the HELM release name is different (e.g., ocnssfats), update the following parameter:

  # Alternate Route Service Host Value
  # Replace 'ocnssf' with the HELM release name
  alternateRouteServiceHost: ocnssfats-alternate-route


Steps to Integrate DNS Stub with NSSF

1. Enable virtual FQDN resolution in the nrf-client management app profile configuration.
   Example:

   nrf-client:
       profile: |-
         [appcfg]
         primaryNrfApiRoot=nrf-stubserver.changeme-ocats:8080
         secondaryNrfApiRoot=nrf-stubserver.changeme-ocats:8080
         nrfScheme=http
         retryAfterTime=PT120S
         nrfClientType=NSSF
         nrfClientSubscribeTypes=
         appProfiles=[{"nfInstanceId":"9faf1bbc-6e4a-4454-a507-aef01a101a01","nfType":"NSSF","nfStatus":"REGISTERED","heartBeatTimer":30,"fqdn":"ocnssf-nsgateway.ocnssf.svc","priority":1,"capacity":1,"load":2,"plmnList":[{"mcc":"311","mnc":"480"}],"nfSetIdList":["setEast.nssfset.5gc.mnc480.mcc311"],"locality":"rcnltxekloc1","nfServices":[{"serviceInstanceId":"92d59bfc-e5d6-47f5-a26b-3a03facdebcc","serviceName":"nnssf-nsselection","versions":[{"expiry":null,"apiFullVersion":"1.0.0","apiVersionInUri":"v1"}],"scheme":"http","nfServiceStatus":"REGISTERED","fqdn":"ocnssf1-ingress-gateway.ocnssf.svc","interPlmnFqdn":null,"ipEndPoints":[{"ipv4Address":"10.224.45.178","transport":"TCP","port":80}],"allowedNfTypes":["AMF","NSSF"],"priority":1,"capacity":1,"load":2},{"serviceInstanceId":"d33728cd-6e21-434b-bc5a-ed69bc612377","serviceName":"nnssf-nssaiavailability","versions":[{"expiry":null,"apiFullVersion":"1.0.0","apiVersionInUri":"v1"}],"scheme":"http","nfServiceStatus":"REGISTERED","fqdn":"ocnssf2-ingress-gateway.ocnssf.svc","interPlmnFqdn":null,"ipEndPoints":[{"ipv4Address":"10.224.45.179","transport":"TCP","port":80}],"allowedNfTypes":["AMF","NSSF"],"priority":1,"capacity":1,"load":2}]}]
         enableF3=true
         enableF5=true
         renewalTimeBeforeExpiry=3600
         validityTime=30
         enableSubscriptionAutoRenewal=true
         nfHeartbeatRate=80
         acceptAdditionalAttributes=false
         retryForCongestion=5
         enableVirtualNrfResolution=true
         virtualNrfFqdn=nrfstub.changeme-ocats.svc
         virtualNrfScheme=https

2. In the above configuration, since "enableVirtualNrfResolution=true" and "virtualNrfFqdn=nrfstub.changeme-ocats.svc" have been set, the NRF client management attempts to contact the Egress Gateway, and Egress Gateway attempts to connect Alternate Route Service for virtual FQDN Resolution. In this service, we configure static settings related to the FQDN, as shown below:

   #Static virtual FQDN Config
   staticVirtualFqdns:
     - name: https://abc.test.com
       alternateFqdns:
         - target: amf-stubserver.changeme-ocats
           port: 8080
           priority: 10
         - target: nrf-stubserver.changeme-ocats
           port: 8080
           priority: 20
     - name: http://xyz.test.com
       alternateFqdns:
         - target: amf-stubserver.changeme-ocats
           port: 8080
           priority: 10
         - target: nrf-stubserver.changeme-ocats
           port: 8080
           priority: 20

   According to the static virtual FQDN configuration under ARS, there is no record for the FQDN "virtualNrfFqdn=nrfstub.changeme-ocats.svc". As a result, ARS will attempt to resolve this FQDN by contacting the default CoreDNS server (the default Kubernetes cluster DNS server). To ensure proper resolution, we need to point ARS to the DNS stub we installed by editing the ARS deployment file after deploying NSSF.

3. Before running ATS Test suite, nrf-client-nfdiscovery and nrf-client-nfmanagement pods has to be restarted. Here are the steps to edit the "alternate route service" deployment pointing towards DNS Stub:
   1. Run the follwing command to get the list of pods:

      $ kubectl get pods -n <namespace>

      For example:

      $ kubectl get pods -n ocnssf

      Expected sample response:


      NAME                                                     READY   STATUS      RESTARTS      AGE
      ocats-amf-stubserver-6f57f7f57f-bk75w                    2/2     Running     0             64m
      ocats-nrf-stubserver-5f89cdb74c-649kx                    2/2     Running     0             64m
      ocats-nssf-76cf4fc678-vrl24                              2/2     Running     0             64m
      ocdns-bind-5975fc59c8-6vllx                              2/2     Running     0             41m
      ocnssf-alternate-route-5f857d94bb-dm5vl                  2/2     Running     0             40m                                            0/1     Completed   0             30m

   2. Run following command to get searches information from dns-bind pod to enable communication between Alternate Route and dns-bind service:

      kubectl exec -it <dnsbind-pod> -n <NAMESPACE> -- /bin/bash -c 'cat /etc/resolv.conf' | grep search | tr ' ' '\n' | grep -v 'search'

      For example:


      $ kubectl exec -it ocdns-bind-5975fc59c8-6vllx -n ocnssf -- /bin/bash -c 'cat /etc/resolv.conf' | grep search | tr ' ' '\n' | grep -v 'search'


      Expected sample response:

      ocnssf.svc.cluster.local
      svc.cluster.local
      cluster.local
      gbucdsint02phx.oraclevcn.com
      snphxprshared1.gbucdsint02phx.oraclevcn.com

   3. By default alternate service will point to CoreDNS and you will see following settings in deployment file. Now, edit alternate route service deployment and add configuration as below:

      $ kubectl edit deployment ocnssf-alternate-route -n <NAMESPACE>

      For example:

      $ kubectl edit deployment ocnssf-alternate-route -n ocnssf

      terminationMessagePath: /dev/termination-log
        terminationMessagePolicy: File
      dnsPolicy: ClusterFirst
      restartPolicy: Always

   4. Edit the deployment file to add following content in alternate service to query DNS stub:
      • Add the nameservers IPaddress which you recorded after installing the DNS stub (cluster IP of DNS Stub)
      • Add all the search information one by one which you recorded earlier.
      • Set dnsPolicy to "None"

      dnsConfig:
        nameservers:
        - <dns_stub_cluster_ip_address>
        searches:
        - dns-bind search
        - dns-bind search
        - dns-bind search
        dnsPolicy: None

      $ kubectl get svc -n ocnssf

      Expected sample response:


      NAME                                    TYPE           CLUSTER-IP      EXTERNAL-IP   PORT(S)             AGE
      dnssim                                  ClusterIP      10.96.65.56     <none>        53/UDP,6236/TCP     48m

      For example:

      terminationMessagePath: /dev/termination-log
        terminationMessagePolicy: File
      dnsConfig:
        nameservers:
        - 10.96.65.56
        searches:
        - ocnssf.svc.cluster.local
        - svc.cluster.local
        - cluster.local
        - gbucdsint02phx.oraclevcn.com
        - snphxprshared1.gbucdsint02phx.oraclevcn.com
      dnsPolicy: None
      restartPolicy: Always

Verification

Use the following curl command to verify the setup:

curl -v --http2-prior-knowledge -X GET "http://ocnssf-alternate-route:80/lookup?fqdn=nf1stub.ocnssf.svc&scheme=h
ttp"

Expected sample response:

Note: Unnecessary use of -X or --request, GET is already inferred.
*   Trying 10.96.194.219...
* TCP_NODELAY set
* Connected to ocnssf-alternate-route (10.96.194.219) port 80 (#0)
* Using HTTP2, server supports multi-use
* Connection state changed (HTTP/2 confirmed)
* Copying HTTP/2 data in stream buffer to connection buffer after upgrade: len=0
* Using Stream ID: 1 (easy handle 0x55b19b19c6f0)
> GET /lookup?fqdn=nf1stub.ocnssf.svc&scheme=http HTTP/2
> Host: ocnssf-alternate-route
> User-Agent: curl/7.61.1
> Accept: */*
>
* Connection state changed (MAX_CONCURRENT_STREAMS == 2147483647)!
< HTTP/2 200
< content-type: application/json
< date: Tue, 08 Oct 2024 05:48:02 GMT
< x-envoy-upstream-service-time: 5
<
* Connection #0 to host ocnssf-alternate-route left intact
[{"target":"ocats-amf-stubserver.ocnssf.svc","port":8080,"ttl":86400,"type":"SRV","dclass":"IN","priority":1,"weight":60},{"target":"ocats-nrf-stubserver.ocnssf.svc","port":8080,"ttl":86400,"type":"SRV","dclass":"IN","priority":20,"weight":20},{"target":"ocats-nrf-stubserver1.ocnssf.svc","port":8080,"ttl":86400,"type":"SRV","dclass":"IN","priority":30,"weight":20}][ocnrfusr@ocnssf-ocnssf-nrf-client-nfmanagement-744ff58956-tfr5g app]$
