Running NF Test Cases Using ATS

4 Running NF Test Cases Using ATS

This section describes how to run NF test cases using ATS. It includes:

4.1 Running NRF Test Cases using ATS

4.1.1 Prerequisites

To run NRF test cases using NRF ATS 26.1.201, you need to ensure that following prerequisites are met.

For three-site georedundancy test cases, deploy NRF 26.1.201 on three sites with database replication enabled. The georedundancy feature must be enabled on all NRF sites before running these test cases.
For two-site georedundancy test cases, deploy NRF 26.1.201 on two sites with database replication enabled. These test cases are run separately, as they require two different NRFs. They can also be run in a three-site georedundancy setup. The georedundancy feature must be enabled on all NRF sites before running these test cases.
For NRF-Growth test cases, deploy two standalone NRF 26.1.201 instances. These test cases are run separately, as they require two different NRFs.
All the ATS pipelines other than georedundancy, three-site georedundancy, and NRF Growth, must be run with only one NRF deployment (standalone NRF).
The following NRF database tables should not have any entries:
- nrfApplicationDB.NfInstances
- nrfApplicationDB.NfStatusMonitor
- nrfApplicationDB.NfSubscriptions
NRF instances should be deployed with the default Helm and REST configurations, except for ocnrfHost and ocnrfPort.
For NF-FQDN-Authentication-Feature test cases, deploy both NRF and NRF ATS, with the NF Authentication feature changes.
All microservices of NRF must be up and running including Alternate route and Artisan microservices.
To run Alerts test cases, configure NRF Alerts on the AlertManager on the Prometheus server. For more details on configuring alerts, see Oracle Communications Cloud Native Core, Network Repository Function Installation, Upgrade, and Fault Recovery Guide.
Before deploying NRF, create RSA and ECDSA certificates and keys (public and private) for AccessToken microservice.
Deploy NRF 26.1.201 with default helm configurations using helm charts to run all test cases except for NF-FQDN-Authentication-Feature cases.
Ensure all NRF microservices are up and running including Accesstoken microservice. Keys with RSA and ECDSA algorithm are mandatory.
Copy the ECDSA and RSA public keys to the ATS pod at /var/lib/jenkins/ocnrf_tests/public_keys, naming them ec_public.pem and rs_public.pem , respectively. Then, create a duplicate of rs_public.pem and save it as new_public.pem in the same directory.
Create JSON files for key and certificate details and copy them to ATS at /var/lib/jenkins/ocnrf_tests/ location. Refer to KID feature specific Prerequisite.
Deploy ATS using helm charts.
For NRF 26.1.201, deploy five stub servers for running Roaming, SLF, Forwarding, and SLF via SCP functionality test cases. The service name for the stub servers must be notify-stub-service, notify-stub-service02, notify-stub-service03, amf1-cluster1-net2-amf-5gc-mnc016-mcc310-3gppnetwork-org, and slf-stub-service01.
The slf-stub-service01 stub must be deployed with service port as 80. For more information, see Installing ATS for NRF.

Replace the existing content with the following content in the alternate-route section of the ocnrf_custom_values.yaml file:

The following configuration changes are required to accommodate alternate routing test cases based on the latest configuration.

staticVirtualFqdns:
    - name: https://abc.test.com
      alternateFqdns:
        - target: notify-stub-service03
          port: 8080
          priority: 10
          weight: 20
        - target: notify-stub-service03
          port: 8080
          priority: 20
          weight: 30
    - name: http://xyz.test.com
      alternateFqdns:
        - target: notify-stub-service03
          port: 8080
          priority: 10
          weight: 20
        - target: notify-stub-service03
          port: 8080
          priority: 20
          weight: 30

  dnsSrvEnabled: false

Ensure Prometheus service is up and running.
Deploy ATS and Stubs in the same namespace as NRF, as default ATS deployment is with role binding. In addition, deploy test stubs in the same namespace as NRF.
User must not initiate a job in two different pipelines at the same time.
User must not abort a running job, this may lead to data corruption in database.
For getting PVC support to retain NRF ATS environment variables and pipeline console histories, follow the installation step. By default PVC support is disabled.
If installation is done with Service mesh, the NRF must be deployed with below annotation in lbDeployments and nonlbDeployments section:
```
oracle.com/cnc: "true"
traffic.sidecar.istio.io/excludeInboundPorts: "9090,8095,8096,7,53"
traffic.sidecar.istio.io/excludeOutboundPorts: "9090,8095,8096,7,53"
```
where, first one is for connecting to Operations Services Overlay (OSO) for Alerts test cases. Second one is for connecting to ATS for fetching the metrics from pods.
If Service Mesh is enabled, then create a destination rule to fetch the metrics from the Prometheus. In most of the deployments, Prometheus is kept outside the service mesh and a destination rule is required to communicate between TLS enabled entity (ATS) and non-TLS enabled entity (Prometheus).
To create a rule:
```
kubectl apply -f - <<EOF
apiVersion:networking.istio.io/v1alpha3
kind:DestinationRule
metadata:
  name:prometheus-dr
  namespace:ocnrf
spec:
  host:oso-prometheus-server.ocnrf.svc.cluster.local
  trafficPolicy:
    tls:
      mode:DISABLE
EOF
```
In the above rule,
- name indicates the name of destination rule.
- namespace indicates where the ATS is deployed.
- host indicates the hostname of the Prometheus server.

In case NRF is deployed with network policy enabled, then before running NRF-ATS a new network policy must be created to access NRF-ATS Jenkins GUI. Following is the sample:

kubectl apply -f nodePort.yaml -n ocnrf
apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: allow-from-node-port
spec:
  podSelector:
    matchLabels:
      app: ocats-nrf
  policyTypes:
  - Ingress
  ingress:
  - ports:
    - protocol: TCP
      port: 8080

kubectl apply -f allowEgressPrometheus.yaml -n ocnrf
apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: allow-egress-prometheus
spec:
  policyTypes:
    - Egress
  podSelector:
    matchLabels:
      app: ocats-nrf
  egress:
    - ports:
        - port: 9090
          protocol: TCP
      to:
        - namespaceSelector:
            matchLabels:
              kubernetes.io/metadata.name: occne-infra
        - podSelector:
            matchLabels:
              app.kubernetes.io/name: prometheus

To run with CNE HA Prometheus, update the prom_type value in product_config/global.yaml and custom_config/global.yaml file to "cne".

Custom Folder Implementation

ATS provides custom test case folders (cust_newfeatures, cust_regression, and cust_performance) using which you can add new test cases, remove unwanted test cases, and modify existing test cases. It does not impact the original product packaged test cases available in the newfeatures, regression and performance folders. For more details, refer to Custom Folder Implementation.

Apart from cust_newfeatures and cust_regression, NRF ATS has cust_FQDNauthentication, cust_GeoRedundancy, and cust_3SiteGeo directories that contains test cases related to NF-FQDN and georedundancy respectively.

Key Identifier (KID) feature specific Prerequisite

User should create the following files with exact names and update the file content as per the naming convention used for keys and certificate along with secret name and namespace. The file names are:

set_keyDetailsList.json
set_currenKeyId.json
tokenSigningDetails.json

Sample Files

$ cat set_keyDetailsList.json
{
        "tokenSigningDetails": {
                "defaultK8SecretDetails": {
                        "k8SecretNameSpace": "ocnrf",
                        "k8SecretName": "ocnrfaccesstoken-secret"
                },
                "keyDetailsList": [{
                                "keyID": "EcdsaKid",
                                "algorithm": "ES256",
                                "privateKey": {
                                        "k8SecretName": "ocnrfaccesstoken-secret",
                                        "k8SecretNameSpace": "ocnrf",
                                        "fileName": "ecdsa_private_key.pem"
                                },
                                "certificate": {
                                        "k8SecretName": "ocnrfaccesstoken-secret",
                                        "k8SecretNameSpace": "ocnrf",
                                        "fileName": "ecdsa_certificate.crt"
                                }
                        },
                        {
                                "keyID": "RsaKid",
                                "algorithm": "RS256",
                                "privateKey": {
                                        "k8SecretName": "ocnrfaccesstoken-secret",
                                        "k8SecretNameSpace": "ocnrf",
                                        "fileName": "rsa_private_key.pem"
                                },
                                "certificate": {
                                        "k8SecretName": "ocnrfaccesstoken-secret",
                                        "k8SecretNameSpace": "ocnrf",
                                        "fileName": "rsa_certificate.crt"
                                }
                        },
                        {
                                "keyID": "newKey",
                                "algorithm": "RS256",
                                "privateKey": {
                                        "k8SecretName": "ocnrfaccesstoken-secret",
                                        "k8SecretNameSpace": "ocnrf",
                                        "fileName": "rsa_private_key.pem"
                                },
                                "certificate": {
                                        "k8SecretName": "ocnrfaccesstoken-secret",
                                        "k8SecretNameSpace": "ocnrf",
                                        "fileName": "rsa_certificate.crt"
                                }
                        }
                ]
        }
}

Note:

Update the following parameters in the above files:

k8SecretName
k8SecretNameSpace
fileName (name of the private keys and corresponding certificates)

For more information about parameter values, see Oracle Communications Cloud Native Core, Network Repository Function Installation, Upgrade, and Fault Recovery Guide.

After updating the files, copy them under the /var/lib/jenkins/ocnrf_tests/ directory.

$ cat set_currenKeyId.json
{
        "tokenSigningDetails":
                {"currentKeyID":"EcdsaKid"
        }
}

Note:

User need not update the currentKeyID name (for example: EcdsaKid), if the same file name as in keyID is used while configuring the set_currenKeyId.json file.

$ cat tokenSigningDetails.json
{
 "presentCurrentKey" : {
    "algorithm" : "ES256",
    "privateKey" : {
        "k8sSecretName" : "ocnrfaccesstoken-secret",
        "fileName" : "ecdsa_private_key.pem"
    },
    "certificate" : {
        "k8sSecretName" : "ocnrfaccesstoken-secret",
        "fileName" : "ecdsa_certificate.crt"
    }
 },
 "newCurrentKey" : {
    "algorithm" : "RS256",
    "privateKey" : {
        "k8sSecretName" : "ocnrfaccesstoken-secret",
        "fileName" : "rsa_private_key.pem"
    },
    "certificate" : {
        "k8sSecretName" : "ocnrfaccesstoken-secret",
        "fileName" : "rsa_certificate.crt"
    }
 }
}

$ cat set_currenKeyId.json
{
 "tokenSigningDetails":
   {"currentKeyID":"EcdsaKid"
   }
}

Note:

User doesn't want to update the name of the key if the same name was used while configuring.

$ cat tokenSigningDetails.json
{
 "presentCurrentKey" : {
    "algorithm" : "ES256",
    "privateKey" : {
        "k8sSecretName" : "ocnrfaccesstoken-secret",
        "fileName" : "ecdsa_private_key.pem"
    },
    "certificate" : {
        "k8sSecretName" : "ocnrfaccesstoken-secret",
        "fileName" : "ecdsa_certificate.crt"
    }
 },
 "newCurrentKey" : {
    "algorithm" : "RS256",
    "privateKey" : {
        "k8sSecretName" : "ocnrfaccesstoken-secret",
        "fileName" : "rsa_private_key.pem"
    },
    "certificate" : {
        "k8sSecretName" : "ocnrfaccesstoken-secret",
        "fileName" : "rsa_certificate.crt"
    }
 }
}

Note:

Here, user should update k8SecretName fileName (name of private keys and the corresponding certificates.

Note:

Update the following parameters in the above code snippet:

k8SecretName
fileName (name of the private keys and corresponding certificates)

For more information about parameter values, see Oracle Communications Cloud Native Core, Network Repository Function Installation, Upgrade, and Fault Recovery Guide.

After updating all the files, copy them to the ATS pod using "kubectl cp" command. Refer to the following sample commands:

$ kubectl cp tokenSigningDetails.json ocats-ocats-nrf-58fc5dcbb9-zjsks:/var/lib/jenkins/ocnrf_tests/tokenSigningDetails.json -n ocnrf
$ kubectl cp set_keyDetailsList.json ocats-ocats-nrf-58fc5dcbb9-zjsks:/var/lib/jenkins/ocnrf_tests/set_keyDetailsList.json -n ocnrf
$ kubectl cp set_currenKeyId.json ocats-ocats-nrf-58fc5dcbb9-zjsks:/var/lib/jenkins/ocnrf_tests/set_currenKeyId.json -n ocnrf
$ kubectl cp ec_public.pem ocats-ocats-nrf-58fc5dcbb9-zjsks:/var/lib/jenkins/ocnrf_tests/public_keys/ec_public.pem -n ocnrf
$ kubectl cp rs_public.pem ocats-ocats-nrf-58fc5dcbb9-zjsks:/var/lib/jenkins/ocnrf_tests/public_keys/rs_public.pem -n ocnrf
$ kubectl cp rs_public.pem ocats-ocats-nrf-58fc5dcbb9-zjsks:/var/lib/jenkins/ocnrf_tests/public_keys/new_public.pem -n ocnrf

Prerequisites to Run Testcases for the CCA-Header Feature

To run the pipeline for the CCA-Header feature, NRF must be deployed with the following changes:

During installation of NRF, the namespace, secret name and the caroot.cer file name must be provided in NRF's custom values, in ingress-gateway section, as follows:
```
ingress-gateway:
  ccaHeaderValidation:
    k8SecretName: ocingress-secret
    k8NameSpace: ocnrf
    fileName: caroot.cer
```
In NRF's custom values, metadata.ccaHeaderValidation.enabled should be set to true in the 'accesstoken_mapping' object from the ingress-gateway.routesConfig list.

Note:
If ccaHeaderValidation is enabled in NRF, only CCA-Header pipeline should be run. The other pipelines (Newfeatures, Regression, 2SiteGeo, 3SiteGeo, or FQDN-Authentication) will not work with the feature enabled.
```
ingress-gateway:
  routesConfig:
  - id: accesstoken_mapping
    uri: http://{{ template "accesstoken.service.fullname" . }}:{{ template "accesstoken.service.port" . }}
    path: /oauth2/token
    order: 4
    filters:
      controlledShutdownFilter:
        applicableShutdownStates:
            - COMPLETE_SHUTDOWN
    metadata:
        ccaHeaderValidation:
          enabled: true
```
Create a secret with the caroot.cer file provided in the ocats_ocnrf_tests_jenkinsjobs_26.1.201.tgz, using the following command. This same caroot.cer file is required to be configured in the secret to run the CCA-Header cases.
```
kubectl create secret generic <secret name> --from-file=<ca root file name> -n <namespace>
```
For example:
```
kubectl create secret generic ocingress-secret --from-file=caroot.cer -n ocnrf
```
Update the secret name from step 3 in global.yaml file in either /var/lib/jenkins/ocnrf_tests/product_config or /var/lib/jenkins/ocnrf_tests/custom_config based on the whether the pipeline will be run with Product_Config option or Custom_Config option, under the ccaHeaderSecretName parameter.

Prerequisites to Run Testcases for the NRF Growth Features

To run the pipeline for the NRF Growth feature, the following prerequisites have to be done.

Install two NRFs that are not georedundant with each other.

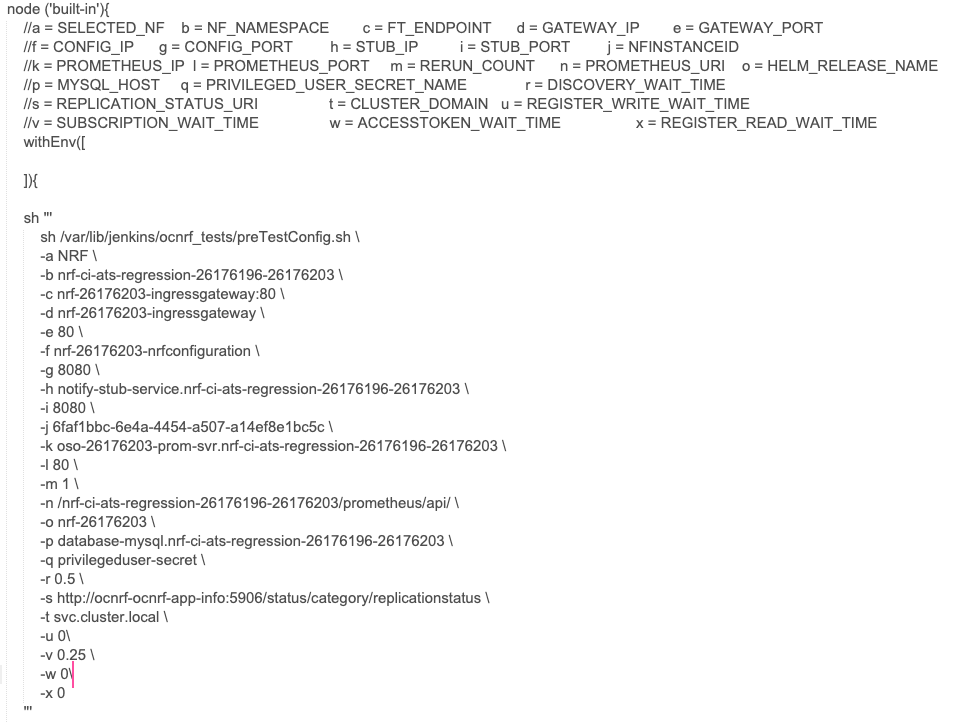

The pipeline configuration has to be set to the below before running the pipeline. The values of options "u" to "x" have to be set to 0.1.

node ('master'){
    //a = SELECTED_NF    b = NF_NAMESPACE        c = FT_ENDPOINT      d = GATEWAY_IP        e = GATEWAY_PORT
    //f = CONFIG_IP      g = CONFIG_PORT         h = STUB_IP          i = STUB_PORT         j = NFINSTANCEID
    //k = PROMETHEUS_IP  l = PROMETHEUS_PORT     m = RERUN_COUNT      n = PROMETHEUS_URI    o = HELM_RELEASE_NAME
    //p = MYSQL_HOST     q = PRIVILEGED_USER_SECRET_NAME              r = DISCOVERY_WAIT_TIME
    //s = REPLICATION_STATUS_URI                 t = CLUSTER_DOMAIN   u = REGISTER_WRITE_WAIT_TIME
    //v = SUBSCRIPTION_WAIT_TIME                 w = ACCESSTOKEN_WAIT_TIME                  x = REGISTER_READ_WAIT_TIME
    sh '''
        sh /var/lib/jenkins/ocnrf_tests/preTestConfig.sh \
        -a NRF \
        -b occne-cndbtierone,occne-cndbtiertwo \
        -c ocnrf-ingressgateway.ocnrf.svc.cluster.local:80,ocnrf-1-ingressgateway.ocnrf.svc.cluster.local:80 \
        -d ocnrf-ingressgateway.occne-cndbtierone,ocnrf-1-ingressgateway.occne-cndbtiertwo \
        -e 80,80 \
        -f ocnrf-nrfconfiguration.occne-cndbtierone,ocnrf-1-nrfconfiguration.occne-cndbtiertwo \
        -g 8080,8080 \
        -h notify-stub-service.occne-cndbtierone,notify-stub-service02.occne-cndbtierone, notify-stub-service03.occne-cndbtierone, notify-stub-service04.occne-cndbtierone \
        -i 8080,8080 \
        -j 6faf1bbc-6e4a-4454-a507-a14ef8e1bc5c,6faf1bbc-6e4a-4454-a507-a14ef8e1bc5d \
        -k oso-prom-svr.oso \
        -l 80 \
        -m 2 \
        -n /prometheus/api/ \
        -o ocnrf,ocnrf-1 \
        -p mysql-connectivity-service.occne-cndbtierone,mysql-connectivity-service.occne-cndbtiertwo \
        -q privilegeduser-secret     \
         -r 0.5 \
        -s http://ocnrf-ocnrf-app-info:5906/status/category/replicationstatus,http://ocnrf-1-ocnrf-app-info:5906/status/category/replicationstatus \
        -t svc.cluster.local \
        -u 0.1 \
        -v 0.25 \
        -w 0.1 \
        -x 0.1
    '''
    if(env.Include_NewFeatures && "${Include_NewFeatures}" == "YES"){
        sh '''sh /var/lib/jenkins/common_scripts/merge_jenkinsfile.sh'''
        load "/var/lib/jenkins/ocnrf_tests/jenkinsData/Jenkinsfile-Merged"
    }
    else{
        load "/var/lib/jenkins/ocnrf_tests/jenkinsData/Jenkinsfile-Regression"
    }

    }
}

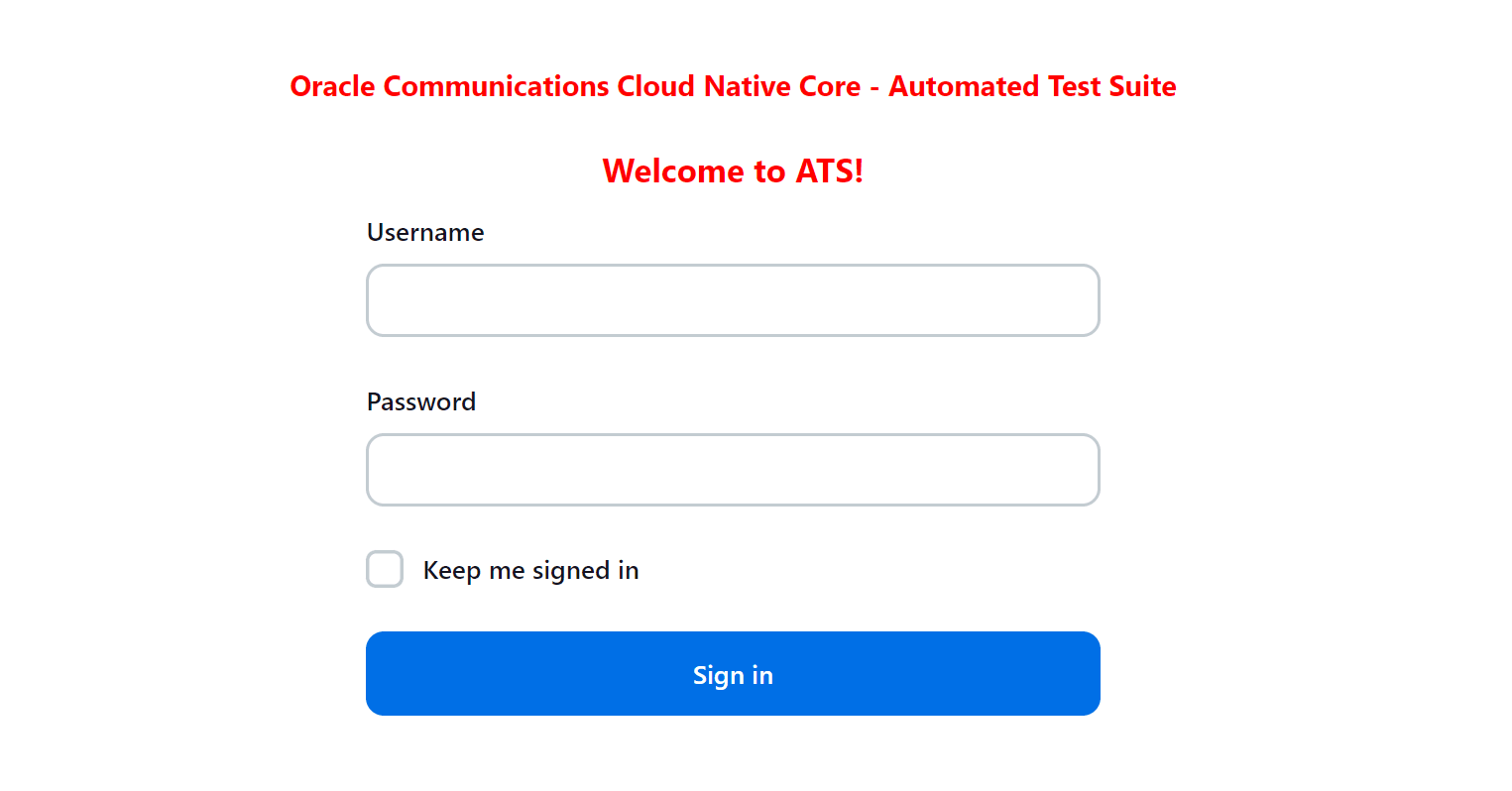

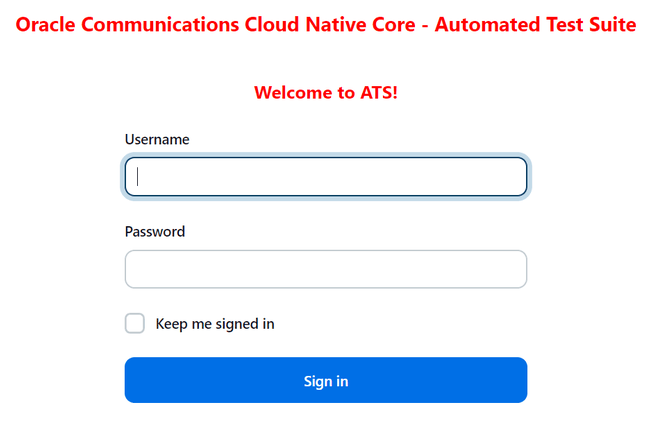

4.1.2 Logging into ATS

Running ATS

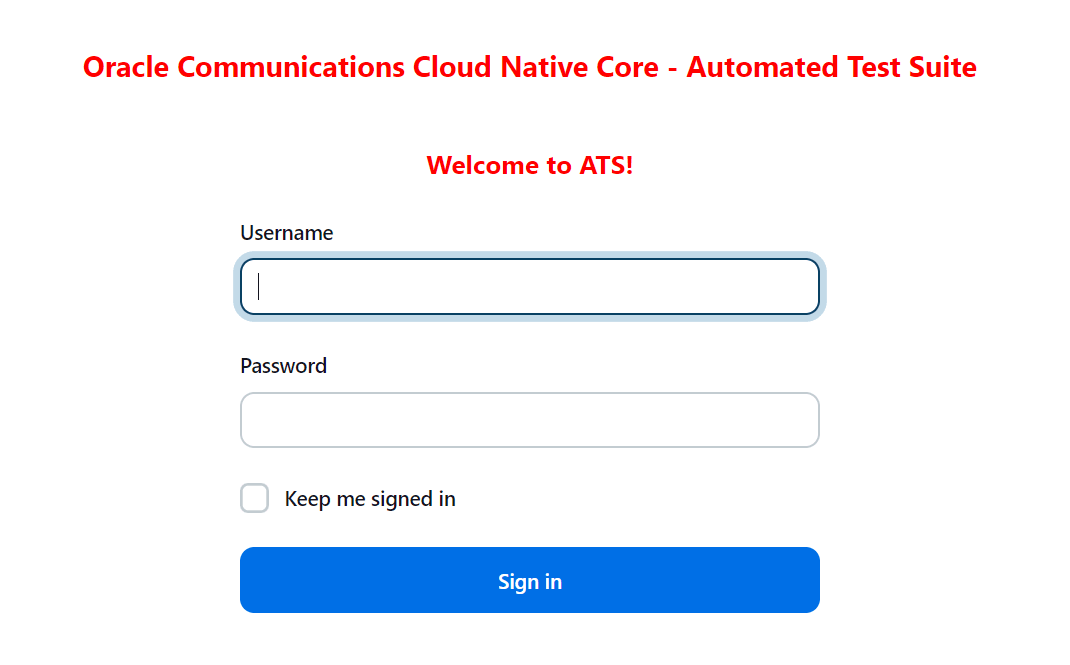

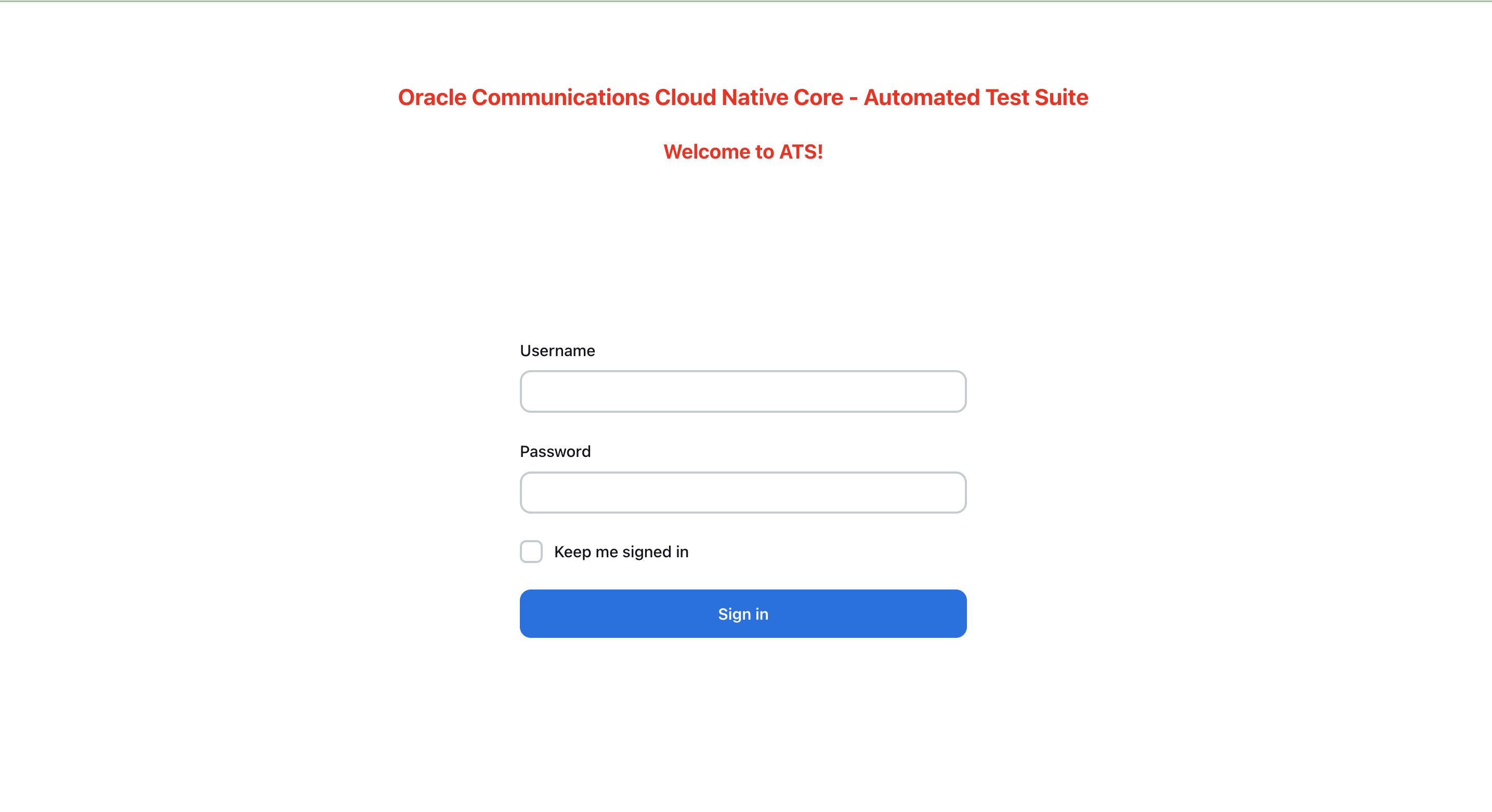

Before logging into ATS, you need to ensure that ATS is deployed successfully using Helm charts as shown below:

Note:

To modify default log in password, refer to Modifying Login Password.

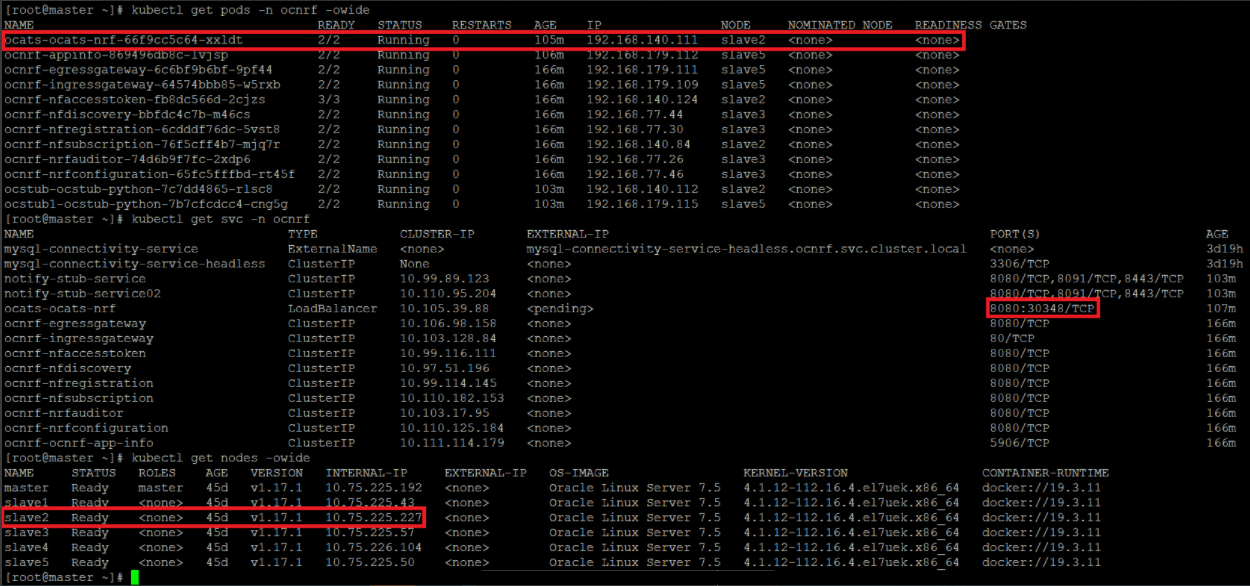

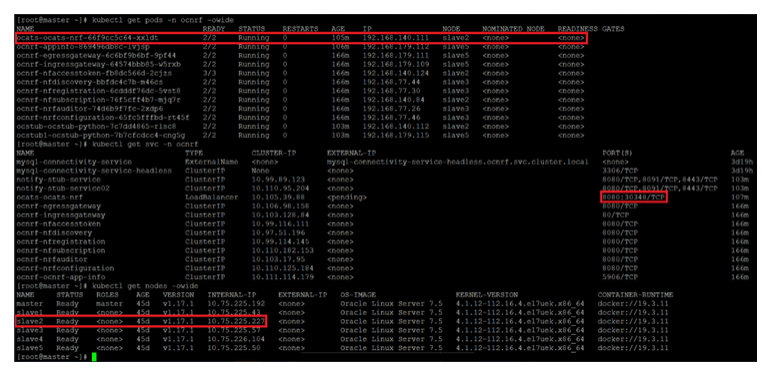

Figure 4-1 Verifying ATS Pod

For more information on verifying ATS deployment, see Verifying ATS Deployment.

Note:

In the Verifying ATS Pod screen, slave2 is the node where ATS is deployed, 30348 is the ATS nodeport and 10.75.225.227 is the worker node IP, highlighted in red. For more details on ATS deployment, refer to Installing ATS for NRF.

To log in to ATS, open a browser and provide the IP Address and port details as <Worker-Node-IP>:<Node-Port-of-ATS>. As per above screen, it is 10.75.225.227:30348.

Figure 4-2 ATS Login

To run ATS:

Enter the login credentials. Click Sign in. The following screen appears.

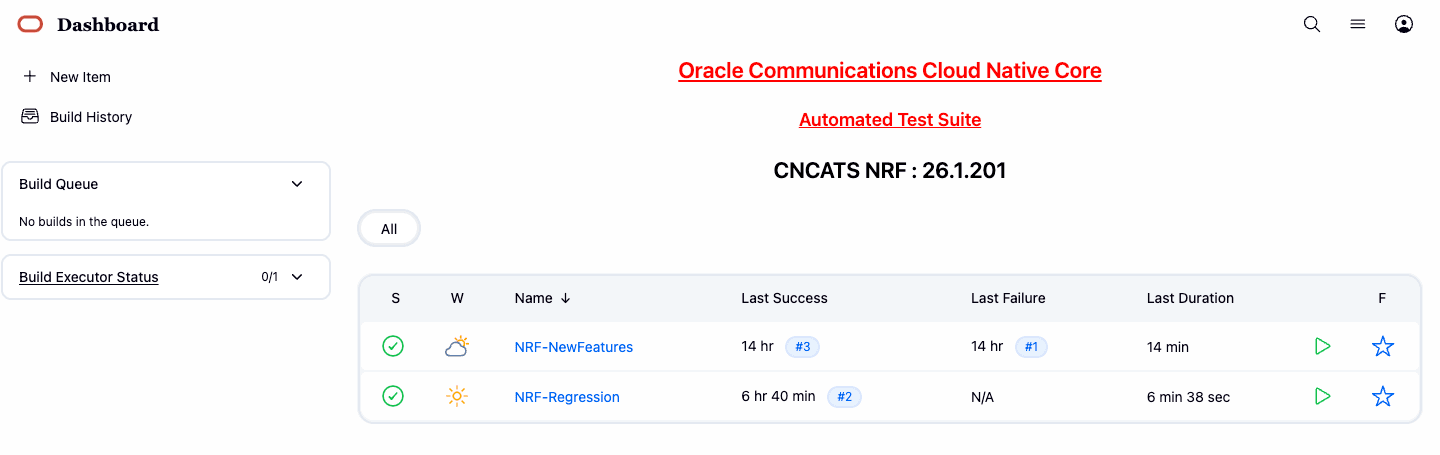

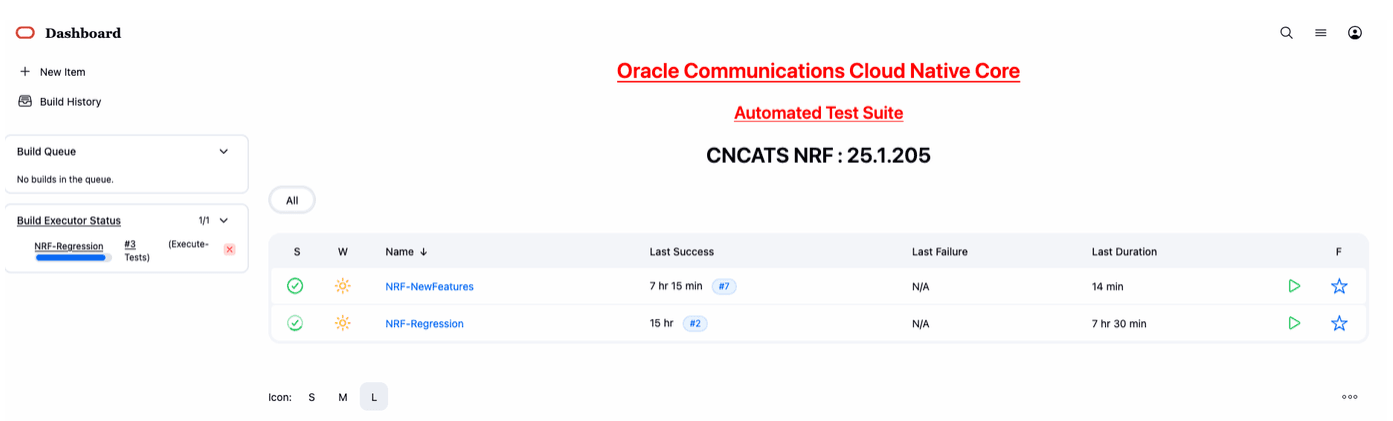

Figure 4-3 NRF Preconfigured Pipelines

NRF ATS has two pre-configured pipelines.
- NRF-NewFeatures: This pipeline has all the test cases delivered as part of NRF ATS - 26.1.201.
- NRF-Regression: This pipeline has all the test cases delivered so far in the previous releases.

4.1.3 NRF-NewFeatures Pipeline

After identifying the NRF pipelines, configure ATS as one-time activity as per NRF deployment. In this pipeline, all the new testcases related to NRF are deployed. To configure its parameters:

Click NRF-NewFeatures in the Name column. The following screen appears:Configuring NRF-NewFeatures

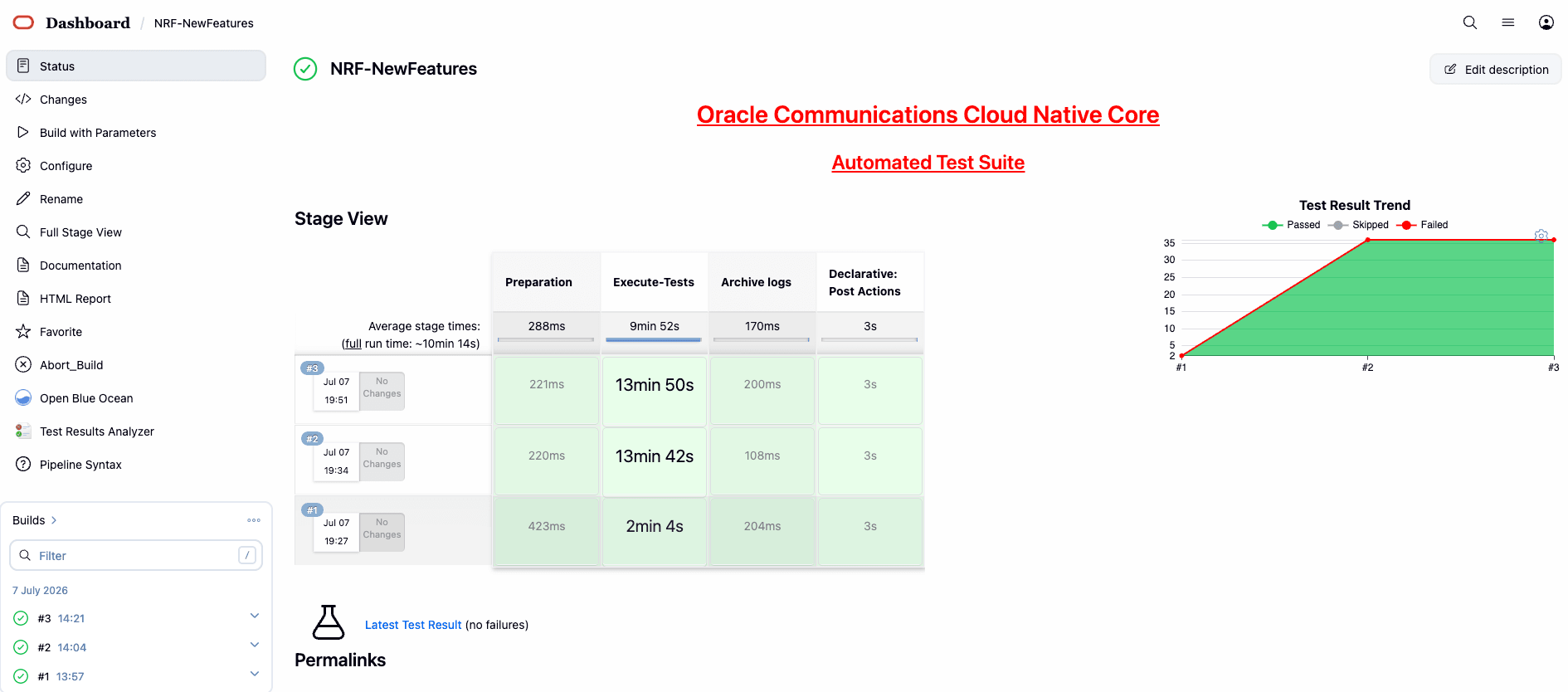

Figure 4-4 Configuring NRF-NewFeatures
In the above screen:
- Click Configure to configure NRF-New Features.
- Click Documentation to view the documented test cases, which are part of this NRF release.
- Click the blue dots inside Build History box to view the success console logs of the "Sanity", "All-NewFeatures" respectively.
- The Stage View represents the already deployed pipeline for the customer reference.
- The Test Results Analyzer is the new plugin integrated in the NRF-ATS. This option can be used to display the previous history of all the execution build-wise. It will provide a graphical representation of the past execution together.

Click Configure. User must wait for the page to load completely. Once the page loads completely, click the Pipeline tab:

Note:

Make sure that the following page loads completely before you perform any action on it. Also, do not modify any configuration other than shown below.

Figure 4-5 Pipeline Tab

The Pipeline section of the configuration page appears as follows:

Figure 4-6 Preconfigured pipeline

In the above screenshot, change the values of the 'Pipeline script'. The content of the pipeline script is as follows:

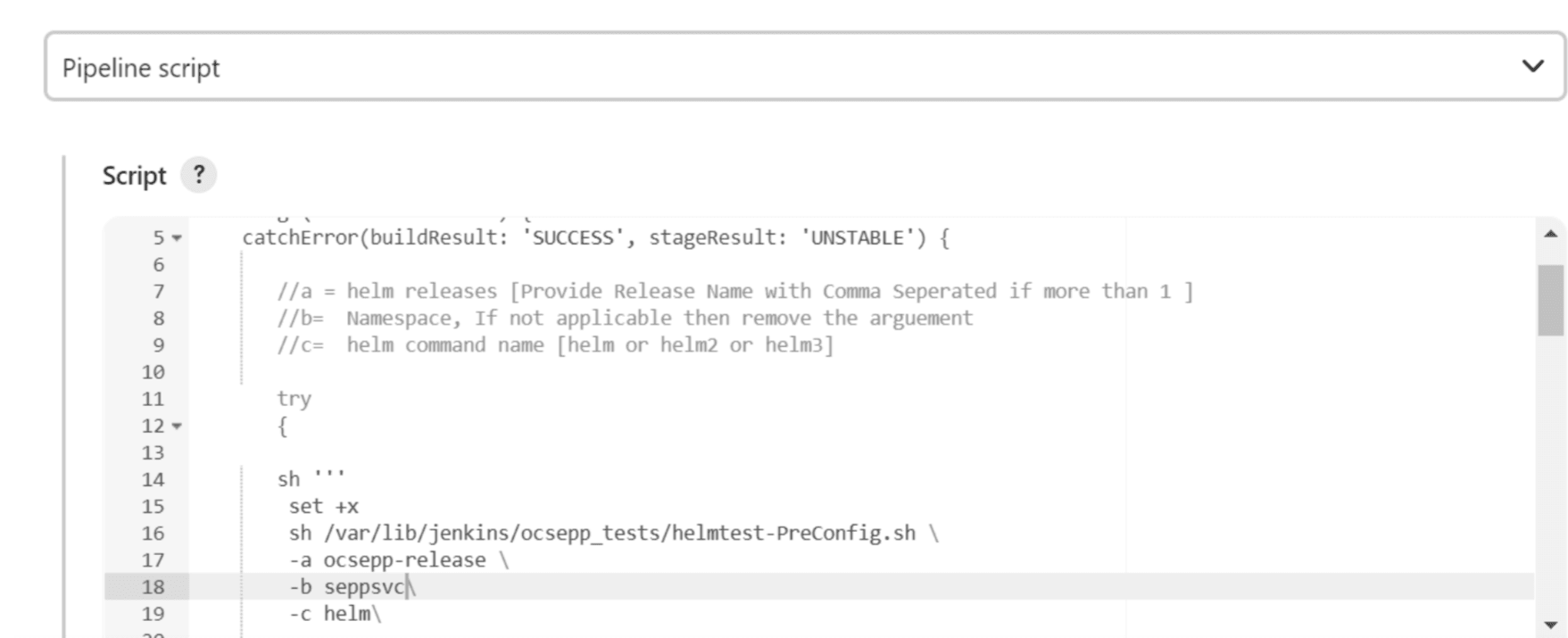

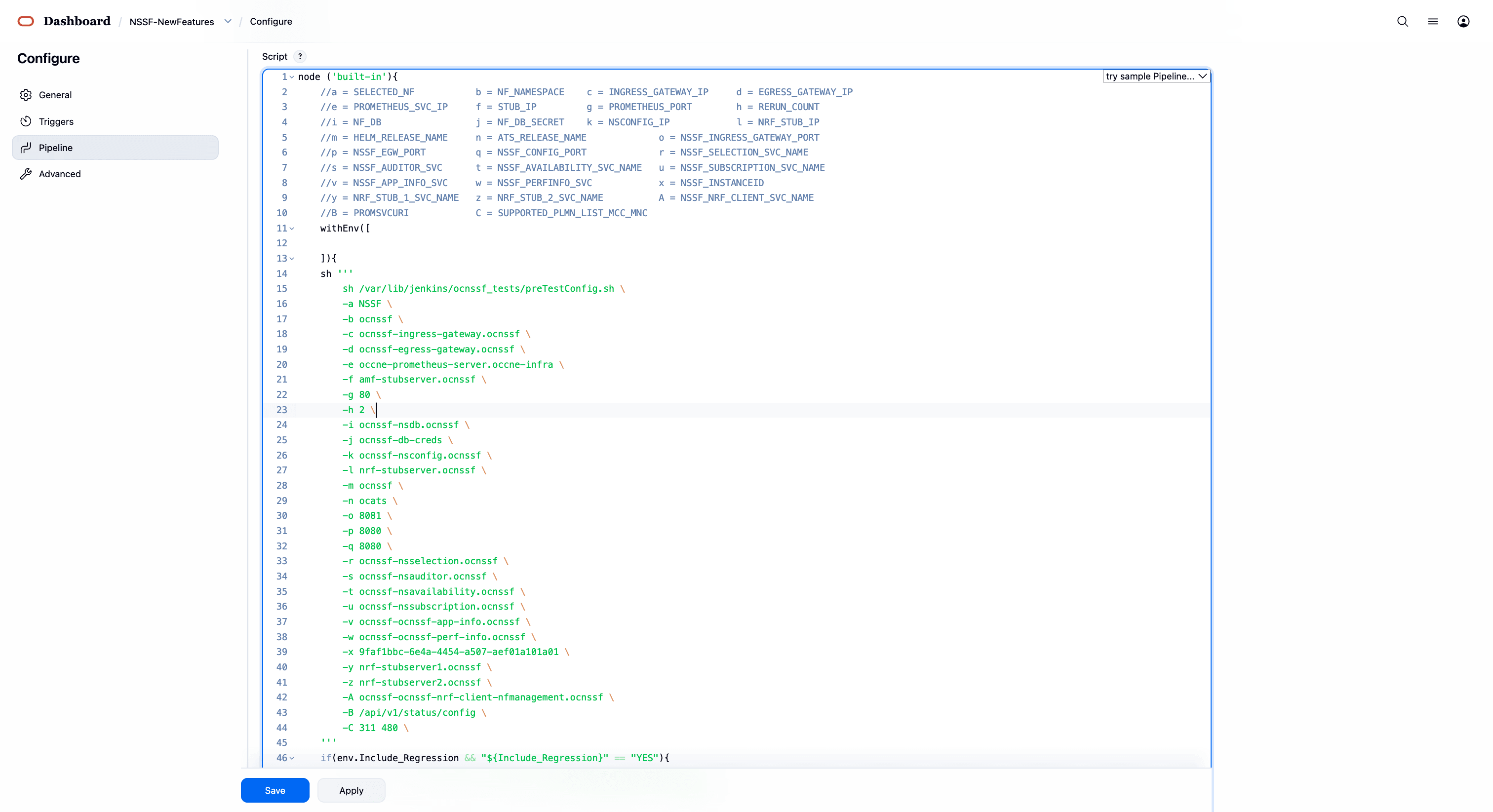

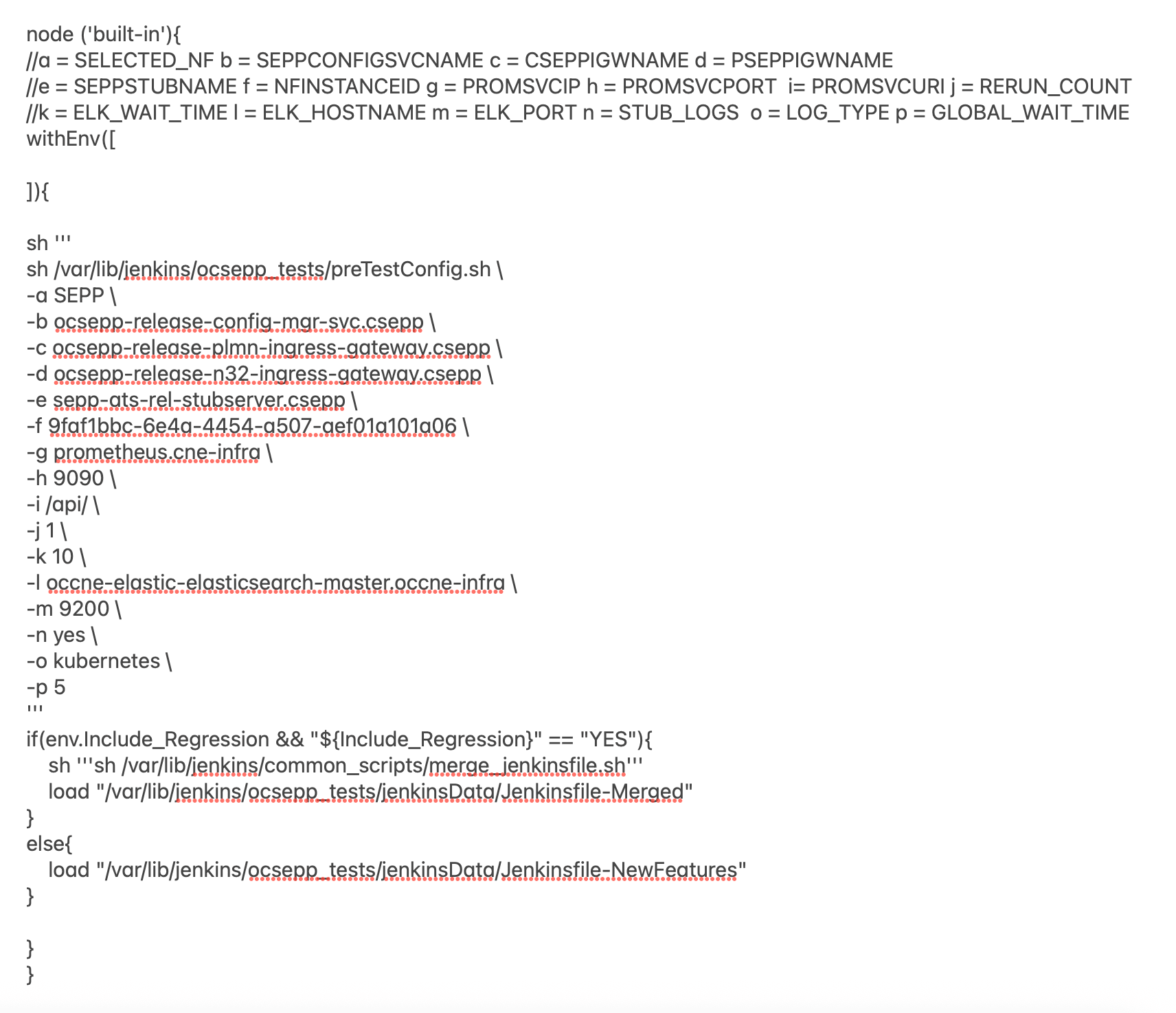

Figure 4-7 Pipeline script

Note:

The user must not change any other value apart from line number 15 to line 37.

You can change the parameter values from "a" - to - "x" as per user requirement. The parameter details are available as comments from line number 2 - to - 7.

a: Name of the NF to be tested in capital (NRF).
b: Namespace in which the NRF is deployed.
c: endPointIP: endPointPort value used while deploying NRF with the help of helm chart.
d: Comma separated values of NRF1 and NRF2 ingress gateway service (For example: ocnrf-ingressgateway.ocnrf,1.1.1.1). It is also known as cluster_domain.
e: Comma separated values of NRF1 and NRF2 port of ingressgateway service (For example: 80,31000).
f: Comma separated values of NRF1 and NRF2 configuration service (For example: ocnrf-nrfconfiguration.ocnrf,1.1.1.1). It is also known as cluster_domain.
g: Comma separated values of NRF1 and NRF2 port of configuration service (For example: 8080, 31001).
h: Name_of_stub_service.namespace (notify-stub-service.ocnrf).

Note:
Ensure that all the stubs are added to the pretest config after bringing up the deployment.
i: Port of stub service (8080).
j: NRF_Instance ID (6faf1bbc-6e4a-4454-a507-a14ef8e1bc5c).
k: Name_of_Prometheus_service.namespace (occne-prometheus-server.occne-infra).
l: Port of Prometheus service (80).
m: Number of times the re-run of failed case is allowed (default as 2).
n: URI of Prometheus service (/api/) -
- Use "/api/" for CNE version till 1.6.0 and "/prometheus/api/" for CNE version 1.7.0 and 1.8.0.
- For, CNE 1.9.x, CNE 1.10.x, and CNE 22.1.0, cluster name is needed in the URI. The URI must be <cluster_name>/prometheus/api. For example: /bmw/prometheus/api (For more details on the Prometheus URI, check corresponding CNE version's user guide.)
- If OSO is being used, use "/api/" for OSO-1.6.1 or earlier and use "/prometheus/api/" for OSO-1.6.2 or later.
- For OSO-1.10.0, the URI must be <cluster_name>/prometheus/api. For example: /bmw/prometheus/api (For more details on the Prometheus URI, check corresponding OSO version's user guide)
o: Helm_release_name used to deploy NRF
p: Host name of MySQL (For example: mysql-connectivity-service)
q: Privileged User secret name (For example: privilegeduser-secret)
r: wait time before sending discovery request (0.5)
s: comma-separated values of replicationStatusUri(s) of the appinfo(s).
t: the cluster domain
u: wait time before sending registration requests for write operations
v: wait time before sending subscription requests
w: wait time before sending accesstoken requests
x: wait time before sending registration requests for read operation

Note:

If the 2-Site-Geo cases are run, the user has to provide values for NRF2 in corresponding environment variables in the above script as per the deployment. A sample configuration is given as below:

node ('master'){
    //a = SELECTED_NF    b = NF_NAMESPACE        c = FT_ENDPOINT      d = GATEWAY_IP        e = GATEWAY_PORT
    //f = CONFIG_IP      g = CONFIG_PORT         h = STUB_IP          i = STUB_PORT         j = NFINSTANCEID
    //k = PROMETHEUS_IP  l = PROMETHEUS_PORT     m = RERUN_COUNT      n = PROMETHEUS_URI    o = HELM_RELEASE_NAME
    //p = MYSQL_HOST     q = PRIVILEGED_USER_SECRET_NAME              r = DISCOVERY_WAIT_TIME
    //s = REPLICATION_STATUS_URI                 t = CLUSTER_DOMAIN   u = REGISTER_WRITE_WAIT_TIME
    //v = SUBSCRIPTION_WAIT_TIME                 w = ACCESSTOKEN_WAIT_TIME                  x = REGISTER_READ_WAIT_TIME
    sh '''
        sh /var/lib/jenkins/ocnrf_tests/preTestConfig.sh \
        -a NRF \
        -b occne-cndbtierone,occne-cndbtiertwo \
        -c ocnrf-ingressgateway.ocnrf.svc.cluster.local:80,ocnrf-1-ingressgateway.ocnrf.svc.cluster.local:80 \
        -d ocnrf-ingressgateway.occne-cndbtierone,ocnrf-1-ingressgateway.occne-cndbtiertwo \
        -e 80,80 \
        -f ocnrf-nrfconfiguration.occne-cndbtierone,ocnrf-1-nrfconfiguration.occne-cndbtiertwo \
        -g 8080,8080 \
        -h notify-stub-service.occne-cndbtierone,notify-stub-service02.occne-cndbtierone \
        -i 8080,8080 \
        -j 6faf1bbc-6e4a-4454-a507-a14ef8e1bc5c,6faf1bbc-6e4a-4454-a507-a14ef8e1bc5d \
        -k oso-prom-svr.oso \
        -l 80 \
        -m 2 \
        -n /prometheus/api/ \
        -o ocnrf,ocnrf-1 \
        -p mysql-connectivity-service \
        -q privilegeduser-secret     \
        -r 0.5 \
        -s http://ocnrf-ocnrf-app-info:5906/status/category/replicationstatus,http://ocnrf-1-ocnrf-app-info:5906/status/category/replicationstatus \
        -t svc.cluster.local \
        -u 0 \
        -v 0.25 \        -w 0 \
        -x 0
    '''
    if(env.Include_NewFeatures && "${Include_NewFeatures}" == "YES"){
        sh '''sh /var/lib/jenkins/common_scripts/merge_jenkinsfile.sh'''
        load "/var/lib/jenkins/ocnrf_tests/jenkinsData/Jenkinsfile-Merged"
    }
    else{
        load "/var/lib/jenkins/ocnrf_tests/jenkinsData/Jenkinsfile-Regression"
    }

    }
}

If 3SiteGeo and georedundancy suite in Regression pipeline cases are run, the user has to provide values for NRF2, NRF3 in corresponding environment variables in the above script as per the deployment. A sample configuration is given as below:

node ('master'){
    //a = SELECTED_NF    b = NF_NAMESPACE        c = FT_ENDPOINT      d = GATEWAY_IP        e = GATEWAY_PORT
    //f = CONFIG_IP      g = CONFIG_PORT         h = STUB_IP          i = STUB_PORT         j = NFINSTANCEID
    //k = PROMETHEUS_IP  l = PROMETHEUS_PORT     m = RERUN_COUNT      n = PROMETHEUS_URI    o = HELM_RELEASE_NAME
    //p = MYSQL_HOST     q = PRIVILEGED_USER_SECRET_NAME              r = DISCOVERY_WAIT_TIME
    //s = REPLICATION_STATUS_URI                 t = CLUSTER_DOMAIN   u = REGISTER_WRITE_WAIT_TIME
    //v = SUBSCRIPTION_WAIT_TIME                 w = ACCESSTOKEN_WAIT_TIME                  x = REGISTER_READ_WAIT_TIME
    sh '''
        sh /var/lib/jenkins/ocnrf_tests/preTestConfig.sh \
        -a NRF \
        -b occne-cndbtierone,occne-cndbtiertwo,occne-cndbtierthree \
        -c ocnrf-ingressgateway.ocnrf.svc.cluster.local:80,ocnrf-1-ingressgateway.ocnrf.svc.cluster.local:80,ocnrf-2-ingressgateway.ocnrf.svc.cluster.local:80 \
        -d ocnrf-ingressgateway.occne-cndbtierone,ocnrf-1-ingressgateway.occne-cndbtiertwo,ocnrf-2-ingressgateway.occne-cndbtierthree \
        -e 80,80,80 \
        -f ocnrf-nrfconfiguration.occne-cndbtierone,ocnrf-1-nrfconfiguration.occne-cndbtiertwo,ocnrf-2-nrfconfiguration.occne-cndbtierthree \
        -g 8080,8080,8080 \
        -h notify-stub-service.occne-cndbtierone,notify-stub-service02.occne-cndbtierone,notify-stub-service03.occne-cndbtierone \
        -i 8080,8080,8080 \
        -j 6faf1bbc-6e4a-4454-a507-a14ef8e1bc5c,6faf1bbc-6e4a-4454-a507-a14ef8e1bc5d,6faf1bbc-6e4a-4454-a507-a14ef8e1bc5e \
        -k oso-prom-svr.oso \
        -l 80 \
        -m 2 \
        -n /prometheus/api/ \
        -o ocnrf,ocnrf-1,ocnrf-2 \
        -p mysql-connectivity-service \
        -q privilegeduser-secret     \

        -r 0.5 \
        -s http://ocnrf-ocnrf-app-info:5906/status/category/replicationstatus,http://ocnrf-1-ocnrf-app-info:5906/status/category/replicationstatus,http://ocnrf-2-ocnrf-app-info:5906/status/category/replicationstatus \
        -t svc.cluster.local \
        -u 0 \
        -v 0.25 \
        -w 0 \
        -x 0
    '''
    if(env.Include_NewFeatures && "${Include_NewFeatures}" == "YES"){
        sh '''sh /var/lib/jenkins/common_scripts/merge_jenkinsfile.sh'''
        load "/var/lib/jenkins/ocnrf_tests/jenkinsData/Jenkinsfile-Merged"
    }
    else{
        load "/var/lib/jenkins/ocnrf_tests/jenkinsData/Jenkinsfile-Regression"
    }

    }
}

Note:

If user is using CNE1.6 or OSO 1.6.1 or earlier, change the Prometheus service URI (-n) to "/api/" and Prometheus service name and port to appropriate values. For CNE 1.7.0 or OSO 1.6.2 or later, retain the default value "/prometheus/api/". If OSO 1.10.0 is used, use the URI along with the cluster_name (for example: /bmw/prometheus/api).

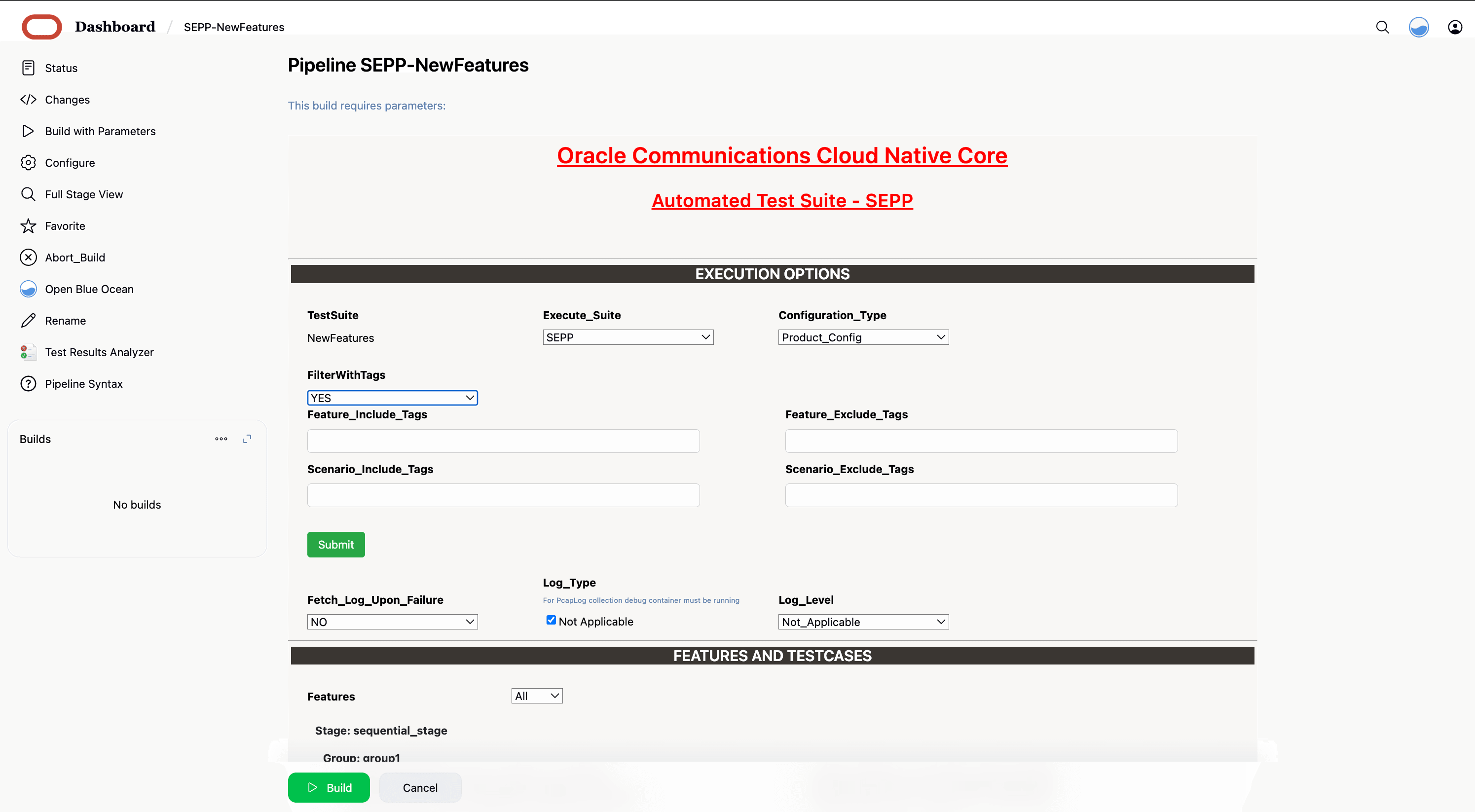

Click Save after making necessary changes. The NRF-NewFeatures screen appears. Click the Build with Parameters link available in the left navigation pane of the NRF-NewFeatures Pipeline screen.
In the Pipeline screen, there are three Select_Option(s), which are:
- All: This is the default option. It runs all the NRF test cases. Scroll down and click Build to execute all the test cases.
- Sanity: It is recommended to run sanity before running any test case. It ensures all the deployments are done properly.

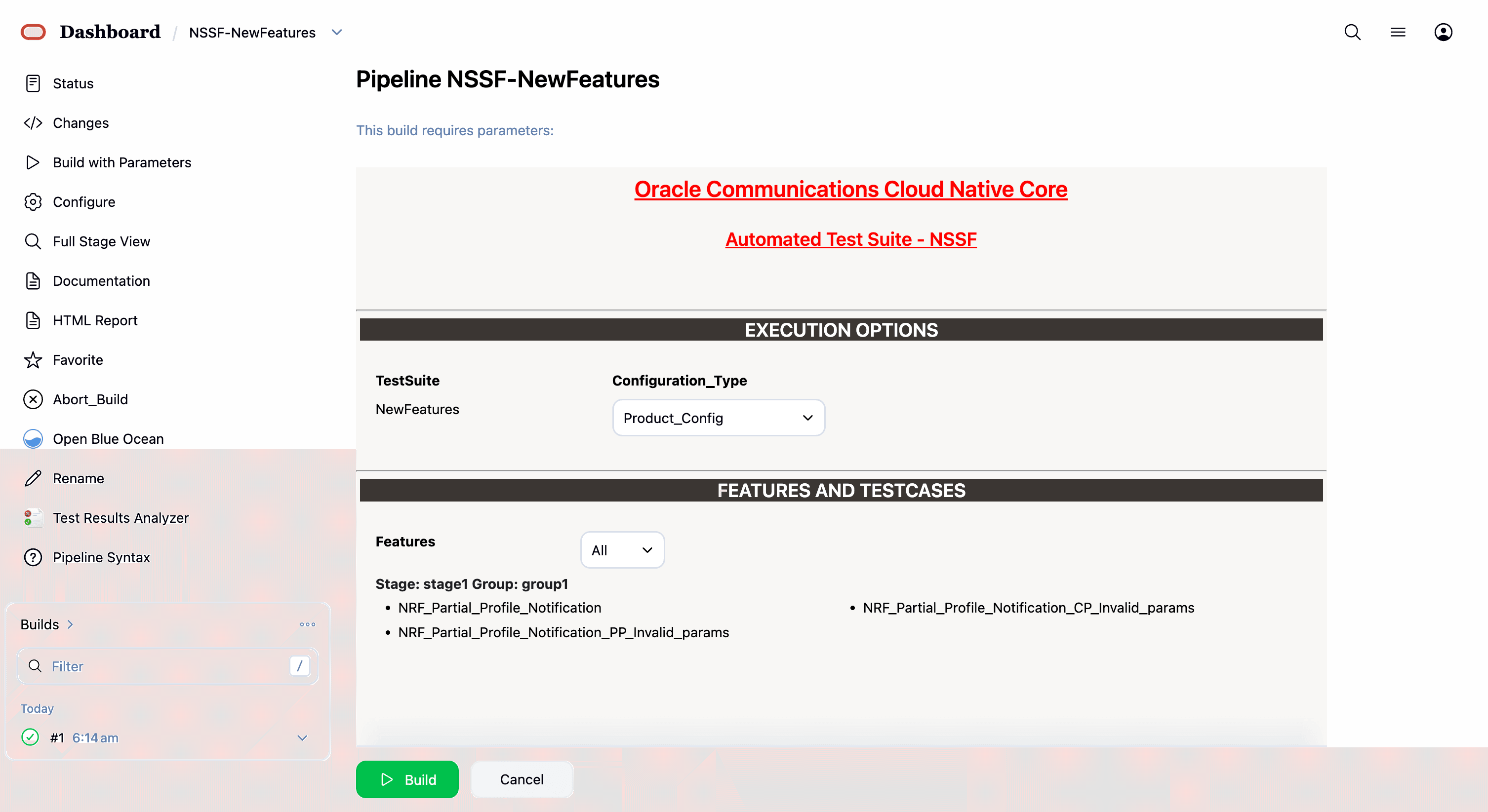

- Single/MultipleFeatures: This option allows you to select any number of test cases that you want to run from the list of total test cases available for execution.

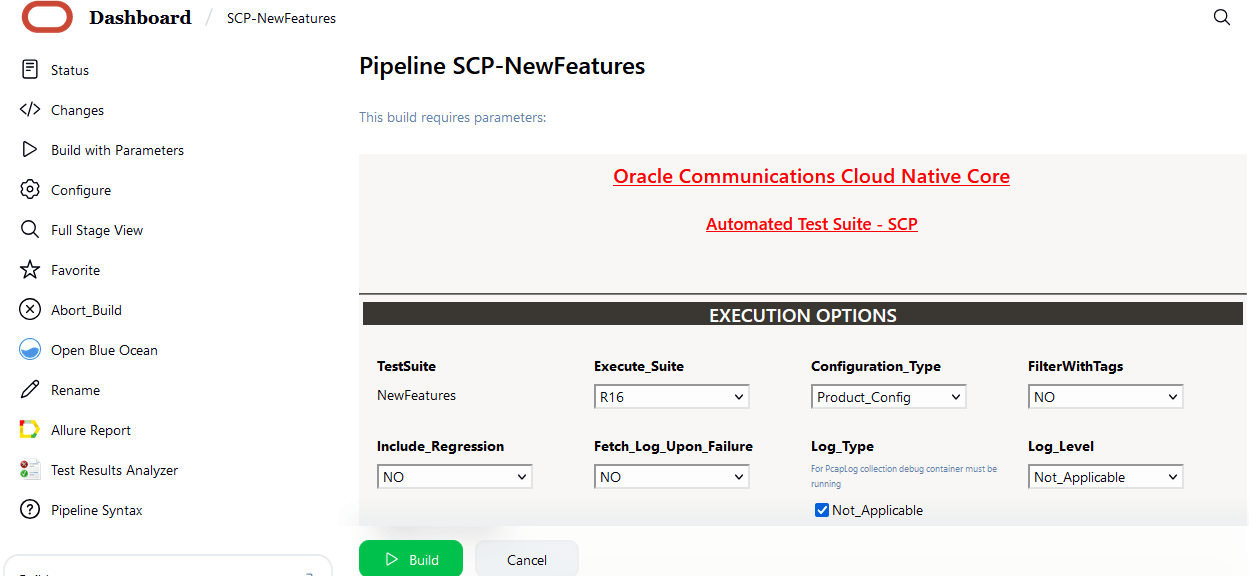

  After selecting the test cases, scroll down and click Build to run the selected NRF test cases.

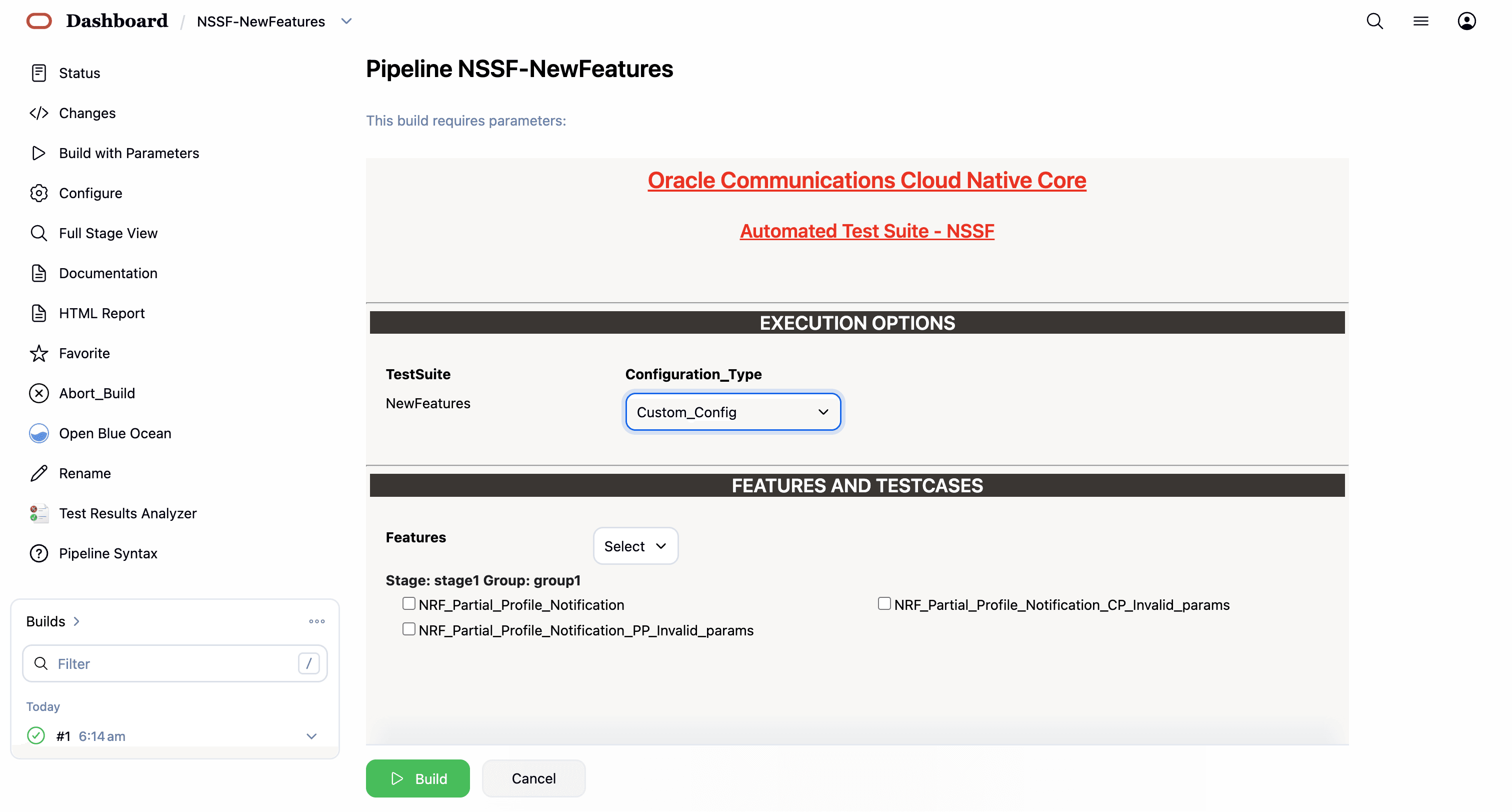

Select one of the following configuration types:
- Product_Config: On selecting this option, test cases from product folders are populated on ATS UI and product configuration is applied to them via the key-value pair and yaml files defined or present in the "Product Config" folder.
- Custom_Config: On selecting this option, test cases from custom folders are populated on ATS UI and custom configuration is applied to them via the key-value pair and yaml files defined or present in the "Custom Config" folder. To use the Parameterization feature, always select the Custom_Config option. User can copy, add, or delete the required test cases that are available for the NRF and place them appropriately within the custom folder for NRF-NewFeatures. Reload the page to view the test cases available in the custom NewFeatures folder.
  For more information, see Parameterized approach for SUT custom configuration.

Based on the requirement, user can select any of the above option and click on "Build". The NRF testcases are divided into NRF Service operations. The classification is as follows:

NRF Sanity - This feature file contains all the basic sanity cases for NRF ATS to validate the deployment is correct or not. It is advisable for user to run these cases before starting a complete suite.
Discovery - These feature files are listed with a prefix as "Disc". All the discovery microservice related cases will be listed once this option is selected.
NRF Functional - These feature files are listed with a prefix as "Feat". All the functional cases will be listed once this option is selected.
Registration - These feature files are listed with a prefix as "Upd". These are related to update operation of registered profiles. All the registration cases will be listed once this option is selected.
Subscription- These feature files are listed with a prefix as "Subs". All the subscription microservice related cases will be listed once this option is selected.
Roaming -These feature files are listed with a prefix as "Roaming". All the roaming cases will be listed once this option is selected.

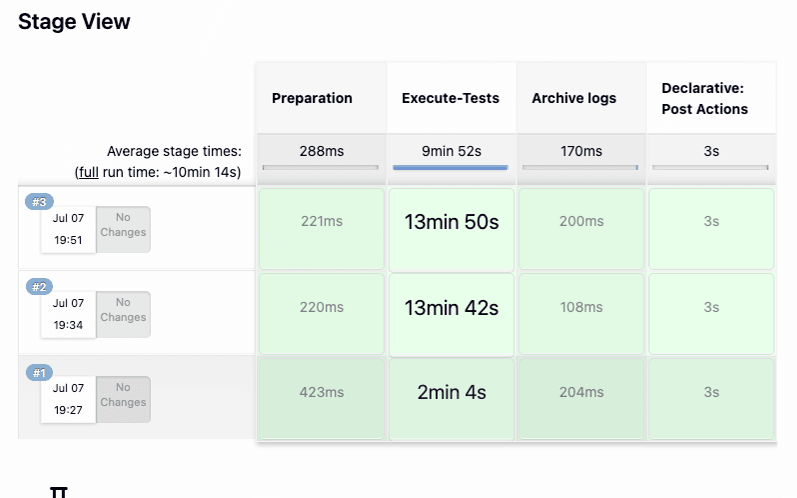

Figure 4-8 Sample Screen: NRF ATS Full Execution

A sample consolidated test report is shown below, when rerun is set to 2:

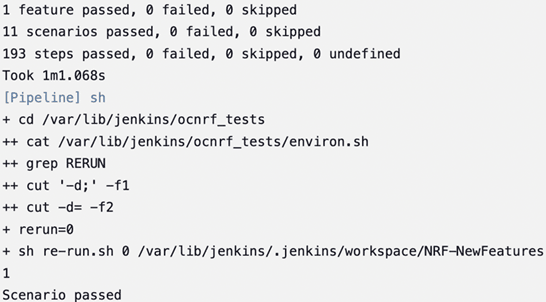

Figure 4-9 Test Cases Result - Sanity

Note:

For more details on consolidated test report, see Managing Final Summary Report, Build Color, and Application Log.

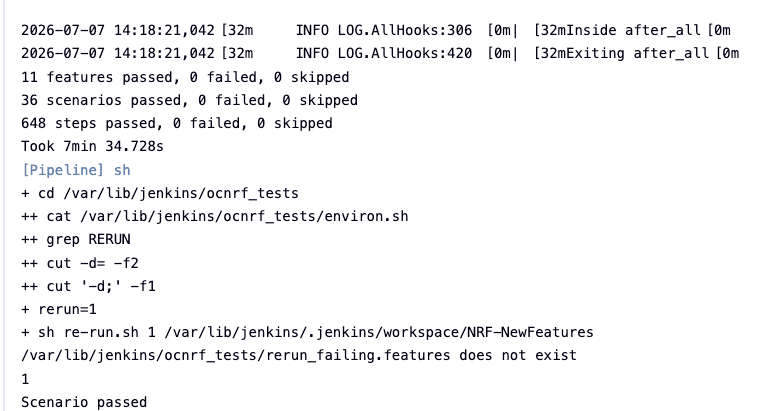

Test Cases Result - All-NewFeatures

Figure 4-10 Test Cases Result-All NewFeatures

Parameterized approach for SUT custom configuration

Using this feature, user can make the following customizations to custom folders

Add new test cases by adding datafiles
Remove test cases
Modify the parameters and their values in the key-value pair or <feature>.yaml files

To run ATS test cases, user can maintain as many versions of Custom_Config folder by using the following naming convention:

Cust ConfigN

where N can be any number

At the time of execution, ensure to rename the required folder to Cust Config folder as Jenkins always retrieves data from this folder when user selects Custom_Config.

Updating Global Parameters

To use Custom_Config, it is required to change the value of cust_folder from data to cust_data in global.yaml file. In addition, you can customize the parameters and their respective values in the global.yaml as per the requirements.

Updating Feature Parameters

Consider the following points when customizing <feature>.yaml files for parameterized feature:

In addition to global.yaml parameters, feature files may also contain parameters for which user can update values at the time of running pipelines.
Changing the values of parameters tagged as "Feature Specific Value" may cause failures at the time of running pipelines.
Values for parameters tagged with #START_GLOBAL and #END_GLOBAL tags take values from global.yaml.

Note:

For NRF-ATS release 26.1.201, parameterization is supported for NRF NewFeatures pipeline only.

4.1.4 NRF-NewFeatures Documentation

To view NRF test cases, go to NRF-NewFeatures pipeline and click the Documentation link in the left navigation pane. It lists all the test cases provided as part of NRF ATS -26.1.201 along with sanity cases.

The NRF test cases are divided into multiple groups based on the functionality.

NF_ACCESSTOKEN_CASES - All the test cases for validating accesstoken operation will be listed once this option is selected.
NF_ALERTS_CASES - Test case for validating alerts will be listed once this option is selected.
NF_ALTERNATEROUTE_CASES- All the alternate route microservice related cases will be listed once this option is selected.
NF_CHFINFO_CASES - All the ChfInfo enhancement cases will be listed once this option is selected.
NF_CONFIGURATION_CASES- All the cases related to NRF configuration will be listed once this option is selected.
NF_DISCOVERY_CASES - All the discovery microservice related cases will be listed once this option is selected.
NRF_FORWARDING_CASES - All the forwarding related cases will be listed once this option is selected.
NF_FUNCTIONAL_CASES - All the functional cases will be listed once this option is selected.
NF_KID_CASES - All the K-ID feature related cases will be listed once this option is selected.
NF_NRFSTATE_DATA_CASES - All the nfStateData related cases will be listed once this option is selected.
NF_PREFERRED_LOCALITY_CASES - All the preferred locality feature related cases will be listed once this option is selected.
NF_REGISTRATION_CASES- All the registration cases will be listed once this option is selected.
NF_ROAMING_CASES - All the roaming related cases will be listed once this option is selected.
NF_SANITY_CASES- All the sanity cases will be listed once this option is selected.
NF_SLF_CASES - All the SLF related cases will be listed once this option is selected.
NF_SMP_CASES- All the setting message priority cases will be listed once this option is selected.
NF_SUBSCRIPTION_CASES - All subscription related cases will be listed once this option is selected.

The following screenshot shows all the NRF features:

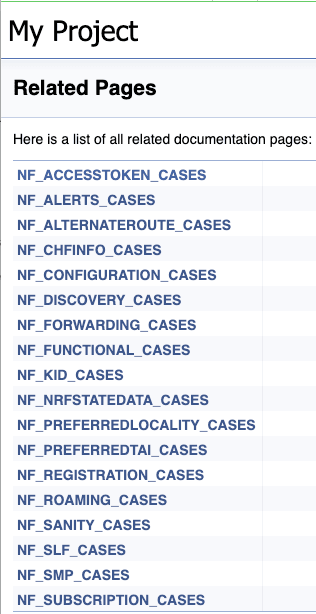

Figure 4-11 NRF-NewFeatures Documentation

Click any functionality to view its test cases and scenarios of each test case as shown below:

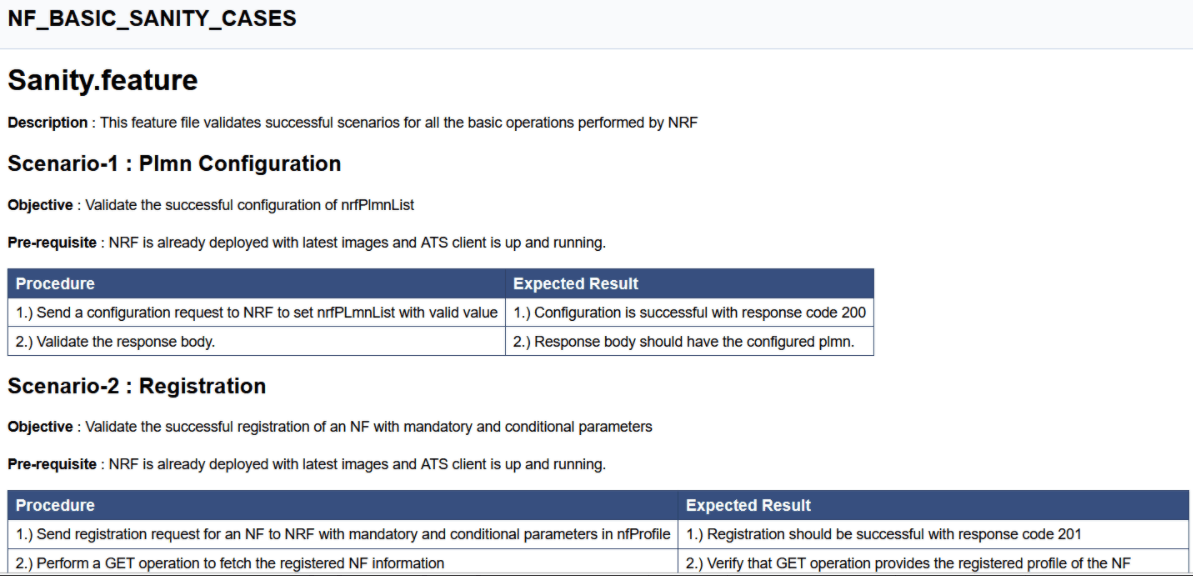

Figure 4-12 Sample Feature: NF_BASIC_SANITY_CASES

Based on the functionalities covered under Documentation, the Build Requires Parameters screen displays test cases. To navigate back to the Pipeline NRF-NewFeatures screen, click the Back to NRF-NewFeatures link available on top left corner of the screen.

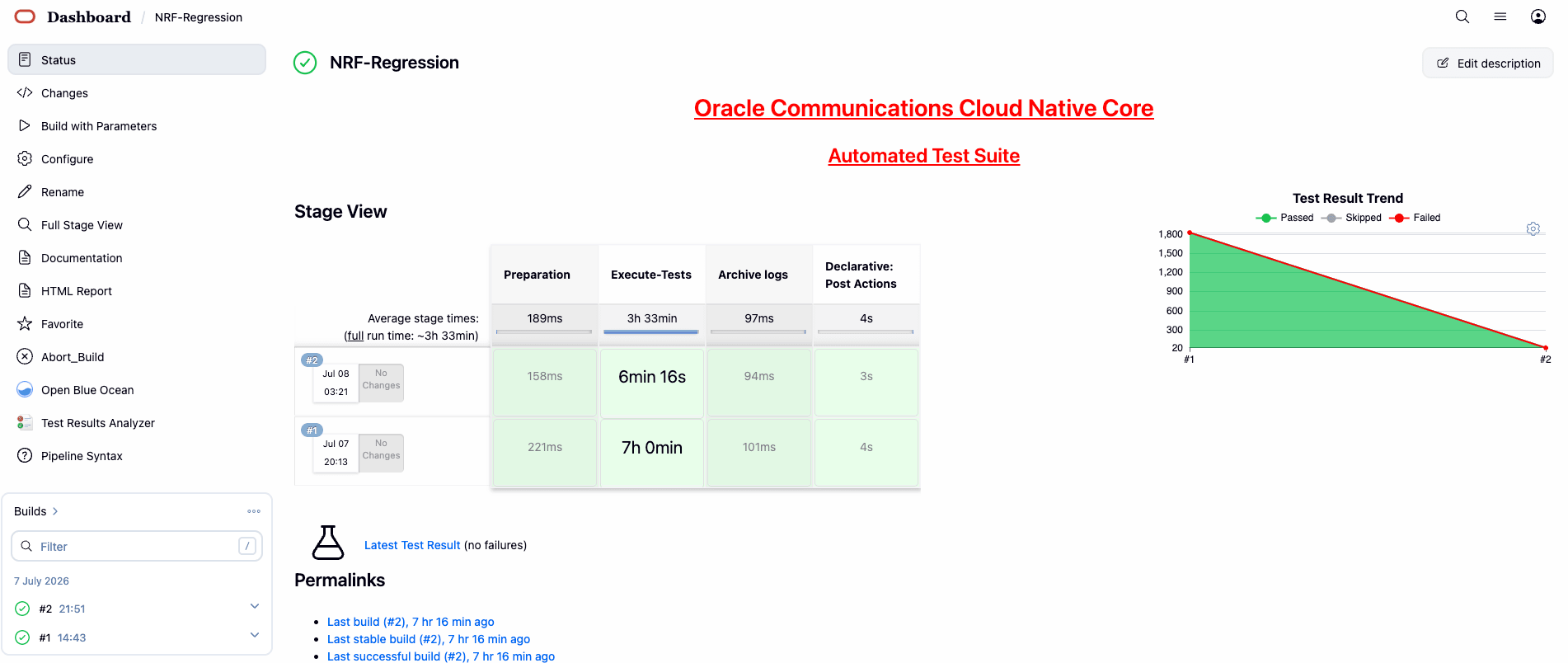

4.1.5 NRF-Regression Pipeline

This pre-configured pipeline contains all the test cases delivered till NRF ATS 26.1.201. However, some test cases are updated as per new implementation of NRF.

The configuration method and parameters are same as the NewFeatures pipeline.

Only difference in this pipeline is, while executing 2-Site-Geo and 3-Site-Geo test cases, user has to provide appropriate values for NRF2 and NRF3 in the Pipeline script. In this pipeline, user will not get option to run Sanity.

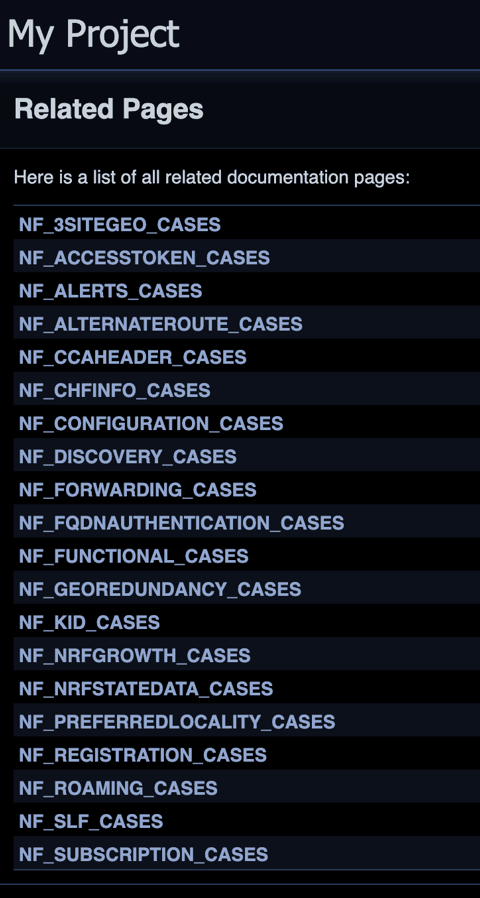

The NRF-Regression test cases are divided into following service operations:

2-Site-Geo - These feature files are listed with a prefix as "Geo_Redundancy".
3-Site-Geo- These feature files contain all the cases which are executed on 3 Site GEO NRF.
CCA-Header- These feature files contain all cases related to CCA Header feature.
NF-FQDN-Authentication - These feature files are listed with a prefix as "NfAuthentication".
AccessToken - These feature files are listed with a prefix as "oAuth" and "AccessToken".
Alerts - These feature files are list with a prefix as "Alert".
Configuration - These feature files are listed with a prefix as "Config" and "SystemOptions".
Discovery - These feature files are listed with a prefix as "Disc".
NRF Forwarding - These feature files are listed with a prefix as "Forwarding".
NRF Functional - These feature files are listed with a prefix as "Feat".
Key-ID - These feature files are listed with a prefix as "Kid".
NRF State Data - These feature files are listed with a prefix as "State".
Preferred Locality - These feature files are listed with a prefix as "Pref".
Registration - These feature files are listed with a prefix as "HBTimerEnhancement", "Reg" and "Upd". These are related to update operation of registered profiles.
NRF SLF - These feature files are listed with a prefix as "SLF".
Subscription - These feature files are listed with a prefix as "Subs".
NRF Growth - These feature files contain all cases related to NRF Growth feature.

The following screenshot shows the NRF-Regression.

Figure 4-13 NRF-Regression

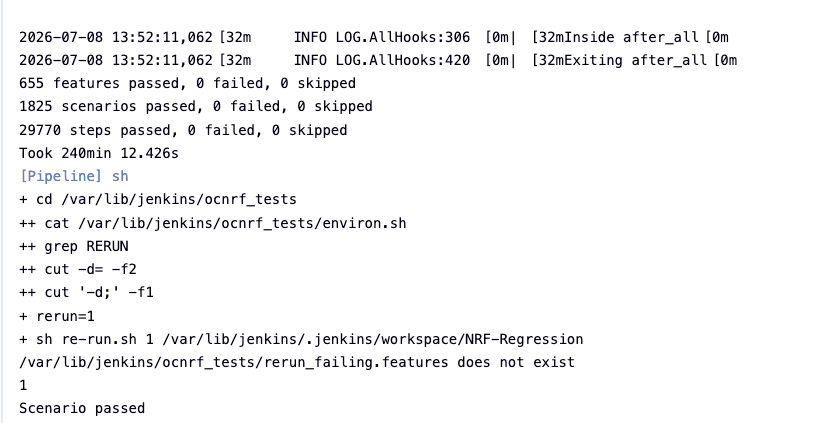

The following screenshot shows successful execution as part of ATS image.

Figure 4-14 NRF-Regression - All-default-Regression

4.1.6 NRF-Regression Documentation

Click Documentation in the left navigation pane of the NRF-Regression pipeline to view all the test cases provided till NRF ATS 26.1.201.

The NRF test cases are divided into multiple groups based on following functionalities:

NF_3SITEGEO_CASES- All the 3-Site Geo-Redundancy related cases will be listed once this option is selected.
NF_ACCESSTOKEN_CASES - All the test cases for validating accesstoken operation will be listed once this option is selected.
NF_ALERTS_CASES - Test case for validating alerts will be listed once this option is selected.
NF_ALTERNATEROUTE_CASES- All the alternate route microservice related cases will be listed once this option is selected.
NF_CCAHEADER_CASES - Cases related to CCAHeader feature will be listed once this option is selected.
NF_CHFINFO_CASES - All the ChfInfo enhancement cases will be listed once this option is selected.
NF_CONFIGURATION_CASES - Cases related to NRF configuration will be listed once this option is selected.
NF_DISCOVERY_CASES - All the discovery microservice related cases will be listed once this option is selected.
NF_FORWARDING_CASES - All the forwarding related cases will be listed once this option is selected.
NF_FQDNAUTHENTICATION_CASES - All the NF FQDN authentication cases will be listed once this option is selected.
NF_FUNCTIONAL_CASES - All the functional cases will be listed once this option is selected.
NF_GEOREDUNDANCY_CASES - All the Geo-Redundancy related cases (2-Site-GEO and 3-Site-GEO both) will be listed once this option is selected.
NF_KID_CASES - All the K-ID feature related cases will be listed once this option is selected.
NF_NRFGROWTH_CASES - All growth related cases will be listed once this option is selected.
NF_NRFSTATE_DATA_CASES - All the nfStateData related cases will be listed once this option is selected.
NF_PREFERRED_LOCALITY_CASES - All the preferred locality feature related cases will be listed once this option is selected.
NF_REGISTRATION_CASES - All the registration related cases will be listed once this option is selected.
NF_ROAMING_CASES - All the roaming related cases will be listed once this option is selected.
NF_SLF_CASES - All the SLF related cases will be listed once this option is selected.
NF_SUBSCRIPTION_CASES - All subscription related cases will be listed once this option is selected.

Figure 4-15 NRF-Regression Documentation

The following sample screen shows documentation of Regression pipeline for NRF ATS.

Figure 4-16 Sample Screen: NRF-Regression Documentation

4.2 Running NSSF Test Cases using ATS

This section describes how to run NSSF test cases using ATS.

4.2.1 Prerequisites

The prerequisites to run NSSF Test Cases using NSSF ATS 26.1.201 are:

Deploy NSSF 26.1.201 with default helm configurations using helm charts.
All NSSF microservices must be up and running.
Both NSSF ATS and ATS Deployment needs to be same namespace.
For NSSF ATS 26.1.201, deploy one stub server and the service name should be "amf-stubserver". It is required to run AMF-subscription Notification functionality test cases.
For NSSF ATS 26.1.201, deploy one stub server and the service name should be "nrf-stubserver". It is required to run NRF-subscription Notification functionality test cases.
For NSSF ATS 26.1.201, deploy one stub server and the service name should be "nrf-stubserver1". It is required to run NRF-selection based on DNS SRV.
For NSSF ATS 26.1.201, deploy one stub server and the service name should be "nrf-stubserver2". It is required to run NRF-selection based on DNS SRV.
For NSSF 26.1.201, deploy one DNS stub server and the service name should be "ocdns-bind". It is required to run NRF-selection based on DNS SRV.

4.2.2 Logging into ATS

Before logging into ATS, deploy ATS using HELM charts as shown below:

Verify ATS deployment


[opc@ocnssf-oci-phx-einstein-bastion-01 ~]$ helm status ocats

NAME: ocats
LAST DEPLOYED: Thu May 30 10:21:40 2024
NAMESPACE: cicdnssf-240530102024
STATUS: deployed
REVISION: 1
TEST SUITE: None

There are two ways to log in to ATS GUI.

When an external load balancer (metalLB in case of OCCNE) is available and you provide an external IP to the ATS service, the user can log in to ATS GUI using <External-IP>:8080.
When you do not provide an external IP to the ATS service, open the browser and enter the external IP of the worker node and nodeport of the ATS service to log in to the ATS GUI.
<Worker-Node-IP>:<Node-Port-of-ATS>

Note:
In the Verifying ATS Deployment screenshot, the ATS nodeport is highlighted in red as 32013. For more details on ATS deployment, refer to NSSF ATS Installation Procedure.

Open a browser and enter the IP Address and port details as <Worker-Node-IP>:<NodePort-of-ATS> (In the above example, the Worker-Node-IP and NodePort-of-ATS are 10.98.101.177:32013, which are shown as highlighted in the screenshot above).

The ATS login screen appears.

To run ATS:

Enter the username as 'nssfuser' and password as 'nssfpasswd'. Click Sign in. A page with preconfigured pipelines appears.

Note:
To modify the default login password, refer to Modifying Login Password.

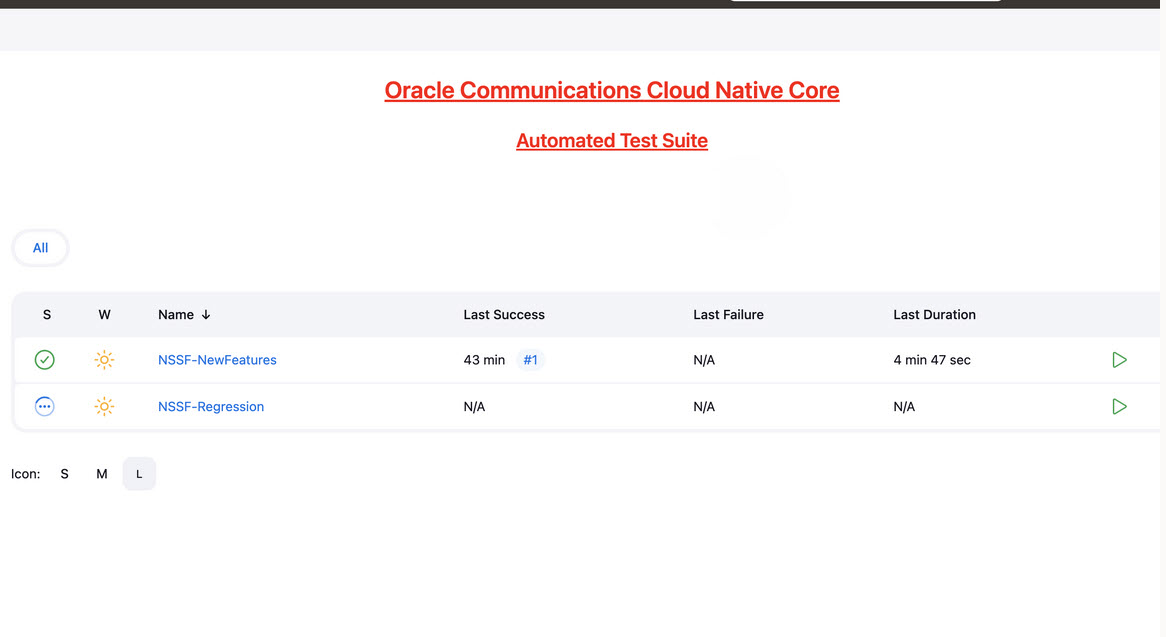

A page with preconfigured pipelines appears.
- NSSF-New-Features: This pipeline has all the test cases delivered as part of NSSF ATS - 26.1.201.
- NSSF-Regression: This pipeline has the test cases of all the previous releases.

4.2.3 NSSF-NewFeatures Pipeline

In this pipeline, you can configure ATS, which is a one-time activity as per System Under Test (SUT) deployment. You can also run all the new NSSF test cases using the pipeline. To configure its parameters:

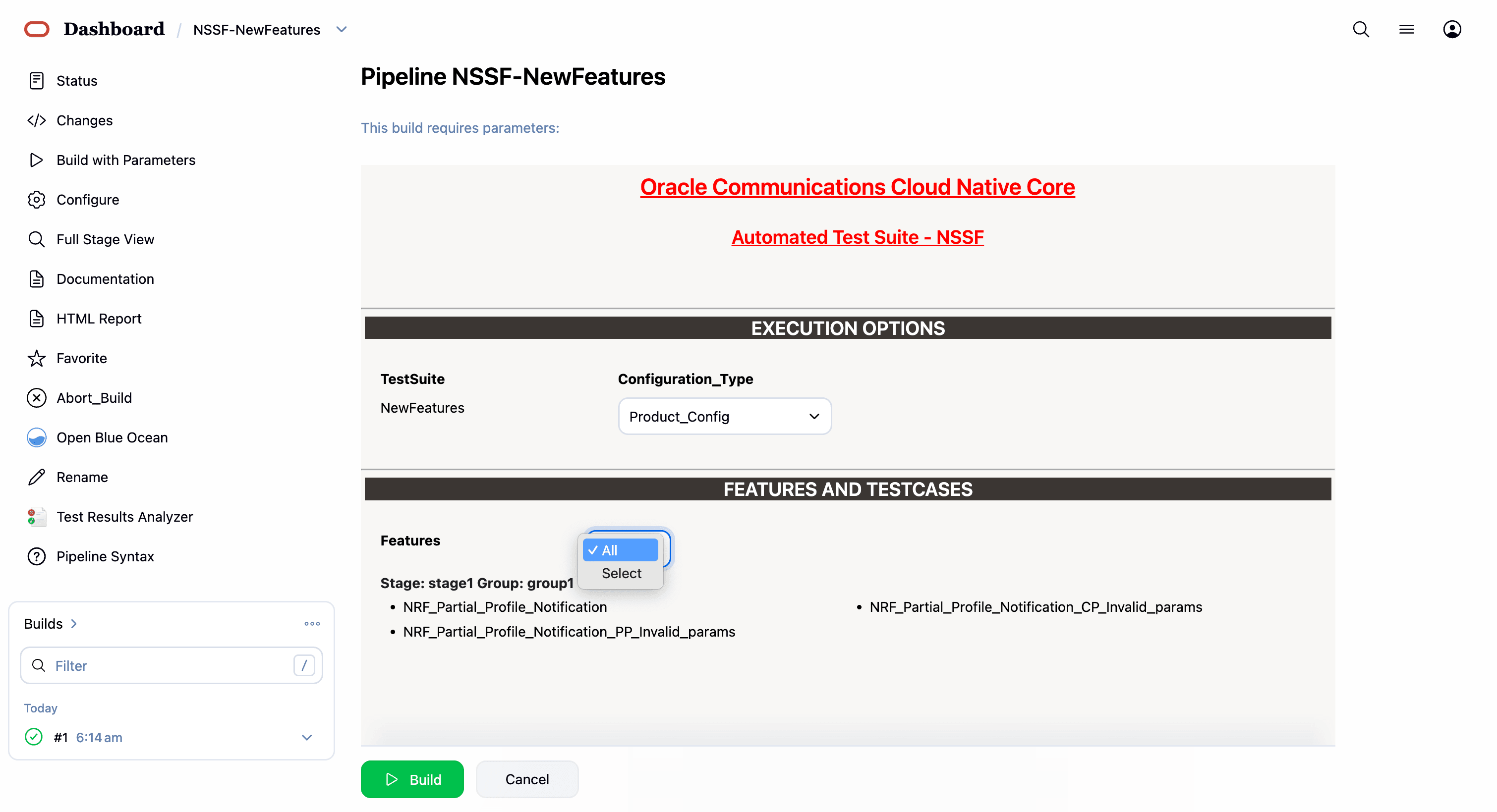

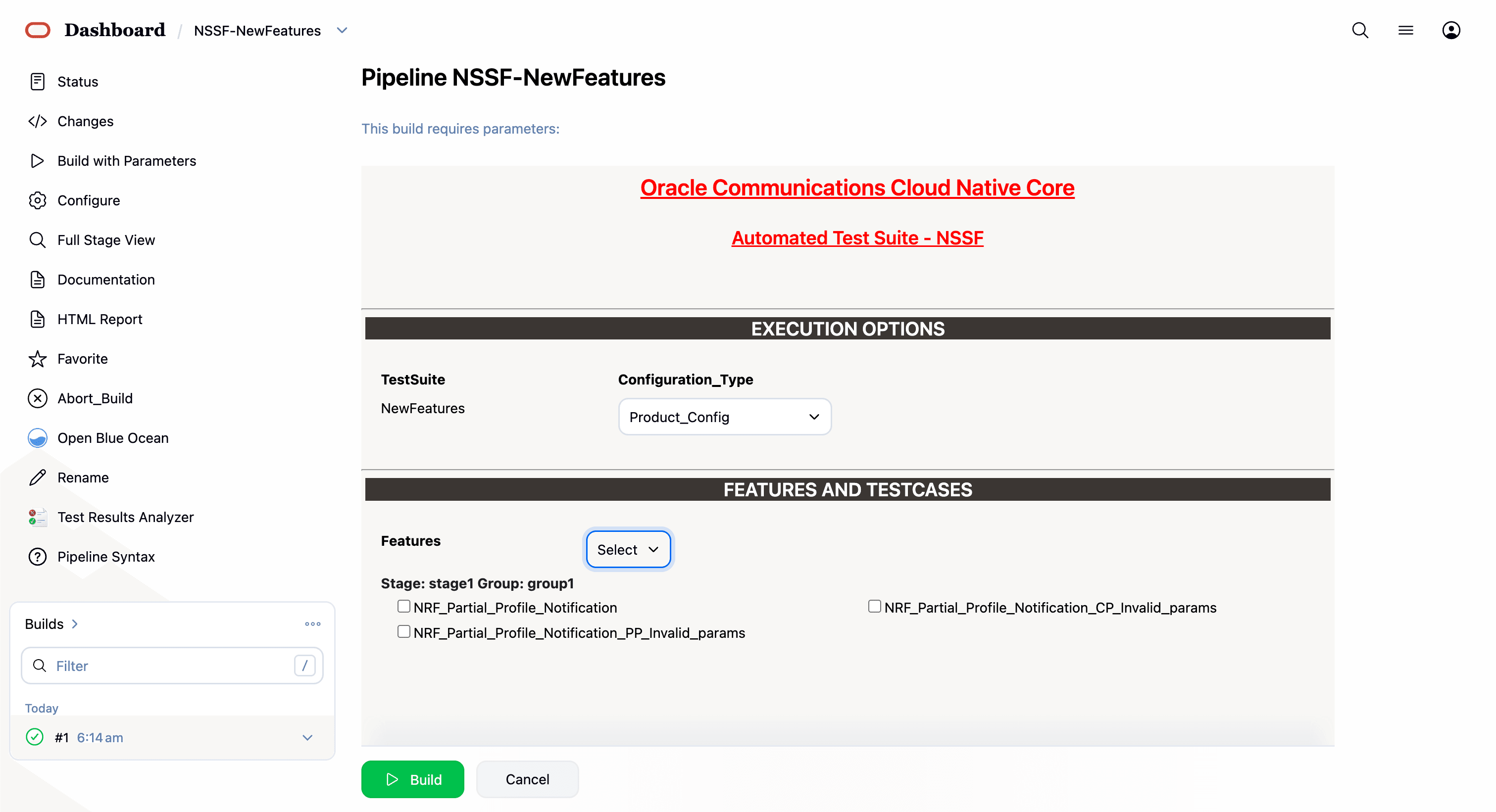

Click NSSF-NewFeatures in the Name column. The following screen appears:
In the above screen:
1. Click Configure to access the configuration screen.

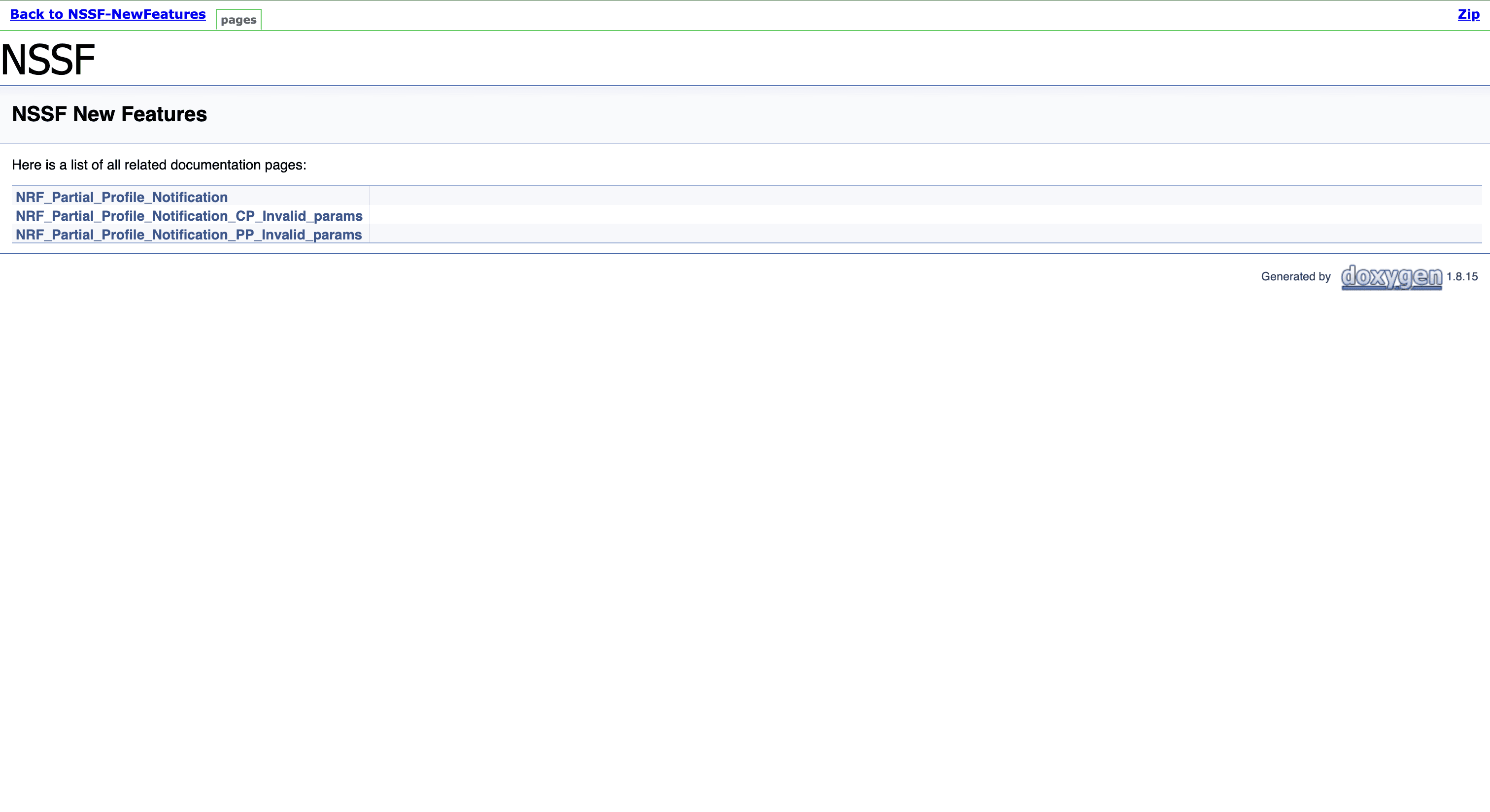

2. Click Documentation to view the documented test cases.
3. Click blue dots inside the Build History box to view the success console logs of the "All" and "Sanity" respectively.
4. The Stage View represents the already run pipeline for customer reference.

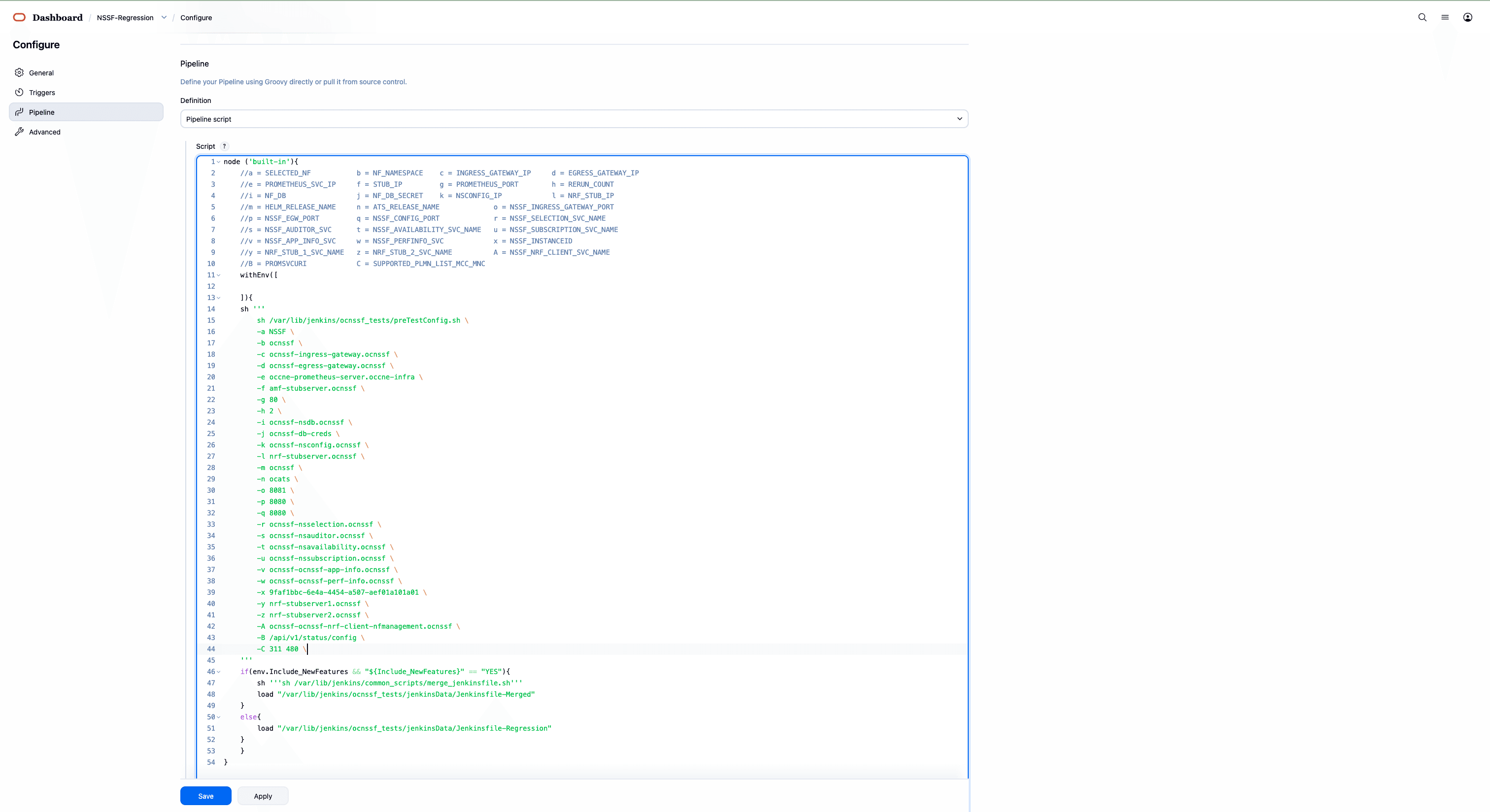

Click Configure. Users MUST wait for the page to load completely. Once the page loads completely, click the Pipeline tab to reach the Pipeline configuration as shown below:

WARNING:

Make sure that the screen shown above loads completely before you perform any action on it. Also, do not modify any configuration other than that discussed below.

You can modify script pipeline parameters from "a" to "B" on the basis of your deployment environment and click Save. The content of the pipeline script is as follows:

node('built-in') {

    // Parameter mappings:
    // a = SELECTED_NF
    // b = NF_NAMESPACE
    // c = INGRESS_GATEWAY_IP
    // d = EGRESS_GATEWAY_IP
    // e = PROMETHEUS_SVC_IP
    // f = STUB_IP
    // g = PROMETHEUS_PORT
    // h = RERUN_COUNT
    // i = NF_DB
    // j = NF_DB_SECRET
    // k = NSCONFIG_IP
    // l = NRF_STUB_IP
    // m = HELM_RELEASE_NAME
    // n = ATS_RELEASE_NAME
    // o = NSSF_INGRESS_GATEWAY_PORT
    // p = NSSF_EGW_PORT
    // q = NSSF_CONFIG_PORT
    // r = NSSF_SELECTION_SVC_NAME
    // s = NSSF_AUDITOR_SVC
    // t = NSSF_AVAILABILITY_SVC_NAME
    // u = NSSF_SUBSCRIPTION_SVC_NAME
    // v = NSSF_APP_INFO_SVC
    // w = NSSF_PERFINFO_SVC
    // x = NSSF_INSTANCEID
    // y = NRF_STUB_1_SVC_NAME
    // z = NRF_STUB_2_SVC_NAME
    // A = NSSF_NRF_CLIENT_SVC_NAME
    // B = PROMSVCURI
    // C = SUPPORTED_PLMN_LIST_MCC_MNC

    withEnv([]) {

        sh '''
            sh /var/lib/jenkins/ocnssf_tests/preTestConfig.sh \
                -a NSSF \
                -b ocnssf \
                -c ocnssf-ingress-gateway.ocnssf \
                -d ocnssf-egress-gateway.ocnssf \
                -e occne-prometheus-server.occne-infra \
                -f amf-stubserver.ocnssf \
                -g 80 \
                -h 2 \
                -i ocnssf-nsdb.ocnssf \
                -j ocnssf-db-creds \
                -k ocnssf-nsconfig.ocnssf \
                -l nrf-stubserver.ocnssf \
                -m ocnssf \
                -n ocats \
                -o 8081 \
                -p 8080 \
                -q 8080 \
                -r ocnssf-nsselection.ocnssf \
                -s ocnssf-nsauditor.ocnssf \
                -t ocnssf-nsavailability.ocnssf \
                -u ocnssf-nssubscription.ocnssf \
                -v ocnssf-ocnssf-app-info.ocnssf \
                -w ocnssf-ocnssf-perf-info.ocnssf \
                -x 9faf1bbc-6e4a-4454-a507-aef01a101a01 \
                -y nrf-stubserver1.ocnssf \
                -z nrf-stubserver2.ocnssf \
                -A ocnssf-ocnssf-nrf-client-nfmanagement.ocnssf \
                -B /api/v1/status/config \
                -C 311 480
        '''

        if (env.Include_Regression && "${Include_Regression}" == "YES") {

            sh '''
                sh /var/lib/jenkins/common_scripts/merge_jenkinsfile.sh
            '''

            load "/var/lib/jenkins/ocnssf_tests/jenkinsData/Jenkinsfile-Merged"

        } else {

            load "/var/lib/jenkins/ocnssf_tests/jenkinsData/Jenkinsfile-NewFeatures"

        }
    }
}

Note:

The User MUST NOT change any other value apart from these parameters.

The descriptions of these parameters are as follows:

a: Name of the NF to be tested in capital letters (NSSF).
b: Namespace in which the NSSF is deployed (default is ocnssf).
c: Ingress Gateway IP address (default is ocnssf-ingress-gateway.ocnssf).
d: Egress Gateway IP address (default is ocnssf-egress-gateway.ocnssf).
e: Prometheus service IP address (default is prometheus.cne-infra).
f: Stub service IP address (default is ocats-amf-stubserver.ocnssf).
g: Port of the Prometheus service (default is 80).
h: Number of times rerun of a failed case is allowed (default is 2).
i: Database name (default is ocnssf-nsdb.ocnssf).
j: Database secrets (default is ocnssf-db-creds).
k: NSSF config IP address (ocnssf-nsconfig.ocnssf).
l: NRF stub server IP address (ocats-nrf-stubserver.ocnssf).
m: NSSF release name (ocnssf).
n: ATS release name (ocats).
o: NSSF Ingress Gateway Port.
p: NSSF Egress Gateway Port.
q: NSSF Config Port.
r: NSSF Selection Service Name.
s: NSSF Auditor Service Name.
t: NSSF Availability Service Name.
u: NSSF Subscription Service Name.
v: App Info Service Name.
w: Perf Info Service Name.
x: NSSF Supported PLMN.
A: NRF Client Management Service Name (ocnssf-ocnssf-nrf-client-nfmanagement.ocnssf).
B: PROMSVCURI (/api/v1/status/config).
C: NSSF PLMN List (311 480).

Note:

Note

The variable B is promsvcurl, and its current value is /api/v1/status/config.
In other environments, if promsvcurl is set to /prometheus/api/v1/status/config, it should be updated to /prometheus/api/, as the remaining path (v1/status/config) will be appended automatically.
Do not change any value if the OCCNE cluster is used and NSSF, ATS, and STUB are deployed in the ocnssf namespace.
In the image above, the NSSF Helm release name is ocnssf, the ATS Helm release name is ocats, and the namespace is ocnssf. If there are any changes to the Helm release name of NSSF, ATS, or the namespace, update the configuration accordingly.

For example, if the NSSF Helm release name is ocnssfats, the ATS Helm release name is ocatsnssf, and the namespace is ocnssf2510, then the Pipeline Configuration should be edited as shown below.

The NSSF Helm release name should be updated in c, d, i, k, m, r, s, t, u, v, and w if the NSSF Helm release name is anything other than ocnssf.
The NSSF Instance ID must be updated in the ATS Jenkins pipeline parameters if there are any changes in the NSSF custom values (CV) file. By default, the NSSF Instance ID is set to 9faf1bbc-6e4a-4454-a507-aef01a101a01. If the Instance ID is modified in the NSSF CV file, the same change must be reflected in the Jenkins pipeline parameters.

By default, the NSSF Instance ID in the NSSF custom values file is as follows:

#InstanceId of NSSF used in case of GR nfInstanceId: &nfInstanceId "9faf1bbc-6e4a-4454-a507-aef01a101a01"

For example, if the nfInstanceId in the NSSF custom values file is changed from 9faf1bbc-6e4a-4454-a507-aef01a101a01 to 9faf1bbc-6e4a-4454-a507-aef01a101a20, the same change must be updated in the x Jenkins pipeline parameter as shown below:

node('built-in') {

    // a = SELECTED_NF
    // b = NF_NAMESPACE
    // c = INGRESS_GATEWAY_IP
    // d = EGRESS_GATEWAY_IP
    // e = PROMETHEUS_SVC_IP
    // f = STUB_IP
    // g = PROMETHEUS_PORT
    // h = RERUN_COUNT
    // i = NF_DB
    // j = NF_DB_SECRET
    // k = NSCONFIG_IP
    // l = NRF_STUB_IP
    // m = HELM_RELEASE_NAME
    // n = ATS_RELEASE_NAME
    // o = NSSF_INGRESS_GATEWAY_PORT
    // p = NSSF_EGW_PORT
    // q = NSSF_CONFIG_PORT
    // r = NSSF_SELECTION_SVC_NAME
    // s = NSSF_AUDITOR_SVC_NAME
    // t = NSSF_AVAILABILITY_SVC_NAME
    // u = NSSF_SUBSCRIPTION_SVC_NAME
    // v = NSSF_APP_INFO_SVC
    // w = NSSF_PERFINFO_SVC
    // x = NSSF_INSTANCEID
    // y = NRF_STUB_1_SVC_NAME
    // z = NRF_STUB_2_SVC_NAME
    // A = NSSF_NRF_CLIENT_SVC_NAME
    // B = PROMSVCURI
    // C = SUPPORTED_PLMN_LIST_MCC_MNC

    withEnv([]) {

        sh '''
        sh /var/lib/jenkins/ocnssf_tests/preTestConfig.sh \
            -a NSSF \
            -b ocnssf \
            -c ocnssf-ingress-gateway.ocnssf \
            -d ocnssf-egress-gateway.ocnssf \
            -e occne-prometheus-server.occne-infra \
            -f amf-stubserver.ocnssf \
            -g 80 \
            -h 2 \
            -i ocnssf-nsdb.ocnssf \
            -j ocnssf-db-creds \
            -k ocnssf-nsconfig.ocnssf \
            -l nrf-stubserver.ocnssf \
            -m ocnssf \
            -n ocats \
            -o 8081 \
            -p 8080 \
            -q 8080 \
            -r ocnssf-nsselection.ocnssf \
            -s ocnssf-nsauditor.ocnssf \
            -t ocnssf-nsavailability.ocnssf \
            -u ocnssf-nssubscription.ocnssf \
            -v ocnssf-ocnssf-app-info.ocnssf \
            -w ocnssf-ocnssf-perf-info.ocnssf \
            -x 9faf1bbc-6e4a-4454-a507-aef01a101a01 \
            -y nrf-stubserver1.ocnssf \
            -z nrf-stubserver2.ocnssf \
            -A ocnssf-ocnssf-nrf-client-nfmanagement.ocnssf \
            -B /prometheus \
            -C 311 480
        '''

        if (env.Include_Regression && "${Include_Regression}" == "YES") {

            sh '''
            sh /var/lib/jenkins/common_scripts/merge_jenkinsfile.sh
            '''

            load "/var/lib/jenkins/ocnssf_tests/jenkinsData/Jenkinsfile-Merged"

        } else {

            load "/var/lib/jenkins/ocnssf_tests/jenkinsData/Jenkinsfile-NewFeatures"
        }
    }
}

Click Save after making necessary changes. The Pipeline NSSF-NewFeatures screen appears.

Running NSSF New Features Test Cases

To run NSSF New Features test cases:

Go back to new features and Click Build with Parameters present on the NSSF-NewFeatures screen in the extreme left column corresponding to NSSF-NewFeatures row as shown below:

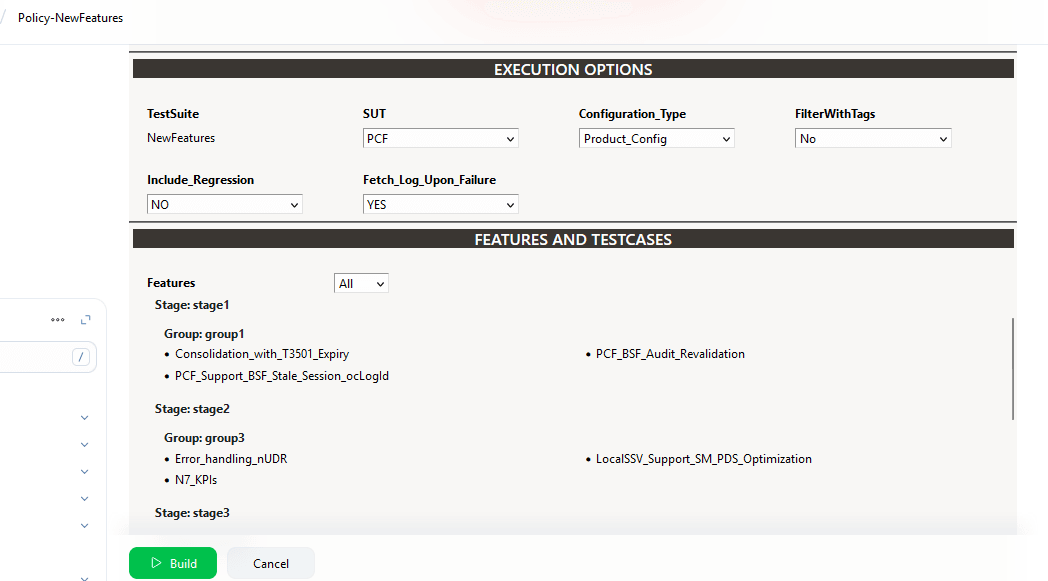

The following screen appears:

In the above screen, there are three Select_Option(s), which are:
- By default, features 'ALL', configuration type 'Product_config', include regression 'NO' will be selected, and all test cases will be executed once clicked on BUILD, as shown above.
- Features: ALL. Once you click on ALL, a dropdown 'Select' option will appear. After selecting 'Select,' options will appear to choose feature files. To run the selected feature files, click on 'Build,' as shown below.
Select one of the following configuration types:
- Product_Config: On selecting this option, test cases from product folders are populated on ATS UI and product configuration is applied to them via the keyvalue pair and yaml files defined or present in the "Product Config" folder.
- Custom_Config: On selecting this option, test cases from custom folders are populated on ATS UI and custom configuration is applied to them via the keyvalue pair and yaml files defined or present in the "Custom Config" folder. To use the Parameterization feature, always select the Custom_Config option. User can copy, add, or delete the required test cases that are available for the NSSF and place them appropriately within the custom folder for NSSF-NewFeatures. Reload the page to view the test cases available in the custom NewFeatures folder. For more information, see Parameterized approach for SUT custom configuration.
The NSSF test cases are divided into NSSF service operations as follows:
- NRF_Partial_Profile_Notification — This feature file contains test cases related to NRF partial profile notification.
- NRF_Partial_Profile_Notification_PP_Invalid_params — This feature file contains test cases related to NRF partial profile invalid parameters.
- NRF_Partial_Profile_Notification_CP_Invalid_params — This feature file contains test cases related to NRF complete profile invalid parameters.
If you want to run custom_config, select below parameter as custom_config, where the framework automatically points out to custom_config and cust_data.
```
3 features passed, 0 failed, 0 skipped
21 scenarios passed, 0 failed, 0 skipped
484 steps passed, 0 failed, 0 skipped
Took 7min 5.486s
```

Parameterized approach for SUT custom configuration

Using this feature, user can make the following customizations to custom folders:

Add new test cases by adding datafiles
Remove test cases
Modify the parameters and their values in the key-value pair or <feature>.yaml files

To run ATS test cases, user can maintain as many versions of Custom_Config folder by using the following naming convention:

Cust ConfigN

where N can be any number

At the time of execution, ensure to rename the required folder to Custom Config folder as Jenkins always retrieves data from this folder when user selects Custom_Config.

Updating Global Parameters

To use Custom_Config, it is required to change the value of cust_folder from data to cust_data in global.yaml file. In addition, you can customize the parameters and their respective values in the global.yaml as per the requirements.

Updating Feature Parameters

Consider the following points when customizing <feature>.yaml files for parameterized feature:

In addition to global.yaml parameters, feature files may also contain parameters for which user can update values at the time of running pipelines.
Changing the values of parameters tagged as "Feature Specific Value" may cause failures at the time of running pipelines.
Values for parameters tagged with #START_GLOBAL and #END_GLOBAL tags take values from global.yaml.

Note:

For NSSF-ATS release 26.1.201, parameterization is supported for NSSF NewFeatures pipeline only.

4.2.4 NSSF-NewFeatures Documentation

To view NSSF functionalities, go to NSSF-NewFeatures pipeline latest build and click the Documentation link in the left navigation pane. The following screen appears. Click any functionality to view its test cases and scenarios of each test case as shown in the sample screenshot below:

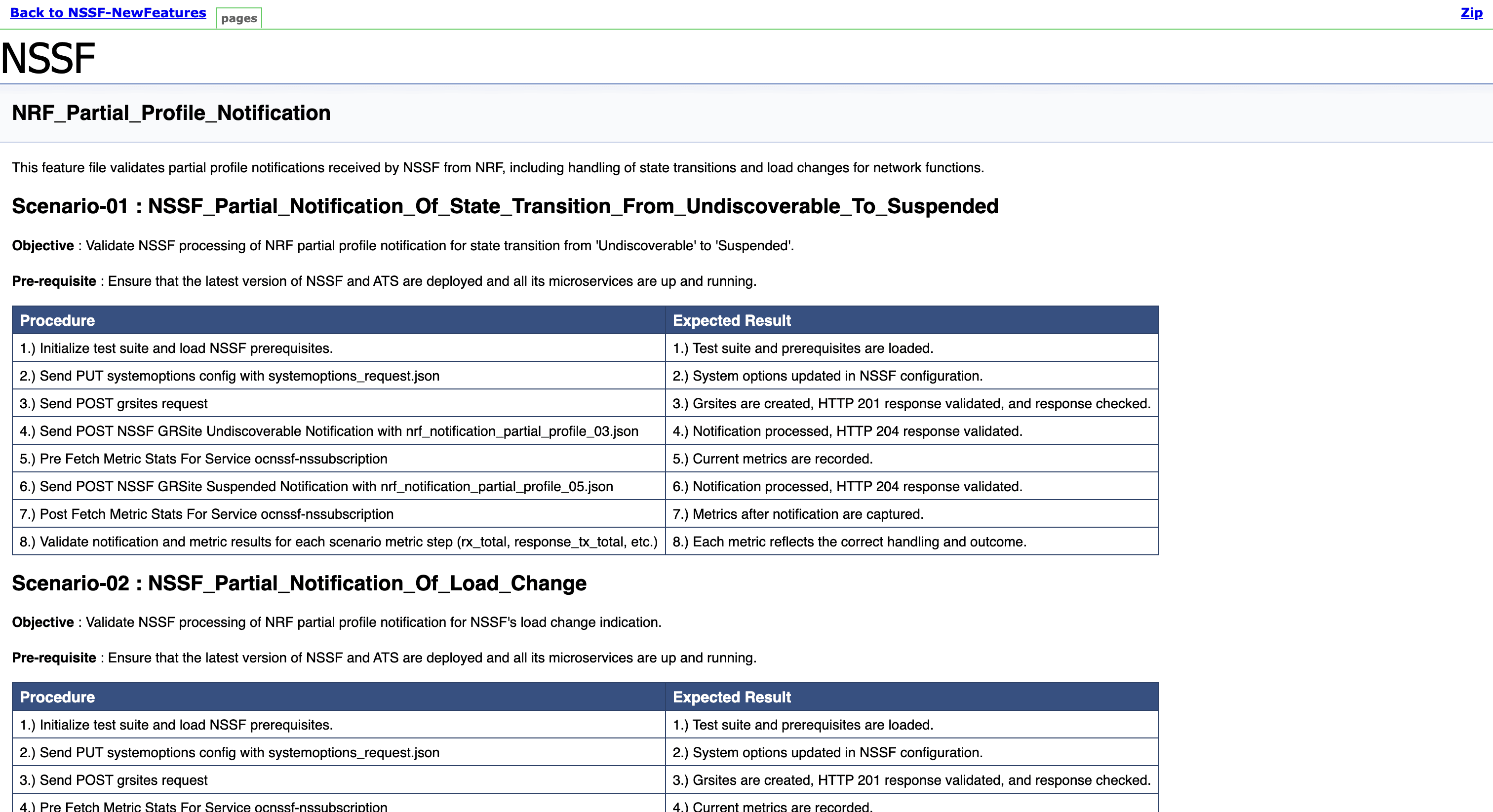

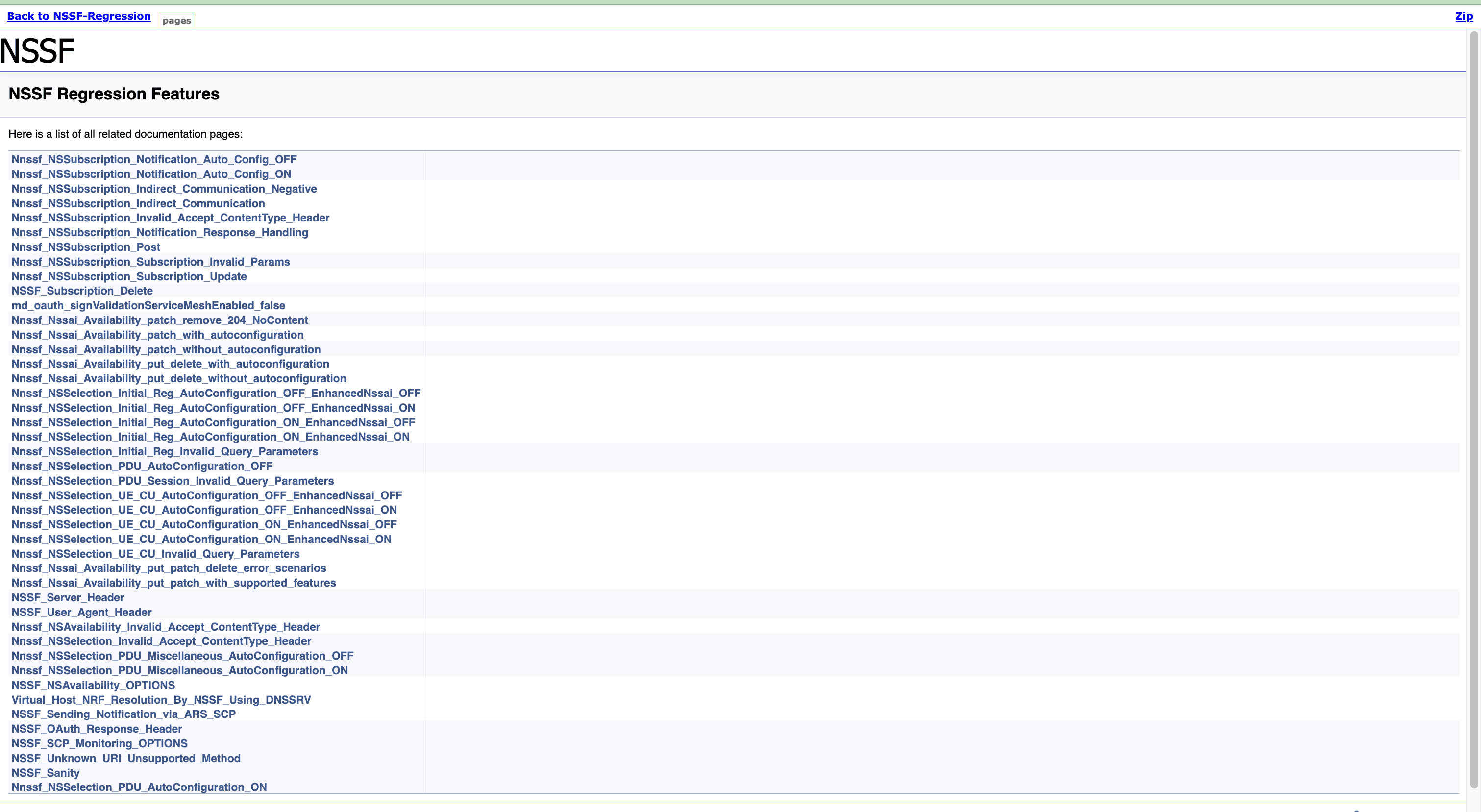

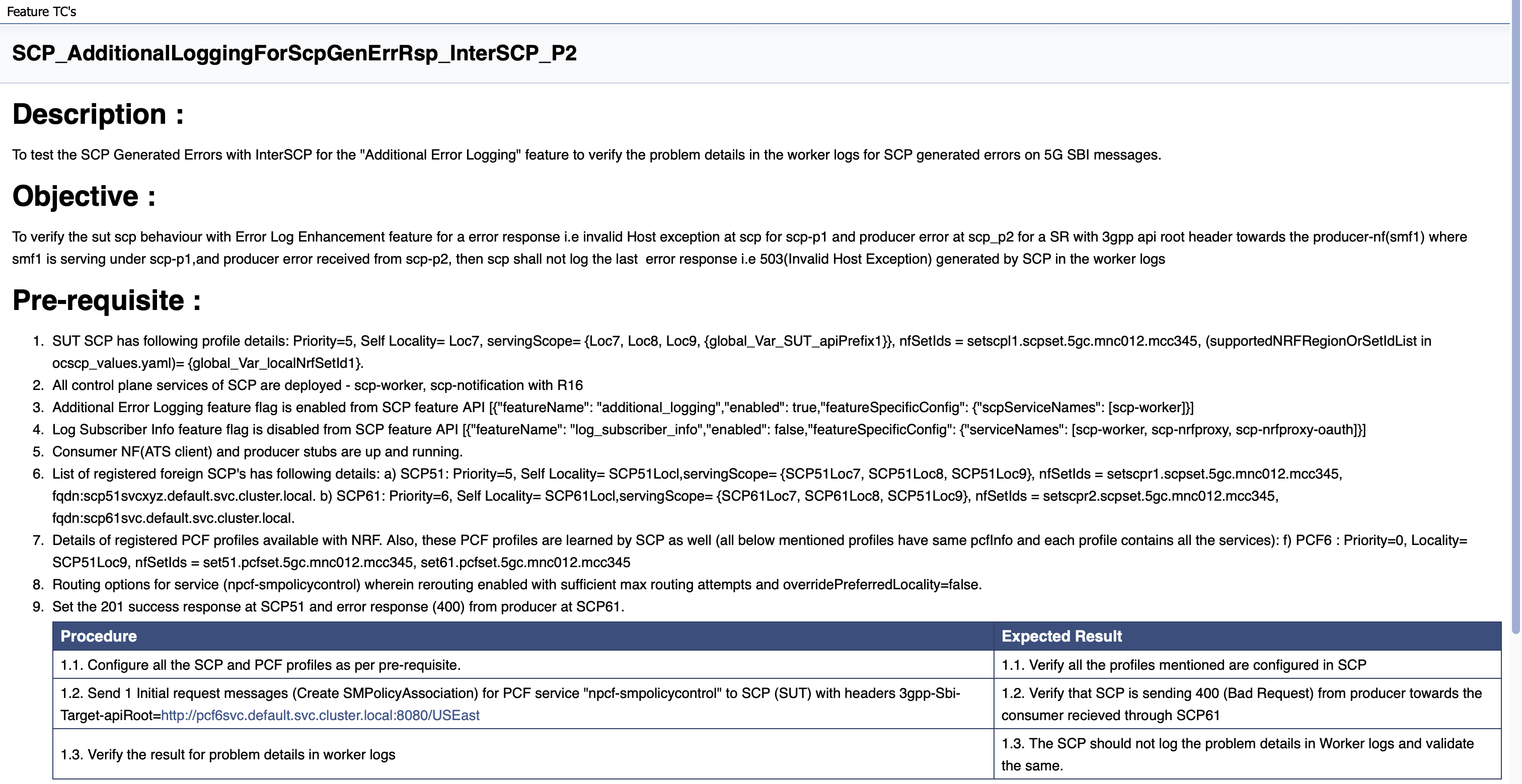

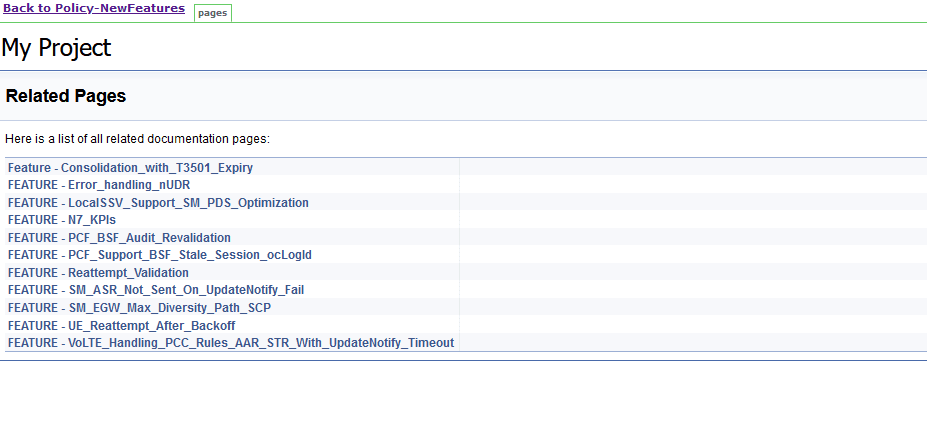

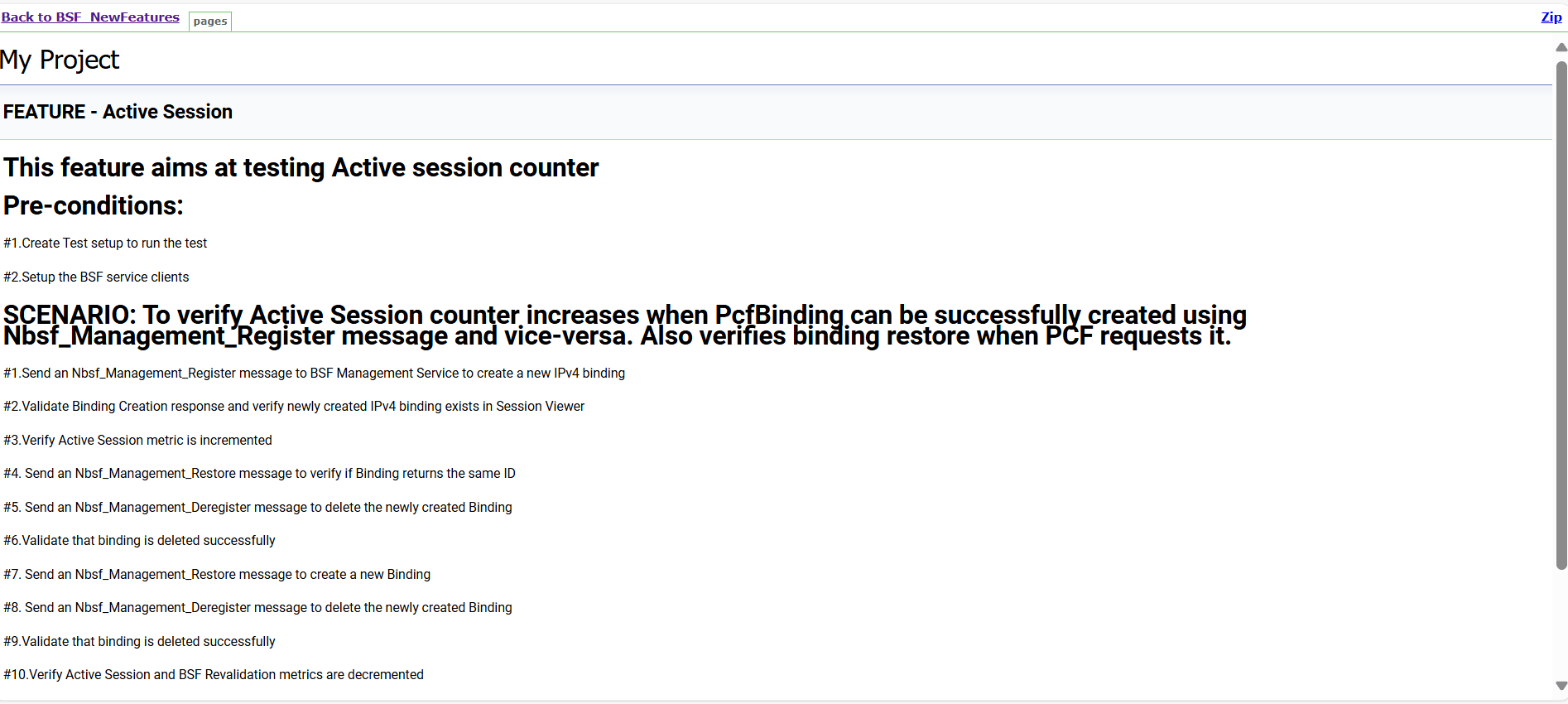

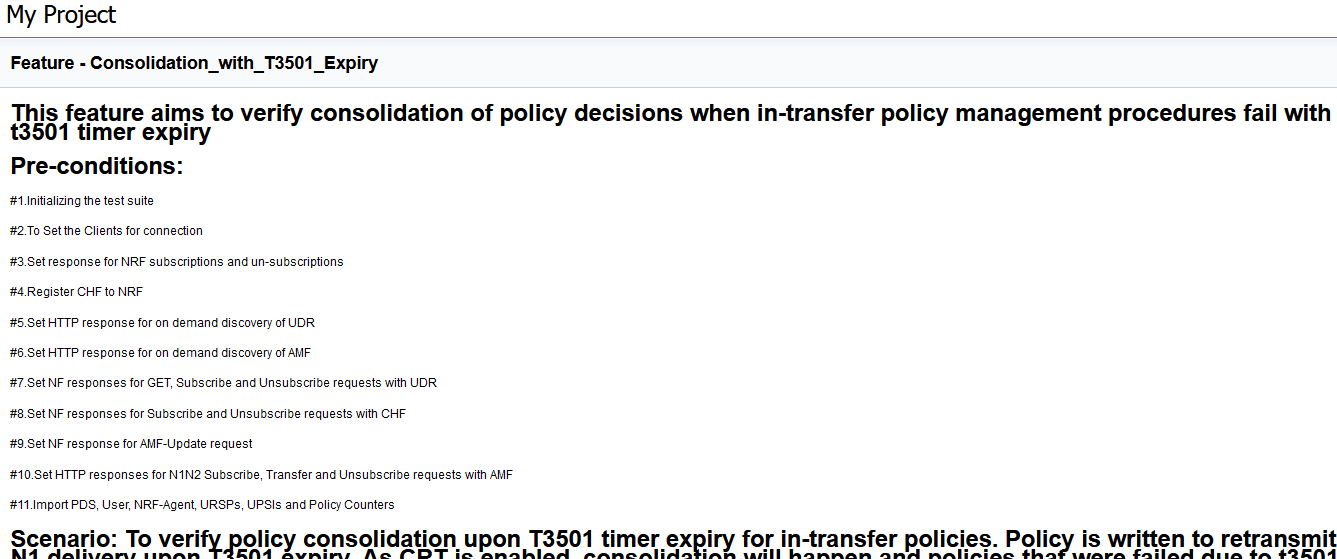

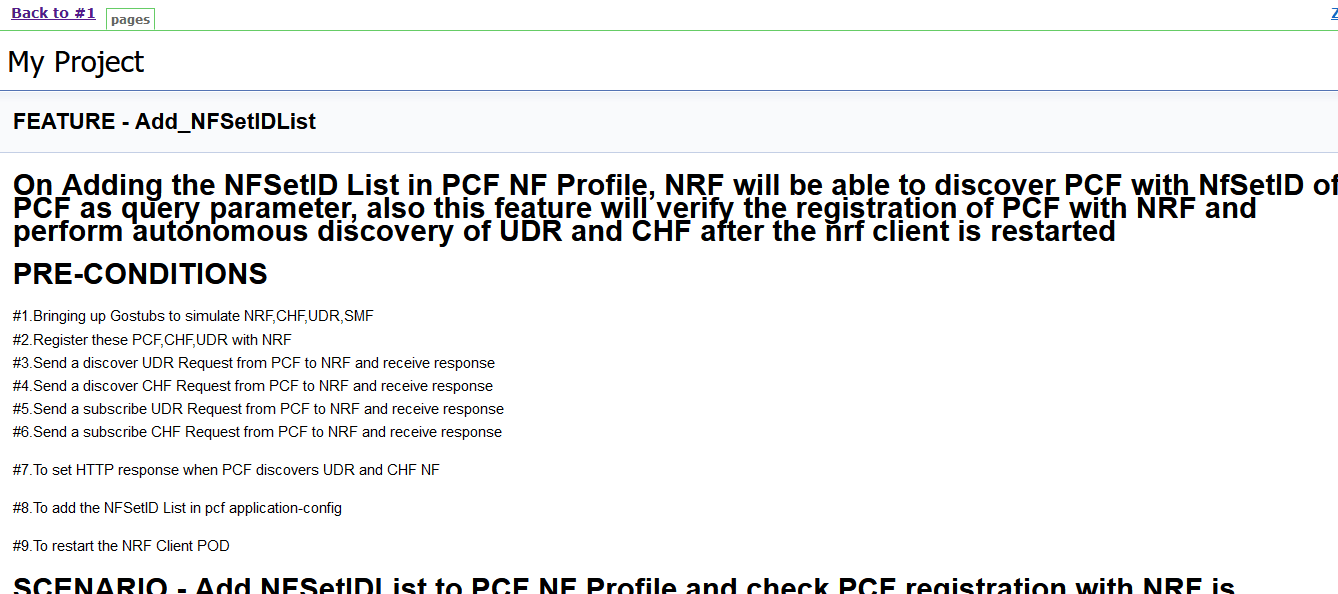

A sample of a few documentation features are as follows:

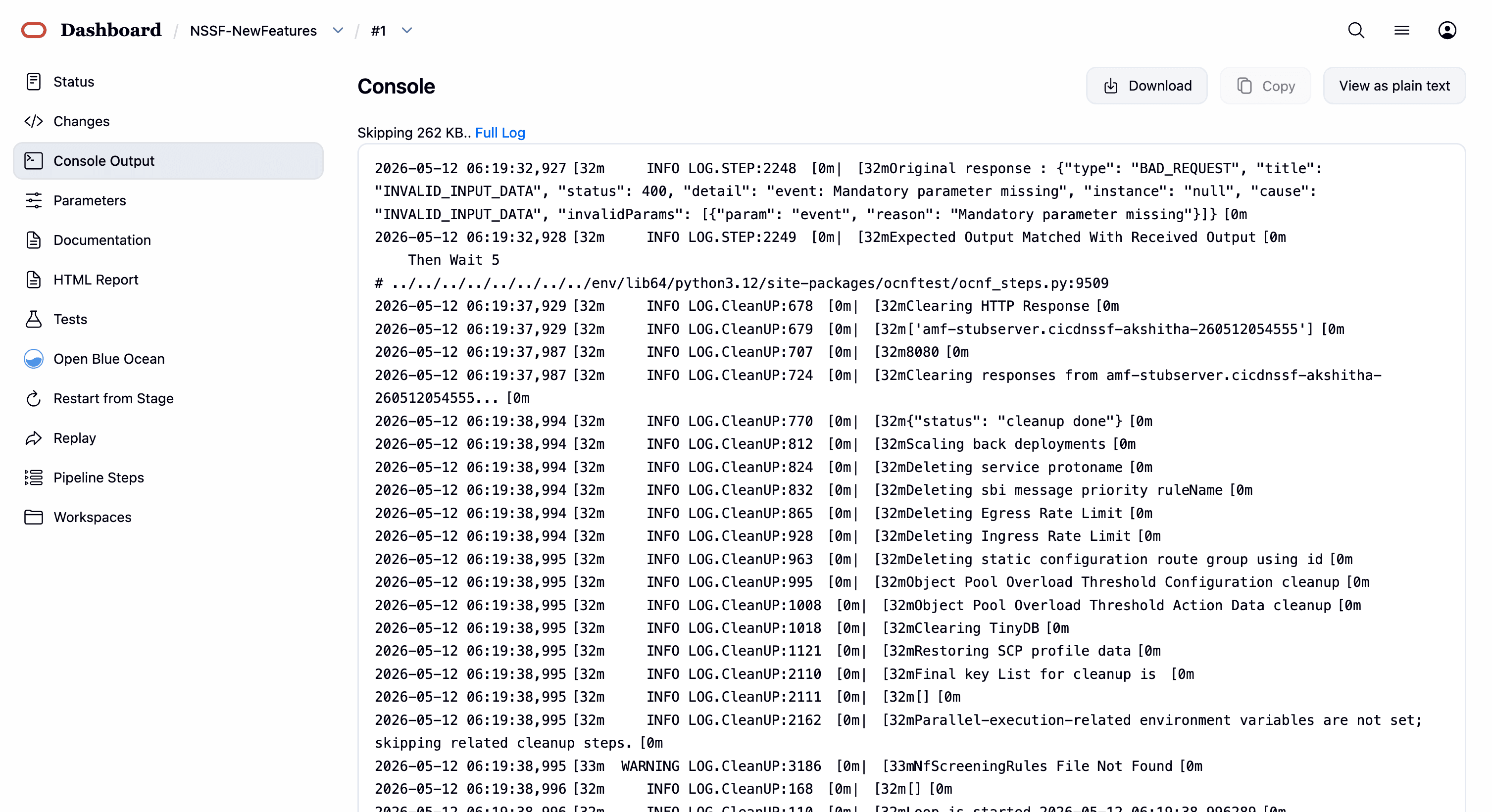

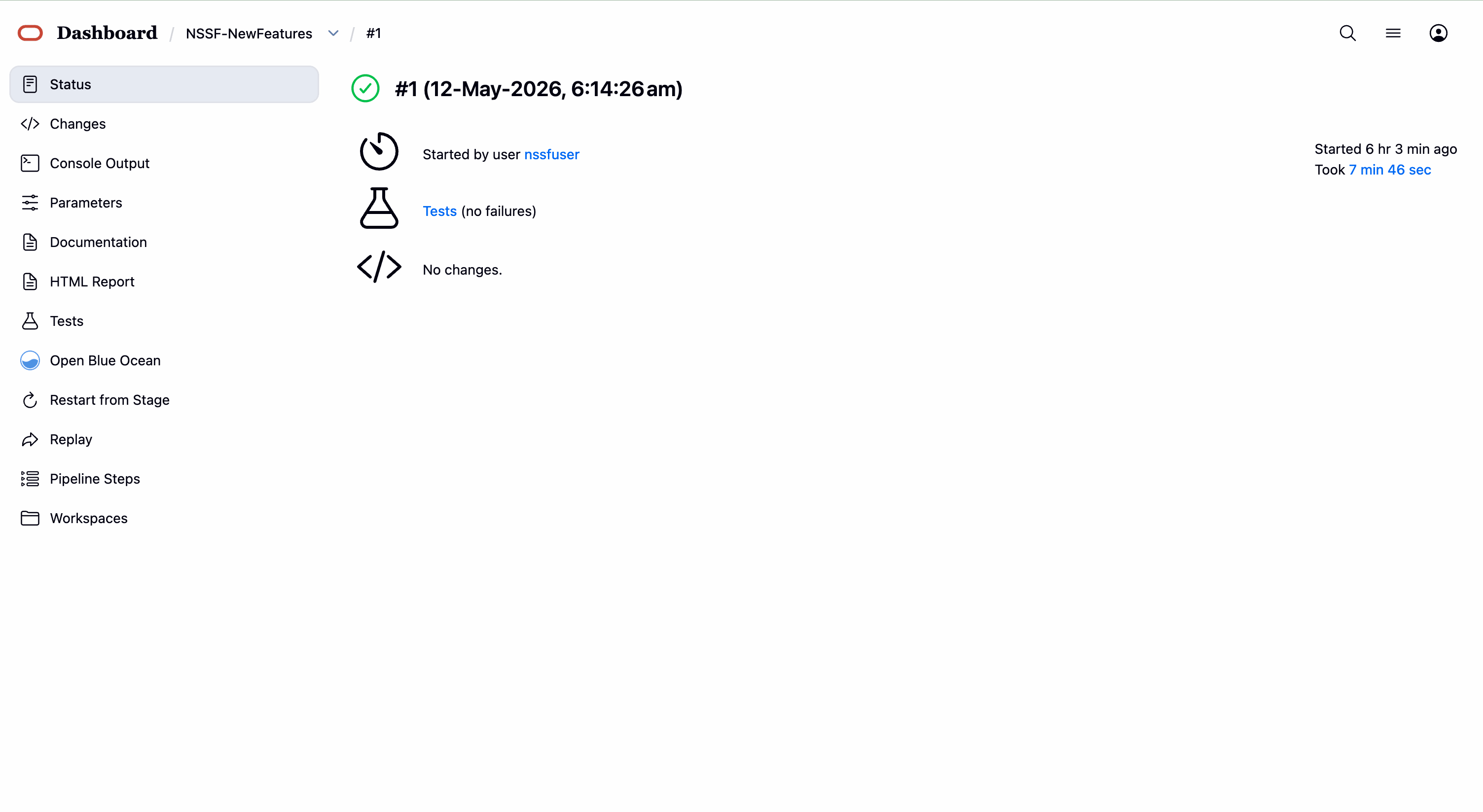

Once the run of new features done successfully, click on the build number whose logs are to be viewed and then click on Console Output on left side navigation.

Wait till the page is loaded completely, then click Download to download the new features logs.

4.2.5 NSSF-Regression Pipeline

This pipeline contains test cases from the previous versions.

Some of the test cases are updated as per the new implementation of NSSF.

The configuration method and parameters are the same as the NewFeatures pipeline.

The NSSF test cases are divided into NSSF service operations. The classification is as follows:

NSSF_OAuth_Response_Header: Validates OAuth 2.0-related HTTP error codes and response headers for invalid, expired, or insufficient-scope OAuth tokens.
NSSF_SCP_Monitoring_OPTIONS: Validates SCP peer monitoring and routing behavior, including configuration, healthPath enforcement, priorities, and error handling for SBI and indirect-routing scenarios.
NSSF_Sending_Notification_via_ARS_SCP: Validates NSSF's ability to route and send notifications to SCPs through ARS, including scenarios involving single and multiple SCPs, priorities, virtual hosts, alternate routes, and associated error handling.
NSSF_Server_Header: Validates the Server Header feature.
NSSF_User_Agent_Header: Validates User-Agent header behavior when the feature is enabled and disabled.
oauth_signValidationServiceMeshEnabled_false: Validates CRUD operations on OAuth configuration in the NSSF Ingress Gateway.
Virtual_Host_NRF_Resolution_By_NSSF_Using_DNSSRV: Validates virtual-host NRF resolution by NSSF using DNS SRV records.
NSSF_Sanity: Validates NSSF sanity test cases.
NSSF_NSAvailability_OPTIONS: Validates NSSF responses to OPTIONS requests for supported communication methods.
Nnssf_NSAvailability_Invalid_Accept_ContentType_Header: Validates rejection of NSAvailability requests with invalid or missing Accept and Content-Type headers.
Nnssf_Nssai_Availability_patch_remove_204_NoContent: Validates PATCH operations with and without auto-configuration, including enhanced PATCH behavior and expected 204 No Content responses.
Nnssf_Nssai_Availability_patch_with_autoconfiguration: Validates PATCH operations on NS availability resources with auto-configuration enabled.
Nnssf_Nssai_Availability_patch_without_autoconfiguration: Validates PATCH operations on NS availability resources with auto-configuration disabled.
Nnssf_Nssai_Availability_put_delete_with_autoconfiguration: Validates PUT and DELETE operations on NS availability resources with auto-configuration enabled.
Nnssf_Nssai_Availability_put_delete_without_autoconfiguration: Validates PUT and DELETE operations on NS availability resources with auto-configuration disabled.
Nnssf_Nssai_Availability_put_patch_delete_error_scenarios: Validates error scenarios for PUT, PATCH, and DELETE operations on NS availability resources with auto-configuration enabled and disabled.
Nnssf_Nssai_Availability_put_patch_with_supported_features: Validates PUT and PATCH operations on NS availability resources with supported features enabled.
Nnssf_NsConfig_Invalid_Accept_ContentType_Header: Validates rejection of NSConfig requests with invalid or missing Accept and Content-Type headers.
barred_slices_mapping: Validates barred-slices mapping operations in NSConfig.
grsites: Validates GRSites operations in NSConfig.
nsi_profiles: Validates NSI profile operations in NSConfig.
plmn_config: Validates PLMN configuration operations in NSConfig.
supported_slices_mapping: Validates supported-slices mapping operations in NSConfig.
system_options: Validates system-options operations in NSConfig.
MultiplePLMN: Validates multiple-PLMN NSSelection scenarios.
NSSF_Unknown_URI_Unsupported_Method: Validates behavior for unknown URIs and unsupported HTTP methods.
Nnssf_NSSelection_Initial_Reg_AutoConfiguration_OFF_EnhancedNssai_OFF: Validates initial-registration NSSelection behavior with auto-configuration disabled and enhanced NSSAI disabled.
Nnssf_NSSelection_Initial_Reg_AutoConfiguration_OFF_EnhancedNssai_ON: Validates initial-registration NSSelection behavior with auto-configuration disabled and enhanced NSSAI enabled.
Nnssf_NSSelection_Initial_Reg_AutoConfiguration_ON_EnhancedNssai_OFF: Validates initial-registration NSSelection behavior with auto-configuration enabled and enhanced NSSAI disabled.
Nnssf_NSSelection_Initial_Reg_AutoConfiguration_ON_EnhancedNssai_ON: Validates initial-registration NSSelection behavior when both autoAuthorizeNssaiAvailabilityDataEnable and enhancedAllowedNssaiEnable are enabled.
Nnssf_NSSelection_Initial_Reg_Invalid_Query_Parameters: Validates handling of invalid query parameters during initial-registration NSSelection.
Nnssf_NSSelection_Invalid_Accept_ContentType_Header: Validates rejection of NSSelection GET requests with invalid or missing Accept and Content-Type headers.
Nnssf_NSSelection_PDU_AutoConfiguration_OFF: Validates PDU session NSSelection behavior with auto-configuration disabled.
Nnssf_NSSelection_PDU_AutoConfiguration_ON: Validates PDU session NSSelection behavior with auto-configuration enabled.
Nnssf_NSSelection_PDU_Miscellaneous_AutoConfiguration_OFF: Validates miscellaneous PDU session NSSelection scenarios with auto-configuration disabled, including session establishment and error handling.
Nnssf_NSSelection_PDU_Miscellaneous_AutoConfiguration_ON: Validates miscellaneous PDU session NSSelection scenarios with auto-configuration enabled, including configuration changes and error handling.
Nnssf_NSSelection_PDU_Session_Invalid_Query_Parameters: Validates handling of invalid query parameters in PDU session NSSelection requests.
Nnssf_NSSelection_UE_CU_AutoConfiguration_OFF_EnhancedNssai_OFF: Validates UE/CU NSSelection behavior when both autoAuthorizeNssaiAvailabilityDataEnable and enhancedAllowedNssaiEnable are disabled.
Nnssf_NSSelection_UE_CU_AutoConfiguration_OFF_EnhancedNssai_ON: Validates UE/CU NSSelection behavior with auto-configuration disabled and enhanced NSSAI enabled.
Nnssf_NSSelection_UE_CU_AutoConfiguration_ON_EnhancedNssai_OFF: Validates UE/CU NSSelection behavior with auto-configuration enabled and enhanced NSSAI disabled.
Nnssf_NSSelection_UE_CU_AutoConfiguration_ON_EnhancedNssai_ON: Validates UE/CU NSSelection behavior when both auto-configuration and enhanced NSSAI are enabled.
Nnssf_NSSelection_UE_CU_Invalid_Query_Parameters: Validates handling of invalid query parameters in UE/CU NSSelection requests.
NSSF_Subscription_Delete: Validates deletion operations and error handling for NSSubscription resources.
Nnssf_NSSubscription_Indirect_Communication: Validates indirect communication behavior for the NSSubscription service.
Nnssf_NSSubscription_Indirect_Communication_Negative: Validates negative indirect-communication scenarios involving incorrect 3gpp-Sbi-Binding headers.
Nnssf_NSSubscription_Invalid_Accept_ContentType_Header: Validates subscription request handling with invalid or missing Accept and Content-Type headers.
Nnssf_NSSubscription_Notification_Auto_Config_OFF: Validates NSSubscription notification behavior when auto-configuration is disabled.
Nnssf_NSSubscription_Notification_Auto_Config_ON: Validates NSSubscription notification behavior when auto-configuration is enabled.
Nnssf_NSSubscription_Notification_Response_Handling: Validates NSSubscription notification handling based on various AMF stub responses.
Nnssf_NSSubscription_Post: Validates CRUD operations and request handling for NSSubscription POST requests.
Nnssf_NSSubscription_Subscription_Invalid_Params: Validates CRUD operations and parameter validation for NSSubscription requests.
Nnssf_NSSubscription_Subscription_Update: Validates CRUD operations and input validation for NSSubscription update requests.
Nnssf_NSSubscription_post_with_supported_features: Validates NSSubscription POST request handling with supportedFeatures values.

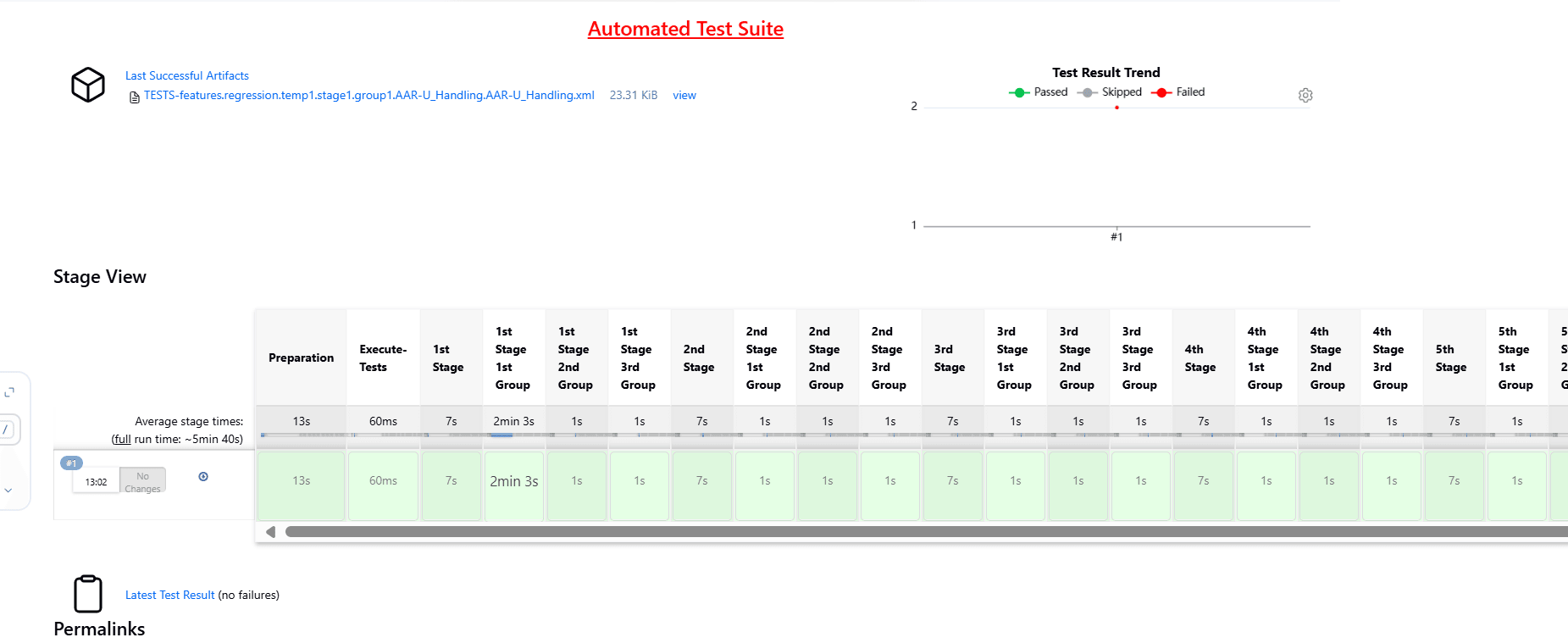

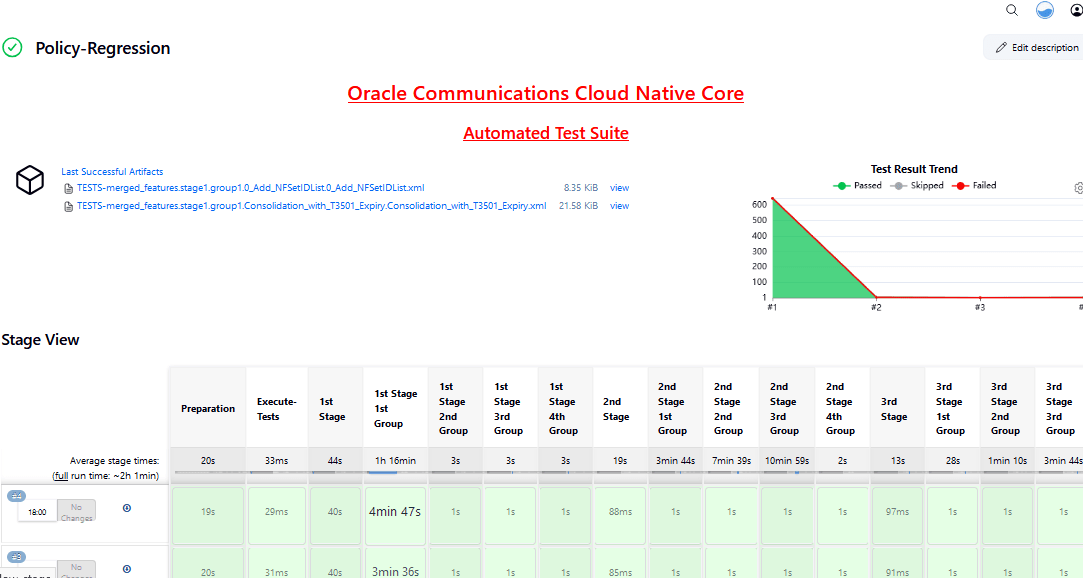

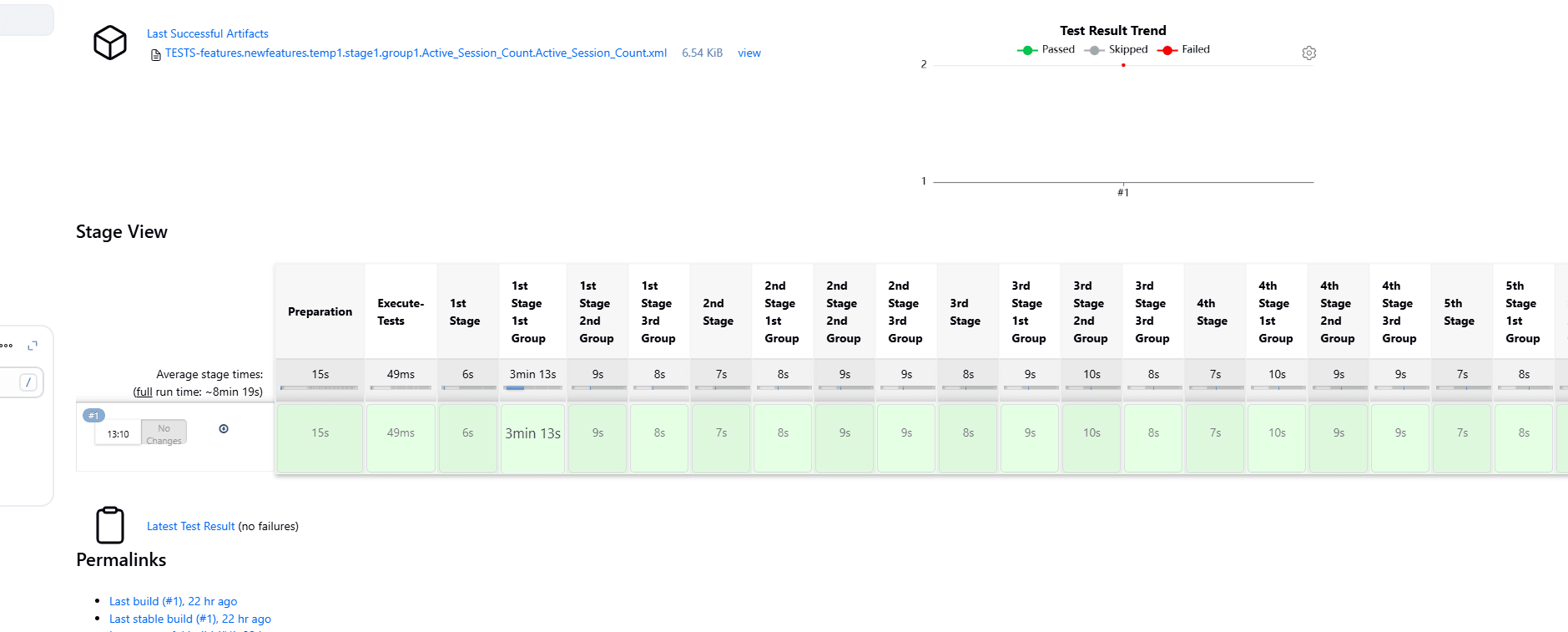

Regression homepage

In the above screen:
- Click Configure to access the configuration screen.
- Click Documentation to view the documented test cases.
- Click blue dots inside the Build History box to view the success console logs of the "All" and "Sanity" respectively.
- The Stage View represents the already run pipeline for customer reference.

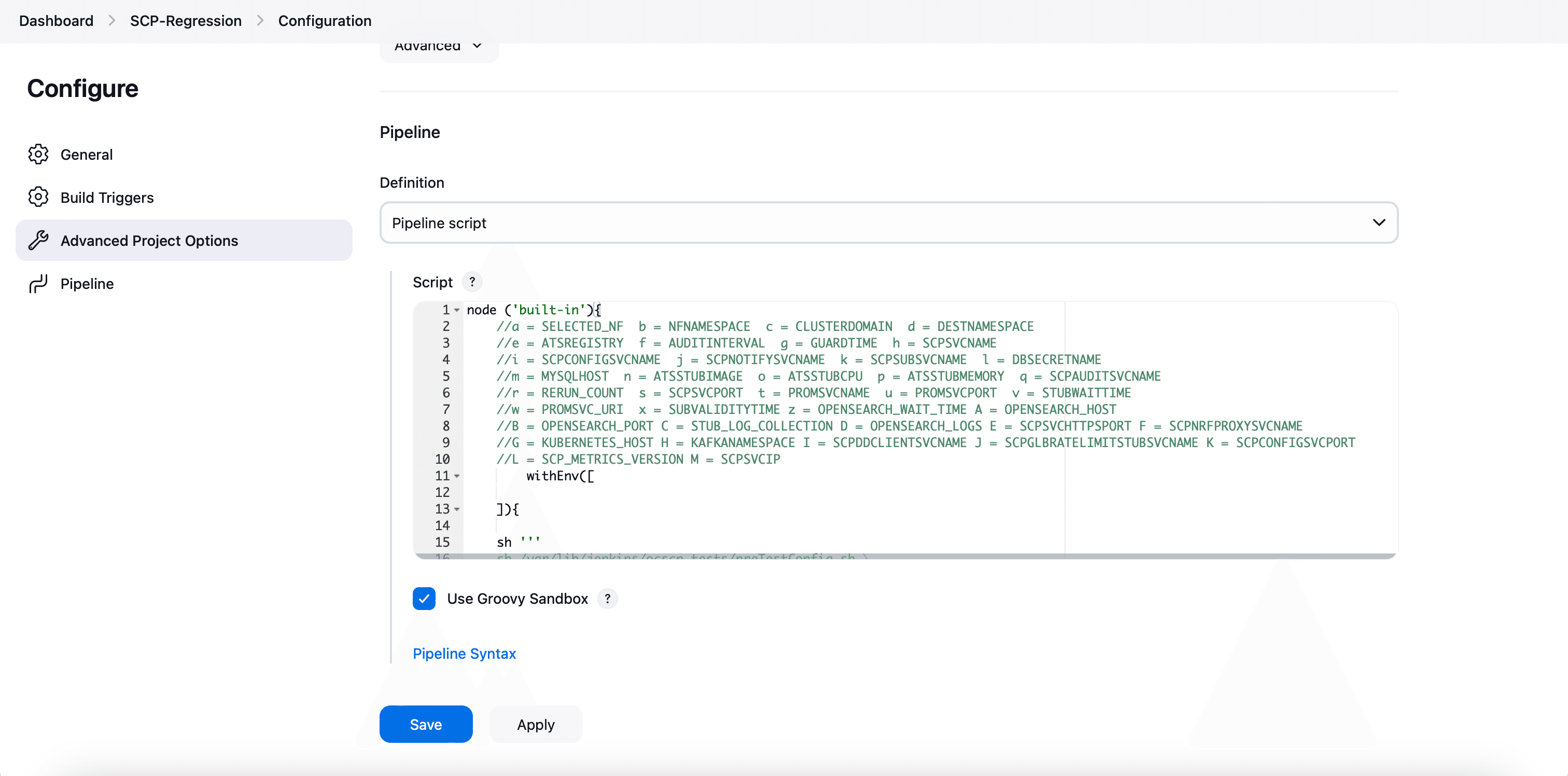

Click Configure. Users MUST wait for the page to load completely. Once the page loads completely, click the Pipeline tab to reach the Pipeline configuration as shown below:

WARNING:

Make sure that the screen shown above loads completely before you perform any action on it. Also, do not modify any configuration other than that discussed below.

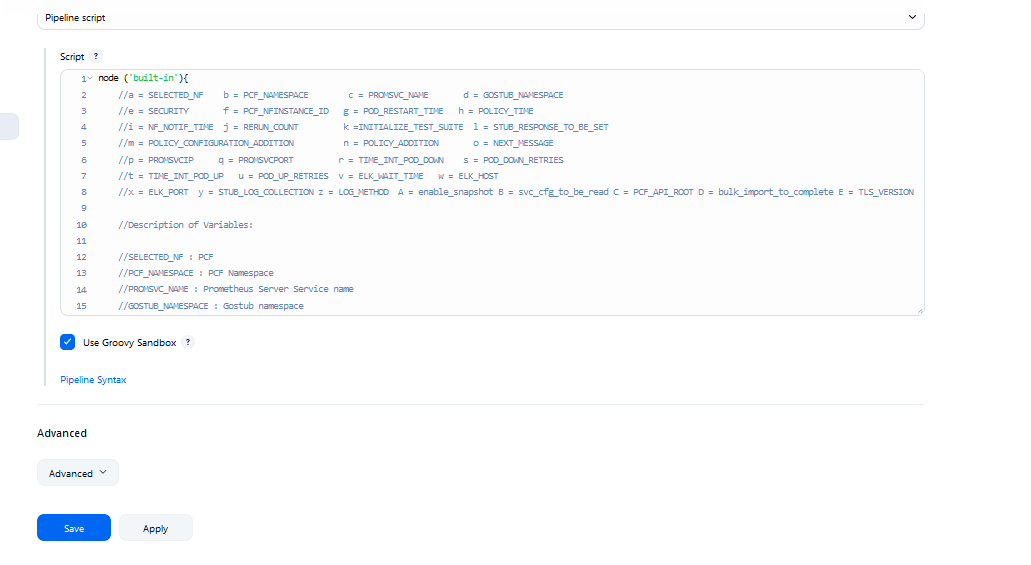

You can modify script pipeline parameters from "a" to "B" on the basis of your deployment environment and click Save. The content of the pipeline script is as follows:

node('built-in') {
    // a = SELECTED_NF
    // b = NF_NAMESPACE
    // c = INGRESS_GATEWAY_IP
    // d = EGRESS_GATEWAY_IP
    // e = PROMETHEUS_SVC_IP
    // f = STUB_IP
    // g = PROMETHEUS_PORT
    // h = RERUN_COUNT
    // i = NF_DB
    // j = NF_DB_SECRET
    // k = NSCONFIG_IP
    // l = NRF_STUB_IP
    // m = HELM_RELEASE_NAME
    // n = ATS_RELEASE_NAME
    // o = NSSF_INGRESS_GATEWAY_PORT
    // p = NSSF_EGW_PORT
    // q = NSSF_CONFIG_PORT
    // r = NSSF_SELECTION_SVC_NAME
    // s = NSSF_AUDITOR_SVC
    // t = NSSF_AVAILABILITY_SVC_NAME
    // u = NSSF_SUBSCRIPTION_SVC_NAME
    // v = NSSF_APP_INFO_SVC
    // w = NSSF_PERFINFO_SVC
    // x = NSSF_INSTANCEID
    // y = NRF_STUB_1_SVC_NAME
    // z = NRF_STUB_2_SVC_NAME
    // A = NSSF_NRF_CLIENT_SVC_NAME
    // B = PROMSVCURI
    // C = SUPPORTED_PLMN_LIST_MCC_MNC

    withEnv([]) {
        sh '''
            sh /var/lib/jenkins/ocnssf_tests/preTestConfig.sh \
                -a NSSF \
                -b ocnssf \
                -c ocnssf-ingress-gateway.ocnssf \
                -d ocnssf-egress-gateway.ocnssf \
                -e occne-prometheus-server.occne-infra \
                -f amf-stubserver.ocnssf \
                -g 80 \
                -h 2 \
                -i ocnssf-nsdb.ocnssf \
                -j ocnssf-db-creds \
                -k ocnssf-nsconfig.ocnssf \
                -l nrf-stubserver.ocnssf \
                -m ocnssf \
                -n ocats \
                -o 8081 \
                -p 8080 \
                -q 8080 \
                -r ocnssf-nsselection.ocnssf \
                -s ocnssf-nsauditor.ocnssf \
                -t ocnssf-nsavailability.ocnssf \
                -u ocnssf-nssubscription.ocnssf \
                -v ocnssf-ocnssf-app-info.ocnssf \
                -w ocnssf-ocnssf-perf-info.ocnssf \
                -x 9faf1bbc-6e4a-4454-a507-aef01a101a01 \
                -y nrf-stubserver1.ocnssf \
                -z nrf-stubserver2.ocnssf \
                -A ocnssf-ocnssf-nrf-client-nfmanagement.ocnssf \
                -B /api/v1/status/config \
                -C 311 480
        '''

        if (env.Include_NewFeatures && "${Include_NewFeatures}" == "YES") {
            sh '''
                sh /var/lib/jenkins/common_scripts/merge_jenkinsfile.sh
            '''
            load "/var/lib/jenkins/ocnssf_tests/jenkinsData/Jenkinsfile-Merged"
        } else {
            load "/var/lib/jenkins/ocnssf_tests/jenkinsData/Jenkinsfile-Regression"
        }
    }
}

Note:

The User MUST NOT change any other value apart from these parameters.

The description of these parameters is as follows:

a: Name of the NF to be tested in capital (NSSF).
b: Namespace in which the NSSF is deployed (default is ocnssf)
c: Ingress Gateway IP address (default is ocnssf-ingress-gateway.ocnssf)
d: Egress Gateway IP address (default is ocnssf-egress-gateway.ocnssf)
e: Prometheus service IP address (default is prometheus.cne-infra)
f: Stub service IP address (default is ocats-amf-stubserver.ocnssf)
g: Port of Prometheus service (default is 80)
h: Number of times the re-run of failed case is allowed (default is 2).
i: Database name (default is ocnssf-nsdb.ocnssf)
j Database secrets (default ocnssf-db-creds)
k: NSSF config ip address (ocnssf-nsconfig.ocnssf)
l: NRF stub server IP address (ocats-nrf-stubserver.ocnssf)
m: NSSF release name (ocnssf)
n: ATS release name (ocats)
o: NSSF Ingress Gateway Port
p: NSSF Egress Gateway Port
q: NSSF Config Port
r: NSSF Selection Service Name
s: NSSF Auditor Service Name
t: NSSF Availability Service Name
u: NSSF Subscription Service Name
v: APP Info Service Name
w:Perf info Service Name
x: NSSF NF Instance ID
y: NRF stub Server Service name(nrf-stubserver1.ocnssf)
z: NRF stub Server Service name(nrf-stubserver1.ocnssf)
A: NRF Client Managment Service Name (ocnssf-ocnssf-nrf-client-nfmanagement.ocnssf)
B: PROMSVCURI (/api/v1/status/config )
C: NSSF PLMN List (311 480 )

Note:

Do not change any value if the OCCNE cluster is used, and NSSF, ATS, and STUB are deployed in the ocnssf namespace.
In the above image, the NSSF Helm Release Name is "ocnssf", ATS Helm Release Name is "ocats", and Namespace is "ocnssf". If any change in the helm release name of NSSF, ATS, and namespace needs to be updated accordingly.
For example, if the NSSF Helm Release Name is "ocnssfats" and ATS Helm Release Name is "ocatsnssf", and Namespace is "ocnssf2510", then the above Pipeline Configuration should be edited as shown below:
- NSSF Helm Release Name should be updated in "c d i k m r s t u v w" if any change in NSSF helm release name apart from "ocnssf".
The NSSF Instance ID needs to be updated in the ATS Jenkins pipeline parameters if there are any changes in the NSSF custom values (CV) file. By default, the NSSF Instance ID is set to "9faf1bbc-6e4a-4454-a507-aef01a101a01". If the Instance ID is modified in the NSSF CV file, the same changes must be reflected in the Jenkins pipeline parameters.
By default NSSF Instance ID in NSSF custom values file as below:
```
#InstanceId of NSSF used in case of GR
nfInstanceId: &nfInstanceId "9faf1bbc-6e4a-4454-a507-aef01a101a01"
```
For example, if the nfInstanceId in the NSSF custom values file is modified from "9faf1bbc-6e4a-4454-a507-aef01a101a01" to "9faf1bbc-6e4a-4454-a507-aef01a101a20", the same change must be updated in the "x" Jenkins pipeline parameters as shown below.

node('built-in') {
    // a = SELECTED_NF
    // b = NF_NAMESPACE
    // c = INGRESS_GATEWAY_IP
    // d = EGRESS_GATEWAY_IP
    // e = PROMETHEUS_SVC_IP
    // f = STUB_IP
    // g = PROMETHEUS_PORT
    // h = RERUN_COUNT
    // i = NF_DB
    // j = NF_DB_SECRET
    // k = NSCONFIG_IP
    // l = NRF_STUB_IP
    // m = HELM_RELEASE_NAME
    // n = ATS_RELEASE_NAME
    // o = NSSF_INGRESS_GATEWAY_PORT
    // p = NSSF_EGW_PORT
    // q = NSSF_CONFIG_PORT
    // r = NSSF_SELECTION_SVC_NAME
    // s = NSSF_AUDITOR_SVC
    // t = NSSF_AVAILABILITY_SVC_NAME
    // u = NSSF_SUBSCRIPTION_SVC_NAME
    // v = NSSF_APP_INFO_SVC
    // w = NSSF_PERFINFO_SVC
    // x = NSSF_INSTANCEID
    // y = NRF_STUB_1_SVC_NAME
    // z = NRF_STUB_2_SVC_NAME
    // A = NSSF_NRF_CLIENT_SVC_NAME
    // B = SUPPORTED_PLMN_LIST_MCC_MNC

    withEnv([]) {
        sh '''
            sh /var/lib/jenkins/ocnssf_tests/preTestConfig.sh \
                -a NSSF \
                -b ocnssf2510 \
                -c ocnssfats-ingress-gateway.ocnssf2510 \
                -d ocnssfats-egress-gateway.ocnssf2510 \
                -e occne-prometheus-server.occne-infra \
                -f amf-stubserver.ocnssf2510 \
                -g 80 \
                -h 2 \
                -i ocnssf-nsdb.ocnssf \
                -j ocnssf-db-creds \
                -k ocnssfats-nsconfig.ocnssf2510 \
                -l nrf-stubserver.ocnssf2510 \
                -m ocnssfats \
                -n ocats \
                -o 8081 \
                -p 8080 \
                -q 8080 \
                -r ocnssfats-nsselection.ocnssf2510 \
                -s ocnssfats-nsauditor.ocnssf2510 \
                -t ocnssfats-nsavailability.ocnssf2510 \
                -u ocnssfats-nssubscription.ocnssf2510 \
                -v ocnssfats-ocnssf-app-info.ocnssf2510 \
                -w ocnssfats-ocnssf-perf-info.ocnssf2510 \
                -x 9faf1bbc-6e4a-4454-a507-aef01a101a20 \
                -y nrf-stubserver1.ocnssf2510 \
                -z nrf-stubserver2.ocnssf2510 \
                -A ocnssfats-ocnssf-nrf-client-nfmanagement.ocnssf2510 \
                -B /prometheus \
                -C 311 480
        '''

        if (env.Include_Regression && "${Include_Regression}" == "YES") {
            sh '''
                sh /var/lib/jenkins/common_scripts/merge_jenkinsfile.sh
            '''
            load "/var/lib/jenkins/ocnssf_tests/jenkinsData/Jenkinsfile-Merged"
        } else {
            load "/var/lib/jenkins/ocnssf_tests/jenkinsData/Jenkinsfile-Regression"
        }
    }
}

Click Save after making necessary changes. The Pipeline NSSF-Regression screen appears.

NSSF-Regression - Build with Parameters

By default, features "ALL," configuration type "Product_config," and include new features "NO" will be selected. All test cases will be executed once you click on BUILD, as shown above.
Features: ALL. Once you click on ALL, a dropdown "Select" option will appear. After selecting the "Select" option, as shown below, options will appear to select feature files. To run the selected feature files, click on "Build," as shown below.

53 features passed, 0 failed, 0 skipped
892 scenarios passed, 0 failed, 0 skipped
17792 steps passed, 0 failed, 0 skipped
Took 229min 51.609s

4.2.6 NSSF-Regression Documentation

To view NSSF Regression cases, go to NSSF-Regression latest pipeline build and click the Documentation link in the left navigation pane. The following screen appears. Click any functionality to view its test cases and scenarios of each test case as shown below:

A sample of a few documentation features are as follows:

Once the run of regression features is done successfully, click on the build number whose logs are to be viewed and then click on Console Output on left side navigation.

Wait till the page is loaded completely, then click Download to download the regression features logs.
reconsole

4.3 Running SCP Test Cases using ATS

This section describes how to run SCP test cases using ATS.

4.3.1 Logging in to ATS

Logging in to ATS GUI in Non-OCI Setup

Before logging in to ATS, ensure that ATS and Stubs are deployed using Helm charts. A sample screenshot is provided as follows:

Figure 4-17 Verifying ATS Pod

Note:

In the Verifying ATS Pod image, the ATS nodeport is highlighted in red as 30345. For more information about ATS deployment, see Deploying ATS and Stub in the Kubernetes Cluster. Similarly, verify Stub deployments.

To log in to the ATS GUI, open the browser and either provide the external IP address of the worker node and nodeport of the ATS service as <Worker-Node-IP>:<Node-Port-of-ATS> or provide the IP address of the load balancer and serviceport of the ATS service as <ATS-LB-IP>:<Service-Port-of-ATS>.

The ATS login screen appears.

Figure 4-18 Logging in to ATS GUI

Running ATS

Note:

It is recommended to keep the rerun count to minimum 1 for running ATS testcases.

To run ATS:

Enter the login credentials and click Sign in.

Note:
To modify default login password, see Modifying Login Password.

The following screens appear to display preconfigured pipelines for SCP individually.

Figure 4-19 ATS SCP First Login Screen

The different pre-configured pipelines for SCP are as follows:

SCP-NewFeatures: This pipeline has all the test cases delivered as part of this release.
SCP-Regression: This pipeline covers all the test cases from the previous releases.

Logging in to ATS GUI in OCI Setup

To access the ATS GUI in OCI, see the Accessing ATS GUI in OCI section.

Logging in to ATS GUI with HTTPS Enabled

To access the ATS GUI, see the Enable ATS GUI with HTTPS section.

Note:

For more information, see the Support for Transport Layer Security.

4.3.2 SCP-NewFeatures Pipeline

This section describes how to configure new feature pipeline parameters, run SCP test cases, and view functionalities.

4.3.2.1 Configuring New Feature Pipelines

This is a pre-configured pipeline where all the SCP test cases are run.

To configure its parameters, do the following:

Click SCP-NewFeatures in the Name column.
The SCP-NewFeatures screen appears.

Figure 4-20 SCP-NewFeatures

According to the installation guide, the configuration parameters can be modified in the ocats_ocscp_values.yaml file before deployment. If you are running SCP test cases for the first time without enabling the parameters in the deployment file, then you have to set the input parameters before running any test case. There is no need to set these parameters again unless there is a change in the configuration.
In the left navigation pane, click Configure to provide input parameters and scroll down to the pipeline script as shown in the following image:
The General tab appears.

Note:
Ensure that the following screen loads completely before you perform any action on it. Also, do not modify any other configuration than what is specified in the subsequent steps.

The control moves from the General tab to the Pipeline tab, as shown in the following screenshot:

Figure 4-21 Pipeline Tab
Modify the values of the pipeline script as required, and then click Save.
Parameter "-I" must be changed as part of "Pipeline script". The content of the pipeline script is as follows:
```
node ('built-in'){
    //a = SELECTED_NF  b = NFNAMESPACE  c = CLUSTERDOMAIN  d = DESTNAMESPACE
    //e = ATSREGISTRY  f = AUDITINTERVAL  g = GUARDTIME  h = SCPSVCNAME
    //i = SCPCONFIGSVCNAME  j = SCPNOTIFYSVCNAME  k = SCPSUBSVCNAME  l = DBSECRETNAME
    //m = MYSQLHOST  n = ATSSTUBIMAGE  o = ATSSTUBCPU  p = ATSSTUBMEMORY  q = SCPAUDITSVCNAME
    //r = RERUN_COUNT  s = SCPSVCPORT  t = PROMSVCNAME  u = PROMSVCPORT  v = STUBWAITTIME
    //w = PROMSVC_URI  x = SUBVALIDITYTIME z = OPENSEARCH_WAIT_TIME A = OPENSEARCH_HOST
    //B = OPENSEARCH_PORT C = STUB_LOG_COLLECTION D = OPENSEARCH_LOGS E = SCPSVCHTTPSPORT F = SCPNRFPROXYSVCNAME
    //G = KUBERNETES_HOST H = KAFKANAMESPACE I = SCPDDCLIENTSVCNAME J = SCPGLBRATELIMITSTUBSVCNAME K = SCPCONFIGSVCPORT
    //L = SCP_METRICS_VERSION M = SCPSVCIP N = KAFKANAMESPACE1
    withEnv([

    ]){

    sh '''
        sh /var/lib/jenkins/ocscp_tests/preTestConfig.sh \    -a SCP \
        -b scp-73999881-dev \
        -c cluster.local \
        -d scp-73999881-dev \
        -e cgbu-ocscp-dev-docker.dockerhub-phx.oci.oraclecorp.com/ocats \
        -f 60 \
        -g 10 \
        -h cicdocscp-scp-worker \
        -i cicdocscp-scpc-configuration \
        -j cicdocscp-scpc-notification \
        -k cicdocscp-scpc-subscription \
        -l appuser-secret \
        -m mysql.scp-73999881-dev.svc.cluster.local \
        -n ocats-pystub \
        -o 0.5 \
        -p 0.5G \
        -q cicdocscp-scpc-audit \
        -r 0 \
        -s 8000 \
        -t occne-prometheus-73999881-server.scp-73999881-dev-infra \
        -u 80 \
        -v 300 \
        -w /api/ \
        -x 120 \
        -z 0 \
        -A occne-opensearch-cluster-master.scp-73999881-dev-infra \
        -B 9200 \
        -C yes \
        -D opensearch \
        -E 9443 \
        -F cicdocscp-scp-nrfproxy \
        -G kubernetes.default \
        -H scp-73999881-devkafka \
        -I ocats-ocscp-ocats-ddclientstub \
        -J ocats-ocscp-ocats-scpglbratelimitstub \
        -K 8081 \
        -L v1 \
        -M scpSignallingFqdn \
        -N scpsvc1 \

    '''
    if(env.Include_Regression && "${Include_Regression}" == "YES"){
        sh '''sh /var/lib/jenkins/common_scripts/merge_jenkinsfile.sh'''
        load "/var/lib/jenkins/ocscp_tests/jenkinsData/Jenkinsfile-Merged"
    }
    else{
        load "/var/lib/jenkins/ocscp_tests/jenkinsData/Jenkinsfile-NewFeatures"
    }

    }
}
```
The description of these parameters is as follows:

Note:
Do not modify anything other than these parameters.
- a: Selected NF
- b: NameSpace in which SCP is deployed
- c: K8s Cluster Domain where SCP is deployed
- d: Test Stubs NameSpace - Must be same as SCP Namespace
- e: Docker registry where test stub image is available
- f: Audit Interval provided in SCP Deployment file
- g: Guard Time provided SCP Deployment file
- h: SCP-Worker microservice name as provided during deployment
- i: SCPC-Configuration microservice name as provided during deployment
- j: SCPC-Notification microservice name as provided during deployment
- k: SCPC-Subscription microservice name as provided during deployment
- l: DB Secret name as provided during deployment
- m: Mysql Host name as provided during deployment
- n: Test Stub Image Name with tag
- o: Test Stub CPU requests and limit
- p: Test Stub Memory requests and limit
- q: SCPC-Audit microservice name as provided during deployment
- r: re-run count
- s: SCPSVCPORT with which SCP is deployed
- t: PROMSVCNAME with which Prometheus server is deployed. Note: Prometheus service name is followed by namepsace in which Prometheus service is existing. Prometheus service is in a different namespace related to deployed SCP namespace.
- u: PROMSVCPORT with which Prometheus server is deployed
- v: Time to wait for Stub Creation. Default value of STUBWAITTIME is 240s.Note: A user needs to update the STUBWAITTIME in increments or multiples of 30 seconds. The minimum allowable value for STUBWAITTIME is 30 seconds.
- w: API URI of Prometheus (/api/) - For examples, use /api/or /prometheus/api/
- x: Subscription Validity Time to set by ATS in response to subscription request from SCP
- y: Application Debug Logs collection on Rerun if set to true. The default value is false
- z: Opensearch connection timeout
- A: Opensearch host/service name
- B: Opensearch port
- C: Stub log collection
- D: Provide Kubernetes or OpenSearch for ATS for app log collection (Fetch_Log_Upon_Failure should be enabled)
- E: SCP HTTPS Signaling Port
- F: SCP NRF Proxy service name
- G: Kubernetes Host
- I: scpddclientstub name as provided during deployment
- J: scpglobalratelimitstub name as provided during deployment
- K: port of configuration pod in SCP deployment
- L: scp metrics version
- M: scp worker FQDN or cluster IP: The default value is scpSignallingFqdn, which forwards requests to the worker using the worker's FQDN. Alternatively, an IPv4 or IPv6 address (enclosed in square brackets) can also be provided.
- N: scpsvc1 \

4.3.2.2 Running SCP New Feature Pipelines

To run SCP test cases, perform the following steps

Click Build with Parameters link available in the left navigation pane of the Pipeline SCP-NewFeatures screen.
Select the R16 option from the Execute_Suite drop-down menu to run Release 16 test cases for SCP.
Select the required option from the Features drop-down menu to run the test cases:
- All: To run all the test cases for SCP based on Release15 or Release16 selection.
- Sanity: Enabled for SCP. Sanity cases are run to do a quick sanity check on SCP SUT features.
- Select: This option allows users to separately select specific features for separate execution. Additionally, users can select the run for an entire stage or group instead of running all feature files.
Select one of the following configuration types from the Configuration_Type drop-down menu:
- Product_Config: To run test cases from the features or regression directory. Test cases in this directory should not be modified.
- Custom_Config: To run test cases from the features or cust_regression directory. Any test case customization required should be done in this directory.
Select an appropriate option and click Build to perform the test.

Figure 4-22 Build
Click Full Stage View in the left navigation pane to view the status of the run.
Hover over values of Execute Tests, and then click Logs to check test results and logs.

Note:
A sample consolidated test report is shown in the following image when rerun is set to 2, which is the default value. All the features passed within the first rerun, therefore, the second rerun stage has not been run in this case.

Figure 4-23 Sample consolidated report
For more information about consolidated test report, see Managing Final Summary Report, Build Color, and Application Log.
Note:
- The New Feature tests in this release have been written according to SCP-ATS parameterization method (Golden Configuration). The individual features are not populated with direct values for the parameters, however, with variable names. While performing the tests, these variables are mapped according to the data provided adjacent to them in the feature specific <feature_name>.yaml and global.yaml that can be found in the product_config directory. This method allows the decoupling of data that can be customer specific from the features. Fore more information about parameterization (Golden Configuration), see Parameterization.
To view the detail view of the respective group, rerun logs, and the consolidated report summary:
1. Click Open Blue Ocean Homepage from the left navigation pane.
2. Click the build number in the run column to view the consolidated output of all the feature that are run.
3. Click Download icon to download the log files.

4.3.3 SCP-NewFeatures Documentation

This pipeline has an HTML report of all the feature files that you can test as part of the SCP ATS release.

To view SCP functionalities, go to the SCP-NewFeatures pipeline and click the Documentation option in the left navigation pane. It lists all the test cases provided as part of SCP ATS -26.1.201.

Note:
The Documentation option appears only if the SCP-NewFeatures pipeline test cases are run at least once.
The following screen appears:

Figure 4-24 SCP-NewFeatures Documentation
Click any functionality to view its test cases and scenarios for each test case.

Figure 4-25 Sample Scenario

Based on the functionalities covered under Documentation, the screen displays test cases.
To navigate back to the Pipeline SCP-NewFeatures screen, click the Back to SCP-NewFeatures link available in the upper left corner of the screen.

4.3.4 SCP-Regression Pipeline

This section describes how to configure regression pipeline parameters, run SCP test cases, and view functionalities.

4.3.4.1 Configuring Regression Pipelines

This pre-configured pipeline has all the test cases from previous releases.

Click SCP-Regression Pipeline:

Figure 4-26 SCP-Regression Pipeline

According to the installation guide, the configuration parameters can be modified in the ocats_ocscp_values.yaml file before deployment. If you are running SCP-Regression pipeline test cases for the first time without enabling the parameters in the deployment file, you have to set the input parameters before running the test cases. Subsequent test case run does not require any input unless there is a need to change any configuration.
In the left navigation pane, click Configure to provide input parameters and scroll-down to the pipeline script as shown in the following image:

Figure 4-27 Regression - Pipeline Script
Modify the values of the Pipeline script as required, and then click Save.
Parameter "-I" should be changed as part of "Pipeline script". The content of the pipeline script is as follows:
```
node ('built-in'){
    //a = SELECTED_NF  b = NFNAMESPACE  c = CLUSTERDOMAIN  d = DESTNAMESPACE
    //e = ATSREGISTRY  f = AUDITINTERVAL  g = GUARDTIME  h = SCPSVCNAME
    //i = SCPCONFIGSVCNAME  j = SCPNOTIFYSVCNAME  k = SCPSUBSVCNAME  l = DBSECRETNAME
    //m = MYSQLHOST  n = ATSSTUBIMAGE  o = ATSSTUBCPU  p = ATSSTUBMEMORY  q = SCPAUDITSVCNAME
    //r = RERUN_COUNT  s = SCPSVCPORT  t = PROMSVCNAME  u = PROMSVCPORT  v = STUBWAITTIME
    //w = PROMSVC_URI  x = SUBVALIDITYTIME z = OPENSEARCH_WAIT_TIME A = OPENSEARCH_HOST
    //B = OPENSEARCH_PORT C = STUB_LOG_COLLECTION D = LOG_SOURCE E = SCPSVCHTTPSPORT F = SCPNRFPROXYSVCNAME
    //G = KUBERNETES_HOST H = KAFKANAMESPACE I = SCPDDCLIENTSVCNAME J = SCPGLBRATELIMITSTUBSVCNAME K = SCPCONFIGSVCPORT
    //L = SCP_METRICS_VERSION M = SCPSVCIP N = KAFKANAMESPACE1
        withEnv([

    ]){

    sh '''
    sh /var/lib/jenkins/ocscp_tests/preTestConfig.sh \
        -a SCP \
        -b scpsvc \
        -c cluster.local \
        -d scpsvc \
        -e cgbu-ocscp-dev-docker.dockerhub-phx.oci.oraclecorp.com/ocats \
        -f 60 \
        -g 10 \
        -h ocscp-scp-worker \
        -i ocscp-scpc-configuration \
        -j ocscp-scpc-notification \
        -k ocscp-scpc-subscription \
        -l appuser-secret \
        -m mysql.default.svc.cluster.local \
        -n ocats-pystub:tag \
        -o 0.5 \
        -p 0.5G \
        -q ocscp-scpc-audit \
        -r 0 \
        -s 8000 \
        -t occne-prometheus-server.occne-infra \
        -u 80 \
        -v 300 \
        -w /api/ \
        -x 120 \
        -z 0 \
        -A occne-opensearch-cluster-master.occne-infra \
        -B 9200 \
        -C no \
        -D kubernetes \
        -E 9443 \
        -F ocscp-scp-nrfproxy \
        -G kubernetes.default \
        -H scpsvc \
        -I ocats-ocscp-ocats-ddclientstub \
        -J ocats-ocscp-ocats-scpglbratelimitstub \
        -K 8081 \
        -L v1 \
        -M scpSignallingFqdn \
        -N scpsvc1 \

    '''
    if(env.Include_NewFeatures && "${Include_NewFeatures}" == "YES"){
        sh '''sh /var/lib/jenkins/common_scripts/merge_jenkinsfile.sh'''
        load "/var/lib/jenkins/ocscp_tests/jenkinsData/Jenkinsfile-Merged"
    }
    else{
        load "/var/lib/jenkins/ocscp_tests/jenkinsData/Jenkinsfile-Regression"
    }

    }
}
```
The description of these parameters is as follows:
- a: Selected NF
- b: NameSpace in which SCP is deployed
- c: K8s Cluster Domain where SCP is deployed
- d: Test Stubs NameSpace - Must be same as SCP Namespace
- e: Docker registry where test stub image is available
- f: Audit Interval provided in SCP Deployment file
- g: Guard Time provided SCP Deployment file
- h: SCP-Worker microservice name as provided during deployment
- i: SCPC-Configuration microservice name as provided during deployment
- j: SCPC-Notification microservice name as provided during deployment
- k: SCPC-Subscription microservice name as provided during deployment
- l: DB Secret name as provided during deployment
- m: Mysql Host name as provided during deployment
- n: Test Stub Image Name with tag
- o: Test Stub CPU requests and limit
- p: Test Stub Memory requests and limit
- q: SCPC-Audit microservice name as provided during deployment
- r: re-run count
- s: SCPSVCPORT with which SCP is deployed
- t: PROMSVCNAME with which prometheus server is deployed. Note: Prometheus service name is followed by namepsace in which Prometheus service is existing. Prometheus service is in a different namespace related to deployed SCP namespace.
- u: PROMSVCPORT with which prometheus server is deployed
- v: Time to wait for Stub Creation. Default value of STUBWAITTIME is 240s.Note: A user needs to update the STUBWAITTIME in increments or multiples of 30 seconds. The minimum allowable value for STUBWAITTIME is 30 seconds.
- w: API URI of Prometheus (/api/) - Use "/api/" or "/prometheus/api/"
- x: Subscription Validity Time to set by ATS in response to subscription request from SCP
- y: Application Debug Logs collection on Rerun if set to true. The default value is false
- z: Opensearch connection timeout
- A: Opensearch host/service name
- B: Opensearch port
- C: Stub log collection
- D: User can provide Kubernetes/opensearch for ATS to use for app log collection (Fetch_Log_Upon_Failure needs to be enabled)
- E: SCP HTTPS Signaling Port
- F: SCP NRF Proxy service name
- G: Kubernetes Host
- I: scpddclientstub name as provided during deployment
- J: scpglobalratelimitstub name as provided during deployment
- K: port of configuration pod in scp deployment
- L: scp metrics version
- M: scp worker FQDN or cluster IP. The default value is scpSignallingFqdn, which forwards requests to the worker using the worker FQDN. Alternatively, an IPv4 or IPv6 address (enclosed in square brackets) can also be provided.
- N: scpsvc1 \

4.3.4.2 Running Regression Pipelines

This section describes how to run test cases for SCP Regression pipeline.

To run the pipeline, click Build with Parameters in the left navigation pane.
Select the R16 option from the Execute_Suite drop-down menu to run Release 16 test cases for SCP.
Select the required regression option from the Features drop-down menu to run the test cases:
- All: To run all the test cases for SCP based on Release15 or Release16 selection. This runs all the cases except SCP_Audit_nnrf_disc. If SCP is deployed with nnrf-disc for audit or registration with NRF is disabled, then the All option should not be used and instead Single or MultipleFeatures option can be used to select appropriate cases.
- Sanity: Enabled for SCP. Sanity cases are run to do a quick sanity check on SCP SUT features. Sanity cases are included in the regression suite and are tagged with @sanity.
- Select: This option allows users to separately select specific features for separate test case run. Additionally, users can select the run for an entire stage or group instead of running all feature files.
Select one of the following configuration types from the Configuration_Type drop-down menu:
- Product_Config: To run test cases from the features or regression directory. Test cases in this directory should not be modified.
- Custom_Config: To run test cases from the features or cust_regression directory. Any test case customization required should be done in this directory.
Select an appropriate option and click Build to run the test case.
Click Full Stage View in the left navigation pane to view the status of the run.
Hover over the Execute-Tests stage of the pipeline, and then click Logs to check test case results and logs.
To view the detail view of the respective group, rerun logs, and the consolidated report summary:
1. Click Open Blue Ocean Homepage from the left navigation pane.
2. Click the build number in the run column to view the consolidated output of all the feature that are run.
3. Click Download icon to download the log files.

4.3.5 SCP-Regression Documentation

This pipeline has an HTML report of all the feature files that you can test as part of the SCP ATS release.

To view SCP functionalities, go to the SCP-Regression pipeline and click the Documentation option in the left navigation pane. It lists all the test cases provided as part of SCP ATS -26.1.201.

Note:
The Documentation option appears only if the SCP-Regression pipeline test cases are run at least once.
In SCP 24.1.0, the feature files are renamed as per the naming convention. For more information, see Renaming of Regression Feature Files

The following screen appears:

Figure 4-28 SCP-Regression Documentation
Click any functionality to view its test cases and scenarios for each test case.

Figure 4-29 Sample Scenario

Based on the functionalities covered under Documentation, the screen displays test cases.
To navigate back to the Pipeline SCP-Regression screen, click the Back to SCP-Regression link available in the upper left corner of the screen.

4.3.5.1 Renaming of Regression Feature Files

The following tables detail the feature file that has been renamed in alignment with the naming convention:

Table 4-1 Regression Feature File

Feature Names prior to SCP 24.1.0	New Feature Names for SCP 24.1.0
Route_group_static_config_api_validation	SCP_AlternateRoutingUsingStaticConfig_API_P0
Alternate_Routing_Using_Static_Config_EgressRL_SMF	SCP_AlternateRoutingUsingStaticConfig_EgressRL_SMF_P0
Alternate_Routing_Using_Static_Configuration_Https_SMF	SCP_AlternateRoutingUsingStaticConfig_HTTPS_SMF_P0
Alternate_Routing_Using_Static_Configuration_Notification_CircuitBreaking.	SCP_AlternateRoutingUsingStaticConfig_NotificationMessageCircuitBreaking_P0
Alternate_Routing_Using_Static_Configuration_SMF	SCP_AlternateRoutingUsingStaticConfig_SMF_P0
Alternate_Routing_Using_Static_Config_Overload_Control	SCP_AlternateRoutingUsingStaticConfig_OverloadControl_P0
SCP_Audit_nnrf_disc_SMF	SCP_Audit_nnrf-disc_SMF_P0
SCP_Audit_nnrf_nfm_SMF	SCP_Audit_nnrf-nfm_SMF_P0
SCP_Audit_nnrf_nfm_SMF_user_agent	SCP_Audit_nnrfnfmSCPsUserAgentHeaderValidation_P0
Dns_Srv_Call_Back_Notification_CD_OD_Cases	SCP_CallBackNotification_DNSSRVbasedCBOD_P0
Callback_And_Notification	SCP_CallBackNotification_P0
SCP_CCA_Header_Validation_API_P0	SCP_CCAvalidation_API_P0
CCA_validation_AUSF_P0	SCP_CCAvalidation_AUSF_P0
CCA_validation_AUSF_P1	SCP_CCAvalidation_AUSF_P1
CCA_validation_InterPLMN_CHF_P0	SCP_CCAvalidation_InterPLMNRouting_CHF_P0
CCA_validation_InterSCP_CHF_P0	SCP_CCAvalidation_InterSCP_CHF_P0
CCA_validation_ModelD_CHF_P0	SCP_CCAvalidation_ModelD_CHF_P0
CCA_validation_ModelD_CHF_P1	SCP_CCAvalidation_ModelD_CHF_P1
SCP_Circuit_Breaking_Config_API	SCP_CircuitBreaking_ConfigAPI_P0
Circuit_Breaking_PCF	SCP_CircuitBreaking_PCF_P0
Circuit_Breaking_SMF	SCP_CircuitBreaking_SMF_P0
SCP_Congestion_Control_Config_API	SCP_CongestionControl_ConfigAPI_P0
S_Correlation_Header_interplmn_model_C	SCP_CorrelationHeader_InterPLMNModelC_P0
Correlation_Headersepp_model_D_Inter_PLMN_and_Mediation	SCP_CorrelationHeader_InterPLMNRoutingBasedOnModelDandMediation_P0
Interscp_Correlation_Header_model_C	SCP_CorrelationHeader_InterSCP_P0
Correlation_Header_model_C_cases	SCP_CorrelationHeader_ModelC_P0
Notification_Correlation_Header_model_C	SCP_CorrelationHeader_ModelCNotificationRequest_P0
Correlation_Header_SCP_generated_error	SCP_CorrelationHeader_SCPGeneratedError_P0
DefaultNotificationCallbackInitialRouteAndDiscovery_p0	SCP_DefaultNotificationCallback_InitialRouteAndDiscovery_P0
Dns_Srv_Call_Back_Notification_Https	SCP_DefaultNotificationCallbackUri_DNSSRV_HTTPS_P0
Dns_Srv_Call_Back_Notification	SCP_DefaultNotificationCallbackUri_DNSSRV_P0
DefaultNotificationCallbackUriModelC_Https_p1	SCP_DefaultNotificationCallbackUri_ModelC_HTTPS_P1
DefaultNotificationCallbackUriModelC_p0	SCP_DefaultNotificationCallbackUri_ModelC_P0
DefaultNotificationCallbackUriModelC_p1	SCP_DefaultNotificationCallbackUri_ModelC_P1
DefaultNotificationCallbackUriModelC_CB_p0	SCP_DefaultNotificationCallbackUri_ModelCCB_P0
DefaultNotificationCallbackUriModelC_SEPP_p1	SCP_DefaultNotificationCallbackUri_ModelCInterPLMNRouting_P1
DefaultNotificationCallbackUriModelC_SEPP_p1	SCP_DefaultNotificationCallbackUri_ModelCInterPLMNRouting_P1
Alternate_resolution_api_validation	SCP_DNSSRV_AlternateResolution_API_P0
Dns_Srv_Based_Routing_For_ModelC_Headers_PCF_cases	SCP_DNSSRV_ModelCHeaders_PCF_P0
Dns_Srv_Based_Routing_For_ModelC_Headers_UDM_cases	SCP_DNSSRV_ModelCHeaders_UDM_P0
Dns_Srv_Producer_Overload_Control	SCP_DNSSRV_ProducerBasedOverloadControl_P0
Alert_egress_congestion_based_on_producer_load_and_message_priority_CHF	SCP_EgressCongestionBasedOnProducerLoad_AlertMessagePriority_CHF_P0
Egress_congestion_based_on_producer_load_and_message_priority_PCF	SCP_EgressCongestionBasedOnProducerLoad_MessagePriority_PCF_P0
Egress_congestion_based_on_producer_load_and_message_priority_UDM	SCP_EgressCongestionBasedOnProducerLoad_MessagePriority_UDM_P0
SCP_Egress_Host_Preference_alternate_routing_SMF_P0_P1	SCP_EgressHostPreference_AlternateRouting_SMF_P1
SCP_Egress_Host_Preference_alternate_routing_withoutHeader_AUSF_P1	SCP_EgressHostPreference_AlternateRoutingWithoutHeader_AUSF_P1
SCP_Egress_Host_Preference_API_P0	SCP_EgressHostPreference_API_P0
SCP_Egress_Host_Preference_CHF_P0	SCP_EgressHostPreference_CHF_P0
SCP_Egress_Host_Preference_CHF_P1	SCP_EgressHostPreference_CHF_P1
SCP_Egress_Host_Preference_InterPLMN_Routing_P0	SCP_EgressHostPreference_InterPLMNRouting_P0
SCP_Egress_Host_Preference_InterPLMN_Routing_P1	SCP_EgressHostPreference_InterPLMNRouting_P1
SCP_Egress_Host_Preference_InterPLMN_Routing_Non_ASM_P0	SCP_EgressHostPreference_InterPLMNRoutingNonASM_P0
SCP_Egress_Host_Preference_InterSCP_Routing_CHF_P0	SCP_EgressHostPreference_InterSCPRouting_CHF_P0
SCP_Egress_Host_Preference_InterSCP_Routing_CHF_P1	SCP_EgressHostPreference_InterSCPRouting_CHF_P1
SCP_Egress_Host_Preference_InterSCP_Routing_CHF_Non_ASM_P0	SCP_EgressHostPreference_InterSCPRoutingNonASM_CHF_P0
SCP_Egress_Host_Preference_ModelD_routing_CHF_NRF_P0	SCP_EgressHostPreference_ModelDRoutingCHF_NRF_P0
SCP_Egress_Host_Preference_ModelD_routing_CHF_NRF_P1	SCP_EgressHostPreference_ModelDRoutingCHF_NRF_P1
SCP_Egress_Host_Preference_ModelD_routing_without_apiRootHdr_CHF_NRF_P1	SCP_EgressHostPreference_ModelDRoutingWithoutAPIRootHdrCHFandNRF_P1
SCP_Egress_Host_Preference_Notification_PCF	SCP_EgressHostPreference_NotificationRequest_PCF_P0
SCP_Egress_Host_Preference_SCP_Generated_Audit_SMF_NRF_P1	SCP_EgressHostPreference_SCPGeneratedAuditSMF_NRF_P1
SCP_Egress_Host_Preference_SMF_P0_P1	SCP_EgressHostPreference_SMF_P1
SCP_Egress_Host_Prefrence_SCP_Generated_Subscription_SCP_NRF_P1	SCP_EgressHostPrefrence_SCPgeneratedSubscription_NRF_P1
Alert_SCPEgressTrafficRateExceededConfiguredLimit_AUSF	SCP_EgressRateLimiting_AlertTrafficRateExceededConfiguredLimit_AUSF_P0
Alert_SCPEgressTrafficRoutedWithoutRateLimitTreatment_AUSF	SCP_EgressRateLimiting_AlertTrafficRoutedWithoutRateLimitTreatment_AUSF_P0
Egress_Rate_Limiting_Config_API	SCP_EgressRateLimiting_Config_API_P0
EgressRateLimiting_INTERSCP	SCP_EgressRateLimiting_InterSCP_P0
EgressRateLimiting	SCP_EgressRateLimiting_P0
EgressRateLimiting_UDM_Cases	SCP_EgressRateLimiting_UDM_P0
RateLimitingRelease16_AUSF	SCP_EgressRateLimitingRelease16_AUSF_P0
SCP_EgressRateLimiting_DNSSRV.feature	SCP_EgressRateLimiting_DNSSRV_P0.feature
Enhanced_Suspended_State_Routing_API_Validation	SCP_EnhancedSuspendedStateRouting_API_P0
Enhanced_Suspended_State_Routing_Alternate_Routing_Using_Static_Config_DNS_SRV	SCP_EnhancedSuspendedStateRouting_ARusingStaticConfigandDNSSRV_P0
Enhanced_Suspended_State_Routing_Inter_PLMN	SCP_EnhancedSuspendedStateRouting_InterPLMNRouting_P0
Enhanced_Suspended_State_Routing_Mode2_API_Validation_P0	SCP_EnhancedSuspendedStateRouting_Mode2_API_P0
Enhanced_Suspended_State_Routing_Mode2_Alternate_Routing_Using_Static_Config_DNS_SRV_P0	SCP_EnhancedSuspendedStateRouting_Mode2AlternateRoutingStaticConfigDNSSRV_P0
Enhanced_Suspended_State_Routing_Mode2_ModelC_SMF_P1	SCP_EnhancedSuspendedStateRouting_Mode2ModelC_SMF_P1
Enhanced_Suspended_State_Routing_Mode2_ModelC_Inter_PLMN_P0	SCP_EnhancedSuspendedStateRouting_Mode2ModelCInterPLMN_P0
Enhanced_Suspended_State_Routing_Mode2_ModelC_InterSCP_P0	SCP_EnhancedSuspendedStateRouting_Mode2ModelCInterSCP_P0
Enhanced_Suspended_State_Routing_Mode2_ModelC_Overload_Congestion_SMF_P1	SCP_EnhancedSuspendedStateRouting_Mode2ModelCOverloadCongestion_SMF_P1
Enhanced_Suspended_State_Routing_Mode2_ModelD_P0	SCP_EnhancedSuspendedStateRouting_Mode2ModelD_P0
Enhanced_Suspended_State_Routing_Mode2_ModelD_Inter_PLMN_P0	SCP_EnhancedSuspendedStateRouting_Mode2ModelDInterPLMNRoutin_P0
Enhanced_Suspended_State_Routing_Mode2_ModelD_InterSCP_P0	SCP_EnhancedSuspendedStateRouting_Mode2ModelDInterSCP_P0
Enhanced_Suspended_State_Routing_ModelC_SMF	SCP_EnhancedSuspendedStateRouting_ModelC_SMF_P0
Enhanced_Suspended_State_Routing_Parallel_ModelC_SMF_UDM_P0	SCP_EnhancedSuspendedStateRouting_ModelC_SMFandUDM_P0
Enhanced_Suspended_State_Routing_ModelC_UDM	SCP_EnhancedSuspendedStateRouting_ModelC_UDM_P0
Enhanced_Suspended_State_Routing_Model_C_Inter_SCP	SCP_EnhancedSuspendedStateRouting_ModelCInterSCP_P0
Enhanced_Suspended_State_Routing_ModelD	SCP_EnhancedSuspendedStateRouting_ModelD_P0
Enhanced_Suspended_State_Routing_ModelD_InterSCP	SCP_EnhancedSuspendedStateRouting_ModelDInterSCP_P0
Enhanced_NF_Status_Processing_SUSPENDED	SCP_EnhancedSuspendedStateRouting_SuspendedMode2_P0
Enhanced_NF_Status_Processing_SUSPENDED_SMF	SCP_EnhancedSuspendedStateRouting_SuspendedMode2_SMF_P0
Enhanced_NF_Status_Processing_UNDISCOVERABLE	SCP_EnhancedSuspendedStateRouting_UNDISCOVERABLE_P0
SCP_Error_Profile_Config_API_P0	SCP_ErrorProfile_ConfigAPI_P0
SCPFailureHandling_default_behavior_serverheader_AUSF	SCP_FailureHandling_DefaultBehaviorServerHeader_AUSF_P0
SCPFailureHandling_default_behavior_serverheader	SCP_FailureHandling_DefaultBehaviorServerHeader_P0
SCPFailureHandling_DNSSRV_based_EnhancedServerHeaderV2_NEF_p0	SCP_FailureHandling_DNSSRVbasedEnhancedServerHeaderV2_NEF_P0
SCPFailureHandling_EnhancedServerHeader	SCP_FailureHandling_EnhancedServerHeader_P0
SCPFailureHandling_EnhancedServerHeaderV2_API	SCP_FailureHandling_EnhancedServerHeaderV2_API_P0
SCPFailureHandling_EnhancedServerHeaderV2_p0	SCP_FailureHandling_EnhancedServerHeaderV2_P0
SCPFailureHandling_EnhancedServerHeaderV2_p1	SCP_FailureHandling_EnhancedServerHeaderV2_P1
FailureHandling_InterSCP_EnhancedServerHeader	SCP_FailureHandling_InterSCPEnhancedServerHeader.P0
FormUrlEncoded	SCP_FormUrlEncoded_P0
Global_Egress_Rate_Limiting_Config_API	SCP_GlobalEgressRateLimiting_API_P0
GlobalEgressRateLimiting_P0	SCP_GlobalEgressRateLimiting_P0
SCP_HealthCheck_Support_API_P0	SCP_HealthCheckSupport_API_P0
SCP_HealthCheck_Support_HTTPS_P0	SCP_HealthCheckSupport_HTTPS_P0
SCP_HealthCheckInterSCPModelC_HTTPS_P0	SCP_HealthCheckSupport_InterSCPModelC_HTTPS_P0
SCP_HealthCheckInterSCPModelC_P0	SCP_HealthCheckSupport_InterSCPModelC_P0
SCP_HealthCheckInterSCPModelD_P0	SCP_HealthCheckSupport_InterSCPModelD_P0
Alert_SCPIngressTrafficRateExceededConfiguredLimit	SCP_IngressRateLimiting_AlertTrafficRateExceededConfiguredLimit_P
Alert_SCPIngressTrafficRoutedWithoutRateLimitTreatment	SCP_IngressRateLimiting_AlertTrafficRoutedWithoutRateLimitTreatment_P0
Ingress_Rate_Limiting_Config_API	SCP_IngressRateLimiting_API_P0
Ingress_Rate_Limiting_Config_API_SC1	SCP_IngressRateLimiting_ConfigAPI_P0
Ingress_Rate_Limiting_Config_API_enhancement_for_nfInstanceId	SCP_IngressRateLimiting_ConfigAPIenhancementNFInstanceId_P0
Ingress_Rate_Limiting_enhancement_for_nfInstanceId_to_support_UserAgentHeader	SCP_IngressRateLimiting_NFInstanceIdEnhancementUserAgentHeader_P0
SEPP_Audit_nnrf_nfm	SCP_InterPLMNRouting_Audit_nnrf-nfm_P0
SCP-SEPP_ModelD_Routing	SCP_InterPLMNRouting_ModelDBased_P0
SEPP_Routing_NRF	SCP_InterPLMNRouting_NRF_P0
OutlierDetectionSepp_P0	SCP_InterPLMNRouting_OutlierDetection_P0
SCP-SEPP_Routing	SCP_InterPLMNRouting_P0
SEPP_plmnInfo_DELETE_API	SCP_InterPLMNRouting_PLMNInfoDeleteAPI_P0
SEPP_plmnInfo_GET_API	SCP_InterPLMNRouting_PLMNInfoGetAPI_P0
SEPP_plmnInfo_PATCH_API	SCP_InterPLMNRouting_PLMNInfoPatchAPI_P0
SEPP_plmnInfo_PUT_API	SCP_InterPLMNRouting_PLMNInfoPutAPI_P0
SCP-SEPP_Routing_UDM	SCP_InterPLMNRouting_UDM_P0
Rel16_Inter_SCP_Audit_nnrf_nfm_p0	SCP_InterSCP_Audit_nnrf-nfm_P0
InterSCP_MateInfoListRouting	SCP_InterSCP_MateInfoListRouting_P0
Inter_SCP_Routing_NplusK_p0	SCP_InterSCP_NplusKRouting_P0
Inter_SCP_Subscription_SMF_NRF	SCP_InterSCP_SubscriptionWithForeignNRFforNfTypeSMF_P0
Inter_SCP_Routing	SCP_InterSCPRouting_P0
Jaeger_Api_Validation	SCP_Jaeger_API_P0
SCP_LCI_Support_Config_API	SCP_LCIsupport_API_P0
Scp_Lci_Support_InterPLMN	SCP_LCIsupport_InterPLMNRouting_P0
SCP_Lci_Support_InterSCP	SCP_LCIsupport_InterSCP_P0
SCP_Lci_Support_InterSCP_PCF_SCP	SCP_LCIsupport_InterSCP_PCF_P0
SCP_Lci_Support_InterSCP_UDM	SCP_LCIsupport_InterSCP_UDM_P0
SCP_Lci_Support_Miscellaneous	SCP_LCIsupport_Miscellaneous_P0
Scp_Lci_Support_ModelD	SCP_LCIsupport_ModelD_P0
Scp_Lci_Support_ModelD_notification_cases	SCP_LCIsupport_ModelDNotificationRequest_P0
SCP_Lci_Support	SCP_LCIsupport_P0
Local_N_Plus_K	SCP_LocalNplusK_P0
Location_hdr_update_for_host_mismatch_API_validation	Location_hdr_update_for_host_mismatch_API_validation
App_Routing_Options_Config_API	SCP_Mediation_AppRoutingOptionsConfig_API_P0
SCP_Mediation_Config_API	SCP_Mediation_ConfigAPI_P0
SCP_Mediation_Worker_side_cases_PCF_Cases	SCP_Mediation_FunctionalCases_PCF_P0
SCP_Mediation_Cases_AUSF	SCP_Mediation_FunctionalCasesPart1_AUSF_P0
SCP_Mediation_Worker_side_cases_AUSF	SCP_Mediation_FunctionalCasesPart2_AUSF_P0
SCP_Mediation_Worker_side_cases_UDM_SMF	SCP_Mediation_FunctionalTestCases_UDMandSMF_P0
SCP_Mediation_Worker_side_cases_UDM_AUSF_SMF_Notification_cases	SCP_Mediation_FunctionalTestCasesForUDMnAUSFnSMFnNotificationRequest_P0
SCP_Mediation_Cases_PCF	SCP_Mediation_PCF_P0
Alert_SCPRoutingFailedForProducer_CHF	SCP_ModelC_AlertSCPRoutingFailedForProducer_CHF_P0
ModelC_allheaderRequest	SCP_ModelC_AllHeaderRequest_P0
PCF_AMPolicy_forwardRoute_Target_apiRoot	SCP_ModelC_AMPolicyTargetAPIRoot_PCF_P0
ModelC_CatchAll_Routing_Configuration_AUSF	SCP_ModelC_CatchAllRoutingConfiguration_AUSF_P0
ModelC_Direct_Routing_Configuration_AUSF	SCP_ModelC_DirectRoutingConfiguration_AUSF_P0
ModelC_ProducerOverloadControl	SCP_ModelC_EgressCongestionBasedOnProducerLoad_P0
Egress_Congestion_based_on_load_PCF_SMPolicy_forwardRoute_Target_apiRoot	SCP_ModelC_EgressCongestionBasedOnProducerLoad_PCF_P0
Https_Routing_For_ModelC_Headers	SCP_ModelC_HTTPS_P0
ModelC_IngressRateLimiting	SCP_ModelC_IngressRateLimiting_P0
Model-C_based_Inter_SCP_Routing	SCP_ModelC_InterSCProuting_P0
ModelC_Inter_SCP_Routing_Options_Notification_Cases	SCP_ModelC_InterSCPRoutingOptionsNotificationCases_P0
InterSCP_VersionSupport	SCP_ModelC_InterSCPVersionSupport_P0
ModelC_NFInstance_AUSF_Cases	SCP_ModelC_NFInstance_AUSF_P0
ModelC_NFInstance_NEF_Cases	SCP_ModelC_NFInstance_NEF_P0
NF_Notification	SCP_ModelC_NFprofileNotificationWithMultipleVersions_P
ModelC_NFSet_NEF_Cases	SCP_ModelC_NFSet_NEF_P0
ModelC_NFSet_PCF_Cases	SCP_ModelC_NFSet_PCF_P0
ModelC_NFSet_SMF_Cases	SCP_ModelC_NFSet_SMF_P0
ModelC_ReverseLookup_CHF_Cases	SCP_ModelC_ReverseLookup_CHF_P0
ModelC_ReverseLookup_UDM_Cases	SCP_ModelC_ReverseLookup_UDM_P0
ModelC_ReverseLookup_UDR_Cases	SCP_ModelC_ReverseLookup_UDR_P0
ModelC_Inter_SCP_Routing_Options	SCP_ModelC_RoutingOptionsInterSCP_P0
AUSF_AUTH_forwardRoute_Target_apiRoot	SCP_ModelC_TargetAPIRoot_AUSF_P0
CHF_SLC_forwardRoute_Target_apiRoot	SCP_ModelC_TargetAPIRoot_CHF_P0
SMF_forwardRoute_Target_apiRoot	SCP_ModelC_TargetAPIRoot_SMF_P0
UDM_SDM_forwardRoute_Target_apiRoot	SCP_ModelC_TargetAPIRootSDM_UDM_P0
UDM_UECM_forwardRoute_Target_apiRoot	SCP_ModelC_TargetAPIRootUECM_UDM_P0
Version_support	SCP_ModelC_VersionSupport_P0
ModelD_Config_API	SCP_ModelD_API_P0
ModelD_enforceReqSpecificSvcDiscovery	SCP_ModelD_EnforceReqSpecificSvcDiscovery_P0
ModelD_based_Routing_implicit_notification_p0	SCP_ModelD_ImplicitNotificationRouting_P0
ModelD_based_Routing	SCP_ModelD_Routing_P0
Notification_Patch_Profile_Support_SMF	SCP_NotificationRequest_PatchProfileSupport_SMF_P0
SCP_Oauth2_Access_Token_Granularity_Config_API_P0	SCP_Oauth2Support_AccessTokenGranularity_API_P0
SCP_Oauth2_Support_Alternative_Config_ModelD_SMF_NRF_P0	SCP_Oauth2Support_AlternativeConfigModelD_SMFandNRF_P0
SCP_Oauth2_Granularity_config_ModelD_SMF_NRF_P0	SCP_Oauth2Support_GranularityConfigModelD_SMFandNRF_P0
SCP_Oauth2_Local-PLMN-required-config_API_P0	SCP_Oauth2Support_LocalPLMNRequiredConfig_API_P0
SCP_OAuth2_support_ModelC_CHF_P0	SCP_Oauth2Support_ModelC_CHF_P0
Scp_Oauth2_Support_ModelC_SMF_NRF_P0	SCP_Oauth2Support_ModelC_SMFandNRF_P0
SCP_OAuth2_Support_Config_API_P0	SCP_OAuth2Support_ConfigAPI_P0
SCP_Oauth2_Support_ModelC_Error_Handling_CHF_NRF_P1	SCP_Oauth2Support_ModelCErrorHandling_CHFandNRF_P1
SCP_Oauth2_Support_ModelD_SMF_NRF_P0_P1	SCP_Oauth2Support_ModelD_SMFandNRF_P1
SCP_Oauth2_Support_ModelD_interSCP_P0	SCP_Oauth2Support_ModelDinterSCP_P0
SCP_Oauth2_NRF_Configuration_Config_API_P0	SCP_Oauth2Support_NRFConfiguration_API_P0
SCP_Observability_And_Inter_Microservice_Resilience_P0	SCP_ObservabilityAndInterMicroserviceResilience_P0
SCP_OutlierDetection_API	SCP_OutlierDetection_API_P0
OutlierDetectionInterSCP_P0	SCP_OutlierDetection_InterSCP_P0
OutlierDetectionProducer_AUSF_P0	SCP_OutlierDetection_ProducerAUSF_P0
PseudoHeadersModification	SCP_PseudoHeadersModification_P0
PseudoHeadersModificationHttps	SCP_PseudoHeadersModification_HTTPS_P0
NRF_Registration	SCP_RegistrationWithNRF_P0
SCP_Registration_With_PLMNList	SCP_RegistrationWithNRF_PLMNList_P0
Scp_profile_mateScpInfo_update	SCP_RegistrationWithNRF_ProfileMateSCPInfoUpdate_P0
Rel16_Canary_support_PCF_Cases	SCP_Rel16CanarySupport_PCF_P0
Rel16_Canary_support_SMF_Cases	SCP_Rel16CanarySupport_SMF_P0
Rel16_Canary_support_UDM_Cases	SCP_Rel16CanarySupport_UDM_P0
Re_routing_based_on_configurable_http_status_codes_api_validation_p0	SCP_ReroutingBasedonConfigurableHttpStatusCodes_API_P0
Re_routing_based_on_configurable_http_status_codes_p0	SCP_ReRoutingBasedOnConfigurableHttpStatusCodes_P0
SCP_Ro_Enhancments_For_CB_CC_SMF_P0	SCP_RoutingOptionEnhancements_CBAndCongestionControl_SMF_P0
SCP_Ro_Enhancments_For_CB_CC_InterSCP_InterPLMN_SMF_PCF_P0	SCP_RoutingOptionEnhancements_CBAndCongestionControlForInterPLMNandSCPRouting_SMFandPCF_P0
SCP_Ro_Enahancment_For_CC_CB_Notification_PCF_P0	SCP_RoutingOptionEnhancements_CBAndCongestionControlForNotificationReq_PCF_P0
SCP_Notification_Routing_Option_Config_API	SCP_RoutingOptionForNotificationReq_API_P0
SCP_Routing_Option_Set_API	SCP_RoutingOptionForNotificationReq_RoutingConfigSet_API_P0
Routing_Rules_API_R16	SCP_RoutingRules_R16_API_P0
Sbi_Message_Priority_Config_API	SCP_SBImessagePriority_ConfigAPI_P0
SbiMessagePriority	CP_SBImessagePriority_P0
SCP_Features_API	SCP_SCPFeatures_API_P0
SCP_Generated_Error_Codes_SMF	SCPGeneratedErrorCodes_SMF_P0
SCP_Generated_Error_Codes_UDM	SCP_SCPGeneratedErrorCodes_UDM_P0
NRF_Subscription	SCP_Subscription_SubscriptionWithNRFforNfTypeUDM_P0
Configurataion_Support_For_NEF_services_NEF_P1	SCP_SupportForNEFservices_Configuration_APIs_P1
Support_For_NEF_services_NEF_Enhanced_NF_Status_P0	SCP_SupportForNEFservices_EnhancedSuspendedStateRouting_P0
Support_For_NEF_services_NEF_SEPP_P0	SCP_SupportForNEFservices_InterPLMNRouting_P0
Support_For_NEF_services_NEF_P0	SCP_SupportForNEFservices_NEF_P0
Support_For_NEF_services_NEF_NRF_SCP_p0	SCP_SupportForNEFservices_NRF_P0
Traffic_Feed_REST_API	SCP_TrafficFeed_API_P0
TrafficFeed_CB	SCP_TrafficFeed_CB_P0
TrafficFeed_Notification	SCP_TrafficFeed_NotificationRequest_P0
TrafficFeed_PCF	SCP_TrafficFeed_PCF_P0
TrafficFeed_UDM	SCP_TrafficFeed_UDM_P0
Consumer_Info_API	SCP_UserAgent_ConsumerInfo_API_P0
Scp_User_Agent_Info_API	SCP_UserAgent_Info_API_P0
Worker_Pod_Overload_Action_Policy_Config_API	SCP_WorkerPodOverLoadControl_ActionPolicy_API_P0
CPUOverloadCtrlByNoAction	SCP_WorkerPodOverLoadControl_CPUbasedNoAction_P0
Worker_Pod_Overload_Ctrl_Policy_Config_API	SCP_WorkerPodOverLoadControl_CtrlPolicy_API_P0
Worker_Pod_Overload_Discard_Policy_Config_API	SCP_WorkerPodOverLoadControl_DiscardPolicy_API_P0
Worker_Traffic_Pod_Overload_P0	SCP_WorkerPodOverLoadControl_PendingTransaction_P0
Worker_Traffic_Pod_Overload_P1	SCP_WorkerPodOverLoadControl_PendingTransaction_P1
API_Worker_Pod_Pending_Transaction_Overload_Config_P0.feature	SCP_WorkerPodOverLoadControl_PendingTransactionConfig_API_P0
SCP_1_12_0_Bug_Fixes	SCP_1_12_0_BugFixes_P0
SCP_1.9.0_Bug_Fixes_SMF	SCP_1.9.0_BugFixes_SMF_P0
SCP_1.9.0_Bug_Fixes_UDR	SCP_1.9.0_BugFixes_UDR_P0
SCP_22.2.0_Bug_Fixes_PCF_Cases	SCP_22.2.0_BugFixes_PCF_P0
SCP_22.2.0_Bug_Fixes_UDM_Cases	SCP_22.2.0_BugFixes_UDM_P0
SCP_22.3.0_Bug_Fixes	SCP_22.3.0_BugFixes_P0
SCP_22.3.1_Bug_Fixes	SCP_22.3.1_BugFixes_P0
22.4.0_Bug_Fixes	SCP_22.4.0_BugFixes_P0
22.4.0_Bug_Fixes_Mediation	SCP_22.4.0_Bug_Fixes_Mediation
22.4.4_Bug_Fixes	SCP_22.4.4_BugFixes_PCF_P0
23.1.0_Bug_Fixes	SCP_23.1.0_BugFixes_P0
23.2.0_Bug_Fixes_HTTPS	SCP_23.2.0_BugFixes_HTTPS_P0
23.2.0_Bug_Fixes	SCP_23.2.0_BugFixes_P0

The following table displays the ATS Regression feature tests that have been split into SingleIpEndpoint and MultipleIpEndpoint categories, and renamed accordingly:

Table 4-2 ATS Regression Feature Tests

Feature Test Name before Spliting	Feature Test Name after Spliting
SCP_SupportForNEFservices_EnhancedSuspendedStateRouting_P0	SCP_SupportForNEFservices_SingleIpEndpoint_EnhancedSuspendedStateRouting_P0 SCP_SupportForNEFservices_MultipleIpEndpoint_EnhancedSuspendedStateRouting_P0
SCP_RoutingOptionEnhancments_CBAndCongestionControl_SMF_P0	SCP_RoutingOptionEnhancments_CBAndCongestionControl_SMF_P0 SCP_RoutingOptionEnhancments_SingleIpEndpoint_CBAndCongestionControl_SMF_P0 SCP_RoutingOptionEnhancments_MultipleIpEndpoint_CBAndCongestionControl_SMF_P0
SCP_OutlierDetection_AUSF_P0	SCP_OutlierDetection_MultipleIpEndpoint_AUSF_P0 SCP_OutlierDetection_SingleIpEndpoint_AUSF_P0
SCP_Oauth2Support_GranularityConfigModelD_SMFandNRF_P0	SCP_Oauth2Support_GranularityConfigModelD_SMFandNRF_P0 SCP_Oauth2Support_SingleIpEndpoint_GranularityConfigModelD_SMFandNRF_P0 SCP_Oauth2Support_MultipleIpEndpoint_GranularityConfigModelD_SMFandNRF_P0
SCP_ModelC_NFInstance_NEF_P0	SCP_ModelC_NFInstance_NEF_P0 SCP_ModelC_SingleIpEndpoint_NFInstance_NEF_P0 SCP_ModelC_MultipleIpEndpoint_NFInstance_NEF_P0
SCP_LCIsupport_Miscellaneous_P0	SCP_LCIsupport_Miscellaneous_P0 SCP_LCIsupport_SingleIpEndpoint_Miscellaneous_P0 SCP_LCIsupport_MultipleIpEndpoint_Miscellaneous_P0
SCP_EgressHostPreference_InterSCPRoutingNonASM_CHF_P0	SCP_EgressHostPreference_SingleIpEndpointInterSCPRoutingNonASM_CHF_P0 SCP_EgressHostPreference_MultipleIpEndpointInterSCPRoutingNonASM_CHF_P0
SCP_DNSSRV_ModelCHeaders_PCF_P0	SCP_DNSSRV_ModelC_SingleIpEndpoint_PCF_P0 SCP_DNSSRV_ModelC_MultipleIpEndpoint_PCF_P0
SCP_AlternateRoutingUsingStaticConfig_SMF_P0	SCP_AlternateRoutingUsingStaticConfig_SMF_P0 SCP_AlternateRoutingUsingStaticConfig_SingleIpEndpoint_SMF_P0 SCP_AlternateRoutingUsingStaticConfig_MultipleIpEndpoint_SMF_P0
SCP_22.3.0_BugFixes_P0	SCP_22.3.0_BugFixes_SingleIpEndpoint_P0 SCP_22.3.0_BugFixes_MultipleIpEndpoint_P0

4.4 Running SEPP Test Cases using ATS

This section describes how to run SEPP test cases using ATS.

4.4.1 Prerequisites

To run SEPP Test Cases using SEPP ATS 26.1.201, you need to ensure that following prerequisites are fulfilled:

Debug container should be DISABLED for all microservices during ATS runs.
To run the ATS testcases, the user should not configure any value for apiPrefix key in ocsepp-custom-values.yaml file. It should be empty.
The number of replicas of all SEPP microservices pods must be set to 1 as ATS is enabled to perform the metric validations for metrics obtained from a single pod.
Create Kubernetes secret with certificates/keys (public and private) for both PLMN and N32 gateways before deploying SEPP.
Deploy SEPP 26.1.201 with default helm configurations using helm charts.
For ATS execution, deploy SEPP microservices with single replica.
Ensure all microservices of SEPP are up and running.
Create Kubernetes secret with certificates/keys (public and private) for ATS client and stub server microservices before deploying SEPP ATS.
Update ocats_ocsepp_values_26.1.201.yaml file with the latest secrets and certificates.
Deploy ATS using helm charts.
The user must not initiate a job in two different pipelines at the same time.
User must not abort a running job, this may lead to data corruption in the database.
The user needs to edit cn32f-svc and pn32f-svc deployment yaml. Set CACHE_REFRESH_TIMEOUT to 1000.
User need to set n32cHandshakePlmnIdListValidationEnabled to true in localProfile section of ocsepp-custom-values.yaml file. Or n32cHandshakePlmnIdListValidationEnabled Parameter can also be changed after SEPP deployment by editing cn32c-svc and pn32c-svc deployment yaml.
User needs to update the plmnIdList provided in the ATS installation guide to run the ATS testcases.
The user needs to edit cn32f-svc and pn32f-svc deployment yaml. Set "TOPOLOGY_HIDING_CACHE_REFRESH_TIMEOUT" to 1000.
The user needs to edit cn32f-svc and pn32f-svc deployment yaml. Set "SECURITY_CACHE_REFRESH_TIMEOUT" to 1000.
All the features are set to disable by default. Ensure that the features must be disabled while configuring SEPP ATS.
The user needs to edit cn32f-svc, pn32f-svc, plmn-egress-gateway, and n32-egress-gateway deployment yaml. Set "REQUEST_TIMEOUT" to 2000.
The user needs to edit n32-ingress-gateway deployment yaml. Set "REQUEST_TIMEOUT" to 5000.
The user needs to edit configmap of n32-ingress-gateway. Set "requestTimeout" to 5000.
The user needs to edit n32-ingress-gateway deployment yaml. SET "IDLE_TIMEOUT" to 5000.
The user needs to edit pn32f-svc deployment yaml. SET "EVICT_SAN_HEADER_CACHE_DELAY" to 100.
To run the Cat-3 testcases, user must have pre-installed coherence-svc while SEPP installation.
For DNS SRV and SOR, plmn-egress-gateway should be deployed in REST mode.
To run the DNS SRV testcases, user must have pre-installed alternate-route service while SEPP installation.
To run the Load Sharing among Multiple Remote SEPP Nodes testcases, user must have pre-installed alternate-route service while SEPP installation.
To run the Egress Rate Limiter testcases user must have enabled the Egress Rate Limiter feature while SEPP deployment. Also set "EgressRateLimiterFlag" to true in ocats_ocsepp_values_<version>.yaml.
To run the Ingress Rate Limiter testcases user must have enabled the Ingress Rate Limiter feature while SEPP deployment. Also set "IngressRateLimiterFlag" to true in ocats_ocsepp_values_<version>.yaml.
To run the ATS testcases, user should not configure any value for apiPrefix key in ocsepp-custom-values.yaml file. It should be empty.
In ASM mode, set expose_tls_service parameter to false in stubserver section of ocats_ocsepp_values_<version>.yaml file.
For Hosted SEPP, set the HSenabled parameter to "true" in the ocats section of the ocats_ocsepp_values_<version>.yaml file.
For Hosted SEPP, set the hostedSEPP parameter to "true" in the global section of the ocsepp_custom_values.yaml file.
For Hosted SEPP, set the multiFqdn parameter to "true" in both the n32-ingress-gateway and n32-egress-gateway sections of the ocsepp-custom-values.yaml file.
For Hosted SEPP, set then32cHandshakePlmnIdListValidationEnabled parameter to "false" in the global section and the Prefix/Suffix Global Parameters subsection of the ocsepp-custom-values.yaml file.
For Hosted SEPP, set the retryInterval parameter to "30000" in the global section of the ocsepp-custom-values.yaml file.
For Hosted SEPP, update the certificates for hostedpartner1, hostedpartner2, roamingpartner1, roamingpartner2, stubserver2, and stubserver3 in both the n32-ingress-gateway and n32-egress-gateway sections of the ocsepp-custom-values.yaml file.

Custom Folder Implementation

ATS provides custom test case folders (cust_newfeatures, cust_regression and cust_performance) using which you can add new test cases, remove unwanted test cases and modify existing test cases. It does not impact the original product packaged test cases available in the newfeatures, regression and performance folders. For more details, refer to Custom Folder Implementation.

4.4.2 Logging into ATS

Before logging into ATS, you need to ensure that ATS is deployed successfully using Helm charts as shown below:

Note:

To modify default log in password, refer to Modifying Login Password.

Figure 4-30 Pods

List of four server instances with their status, all running with zero restarts.

There are following ways to login to ATS GUI.

When an external load balancer (metalLB in case of OCCNE) is available and an external IP Address is provided to the ATS service, login to ATS GUI using <External-IP>:8080.
When an external IP Address is not provided to the ATS service, open the browser and provide the external IP Address of the worker node and nodeport of the ATS service to login to ATS GUI.
<Worker-Node-IP>:<Node-Port-of-ATS>

Note:
In the Verifying ATS Deployment screen, ATS nodeport is highlighted in red as 30076. For more details on ATS deployment, refer to SEPP ATS Installation Procedure.
When ATS is installed with TLS enabled:
- If the external load balancer IP is used in the ssl.conf file to open the ATS GUI then the URL will be "https://<IP>:<https_nodeport>".
- If the external load balancer IP or worker node IP is not present on the setup, then with the common name provided in the ssl.conf file, the user can open the ATS GUI. The user needs to do the ssh port forwarding and then need to update the common name (CN) in the etc/hosts/ file of the local machine against the localhost IP (127.0.0.1).
- ATS GUI URL format:
  - https://127.0.0.1:<port-forwarding-port>
  - https://<common name>:<port-forwarding-port>

Open a browser and provide IP Address and port details as <Worker-Node-IP>:<NodePort-of-ATS> (As per the above example: 10.98.101.171:32013). The ATS login screen appears.

Figure 4-31 ATS Login

Login page for Oracle Communications Cloud Native Core Automated Test Suite with username and password fields and a sign in button.

To run ATS:

Enter the username as 'seppuser' and password as 'sepppasswd'. Click Sign in. The following screen appears showing pre-configured pipelines for SEPP individually (3 Pipelines).

Figure 4-32 Pre-Configured Pipelines

Figure 4-33 SEPP ATS 26.1.200

SEPP-NewFeatures: This pipeline has all the test cases that are delivered as part of SEPP ATS.
SEPP-Regression: This pipeline has all the test cases of previous releases.
SEPP-HealthCheck: This pipeline has the utility to run the helm test functionality.

Note:

Currently, SEPP does not have any performance pipeline.

4.4.3 SEPP NewFeatures Pipeline

After identifying the SEPP pipelines, the user needs to do one-time configuration in ATS as per their SUT deployment. In this pipeline, all the new test cases related to SEPP are run. To configure its parameters:

Click SEPP-NewFeatures in the Name column. The following screen appears:

Figure 4-34 SEPP-NewFeatures Pipeline
In the above screen:
- Click Configure to configure SEPP-New Features.
- Click Documentation to view the documented test cases which are part of this SEPP release.
- Click blue dots inside Build History box to view the success console logs of the "All" and "Sanity" respectively.
- The Stage View shows pipeline that is already run for the customer reference.
- Click Open Blue Ocean to view the respective group, re-run logs and the consolidated report summary.
- Click Abort_Build button to gracefully stop the currently running ATS build.
Click Configure. Users must wait for the page to load completely. Once the page loads completely, click the Pipeline tab to reach the Pipeline configuration as shown below:
The Pipeline section of the configuration page appears as follows:

Figure 4-35 Pipeline script

In the above screen, you can change the values of the 'Pipeline script'.

The user must not change any other value apart from line number 12 to line 20 and line number 26.
User can change only those parameters that are marked as "a" to "h" as per your requirement.
A new parameter "p" has been introduced to customize the global wait time for the scale up and scale down of pods test cases. Pods scaling time is different on different setups. Sometimes pods take longer than usual for scaling up or scaling down operations. To handle this situation you can increase the global wait time parameter as required. Recommended value is 60.
Recommended value for rerun count is "3".

a: Name of the NF to be tested in capital (SEPP).
b: Config manager service name and namespace
c: Plmn ingress service name and namespace
d: N32 ingress service name and namespace
e: Stub server service name and namespace
f: SEPP Instance ID configured
g: Prometheus hostname and namespace
h: Prometheus port
i: Prometheus API endpoint
j: Re run count
k: ELK wait time before logs are fetched
l: ELK hostname and namespace
m: ELK port
n: Stub log collection enable
o: Type of log collection method ( kubernetes/Elasticsearch)
p: GLOBAL WAIT TIME

Note:

Do not change any value if OCCNE cluster is used and SEPP, ATS and STUB are deployed in ocsepp namespace.

Click Save after making necessary changes. The Pipeline SEPP-NewFeatures screen appears.

Running SEPP Test Cases

To run SEPP test cases:

Click the Schedule a Build with parameters icon present on the SEPP-NewFeatures screen in the extreme right column corresponding to SEPP-NewFeatures row. The following screen appears:

Figure 4-36 SEPP-NewFeatures
In the above screen, there is an option Execute_Suite to select SEPP, Roaming_Hub, or Hosted SEPP. If you have deployed SUT as SEPP, select SEPP option and if you have deployed SUT as Roaming_Hub, select Roaming_Hub option.
In the above screen, there is an option Configuration_Type to select product/custom configuration.
In the above screen, there are three Select_Option(s), which are:
- All: This is the default option. It runs all the SEPP test cases. Scroll-down and click Build to run all the test cases.
- Sanity: It is recommended to run Sanity before running any test case. It ensures all the deployments are done properly.
- Single/Multiple Feature: This option allows you to select any number of test cases you want to run from total number of test cases available for execution. After selecting the test cases, scroll-down and click Build to run the selected SEPP test cases.
In the above screen, When FilterWithTags option is selected as Yes, GUI offers the following four options, select the required tags from the different tags list and click Submit.
1. Feature_Include_Tags: The features that contain either of the tags available in the Feature_Include_Tags field are considered for tagging.
2. Feature_Exclude_Tags: The features that contain neither of the tags available in the Feature_Exclude_Tags field are considered for tagging.
3. Scenario_Include_Tags: The scenarios that contain either of the tags available in the Scenario_Include_Tags field are considered.
4. Scenario_Exclude_Tags: The features that contain neither of the tags available in the Scenario_Exclude_Tags field are considered.
Click Abort_Build button to gracefully stop the currently running ATS build.
Click Build to execute the ATS run.

In the above screen, the feature files are now shown in the respective stage and group.

4.4.3.1 Single Click Job Creation for SEPP New Features

Perform the following steps to create the custom pipeline for the new features:

Log in to ATS using network function specific log-in credentials.
Click New Item in the left navigation pane of the ATS application. The following page appears:

Figure 4-37 New Item Window
In the Enter an item name text box, enter the job name. Example: <NF-Specific-name>-NewFeatures.
In the Copy from text box, enter the actual job name for which you need single-click execution functionality. Example: <NF-Specific-name>-NewFeatures.
Click OK. You are automatically redirected to edit the newly created job's configuration.
Under the General group, deselect the This Project is Parameterised option.
Under the Pipeline group, make the corresponding changes to remove the 'Active Choice Parameters' dependency.

Provide the default values for the TestSuite, SUT, Select_Option, Configuration_Type, and other parameters, as required, on the BuildWithParameters page.

Example: Pipeline without Active Choice Parameter Dependency

node ('built-in'){
//a = SELECTED_NF b = SEPPCONFIGSVCNAME c = CSEPPIGWNAME d = PSEPPIGWNAME
//e = SEPPSTUBNAME f = NFINSTANCEID g = PROMSVCIP h = PROMSVCPORT  i= PROMSVCURI j = RERUN_COUNT
//k = ELK_WAIT_TIME l = ELK_HOSTNAME m = ELK_PORT n = STUB_LOGS  o = LOG_TYPE p = GLOBAL_WAIT_TIME
withEnv([

 'TestSuite=NewFeatures',

 'Execute_Suite=SEPP',

 'FilterWithTags=true,false',

 'Fetch_Log_Upon_Failure=NO',

 'Select_Features_Option=All',

 'Configuration_Type=Product_Config'

]){

sh '''
sh /var/lib/jenkins/ocsepp_tests/preTestConfig.sh \
-a SEPP \
-b ocsepp-release-config-mgr-svc.csepp \
-c ocsepp-release-plmn-ingress-gateway.csepp \
-d ocsepp-release-n32-ingress-gateway.csepp \
-e sepp-ats-rel-stubserver.csepp \
-f 9faf1bbc-6e4a-4454-a507-aef01a101a06 \
-g prometheus.cne-infra \
-h 9090 \
-i /api/ \
-j 1 \
-k 10 \
-l occne-elastic-elasticsearch-master.occne-infra \
-m 9200 \
-n yes \
-o kubernetes \
-p 5
'''
if(env.Include_Regression && "${Include_Regression}" == "YES"){
    sh '''sh /var/lib/jenkins/common_scripts/merge_jenkinsfile.sh'''
    load "/var/lib/jenkins/ocsepp_tests/jenkinsData/Jenkinsfile-Merged"
}
else{
    load "/var/lib/jenkins/ocsepp_tests/jenkinsData/Jenkinsfile-NewFeatures"
}

}
}

Click Save. The ATS application is ready to run TestSuite with 'SingleClick' using the newly created job.
Run the custom pipeline job.
Click the Build Now in the main page for the Custom pipeline job.

Note:

Value of j (RERUN_COUNT) = 3 is recommended. But it can be changed as per operator environment.

4.4.4 NewFeatures - Documentation

To view SEPP functionalities, go to SEPP-NewFeatures pipeline and click the Documentation link in the left navigation pane. The following screen appears:

Figure 4-38 Documentation

Click any functionality to view its test cases and scenarios of each test case. A sample screen is given below:

Sample Feature: CONFIG_SERVICE_API_QUERY_PARAM_VALIDATION

Figure 4-39 Test cases and Scenarios

Based on the functionalities covered under the documentation, the build Requires parameter screen displays test cases. To navigate back to the Pipeline SEPP-NewFeatures screen, click the Back to SEPP-NewFeatures link available on top left corner of the screen.

4.4.5 SEPP Regression Pipeline

This section describes how to run test cases for SEPP Regression pipeline.

The SEPP_Regression pipeline is a pre-configured pipeline where all the test cases of previous releases are available. For example, for SEPP 25.1.2xx, this pipeline has all the test cases released till SEPP 25.1.1xx.

To view SEPP_Regression pipeline details, perform the following steps:

Click SEPP_Regression in the Name column. The following screen appears:

Figure 4-40 SEPP Regression
Click Build with Parameters in the left navigation pane.
Click Documentation to view the documented test cases which are part of this SEPP release.
Click blue dots in the Build History box to view the success console logs of the "All" and "Sanity" respectively.
The Stage View shows pipeline that is already run for the customer reference.
Click Configure to configure SEPP Regression. Users must wait for the page to load completely. Once the page loads completely.
click the Pipeline tab to see the Pipeline configuration.

Copy the required test cases that are available in the SEPP folder and place them appropriately within the custom folder for SEPP_Regression. Reload the page to view the test cases available in the custom Regression folder.

The configuration method and parameters are same as the NewFeatures pipeline.

4.4.5.1 Single Click Job Creation for SEPP Regression Features

Perform the following steps to create the custom pipeline for the new features:

Log in to ATS using network function specific log-in credentials..
Click New Item in the left navigation pane of the ATS application. The following page appears:

Figure 4-41 New Item Window
In the Enter an item name text box, enter the job name. Example: <NF-Specific-name>-NewFeatures.
In the Copy from text box, enter the actual job name for which you need single-click execution functionality. Example: <NF-Specific-name>-NewFeatures.
Click OK. You are automatically redirected to edit the newly created job's configuration.
Under the General group, deselect the This Project is Parameterised option.
Under the Pipeline group, make the corresponding changes to remove the 'Active Choice Parameters' dependency.

Provide the default values for the TestSuite, SUT, Select_Option, Configuration_Type, and other parameters, as required, on the BuildWithParameters page.

Example: Pipeline without Active Choice Parameter Dependency

node ('built-in'){
//a = SELECTED_NF b = SEPPCONFIGSVCNAME c = CSEPPIGWNAME d = PSEPPIGWNAME
//e = SEPPSTUBNAME f = NFINSTANCEID g = PROMSVCIP h = PROMSVCPORT  i= PROMSVCURI j = RERUN_COUNT
//k = ELK_WAIT_TIME l = ELK_HOSTNAME m = ELK_PORT n = STUB_LOGS  o = LOG_TYPE p = GLOBAL_WAIT_TIME
withEnv([

 'TestSuite=Regression',

 'Execute_Suite=SEPP',

 'FilterWithTags=true,false',

 'Fetch_Log_Upon_Failure=NO',

 'Select_Features_Option=All',

 'Configuration_Type=Custom_Config'

]){

sh '''
sh /var/lib/jenkins/ocsepp_tests/preTestConfig.sh \
-a SEPP \
-b ocsepp-release-config-mgr-svc.csepp \
-c ocsepp-release-plmn-ingress-gateway.csepp \
-d ocsepp-release-n32-ingress-gateway.csepp \
-e sepp-ats-rel-stubserver.csepp \
-f 9faf1bbc-6e4a-4454-a507-aef01a101a06 \
-g prometheus.cne-infra \
-h 9090 \
-i /api/ \
-j 1 \
-k 10 \
-l occne-elastic-elasticsearch-master.occne-infra \
-m 9200 \
-n yes \
-o kubernetes \
-p 5
'''
if(env.Include_NewFeatures && "${Include_NewFeatures}" == "YES"){
    sh '''sh /var/lib/jenkins/common_scripts/merge_jenkinsfile.sh'''
    load "/var/lib/jenkins/ocsepp_tests/jenkinsData/Jenkinsfile-Merged"
}
else{
    load "/var/lib/jenkins/ocsepp_tests/jenkinsData/Jenkinsfile-Regression"
}

}
}

Click Save. The ATS application is ready to run TestSuite with 'SingleClick' using the newly created job.
Run the custom pipeline job.
Click the Build Now in the main page for the Custom pipeline job.

Note:

Value of j (RERUN_COUNT) = 3 is recommended. But it can be changed as per operator environment.

4.4.6 SEPP Regression Documentation

This section describes the documentation for SEPP-Regression pipeline.

To view the documentation for any of the SEPP features, on the ATS home page, click SEPP-Regression. Then, click Documentation in the left navigation pane.

This page shows features of only those test cases that are released in previous releases.

The following screen shows all the documentation features:

Figure 4-42 SEPP-Regression documentation

List of related documentation pages under My Project Related Pages tab.

Click any functionality to view its test cases and scenarios of each test case.

The following screen appears if the CN32C_SUCCESS_SECURITY_CAPABILITY_TLS is selected.

Figure 4-43 CN32C_SUCCESS_SECURITY_CAPABILITY_TLS

Test case documentation for CN32C_SUCCESS_SECURITY_CAPABILITY_TLS showing procedure and expected results for validating N32c security capability exchange.

4.4.7 Running SEPP Health Check Pipeline

To run health check on SEPP:

Navigate to SEPP-HealthCheck pipeline and click Configure.
The General tab appears. The user must wait for the page to load completely.
Click the Advanced Project Options tab. Scroll-down to reach the Pipeline configuration section as follows:

Important:
Ensure that the page loads completely before you perform any action on it. Do not modify any configuration except the one discussed below.

Figure 4-44 SEPP-HealthCheck

Do not change any value other than line numbers 17, 18, and 19. You can change the parameters marked as "a","b",and "c" as per user requirement. The parameters details are provided as comments in line number 7, 8, and 9. The parameters description is as follows:
- a - helm releases [Provide Release Name with Comma Separated if more than 1 ]
- b - namespace of SUT.
- c - helm version supported
Click Save. The Pipeline SEPP-HealthCheck page appears.
Click Build Now. This triggers health check for SUT.

Example output:

Started by user seppuser
[Pipeline] Start of Pipeline
[Pipeline] node
Running on Jenkins in /var/lib/jenkins/.jenkins/workspace/SEPP-HealthCheck
[Pipeline] {
[Pipeline] stage
[Pipeline] { (Helm-Test-Init)
[Pipeline] catchError
[Pipeline] {
[Pipeline] sh
+ set +x
export HelmTestRelease=ocsepp-release-naman
export HelmTestNamespace=sepp2
export HelmCmd=helm
[Pipeline] sh
+ export NF=SEPP
+ NF=SEPP
+ /env/bin/python3 /env/lib/python3.9/site-packages/ocnftest_lib/helmtest_with_secret.py
[Pipeline] }
[Pipeline] // catchError
[Pipeline] }
[Pipeline] // stage
[Pipeline] stage
[Pipeline] { (Validate-Helm-Test)
[Pipeline] catchError
[Pipeline] {
[Pipeline] echo
2022-08-29 05:14:23,045[32m     INFO LOG.HELM-TEST:108 [0m| [32mhelm test ocsepp-release-naman -n sepp2[0m
2022-08-29 05:14:53,006[32m     INFO LOG.HELM-TEST:120 [0m| [32m
NAME: ocsepp-release-naman
LAST DEPLOYED: Wed Aug 24 10:08:10 2022
NAMESPACE: sepp2
STATUS: deployed
REVISION: 1
TEST SUITE:     ocsepp-release-naman-test
Last Started:   Mon Aug 29 05:14:36 2022
Last Completed: Mon Aug 29 05:15:00 2022
Phase:          Succeeded[0m

[Pipeline] }
[Pipeline] // catchError
[Pipeline] }
[Pipeline] // stage
[Pipeline] }
[Pipeline] // node
[Pipeline] End of Pipeline
Finished: SUCCESS
