Installing OCNADD

2 Installing OCNADD

This chapter provides information about installing Oracle Communications Network Analytics Data Director (OCNADD) on the supported platforms.

The OCNADD installation is supported over the following platforms:

Oracle Communications Cloud Native Core, Cloud Native Environment (CNE)
VMware Tanzu Application Platform (TANZU)

Note:

This document describes the OCNADD installation on CNE. However, the procedure for installation on TANZU is similar to the installation on CNE. Any steps unique to TANZU platform are mentioned explicitly in the document.

2.1 Prerequisites

Before installing and configuring OCNADD, make sure that the following requirements are met:

2.1.1 Software Requirements

This section lists the software that must be installed before installing OCNADD:

Table 2-1 Mandatory Software

Software	Version
Kubernetes	1.26.x, 1.25.x
Helm	3.12.0
Docker/Podman	4.4.1

Note:

OCNADD 23.3.0 supports CNE 23.3.x and 23.2.x.

To check the Oracle Communications Cloud Native Core, Cloud Native Environment (CNE) version, run the following command:

echo $OCCNE_VERSION

To check the current Helm and Kubernetes versions installed in CNE, run the following commands:

kubectl version

helm version

Note:

Starting with CNE 1.8.0, Podman is the preferred container platform instead of docker. For more information on installing and configuring Podman, see the Oracle Communications Cloud Native Core, Cloud Native Environment (CNE) Installation Guide.

If you are installing OCNADD on TANZU, the following software must be installed:

Table 2-2 Mandatory Software

Software	Version
Tanzu	1.4.1

To check the current TANZU version, run the following command:

tanzu version

Note:

Tanzu was supported in release 22.4.0. Release 23.3.0 has not been tested on Tanzu.

Depending on the requirement, you may have to install additional software while deploying OCNADD. The list of additional software items, along with the supported versions and usage, is given in the following table:

Table 2-3 Additional Software

Software	Version	Required For
Prometheus-Operator	2.44.0	Metrics
Metallb	0.13.7	LoadBalancer
cnDBTier	23.3.x, 23.2.x	MySQL Database

Note:

The software are available by default, if OCNADD is deployed in Oracle Communications Cloud Native Core, Cloud Native Environment (CNE). If you are deploying OCNADD in any other environment, for instance, TANZU, the above-mentioned software must be installed before installing OCNADD.

To check the installed software items, run the following command:

helm ls -A

2.1.2 Environment Setup Requirements

This section provides information on environment setup requirements for installing Oracle Communications Network Analytics Data Director (OCNADD).

Network Access

The Kubernetes cluster hosts must have network access to the following repositories:

Local docker image repository – It contains the OCNADD docker images.
To check if the Kubernetes cluster hosts can access the local docker image repository, pull any image with an image-tag, using the following command:
```
podman pull docker-repo/image-name:image-tag
```
where,

docker-repo is the IP address or hostname of the docker image repository.

image-name is the docker image name.

image-tag is the tag assigned to the docker image used for the OCNADD pod.
Local Helm repository – It contains the OCNADD Helm charts.
To check if the Kubernetes cluster hosts can access the local Helm repository, run the following command:
```
helm repo update
```
Service FQDN or IP Addresses of the required OCNADD services, for instance, Kafka Brokers must be discoverable from outside of the cluster, which is publicly exposed so that Ingress messages to OCNADD can come from outside of Kubernetes.

Client Machine Requirements

Note:

Run all the kubectl and helm commands in this guide on a system depending on the infrastructure and deployment. It could be a client machine, such as a virtual machine, server, local desktop, and so on.

This section describes the requirements for client machine, that is, the machine used by the user to run deployment commands.

The client machine must meet the following requirements:

network access to the helm repository and docker image repository.
configured Helm repository
network access to the Kubernetes cluster.
required environment settings to run the kubectl, podman, and docker commands. The environment should have privileges to create namespace in the Kubernetes cluster.
The Helm client installed with the push plugin. Configure the environment in such a manner that the helm install command deploys the software in the Kubernetes cluster.

Server or Space Requirements

For information on the server or space requirements for installing OCNADD, see the following documents:

Oracle Communications Cloud Native Core, Cloud Native Environment (CNE) Installation, Upgrade, and Fault Recovery Guide
Oracle Communications Network Analytics Data Director Benchmarking Guide
Oracle Communications Cloud Native Core, cnDBTier Installation, Upgrade, and Fault Recovery Guide

OCNADD GUI Requirements

For the OCNADD GUI to load successfully, the following URLs should be accessible from where the user is accessing OCNADD GUI:

https://static.oracle.com
https://static-stage.oracle.com

cnDBTier Requirement

OCNADD supports cnDBTier in a CNE environment. cnDBTier must be up and running in case of containerized Cloud Native Environment. For more information about the installation procedure, see Oracle Communications Cloud Native Core, cnDBTier Installation, Upgrade, and Fault Recovery Guide.

Note:

If cnDBTier 23.2.0 or higher release is installed, set the ndb_allow_copying_alter_table parameter to 'ON' in the cnDBTier custom values file (occndbtier-23.x.x-custom-values.yaml) and perform cnDBTier upgrade before install, upgrade, rollback or any fault recovery procedure is performed for OCNADD. Set the parameter to its default value, 'OFF' once the activity is completed and perform the cnDBTier upgrade to apply the parameter changes.
To perform cnDBTier upgrade, see Oracle Communications Cloud Native Core, cnDBTier Installation, Upgrade, and Fault Recovery Guide.

Data Director Images

The following table lists Data Director microservices and their corresponding images:

Table 2-4 OCNADD images

Microservices	Image	Tag
OCNADD-Configuration	ocnaddconfiguration	23.3.0
OCNADD-ConsumerAdapter	ocnaddconsumeradapter	23.3.0
OCNADD-Aggregation	ocnaddnrfaggregation ocnaddscpaggregation ocnaddseppaggregation	23.3.0
OCNADD-Alarm	ocnaddalarm	23.3.0
OCNADD-HealthMonitoring	ocnaddhealthmonitoring	23.3.0
OCNADD-Kafka	ocnaddkafkahealthclient	23.3.0
OCNADD-Admin	ocnaddadminservice	23.3.0
OCNADD-UIrouter	ocnadduirouter	23.3.0
OCNADD-GUI	ocnaddgui	23.3.0
OCNADD-Cache	ocnaddcache	23.3.0

Note:

The service images are prefixed with the OCNADD release name.

2.1.3 Resource Requirements

This section describes the resource requirements to install and run Oracle Communications Network Analytics Data Director (OCNADD).

OCNADD supports various deployment models. Before finalizing the resource requirements, see the OCNADD Deployment Models section. The resource usage and available features vary based on the deployment model selected.

OCNADD Resource Requirements

Table 2-5 OCNADD Resource Requirements

OCNADD Service	vCPU Req	vCPU Limit	Memory Req (Gi)	Memory Limit (Gi)	Min Replica	Max Replica	Partitions	Topic Name
ocnaddconfiguration	1	1	1	1	1	1	-	-
ocnaddalarm	1	1	1	1	1	1	-	-
ocnaddadmin	1	1	1	1	1	1	-	-
ocnaddhealthmonitoring	1	1	1	1	1	1	-	-
ocnaddscpaggregation	1	2	1	2	1	2	12	SCP
ocnaddnrfaggregation	1	2	1	2	1	1	6	NRF
ocnaddseppaggregation	1	2	1	2	1	2	12	SEPP
ocnaddadapter	2	3	3	4	2	13	117	MAIN
ocnaddkafka	2	5	4	48	4	4	-	-
zookeeper	1	1	1	2	3	3	-	-
ocnaddgui	1	2	1	1	1	2	-	-
ocnadduirouter	1	2	1	1	1	2	-	-
ocnaddcache	1	1	22	24	2	2	-	-

Note:

For detailed information on the OCNADD profiles, see the "Profile Resource Requirements" section in the Oracle Communications Network Analytics Data Director Benchmarking Guide.

Ephemeral Storage Requirements

Table 2-6 Ephemeral Storage

Service Name	Ephemeral Storage (min) in Mi	Ephemeral Storage (max) in Mi
<app-name>-adapter	200	800
ocnaddadminservice	100	200
ocnaddalarm	100	500
ocnaddhealthmonitoring	100	500
ocnaddscpaggregation	100	500
ocnaddseppaggregation	100	500
ocnaddnrfaggregation	100	500
ocnaddconfiguration	100	500
ocnaddcache	100	500

2.2 Installation Sequence

This section provides information on how to install Oracle Communications Network Analytics Data Director (OCNADD). The steps are divided into two categories:

Note:

You are recommended to follow the steps in the given sequence for preparing and installing OCNADD.
This is the installation procedure for a standard OCNADD deployment. To install a more secure deployment (such as, adding users, changing password, enabling mTLS, and so on) see, Oracle Communications Network Analytics Suite Security Guide.

2.2.1 Pre-Installation Tasks

To install OCNADD, perform the preinstallation steps described in this section.

Note:

The kubectl commands may vary based on the platform used for deploying OCNADD. Users are recommended to replace kubectl with environment-specific command line tool to configure Kubernetes resources through kube-api server. The instructions provided in this document are as per the OCCNE’s version of kube-api server.

2.2.1.1 Downloading OCNADD Package

To download the Oracle Communications Network Analytics Data Director (OCNADD) package from MOS, perform the following steps:

Log in to My Oracle Support with your credentials.
Select the Patches and Updates tab to locate the patch.
In the Patch Search window, click Product or Family (Advanced).
Enter "Oracle Communications Network Analytics Data Director" in the Product field, select "Oracle Communications Network Analytics Data Director 23.3.0.0.0" from Release drop-down list.
Click Search. The Patch Advanced Search Results displays a list of releases.
Select the required patch from the search results. The Patch Details window opens.
Click Download. File Download window appears.
Click the <p********_<release_number>_Tekelec>.zip file to download the OCNADD package file.
Extract the zip file to download the network function patch to the system where the network function must be installed.

To download the Oracle Communications Network Analytics Data Director package from the edelivery portal, perform the following steps:

Login to the edelivery portal with your credentials. The following screen appears:

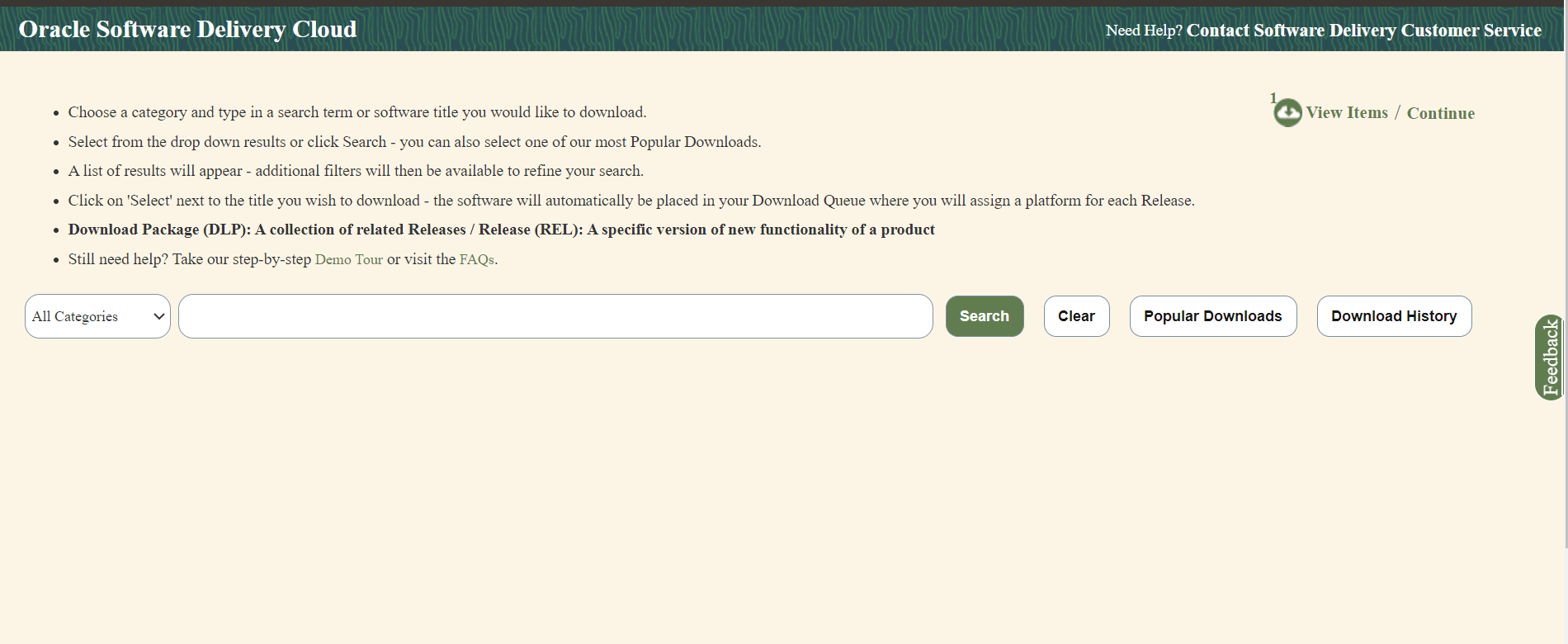

Figure 2-1 edelivery portal
Select the Download Package option, from All Categories drop down list.
Enter Oracle Communications Network Analytics Data Director in the search bar.

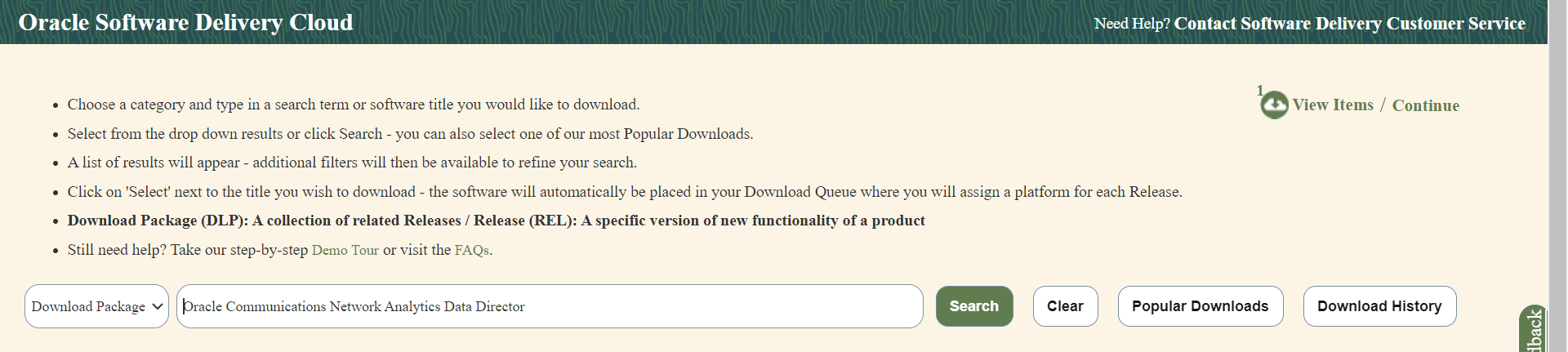

Figure 2-2 Search
List of release packages available for download are displayed on the screen. Select the release package you want to download, the package automatically gets downloaded.

2.2.1.2 Pushing the Images to Customer Docker Registry

Docker Images

Important:

kubectl commands might vary based on the platform deployment. Replace kubectl with Kubernetes environment-specific command line tool to configure Kubernetes resources through kube-api server. The instructions provided in this document are as per the Oracle Communications Cloud Native Core, Cloud Native Environment (CNE) version of kube-api server.

Oracle Communications Network Analytics Data Director (OCNADD) deployment package includes ready-to-use docker images and helm charts to help orchestrate containers in Kubernetes. The communication between Pods of services of OCNADD are preconfigured in the helm charts.

Following table lists the Docker images of OCNADD:

Table 2-7 Docker Images for OCNADD

Service Name	Docker Image Name	Image Tag
OCNADD-Configuration	ocnaddconfiguration	2.3.32
OCNADD-ConsumerAdapter	<app-name>-adapter	2.5.6
OCNADD-Aggregation	ocnaddnrfaggregation ocnaddscpaggregation ocnaddseppaggregation	2.4.4
OCNADD-Alarm	ocnaddalarm	2.3.6
OCNADD-HealthMonitoring	ocnaddhealthmonitoring	2.3.6
OCNADD-Kafka	ocnaddkafkahealthclient	3.5.0:2.0.14
OCNADD-Admin	ocnaddadminservice	2.6.1
OCNADD-UIRouter	ocnadduirouter	23.3.0
OCNADD-GUI	ocnaddgui	23.3.0
OCNADD-Cache	ocnaddcache	1.3.7
OCNADD-Backup-Restore	ocnaddbackuprestore	2.0.0

Note:

The service image names are prefixed with the OCNADD release name.
The above table depicts the default OCNADD microservices and their respective images. However, a few more necessary images are delivered as a part of the OCNADD package, you must push these images along with the default images.

Pushing Docker Images

To push the images to the registry:

Untar the OCNADD package zip file to retrieve the OCNADD docker image tar file.tar -xvzf ocnadd-pkg-23.3.0.tar.gzThe directory consists of the following:
- OCNADD Docker Images File:
```
ocnadd-images-23.3.0.tar
```
- Helm File:
```
ocnadd-23.3.0.tgz
```
- Readme txt File:
```
Readme.txt
```

Run one of the following commands to load the ocnadd-images-23.3.0.tar file:

docker load --input /IMAGE_PATH/ocnadd-images-23.3.0.tar

podman load --input /IMAGE_PATH/ocnadd-images-23.3.0.tar

Run one of the following commands to verify if the images are loaded:
```
docker images
```
```
podman images
```
Verify the list of images shown in the output with the list of images shown in the table Table 2-7. If the list does not match, reload the image tar file.

Run one of the following commands to tag each imported image to the registry:

docker tag <image-name>:<image-tag> <docker-repo>/<image-name>:<image-tag>

podman tag <image-name>:<image-tag> <docker-repo>/<image-name>:<image-tag>

Run one of the following commands to push the image to the registry:
```
docker push <docker-repo>/<image-name>:<image-tag>
```
```
podman push <docker-repo>/<image-name>:<image-tag>
```
Note:
It is recommended to configure the docker certificate before running the push command to access customer registry through HTTPS, otherwise, docker push command may fail.
Push the helm charts to the helm repository. Run the following command:
```
helm push <image_name>.tgz <helm_repo>
```

2.2.1.3 Creating OCNADD Namespace

This section explains how to verify or create new namespace in the system.

To verify if the required namespace already exists in the system, run the following command:

kubectl get namespaces

If the namespace exists, you may continue with the next steps of installation.

If the required namespace is not available, create a namespace using the following command:

kubectl create namespace <required namespace>

Example

kubectl create namespace ocnadd_namespace

Naming Convention for Namespaces

While choosing the name of the namespace where you wish to deploy OCNADD, make sure the following requirements are met:

starts and ends with an alphanumeric character
contains 63 characters or less
contains only alphanumeric characters or '-'

Note:

It is recommended to avoid using prefix kube- when creating namespace. This is required as the prefix is reserved for Kubernetes system namespaces.

2.2.1.4 Creating Service Account, Role, and Role Binding

This section is optional and it describes how to manually create a service account, role, and rolebinding. It is required only when customer needs to create a role, rolebinding, and service account manually before installing OCNADD. Skip this if choose to create by default from helm charts.

Note:

The secret(s) should exist in the same namespace where OCNADD is getting deployed. This helps to bind the Kubernetes role with the given service account.

Creating Service Account, Role, and RoleBinding

To create the service account, role, and rolebinding:

Create an OCNADD resource file:
```
vi <ocnadd-resource-file>
```
Where,

<ocnadd-resource-file> is the name of the resource file.

Example:
```
vi ocnadd-resource-template.yaml
```

Update the ocnadd-resource-template.yaml with release specific information:

Note:

Update <custom-name> and <namespace> with its respective OCNADD namespace, where <custom-name> can be given as per user preference (preferably use the namespace name to avoid issues during upgrade).

A sample template to update the ocnadd-resource-template.yaml file with is given below:

## Sample template start#
apiVersion: v1
kind: ServiceAccount
metadata:
  name: <custom-name>-sa-ocnadd
  namespace: <namespace>
automountServiceAccountToken: false

---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: <custom-name>-cr
rules:
- apiGroups: [""]
  resources: ["pods","configmaps","services", "secrets","resourcequotas","events","persistentvolumes","persistentvolumeclaims"]
  verbs: ["*"]
- apiGroups: ["extensions"]
  resources: ["ingresses"]
  verbs: ["create", "get", "delete"]
- apiGroups: [""]
  resources: ["nodes"]
  verbs: ["get"]
- apiGroups: ["scheduling.volcano.sh"]
  resources: ["podgroups", "queues", "queues/status"]
  verbs: ["get", "list", "watch", "create", "delete", "update"]

---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: <custom-name>-crb

roleRef:
  apiGroup: ""
  kind: Role
  name: <custom-name>-cr
subjects:
- kind: ServiceAccount
  name: <custom-name>-sa-ocnadd
  namespace: <namespace>

---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: <custom-name>-crb-policy
roleRef:
  apiGroup: ""
  kind: ClusterRole
  name: psp:privileged
subjects:
- kind: ServiceAccount
  name: <custom-name>-sa-ocnadd
  namespace: <namespace>
---
## Sample template end#

Run the following command to create service account, role, and rolebinding:
```
$ kubectl -n <namespace> create -f ocnadd-resource-template.yaml
```
Where,

<namespace> is the namespace where OCNADD is deployed.

Example:
```
$ kubectl -n ocnadd create -f ocnadd-resource-template.yaml
```

Note:

Once the global service account is added, users must update the following parameters to false in the ocnadd-custom-values-23.3.0.yaml file; otherwise, installation may fail as a result of creating and deleting custom resource definitions (CRD):

serviceAccount:
    create: false
    name: <custom-name> ## --> Change this to <custom-name> provided in ocnadd-resource-template.yaml above ##
    upgrade: false
clusterRole:
    create: false
    name: <custom-name> ## --> Change this to <custom-name> provided in ocnadd-resource-template.yaml above ##
    clusterRoleBinding:
    create: false
    name: <custom-name> ## --> Change this to <custom-name> provided in ocnadd-resource-template.yaml above ##

2.2.1.5 Configuring OCNADD Database

OCNADD microservices use MySQL database to store the configuration and run time data.

The database is managed by the helm pre-install hook. However, OCNADD requires the database administrator to create an admin user in MySQL database and provide the necessary permissions to access the databases. Before installing OCNADD it is required to create the MySQL user and databases.

Note:

If the admin user is already available, then update the credentials, such as username and password (base64 encoded) in ocnadd/templates/ocnadd-secret-hook.yaml.
If the admin user is not available, then create it using the following procedure. Once the user is created, update the credentials for the user in ocnadd/templates/ocnadd-secret-hook.yaml.

Creating Database

To create database:

Run the following command to log in to MySQL pod.

Note:
Use the namespace in which the cnDBTier is deployed. For example, occne-cndbtier namespace is used. The default container name is mysqlndbcluster
```
$ kubectl -n occne-cndbtier exec -it ndbmysqld-0 -- bash
```
To verify all the available containers in the pod, run:
```
Use 'kubectl describe pod/ndbmysqld-0 -n occne-cndbtier'
```
Run the following command to login to MySQL server using MySQL client:
```
$ mysql -h 127.0.0.1 -uroot -p
$ Enter password:
```

To create a admin user, run the following command:

CREATE USER IF NOT EXISTS'<ocnadd admin username>'@'%' IDENTIFIED BY '<ocnadd admin user password>';

Example:

CREATE USER IF NOT EXISTS 'ocdd'@'%' IDENTIFIED BY 'ocdd';

where:

<ocdd> is the admin username and <ocdd> is the password for MySQL admin user

Run the following command to grant the necessary permissions to the admin user and run the FLUSH command to reload the grant table:
```
GRANT ALL PRIVILEGES ON *.* TO 'ocdd'@'%' WITH GRANT OPTION;
```
```
FLUSH PRIVILEGES;
```
Access the ocnadd-secret-hook.yaml from the OCNADD helm files using the following path:
```
ocnadd/templates/ocnadd-secret-hook.yaml
```
Update the following parameters in the ocnadd-secret-hook.yaml with the admin user credentials:
```
data:
MYSQL_USER: b2NkZA==
MYSQL_PASSWORD: b2NkZA==
```
To generate the base64 encoded user and password from the terminal, run the following command:
```
echo -n <string> | base64 -w 0
```
Where, <string> is the admin username or password created in step3.

For example:
```
echo -n ocdd | base64 -w 0
b2NkZA==
```

Update Database Name

Note:

By default, the database names are configuration_schema, alarm_schema, and healthdb_schema for the respective services.
Skip this step if you plan to use the default database names during database creation. If not, change the database names as required.

To update the database names in the Configuration Service, Alarm Service, and Health Monitoring services:

Access the ocdd-db-resource.sql file from the helm chart using the following path:
```
ocnadd/ocdd-db-resource.sql
```
Update all occurrences of the database name in ocdd-db-resource.sql.

Update the ocnadd/ocdd-db-resource.sql file and add REFERENCES grant to ocddAppUsr for alarm and healthdb schema. Run the below command from the folder where helm charts for OCNADD are extracted:

sed -i "s/GRANT SELECT, INSERT, CREATE, LOCK TABLES, DELETE, UPDATE, EXECUTE ON healthdb_schema.* TO 'ocddAppUsr'@'%'/GRANT SELECT, INSERT, CREATE, LOCK TABLES, DELETE, UPDATE, REFERENCES, EXECUTE ON healthdb_schema.* TO 'ocddAppUsr'@'%'/g" ocnadd/ocdd-db-resource.sql
sed -i "s/GRANT SELECT, INSERT, CREATE, LOCK TABLES, DELETE, UPDATE, EXECUTE ON alarm_schema.* TO 'ocddAppUsr'@'%'/GRANT SELECT, INSERT, CREATE, LOCK TABLES, DELETE, UPDATE, REFERENCES, EXECUTE ON alarm_schema.* TO 'ocddAppUsr'@'%'/g" ocnadd/ocdd-db-resource.sql

Verify that the file ocnadd/ocdd-db-resource.sql have the REFERENCES added to the GRANT statement as below:

GRANT SELECT, INSERT, CREATE, LOCK TABLES, DELETE, UPDATE, REFERENCES, EXECUTE ON alarm_schema.* TO 'ocddAppUsr'@'%';
GRANT SELECT, INSERT, CREATE, LOCK TABLES, DELETE, UPDATE, REFERENCES, EXECUTE ON healthdb_schema.* TO 'ocddAppUsr'@'%';

Note:

During the OCNADD re-installation, all three application databases must be removed manually by running the drop database <dbname>; command.

2.2.1.6 Configuring Secrets for Accessing OCNADD Database

The secret configuration for OCNADD database is automatically managed during the database creation the helm pre-install procedure.

2.2.1.7 Configuring IP Network

This section defines OCNADD IP configuration for single stack (either only IPv4 or IPv6) or dual stack supported infrastructure.

For IPv4 network, update the following parameters in ocnadd-custom-values.yaml:


global:
    ipConfigurations:
        ipFamilyPolicy: SingleStack
        ipFamilies: ["IPv4"]

For IPv6 network, update the following parameters in ocnadd-custom-values.yaml:


global:
    ipConfigurations:
        ipFamilyPolicy: SingleStack
        ipFamilies: ["IPv6"]

Note:

The primary IP family remains fixed once OCNADD is deployed. To change the primary IP family, OCNADD needs to be redeployed.

2.2.1.8 Configuring SSL or TLS Certificates

Note:

Before configuring the SSL/TLS certificates see, the "Customizing CSR and Certificate Extensions" section in the Oracle Communications Network Analytics Suite Security Guide.

Note:

This is a mandatory procedure, perform this procedure before you proceed with installation.

Caution:

Users should provide their own CAcert.pem and CAkey.pem for generating certificates for the OCNADD SSL or TLS support.

For HTTPs, the certificates must be created before creating secret files for Keys and MySQL database credentials.

Before generating certificates using CACert and CAKey, the Kafka access mode needs to be finalized, and the ssl_certs/default_values/values to be updated accordingly.

The following access modes are available:

When the NF producers and OCNADD are in same cluster
- with external access disabled
- with external access enabled
The NF producers and OCNADD are in different cluster
- with LoadBalancer
- with NodePort

Note:

If the NF Producers and OCNADD are deployed in same cluster, all three ports can be used that is, 9092 for PLAIN_TEXT, 9093 for SSL, and 9094 for SASL_SSL. However, the 9092 port is non-secure and hence not recommended to use.
If the NF Producers and OCNADD are deployed in different cluster, only the 9094 (SASL_SSL) port is exposed
It is recommended to use the individual server IPs in the Kafka bootstrap server list instead of single service IP like "kafka-broker:9094".

The NF producers and OCNADD are in the same cluster

With external access disabled

In this mode, the Kafka cluster is not exposed externally. By default, the parameters externalAccess.enabled and externalAccess.autoDiscovery are set to false, therefore no change is needed. The parameters externalAccess.enabled and externalAccess.autoDiscovery are present in the ocnadd-custom-values-23.3.0.yaml file.

The default values of bootstrap-server are given below:

kafka-broker-0.kafka-broker:9093
kafka-broker-1.kafka-broker:9093
kafka-broker-2.kafka-broker:9093

With external access enabled

Note:
Ensure the procedure mentioned in the section "Helm Install/Upgrade Failure" in "External Kafka Access Enabled" in Oracle Communications Network Analytics Data Director Troubleshooting Guide is performed before configuring the Kafka external access. These changes are mandatory for the external access to work and without these the installation results in failure.
This mode can be chosen when the customer wants to have different service names for each Kafka broker. This requires an update of the following parameters of Kafka section in ocnadd-custom-values-23.3.0.yaml file:
1. externalAccess.type to ClusterIP
2. externalAccess.enabled to true
3. externalAccess.autoDiscovery to true
The AdvertiseListeners in Kafka will be updated with <kafka-broker-0-external>:<Port>,<kafka-broker-1-external>:<Port> for each respective brokers.

Based on the AdvertisedListeners, the client bootstrap server list should be updated. Examples are given below:
```
kafka-broker-0-external:9094
kafka-broker-1-external:9094
kafka-broker-2-external:9094
```

The NF producers and OCNADD are in different clusters

Note:

Ensure the procedure mentioned in the section "Helm Install/Upgrade Failure" in "External Kafka Access Enabled" in Oracle Communications Network Analytics Data Director Troubleshooting Guide is performed before configuring the Kafka external access. These changes are mandatory for the external access to work and without these the installation results in failure.

If the NF producers and OCNADD are in different Clusters, then either the LoadBalancer or NodePort Service Type can be used. In both the cases, the IP addresses are required to be updated manually in the ssl_certs/default_values/values of kafka-broker section by using the following steps:

With LoadBalancer

Update the following parameters in Kafka section of the ocnadd-custom-values-23.3.0.yaml file:
1. externalAccess.type to LoadBalancer
2. externalAccess.enabled to true
3. externalAccess.autoDiscovery to true
Update based on LoadBalance IP types as follows
1. When Static LoadBalancer IPs are used
  1. Update the following parameters in the Kafka section of the ocnadd-custom-values-23.3.0.yaml file:
    - externalAccess.setstaticLoadBalancerIps to 'true'. Default is false.
    - Static IP list in "externalAccess.LoadBalancerIPList" separated with comma.
    For example:
```
externalAccess:
            setstaticLoadBalancerIps: true
            LoadBalancerIPList: [10.20.30.40,10.20.30.41,10.20.30.42]
```
  2. Add all the static IP's in ssl_certs/default_values/values under kafka-broker section.
    Example: for the static IP list "10.20.30.40,10.20.30.41,10.20.30.42"
```
[kafka-broker]
client.commonName=kafka-broker-zk
server.commonName=kafka-broker
DNS.1=*.kafka-broker.<nameSpace>.svc.<Cluster-Domain>
DNS.2=kafka-broker
DNS.3=*.kafka-broker
IP.1=10.20.30.40
IP.2=10.20.30.41
IP.3=10.20.30.42
```
2. When LoadBalancer IP CIDR block is used
  1. Get the available LoadBalancer IP CIDR block using the following command
    kubectl describe cm -n occne-infra occne-metallb

    For example:
```
address-pools:
- addresses:   -
    10.20.30.0/26
```
  2. Add all the available IP's in ssl_certs/default_values/values under kafka-broker section.
    Example: for the "10.x.x.0/26" IP range
```
[kafka-broker]
client.commonName=kafka-broker-zk
server.commonName=kafka-broker
DNS.1=*.kafka-broker.<nameSpace>.svc.<Cluster-Domain>
DNS.2=kafka-broker
DNS.3=*.kafka-broker
IP.1=10.x.x.1
IP.2=10.x.x.2
.
.
IP.4=10.x.x.63
```

With NodePort

Note:

Not Supported for CNE 22.4.0 and later releases.

From CNE 22.4.0 onwards, the worker node External IP is not exposed. If user has them explicitly exposed, use the Node Port option else, use the LoadBalancer for external access.

Update the following parameters in the Kafka section of the ocnadd-custom-values-23.3.0.yaml file:
1. externalAccess.type to NodePort
2. externalAccess.enabled to true
3. externalAccess.autoDiscovery to true
To get the available list of EXTERNAL-IP Node IPs, run the following command:
kubectl get no -o wide

Add all the Node IP's in ssl_certs/default_values/values under kafka-broker section.

Example: For Node IPs 10.20.30.40, 10.20.30.50, and so on.


[kafka-broker]
client.commonName=kafka-broker-zk
server.commonName=kafka-broker
DNS.1=*.kafka-broker.<nameSpace>.svc.<Cluster-Domain>
DNS.2=kafka-broker
DNS.3=*.kafka-broker
IP.1=10.20.30.40
IP.2=10.20.30.50

2.2.1.8.1 Generate Certificates using CACert and CAKey

OCNADD allows the users to provide the CACert and CAKey and generate certificates for all the services by running a predefined script.

To generate certificates using CACert and CAKey:

Navigate to the ssl_certs/default_values/values file.

In the values file, edit the global parameters, CN, and SAN for each service based on the requirement as follows:

Note:

Edit only values for global parameters and RootCA common name, and add service blocks for all the services for which certificate needs to be generated. The values will be available once the OCNADD helm files are extracted.

Global Params:
[global]
countryName=<country>
stateOrProvinceName=<state>
localityName=<city>
organizationName=<org_name>
organizationalUnitName=<org_bu_name>
defaultDays=<days to expiry>


Root CA common name (e.g., *.namespace.svc.domainName)
##root_ca
commonName=<rootca_common_name>


Service common name for client and server and SAN. (Make sure to follow exact same format and provide an empty line at the end of each service block)

[service-name-1]
client.commonName=client.cn.name.svc1
server.commonName=server.cn.name.svc1
IP=127.0.0.1
DNS.1=localhost

[service-name-2]
client.commonName=client.cn.name.svc2
server.commonName=server.cn.name.svc2
IP = 10.20.30.40
DNS.1 = *.svc2.namespace.svc.domainName

[service-name-3]
client.commonName=client.cn.name.svc3

[service-name-4]
server.commonName=server.cn.name.svc4
IP.1 = 10.20.30.41
IP.2 = 127.0.0.1
DNS.1 = *.svc4.namespace.svc.domainName
DNS.2 = *.svc44.namespace.svc.domainName

##end

Run the generate_certs.sh script with the following command:
```
./generate_certs.sh -cacert <path to>/CAcert.pem -cakey <path to>/CAkey.pem
```
Select “n” when prompted for create Certificate Authority (CA).
```
Do you want to create Certificate Authority (CA)? n
```
Copy CA Certificate pem file (as cacert.pem) to “demoCA” folder and CA certificate key file (as cakey.pem) to “demoCA/private” if the paths to cacert and cakey are not provided through flags.
(The demoCA folder is created by script in the same path where script exist.)
```
cp /path/to/CAcert.pem /path/to/generate_certs_script/demoCA/cacert.pem
cp /path/to/CAkey.pem /path/to/generate_certs_script/demoCA/private/cakey.pem
```
Note:
Perform this step only if you have not provided the paths to cacert and cakey.
Select “y” when prompted to use the existing CA to sign CSR for each service.
```
Would you like to use existing CA to sign CSR for services? Y
```
Enter the password for your CA key.
```
password: <enter your ca key password>
```
Select “y” when prompted to create CSR for each service.
```
Create Certificate Signing Request (CSR) for each service? Y
```
Select “y” when prompted for signing CSR for each service with CA Key.
```
Would you like to sign CSR for each service with CA key? Y
```
Select “y” if you would like to create secrets for each service in existing namespace or “n” if you want to create secrets in a new namespace.
```
If “n”
a.  Would you like to choose any above namespace for creating secrets (y/n) n
b.  Enter new Kubernetes Namespace to create: <name of new ns to create>
If “y”
c.  Would you like to choose any above namespace for creating secrets (y/n) y
d.  Enter new Kubernetes Namespace to create: <name of existing ns>
```
The certificates are generated for each service and are available in the demoCA/services folder. The secret is created in the namespace, which is specified during the secret creation process.
Run the following command to check if the secrets are created in the specified namespace.
```
kubectl get secret -n <namespace>
```
Run the following command to describe any secret created by script.
```
kubectl describe secret <secret-name> -n <namespace>
```

2.2.1.8.2 Generate Certificate Signing Request (CSR)

Users can generate the certificate signing request for each of the services using the OCNADD script, and then can use the generated CSRs to generate the certificates using its own certificate signing mechanism (External CA server, Hashicorp Vault, and Venafi).

Perform the following procedure to generate the CSR:

Navigate to the ssl_certs/default_values/values file.

Edit global parameters, CN, and SAN for each service based on the requirement.

Note:

Edit only values for global parameters and RootCA common name, and add service blocks for all the services for which certificate needs to be generated.

a.  Global Params:
[global]
countryName=<country>
stateOrProvinceName=<state>
localityName=<city>
organizationName=<org_name>
organizationalUnitName=<org_bu_name>
defaultDays=<days to expiry>

b.  Root CA common name (e.g., *.namespace.svc.domainName)
##root_ca
commonName=<rootca_common_name>

c.  Service common name for client and server and SAN. (Make sure to follow exact same format and provide an empty line at the end of each service block)

[service-name-1]
client.commonName=client.cn.name.svc1
server.commonName=server.cn.name.svc1
IP=127.0.0.1
DNS.1=localhost

[service-name-2]
client.commonName=client.cn.name.svc2
server.commonName=server.cn.name.svc2
IP = 10.20.30.40
DNS.1 = *.svc2.namespace.svc.domainName

[service-name-3]
client.commonName=client.cn.name.svc3

[service-name-4]
server.commonName=server.cn.name.svc4
IP.1 = 10.20.30.41
IP.2 = 127.0.0.1
DNS.1 = *.svc4.namespace.svc.domainName
DNS.2 = *.svc44.namespace.svc.domainName

##end

Run the generate_certs.sh script with the --gencsr or -gc flag.
```
./generate_certs.sh --gencsr
```
Navigate to CSR and keys in the demoCA/services (separate for client and server). The CSR can be signed using your own certificate signing mechanism and certificates should be generated.
Make sure that the certificates and keys naming is in the following format if the service is acting as client or server, or both.
```
For Client
servicename-clientcert.pem and servicename-clientprivatekey.pem
For Server
servicename-servercert.pem and servicename-serverprivatekey.pem
```
Copy the certificates in the respective demoCA/services folder after certificates are generated for each service by signing CSR with your own CA key.
The certificates should be separate for client and server as their CSR are generated.
Run generate_certs.sh with the cacert path and --gensecret or -gs to generate secrets.
```
./generate_certs.sh -cacert /path/to/cacert.pem --gensecret
```
Enter "y" to continue generating secrets.
```
Would you like to continue to generate secrets? (y/n) y
```

Select “y” if you want to create secrets for each service in the existing namespace or “n” if you want to create secrets in a new namespace.

If “n”
>    Would you like to choose any above namespace for creating secrets (y/n) n
>    Enter new Kubernetes Namespace to create: <name of new ns to create>
If “y”
>    Would you like to choose any above namespace for creating secrets (y/n) y
>    Enter new Kubernetes Namespace to create: <name of existing ns>

The secret is created in the namespace, which is specified during the secret creation process.

Run the following command to check if the secrets are created in the specified namespace:
```
kubectl get secret -n <namespace>
```
Run the following command to describe any secret created by script:
```
kubectl describe secret <secret-name> -n <namespace>
```

2.2.1.8.3 Generate Certificates and Private Keys

Users can generate the certificates and private keys for all the required services, and then create Kubernetes secrets without using the OCNADD script.

Perform the following procedure to generate the certificates and private keys:

Run the openssl command to generate CSR for each service (separate for client and server if required).
1. Run the following command to generate private key:
```
openssl req -x509 -nodes -sha256 -days 365 -newkey rsa:2048 -keyout rsa_private_key -out rsa_certificate.crt
```
2. Run the following command to convert private key to pem:
```
openssl rsa -in rsa_private_key -outform PEM -out rsa_private_key_pkcs1.pem
```
3. Update CN, SAN, and global parameters for each service in the openssl.cnf file.
4. Run the following command to generate CSR for each service using private key:
```
openssl req -new -key rsa_private_key -out service_name.csr -config ssl.conf
```
Sign each service CSR with Root CA private key to generate certificates.

Generate Secrets using each service certificates and keys.

Run the following command to create truststore and keystore password files:
```
echo "<password>" >> trust.txt
echo "<password>" >> key.txt
```

Run the following command to create secrets using client and server certificates and cacert:

kubectl create secret generic <service_name>-secret --from-file=path/to/cert/<service_name>-clientprivatekey.pem --from-file=path/to/cert/<service_name>-clientcert.pem --from-file=path/to/cacert/cacert.pem  --from-file=path/to/cert/<service_name>-serverprivatekey.pem --from-file=path/to/cert/<service_name>-servercert.pem  --from-file=trust.txt --from-file=key.txt --from-literal=javakeystorepass=changeit -n <namespace>

Note:

Repeat Step 1 and 2 for all services (separate for client and server).

2.2.2 Installation Tasks

This section describes the tasks that the user must follow for installing OCNADD.

Note:

Before starting the installation tasks, ensure that the Prerequisites and Pre-Installation Tasks are completed.

2.2.2.1 Installing OCNADD Package

This section describes how to install the Oracle Communications Network Analytics Data Director (OCNADD) package.

To install the OCNADD package, perform the following steps:

Create OCNADD Namespace

Create the OCNADD namespace, if not already created, using the following command:

kubectl create ns <dd-namespace-name>

For more information, see Creating OCNADD Namespace.

Generate Certificates

Run the following commands to generate certificates:


Change directory to <chart_path>/ssl_certs, and update the file permission as below

$ chmod 775 generate_certs.sh

$ chmod 775 generate_secrets.sh

(optional) Clean up the EOF encoding if copied from windows.

sed -i -e 's/\r$//' default_values/values
sed -i -e 's/\r$//' template/ca_openssl.cnf
sed -i -e 's/\r$//' template/services_server_openssl.cnf
sed -i -e 's/\r$//' template/services_client_openssl.cnf
sed -i -e 's/\r$//' generate_certs.sh
sed -i -e 's/\r$//' generate_secrets.sh

Note:

Make sure that changes made in default_values reflect the namespace and cluster as described in Configuring SSL or TLS Certificates section. For more information on the certificate generation process, see Configuring SSL or TLS Certificates.

Perform the steps defined in Configuring SSL or TLS Certificates section to complete the certificate generation.

Update Database Parameters

To update the database parameters, see Configuring OCNADD Database.

Update ocnadd-custom-values-23.3.0.yaml file

Update the ocnadd-custom-values-23.3.0.yaml (depending on the type of deployment model) with the required parameters. For more information on how to access and update the ocnadd-custom-values-23.3.0.yaml files, see Customizing OCNADD.

Configure OCNADD Backup Cronjob

Configure the mysqlNameSpace and storageClass details in ocnadd-custom-values-23.3.0.yaml.

cluster:
        secret:
            name: db-secret
        mysqlNameSpace:
            name: occne-cndbtierone    #---> the namespace in which the cndbtier is deployed
        mysqlPod: ndbmysqld-0          #---> the pod can be ndbmysqld-0 or ndbmysqld-1 based on the cndbTier deployment
        storageClass: standard         #---> Update the "storageClassName" with  the respective storage class name in the case if deployment on Tanzu  platform. For example "zfs-storage-policy"

Configure the following parameters in the ocnadd-custom-values-23.3.0.yaml file.
The values for BACKUP_DATABASES can be set to ALL, which includes healthdb_schema, configuration_schema, and alarm_schema, or to the individual database names. The values for BACKUP_ARG can be set to ALL, DB or KAFKA. By default, the value is as ALL. PURGE_DAYS sets the backup retention period. The default value is 7 days.

Example:
```

ocnaddbackuprestore:
   ocnaddbackuprestore:
       name: ocnaddbackuprestore
       env:
           BACKUP_STORAGE: 20Gi
           BACKUP_CRONEXPRESSION: "0 8 * * *"
           BACKUP_DATABASES: ALL
           BACKUP_ARG: ALL

```
Once the deployment is successful, the cronjob is spawned based on the CRONEXPRESSION mentioned in the ocnadd-custom-values-23.3.0.yaml file.
For more information on backup and restore, see Fault Recovery.

Install Helm Chart

Run any of the following helm install commands:

In the case of Helm 2:

helm install <helm-repo> --name <deployment_name> -f ocnadd-custom-values-23.3.0.yaml --namespace
      <namespace_name> --version <helm_version>

In the case of Helm 3:

helm3 install <release name> -f ocnadd-custom-values-23.3.0.yaml --namespace <namespace>
      <helm-repo>/chart_name --version <helm_version>

In case charts are extracted and Helm is used:

helm install <release name> -f ocnadd-custom-values-23.3.0.yaml --namespace <namespace>
      <helm_chart>

Where:

helm_chart is the location of the Helm chart extracted from ocnadd-23.3.0.tgz file.

release name is the release name used by Helm command.

Note:

The release_name should not exceed 63 character limit.

namespace is the deployment namespace used by Helm command.

Example:

helm install ocnadd-23.3.0 -f ocnadd-custom-values-23.3.0.yaml --namespace ocnadd-deploy ocnadd

Caution:

Do not exit from helm install command manually. After running the helm install command, it takes some time to install all the services. In the meantime, you must not press Ctrl+C to come out from the command. It leads to some anomalous behavior.

Note:

You can verify the installation while running the install command by entering this command on a separate terminal:

watch kubectl get jobs,pods -n release_namespace

2.2.2.2 Verifying OCNADD Installation

This section describes how to verify if Oracle Communications Network Analytics Data Director (OCNADD) is installed successfully.

To check the status of OCNADD deployment, perform the following task:

In the case of Helm, run one of the following commands:
```
helm status <helm-release> -n <namespace>
```
Example:
```
helm list -n ocnadd
```
The system displays the status as deployed if the deployment is successful.
Run the following command to check whether all the services are deployed and active:
```
kubectl -n <namespace_name> get services
```
Run the following command to check whether all the pods are up and active:
```
kubectl -n <namespace_name> get pods
```
Example:
```
kubectl -n ocnadd get pods
```
```
kubectl -n ocnadd get services
```

Note:

All microservices status must be Running and Ready.
Take a backup of the following files that are required during fault recovery:
- Updated Helm charts
- Secrets, certificates, and keys that are used during the installation
If the installation is not successful or you do not see the status as Running for all the pods, perform the troubleshooting steps. For more information, refer to Oracle Communications Network Analytics Data Director Troubleshooting Guide.

2.2.2.3 Creating OCNADD Kafka Topics

To create OCNADD Kakfa topics, see the "Creating Kafka Topic for OCNADD" section of Oracle Communications Network Analytics Data Director User Guide

2.2.2.4 Installing OCNADD GUI

This section describes how to install Oracle Communications Network Analytics Data Director (OCNADD) GUI using the following steps:

Install OCNADD GUI

The OCNADD GUI gets installed along with the OCNADD services.

Configure OCNADD GUI in CNCC

Prerequisite: To configure OCNADD GUI in CNC Console, you must have the CNC Console installed. For information on how to install CNC Console and configure the OCNADD instance, see Oracle Communications Cloud Native Configuration Console Installation, Upgrade, and Fault Recovery Guide.

Before installing CNC Console, ensure to update the instances parameters with the following details in the occncc_custom_values.yaml file:


  instances:
    - id: Cluster1-dd-instance1
      type: DD-UI
      owner: Cluster1
      ip: 10.xx.xx.xx    #--> give the cluster/node IP
      port: 31456        #--> give the node port of ocnaddgui
      apiPrefix: /<clustername>/<namespace>/ocnadd
    - id: Cluster1-dd-instance1
      type: DD-API
      owner: Cluster1
      ip: 10.xx.xx.xx   #--> give the cluster/node IP
      port: 32406       #--> give the node port of ocnaddbackendrouter
      apiPrefix: /<clustername>/<namespace>/ocnaddapi

# Applicable only for Manager and Agent core. Used for Multi-Instance-Multi-Cluster Configuration Validation
  validationHook:
    enabled: false   #--> add this enabled: false to validationHook

#--> do these changes under section :
cncc iam attributes
# If https is disabled, this Port would be HTTPS/1.0 Port (secured SSL)
    publicHttpSignalingPort: 30085  #--> CNC console nodeport

#--> add these lines under cncc-iam attributes
# If Static node port needs to be set, then set staticNodePortEnabled flag to true and provide value for staticNodePort
    # Else random node port will be assigned by K8
    staticNodePortEnabled: true
    staticHttpNodePort: 30085  #--> CNC console nodeport
    staticHttpsNodePort: 30053

#--> do these changes under section : manager cncc core attributes
#--> add these lines under mcncc-core attributes

# If Static node port needs to be set, then set staticNodePortEnabled flag to true and provide value for staticNodePort
    # Else random node port will be assigned by K8
    staticNodePortEnabled: true
    staticHttpNodePort: 30075
    staticHttpsNodePort: 30043

#--> do these changes under section : agent cncc core attributes
#--> add these lines under acncc-core attributes
# If Static node port needs to be set, then set staticNodePortEnabled flag to true and provide value for staticNodePort
    # Else random node port will be assigned by K8
    staticNodePortEnabled: true
    staticHttpNodePort: 30076
    staticHttpsNodePort: 30044

If CNC Console is already installed, ensure to upgrade it with the following parameters updated in the occncc_custom_values.yaml file:

instances:
  - id: Cluster1-dd-instance1
    type: DD-UI
    owner: Cluster1
    ip: 10.xx.xx.xx    #--> update the cluster/node IP
    port: 31456        #--> ocnaddgui port
    apiPrefix: /<clustername>/<namespace>/ocnadd
  - id: Cluster1-dd-instance1
    type: DD-API
    owner: Cluster1
    ip: 10.xx.xx.xx   #--> update the cluster/node IP
    port: 32406       #--> ocnaddbackendrouter port
    apiPrefix: /<clustername>/<namespace>/ocnaddapi

Example:

If OCNADD GUI is deployed in the occne-ocdd cluster and the ocnadd-deploy namespace, then the prefix in CNC Console occncc_custom_values.yaml will be as follows:

DD-UI apiPrefix:
/occne-ocdd/ocnadd-deploy/ocnadd
DD-API apiPrefix:
/occne-ocdd/ocnadd-deploy/ocnaddapi

Access OCNADD GUI

To access OCNADD GUI, follow the procedure mentioned in the "Accessing CNC Console" section of Oracle Communications Cloud Native Configuration Console Installation, Upgrade, and Fault Recovery Guide.
