Install AC Power Cables and Slide-Rails

  1. Before you install the slide-rails into the rack, install server right-angle AC power cables into the left-side and right-side PDU electrical sockets.

    Use the following 2-meter right-angle AC power cable for this procedure: 7079727 - Pwrcord, Jmpr, Bulk, SR2, 2m, C14RA, 10A, C13:

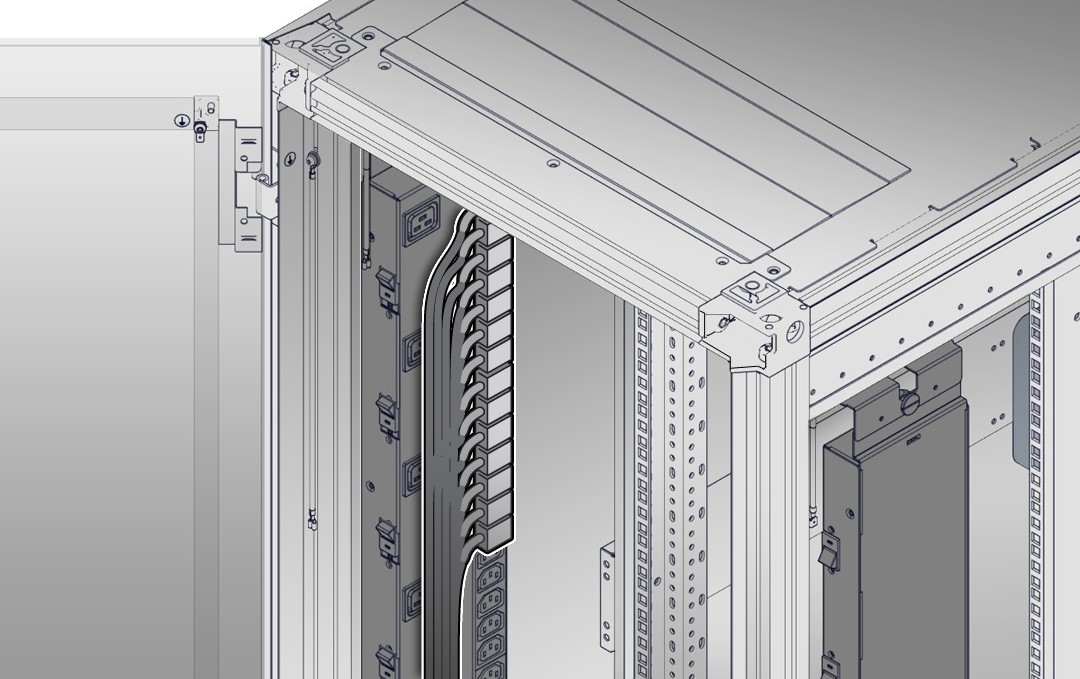

    Figure 5-6 Using 2-Meter Right-Angle AC Power Cable


    Using 2-meter right-angle AC power cable for this procedure.

  2. Install the slide-rails into the rack.

    See Attach the Slide-Rails

    .

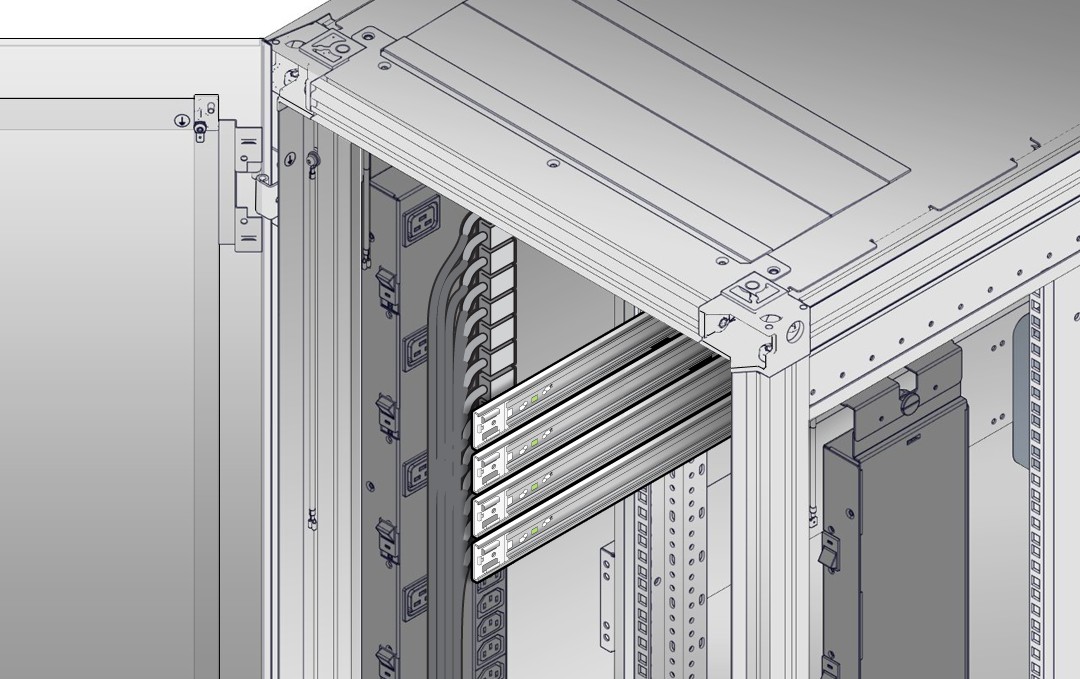

Figure 5-7 Installing Slide-Rails into the Rack


Installing the slide-rails into the rack.
