Troubleshooting OCNWDAF

4 Troubleshooting OCNWDAF

This chapter provides information to troubleshoot the common errors which can be encountered during the preinstallation and installation procedures of OCNWDAF.

4.1 Generic Checklist

The following sections provide a generic checklist for troubleshooting tips.

Deployment related tips

Perform the following checks after the deployment:

Are OCNWDAF deployment, pods, and services created?
Are OCNWDAF deployment, pods, and services running and available?
Run the following the command:
```
# kubectl -n <namespace> get deployments,pods,svc
```
Inspect the output, check the following columns:
- AVAILABLE of deployment
- READY, STATUS, and RESTARTS of a pod
- PORT(S) of service
Check if the microservices can access each other through the REST interface.
Run the following command:
```
# kubectl -n <namespace> exec <pod name> -- curl <uri>
```

Application related tips

Run the following command to check the application logs and look for exceptions:

# kubectl -n <namespace> logs -f <pod name>

You can use '-f' to follow the logs or 'grep' for specific pattern in the log output.

4.2 Deployment Related Issue

This section describes the most common deployment related issues and their resolution steps. It is recommended to perform the resolution steps provided in this guide. If the issue still persists, then contact My Oracle Support.

4.2.1 Installation

This section describes the most common installation related issues and their resolution steps.

4.2.1.1 Pod Creation Failure

A pod creation can fail due to various reasons. Some of the possible scenarios are as follows:

Verifying Pod Image Correctness

To verify pod image:

Check whether any of the pods is in the ImagePullBackOff state.
Check if the image name used for all the pods are correct. Verify the image names and versions in the OCNWDAF installation file. For more information about the custom value file, see Oracle Communications Networks Data Analytics Function Installation and Fault Recovery Guide.

Verifying Resource Allocation Failure

To verify any resource allocation failure:

Run the following command to verify whether any pod is in the pending state.
kubectl describe <nwdaf-drservice pod id> --n <ocnef-namespace>
Verify whether any warning on insufficient CPU exists in the describe output of the respective pod. If it exists, it means there are insufficient CPUs for the pods to start. Address this hardware issue.

Verifying Resource Allocation Issues on Webscale Environment

Webscale environment has openshift container installed. There can be cases where,

Pods does not scale after you run the installation command and the installation fails with timeout error. In this case, check for preinstall hooks failure. Run the oc get job command to create the jobs. Describe the job for which the pods are not getting scaled and check if there are quota limit exceeded errors with CPU or memory.
Any of the actual microservice pods do not scale post the hooks completion. In this case, run the oc get rs command to get the list of replicaset created for the NF deployment. Then, describe the replicaset for which the pods are not getting scaled and check for resource quota limit exceeded errors with CPU or memory.
Installation times-out after all the microservice pods are scaled as expected with the expected number of replicas. In this case, check for post install hooks failure. Run the oc get job command to get the post install jobs and do a describe on the job for which the pods are not getting scaled and check if there are quota limit exceeded errors with CPU or memory.
Resource quota exceed beyond limits.

Verifying Resources Assigned to Previous Installation

If a previous installations, uninstall procedure was not successful and the uninstall process was forced, it is possible that some resources are still assigned to the previous installation. This can be detected by running the following command:

kubectl -n <namepsace> describe pod <podname>

While searching for events, if you detect messages similar to the following message, it indicates that there are resources still assigned to the previous installation and should be purged.

0/n nodes are available: n pods has unbound immediate PersistenVolumeClaims

4.2.1.2 Pod Startup Failure

Follow the guidelines shared below to debug the pod startup failure liveness check issues:

If dr-service, diameter-proxy, and diam-gateway services are stuck in the Init state, then the reason could be that config-server is not yet up. A sample log on these services is as follows:
```
"Config Server is Not yet Up, Wait For config server to be up."
```
To resolve this, you must either check for the reason of config-server not being up or if the config-server is not required, then disable it.
If the notify and on-demand migration service is stuck in the Init state, then the reason could be the dr-service is not yet up. A sample log on these services is as follows:
```
"DR Service is Not yet Up, Wait For dr service to be up."
```
To resolve this, check for failures on dr-service.

4.2.1.3 NRF Registration Failure

The OCNWDAF registration with NRF may fail due to various reasons. Some of the possible scenarios are as follows:

Confirm whether registration was successful from the nrf-client-service pod.
Check the ocnwdaf-nrf-client-nfmanagement logs. If the log has "OCNWDAF is Unregistered" then:
- Check if all the services mentioned under allorudr/slf (depending on OCNWDAF mode) in the installation file has same spelling as that of service name and are enabled.
- Once all services are up, OCNWDAF must register with NRF.
If you see a log for SERVICE_UNAVAILABLE(503), check if the primary and secondary NRF configurations (primaryNrfApiRoot/secondaryNrfApiRoot) are correct and they are UP and Running.

4.2.1.4 Incorrect Service Account Creation

Problem

Pods display an error when appropriate service accounts are not created for the pods.

Error Code or Error Message

Sample error message:

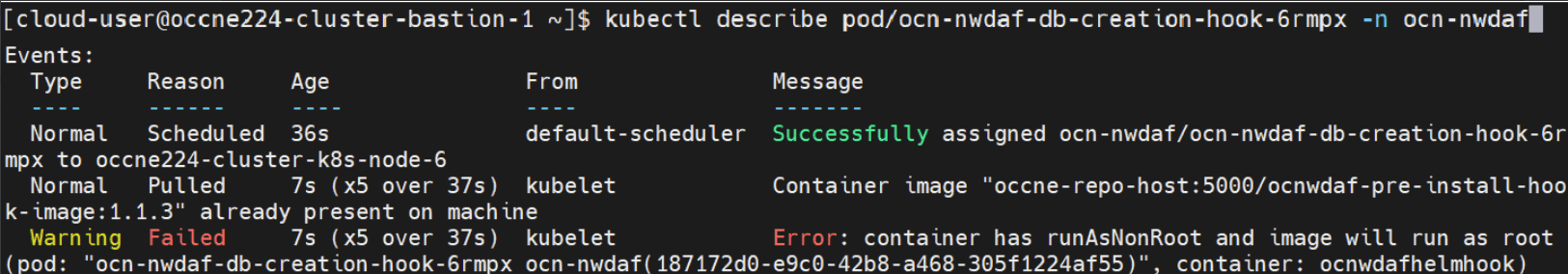

Figure 4-1 Sample Error Message

Solution

Ensure the service account creation hook in the parent chart's values.yaml file is enabled and runs properly.

4.2.1.5 Install Timeout Error

Problem

This error occurs when a hook restarts more than five times.

Error Code or Error Message

Sample error message:

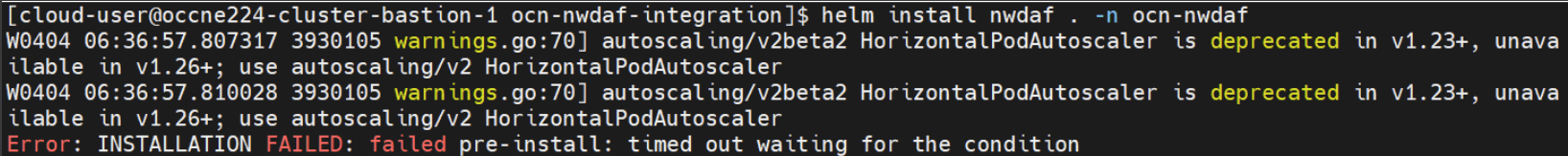

Figure 4-2 Sample Error Message

Solution

Check whether the MySQL host or MySQL port is mentioned correctly in the values.yaml file of both the parent and the NRF client Helm charts. Verify the pod logs for more information.

4.2.1.6 Pods Enter Pending State

Problem

Pods enter a pending state due to resource shortage in the setup.

Error Code or Error Message

Sample error message:

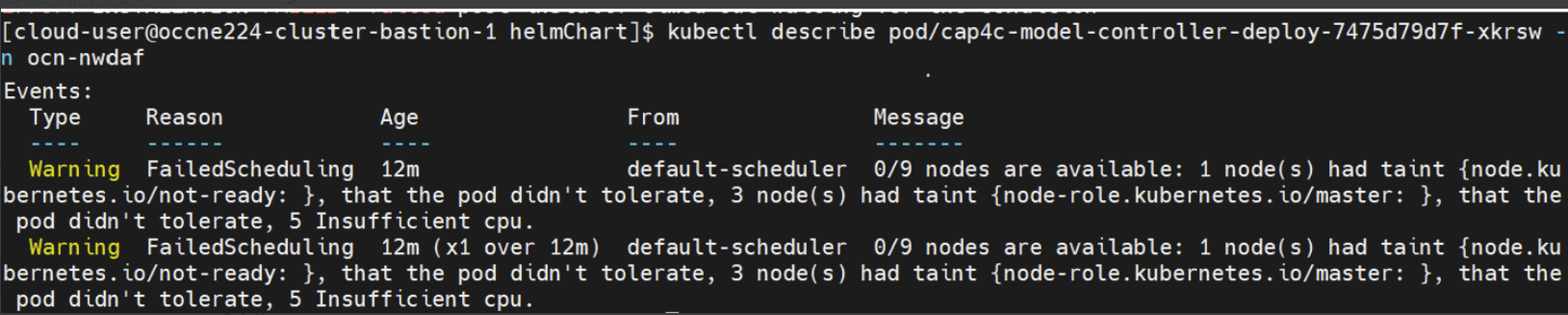

Figure 4-3 Sample Error Message

Solution

Free up all unnecessary resources present in the cluster that are consuming a lot of cluster resources.

4.2.1.7 Resource Creation Failure

Problem

The deployment namespace does not have appropriate permissions to create resources.

Error Code or Error Message

Sample error message:

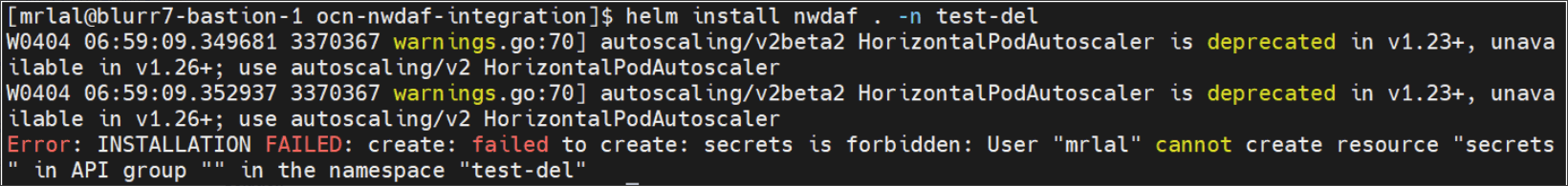

Figure 4-4 Sample Error Message

Solution

Create a child namespace for the parent namespace that has appropriate permissions, run the following command:

kubectl hns create <child-namespace> -n <parent-namespace>

4.2.1.8 Service Configuration or Parameter Mismatch

Problem

Service configuration or parameter mismatch might result in the service entering a CrashBackLoop off mode.

Solution

Update the properties in the corresponding services values.yaml file and perform a Helm install.

4.2.1.9 Service Nodeport Error

Problem

The service nodeport was previously assigned to other services running in the cluster.

Error Code or Error Message

Sample error message:

Figure 4-5 Sample Error Message

Solution

To resolve this error, edit the values.yaml file and provide a random port number to the service nodeport.

4.2.1.10 Common Services Gateway Service Name Mismatch

Problem

Suppose the service name of the common services gateway differs from "nwdaf-ingress-gateway-service" and "nwdaf-egress-gateway-service". This results in errors in the functioning of the gateways and forwarding of external requests to the respective services.

Solution

Run the following command:

kubectl edit service <service-name> -n <namespace>

Edit the service names of the common services gateways to "nwdaf-ingress-gateway-service" for the Ingress Gateway and "nwdaf-egress-gateway-service" for the Egress Gateway respectively.

4.2.1.11 Run Only DB Creation Hook

Set the dbConfigStatus flag in values.yaml file under /helmchart directory to dbonly to run only the DB creation hook. The Helm installation command will not deploy any other resource or make any other configuration change. Users can use different Helm installation names in the Helm install command to configure the latest database by updating the scripts ocnwdaf-db-config.yaml under /helmchart/templates directory and prehookconfig.yaml under /helmchart/charts/ocn-nwdaf-geo-redundancy-agent/templates directory.

4.2.1.12 Helm Chart Upgrade

Helm upgrade is performed for all deployment changes (for example, updating the image used in the microservice) that do not require a reinstallation. Run the following command to perform a Helm upgrade:

helm upgrade <installation name> <path to the updated chart directory> -n $K8_NAMESPACE --timeout <timeout>h

Note:

Provide the correct installation name on which the installation was performed.
The timeout variable is optional. It is based on the speed of image pull from the nodes of the Bastion. The recommended timeout value is "4 h".
Helm upgrade must be performed only on the main Helm chart under /helmChart directory. It must not be performed on the subcharts under /charts directory. To update any subchart, make changes in the respective subchart and perform Helm upgrade on the main Helm chart under /helmChart directory.
To enable DB creation hook or to prepare the dependencies hook, set the upgradeStatus flag in values.yaml file under /helmChart directory to true before performing a Helm upgrade. To disable the hooks, set the upgradeStatus flag to false.
Before performing a Helm upgrade on the ocn-nwdaf-communication, nwdaf-cap4c-zookeper-chart, nwdaf-cap4c-kafka-chart, ocn-nrf-simulator-service, and nwdaf-cap4c-spring-cloud-config-server-chart services, set the upgradeStatus flag in values.yaml file under /helmChart directory to true. If there are no changes in the services, set the upgradeStatus flag to false.
Use the prepare dependencies hook for Helm upgrade only when the upgradeStatus flag for nwdaf-cap4c-kafka-chart and nwdaf-cap4c-spring-cloud-config-server-chart microservices is set to false. To upgrade these microservices with the prepare dependencies hook, use the prepare dependencies hook in a separate Helm upgrade procedure, then perform an upgrade of the microservices.

Listed below are some use cases for performing a Helm upgrade:

To update the fields such as image name, resources allotted, environment variables, and so on, make the required changes in the respective subcharts and run the Helm upgrade command on the updated chart.
To enable or disable services, set the subcharts enable or disable flag in the centralized values.yaml file under the /helmchart directory to true or false (as required). The services with enable flag set to false are terminated.
To reinstall the DB, enable the dbCreationHook upgradeStatus flag in values.yaml file under /helmChart directory to true. The DB creation hook runs according to the configured dbConfigStatus flag in the file. For example, if the dbConfigStatus flag is set to nwdafdb, only the nwdafdb creation hook is run during upgrade.
To transfer Spring Cloud config files from nwdaf-pre-installer.tar.gz to the spring-cloud-config-server microservice, and to create new Kafka topics in the Kafka microservice, use the prepare dependencies hook by updating prepareDependencyHook upgradeStatus flag in values.yaml file under /helmChart directory to true. The Kafka pods and Spring Cloud Config server pods must be in Ready State before enabling upgradeStatus flag in values.yaml file under /helmChart directory to true.

4.2.2 Postinstallation

4.2.2.1 Helm Test Error Scenario

Following are the error scenarios that may be identified using Helm test.

Run the following command to get the Helm Test pod name:
```
kubectl get pods -n <deployment-namespace>
```
When a Helm test is performed, a new Helm test pod is created. Check for the Helm Test pod that is in an error state.
Get the logs using the following command:
```
kubectl logs <podname> -n <namespace>
```
Example:
```
kubectl get <helm_test_pod> -n ocnwdaf
```
For further assistance, collect the logs and contact MOS.

4.2.2.2 Uninstall Helm Chart

Perform the following steps to uninstall the Helm chart:

Run the following command to delete all jobs running in the cluster:
```
kubectl delete jobs --all -n <namespace>
```
Run the following command to delete resources like pods, deployments, services, and so on running in the cluster:
```
kubectl delete all --all -n <namespace>
```

Run the following Helm uninstall command:

helm uninstall <release-name> -n <namespace>

4.2.2.3 Purge Kafka Topics for New Installation

If in a previous OCNWDAF installation, Kafka topics contained messages, the topics should be retained in the new installation but not the messages. Follow the procedure below to prevent purge of Kafka topics:

Connect to Kafka pod in your Kubernetes environment, run the command:
```
kubectl -n <namespace> exec -it <podname> -- bash
```
Change directory, move to the directory that contains the binary files:
```
cd kafka_2.13-3.1.0/bin/
```

Obtain the list of topics, run the command:

kafka-topics.sh --list --bootstrap-server localhost:9092

Delete each topic (repeat this step for each topic):

kafka-topics.sh --bootstrap-server localhost:9092 --delete --topic <topicname>

On completion of this procedure, the Kafka topics exist, but the messages do not exist.

Note:

After every installation is recommended to purge the topics before uninstalling them.

4.3 Database Related Issues

This section describes the most common database related issues and their resolution steps. It is recommended to perform the resolution steps provided in this guide. If the issue still persists, then contact My Oracle Support.

4.3.1 Debugging MySQL DB Errors

If you are facing issues related to subscription creation, follow the procedure below to login to MySQL DB:

Note:

Once the MySQL cluster is created, the cndbtier_install container generates the password and stores it in the occne-mysqlndb-root-secret secret.

Retrieve the MySQL root password from occne-mysqlndb-root-secret secret.

Run the command:

$ kubectl -n occne-cndbtier get secret occne-mysqlndb-root-secret -o jsonpath='{.data}'map[mysql_root_password:TmV4dEdlbkNuZQ==]

Decode the encoded output received as an output of the previous step to get the actual password:
```
$ echo TmV4dEdlbkNuZQ== | base64 --decode
NextGenCne
```
Login to MySQL pod, run the command:
```
$ kubectl -n occnepsa exec -it ndbmysqld-0 -- bash
```
Note:
Default container name is: mysqlndbcluster.
Run the command kubectl describe pod/ndbmysqld-0 -n occnepsa to see all the containers in this pod.
Login using MySQL client as the root user, run the command:
```
$ mysql -h 127.0.0.1 -uroot -p
```
Enter current root password for MySQL root user obtained from step 2.

To debug each microservice, perform the following steps:

For the ocn-nwdaf-subscription service, run the following SQL commands:

use <dbName>;
use nwdaf_subscription;
select * from nwdaf_subscription;
select * from amf_ue_event_subscription
select * from smf_ue_event_subscription

For the ocn-nrf-simulator service, run the following SQL commands:
```
use <dbName>;
use nrf;
select * from profile;
```
For the ocn-smf-simulator service, run the following SQL commands:
```
use <dbName>;
use nrf;
select * from smf_event_subscription;
```
For the ocn-amf-simulator service, run the following SQL commands:
```
use <dbName>;
use nrf;
select * from amf_event_subscription;
```

For the ocn-nwdaf-data-collection service, run the following SQL commands:

use <dbName>;
use nwdaf_data_collection;
select * from amf_event_notification_report_list;
select * from amf_ue_event_report;
select * from cap4c_ue_notification;
select * from slice_load_level_notification;
select * from smf_event_notification_report_list;
select * from smf_ue_event_report;
select * from ue_mobility_notification;

For the ocn-nwdaf-configuration-service service, run the following SQL commands:

use <dbName>;
use nwdaf_configuration_service;
select * from slice;
select * from tracking_are;
select * from slice_tracking_area;
select * from cell;

4.4 Apache Kafka Related Issues

To debug issues related to Apache Kafka pipelines (such as, unable to read messages from the pipeline or write messages to the pipeline) perform the following steps:

Get the Kafka pods, run the command:

kubectl -n performance-ns get pods -o wide | grep "kafka"

Select any pod and access the pod using the command:

kubectl -n performance-ns exec -it kafka-sts-0 -- bash

Move to the directory containing the binary files, run the command:
```
cd kafka_2.13-3.1.0/bin/
```

Obtain the list of topics, run the command:

kafka-topics.sh --list --bootstrap-server localhost:9092

For each topic, run the following command:

kafka-console-consumer.sh --bootstrap-server 127.0.0.1:9092 --topic
    <topic-name>

4.5 CAP4C Related Issues

CAP4C comprises of the following services:

cap4c-model-controller
cap4c-model-executor
kafka
mysql-pod

To obtain more information on the service pods, follow the steps listed below:

Each of these services is deployed as pod in Kubernetes. To find the status of the pods in Kubernetes run the following command:

$ kubectl get pods -n <namespace>

Sample output:

NAME                                                 READY   STATUS    RESTARTS   AGE

cap4c-model-controller-deploy-779cbdcf8f-w2pfh       1/1     Running   0          4d8h

cap4c-model-executor-deploy-f9c96db54-ttnhd          1/1     Running   0          4d5h

cap4c-stream-analytics-deploy-744878569-5xr2w        1/1     Running   0          4d8h

To verify the pod information, print the detail of each pod to:

$ kubectl describe pod cap4c-model-controller-deploy-779cbdcf8f-w2pfh  -n
    <namespace>

Sample output:

Name:         cap4c-model-controller-deploy-779cbdcf8f-w2pfh

Namespace:    performance-ns

Priority:     0

Node:         sunstreaker-k8s-node-2/192.168.200.197

Start Time:   Fri, 26 Aug 2022 15:31:39 +0000

Labels:       app=cap4c-model-controller

              pod-template-hash=779cbdcf8f

Annotations:  cni.projectcalico.org/containerID: 480ca581a828184ccf6fabf7ec7cfb68920624f48d57148f6d93db4512bc5335

              cni.projectcalico.org/podIP: 10.233.76.134/32

              cni.projectcalico.org/podIPs: 10.233.76.134/32

              kubernetes.io/psp: restricted

              seccomp.security.alpha.kubernetes.io/pod: runtime/default

Status:       Running

List the service configuration for the pods, run the command:

$ kubectl get svc -n <namespace>

Sample output:

NAME              TYPE        CLUSTER-IP      EXTERNAL-IP
         PORT(S)    AGE cap4c-executor    ClusterIP   10.233.5.218    <none>
         8888:32767/TCP 4d8h

4.6 Service Related Issues

This section describes the most common service related issues and their resolution steps. It is recommended to perform the resolution steps provided in this guide. If the issue still persists, then contact My Oracle Support.

4.6.1 Errors from Microservices

The OCNWDAF microservices are listed below:

ocn-nwdaf-subscription
ocn-nwdaf-data-collection
ocn-nwdaf-configuration-service
ocn-nwdaf-analytics
ocn-nwdaf-mtlf
ocn-nrf-simulator
ocn-smf-simulator
ocn-amf-simulator
mesa-simulator
nwdaf-ingress-gateway
nwdaf-egress-gateway

To debug microservice related errors, obtain the logs in the pods that are facing issues, run the following commands for each microservice:

To obtain the pod information, run the following command:
```
kubectl get pods -n <nameSpace> -o wide
```
To obtain the log information for the pods, run the following command:
```
kubectl logs <podName> -n <nameSpace>
```

Sample commands:

kubectl logs ocn-nwdaf-subscription-84f8b74cc7-d7lk9 -n performance-ns
kubectl logs ocn-nwdaf-data-collection-57b948989c-xs7dq -n performance-ns
kubectl logs ocn-amf-simulator-584ccb8fd4-pcdn6 -n performance-ns
