3 Installing ATS for Different Network Analytics Suite Products

This section describes how to install ATS for different Network Analytics Suite products.

3.1 Installing ATS for OCNADD

The Oracle Communications Network Analytics Data Director (OCNADD) can be installed with or without TLS (Transport Layer Security) Support feature. To enable TLS feature support, see Enabling TLS Support on ATS and Enable TLS Support on OCNADD ATS before proceeding with ATS installation.

Installing ATS for OCNADD

Following are the ATS installation procedures for Oracle Communications Network Analytics Data Director (OCNADD):
  1. Resource Requirements
  2. Downloading the ATS Package
  3. Pushing the Images to Customer Docker Registry
  4. Configuring ATS
  5. Deploying ATS and Stub in Kubernetes Cluster
  6. Verifying ATS Deployment

3.1.1 Resource Requirements

This section describes the ATS resource requirements for OCNADD.

Overview - Total Number of Resources

The following table describes the overall resource usage in terms of CPUs and memory for the following:
  • OCNADD SUT
  • ATS

Table 3-1 OCNADD - Total Number of Resources

Resource Name CPU Memory (GB)
OCNADD SUT Totals 69 360
ATS Totals 14 22
Grand Total OCNADD ATS 83 382

OCNADD Pods Resource Requirement Details

This section describes the resource requirements, which are needed to deploy OCNADD ATS successfully.

Table 3-2 OCNADD Pods Resource Requirement Details

OCNADD Service CPUs Required Per pod Memory Required Per pod Replicas (Regular deployment) Replicas (ATS deployment) Total CPUs Required Total Memory Required (GB)
ocnaddconfiguration 1 1 1 1 1 1
ocnaddalarm 1 1 1 1 1 1
ocnaddadmin 1 1 1 1 1 1
ocnaddhealthmonitoring 1 1 1 1 1 1
ocnadduirouter 1 1 1 1 1 1
ocnaddscpaggregation 2 2 1 1 2 2
ocnaddnrfaggregation 2 2 1 1 2 2
ocnaddseppaggregation 2 2 1 1 2 2
ocnaddadapter 3 4 2 2 6 8
ocnaddkafka 6 64 4 4 24 256
zookeeper 1 2 3 3 3 6
kraftcontroller 1 2 3 3 3 6
ocnaddgui 1 1 1 1 1 1
ocnaddfilter 2 3 1 1 2 3
ocnaddcorrelation 3 24 1 1 3 24
ocnaddredundancyagent 2 3 1 1 2 3
ocnaddstorageadapter 3 24 1 1 3 24
ocnaddexport 2 4 1 1 2 4
ocnaddingressadapter 3 8 1 1 3 8
ocnaddnonoracleaggregation 2 2 1 1 2 2
ocnaddpcfaggregation 2 2 1 1 2 2
ocnaddbsfaggregation 2 2 1 1 2 2
OCNADD SUT Totals 69 CPU 360 GB

For more information about OCNADD Pods Resource Requirements, see the "Resource Requirements" section in Oracle Communications Network Analytics Data Director Installation, Upgrade, and Fault Recovery Guide.

ATS Resource Requirement details for OCNADD

This section describes the ATS resource requirements, which are needed to deploy OCNADD ATS successfully.

Table 3-3 ATS Resource Requirement Details

Microservice CPUs Required per Pod Memory Required per Pod (GB) # Replicas (regular deployment) # Replicas (ATS deployment) CPUs Required - Total Memory Required - Total (GB)
ATS Behave 2 1 1 1 2 1
OCNADD Producer Stub (SCP, NRF, SEPP,PCF,BSF) 10 20 1 1 10 20
OCNADD Consumer Stub 2 1 1 1 2 1
ATS Totals 14 22

3.1.2 Downloading the ATS Package

Locating and Downloading ATS Images

To locate and download the ATS Image from MOS:

  1. Log in to My Oracle Support using the appropriate credentials.
  2. Select the Patches & Updates tab.
  3. In the Patch Search window, click Product or Family (Advanced).
  4. Enter Oracle Communications Network Analytics Data Director in the Product field.
  5. Select Oracle Communications Network Analytics Data Director <release_number> from the Release drop-down.
  6. Click Search. The Patch Advanced Search Results list appears.
  7. Select the required ATS patch from the list. The Patch Details window appears.
  8. Click Download. The File Download window appears.
  9. Click the <p********_<release_number>_Tekelec>.zip file to download the OCNADD ATS package file.
  10. Untar the zip file to access all the ATS Images. The <p********_<release_number>_Tekelec>.zip directory has following files:
    ocats-ocnadd-tools-pkg-25.2.100.tgz
ocats-ocnadd-tools-pkg-25.2.100-README.txt
ocats-ocnadd-tools-pkg-25.2.100.tgz.sha256
ocats-ocnadd-custom-configtemplates-25.2.100.zip
ocats-ocnadd-custom-configtemplates-25.2.100-README.txt
    The ocats-ocnadd-tools-pkg-25.2.100-README.txt file has all the information required for the package. The ocats-ocnadd-tools-pkg-25.2.100.tgz file has the following images and charts packaged as tar files:
    ocats-ocnadd-tools-pkg-25.2.100.tgz

| |_ _ _ocats-ocnadd-pkg-25.2.100.tgz

| |_ _ _ _ _ _ ocats-ocnadd-25.2.100.tgz (Helm Charts)

| |_ _ _ _ _ _ ocats-ocnadd-image-25.2.100.tar (Docker Images)

| |_ _ _ _ _ _ OCATS-ocnadd-Readme.txt

| |_ _ _ _ _ _ ocats-ocnadd-25.2.100.tgz.sha256

| |_ _ _ _ _ _ ocats-ocnadd-image-25.2.100.tar.sha256

| |_ _ _ _ _ _ ocats-ocnadd-data-25.2.100.tgz (ATS test scripts and Jenkins data)

| |_ _ _ _ _ _ ocats-ocnadd-data-25.2.100.tgz.sha256

| | |_ _ _ocstub-ocnadd-pkg-25.2.100.tgz

|_ _ _ _ _ _ ocstub-ocnadd-25.2.100.tgz (Helm Charts)

|_ _ _ _ _ _ ocstub-ocnadd-image-25.2.100.tar (Docker Images)

|_ _ _ _ _ _ OCSTUB-ocnadd-Readme.txt

|_ _ _ _ _ _ ocstub-ocnadd-25.2.100.tgz.sha256

|_ _ _ _ _ _ ocstub-ocnadd-image-25.2.100.tar.sha256
    In addition to the above images and charts, there is an ocats-ocnadd-custom-configtemplates-25.2.100.zip file in the package file.
    ocats-ocnadd-custom-configtemplates-25.2.100.zip

      |

      |_ _ _ocats-ocnadd-custom-values_25.2.100.yaml (Custom values file for installation)

      |

      |_ _ _ocats_ocnadd_custom_serviceaccount_25.2.100.yaml (Template to create custom service account)
  11. Copy the tar file to the CNE, OCI, or Kubernetes cluster where you want to deploy ATS.

3.1.3 Pushing the Images to Customer Docker Registry

Preparing to deploy ATS and Stub Pod in Kubernetes Cluster

To deploy ATS and Stub Pod in Kubernetes Cluster:

  1. Run the following command to extract tar file content.
    tar -xvf ocats-ocnadd-tools-pkg-25.2.100.tgz

    The output of this command is:

    ocats-ocnadd-pkg-25.2.100.tgz
ocstub-ocnadd-pkg-25.2.100.tgz
ocats-ocnadd-custom-configtemplates-25.2.100.zip
  2. Run the following command to extract the helm charts and docker images of ATS.
    tar -xvf ocats-ocnadd-pkg-25.2.100.tgz

    The output of this command is:

    ocats-ocnadd-25.2.100.tgz

ocats-ocnadd-25.2.100.tgz.sha256
ocats-ocnadd-data-25.2.100.tgz
ocats-ocnadd-data-25.2.100.tgz.sha256
ocats-ocnadd-image-25.2.100.tar
ocats-ocnadd-image-25.2.100.tar.sha256
OCATS-ocnadd-Readme.txt

    Note:

    The ocats-ocnadd-Readme.txt file has all the information required for the package.
  3. Run the following command to untar the ocstub package.
    tar -xvf ocstub-ocnadd-pkg-25.2.100.tgz

    The output of this command is:

    ocstub-ocnadd-image-25.2.100.tar
ocstub-ocnadd-25.2.100.tgz.sha256
ocstub-ocnadd-image-25.2.100.tar.sha256
ocstub-ocnadd-25.2.100.tgz
OCSTUB-ocnadd-Readme.txt
OCSTUB_OCNADD_Installation_Readme.txt
  4. Run the following command to extract the content of the custom configuration templates:
    unzip ocats-ocnadd-custom-configtemplates-25.2.100.zip

    The output of this command is:

    ocats-ocnadd-custom-values_25.2.100.yaml (Custom yaml file for deployment of OCATS-OCNADD)
ocats_ocnadd_custom_serviceaccount_25.2.100.yaml (Custom yaml file for service account creation to help the customer if required)
  5. Run the following commands in your cluster to load the ATS docker image, 'ocats-ocnadd-image-25.2.100.tar:
    $ podman load -i ocats-ocnadd-image-25.2.100.tar
  6. Run the following commands to tag the imported image and push it to the local registry:
    $ podman tag docker.io/<image-tag> <local_registry>/<image-name>:<image-tag>
$ podman push <local_registry>/<image-name>:<image-tag>
  7. Run the following commands in your cluster to load the Stub docker images ocstub-ocnadd-image-25.2.100.tar:
    $ podman load -i ocstub-ocnadd-image-25.2.100.tar
  8. Run the following commands to tag each imported image and push it to the local registry:
    $ podman tag docker.io/<image-tag> <local_registry>/<image-name>:<image-tag>
$ podman push <local_registry>/<image-name>:<image-tag>
  9. Update the image name and tag in the ocats-ocnadd-custom-values.yaml and ocnaddsimulator/values.yaml files of simulator Helm as required. For ocats-ocnadd-custom-values.yaml update the 'image.repository' with respective local_registry.

    For ocnaddsimulator/values.yaml update the 'repo.REPO_HOST_PORT' and 'initContainers.repo.REPO_HOST_PORT' with respective local_registry.

3.1.4 Configuring ATS

3.1.4.1 Enabling Static Port
  1. To enable static port:
    • In the ocats-ocnadd-custom-values.yaml file under service section, set the staticNodePortEnabled parameter value to 'true' and staticNodePort parameter value with valid nodePort.
      service:
  customExtension:
    labels: {}
    annotations: {}
  type: LoadBalancer
  ports:
    https:
      port: "8443"
      staticNodePortEnabled: false
      staticNodePort: ""
    http:
      port: "8080"
      staticNodePortEnabled: false
      staticNodePort: ""
  staticLoadBalancerIPEnabled: false
  staticLoadBalancerIP: ""

    Note:

    ATS supports static port. By default, this feature is not enabled.

    Note:

    To enable staticLoadBalancerIP, set the staticLoadBalancerIPEnabled parameter value to 'true' and staticLoadBalancerIP parameter value with valid LoadBalancer IP value. By default, this is set to false.
3.1.4.2 ATS Certificate Generation to Work with MTLS-Enabled OCNADD

To enable ATS certificate generation for OCATS when OCNADD is MTLS-enabled, follow the steps below:

  1. Update the Simulator Certificate Template

    Navigate to the ssl_certs/default_values directory and edit the simulator_values_template file.

    Add the OCATS service block to generate certificates for OCATS.

    Example service block:
    [ocats-ocats-ocnadd]
client.commonName=ocats-ocats-ocnadd-client
server.commonName=ocats-ocats-ocnadd
DNS.1=*.ocats-ocats-ocnadd.ocnadd-deploy.svc.occne-ocdd
DNS.2=ocats-ocats-ocnadd
DNS.3=ocats-ocats-ocnadd.ocnadd-deploy
DNS.4=ocats-ocats-ocnadd.ocnadd-deploy.svc.occne-ocdd

    Save and exit the template file.

  2. Run the Certificate Generation Script
    ./generate_certs.sh
  3. Choose the Deployment Mode
    When prompted, select option 4 – Simulator:
    1 – Non-centralized
2 – Upgrade from non-centralized to centralized
3 – Centralized
4 – Simulator
  4. Select the Namespace

    Select the namespace for which certificates need to be generated and continue with the certificate generation steps as performed during OCNADD installation. For more details, see Configuring SSL or TLS Certificates in the Oracle Communications Network Analytics Suite Security Guide.

  5. Locate the Generated CSRs

    After CSRs are generated, a demoCA directory will be created. Navigate to:

    demoCA/dd_mgmt_worker_services/<your_namespace>/services/ocats-ocats-ocnadd/

    You will find separate CSR and key files for both client and server:

    • Client:servicename-clientcert.pem, servicename-clientprivatekey.pem
    • Server:servicename-servercert.pem, servicename-serverprivatekey.pem

    Sign these CSRs using your certificate authority to generate the final certificates.

  6. Copy the Signed Certificates

    Place the signed certificates into their respective service folders under:

    demoCA/dd_mgmt_worker_services/<your_namespace>/services/ocats-ocats-ocnadd/
3.1.4.3 Enabling TLS Support on ATS

If user wish to enable TLS support on ATS deployment (this is irrespective of OCNADD deployment), update the following parameters to "true" in the ocats-ocnadd-custom-values.yaml file. Else, this step can be skipped.

  • atsGuiTLSEnabled
  • atsCommunicationTLSEnabled

For example:

atsGuiTLSEnabled: false               ## --> updated it with 'true'
atsCommunicationTLSEnabled: false     ## --> updated it with 'true'

3.1.5 Deploying ATS and Stub in Kubernetes Cluster

Note:

ATS and Stub Deployment Namespace:

It is important to ensure that ATS and Stub are deployed as follows:

  • For OCNADD in Centralized Deployment mode (fresh deployments): ATS and Stub should be deployed on the Worker Group namespace.
  • For OCNADD in Non-Centralized Deployment mode (if OCNADD was upgraded from any older release): ATS and Stub should be deployed with the default OCNADD namespace.
  • For OCNADD deployed with the two site redundancy feature: ATS and Stub should be deployed on both Primary and Secondary sites.
  • The OCNADD-ATS suite supports mTLS. Ensure that mTLS is set to "true" during OCNADD deployment to use this feature.

For the test cases to run successfully, ensure the intraTLSEnalbled parameter value in the Jenkins pipeline script is identical to the value in the OCNADD deployment.

ATS and Stub Support Helm Deployment

Choose the namespace to deploy the ATS and Stub based on the OCNADD deployment mode, see Note.

If ATS is being deployed freshly and the namespace does not exist, run the following command to create the namespace:
kubectl create namespace <namespace_name>

Note:

  • It is recommended to use the <release_name> as ocnadd-sim while installing stubs.
  • The ATS deployment with OCNADD does not support the Persistent Volume (PV) feature. Therefore, the default value of the deployment.PVEnabled parameter in ocats-ocnadd-custom-values.yaml must not be changed. By default, the parameter value is set to false.

Deploying ATS:

Run the following command:

helm install <release_name> -f ocats-ocnadd-custom-configtemplates-25.2.100/ocats-ocnadd-custom-values_25.2.100.yaml --namespace <your_namespace> ocats-ocnadd-pkg-25.2.100/ocats-ocnadd-25.2.100.tgz

Example:

helm install ocats -f ocats-ocnadd-custom-configtemplates-25.2.100/ocats-ocnadd-custom-values_25.2.100.yaml --namespace ocnadd-deploy ocats-ocnadd-pkg-25.2.100/ocats-ocnadd-25.2.100.tgz
Deploying Stubs:

Note:

Before you deploy stubs, update the parameter oraclenfproducer.REST_BASED_TRAFFIC to true in the ocnaddsimulator/values.yaml file. The default value of the parameter is false.
helm install -name <release_name> <ocstub-ocnadd-chart> --namespace <namespace_name>

Note:

For more details about installing the stub, refer to the OCSTUB_OCNADD_Installation_Readme.txt file.

Example:

helm install -name ocnadd-sim ocnaddsimulator --namespace ocnadd-deploy

3.1.6 Verifying ATS Deployment

Run the following command to verify ATS deployment.

helm status <release_name> -n <namespace>

Once ATS and Stub are deployed, run the following commands to check the pod and service deployment:

To check pod deployment:

kubectl get pod -n ocnadd-deploy

To check service deployment:

kubectl get service -n ocnadd-deploy

If ATS is required to work with an MTLS-enabled OCNADD setup, follow the steps below to use the certificates generated in ATS Certificate Generation to Work with MTLS-Enabled OCNADD.

  1. Upload the Generated Certificates to the OCATS Pod
    From the client or server folder, copy the certificate and private key files into the running OCATS pod at the following location:
    /var/lib/jenkins/ocnadd_tests/data
    Use the commands below to copy the files:
    kubectl cp ./ocats-ocats-ocnadd-<client/server>cert.pem -n <your_namespace> <ocats_pod_name>:/var/lib/jenkins/ocnadd_tests/data
kubectl cp ./ocats-ocats-ocnadd-<client/server>privatekey.pem -n <your_namespace> <ocats_pod_name>:/var/lib/jenkins/ocnadd_tests/data

    Ensure both files (client or server, as applicable) are copied:

    • ocats-ocats-ocnadd-<client/server>cert.pem
    • ocats-ocats-ocnadd-<client/server>privatekey.pem
  2. Update the Jenkins Pipeline Script

    Provide the copied file names in the Jenkins Pipeline Script by updating the following variables (as referenced in OCNADD-NewFeatures Pipeline):

    -x <OCATS_certificate_file_name> \
-y <OCATS_certificate_key_file_name> \
  3. Save the pipeline changes.

3.1.7 Enable TLS Support on OCNADD ATS

If user has enabled TLS support on ATS deployment as mentioned in Enabling TLS Support on ATS section, follow the steps listed below:

Generate .jks File for the Jenkins Server

For Jenkins to support GUI access through HTTPS, a .jks file has to be created. Follow the steps below to create the .jks file:

  1. Generate the Root Certificate (caroot.cer)

    If you have CA signed root certificate and key or your own root certificates, use the same certificates.

    If the root certificate (caroot.cer) is not there, follow the steps below to create the certificate to create self-signed certificates. The root certificate is added to the Trust Store (of the browser). However, this step is not required for CA signed certificates.

    1. Follow any browser's documentation, for example:

      • Mozilla Firefox

        • Navigate to the Settings and search for Certificate.
        • Click View Certificates in the search results.
        • The Certificate Manager window appears on the screen.
        • Navigate to the Authorities section and click Import. Upload the caroot certificate.
        • A new window appears on the screen, click Trust Options and then click OK.
        • Save the changes and restart the browser.

      • Google Chrome

        • Navigate to the Settings and search for Security.
        • Click Security in the search results.
        • Locate Manage Device Certificates and click to select the option.
        • The Certificates window appears on the screen. Click Trusted Root Certification Authorities bar.
        • Import the caroot certificate.
        • Save the changes and restart the browser.
    2. Use the Root Certificate to sign the Application or ATS certificate.
    3. To generate the key caroot.key, run the command openssl genrsa 2048 > caroot.key.
    4. Generate the caroot certificate, for example:
      [cloud-user@star23-bastion-1 edo]$ openssl req -new -x509 -nodes -days 1000 -key caroot.key > caroot.cer
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:IN
State or Province Name (full name) []:KA
Locality Name (eg, city) [Default City]:BLR
Organization Name (eg, company) [Default Company Ltd]:ORACLE
Organizational Unit Name (eg, section) []:CGBU
Common Name (eg, your name or your server's hostname) []:ocats
Email Address []:
[cloud-user@star23-bastion-1 edo]$

  2. Generate Application or Client Certificate

    Follow the steps below to generate an application or client certificate:

    1. Create and edit the ssl.conf file as below:

      In the [alt_names] section, list the IPs through which the ATS GUI is opened. User can add multiple IPs such as IP.1, IP.2, and so on.

      [ req ]
default_bits       = 4096
distinguished_name = req_distinguished_name
req_extensions     = req_ext

[ req_distinguished_name ]
countryName                 = Country Name (2 letter code)
countryName_default         = IN
stateOrProvinceName         = State or Province Name (full name)
stateOrProvinceName_default = KN
localityName                = Locality Name (eg, city)
localityName_default        = BLR
organizationName            = Organization Name (eg, company)
organizationName_default    = ORACLE
commonName                  = Common Name (e.g. server FQDN or YOUR name)
commonName_max              = 64
commonName_default          = ocats.scpsvc.svc.cluster.local

[ req_ext ]
keyUsage = critical, digitalSignature, keyEncipherment
extendedKeyUsage = serverAuth, clientAuth
basicConstraints = critical, CA:FALSE
subjectAltName = critical, @alt_names

[alt_names]
IP.1 = 127.0.0.1
IP.2 = 10.75.217.5
IP.3 = 10.75.217.76
DNS.1 = localhost
DNS.2 = ocats.scpsvc.svc.cluster.local

      To access the GUI with DNS ensure that the commonName_default value is the same as the configured DNS name and the format is <service_name>.<namespace>.svc.cluster.local. User can add multiple DNS'es like DNS.1,DNS.2, and so on.

      To support ATS API's, add 127.0.0.1 as IP.1.

    2. Create a Certificate Signing Request or CSR file, as follows:
      [cloud-user@star23-bastion-1 ocats]$ openssl req -config ssl.conf -newkey rsa:2048 -days 1000 -nodes -keyout rsa_private_key_pkcs1.key > ssl_rsa_certificate.csr
Ignoring -days; not generating a certificate
Generating a RSA private key
...+++++
........+++++
writing new private key to 'rsa_private_key_pkcs1.key'
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [IN]:
State or Province Name (full name) [KA]:
Locality Name (eg, city) [BLR]:
Organization Name (eg, company) [ORACLE]:
Common Name (e.g. server FQDN or YOUR name) [ocats]:
[cloud-user@star23-bastion-1 ocats]$
    3. To view all the components of the file, run the command openssl req -text -noout -verify -in ssl_rsa_certificate.csr. Verify all the configurations in the file.
    4. Sign the .csr file with the root certificate, as below:
      [cloud-user@star23-bastion-1 ocats]$ openssl x509 -extfile ssl.conf -extensions req_ext -req -in ssl_rsa_certificate.csr -days 1000 -CA ../caroot.cer -CAkey ../caroot.key -set_serial 04 > ssl_rsa_certificate.crt
Signature ok
subject=C = IN, ST = KA, L = BLR, O = ORACLE, CN = ocats
Getting CA Private Key
[cloud-user@star23-bastion-1 ocats]$
    5. Verify if the certificate is correctly signed by root certificate, as below:
      [cloud-user@star23-bastion-1 ocats]$ openssl verify -CAfile caroot.cer ssl_rsa_certificate.crt
ssl_rsa_certificate.crt: OK
  3. Save the application certificate and the root certificates for future use.
  4. Add the caroot.cer certificate as a trusted author in the browser.
  5. The generated application or client certificates cannot be provided directly to the Jenkins server. Follow the steps below:
    • Generate the .p12 keystore file, run the following command:
      [cloud-user@star23-bastion-1 ocats]$ openssl pkcs12 -inkey rsa_private_key_pkcs1.key -in ssl_rsa_certificate.crt -export -out certificate.p12
Enter Export Password:
Verifying - Enter Export Password:

      You will receive a password prompt, note the password provided for future use.

      • Convert .p12 file to .jks file, run the following command:
        [cloud-user@star23-bastion-1 ocats]$ keytool -importkeystore -srckeystore ./certificate.p12 -srcstoretype pkcs12 -destkeystore jenkinsserver.jks -deststoretype JKS
Importing keystore ./certificate.p12 to jenkinsserver.jks...
Enter destination keystore password:
Re-enter new password:
Enter source keystore password:
Entry for alias 1 successfully imported.
Import command completed:  1 entries successfully imported, 0 entries failed or cancelled

        You will receive a password prompt, provide the same password used for creating .p12 file.

      • Ensure that both p12 and jks files have the same password.
      • Provide the generate jenkinserver.jks file to the Jenkins Server.

Enable the ATS GUI with HTTPS during Installation

Follow the procedure below to enable the ATS GUI with HTTPS during installation:

  1. To create the .jks file, see Generate .jks File for the Jenkins Server. You can choose to use the either a CA signed certificate or a self signed certificate.

  2. Create a Kubernetes secret by using the files created in the Generate .jks File for the Jenkins Server procedure, run the following command:
    kubectl create secret generic ocats-tls-secret --from-file=jenkinsserver.jks --from-file=ssl_rsa_certificate.crt --from-file=rsa_private_key_pkcs1.key --from-file=caroot.cer -n scpsvc

    View the K8s secret, for example:

    [cloud-user@star23-bastion-1 ~]$ kubectl describe secret ocats-tls-secret -n scpsvc
Name:         ocats-tls-secret
Namespace:    scpsvc
Labels:       <none>
Annotations:  <none>

Type:  Opaque

Data
====
caroot.cer:                        1147 bytes
ssl_rsa_certificate.crt:           1424 bytes
jenkinsserver.jks:                 2357 bytes
rsa_private_key_pkcs1.key:         1675 bytes
  3. After creating the secret, follow the Installing ATS for OCNADD procedure to install the ATS. Once the installation is successfully completed, proceed to the next step.
  4. The ATS GUI opens with HTTPS protocol. The link to open the GUI appears as https://<IP>:<port>.

    For example:

    Figure 3-1 HTTPS Address


    HTTPS Address

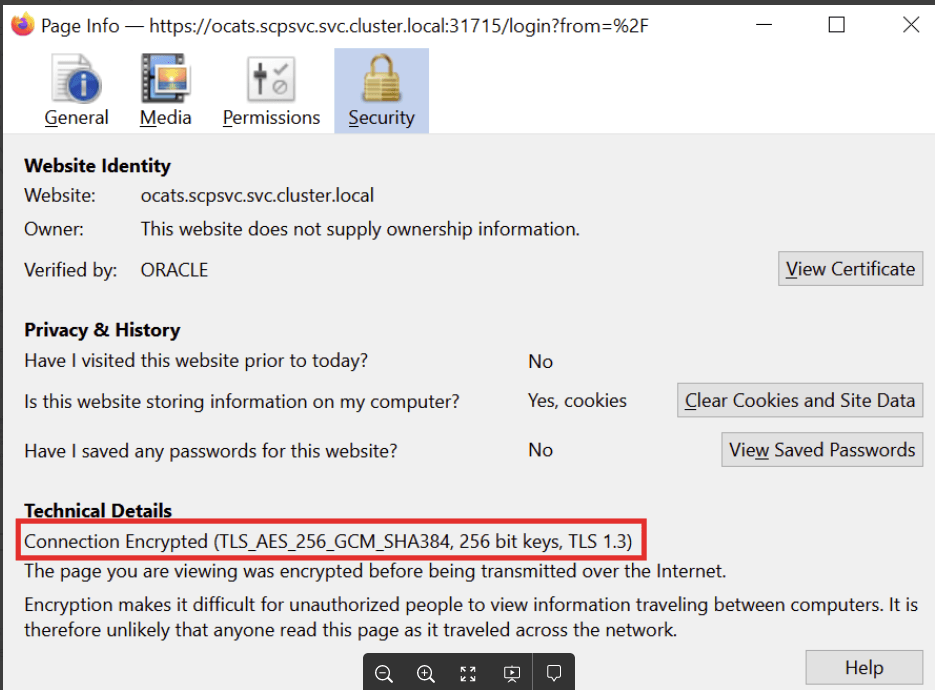

  5. In Mozilla Firefox browser, click the Lock symbol in the address bar, the page information is displayed as below:

    Figure 3-2 Page Information


    Page Information
