Available Security Reports

The Oracle® Session Delivery Management Cloud (Oracle SDM Cloud) provides the following Security Reports and Filters.

  • Requests status—This visualization shows the number of SIP ACL requests over time by plotting request counts against epoch time. It helps you monitor access control activity, identify spikes in request volume, and detect unusual patterns that may indicate incorrect configurations or abnormal access behavior.
    This screenshot shows an example of the Requests Status visualization.

  • Message status—This visualization shows the number of Bad SIP messages over time by plotting message counts against epoch time. It helps you monitor signaling issues, identify protocol compliance problems, and detect potential incorrect configurations or security threats.
    This screenshot shows an example of the Message Status visualization.

  • ACL Entry Promotions—This visualization shows the number of ACL entries promoted from untrusted to trusted status over time by plotting counts against epoch time. It helps you monitor access validation activity, understand trust establishment patterns, and identify unusual promotion behavior that may impact security.

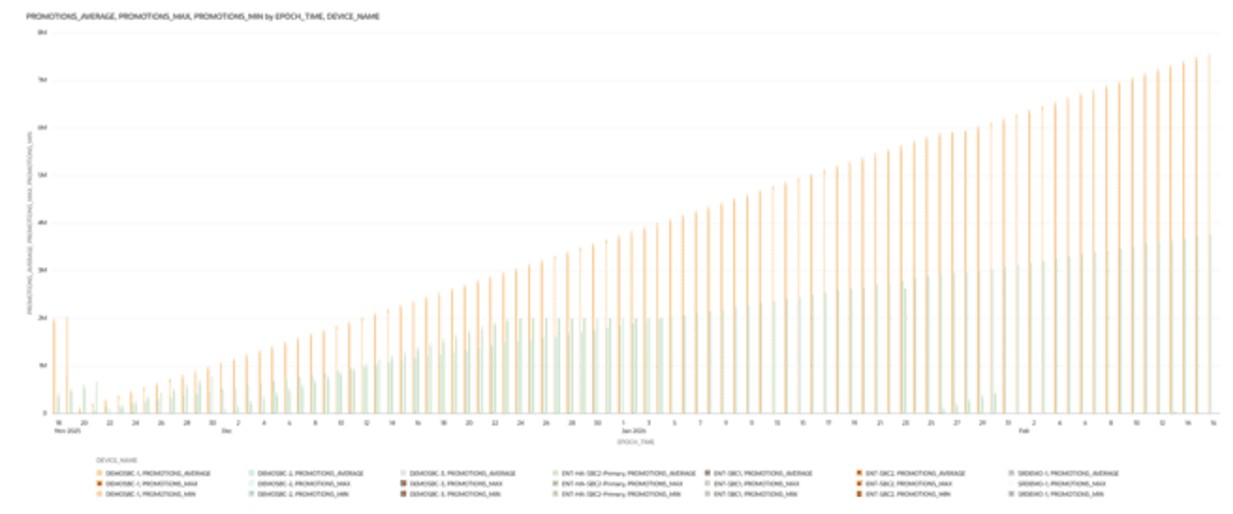

    This screenshot shows an example of the ACL Entry Promotions visualization.

  • ACL Entry Demotions—This visualization shows the number of ACL entries downgraded to lower trust levels over time by plotting counts against epoch time. It helps you monitor security policy enforcement, detect suspicious activity, and understand changes in access control reliability.

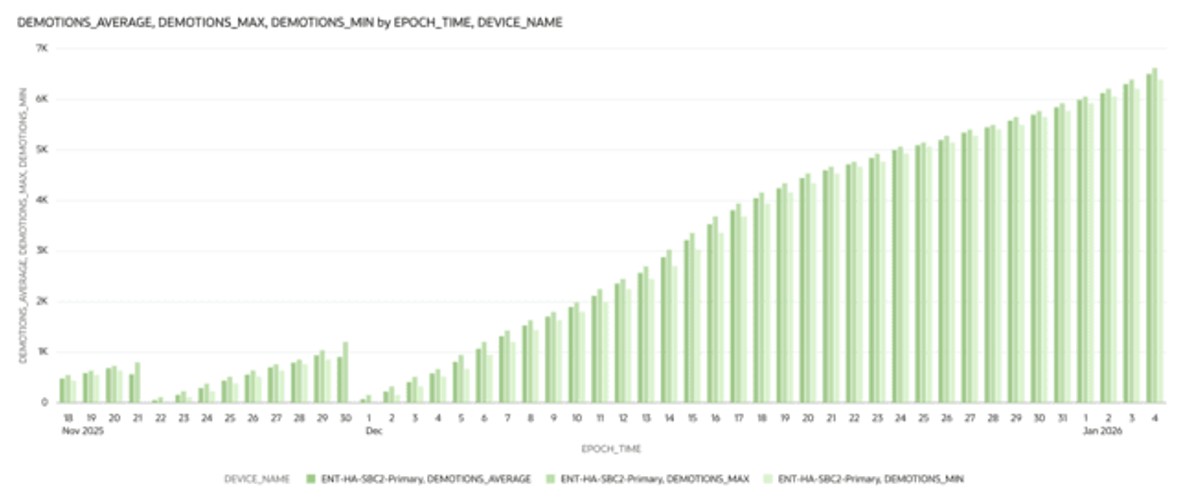

    This screenshot shows an example of the ACL Entry Demotions visualization.

  • Demotions Trust—This visualization shows the number of ACL entries demoted from trusted to untrusted status over time by plotting counts against epoch time. It helps you identify unstable or suspicious endpoints, monitor changes in trust decisions, and evaluate the effectiveness of security policies. Sudden increases in demotions may indicate abnormal or potentially fraudulent activity from previously trusted sources.

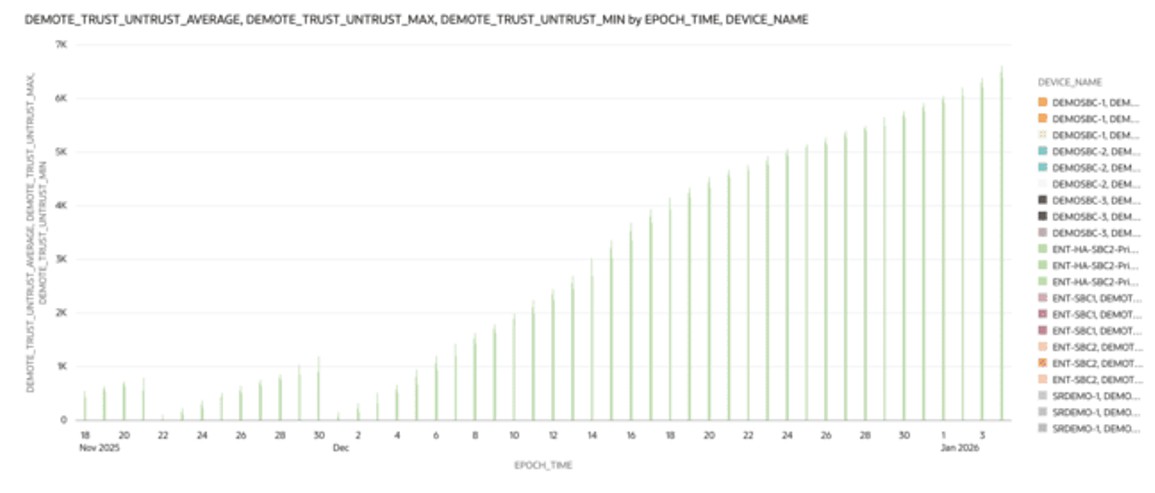

    This screenshot shows an example of the Demotions Trust visualization.

  • Demotions Untrust—This visualization shows the number of ACL entries moved from untrusted to deny status over time by plotting counts against epoch time. It helps you monitor enforcement of access restrictions, identify repeated policy violations, and detect trends that may indicate potential security threats or risks to SIP signaling integrity.

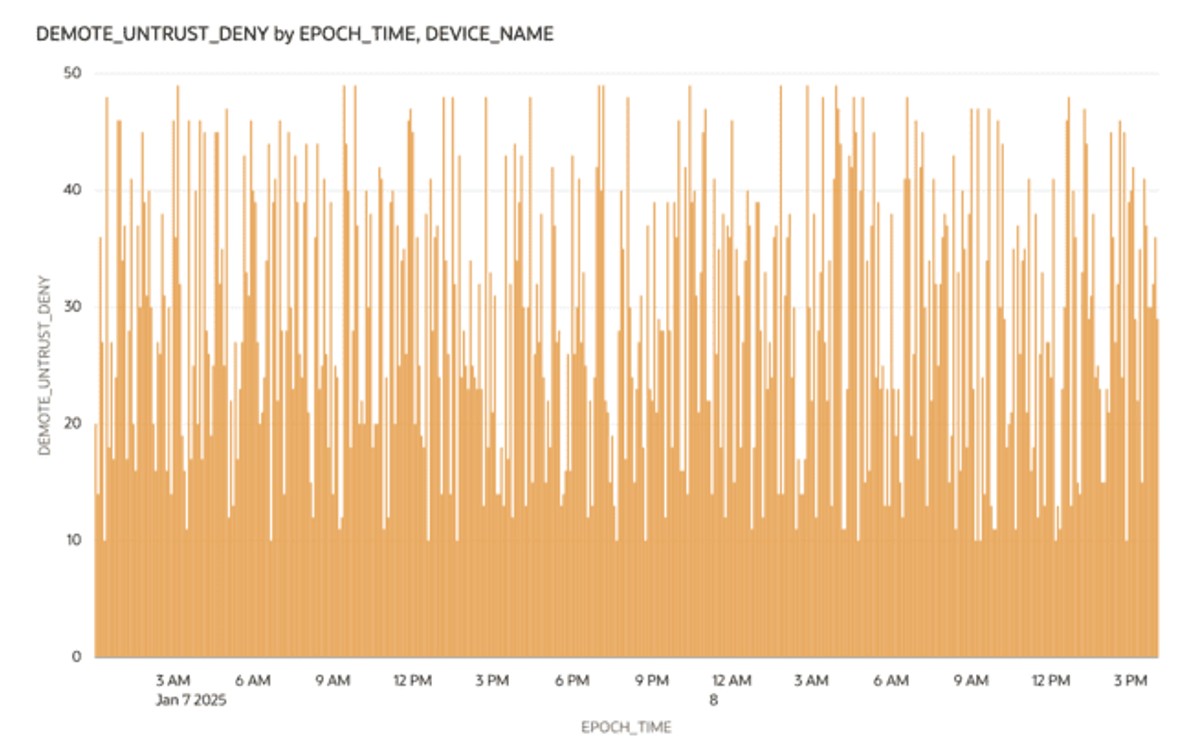

    This screenshot shows an example of the Demotions Untrust visualization.

The following filters are available in these Security reports:
  • Device Name
  • Epoch time
