UI Validation Rules
Use the validation rules for activity types to various UI screens to restrict visibility. These rules are imported and enabled after the accelerator is installed. Make sure to verify the validation rules exist.
As mentioned in the
User Types and
Properties sections, the screens are mapped and made visible to various users using their types. These validations add a new visibility clause to restrict screens to specific activity types.
This section focuses on creating/configuring validation UIs, such as the Meter Information, Existing Meter Details, New Meter Details, and Service Point.
To create/configure a validation UI:
1. Login to Oracle Field Service.
2. Navigate to Configuration > Users, Security, Integrations > User Types.
3. On the Screen Configuration tab, scroll down to the Edit/View activity link.
4. Click Details. Verify that “RW” in the Visibility section has activity type.
5. Click Service Point Details and verify the values are displayed.

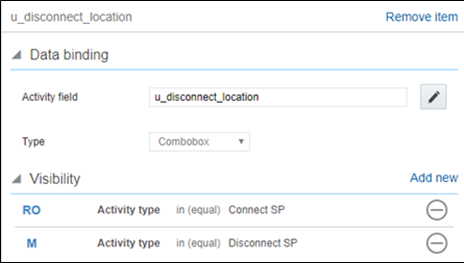

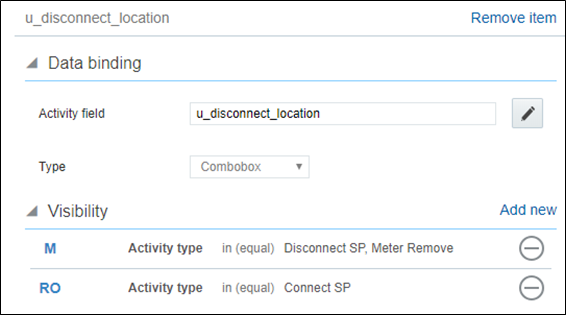

6. In the
disconnect location section verify that the RW configuration is as shown in the following figure.

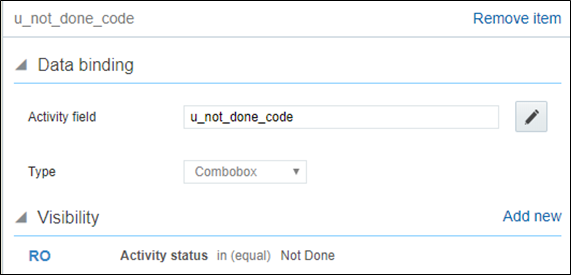

7. In the not done reason section, verify that the RW configuration is as shown in the following figure.
8. In the
Meter Information section, verify that the RW values are as shown in the figure below.

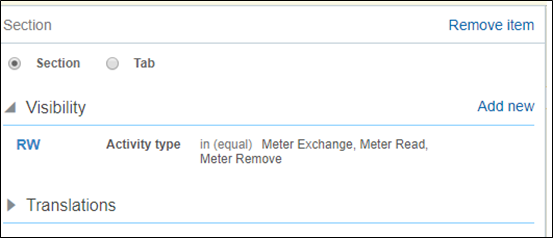

9. In the
Existing Meter Details section, verify that the configuration matches as shown in the following figure.

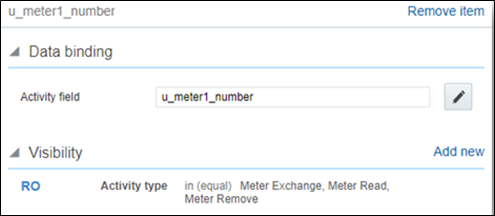

10. Make sure the
Badge Number field has configuration as shown in the following figure.

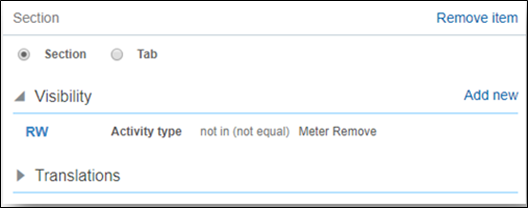

11. Make sure the Device Details section is configured as shown.
12. Make sure the
New Meter section is configured as shown.

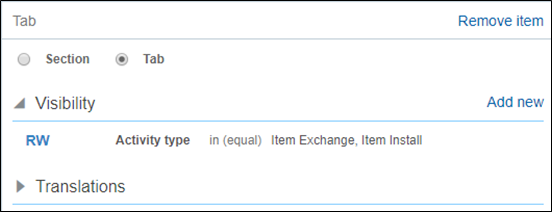

13. Make sure the
Item Details section is configured as shown.

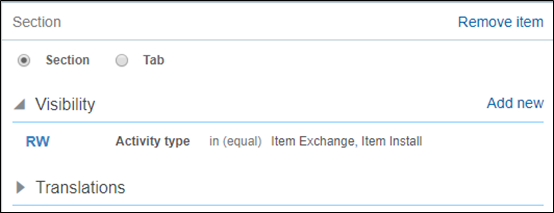

14. In the
Service Point Details section, the configuration for visibility should be as shown.

15. In the Disconnect Location section, the configuration for visibility should be as shown.
16. Make sure the
Item Information section is configured as shown.

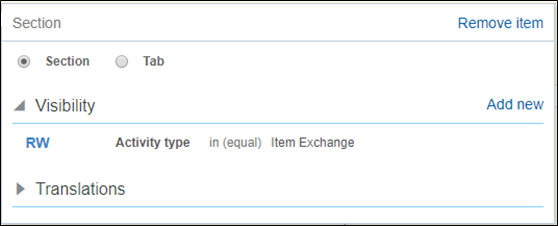

17. Make sure the
Exchange Item Details section is configured as shown.

18. For
Device Details, there is no special configuration needed. It should be set to default.

19. Make sure the New Item Details configuration is as shown below.

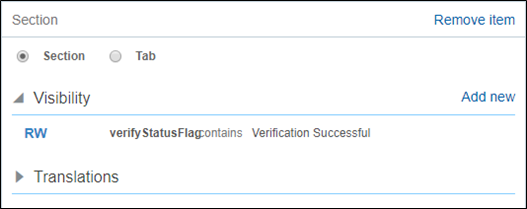

20. Make sure the
Registers Information section includes the following configuration:

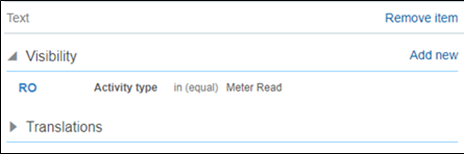

21. Make sure the
Reading Details section includes the following configuration:

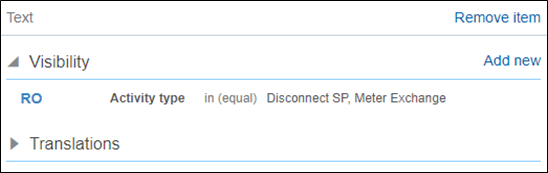

22. Configure the
Existing Meter Reading Details section as shown in the figure below.

23. Configure the
Registers Information section as shown below.

24. Configure each register with a title in the New Meter Reading Details as shown.

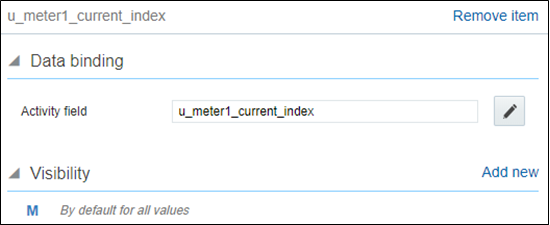

25. Configure the
Reading section as shown below.

26. Navigate to the
Override Reading field and verify that the default value and visibility is set as follows.

27. Navigate to the Screen Configuration tab of the respective user type. Scroll down to Book Activity.

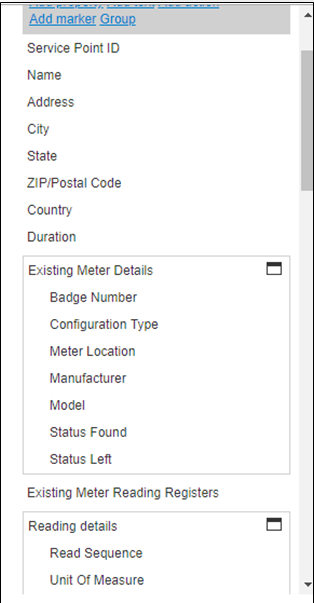

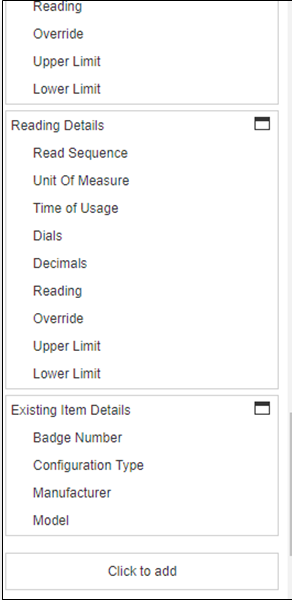

28. Verify if the layout structure is as shown below.

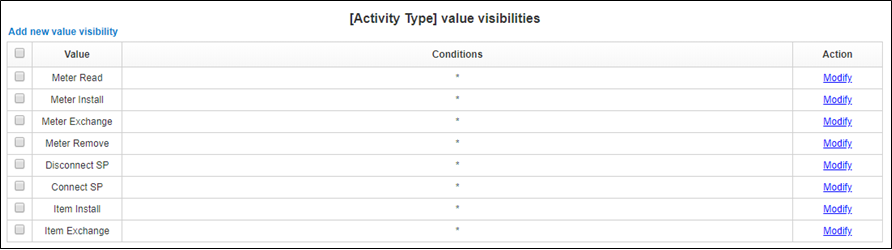

29. Click
Activity Type in the layout and verify that all activity types are listed in the
Value Visibilities section.
