EV Weekly Main Insight Module

The EV Weekly Main Insight module is used to give the reader an overview of their EV charging for the week, provides a comparison to how they charged during on-peak hours the previous week, gives them a tip about how they can improve their charging habits, and explains how the utility identifies their EV charging habits.

Requirements

This module has the following requirements and limitations:

• AMI (hourly or more granular) data and use of the hourly disaggregation service are required.
• EV charging must be detected by the hourly disaggregation service.
• Only L2 chargers are supported.
• Estimated reads are not supported.

Design

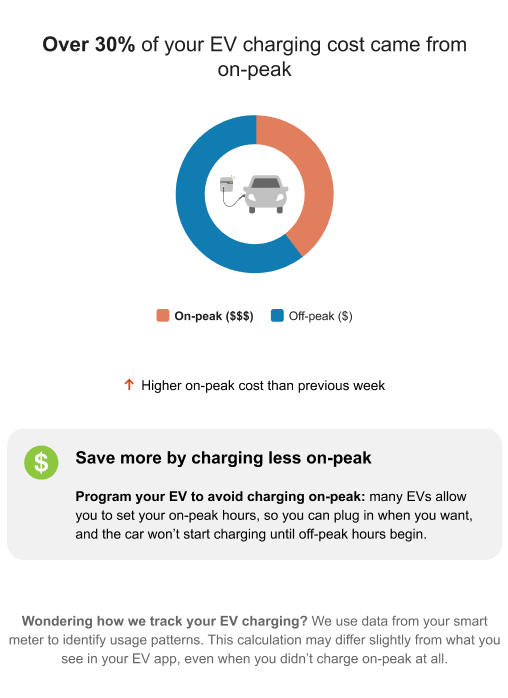

This Image shows an example of the EV Main Insight module:

User Experience Variations

This topic discusses how the EV Main Insight module can vary.

High On-Peak Charging, Two Periods

When the user's rate plan has only two periods (ie, on-peak and off-peak), and they charge their EV during on-peak hours more than the high threshold percentage (30%, by default), the module varies as follows:

• Header: The header reads, "Over 30% of your EV charging costs came from on-peak". The percentage shown in the message is the high threshold value that can be configured by the utility.

Medium On-Peak Charging, Two Periods

When the user's rate plan has only two periods (ie, on-peak and off-peak), and they charge their EV during on-peak hours less than the high threshold percentage (30%, by default), but more than the low threshold (10%, by default) the module varies as follows:

• Header: The header reads, "Over 10% of your EV charging costs came from on-peak". The percentage shown in the message is the low threshold value that can be configured by the utility.

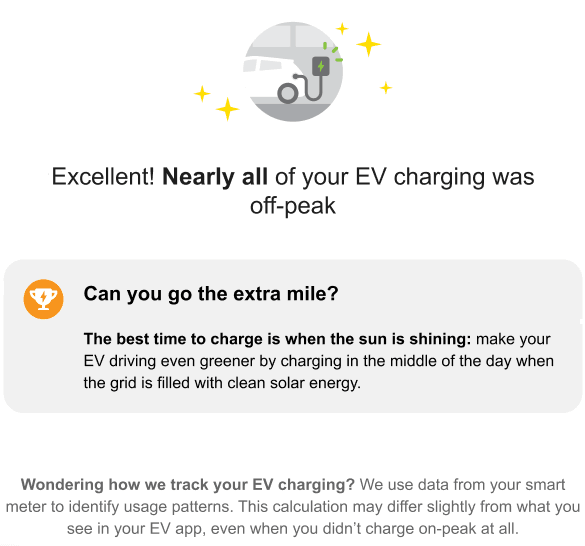

Low On-Peak Charging, Two Periods

When the user's rate plan has only two periods (ie, on-peak and off-peak), and they charge their EV during on-peak hours less than the low threshold percentage (10%, by default), the module varies as follows:

• Image: A new image with an EV charging and several stars appears at the top of the module in place of the standard header.
• Chart, Legend, and Standard Comparative Statement: These items are omitted from the module.
• Header: The header appears below the image, and reads "Excellent! Nearly all of your EV charging was off-peak".
• Low Charging Comparative Statement: Depending on how many weeks the user has been considered a "low" on-peak charger, they will see one of the following:
  • Week 1 of being a "low" on-peak charger: No statement is displayed.
  • Weeks 2-8: The statement begins with a green image of a medal and reads, "<X> weeks in a row of almost no on-peak charging!"
  • More than 8 weeks: For all additional consecutive weeks of low charging, the statement begins with a green image of a medal and reads, "More than 8 weeks in a row of almost no on-peak charging!"
• Savings Statement: This item is omitted from the module and is replaced by the Extra Mile Statement.
• Extra Mile Statement: One of three Extra Mile Statements is displayed in place of the Savings Statement. All three begin with the header "Can you go the extra mile?", have a trophy graphic, and are followed by one of these statements, which are selected randomly:
  • One way is to delay your scheduled start time: help avoid straining the grid at the beginning of off-peak hours, when many people start charging their vehicle, by setting your schedule to start a couple hours into the off-peak period.
  • The best time to charge is when the sun is shining: make your EV driving even greener by charging in the middle of the day when the grid is filled with clean solar energy.
  • One way is to set a “departure” time: some vehicles let you set the time you need the car charged and ready to go, and your charging will finish in time for departure. This helps avoid demand spikes on the grid by staggering when EVs start charging.

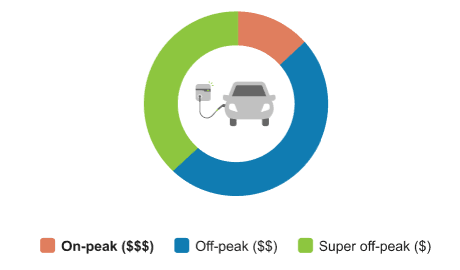

High or Medium On-Peak Chargers, Three Periods

When the user's rate plan has three periods (ie, on-peak, off-peak, and super off-peak), and they charge their EV at high or medium levels, the variations described in the High and Medium variations above occur. Additionally, the chart and legend both include three periods instead of two. This image shows an example of the chart and legend for rate plans with three peak periods:

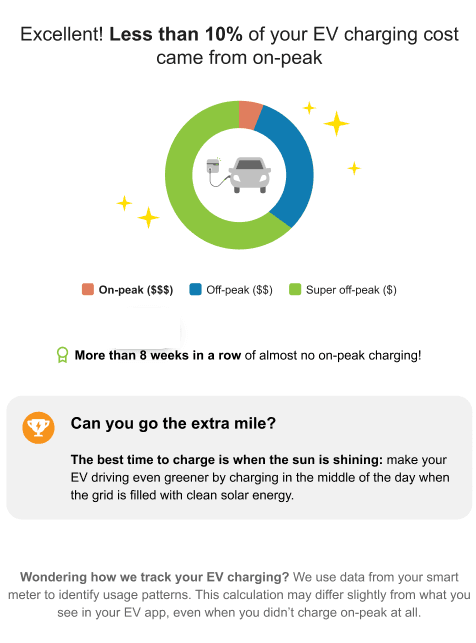

Low On-Peak with Above Threshold Mid-Peak Charging, Three Periods (Low Charger)

When the user's rate plan has three periods (for example, highest-cost period, mid-cost period, and lowest-cost period), and they charge their EV less than the low threshold percentage (10% by default) during the highest-cost period, but above the low threshold on the mid-cost periods, the user is considered a low on-peak charger, but there is still room for their charging habits to improve. For example, if a user charged their vehicles as follows, the module would fall into this scenario:

• 5% of charging during the highest-cost peak period (below the 10% threshold)
• 15% of charging during the mid-cost peak period (above the 10% threshold)
• 80% of charging during the lowest-cost peak period

In this scenario, the module varies as follows:

• Header: The header appears at the top of the module, and reads "Excellent! Less than 10% of your EV charging cost came from on-peak".
• Graphic: Several star graphics appear around the chart.
• Low Charging Comparative Statement: Depending on how many weeks the user has been considered a "low" on-peak charger, they will see one of the following:
  • Week 1 of being a "low" on-peak charger: No statement is displayed.
  • Weeks 2-8: The statement begins with a green image of a medal and reads, "<X> weeks in a row of almost no on-peak charging!"
  • More than 8 weeks: For all additional consecutive weeks of low charging, the statement begins with a green image of a medal and reads, "More than 8 weeks in a row of almost no on-peak charging!"
• Savings Statement: This item is omitted from the module and is replaced by the Extra Mile Statement.
• Extra Mile Statement: One of three Extra Mile Statements is displayed in place of the Savings Statement. All three begin with the header "Can you go the extra mile?", have a trophy graphic, and are followed by one of these statements, which are selected randomly:
  • One way is to delay your scheduled start time: help avoid straining the grid at the beginning of off-peak hours, when many people start charging their vehicle, by setting your schedule to start a couple hours into the off-peak period.
  • The best time to charge is when the sun is shining: make your EV driving even greener by charging in the middle of the day when the grid is filled with clean solar energy.
  • One way is to set a “departure” time: some vehicles let you set the time you need the car charged and ready to go, and your charging will finish in time for departure. This helps avoid demand spikes on the grid by staggering when EVs start charging.

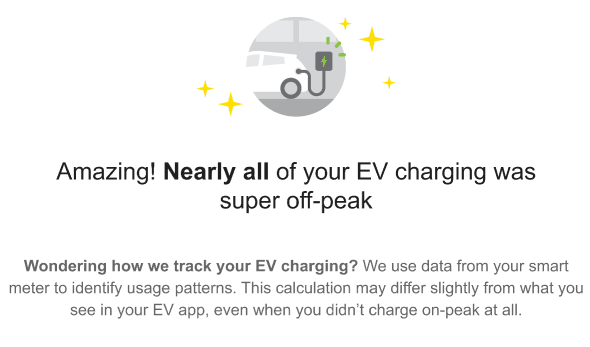

Low On-Peak and Mid-Peak Charging, Three Periods (Super Low Charger)

When the user's rate plan has three periods (ie, highest-cost period, mid-cost period, and lowest-cost period), and they charge their EV less than the low threshold (10% by default) during both the lowest-priced and the mid-priced period, they are considered a super low charger. For example, if a user charged their vehicles as follows, the module would fall into this scenario:

• 5% of charging during the highest-cost peak period (below the 10% threshold)
• 5% of charging during the mid-cost peak period (below the 10% threshold)
• 90% of charging during the lowest-cost peak period

In this scenario, the module varies as follows:

• Image: A new image with an EV charging and several stars appears at the top of the module in place of the standard header.
• Chart, Legend, and Standard Comparative Statement: These items are omitted from the module.
• Header: The header appears below the image, and reads "Excellent! Nearly all of your EV charging was super off-peak".
• Additional Statements: The Savings Statement and the Extra Mile Statement are omitted from the module.

Usage Variation

In cases where cost can not be determined, or usage has been specifically selected by a utility, a usage variation is used instead of the cost variations. In this variation, all percentages refer to the percent of usage, not the percent of cost. The only change to any of the above variations when usage is used instead of costs occurs in the module header and in the Comparative Statement that appears below the chart and legend, as follows:

• Header: The header changes as follows, based on the percentage of EV charging that was done on-peak:
  • High usage: Over x% of your EV charging was on-peak

    Note that the default percentage for the usage variation is 20%.

  • Low usage: Less than x% of your EV charging was on-peak

    Note that the default percentage for the usage variation is 5%.

  • Super low usage: Excellent! Nearly all of your EV charging was off-peak
• Comparative Statement: Below the legend, a statement tells the reader how their charging this week compares to the previous week. The statement begins with an icon, and can be one of the following:
  • A green arrow pointing up with a statement that reads, "Higher on-peak charging than previous week"
  • A green arrow pointing down with a statement that reads, "Lower on-peak charging than previous week"
  • A gray arrow pointing from side to side with a statement that reads, "Same on-peak charging as previous week"

Configuration Options

For each element listed in the table, indicate the desired configuration in the Input Value column. If you do not provide an input for optional configurations, the default will be used.

Table 6-8 Configuration Options

Configuration Option	Input Value
Images The images can be configured to use client-specific colors. Other than that, the image can not be changed.	Optional Specify client branding colors.
TOU Period Names Specify the names of each of the peak periods. For example: On-Peak ($$$) Partial-Peak ($$) Off-Peak ($)	Required if using TOU Rates Specify the names of each period: Period 1: Period 2: Period 3:
High Threshold When users spend more than this percentage of their EV charging during on-peak hours, they receive the message that they are above the specified threshold. The high and low threshold values are used to determine the messaging for the module. Default: 30%	Optional Select one of the following: Use the default percentage. Specify an alternative percentage:
Low Threshold When users spend less than this percentage of their EV charging during on-peak hours, they receive the message that they are below the specified threshold. The high and low threshold values are used to determine the messaging for the module. Default: 10%	Optional Select one of the following: Use the default percentage. Specify an alternative percentage:
Text and Extra Mile Statement Utilities are encouraged to review the statements and adjust them to ensure that they are pushing customers to charge at the times that are most beneficial to the utility.	Optional Select one of the following: Use the default text and statement. Specify alternative text and statement:
Missing Disaggregation Days Allowed Specify the number of days that disaggregation data can be missing before the module fails. For example, if you set this option to 5, the module will fail if there are 6 days of disaggregation data missing for the bill period. Note that the email is sent without this module if it fails. Default: 2 days	Optional Specify one of these options: Use the default days. Specify an alternate number of days:
Total EV Charging Threshold Specify the required amount EV charging that must be detected for the module to be included. For example, if you set this option to 5 kWh, the module will fail if the customer's EV charging totals 4 kWh. Note that the email is sent without this module if it fails. Default: 5 kWh	Optional Specify one of these options: Use the default. Specify an alternate amount:

To see how this module fits into the overall user experience, see Design and Configuration.
