2.3 Define Access Rights to an External System

This topic explains systematic instructions to define access rights to an external system.

Note:

The fields which are marked in asterisk are mandatory.

1. On Homescreen, type GWDETFUN in the text box, and click Next.
   The External System Functions screen displays.

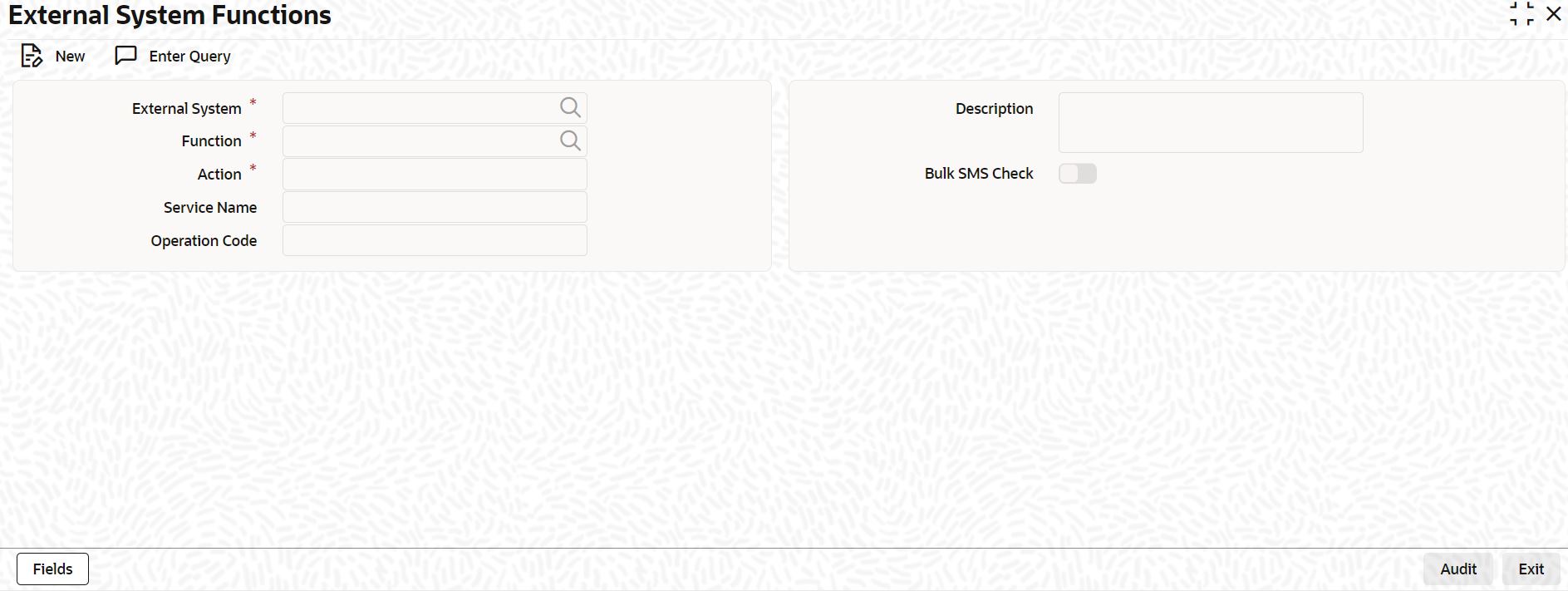

   Figure 2-3 External System Functions





   Description of "Figure 2-3 External System Functions"



2. On the External System Functions screen, specify the fields.

   For more information on fields, refer to the field description table.

   Table 2-3 External System Functions - Field Description

   Field	Description
   External System	Select an external system which wants to provide access rights. The adjoining list of values displays all the external systems that are maintained in the External Systems - Detailed screen.
   Description	The system displays the description of the selected External System.
   Function ID	Select a Function ID from the list of values. The function IDs are processed from Gateway Functions.
   Action	Select an action for the external system from the list of values.
   Service Name	The system displays the Service Name based on the Function ID and Action fields.
   Operation Code	The system displays the Operation Code based on the Function ID and Action fields.
   Bulk SMS Check	Check this box for bulk SMS checks.

3. Click Exit to end the transaction.
