2.1.4 Property File Creation - SMTPS/DMS

This topic explains the method to configure Email details and SMTPS/DMS properties whichever is required.

1. The Installer displays the following screen.
   Oracle FLEXCUBE Universal Installer - Property File Creation - SMTPS/Branch/DMS screen is displayed.

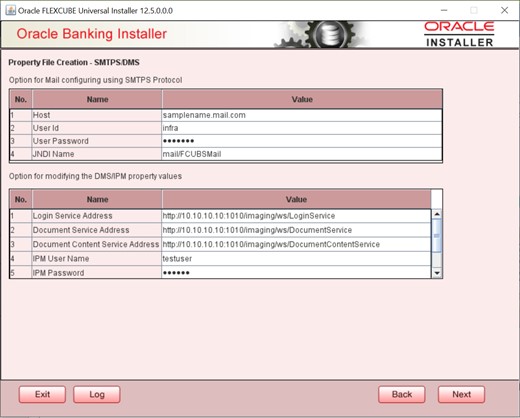

   Figure 2-13 Oracle FLEXCUBE Universal Installer - Property File Creation - SMTPS/Branch/DMS





   Description of "Figure 2-13 Oracle FLEXCUBE Universal Installer - Property File Creation - SMTPS/Branch/DMS"



2. For the SMPTS protocol, specify the following details.

   Table 2-6 Property File Creation - SMTPS

   Fields	Description
   Host	Specify the SMTP host name.
   User Id	Specify the User Id.
   User Password	Specify the user password.
   JNDI Name	Specify the JNDI name.

3. In the next table, specify the branch properties like Date Seperator, WorkFLow frequency, Compress Request as required.
4. For the DMS/IPM protocol, specify the following details.

   Table 2-7 Property File Creation - DMS/IPM

   Fields	Description
   Login Service Address	This is the endpoint address of the web service (OracleIPM.WebService.EndpointAddress).
   Document Service Address	This is the URL to which the Oracle IPM adapter uploads the documents (OracleIPM11G.DocumentService.EndpointAddress).
   Document Content Service Address	This is the URL to which the Oracle IPM adapter uploads the documents (OracleIPM11G.DocumentConetntService.EndpointAddress). Example for Login Service Address: Weblogic : http://10.10.10.10:1010/imaging/ws/LoginService In the ablove url replace Login Service with Document Service and Document Content Service respectively for Document Service Address and Document Content Service Address as well.
   IPM User Name	This is the user name accessing Oracle IPM (OracleIPM11G.Authentication.UserName).
   IPM Password	This is the password for the above IPM user name (OracleIPM11G.Authentication.Password).
   IPM Application Name	This indicates the license that provides login rights to Oracle IPM (OracleIPM11G.Application).
   HTTP Session Maintain	This checkbox indicates whether the HTTP session is to be maintained or not (OracleIPM11G.MaintainSession).

5. Once you have specified the above details, click the Next button, and the system displays the next screen.

Example for Login Service Address:

• Weblogic: http://10.10.10.10:1010/imaging/ws/LoginService

In the above URL, replace LoginService with DocumentService and DocumentContentService, respectively for Document Service Address and Document Content Service Address as well.
