1.10 Process Outgoing SWIFT LAU

This topic describes the flowchart of the outgoing message SWIFT LAU.

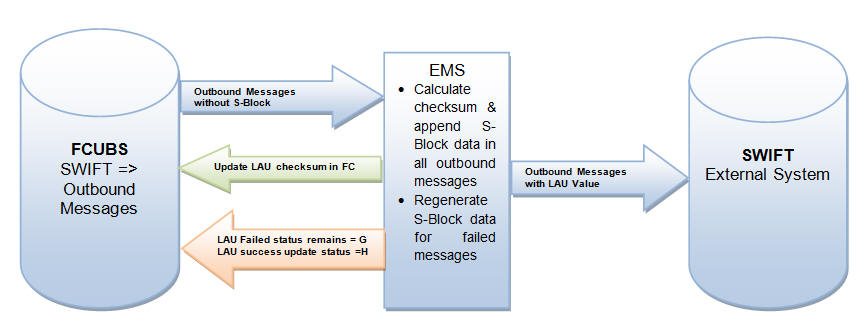

Figure 1-11 Outgoing SWIFT LAU

Description of "Figure 1-11 Outgoing SWIFT LAU"

The outbound message workflow is explained below:

• Oracle FLEXCUBE Universal Banking generates the S-Block for all outbound SWIFT messages with the message status as Generated.
• Common Core - Electronic Messaging Service User Guide refers to SWIFT LAU parameters in Oracle FLEXCUBE Universal Banking SWIFT LAU Key Maintenance screen and applies HMAC-SHA256 algorithm to generate the checksum in S-Block for all outbound messages from Oracle FLEXCUBE Universal Banking.
• For all outbound messages, Electronic Messaging Service generated checksum is appended in the S-block of the message, and the same is updated in the SWIFT LAU field of the Outgoing Message Browser screen.
• Successful generation of S-Block data and message hand-off to the folder will update the message status to Handoff. If there is a failure in appending the S-Block data in the message, Electronic Messaging Service will not update the message status to Handoff in the Outgoing Message Browser screen.
• The next handoff job of Electronic Messaging Service picks up the messages with the status Generated regenerates S-Block data, appends the same in the message and updates the message status to Handoff in Outgoing Message Browser screen.
