1.9 Process SWIFT LAU Key Summary

This topic explains systematic instructions to process SWIFT LAU key maintenance details.

Note:

The fields which are marked in asterisk are mandatory.

1. On Homescreen, type MSSLAUMN in the text box, and click Next.
   The SWIFT LAU Key Summary screen displays.

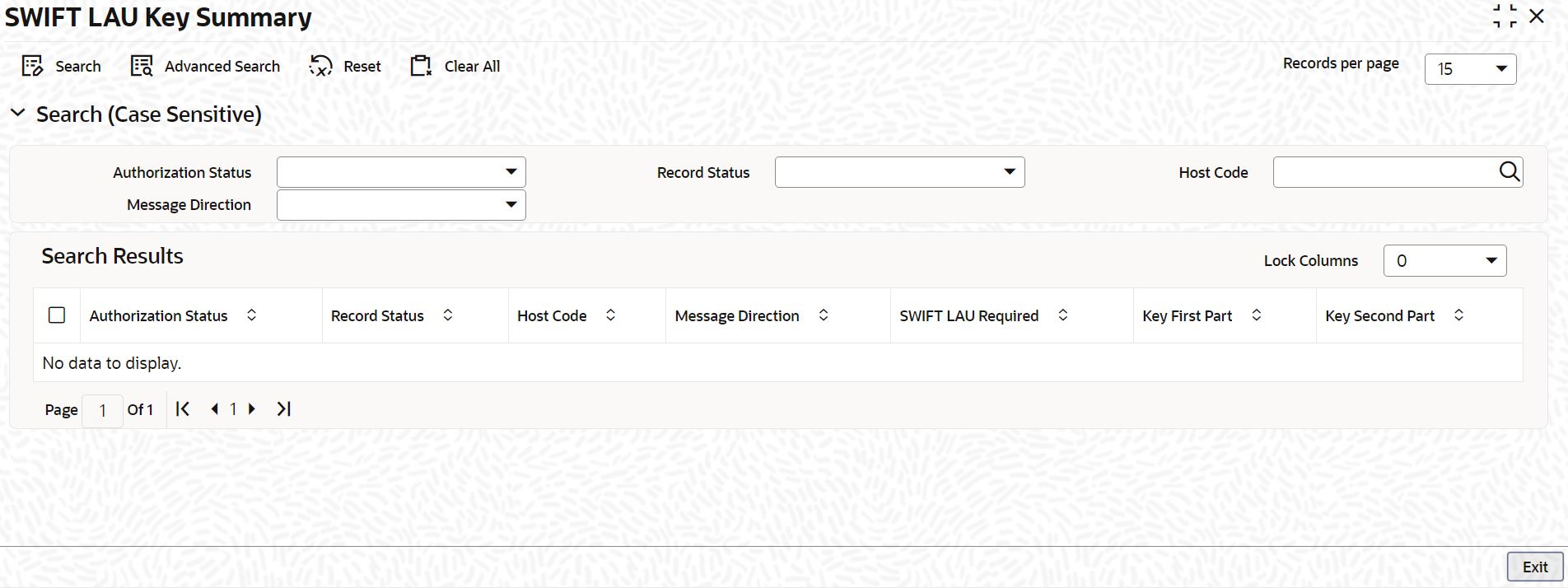

   Figure 1-10 SWIFT LAU Key Summary





   Description of "Figure 1-10 SWIFT LAU Key Summary"



2. On the SWIFT LAU Key Summary screen, specify the fields.

   For more information on fields, refer to the field description table.

   Table 1-14 SWIFT LAU Key Summary - Field Description

   Field	Description
   Authorization Status	Select the authorization status from the drop-down list: Authorized Unauthorized Rejected
   Record Status	Select the record status from the drop-down list: Open Closed
   Host Code	Click Search and specify the Host Code from the list of values.
   Message Direction	Select the message direction from the drop-down list: Incoming Outgoing

3. Click Search after specifying the search parameters.
   The system identifies all records satisfying the specified criteria and displays the following details for each one of them:

   • Authorization Status
   • Record Status
   • Host Code
   • Message Direction
   • SWIFT LAU Required
   • Key First Part
   • Key Second Part
4. Click Exit to end the transaction.
