2.3 Process System Account Balance Job

This topic explains the systematic instructions for system account balance job.

This job is configured to update balances for system accounts at branch level.

1. On the homepage, click Task Management and then click Configure Tasks.
   The Configure Task screen displays.

   Figure 2-5 Configure Tasks





   Description of "Figure 2-5 Configure Tasks"



2. In Configure Tasks screen, specify the following details.

   Note:

   The fields marked as Required are mandatory.

   For more information on fields, refer to the field description table below.

   Table 2-4 Configure Task - Field Description

   Field	Description
   Event	Select this option to configure a task that is triggered based on a system event.
   Schedule	Select this option to configure a task that runs based on a defined schedule.
   Task Name	Specifies the name of the batch task to be configured. Select the required task from the List of Values (LOV).
   Task Trigger Name	Displays the same name that selected in task name field.
   Additional Trigger Parameters	Enter additional parameters required for task execution.

3. Select the Schedule.
4. In Task Name, select OBOLTxnSystemAccountBalanceTask.
5. Enter the Task Trigger Name as unique value per branch, using the format OBOLTxnSystemAccountBalanceTask_<BRANCH_CODE>.
   Example: OBOLTxnSystemAccountBalanceTask_002
6. Enter the CRON Expression, below are the standard CRON expressions.
   0 0 * * * * = the top of every hour of every day.

   */60 * * * * * = every sixty seconds.

7. Enter the Additional Trigger Parameters .
   branchCode:::BRANCH_CODE;populationParamStreamSize:::1000;populationParamPopulationOffset:::0;populationParamPopulationLimit:::0;populationParamConsiderDeferredStreams:::true

   In Above format give branch code for which job scheduler needs to setup.

   branchCode:::002;populationParamStreamSize:::1000;populationParamPopulationOffset:::0;populationParamPopulationLimit:::0;populationParamConsiderDeferredStreams:::true

   Table 2-5 Parameters - Description

   Parameters	Description
   branchCode	Branch for which the job runs.
   populationParamStreamSize	Size of each stream.
   populationParamPopulationOffset	Offset of data population in driver table.
   populationParamPopulationLimit	Limit of data population in driver table.
   populationParamConsiderDeferredStreams	Whether to include deferred streams in processing.

8. Click Save.

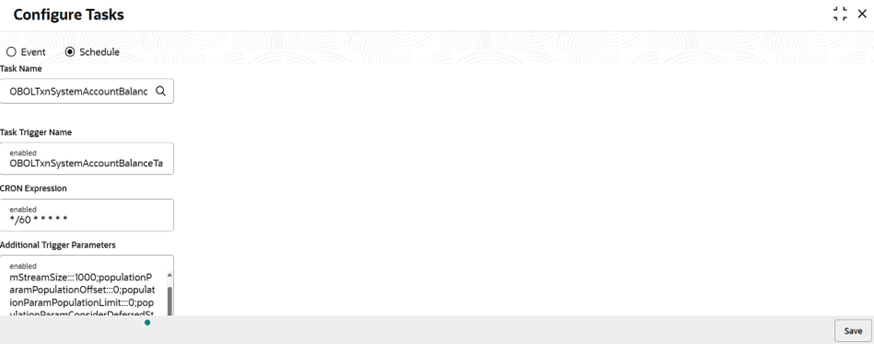

   Figure 2-6 Configure Tasks - System Account Balance Job





   Description of "Figure 2-6 Configure Tasks - System Account Balance Job"




   Once configure task is saved successfully, it gets registered to plato-batch-server and job will trigger as per CRON expression mentioned.
