1.3.2.4 View Rule Group

This topic describes the systematic instructions to view the list of rule group.

The View Rule Group screen allows the user to view and modify the existing rules group.

1. On the Homescreen, click Menu, and then click Rule.
2. Under Rule, click Rule, and then click View Rule Group.
   The View Rule Group screen displays.

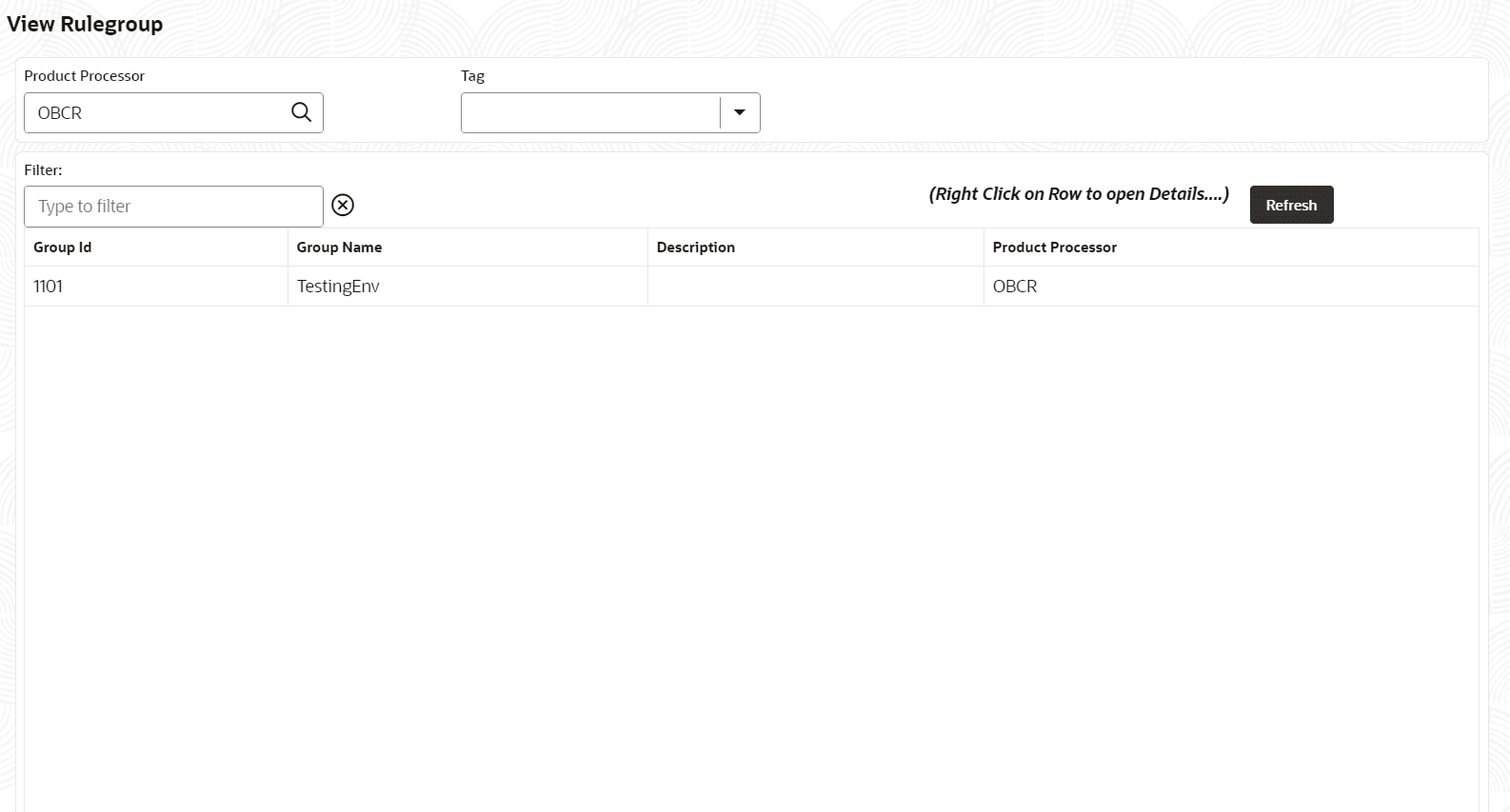

   Figure 1-35 View Rule Group





   Description of "Figure 1-35 View Rule Group"




   For more information on fields, refer to the field description table.

   Table 1-31 View Rule Group – Field Description

   Field	Description
   Product Processor	Click Search and select the product processor.
   Tag	Specify the tag for rule group.
   Group ID	Displays the Group ID.
   Group Name	Displays the name of the group.
   Description	Displays the description of the group.
   Product Processor	Displays the product processor.
